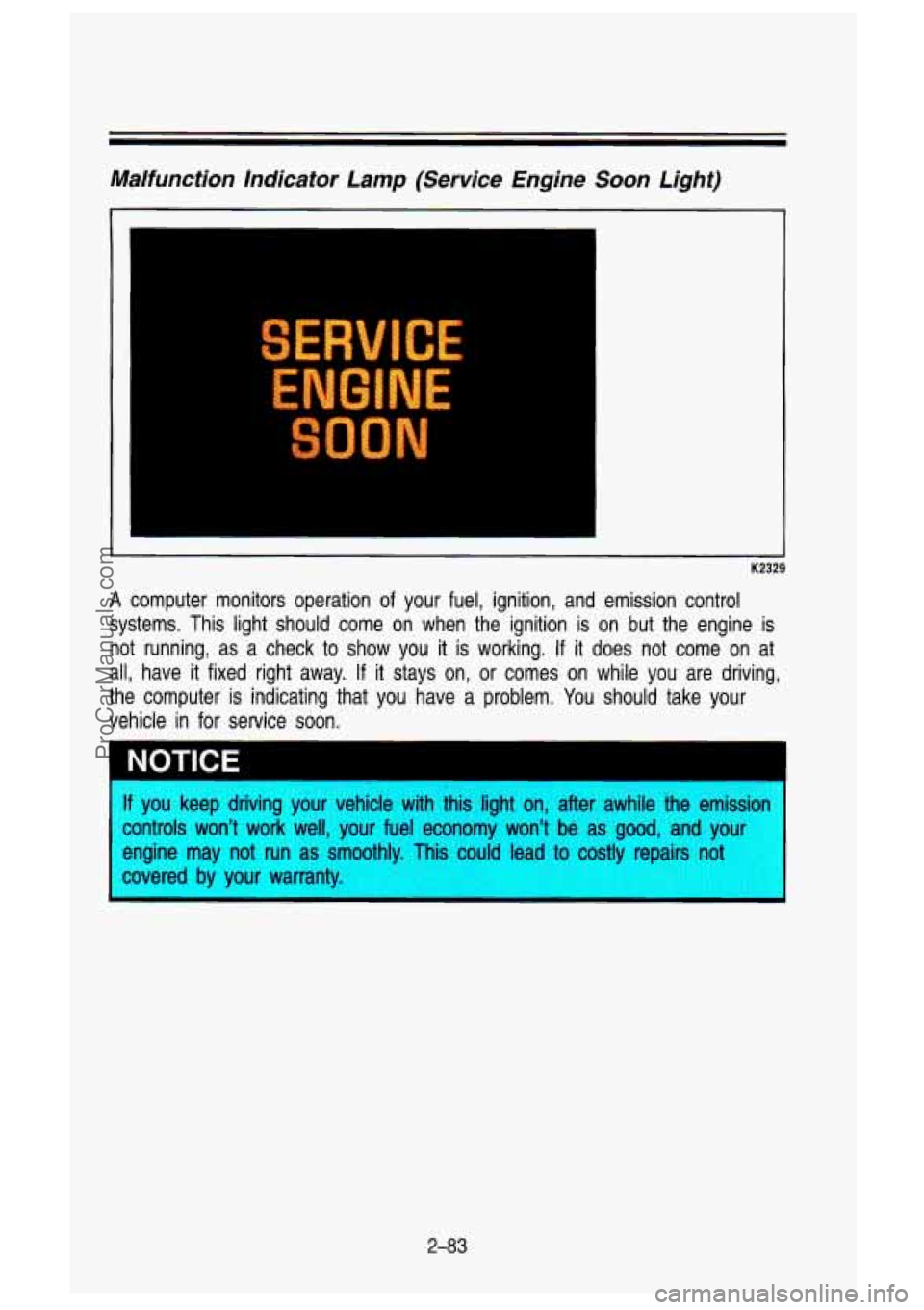

Malfunction Indicator Lamp (Service Engine Soon Light)
I
SERVICE
EF_'31NE
SOON
K2329
A computer monitors operation of your fuel, ignition, and emission control
systems. This light should come on when the ignition is on bu\
t the engine is not running, as a check to show you it is working. If it does not come on at
all, have it fixed right away.
If it stays on, or comes on while you are driving,
the computer is indicating that you have a problem. You should take your
vehicle in for service soon.
NOTICE
E
If you keep driving your vehicle with this light on, after awhile the emission
controls won't work well, your fuel economy won't be as good, and your
engine may not run as smoothly. This could lead
to costly repairs not
covered by your warranty.
2-83
ProCarManuals.com

Features & Controls

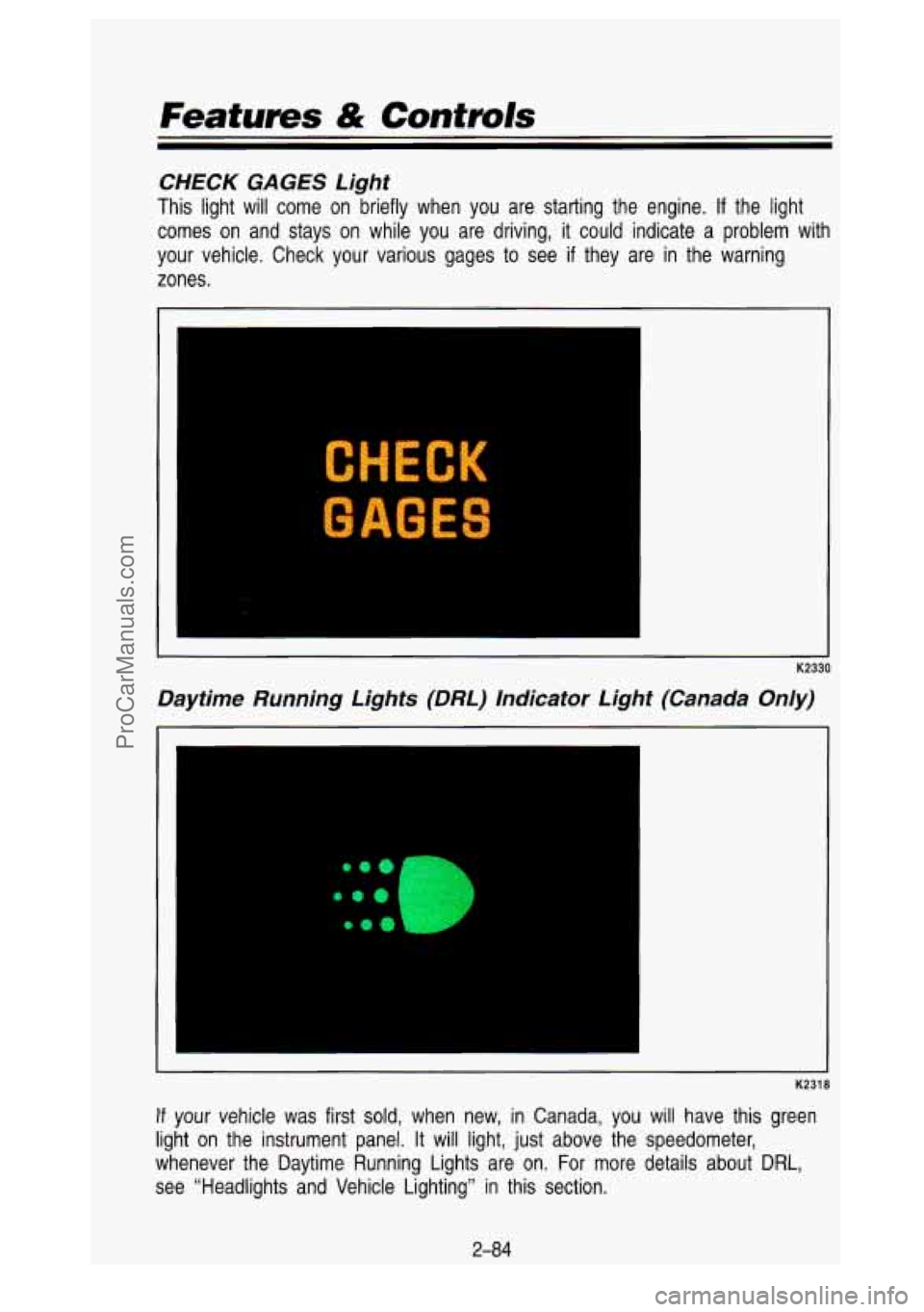

CHECK GAGES Light
This light will come on briefly when you are starting the engine. If the light
comes on and stays
on while you are driving, it could indicate a problem with
your vehicle. Check your various gages to see
if they are in the warning
zones.
K2330
Daytime Running Lights (DRL) Indicator Light (Canada On/y)
I-
K2318
If your vehicle was first sold, when new, in Canada, you will have this green
light on the instrument panel. It will light, just above the \
speedometer,
whenever the Daytime Running Lights are on. For more details a\
bout DRL,
see “Headlights and Vehicle Lighting” in this section.
2-84
ProCarManuals.com

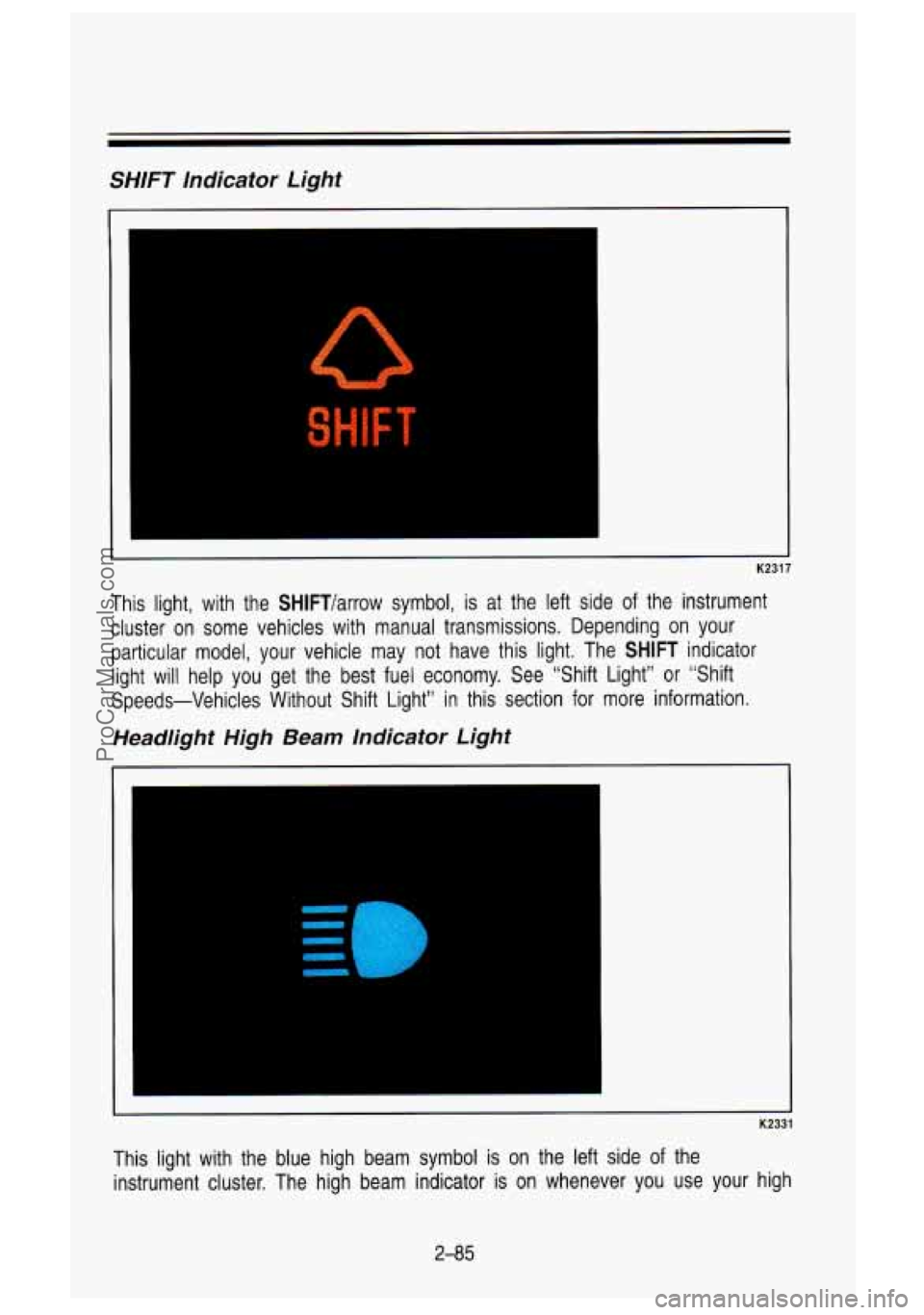

SHlFT Indicator Light
I
K2317
This light, with the SHlFTlarrow symbol, is at the left side of the instrument
cluster on some vehicles with manual transmissions. Depending on your
particular model, your vehicle may not have this light. The SH\
IFT indicator light will help you get the best fuel economy. See “Shift \
Light” or “Shift
Speeds-Vehicles Without Shift Light” in this section for more\
information.
Headlight High Beam Indicator Light
-4
K2331
This light with the blue high beam symbol is on the left sid\
e of the
instrument cluster. The high beam indicator is on whenever you \
use your high
2-85
ProCarManuals.com

Features & Contmls

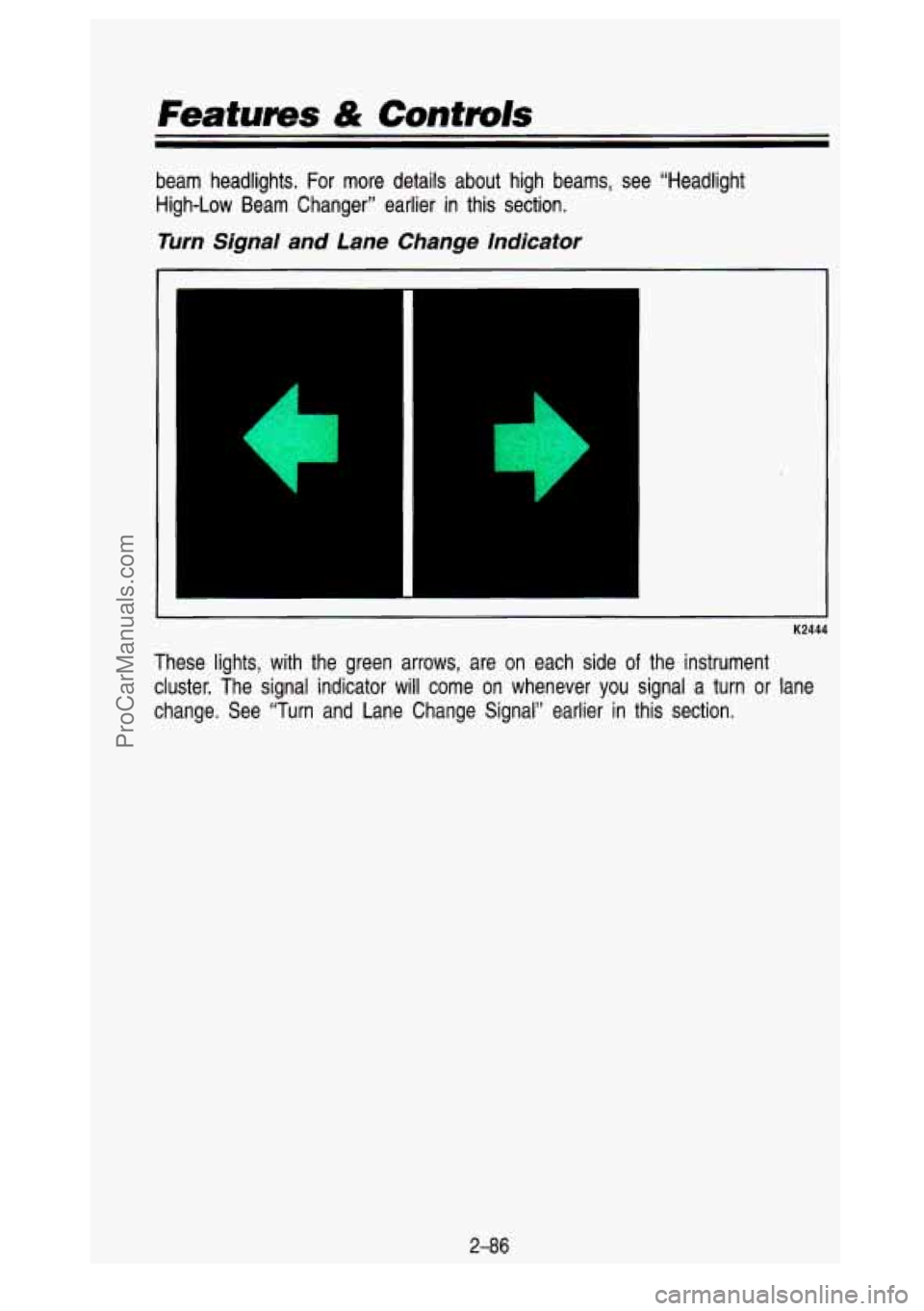

beam headlights. For more details about high beams, see “Hea\
dlight High-Low Beam Changer” earlier in this section.
Turn Signal and Lane Change Indicator
K2444
These lights, with the green arrows, are on each side of the instrument
cluster. The signal indicator will come on whenever
you signal a turn or lane
change. See “Turn and Lane Change Signal” earlier in this section,
2-86
ProCarManuals.com

Gages

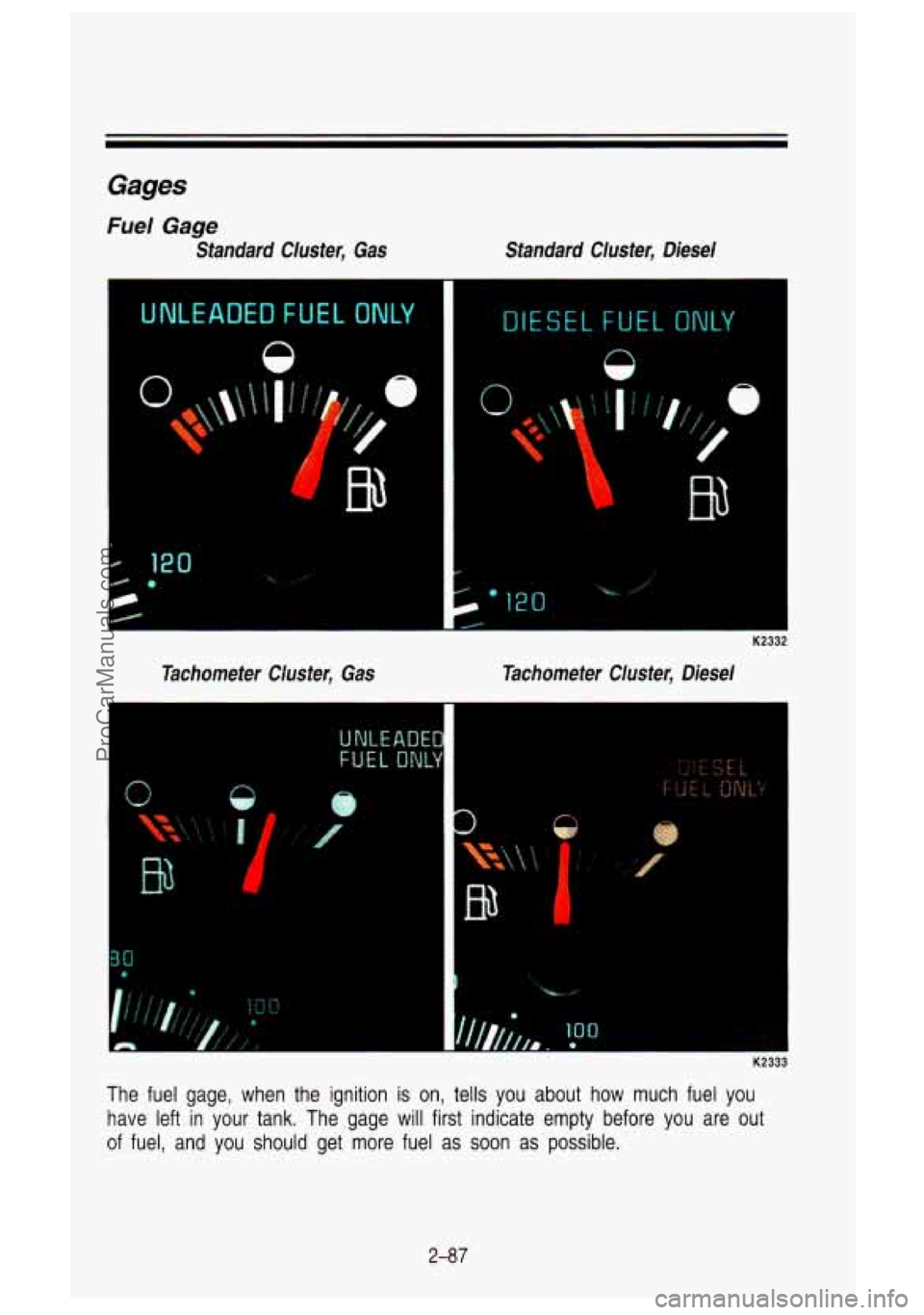

Fuel Gage
Standard Cluster, Gas Standard Clusfer, Diesel
ADED FUEL ONLY DtESEL FUEL ONLY
n
Tachometer Cluster, Gas Tachometer Cluster, Diesel
UNtE
FUEL
a
EL I
K2333
The fuel gage, when the ignition is on, tells you about how much fuel you
have left in your tank. The gage will first indicate empty be\
fore you are out
of fuel, and you should get more fuel
as soon as possible.
2-87
ProCarManuals.com

Features & Controls
Listed are four situations you may experience with your fuel g\
age:
At the gas station, the fuel pump shuts off before the gage reads full.
It takes a little more or less fuel to fill up than the fuel gage indicated.
For example, the gage may have indicated the tank was half fu\
ll, but
it
actually took a little more or less than half the tank's capa\
city to fill the
tank.
The gage moves a little when you turn a corner or speed up. \
The gage doesn't go back to empty when you turn off the ignition.
None of these indicate a problem with the fuel gage.
For information on how to
fill your fuel tank see "Fuel-Filling Your Tank" in
the Index.
For your fuel tank capacity, see "Fuel-Tank Capacity"
in the Index.

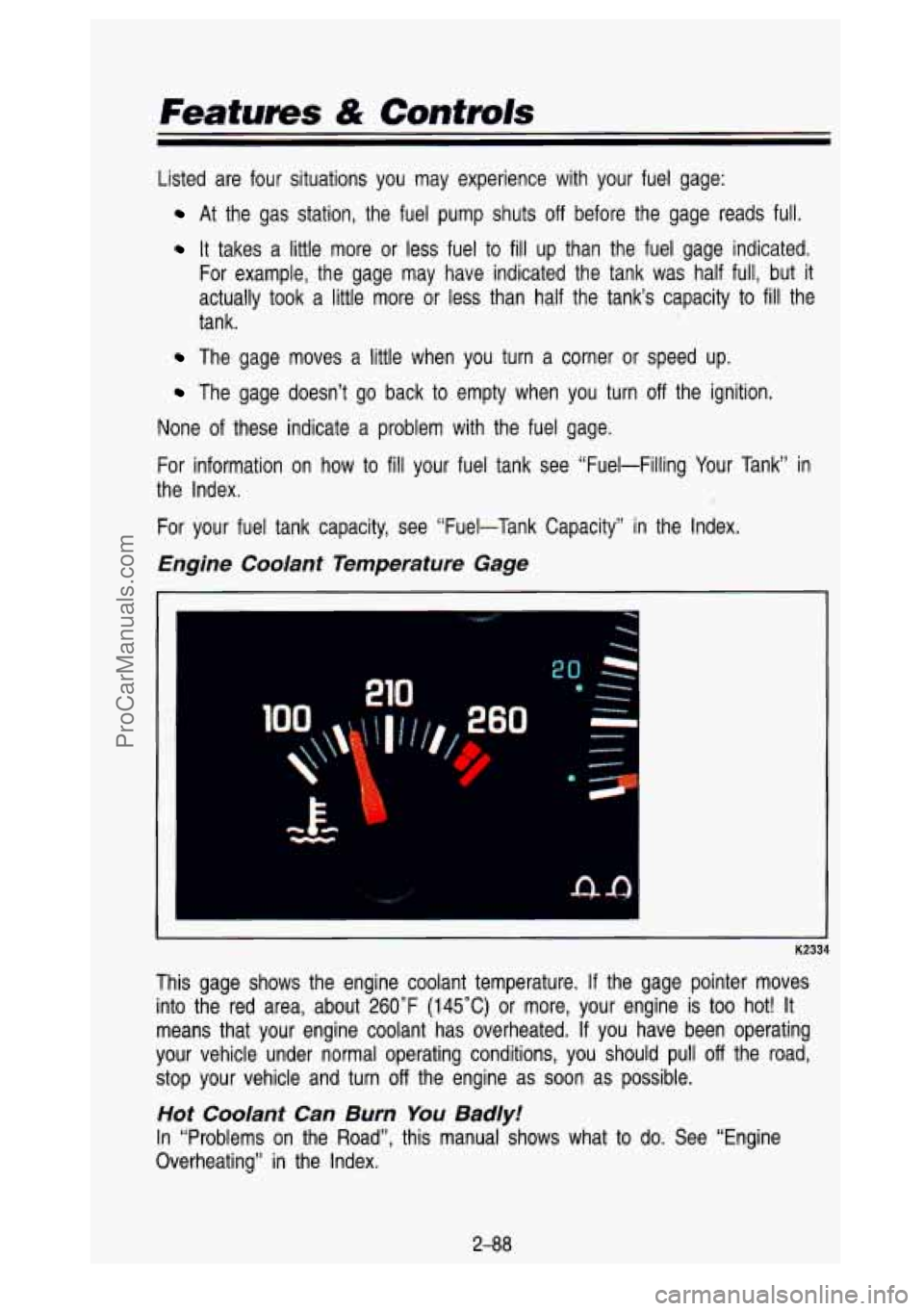

Engine Coolant Temperature Gage
760
K2334
This gage shows the engine coolant temperature. If the gage pointer moves
into the red area, about 260°F
(145°C) or more, your engine is too hot! It
means that your engine coolant has overheated.
If you have been operating
your vehicle under normal operating conditions, you should pull \
off the road,
stop your vehicle and turn
off the engine as soon as possible.
Hot Coolant Can Burn You Badly!
In "Problems on the Road", this manual shows what to do. See \
"Engine
Overheating" in the Index.
2-88
ProCarManuals.com

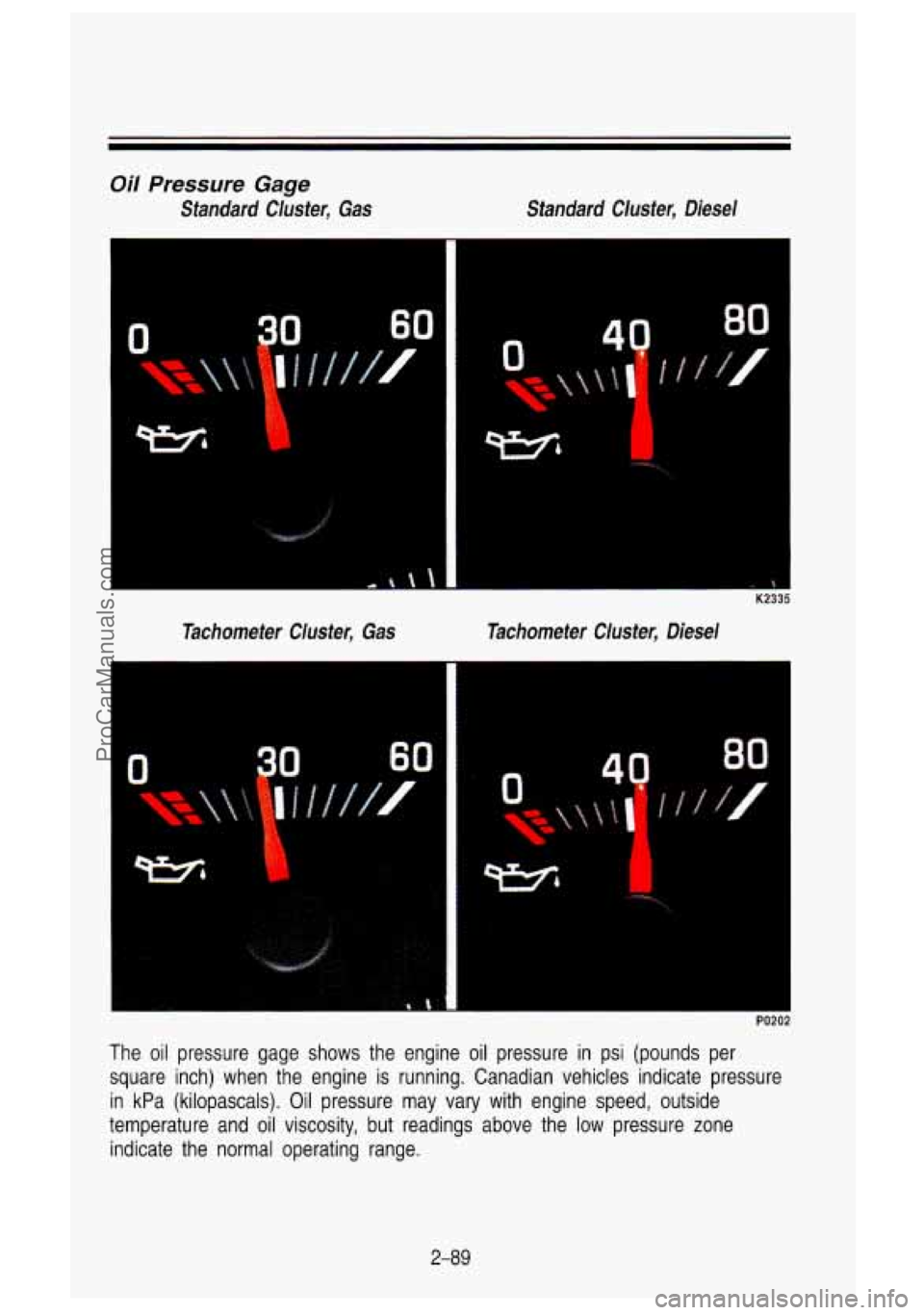

Oil Pressure Gage
Standard Cluster, Gas Standard Cluster, Diesel
60
K2335
Tachometer Cluster, Gas Tachometer Cluster, Diesel
The oil pressure gage shows the engine oil pressure in psi (pounds per
square inch) when the engine is running. Canadian vehicles ind\
icate pressure
in kPa (kilopascals). Oil pressure may vary with engine speed\
, outside
temperature and
oil viscosity, but readings above the low pressure zone
indicate the normal operating range.
2-89
ProCarManuals.com

Features & Controls

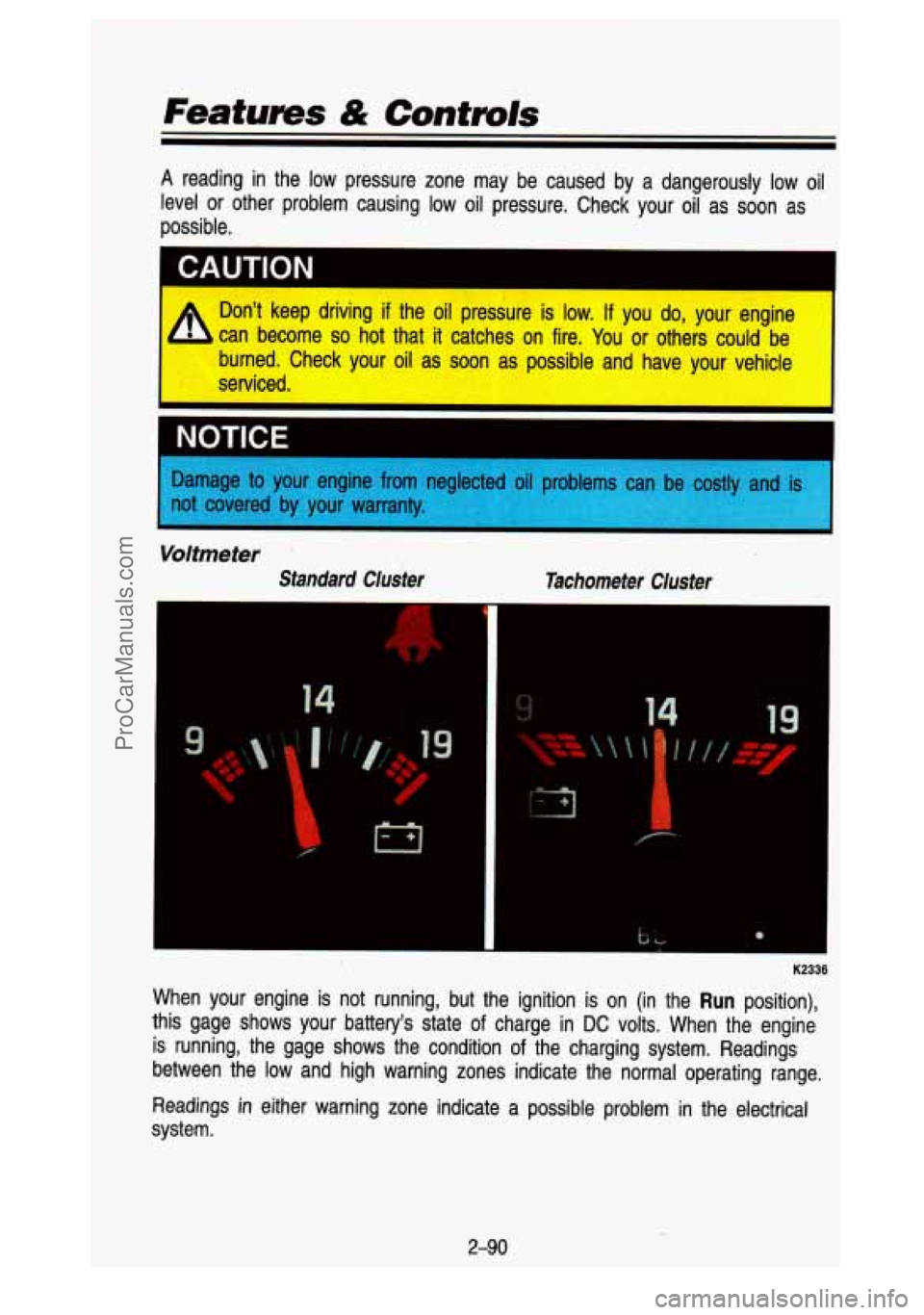

A reading in the low pressure zone may be caused by a dangerously low oil
level or other problem causing low oil pressure. Check your oil as soon as
possible.
bnu I IUIY
+ Don’t keep driving if the oil pressure is low. If you do, your engine
can become
so hot that it catches on fire. You or others could be
burned. Check your oil as soon as possible and have your vehicle
serviced.
I NOTICE
Damage to your engine from neglected oil problems can be costly anc
not covered by your warranty.
Voltmeter
Standard Cluster Tachometer Cluster
14 14
A
K2336
When your engine is not running, but the ignition is on (in the Run position),
this gage shows your battery’s state of charge in DC volts. When the engine
is running, the gage shows the condition of the charging system. Readings
between the low and high warning zones indicate the normal ope\
rating range.
Readings
in either warning zone indicate a possible problem in the electrical
system.
2-90
ProCarManuals.com

.
You can only drive for a short time with the reading in either warning zone. If
you must drive, turn
off all unnecessary accessories, and have the vehicle
serviced as soon as possible.

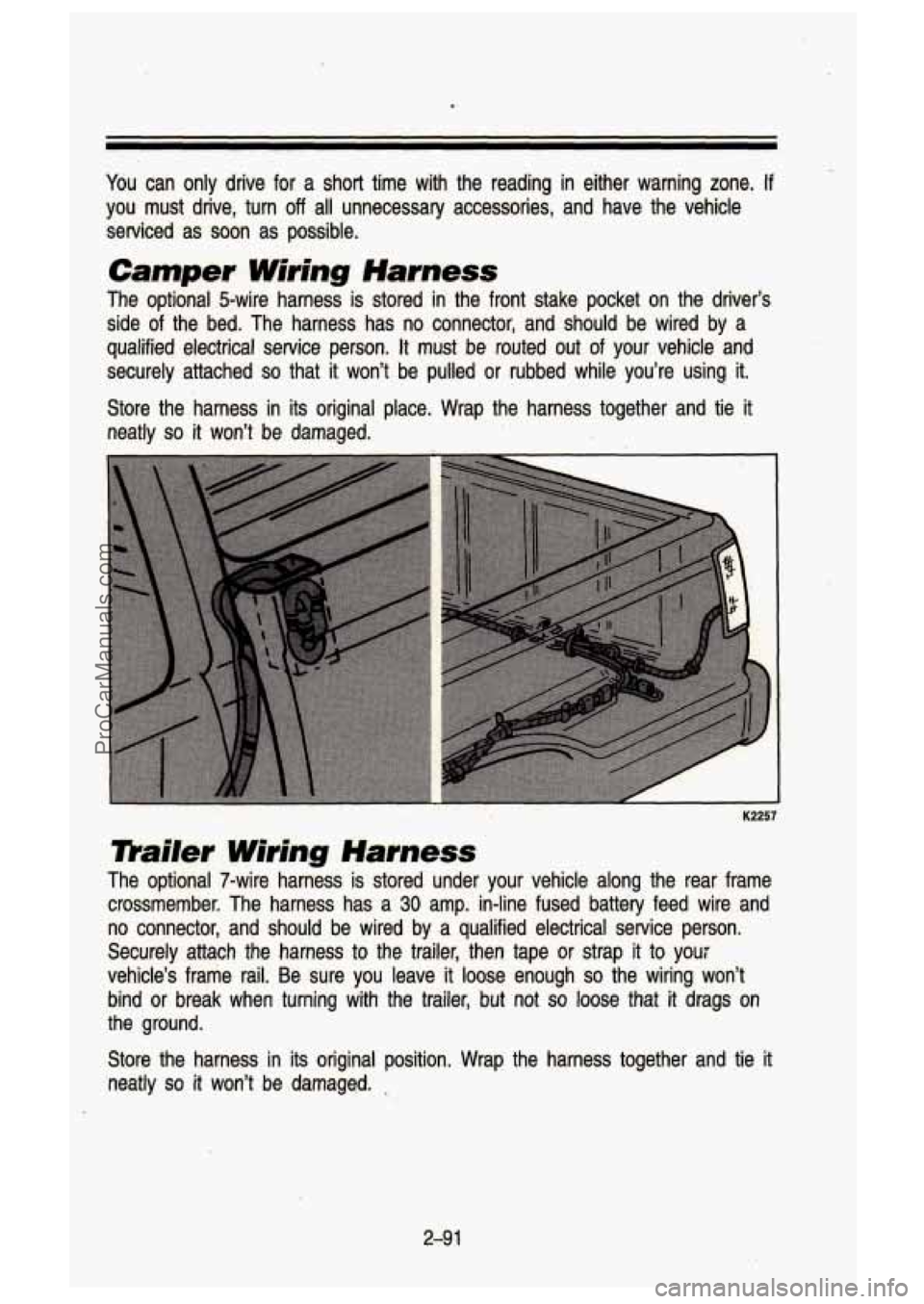

Camper Wiring Harness
The optional 5-wire harness is stored in’ the front stake pocket on the driver’s
side of’ the bed. The harness has no connector, and should be wired by\
a
qualified electrical service person.
It must be routed out of your vehicle and
securely attached
so that it won’t be pulled or rubbed while you’re using it.
Store the -harness in its original place. Wrap the harness together and tie it
neatly
so it won3 be damaged.
The optional 7-wire harness
is stored under your vehicle along the rear frame
crossmember. The harness has a’
30 amp. in-line fused battery feed wire and
no connector, and should be wired by a qualified electrical se\
rvice person.
Securely attach
the harness to the trailer, then tape or strap it to your
vehicle’s frame rail. Be sure you leave it loose enough
so the wiring won’t
bind
or break when turning with the trailer, but not so loose that it drags on
the ground.
Store the harness in its original position. Wrap the harness together and tie it
neatly so it won’t be damaged. ,
2-9 1
