GMC SIERRA 1994 Repair Manual

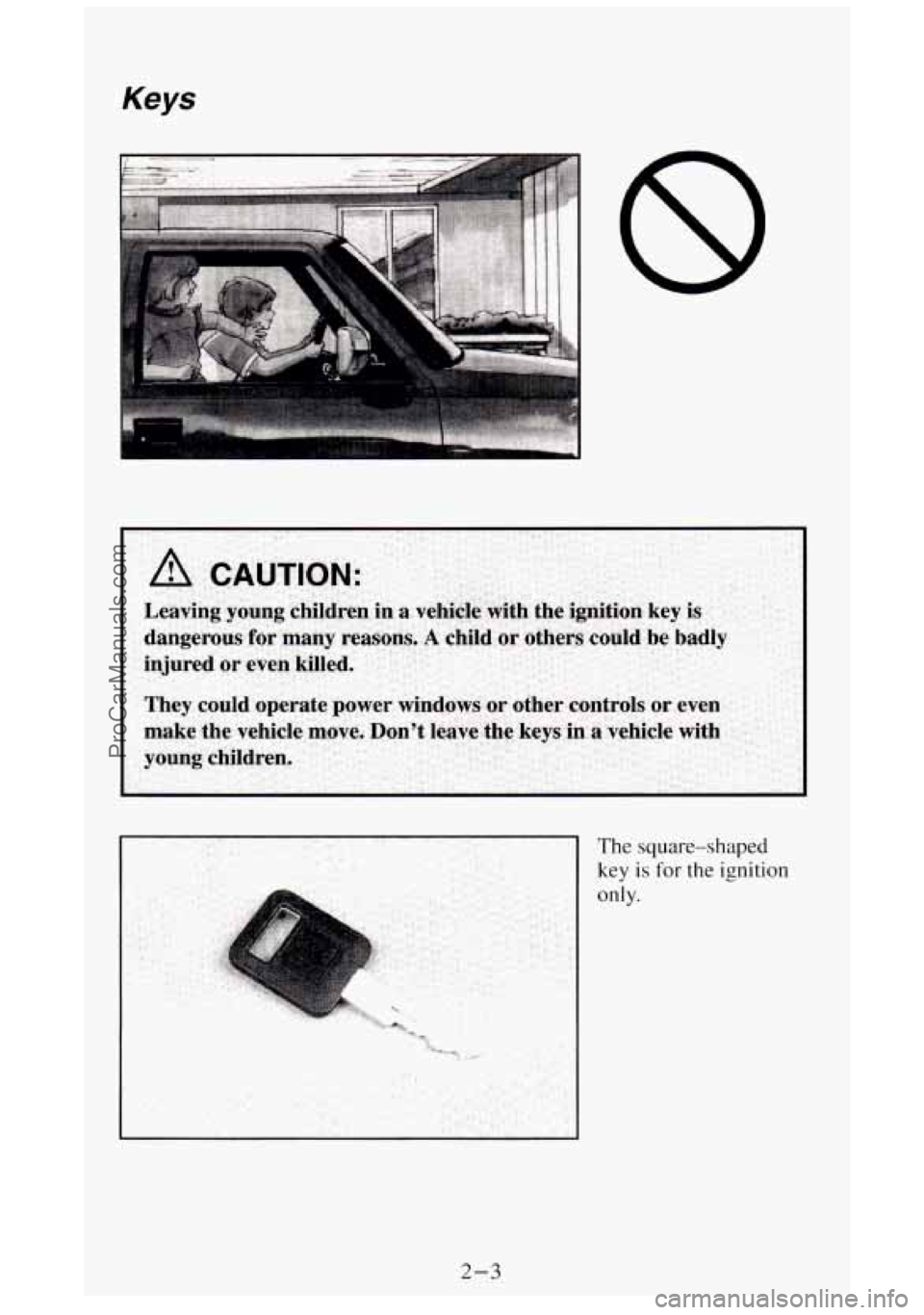

Keys
The square-shaped
key is for the ignition
only.
2-3
ProCarManuals.com

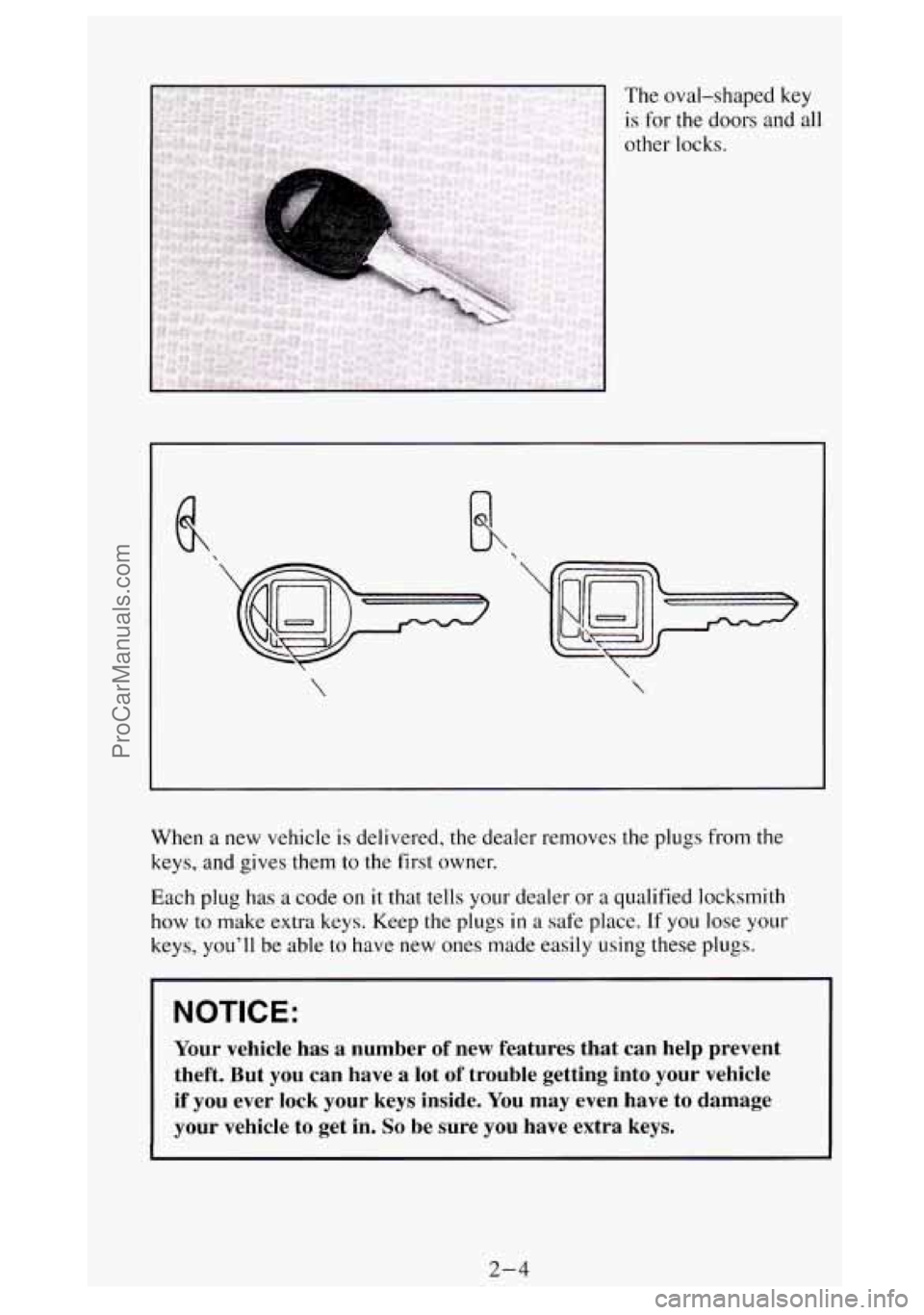

The oval-shaped key
is for the doors and all
other locks.
n

When a new vehicle is delivered, the dealer removes the plugs from the
keys, and gives them to the first owner.
Each plug has
a code on it that tells your dealer or a qualified locksmith
how to make extra keys. Keep
the plugs in a safe place. If you lose your
keys, you’ll be able to have new ones made easily using these plugs.
NOTICE:
Your vehicle has a number of new features that can help prevent
theft. But you can have
a lot of trouble getting into your vehicle
if you ever lock your keys inside.
You may even have to damage
your vehicle to get in.
So be sure you have extra keys.
2-4
ProCarManuals.com

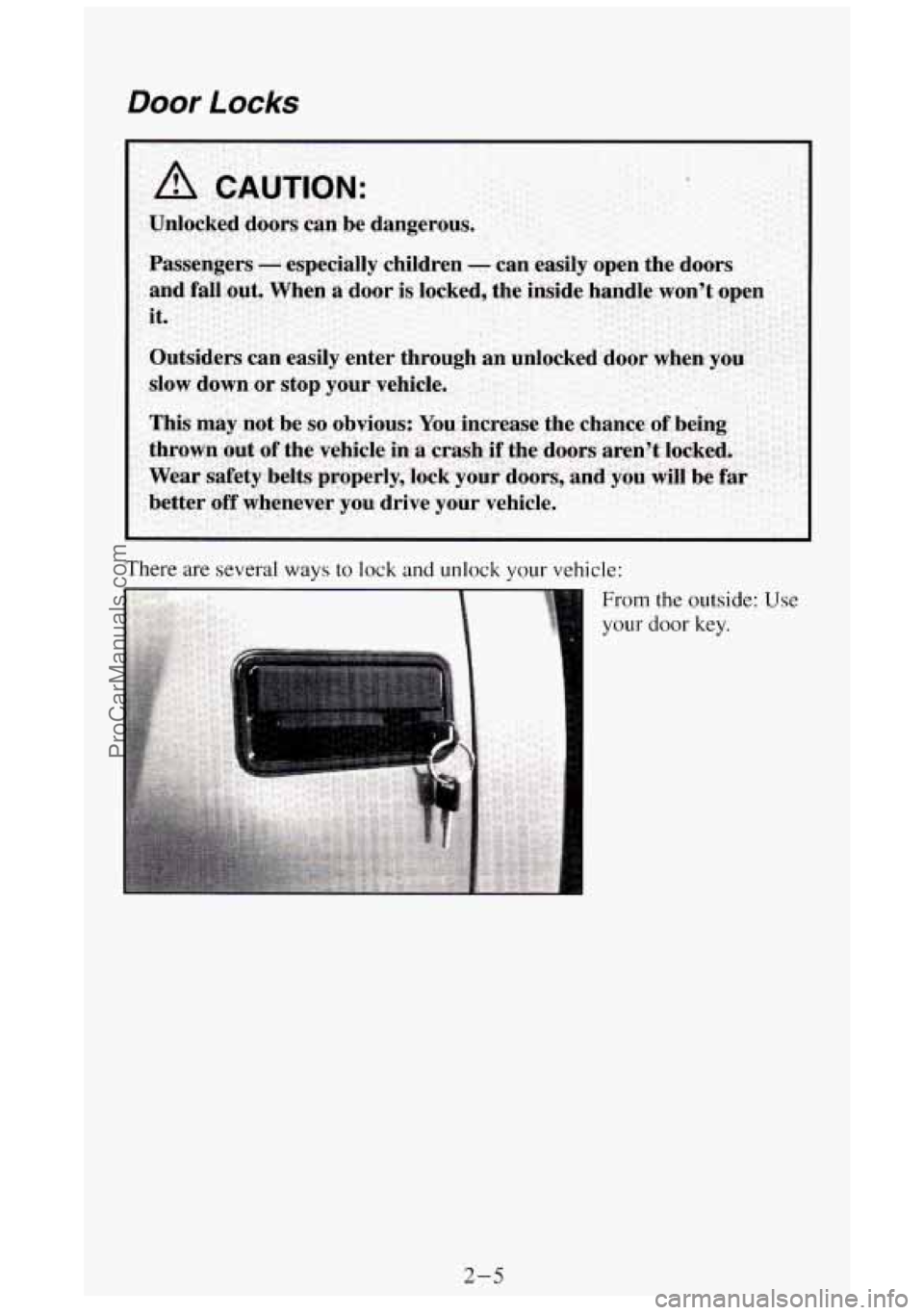

Door Locks
There are several ways to lock and unlock your vehicle:
From the outside:
Use
your door key.
2-5
ProCarManuals.com

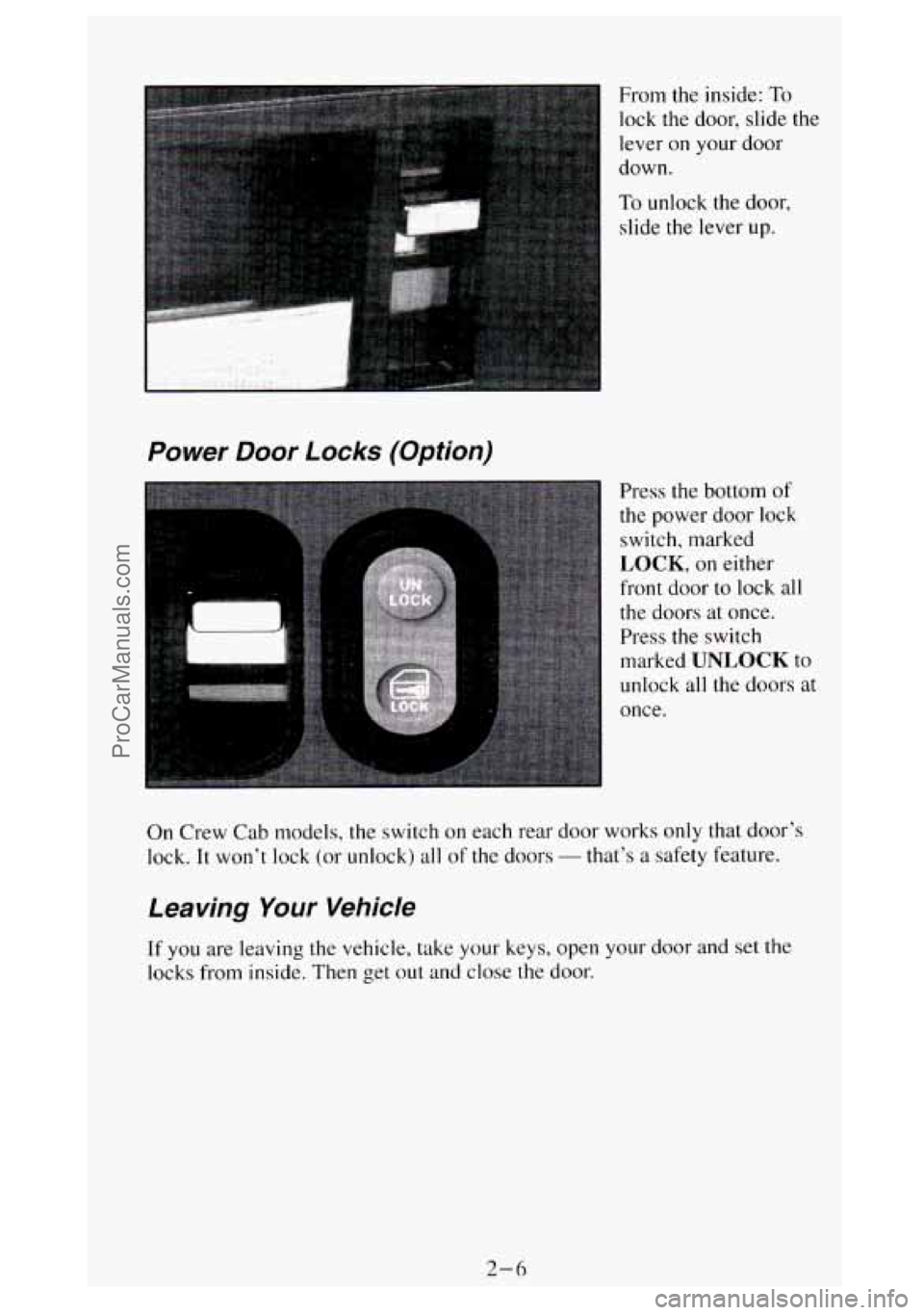

From the inside: To
I lock the door, slide the
Power Door Locks (Option)
Press the bottom of
the power door lock
switch, marked
LOCK, on either
front door
to lock all
the doors at once.
Press the switch marked
UNLOCK to
unlock all the doors at
lever on
your door
down.
To unlock the door,
slide
the lever up.
once.
On Crew Cab models, the switch on each rear door works only that door’s
lock.
It won’t lock (or unlock) all of the doors - that’s a safety feature.
Leaving Your Vehicle
If you are leaving the vehicle, take your keys, open your door and set the
locks from inside. Then get out and close the door.
2-6
ProCarManuals.com

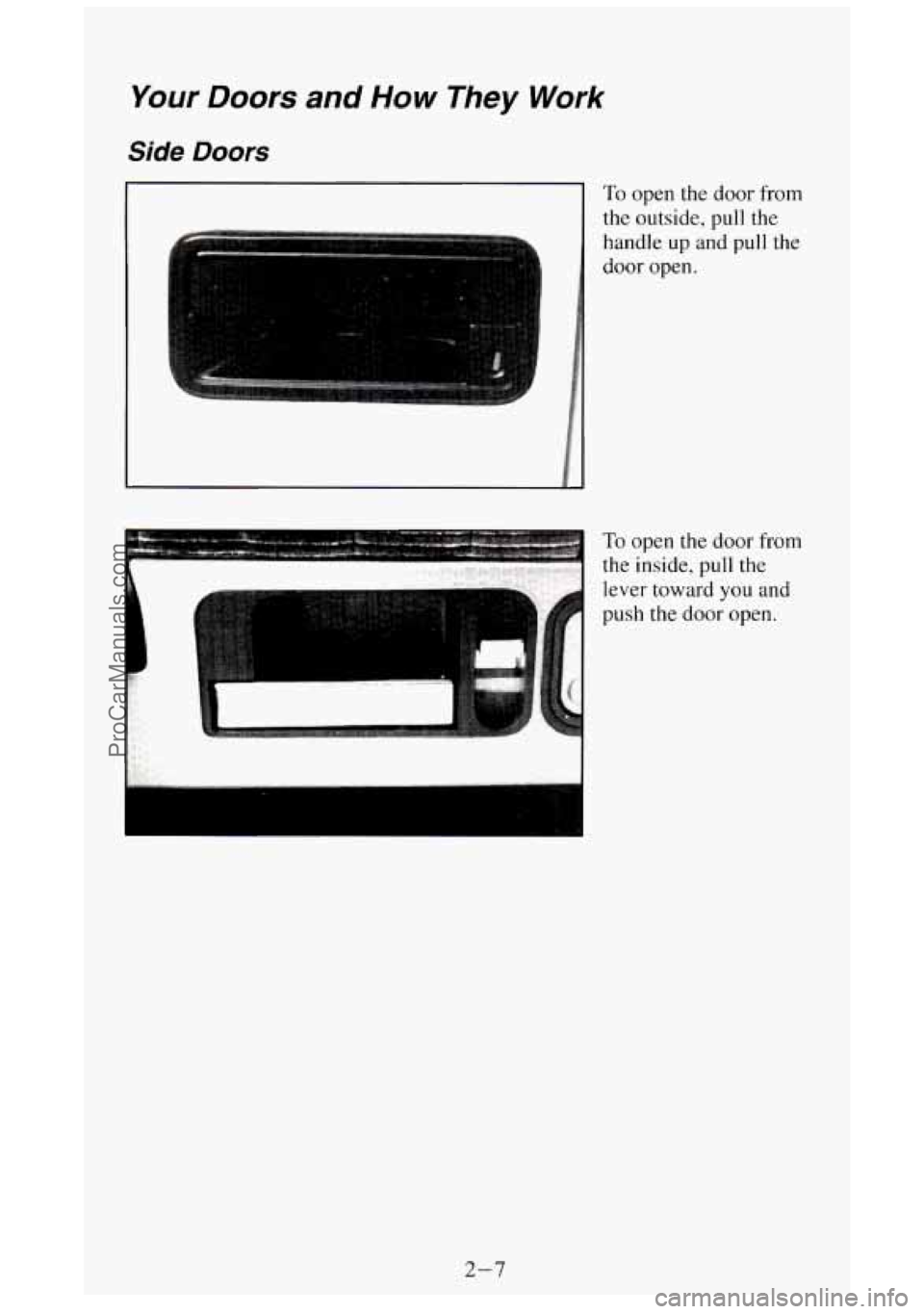

Your Doors and How They Work
Side Doors
d
To open the door from
the outside, pull the
handle up and pull the
door
open.
~ To open the door from
the inside, pull the
lever toward
you and
push the door open.
i
2-7
ProCarManuals.com

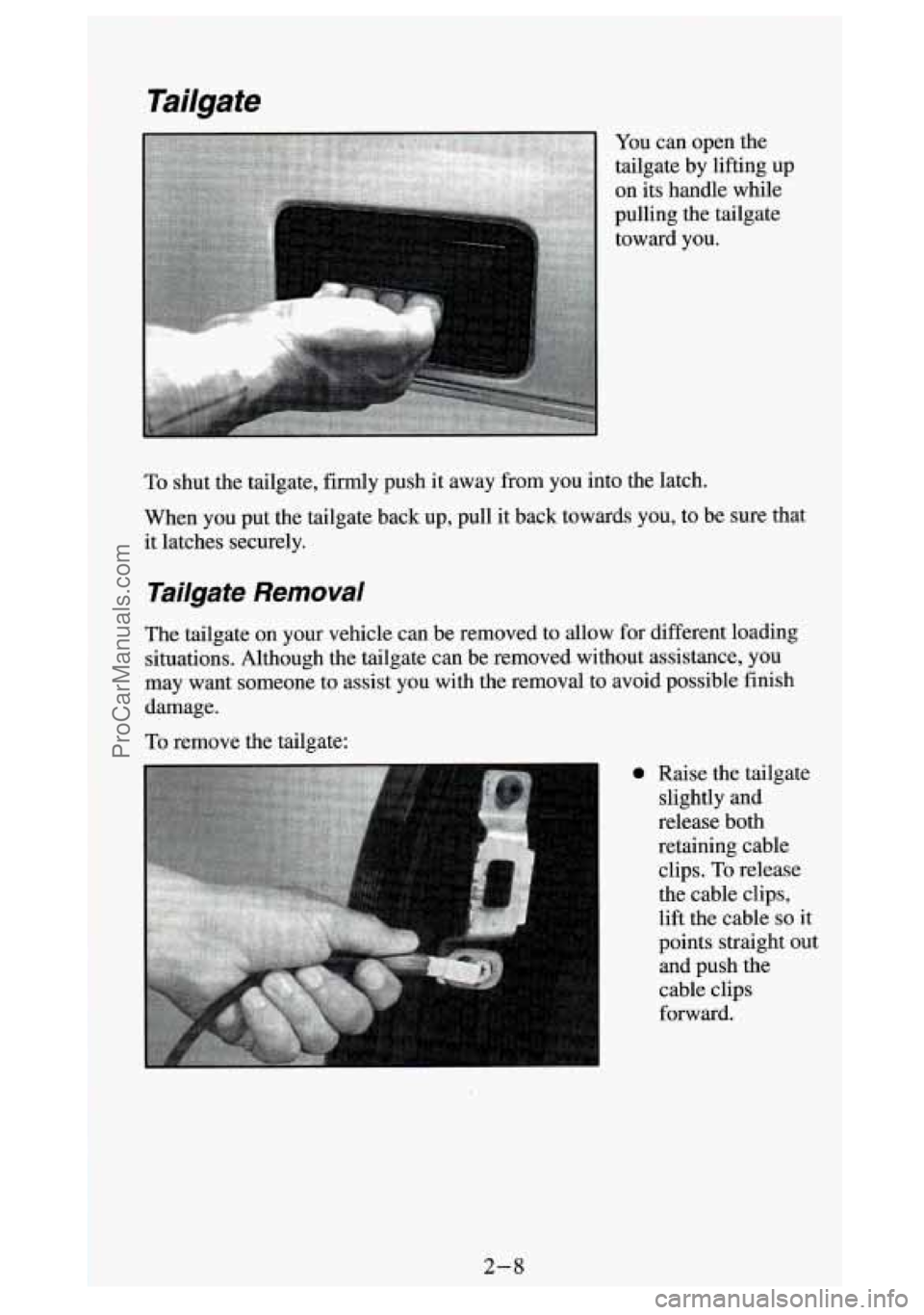

Tailgate
You can open the
tailgate by lifting up
on its handle while
pulling the tailgate
toward you.
To shut the tailgate, firmly push it away from you into the latch.
When you put the tailgate back up, pull it back towards you, to be sure that
it latches securely.
Tailgate Removal
The tailgate on your vehicle can be removed to allow for different loading
situations. Although the tailgate can be removed without assistance, you
may want someone to assist you with the removal to avoid possible finish
damage.
To remove the tailgate:
0 Raise the tailgate
slightly and
release both
retaining cable
clips. To release
the cable clips,
lift the cable
so it
points straight out
and push the
cable clips
forward.
ProCarManuals.com

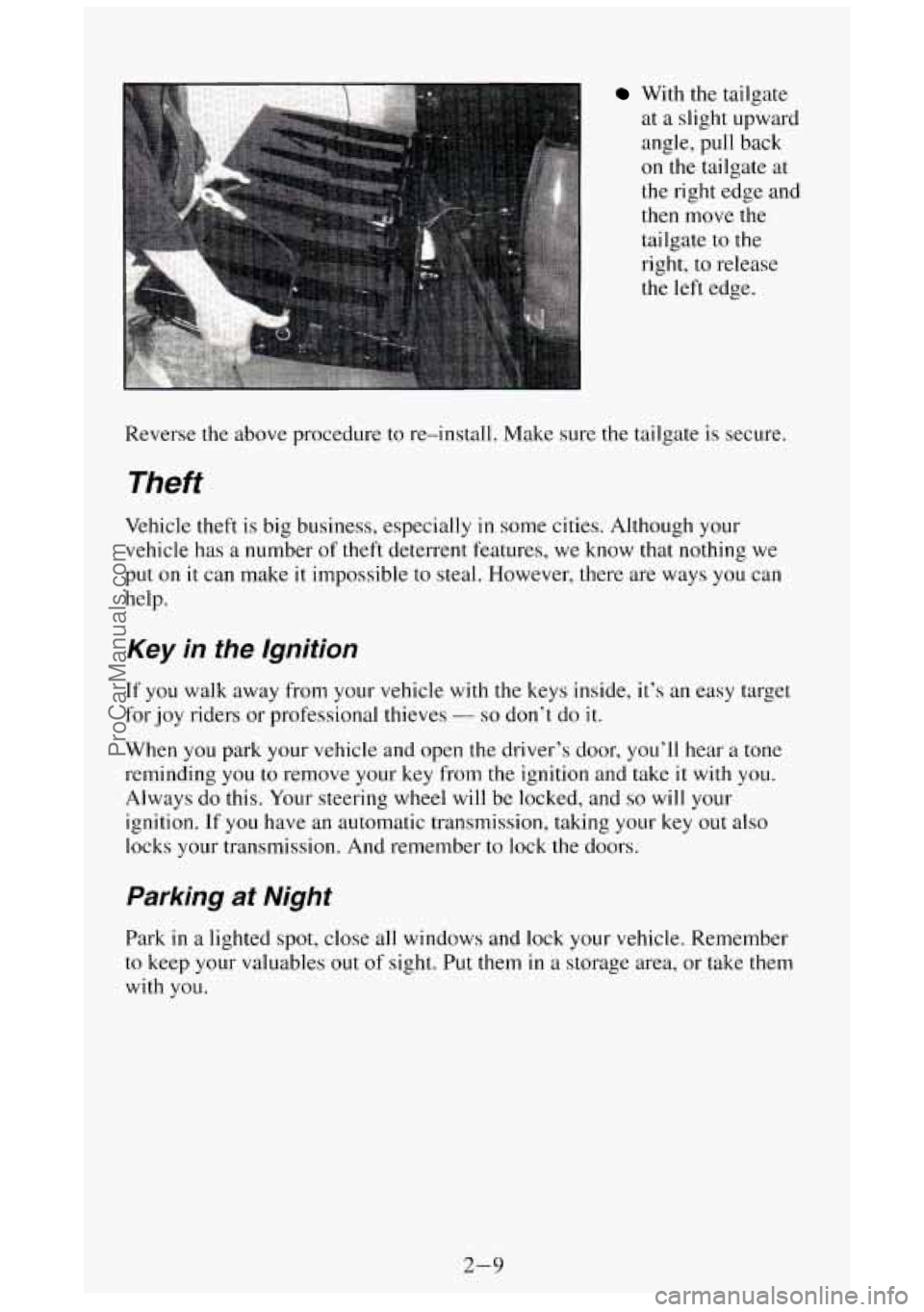

With the tailgate at a slight upward
angle, pull back
on the tailgate at
the right edge and
then move the
tailgate to the
right,
to release
the
left edge.
Reverse the above procedure to re-install. Make sure the tailgate is secure.
Theft
Vehicle theft is big business, especially in some cities. Although your
vehicle has a number of
theft deterrent features, we know that nothing we
put on it can make
it impossible to steal. However, there are ways you can
help.
Key in the Ignition
If you walk away from your vehicle with the keys inside, it’s an easy target
for joy riders or professional thieves
- so don’t do it.
When you park your vehicle and open the driver’s door, you’ll hear a tone
reminding
you to remove your key from the ignition and take it with you.
Always
do this. Your steering wheel will be locked, and so will your
ignition. If you have an automatic transmission, taking your
key out also
locks your transmission. And remember to lock the doors.
Parking at Night
Park in a lighted spot, close all windows and lock your vehicle. Remember
to keep your valuables out of sight. Put them in a storage area, or take them
with you.
2-9
ProCarManuals.com

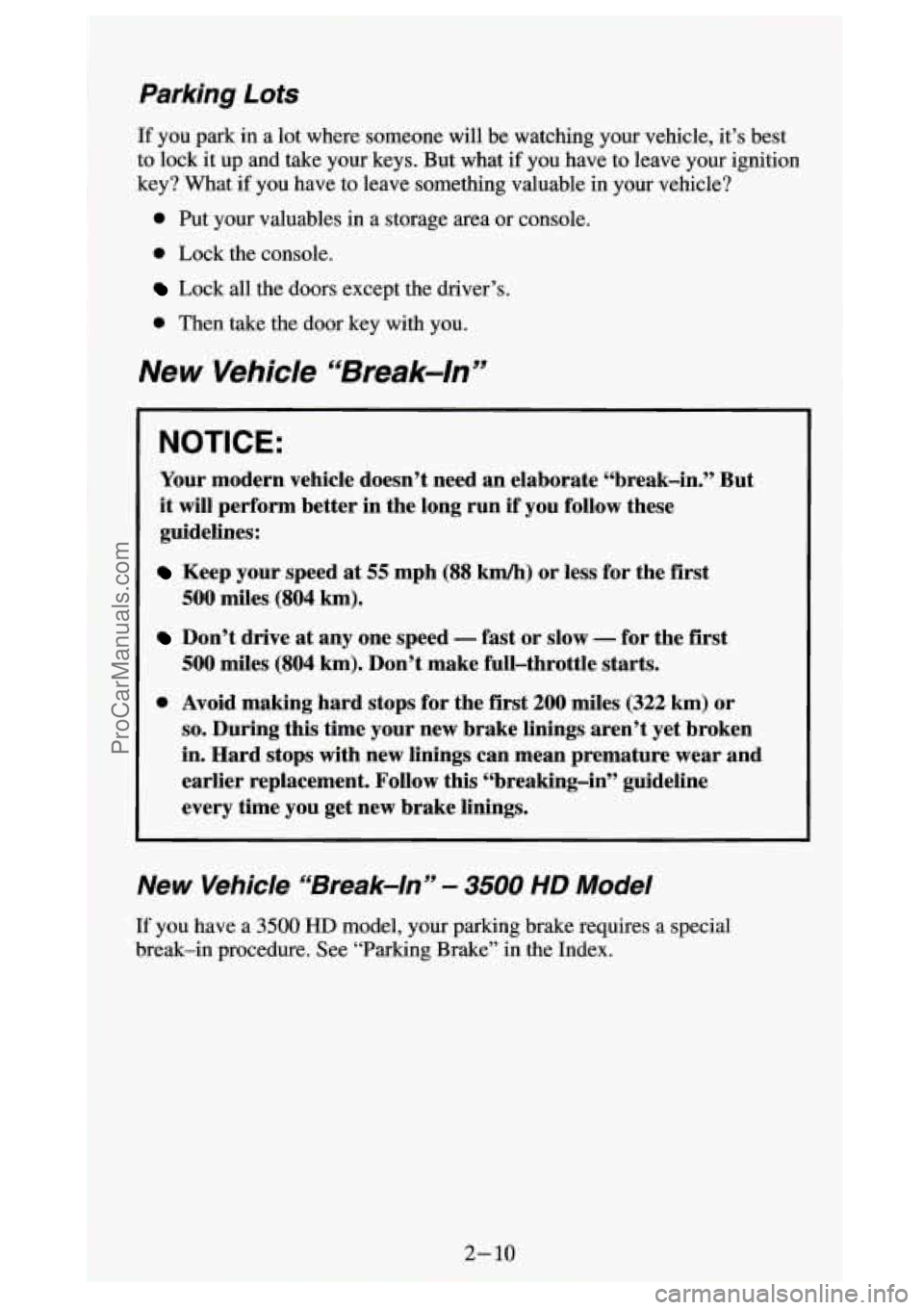

Parking Lots
If you park in a lot where someone will be watching your vehicle, it’s best
to lock it up and take your keys. But what
if you have to leave your ignition
key? What if you have to leave something valuable
in your vehicle?
0 Put your valuables in a storage area or console.
0 Lock the console.
Lock all the doors except the driver’s.
0 Then take the door key with you.
New Vehide “Break-In”
NOTICE:
Your modern vehicle doesn’t need an elaborate “break-in.” But
it will perform better in the long run if you follow these
guidelines:
Keep your speed at 55 mph (88 km/h) or less for the first
500 miles- (804 km).
Don’t drive at any one speed - fast or slow - for the first
500 miles (804 km). Don’t make full-throttle starts.
0 Avoid making hard stops for the first 200 miles (322 km) or
so. During this time your new brake linings aren’t yet broken
in. Hard stops with new linings can mean premature wear and
earlier replacement. Follow
this “breaking-in” guideline
every time you get new brake linings.
New Vehicle “Break-In” - 3500 HD Model
If you have a 3500 HD model, your parking brake requires a special
break-in procedure. See “Parking Brake” in the Index.
ProCarManuals.com

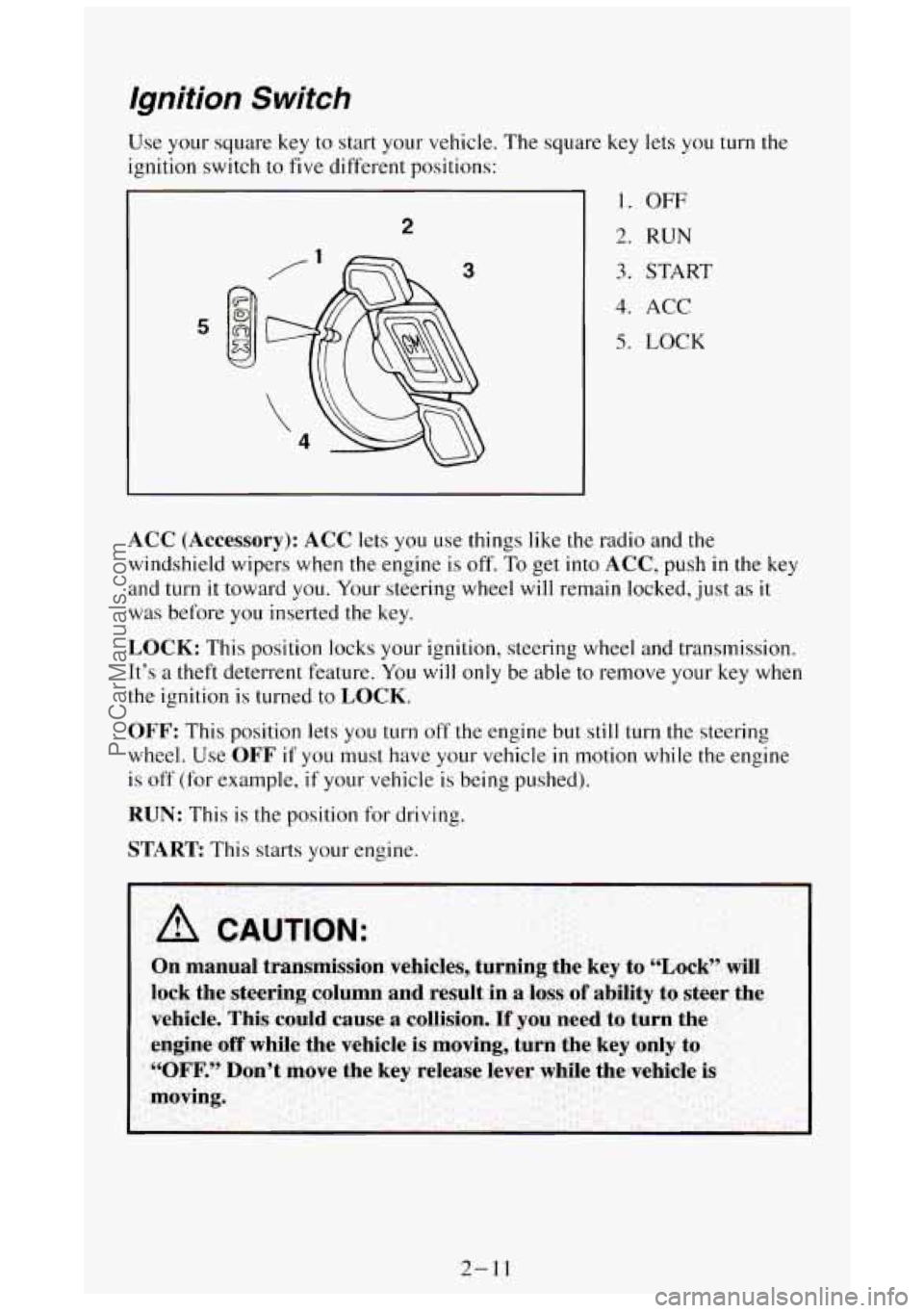

Ignition Switch
Use your square key to start your vehicle. The square key lets you turn the
ignition switch to
five different positions:
I 2
5
Q
3
1. OFF
2. RUN
3. START
4. ACC
5. LOCK
ACC (Accessory): ACC lets you use things like the radio and the
windshield wipers when the engine
is off. To get into ACC, push in the key
and turn
it toward you. Your steering wheel will remain locked, just as it
was before you inserted the key.
LOCK: This position locks your ignition, steering wheel and transmission.
It's
a theft deterrent feature. You will only be able to remove your key when
the ignition is turned to
LOCK.
OFF: This position lets you turn off the engine but still turn the steering
wheel. Use
OFF if you must have your vehicle in motion while the engine
is
off (for example, if your vehicle is being pushed).
RUN: This is the position for driving.
START This starts your engine.
2-11
ProCarManuals.com

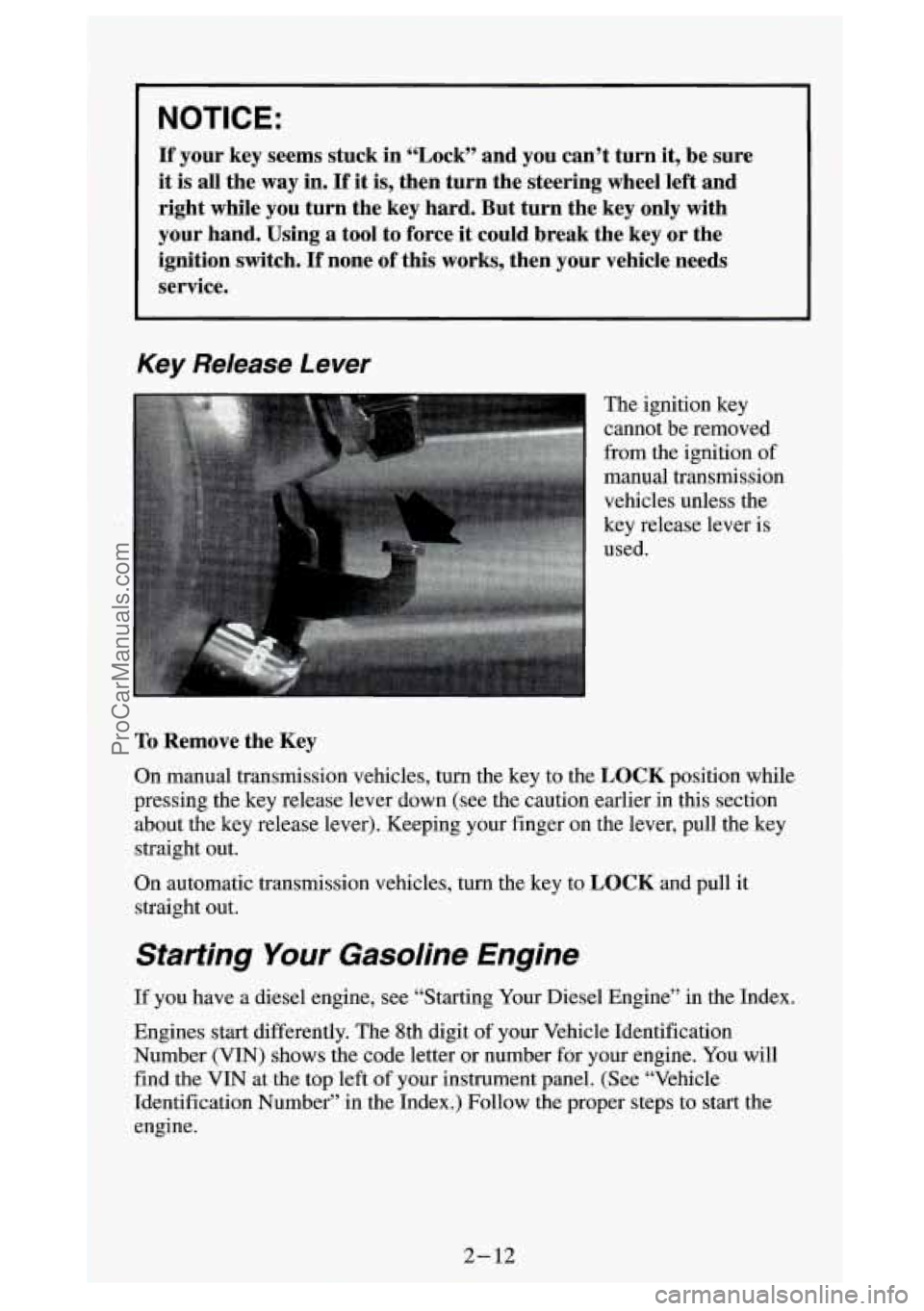

NOTICE:
If your key seems stuck in “Lock” and you can’t turn it, be sure
it is all the
way in. If it is, then turn the steering wheel left and
right while you turn the key
hard. But turn the key only with
your hand. Using a tool to force it could break the key or the
ignition switch.
If none of this works, then your vehicle needs
service.
Key Release Lever
The ignition key
cannot be removed
from the ignition of
manual transmission
vehicles unless the
key release lever is
used.
To Remove the Key
On manual transmission vehicles, turn the key to the LOCK position while
pressing the key release lever down (see the caution earlier \
in
this section
about the key release lever). Keeping your finger on the leve\
r, pull the key
straight out.
On automatic transmission vehicles, turn the key to
LOCK and pull it
straight out.
Starting Your Gasoline Engine
If you have a diesel engine, see “Starting Your Diesel Engine” in the Index.
Engines start differently. The 8th digit of your Vehicle Identification
Number (VIN) shows the code letter or number for your engine. You will
find the VIN at the top left of your instrument panel. (See “Vehicle
Identification Number” in the Index.) Follow the proper step\
s to start the
engine.
2-12
