GMC YUKON 1999 Owner's Manual

yellowblue
2-57
Your console also has a
cupholder that swings down
for the rear seat passengers
to use.
The console also contains the following components:

Rear Seat Audio System Controls

Rear Heated Seat Switches

Rear Seat Accessory Power Outlet

Six
-Disc CD Changer

Subwoofer

Audio Amplifier
Shock Sensor Adjuster

LED (Light Emitting Diode) Theft
-Deterrent
System Indicator

Cellular Telephone (If Equipped)
For more information on these components, please see
the Index for that item.
Armrest Storage Compartment
Your vehicle has a center armrest storage compartment
in the rear seat.
Other Storage Compartments
Your vehicle includes a number of storage
compartments for storage of often
-used items.
Your vehicle has a storage pocket on each of the front
doors. You can use the pocket to store a variety of
small items.

yellowblue
2-58 Convenience Net
Your vehicle has a convenience net, which is used to
keep small loads, like grocery bags, in place during
sharp turns or quick starts and stops.
The net is not designed for larger, heavier loads.
It is stored in a pouch attached at the driver's side of the
vehicle. You can also unhook the net so that it will lie
flat when you're not using it.
Cargo Security Shade
CAUTION:
An improperly stored cargo cover could be
thrown about the vehicle during a collision or
sudden maneuver. You or others could be
injured. If you remove the cover, always store it
outside of the vehicle. When you put it back,
always be sure that it is securely reattached.
Your vehicle has a cargo security shade. You can use it
to cover items in the cargo area of your vehicle.
To use the shade, pull the shade handle toward the rear
of the vehicle. Latch the shade posts into the retaining
sockets on the cargo area trim panels.
To return the shade to the shade holder, pull up on the
shade handle to release the shade posts from the
retaining sockets. Let the shade move forward and latch
the shade posts into the front
-most retaining sockets.
To remove the shade from the vehicle, first let the shade
go all the way into the holder. Then, push the shade
holder toward the passenger's side of the vehicle. Lift
the shade up on the driver's side, swing the shade
rearward and take it out of the vehicle.

yellowblue
2-59
To put the shade in the vehicle, first make sure the shade
slot in the holder faces rearward with the round surface
facing down. Then, hold the shade at an angle and place
the shade holder tab into the slot in the passenger's side
trim panel. Move the other end of the shade forward and
hold it next to the driver's side trim panel slot.
Push the shade holder toward the passenger's side of the
vehicle and place the tab in the driver's side trim panel
slot. Make sure the tab goes all the way in the slot.
Lightly pull on the shade holder to make sure it is secure.
Then, pull the shade to the desired position and secure the
shade posts in the appropriate retaining sockets.
Cargo Tie Downs
There are cargo tie downs in
the rear cargo area that
allow you to strap cargo in
and keep it from moving
inside the vehicle.
When not using the tie downs, flip them down out of
the way.
Luggage Carrier
Your vehicle has a luggage carrier, which you can use to
load things on top of your vehicle.
The luggage carrier has slats and side rails attached to
the roof, and crossrails which can be moved toward the
front or the rear in the side rails to help secure cargo. Tie
the load to the tie loops or crossrails.

yellowblue
2-60
NOTICE:
Loading cargo that weighs more than 200 lbs.
(90.6 kg) on the luggage carrier may damage
your vehicle. When you carry large things, never
let them hang over the rear or the sides of your
vehicle. Load your cargo so that it rests on the
slats and does not scratch or damage the vehicle.
Put the cargo against the side rails and fasten it
securely to the luggage carrier.
Don't exceed the maximum vehicle capacity when
loading your vehicle. For more information on vehicle
capacity and loading, see ªLoading Your Vehicleº in
the Index.
To prevent damage or loss of cargo as you're driving,
check now and then to make sure the luggage carrier and
cargo are still securely fastened.
Be sure the cargo is properly loaded.
If small heavy objects are placed on the roof, place
the load in the area over the rear wheels. If you need
to, cut a piece of 3/8 inch plywood to fit inside the
crossrails and side rails to spread the load.

Tie the load to the crossrails or the side rail supports.
Use the crossrails only to keep the load from sliding.

If you need to carry long items, move the crossrails
as far apart as they will go. Tie the load to the
crossrails and tie loops. Also tie the load to the
bumpers. Do not tie the load so tightly that the
crossrails or side rails are damaged.

For the purpose of wind noise reduction, locate
the front crossrail approximately 18 to 24 inches
(46 cm to 58 cm) rearward of the front supports.

After moving the crossrails, be sure to tighten all the
slider screws.
Your vehicle has a Center High
-Mounted Stoplamp
(CHMSL) located above the tailgate glass or above the
rear load doors.
If items are loaded on the roof of the vehicle, care should
be taken not to block or damage the CHMSL unit.

yellowblue
2-61

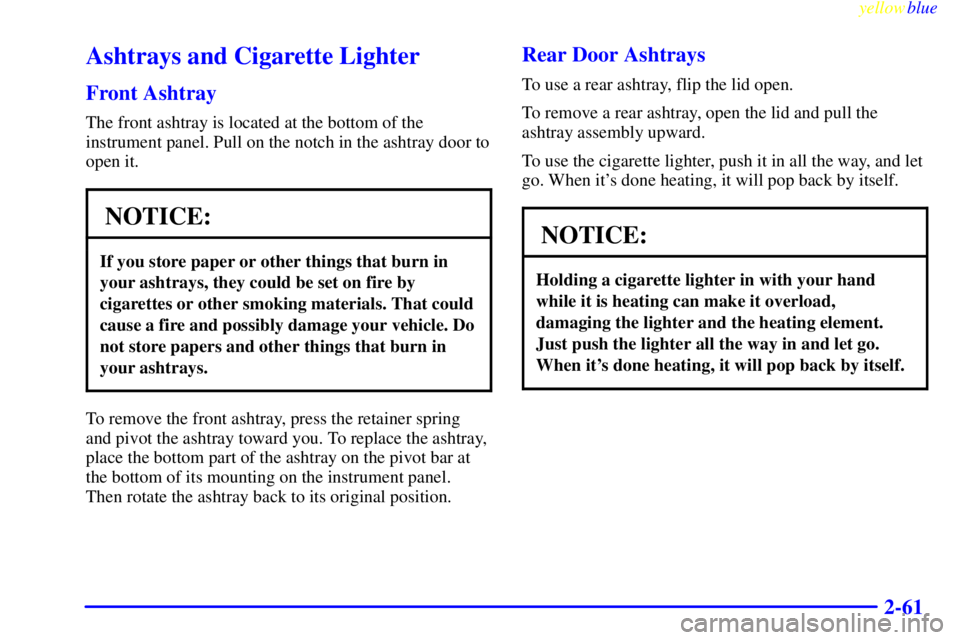

Ashtrays and Cigarette Lighter
Front Ashtray
The front ashtray is located at the bottom of the
instrument panel. Pull on the notch in the ashtray door to
open it.
NOTICE:
If you store paper or other things that burn in
your ashtrays, they could be set on fire by
cigarettes or other smoking materials. That could
cause a fire and possibly damage your vehicle. Do
not store papers and other things that burn in
your ashtrays.
To remove the front ashtray, press the retainer spring
and pivot the ashtray toward you. To replace the ashtray,
place the bottom part of the ashtray on the pivot bar at
the bottom of its mounting on the instrument panel.
Then rotate the ashtray back to its original position.
Rear Door Ashtrays
To use a rear ashtray, flip the lid open.
To remove a rear ashtray, open the lid and pull the
ashtray assembly upward.
To use the cigarette lighter, push it in all the way, and let
go. When it's done heating, it will pop back by itself.
NOTICE:
Holding a cigarette lighter in with your hand
while it is heating can make it overload,
damaging the lighter and the heating element.
Just push the lighter all the way in and let go.
When it's done heating, it will pop back by itself.

yellowblue

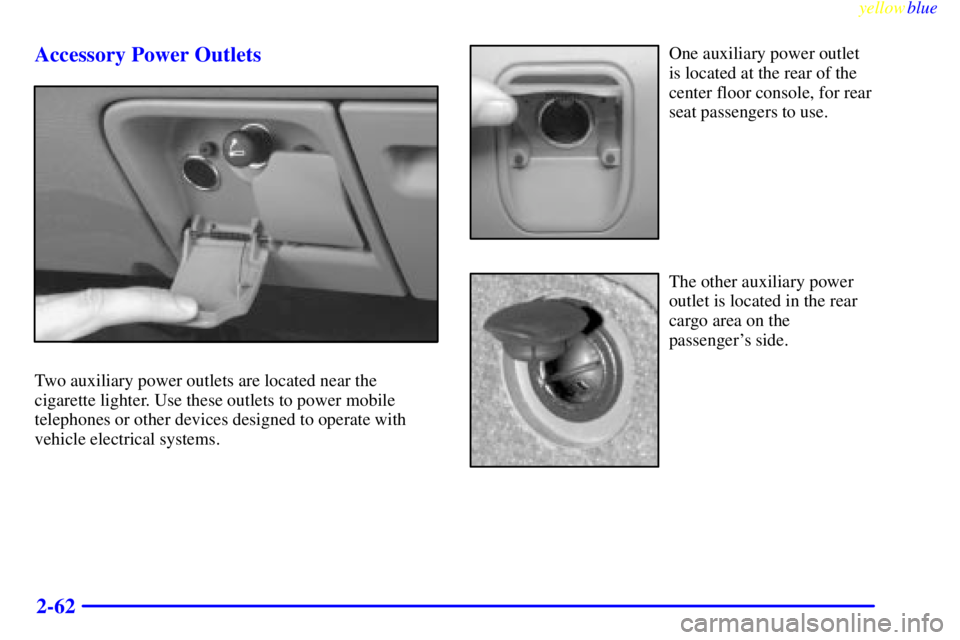

2-62 Accessory Power Outlets
Two auxiliary power outlets are located near the
cigarette lighter. Use these outlets to power mobile
telephones or other devices designed to operate with
vehicle electrical systems.
One auxiliary power outlet
is located at the rear of the
center floor console, for rear
seat passengers to use.
The other auxiliary power
outlet is located in the rear
cargo area on the
passenger's side.

yellowblue
2-63

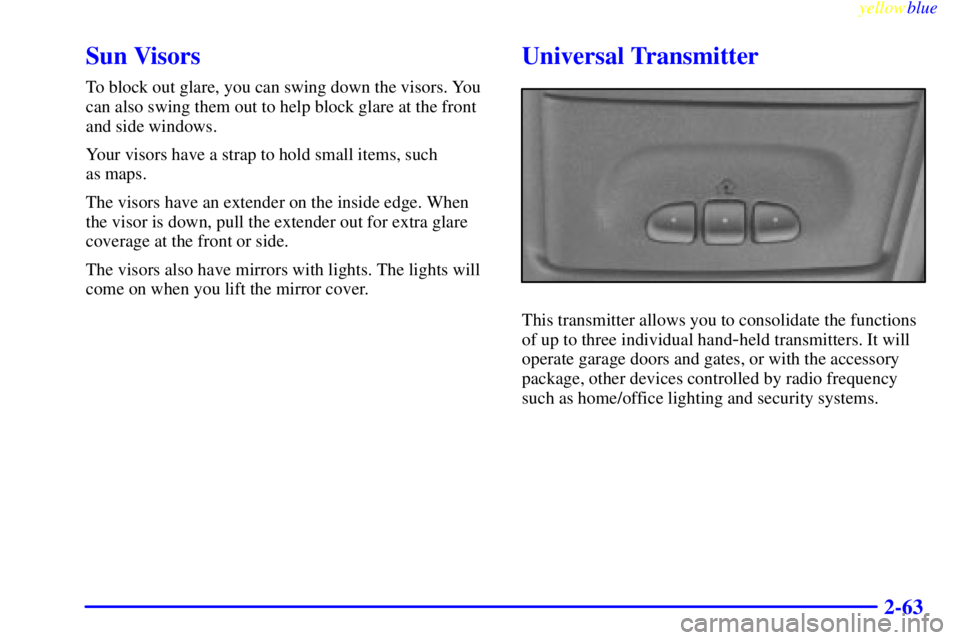

Sun Visors
To block out glare, you can swing down the visors. You
can also swing them out to help block glare at the front
and side windows.
Your visors have a strap to hold small items, such
as maps.
The visors have an extender on the inside edge. When
the visor is down, pull the extender out for extra glare
coverage at the front or side.
The visors also have mirrors with lights. The lights will
come on when you lift the mirror cover.
Universal Transmitter
This transmitter allows you to consolidate the functions
of up to three individual hand
-held transmitters. It will
operate garage doors and gates, or with the accessory
package, other devices controlled by radio frequency
such as home/office lighting and security systems.

yellowblue
2-64
The transmitter will learn and transmit the frequencies
of most current transmitters and is powered by your
vehicle's battery and charging system.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including
interference that may cause undesired operation of
the device.
Changes and modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.
Programming the Transmitter
Do not use the transmitter with any garage door opener
that does not have the ªstop and reverseº feature. This
includes any garage door opener model manufactured
before April 1, 1982.
Be sure that people and objects are clear of the garage
door you are programming.
Your vehicle's engine should be turned off while
programming the transmitter. Follow these steps to
program up to three channels.
1. If you have not previously programmed a universal
channel, proceed to Step 2. Otherwise, hold down
the two outside buttons on the universal transmitter
until the red light begins to flash rapidly
(approximately 20 seconds). Then release the
buttons. This procedure initializes the memory and
erases any previous settings for all three channels.
2. Hold the end of the hand
-held transmitter against the
bottom surface of the universal transmitter so that
you can still see the red light.

yellowblue
2-65
3. Decide which one of the three channels you want to
program. Using both hands, press the hand
-held
transmitter button and the desired button on the
universal transmitter. Continue to hold both buttons
through Step 4.
4. Hold down both buttons until you see the red light
on the universal transmitter flash rapidly. The rapid
flashing, which could take up to 90 seconds,
indicates that the universal transmitter has been
programmed. Release both buttons once the light
starts flashing rapidly.
If you have trouble programming the universal
transmitter, make sure that you have followed the
directions exactly as described and that the battery in the
hand
-held transmitter is not dead. If you still cannot
program it, rotate the hand
-held transmitter end over end
and try again. The universal transmitter may not work
with older garage door openers that do not meet current
Federal Consumer Safety Standards. If you cannot
program the transmitter after repeated attempts, consult
your GM dealer.Be sure to keep the original hand
-held transmitter in
case you need to erase and reprogram the
universal transmitter.
Operating the Transmitter
Press and hold the appropriate button on the universal
transmitter. The red light comes on while the signal is
being transmitted.
The effective transmission range of the universal
transmitter may differ from the hand
-held transmitter
and from one channel to another.
Erasing Channels
To erase all three programmed channels, hold down the
two outside buttons until the red light begins to flash.
Individual channels cannot be erased, but can be
reprogrammed using the procedure for programming the
transmitter explained earlier.

yellowblue
2-66 Training a Garage Door Opener with a
ªRolling Codeº Feature
If you programmed the universal transmitter, but the
garage door will not open, and if your garage door
opener was manufactured after 1995, your garage door
may have a security feature that changes the ªcodeº of
your garage door opener every time it is opened
or closed.
To determine if your garage door opener has this
ªrolling codeº feature, press the appropriate button on
the universal transmitter that was programmed. If the
red light flashes rapidly for one to two seconds, then
turns solid, your garage door opener has this feature.
To program a garage door opener with the rolling code
feature, do the following:
1. Program your hand
-held transmitter to the universal
transmitter by following the steps provided under
ªProgramming the Transmitterº earlier in
this section.2. Remove the cover panel from the garage door
opener receiver. It is located near the garage door
opener motor.
3. Locate the training button on the garage door opener
receiver. The exact location and color will vary
among brands.
4. Press the training button on the garage door opener
receiver for one to two seconds.
5. Return to your vehicle and press the programmed
button on the universal transmitter until the red light
flashes rapidly (about two seconds).
6. Release the button, then press it again to confirm
that it was programmed to the garage door
opener receiver.
You may now use either the universal transmitter or the
hand-held transmitter to open your garage door. If you
still have difficulty in programming and require
assistance, please call 1
-800-355-3515.
