GMC YUKON DENALI 2003 Manual PDF

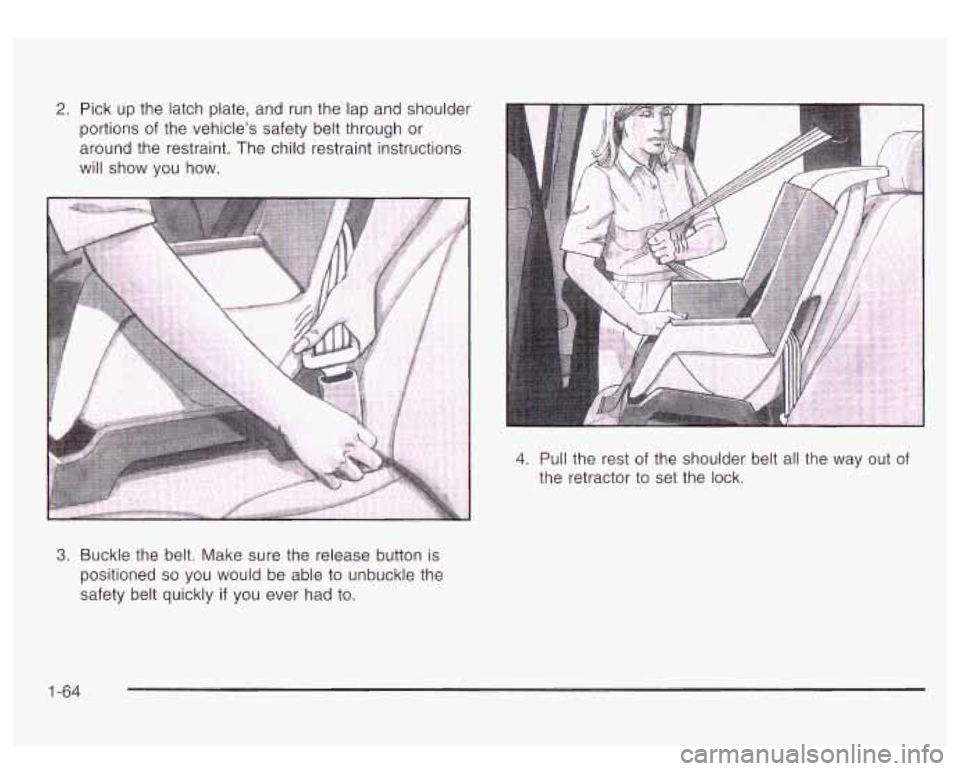

2. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.
3. Buckle the belt. Make sure the release button is
positioned
so you would be able to unbuckle the
safety belt quickly
if you ever had to.
1 -64

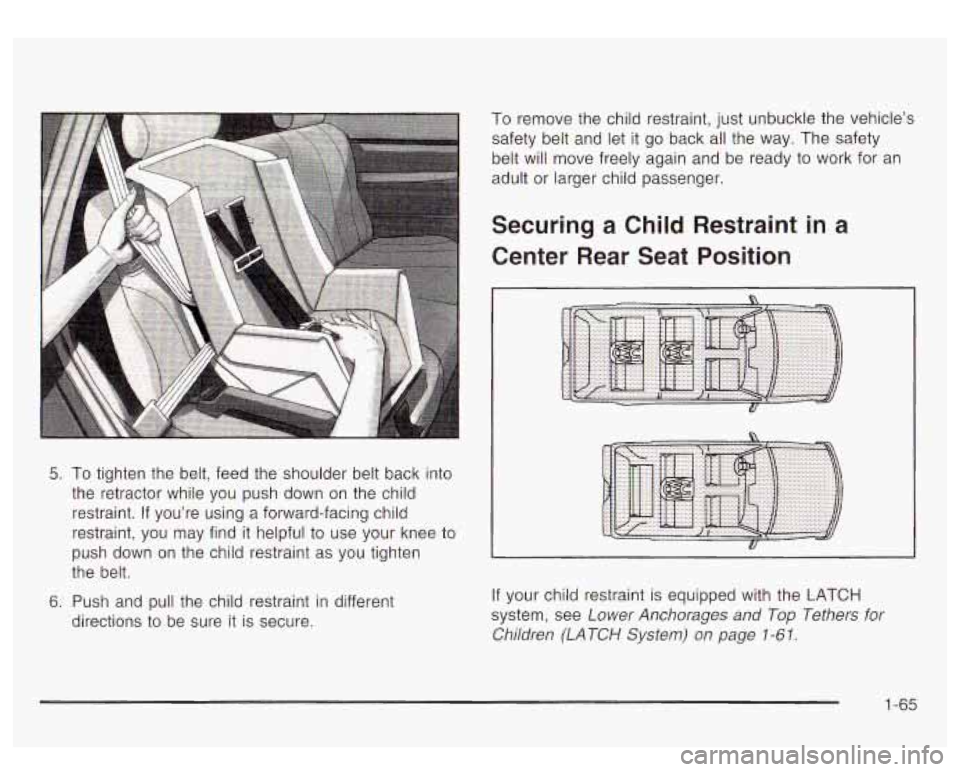

5. To tighten the belt, feed the shoulder belt back into
the retractor while you push down on the child
restraint. If you’re using a forward-facing child
restraint, you may find it helpful to use your knee to
push down on the child restraint as you tighten
the belt.
6. Push and pull the child restraint in different
directions to be sure it is secure. To
remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety
belt will move freely again and be ready to work for an
adult or larger child passenger.
Securing a Child Restraint in a
Center Rear Seat Position
If your child restraint is equipped with the LATCH
system, see Lower Anchorages and Top Tethers for
Children (LATCH System)
on page 1-6 1.
1-65

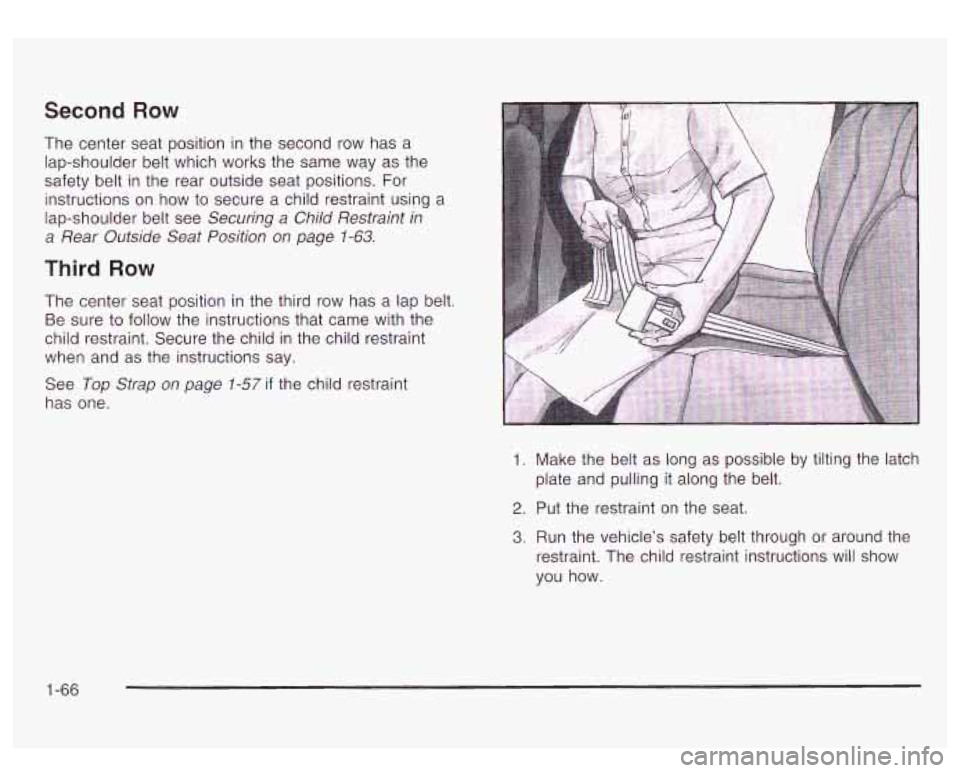

Second Row
The center seat position in the second row has a
lap-shoulder belt which works the same way as the
safety belt in the rear outside seat positions. For
instructions on how to secure a child restraint using a
lap-shoulder belt see Securing a Child Restraint in
a Rear Outside Seat Position on page
1-63.
Third Row
The center seat position in the third row has a lap belr.
Be sure to follow the instructions that came with the
child restraint. Secure the child in the child restraint
when and as the instructions say.
See Top Strap on page
1-57 if the child restraint
has one.
1. Make the belt as long as possible by tilting the latch
plate and pulling it along the belt.
2. Put the restraint on the seat.
3. Run the vehicle’s safety belt through or around the
restraint. The child restraint instructions will show
you how.
1-66

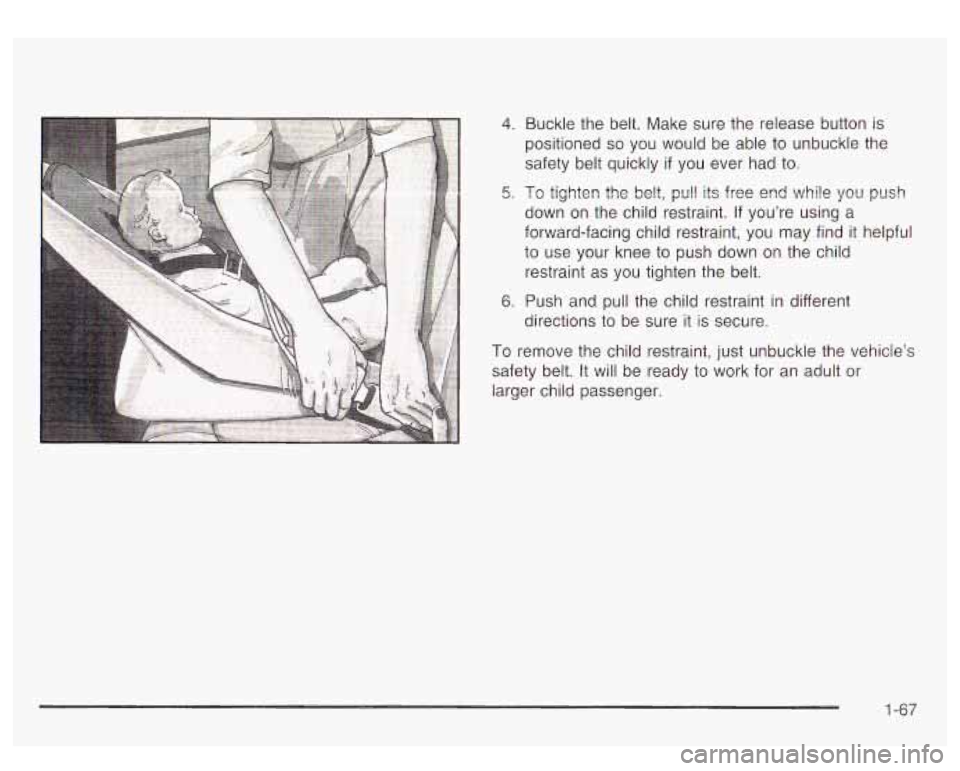

4. Buckle the belt. Make sure the release button is
positioned
so you would be able to unbuckle the
safety belt quickly
if you ever had to.
5. T3 tighten the belt, pull its free end whi!e you push
down on the child restraint. If you’re using a
forward-facing child restraint, you may find it helpful
to use your knee to push down on the child
restraint
as you tighten the belt.
6. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle’s
safety belt. It will be ready to work for an adult or
larger child passenger.
1-67

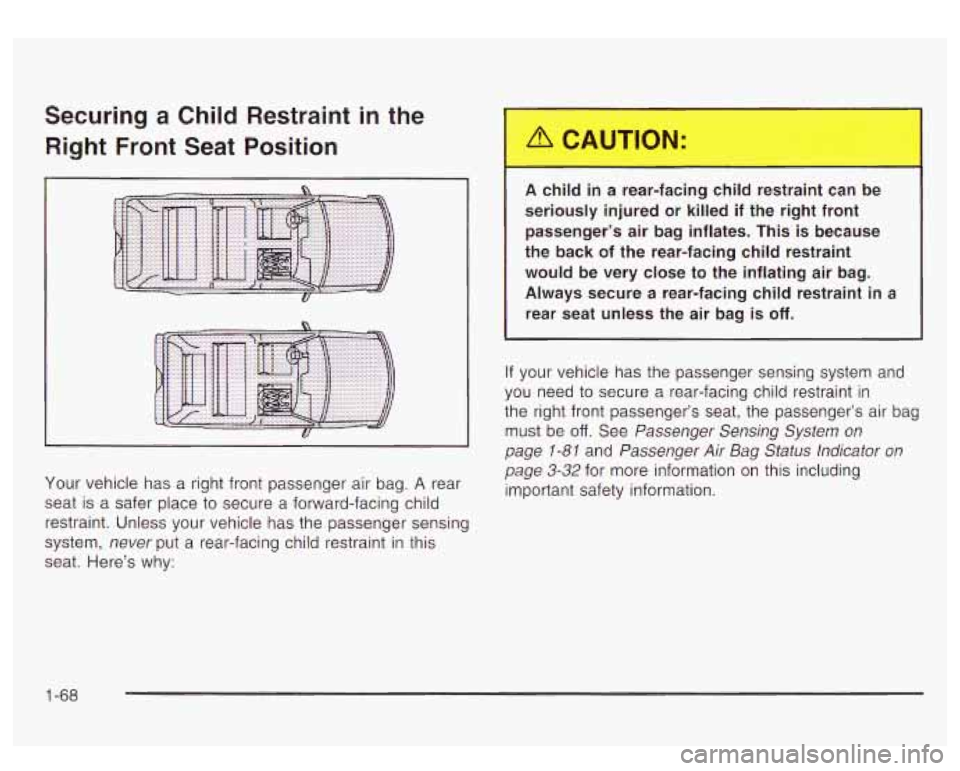

Securing a Child Restraint in the Right Front Seat Position
Your vehicle has a right front passenger air bag. A rear
seat is a safer place
to secure a forward-facing child
restraint. Unless your vehicle has the passenger sensing
system, never put a rear-facing child restraint in this
seat. Here’s why:
A vnnnnu nn a rear-facing child restraint Call be
seriously injured or killed
if the right front
passenger’s air bag inflates. This is because
the back of the rear-facing child restraint
would be very close to the inflating air bag.
Always secure a rear-facing child restraint in a rear seat unless the air bag
is off.
If your vehicle has the passenger sensing system and
you need
to secure a rear-facing child restraint in
the right front passenger’s seat, the passenger’s air bag
must be
off. See Passenger Sensing System on
page
7-87 and Passenger Air Bag Status Indicator on
page
3-32 for more information on this including
important safety information.
1 -68

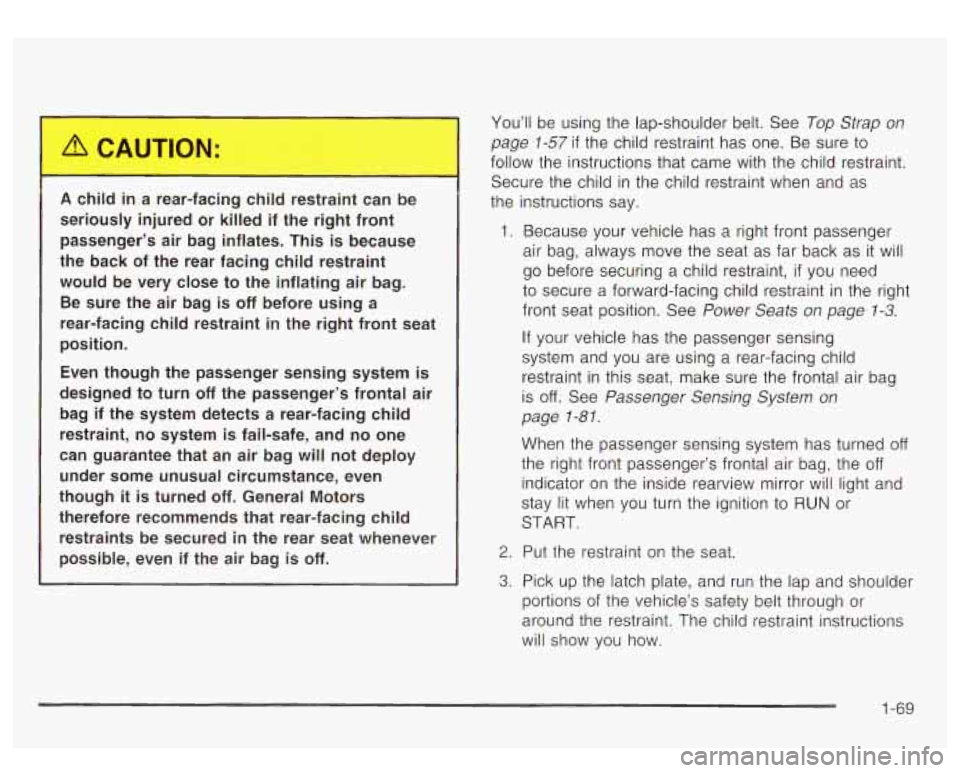

A child in a rear-facing child restraint can be
seriously injured or killed if the right front passenger’s air bag inflates. This
is because
the back of the rear facing child restraint
would be very close
to the inflating air bag.
Be sure the air bag is
off before using a
rear-facing child restraint
in the right front seat
position.
Even though the passenger sensing system is
designed to turn
off the passenger’s frontal air
bag if the system detects a rear-facing child
restraint, no system is fail-safe, and no one
can guarantee that an air bag will not deploy under some unusual circumstance, even
though
it is turned off. General Motors
therefore recommends that rear-facing child restraints be secured in the rear seat whenever
possible, even
if the air bag is off.
You’ll be using the lap-shoulder belt. See Top Strap on
page
1-57 if the child restraint has one. Be sure to
follow the instructions that came with the child restraint.
Secure the child in the child restraint when and as
the instructions say.
1. Because your vehicle has a right front passenger
air bag, always move the seat as far back as it will
go before securing a child restraint,
if you need
to secure a forward-facing child restraint in the right
front seat position. See
Power Seats on page 1-3.
If your vehicle has the passenger sensing
system and you are using a rear-facing child
restraint in this seat, make sure the frontal air bag
is
off. See Passenger Sensing System on
page
1-8 1.
When the passenger sensing system has turned off
the right front passenger’s frontal air bag, the off
indicator on the inside rearview mirror will light and
stay lit when you turn the ignition to RUN or
START.
2. Put the restraint on the seat.
3. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show
you how.
1-69

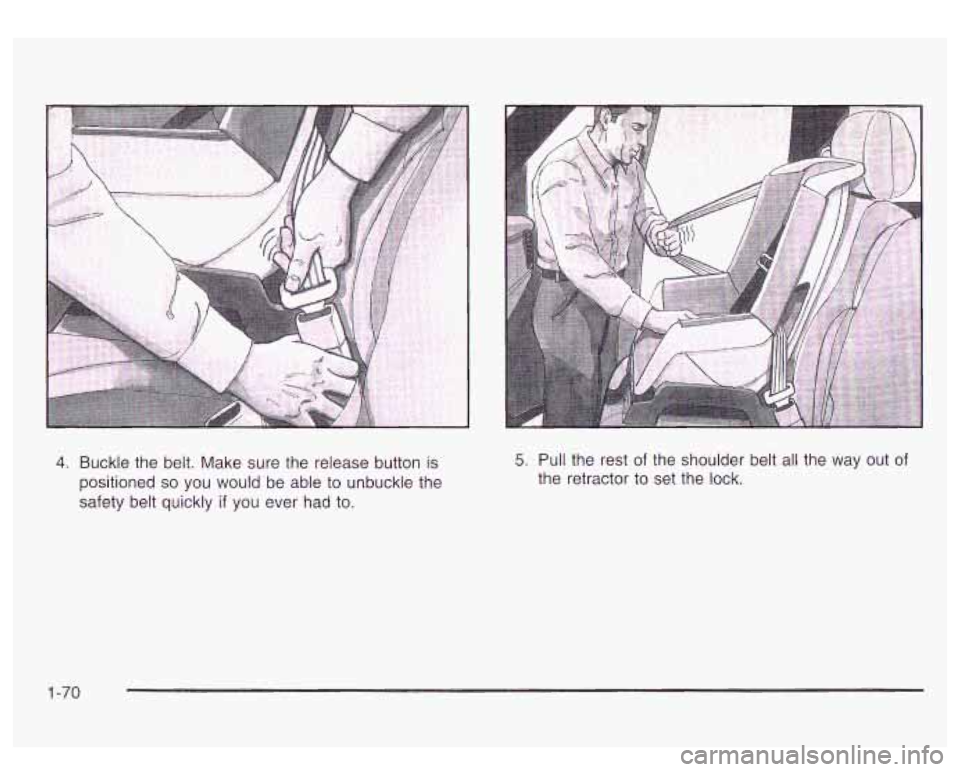

4. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly
if you ever had to.
5. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.
1-70

6. To tighten the belt, feed the shoulder belt back into
the retractor while you push down on the child
restraint. If you are using a forward-facing child
restraint, you may find it helpful to use your knee to
push down on the child restraint as you tighten the
belt. You should not be able to pull more of the belt
out of the retractor once the lock has been set.
7. Push and pull the child restraint in different
directions to be sure it is secure.
8. If your vehicle has the passenger sensing system
and you’re using a rear-facing child restraint in this
seat, check to be sure the right front passenger’s
frontal air bag is off before you begin to drive.
If the
air bag has been turned off the
off indicator will
light and stay lit when the key is turned to RUN or
START.
If the on indicator is lit, the passenger’s frontal air
bag has not been turned
off. If this ever happens,
turn off the vehicle, unbuckle the safety belt
and perform the steps to install the rear-facing
restraint again. After restarting the vehicle,
if the air
bag still doesn’t turn off, install the infant restraint
in
a rear seat position of the vehicle and have your
vehicle serviced as soon as possible.
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety
belt will move freely again and be ready to work for an
adult or larger child passenger.
1-71

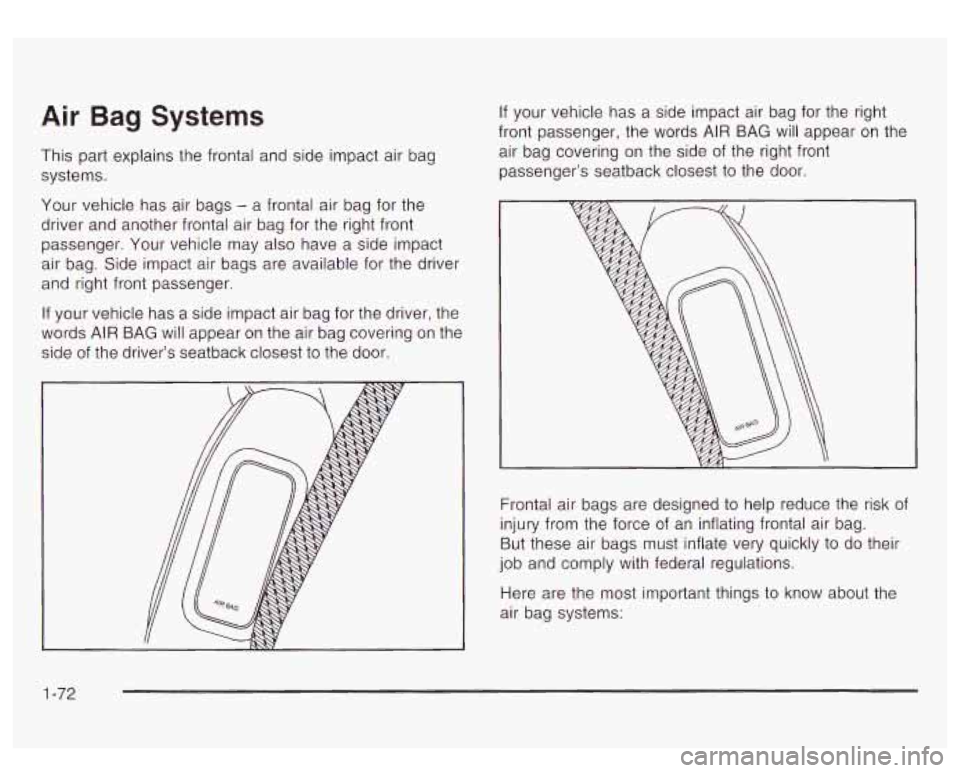

Air Bag Systems
This part explains the frontal and side impact air bag
systems.
Your vehicle has air bags
- a frontal air bag for the
driver and another frontal air bag for the right front
passenger. Your vehicle may also have a side impact
air bag. Side impact air bags are available for the driver
and right front passenger.
If your vehicle has a side impact air bag for the driver, the
words AIR BAG will appear on the air bag covering on the
side of the driver’s seatback closest
to the door. If
your vehicle has a side impact air bag for the right
front passenger, the words AIR BAG will appear on the
air bag covering on the side of the right front
passenger’s seatback closest to the door.
Frontal air bags are designed
to help reduce the risk of
injury from the force of an inflating frontal air bag.
But these air bags
must inflate very quickly to do their
job and comply with federal regulations.
Here are the
most important things to know about the
air bag systems:
1-72

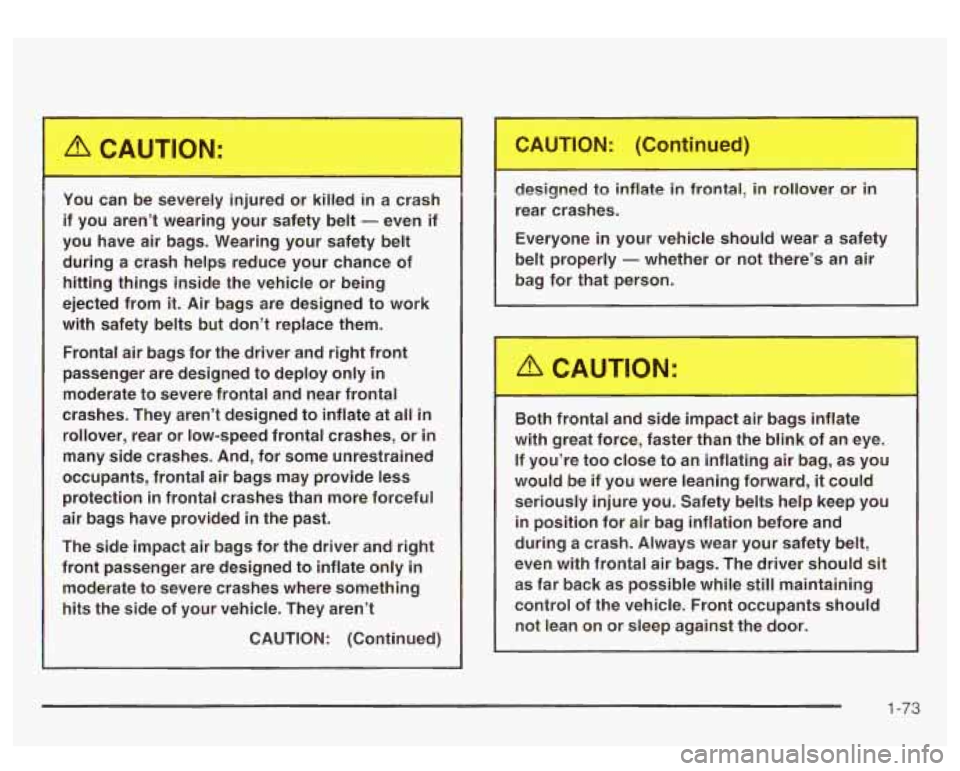

You can be severely injured or kill€-. jn a crash
if you aren’t wearing your safety belt
- even if
you have air bags. Wearing your safety belt
during a crash helps reduce your chance of
hitting things inside the vehicle or being
ejected from it. Air bags are designed to work
with safety belts but don’t replace them.
Frontal air bags for the driver and right front
passenger are designed to deploy only in
moderate to severe frontal and near frontal
crashes. They aren’t designed to inflate at all
in
rollover, rear or low-speed frontal crashes, or in
many side crashes. And, for some unrestrained
occupants, frontal air bags may provide less protection in frontal crashes than more forceful
air bags have provided
in the past.
The side impact air bags for the driver and right
front passenger are designed to inflate only
in
moderate to severe crashes where something
hits the side of your vehicle. They aren’t
CAUTION: (Continued)
-
designed t, =nf!ate in frL.mia15 in rollover or in
rear crashes.
Everyone in your vehicle should wear a safety
belt properly
- whether or not there’s an air
bag for that person.
Both frontal and side im- ct air bags inflate
with great force, faster than
the blink of an eye.
If you’re too close to an inflating air bag, as you
would be
if you were leaning forward, it could
seriously injure you. Safety belts help keep you
in position for air bag inflation before and
during a crash. Always wear your safety belt,
even with frontal air bags. The driver should sit
as far back as possible while still maintaining
control of the vehicle. Front occupants should not lean on or sleep against the door.
1-73
