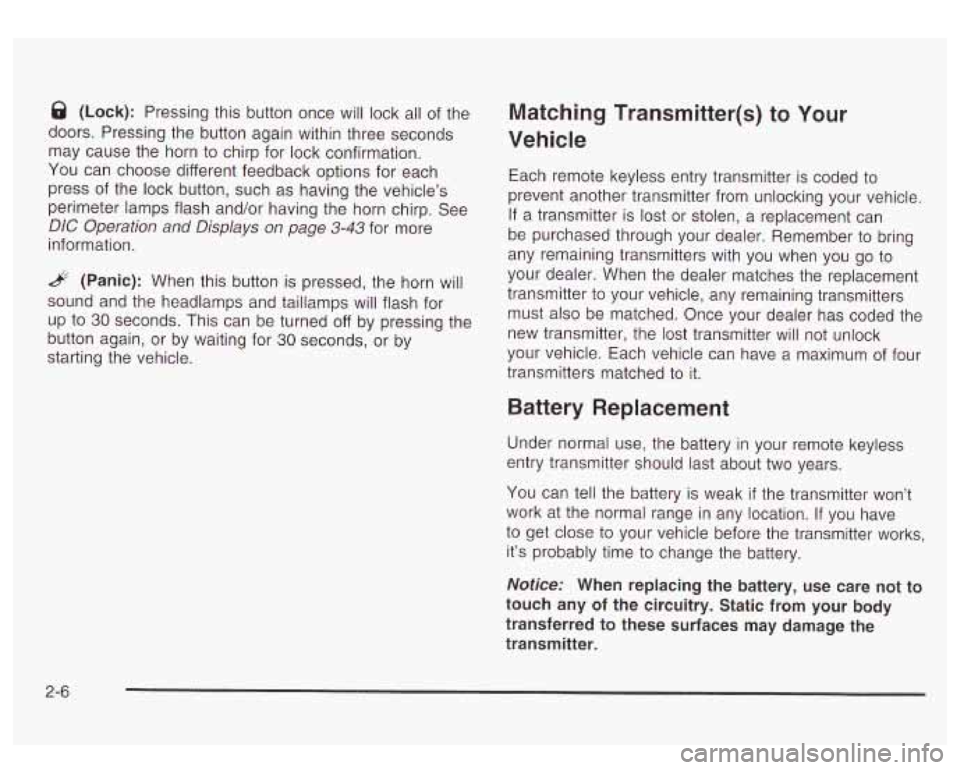

8 (Lock): Pressing this button once will lock all of the
doors. Pressing the button again within three seconds
may cause the horn
to chirp for lock confirmation.
You can choose different feedback options for each
press of the lock button, such as having the vehicle’s
perimeter lamps flash and/or having the horn chirp. See
DIC Operation and Displays on page 3-43 for more
information.
& (Panic): When this button is pressed, the horn will
sound and the headlamps and taillamps will flash for
up
to 30 seconds. This can be turned off by pressing the
button again, or by waiting for
30 seconds, or by
starting the vehicle.
Matching Transmitter(s) to Your
Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is
lost or stolen, a replacement can
be purchased through your dealer. Remember
to bring
any remaining transmitters with you when you go
to
your dealer. When the dealer matches the replacement
transmitter
to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the
lost transmitter will not unlock
your vehicle. Each vehicle can have a maximum of four
transmitters matched
to it.
Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about two years.
You can tell the battery is weak
if the transmitter won’t
work at the normal range in any location. If you have
to get close to your vehicle before the transmitter works,
it’s probably time
to change the battery.
Notice: When replacing the battery, use care not to
touch any of the circuitry. Static from your body
transferred to these surfaces may damage the
transmitter.
2-6

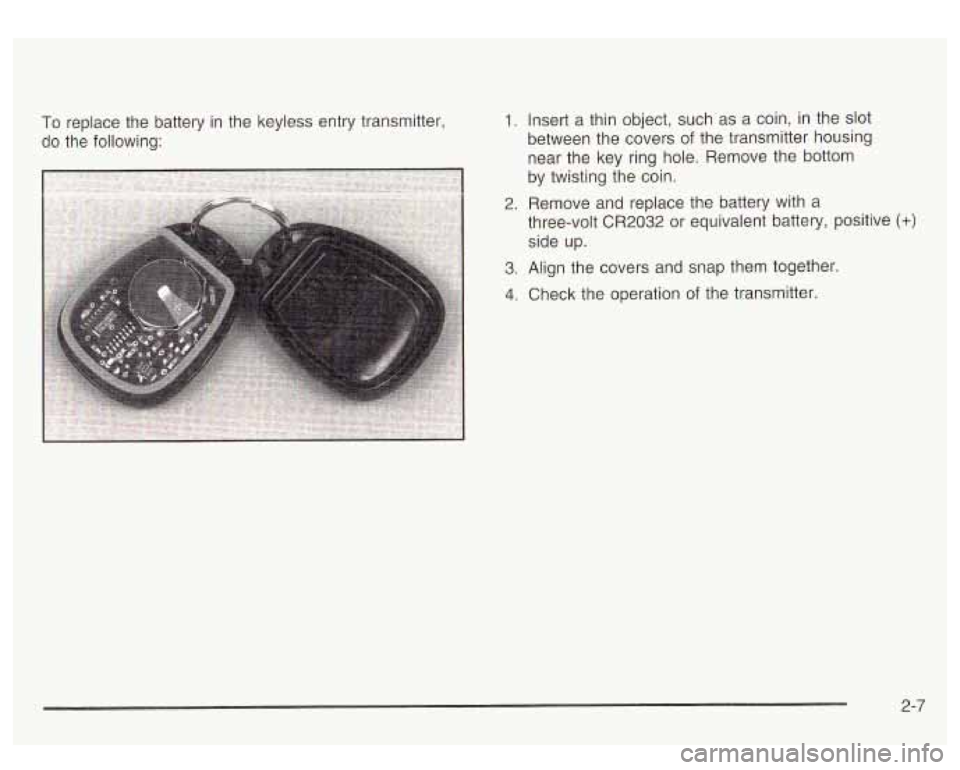

To replace the battery in the keyless entry transmitter,
do the following: 1. Insert a thin object, such as a coin, in the slot
between the covers
of the transmitter housing
near the key ring hole. Remove the bottom
by twisting the coin.
three-volt CR2032 or equivalent battery, positive
(+)
side up.
2.
Remove and replace the battery with a
3. Align the covers and snap them together.
4. Check the operation of the transmitter.
2-7

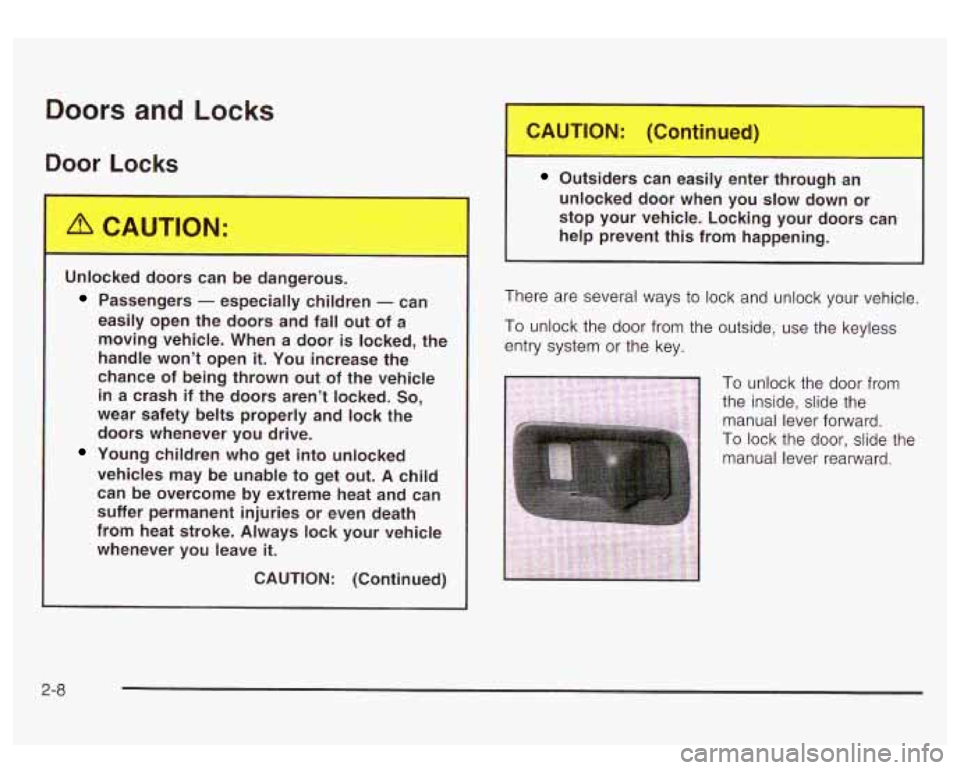

Doors and Locks
Door Locks
doors can be dangerous.
Passengers - especially children - can
easily open the doors and fall out of a
moving vehicle. When a door is locked, the
handle won’t open
it. You increase the
chance of being thrown out of the vehicle
in a crash if the doors aren’t locked. So,
wear safety belts properly and lock the
doors whenever you drive.
vehicles may be unable to get out.
A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave
it.
CAUTION: (Continued)
Young children who get into unlocked
Outsiders can e ~ ily enter through an
unlocked door when you slow down or
stop your vehicle. Locking your doors can
help prevent this from happening.
There are several ways
to lock and unlock your vehicle.
To unlock the door from the outside, use the keyless
entry system
or the key.
To unlock the door from
the inside, slide the
manual lever
forward.
To lock the door, slide the
2-a

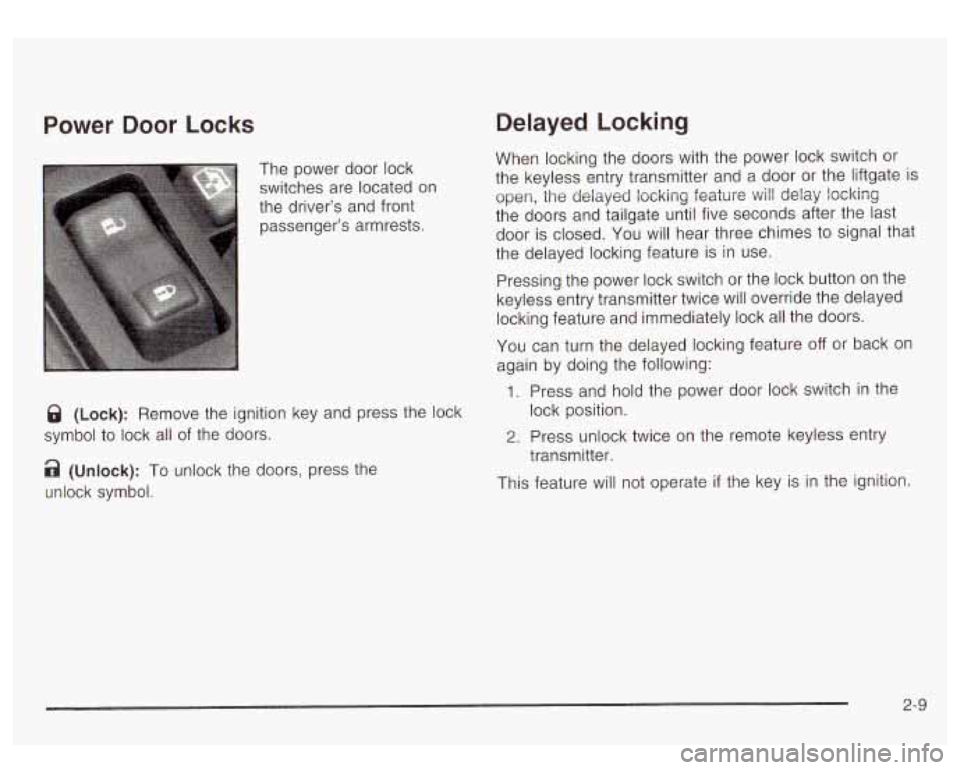

Power Door Locks
The power door lock
switches are located on
the driver’s and front
passenger’s armrests.
8 (Lock): Remove the ignition key and press the lock
symbol to lock all of the doors.
a (Unlock): To unlock the doors, press the
unlock symbol.
Delayed Locking
When locking the doors with the power lock switch or
the keyless entry transmitter and a door or the liftgate is
open, the deiayed iockirig feattire will delay locking
the doors and tailgate until five seconds after the last door is closed. You will hear three chimes to signal that
the delayed locking feature is in use.
Pressing the power lock switch or the lock button on the
keyless entry transmitter twice will override the delayed
locking feature and immediately lock all the doors.
You can turn the delayed locking feature off or back on
again by doing the following:
1. Press and hold the power door lock switch in the
lock position.
2. Press unlock twice on the remote keyless entry
transmitter.
This feature will not operate
if the key is in the ignition
2-9

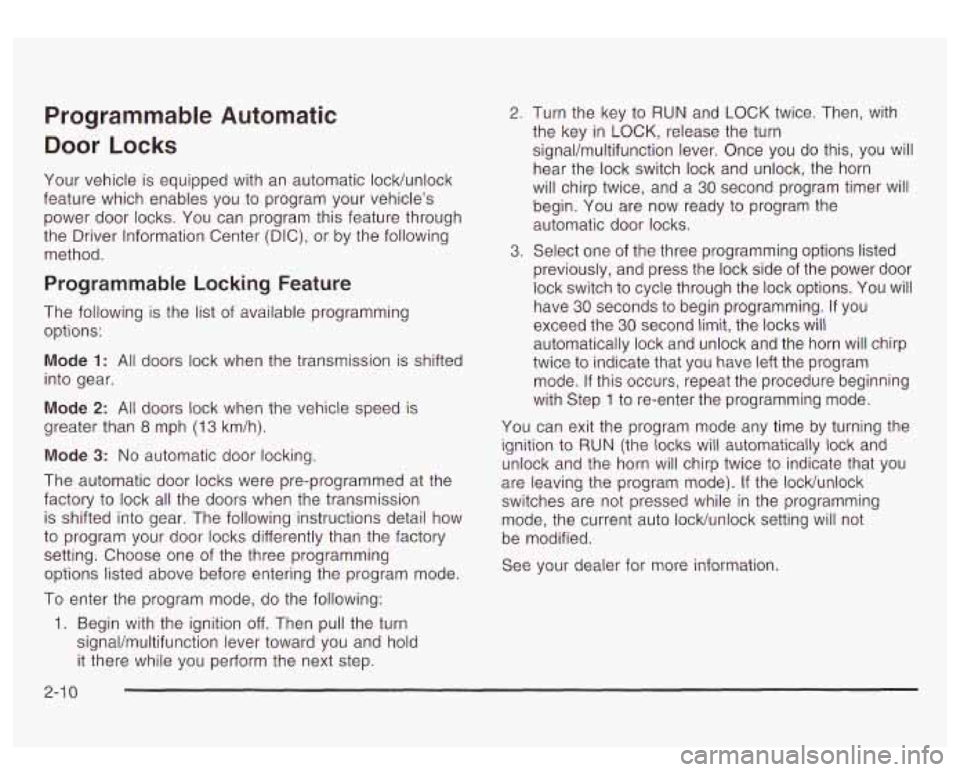

Programmable Automatic
Door Locks
Your vehicle is equipped with an automatic locklunlock
feature which enables you
to program your vehicle’s
power door locks. You can program this feature through
the Driver Information Center (DIC), or by the following
method.
Programmable Locking Feature
The following is the list of available programming
options:
Mode 1: All doors lock when the transmission is shifted
into gear.
Mode 2: All doors lock when the vehicle speed is
greater than 8 mph (13 km/h).
Mode 3: No automatic door locking.
The automatic door locks were pre-programmed at the
factory to lock all the doors when the transmission
is shifted into gear. The following instructions detail how
to program your door locks differently than the factory
setting. Choose one of the three programming
options listed above before entering the program mode.
To enter the program mode, do the following:
2.
3.
Turn the key to RUN and LOCK twice. Then, with
the key in
LOCK, release the turn
signaVmultifunction lever. Once you do this, you will
hear the lock switch lock and unlock, the horn
will chirp twice, and a
30 second program timer will
begin. You are now ready to program the
automatic door locks.
Select one of the three programming options listed
previously, and press the lock side
of the power door
lock switch
to cycle through the lock options. You will
have
30 seconds to begin programming. If you
exceed the
30 second limit, the locks will
automatically lock and unlock and the horn will chirp
twice to indicate that you have left the program
mode.
If this occurs, repeat the procedure beginning
with Step
1 to re-enter the programming mode.
You can exit the program mode any time by turning the
ignition to
RUN (the locks will automatically lock and
unlock and the horn will chirp twice
to indicate that you
are leaving the program mode). If the locklunlock
switches are not pressed while in the programming
mode, the current auto IocWunlock setting will not
be modified.
See your dealer for more information.
I. Begin with the ignition off. Then pull the turn
signal/multifunction lever toward you and hold
it there while you perform the next step.
2-1 0

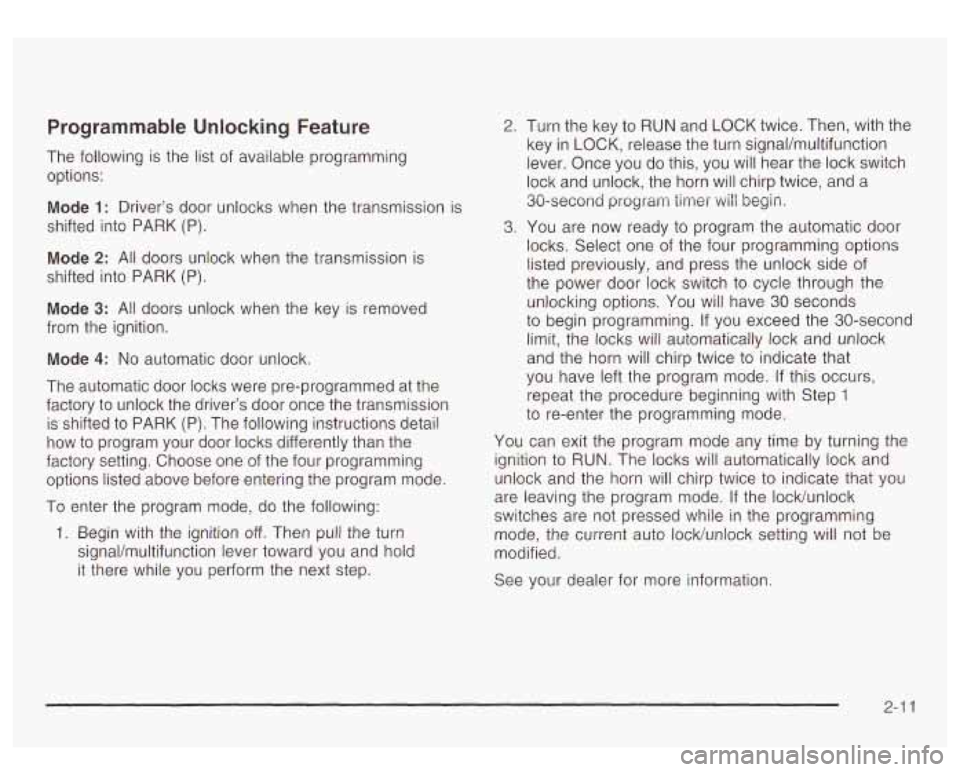

Programmable Unlocking Feature
The following is the list of available programming
options:
Mode 1: Driver’s door unlocks when the transmission is
shifted into PARK
(P).
Mode 2: All doors unlock when the transmission is
shifted into PARK (P).
Mode 3: All doors unlock when the key is removed
from the ignition.
Mode 4: No automatic door unlock.
The automatic door locks were pre-programmed at the
factory
to unlock the driver’s door once the transmission
is shifted
to PARK (P). The following instructions detail
how
to program your door locks differently than the
factory setting. Choose one of the four programming
options listed above before entering the program mode.
To enter the program mode, do the following:
1. Begin with the ignition off. Then pull the turn
signaVmultifunction lever toward you and hold
it there while you perform the next step.
2.
3.
Turn the key to RUN and LOCK twice. Then, with the
key in LOCK, release the turn signaVmultifunction
lever. Once you do this, you will hear the lock switch
lock and unlock, the horn will chirp twice, and a
30-second
program iir-ner wiii begin.
You are now ready
to program the automatic door
locks. Select one of the four programming options
listed previously, and press the unlock side
of
the power door lock switch to cycle through the
unlocking options. You
will have 30 seconds
to begin programming. If you exceed the 30-secona
limit, the locks will automatically lock and unlock
and the horn will chirp twice
to indicate that
you have left the program mode.
If this occurs,
repeat the procedure beginning with Step
1
to re-enter the programming mode.
You can exit the program mode any time by turning the
ignition to
RUN. The locks will automatically lock and
unlock and the horn will chirp twice
to indicate that you
are leaving the program mode. If the IocWunlock
switches are not pressed while in the programming
mode, the current auto IocWunlock setting
will not be
modified.
See your dealer for more information.
2-1 1

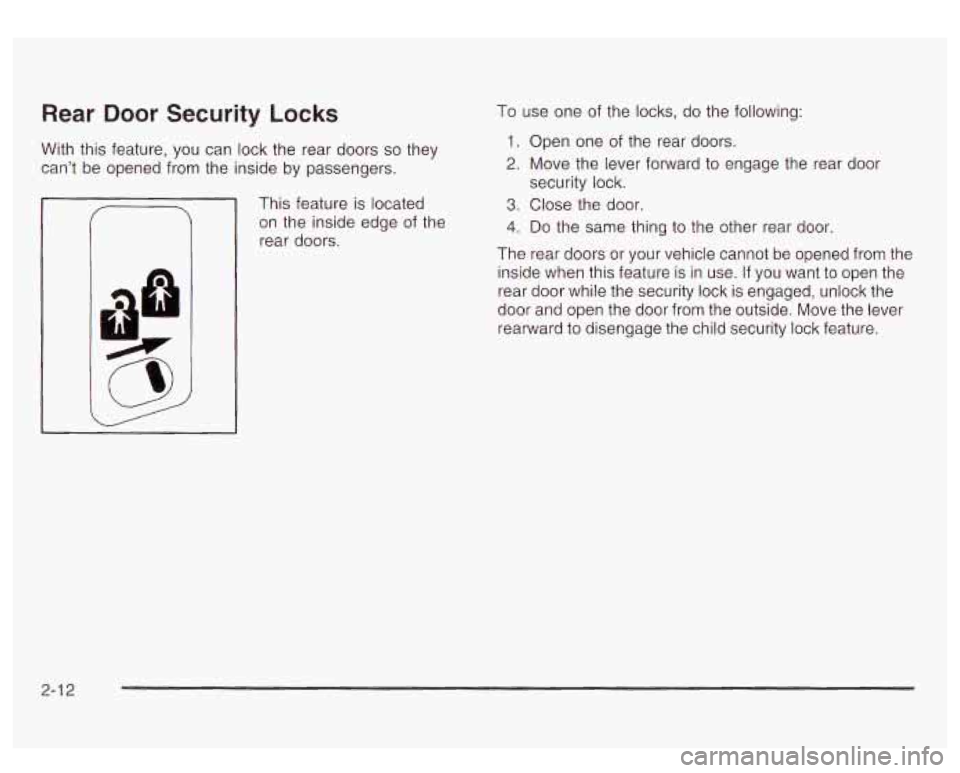

Rear Door Security Locks
With this feature, you can lock the rear doors so they
can’t be opened from the inside by passengers.
This feature is located
on the inside edge of the
rear doors.
To use one of the locks, do the following:
1. Open one of the rear doors.
2. Move the lever forward to engage the rear door
security lock.
3. Close the door.
4. Do the same thing to the other rear door.
The rear doors or your vehicle cannot be opened from the
inside when this feature is in use. If you want
to open the
rear door while the security lock is engaged, unlock the
door and open the door from the outside. Move the lever
rearward
to disengage the child security lock feature.
2-1 2

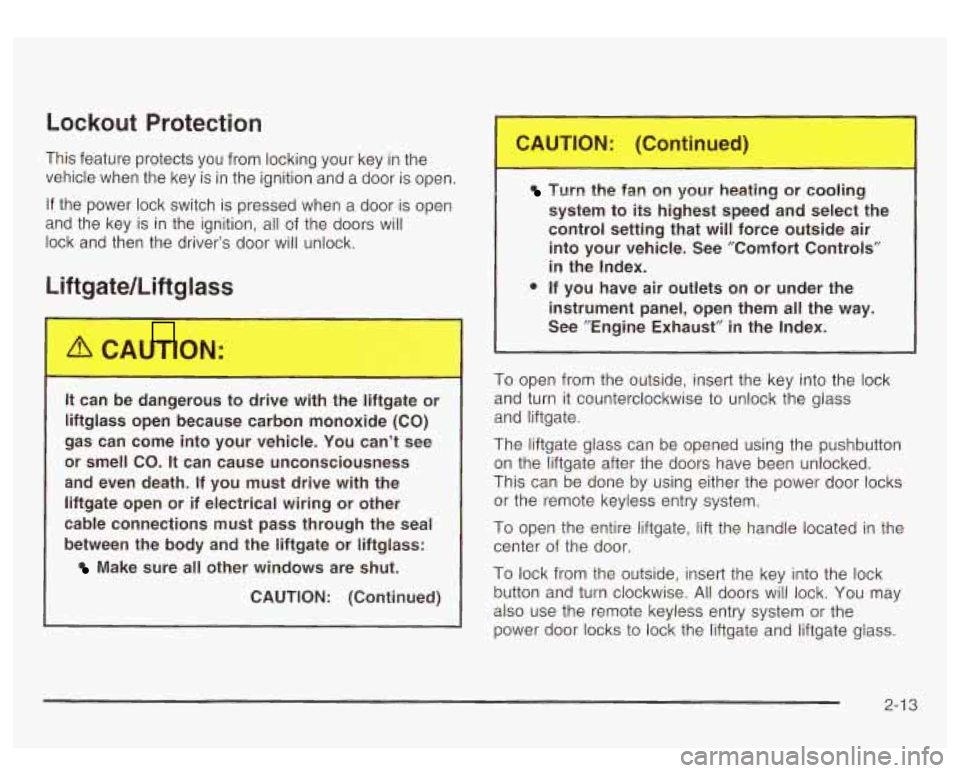

Lockout Protection
This feature protects you from locking your key in the
vehicle when the key is in the ignition and a door is open.
If the power lock switch is pressed when a door is open
and the key is in the ignition, all
of the doors will
lock and then the driver’s door will unlock.
Liftgate/Liftglass
It can be dangerous to drive with the liftgab- or
liftglass open because carbon monoxide (CO)
gas can come into your vehicle. You can’t see
or smell CO.
It can cause unconsciousness
and even death. If you must drive with the
liftgate open or
if electrical wiring or other
cable connections must pass through the seal
between the body and the liftgate or liftglass:
Make sure all other windows are shut.
CAUTION: (Continued)
7 ill :: ;he fan your hez ... jg or cooling
system to its highest speed and select the
control setting that will force outside air
into your vehicle. See ”Comfort Controls”
in the Index.
@ If you have air outlets on or under the
instrument panel, open them all the way.
See ”Engine Exhaust” in the Index.
To open from the outside, insert the key into the lock
and turn it counterclockwise
to unlock the glass
and liftgate.
The liftgate glass can be opened using the pushbutton
on the liftgate after the doors have been unlocked.
This can be done by using either the power door locks or the remote keyless entry system.
To open the entire liftgate,
lift the handle located in the
center of the door.
To lock from the outside, insert the key into the lock
button and turn clockwise.
All doors will lock. You may
also use the remote keyless entry system or the
power door locks to lock the liftgate and liftgate glass.
2-1 3

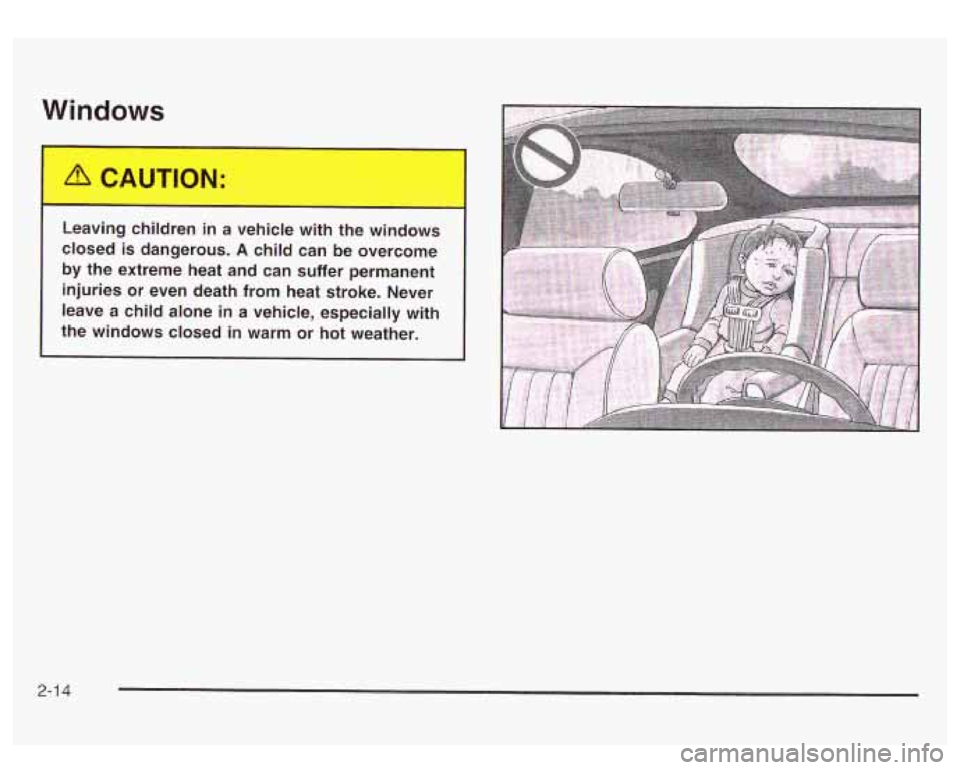

Windows
m
Le: ng ch ren in a vehicle with the wind-.s
closed is dangerous.
A child can be overcome
by the extreme heat and can suffer permanent
injuries
or even death from heat stroke. Never
leave a child alone in a vehicle, especially with
the windows closed in warm or hot weather.
2-1 4

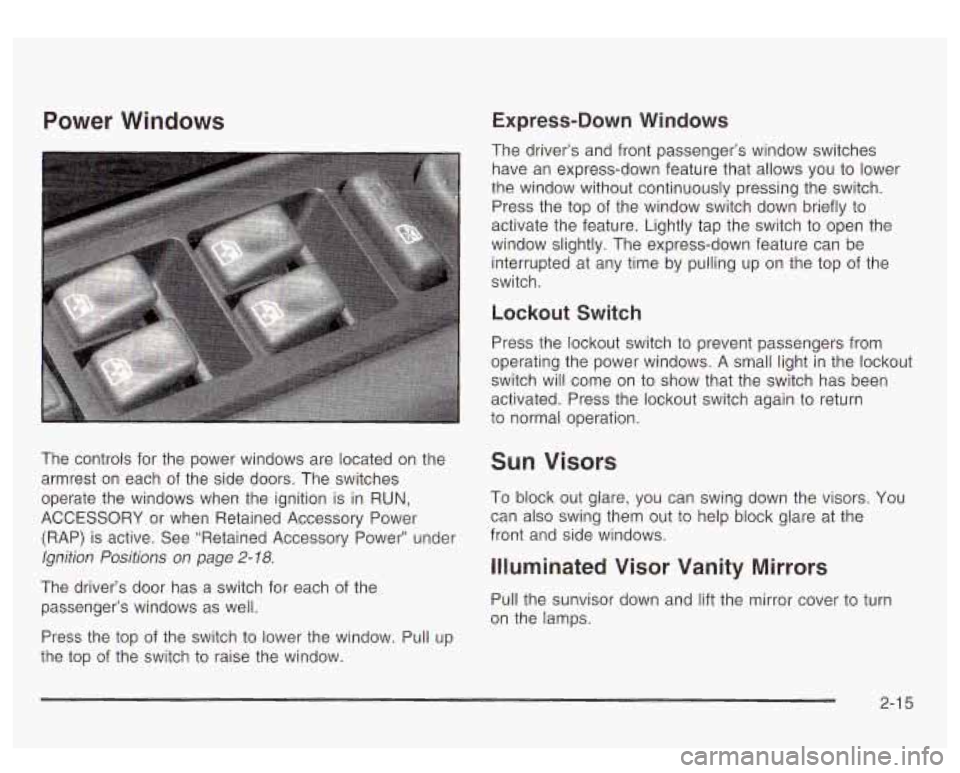

Power Windows
The controls for the power windows are located on the
armrest on each of the side doors. The switches
operate the windows when the ignition is in
RUN,
ACCESSORY or when Retained Accessory Power
(RAP) is active. See “Retained Accessory Power” under
Ignition Positions
on page 2- 18.
The driver’s door has a switch for each of the
passenger’s windows as well.
Press the top of the switch to lower the window. Pull up
the top of the switch to raise the window.
Express-Down Windows
The driver’s and front passenger’s window switches
have an express-down feature that allows you to lower
the window without continuously pressing the switch.
Press the top of the window switch down briefly to
activate the feature. Lightly tap the switch to open the
window slightly. The express-down feature can be
interrupted at any time by pulling up on the top of the
switch.
Lockout Switch
Press the lockout switch to prevent passengers from
operating the power windows. A small light in the lockout
switch will come on to show that the switch has been
activated. Press the lockout switch again to return
to normal operation.
Sun Visors
To block out glare, you can swing down the visors. You
can also swing them out to help block glare at the
front and side windows.
Illuminated Visor Vanity Mirrors
Pull the sunvisor down and lift the mirror cover to turn
on the lamps.
2-1 5
