Removal of fuel pipe
1. Remove the connection between the in/return fuel connector of
engine fuel track and the fuel supply pipe:
a. Remove the elastic hoop firstly;
b. Remove the package connector; press down the button of package
connector by hand, then pull it out outwardly.
c. Remove the three-line plastic clip.
2. Removal of front section of fuel hard pipe
b. Pull out the fuel pipe form the clip fixing base, then remove the
hard pipe;
c. Remove the fixing base on the longitudinal beam if necessary
rotate the fixing base for 90 degree in clockwise or anticlockwise,
the take out it.
3. Removal of rear section of fuel hard pipe
a. Remove the connecting elastic hoop of two ends of rear section
of fuel hard pipe;
b. Pull out the fuel pipe form the clip fixing base, then remove the
hard pipe ;
Removal and adjustment of throttle control system
1. Removal of accelerator pedal
Remove the two fixed bolts which fix the pedal ;
2. Removal of throttle pull-wire
a. Firstly, disconnect the connection on motor, then loose the fixed
bolt ;
b. Remove the plastic clip of throttle pull-wire on pedal, remove the
end of throttle pull-wire;
c. Use the pliers to clamp the clip on the side of engine compartment
to remove the fixing base of pull-wire on the fa
ade of engine
compartment.

Automatic transmission-29

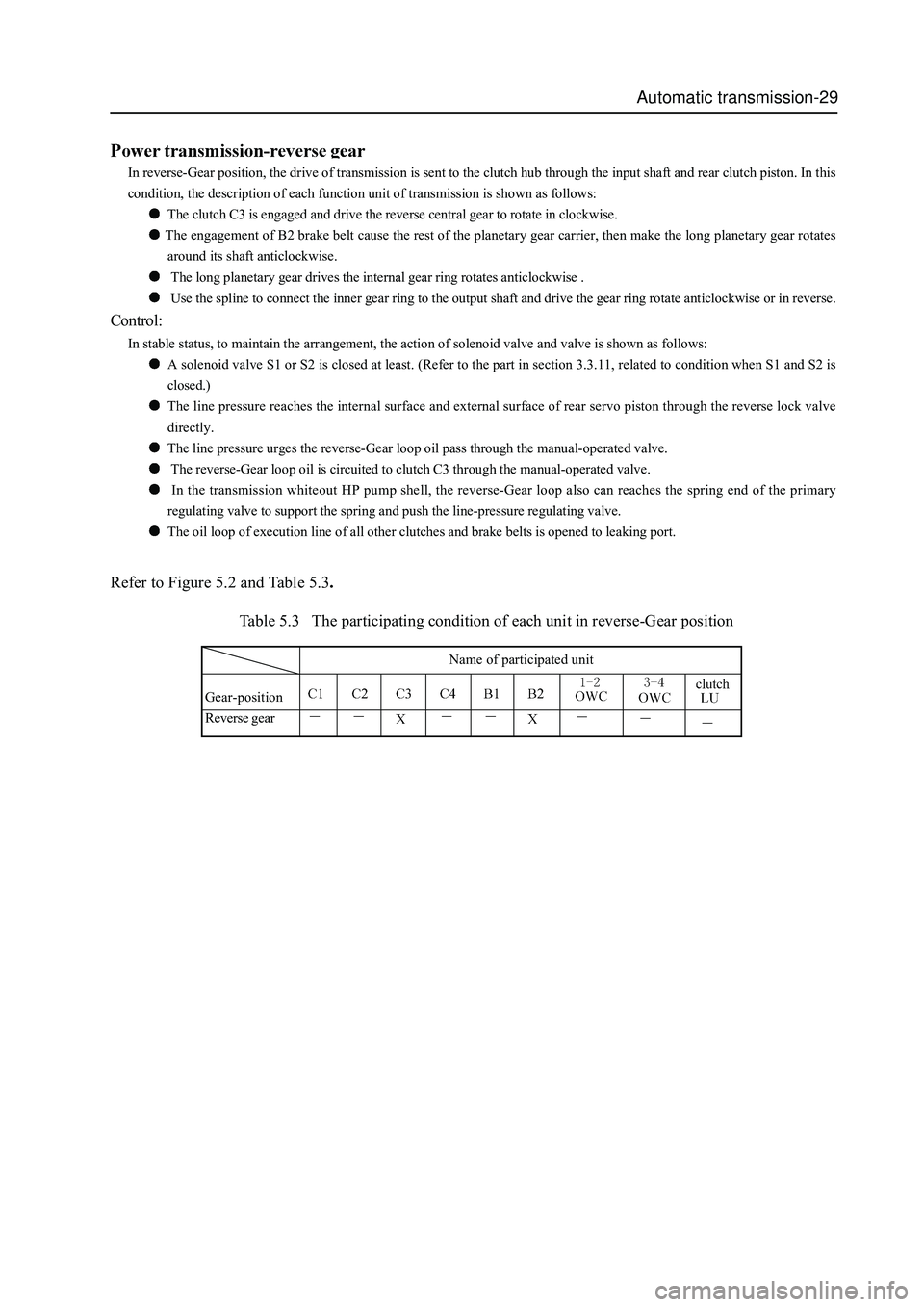

In reverse-Gear position, the drive of transmission is sent to the clutch hub through the input shaft and rear clutch piston. In this
condition, the description of each function unit of transmission is shown as follows:
The clutch C3 is engaged and drive the reverse central gear to rotate in clockwise.
The engagement of B2 brake belt cause the rest of the planetary gear carrier, then make the long planetary gear rotates
around its shaft anticlockwise.
The long planetary gear drives the internal gear ring rotates anticlockwise .
Use the spline to connect the inner gear ring to the output shaft and drive the gear ring rotate anticlockwise or in reverse.
Control:
In stable status, to maintain the arrangement, the action of solenoid valve and valve is shown as follows:
A solenoid valve S1 or S2 is closed at least. (Refer to the part in section 3.3.11, related to condition when S1 and S2 is
closed.)
The line pressure reaches the internal surface and external surface of rear servo piston through the reverse lock valve
directly.
The line pressure urges the reverse-Gear loop oil pass through the manual-operated valve.
The reverse-Gear loop oil is circuited to clutch C3 through the manual-operated valve.
In the transmission whiteout HP pump shell, the reverse-Gear loop also can reaches the spring end of the primary
regulating valve to support the spring and push the line-pressure regulating valve.
The oil loop of execution line of all other clutches and brake belts is opened to leaking port.
Refer to Figure 5.2 and Table 5.3.
Table 5.3 The participating condition of each unit in reverse-Gear position
Gear-position
Reverse gear
Name of participated unit

Automatic transmission-31

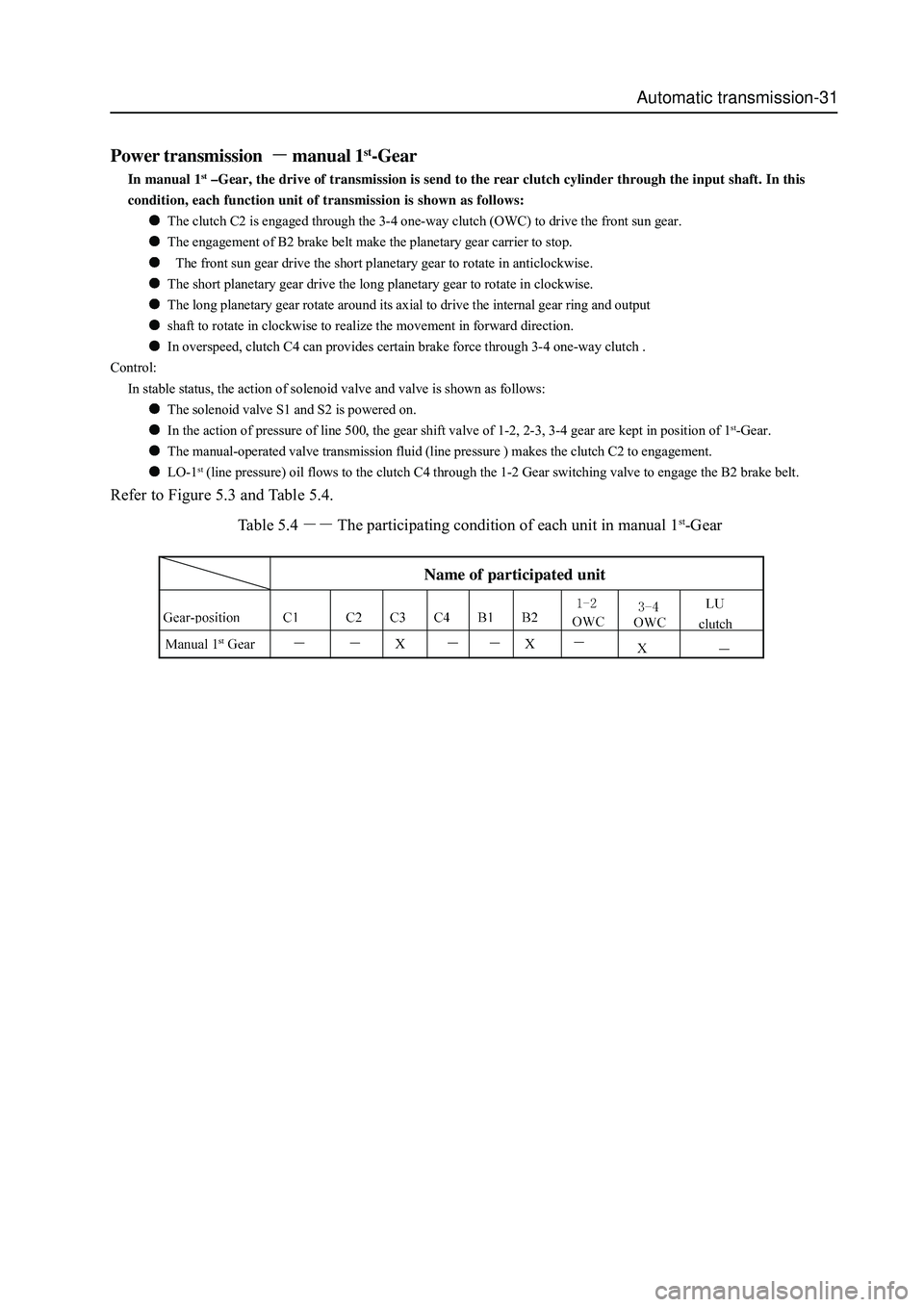

Power transmission manual 1st-Gear
In manual 1st –Gear, the drive of transmission is send to the rear clutch cylinder through the input shaft. In this
condition, each function unit of transmission is shown as follows:
The clutch C2 is engaged through the 3-4 one-way clutch (OWC) to drive the front sun gear.
The engagement of B2 brake belt make the planetary gear carrier to stop.
The front sun gear drive the short planetary gear to rotate in anticlockwise.
The short planetary gear drive the long planetary gear to rotate in clockwise.
The long planetary gear rotate around its axial to drive the internal gear ring and output
shaft to rotate in clockwise to realize the movement in forward direction.
In overspeed, clutch C4 can provides certain brake force through 3-4 one-way clutch .
Control:
In stable status, the action of solenoid valve and valve is shown as follows:
The solenoid valve S1 and S2 is powered on.
In the action of pressure of line 500, the gear shift valve of 1-2, 2-3, 3-4 gear are kept in position of 1st-Gear.
The manual-operated valve transmission fluid (line pressure ) makes the clutch C2 to engagement.
LO-1st (line pressure) oil flows to the clutch C4 through the 1-2 Gear switching valve to engage the B2 brake belt.
Refer to Figure 5.3 and Table 5.4.
Table 5.4
The participating condition of each unit in manual 1st-Gear
Name of participated unit
X X

Automatic transmission-33

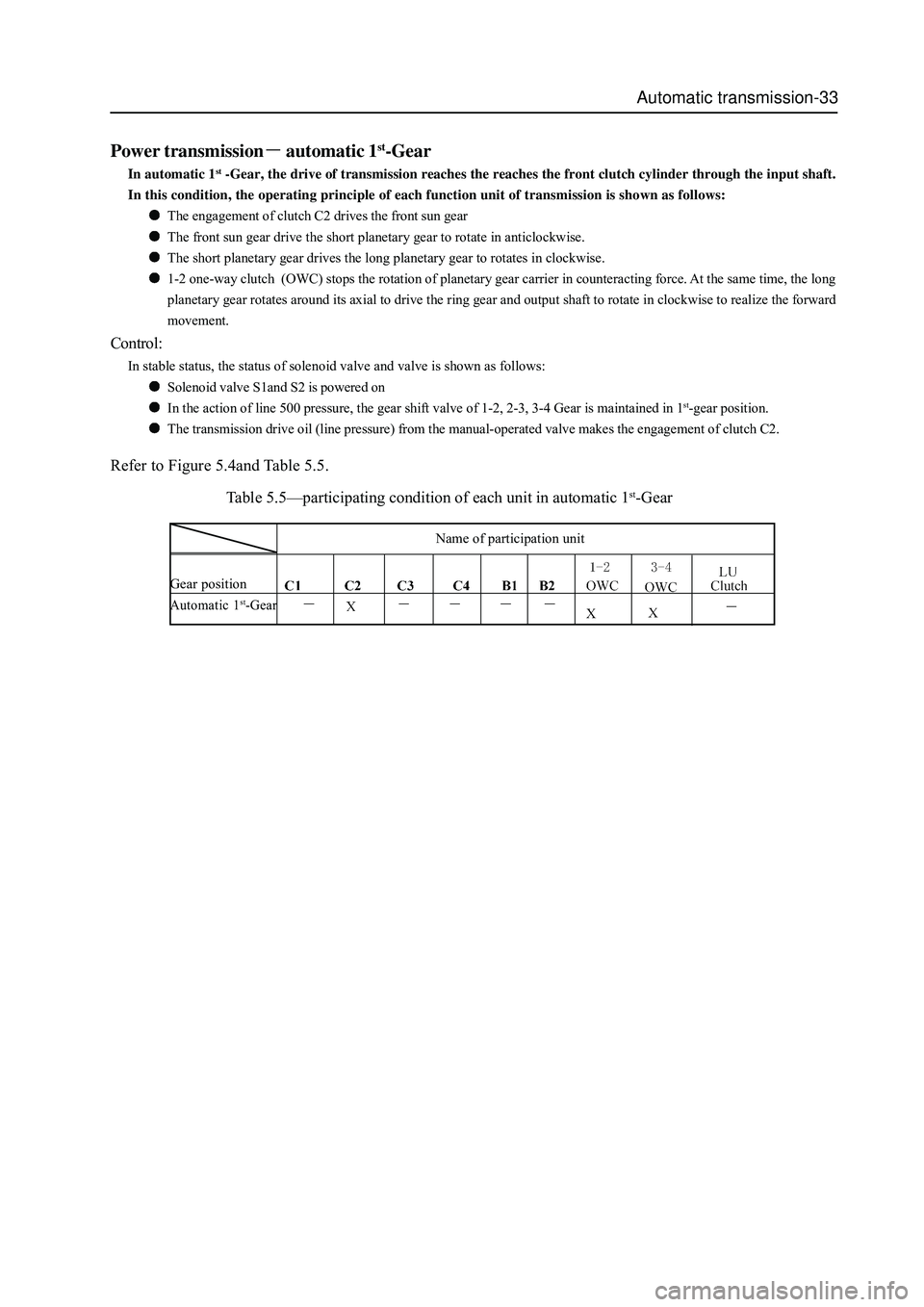

Power transmission automatic 1st-Gear
In automatic 1st -Gear, the drive of transmission reaches the reaches the front clutch cylinder through the input shaft.
In this condition, the operating principle of each function unit of transmission is shown as follows:
The engagement of clutch C2 drives the front sun gear
The front sun gear drive the short planetary gear to rotate in anticlockwise.
The short planetary gear drives the long planetary gear to rotates in clockwise.
1-2 one-way clutch (OWC) stops the rotation of planetary gear carrier in counteracting force. At the same time, the long
planetary gear rotates around its axial to drive the ring gear and output shaft to rotate in clockwise to realize the forward
movement.
Control:
In stable status, the status of solenoid valve and valve is shown as follows:
Solenoid valve S1and S2 is powered on
In the action of line 500 pressure, the gear shift valve of 1-2, 2-3, 3-4 Gear is maintained in 1st-gear position.
The transmission drive oil (line pressure) from the manual-operated valve makes the engagement of clutch C2.
Table 5.5—participating condition of each unit in automatic 1st-Gear
Name of participation unit
Gear position
Automatic 1st-Gear
Refer to Figure 5.4and Table 5.5.

Automatic transmission-35

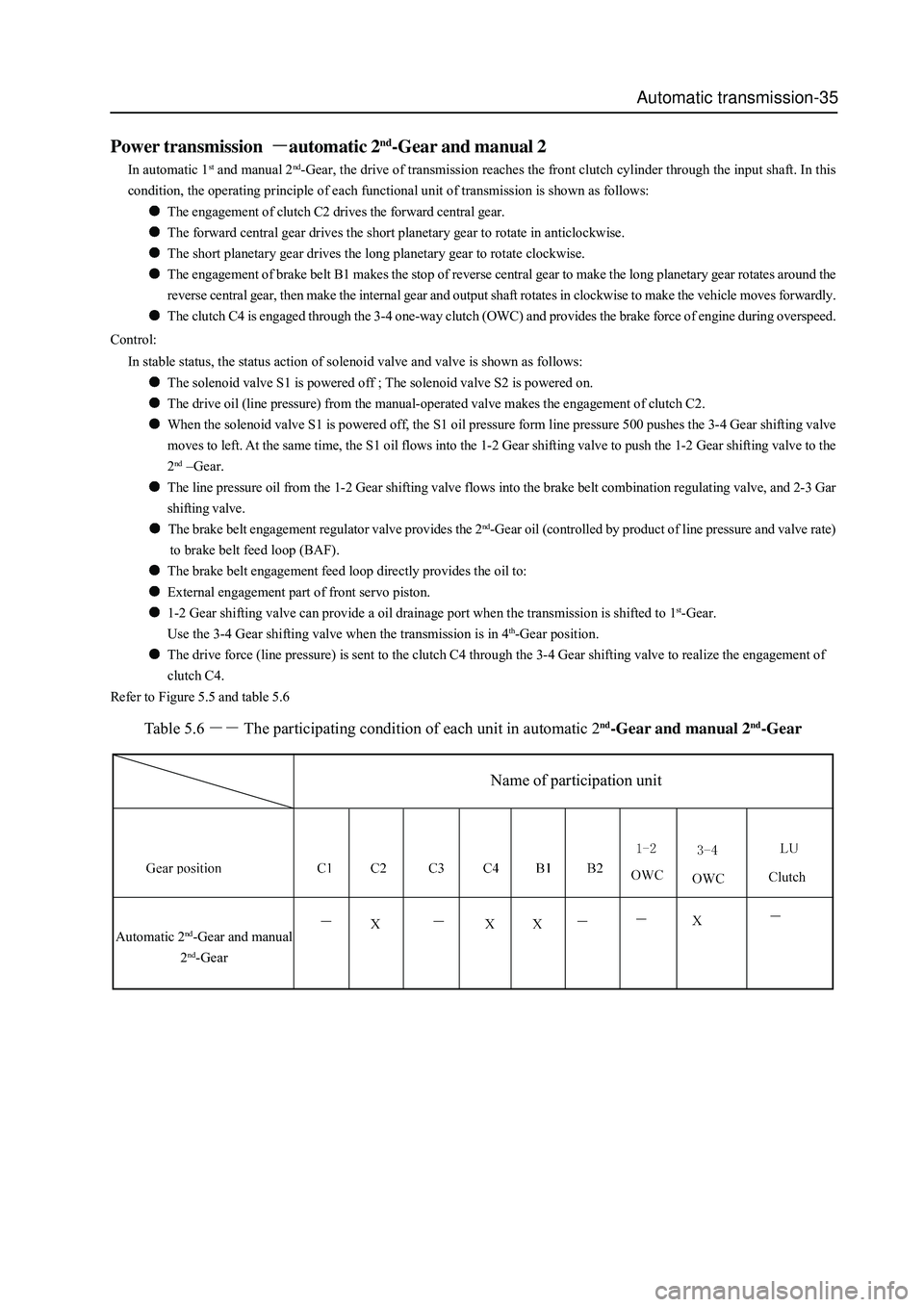

Power transmission automatic 2nd-Gear and manual 2
In automatic 1st and manual 2nd-Gear, the drive of transmission reaches the front clutch cylinder through the input shaft. In this
condition, the operating principle of each functional unit of transmission is shown as follows:
The engagement of clutch C2 drives the forward central gear.
The forward central gear drives the short planetary gear to rotate in anticlockwise.
The short planetary gear drives the long planetary gear to rotate clockwise.
The engagement of brake belt B1 makes the stop of reverse central gear to make the long planetary gear rotates around the
reverse central gear, then make the internal gear and output shaft rotates in clockwise to make the vehicle moves forwardly.
The clutch C4 is engaged through the 3-4 one-way clutch (OWC) and provides the brake force of engine during overspeed.
Control:
In stable status, the status action of solenoid valve and valve is shown as follows:
The solenoid valve S1 is powered off ; The solenoid valve S2 is powered on.
The drive oil (line pressure) from the manual-operated valve makes the engagement of clutch C2.
When the solenoid valve S1 is powered off, the S1 oil pressure form line pressure 500 pushes the 3-4 Gear shifting valve
moves to left. At the same time, the S1 oil flows into the 1-2 Gear shifting valve to push the 1-2 Gear shifting valve to the
2
nd –Gear.
The line pressure oil from the 1-2 Gear shifting valve flows into the brake belt combination regulating valve, and 2-3 Gar
shifting valve.
The brake belt engagement regulator valve provides the 2nd-Gear oil (controlled by product of line pressure and valve rate)
to brake belt feed loop (BAF).
The brake belt engagement feed loop directly provides the oil to:
External engagement part of front servo piston.
1-2 Gear shifting valve can provide a oil drainage port when the transmission is shifted to 1st-Gear.
Use the 3-4 Gear shifting valve when the transmission is in 4
th-Gear position.
The drive force (line pressure) is sent to the clutch C4 through the 3-4 Gear shifting valve to realize the engagement of
clutch C4.
Refer to Figure 5.5 and table 5.6
Table 5.6The participating condition of each unit in automatic 2nd-Gear and manual 2nd-Gear
Automatic 2nd-Gear and manual
2
nd-Gear

Name of participation unit

Automatic transmission-37

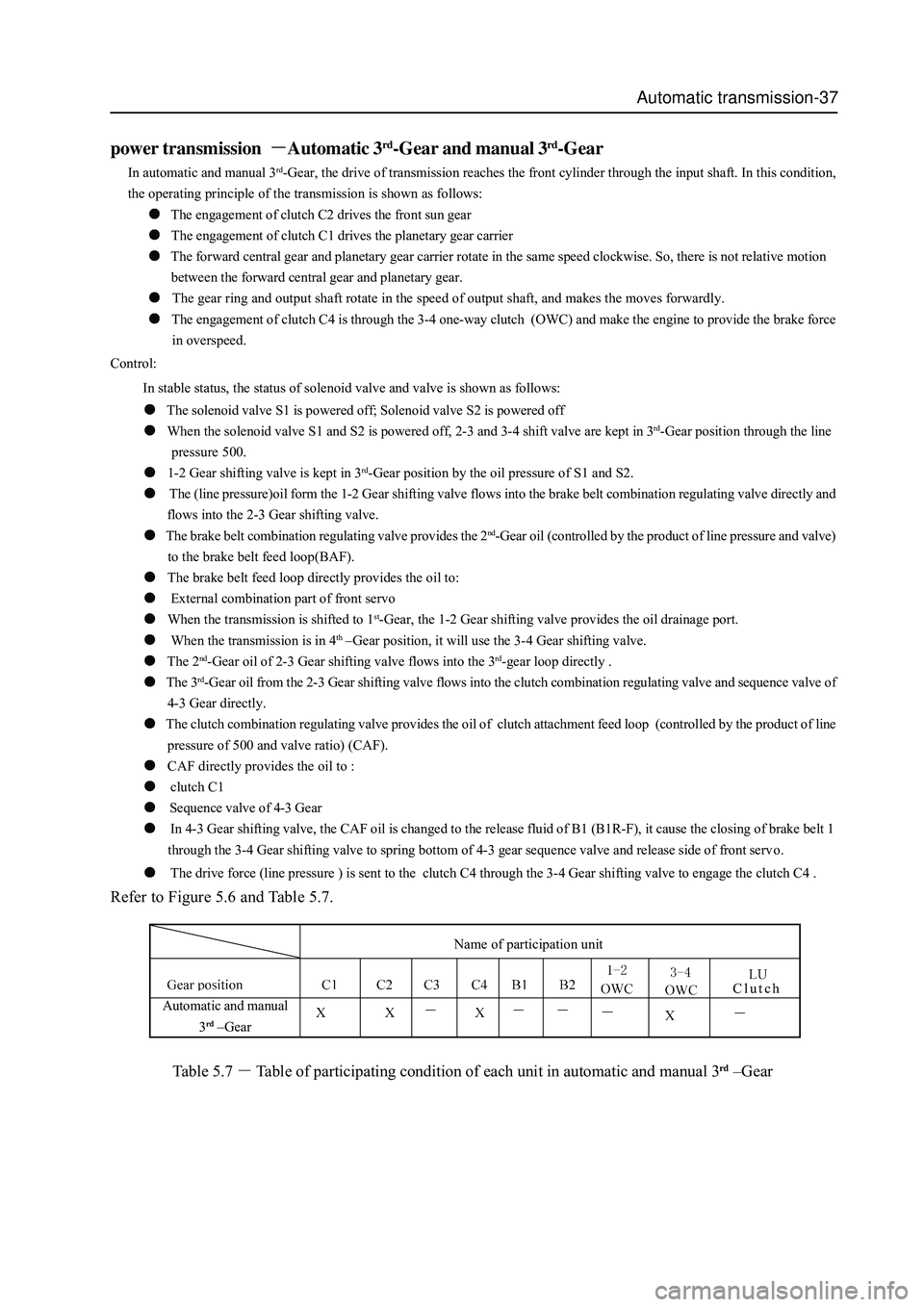

power transmission Automatic 3rd-Gear and manual 3rd-Gear
In automatic and manual 3rd-Gear, the drive of transmission reaches the front cylinder through the input shaft. In this condition,
the operating principle of the transmission is shown as follows:
The engagement of clutch C2 drives the front sun gear
The engagement of clutch C1 drives the planetary gear carrier
The forward central gear and planetary gear carrier rotate in the same speed clockwise. So, there is not relative motion
between the forward central gear and planetary gear.
The gear ring and output shaft rotate in the speed of output shaft, and makes the moves forwardly.
The engagement of clutch C4 is through the 3-4 one-way clutch (OWC) and make the engine to provide the brake force
in overspeed.
Control:
In stable status, the status of solenoid valve and valve is shown as follows:
The solenoid valve S1 is powered off; Solenoid valve S2 is powered off
When the solenoid valve S1 and S2 is powered off, 2-3 and 3-4 shift valve are kept in 3rd-Gear position through the line
pressure 500.
1-2 Gear shifting valve is kept in 3rd-Gear position by the oil pressure of S1 and S2.
The (line pressure)oil form the 1-2 Gear shifting valve flows into the brake belt combination regulating valve directly and
flows into the 2-3 Gear shifting valve.
The brake belt combination regulating valve provides the 2nd-Gear oil (controlled by the product of line pressure and valve)
to the brake belt feed loop(BAF).
The brake belt feed loop directly provides the oil to:
External combination part of front servo
When the transmission is shifted to 1st-Gear, the 1-2 Gear shifting valve provides the oil drainage port.
When the transmission is in 4th –Gear position, it will use the 3-4 Gear shifting valve.
The 2nd-Gear oil of 2-3 Gear shifting valve flows into the 3rd-gear loop directly .
The 3rd-Gear oil from the 2-3 Gear shifting valve flows into the clutch combination regulating valve and sequence valve of
4-3 Gear directly.
The clutch combination regulating valve provides the oil of clutch attachment feed loop (controlled by the product of line
pressure of 500 and valve ratio) (CAF).
CAF directly provides the oil to :
clutch C1
Sequence valve of 4-3 Gear
In 4-3 Gear shifting valve, the CAF oil is changed to the release fluid of B1 (B1R-F), it cause the closing of brake belt 1
through the 3-4 Gear shifting valve to spring bottom of 4-3 gear sequence valve and release side of front servo.
The drive force (line pressure ) is sent to the clutch C4 through the 3-4 Gear shifting valve to engage the clutch C4 .
Refer to Figure 5.6 and Table 5.7.
Table 5.7
Table of participating condition of each unit in automatic and manual 3rd –Gear
Clutch
Name of participation unit
Automatic and manual
3
rd –Gear

Automatic transmission-41

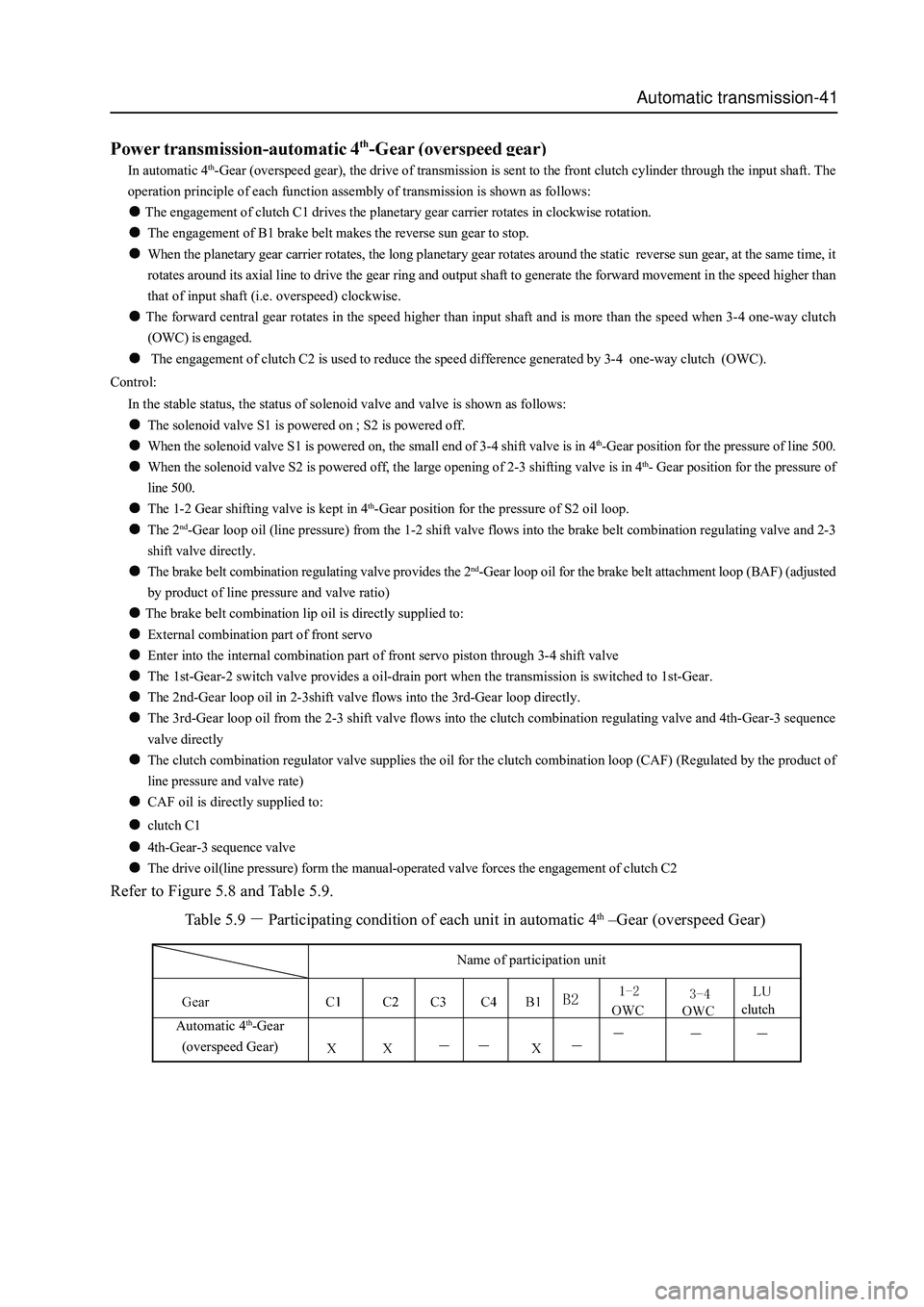

In automatic 4th-Gear (overspeed gear), the drive of transmission is sent to the front clutch cylinder through the input shaft. The
operation principle of each function assembly of transmission is shown as follows:
The engagement of clutch C1 drives the planetary gear carrier rotates in clockwise rotation.
The engagement of B1 brake belt makes the reverse sun gear to stop.
When the planetary gear carrier rotates, the long planetary gear rotates around the static reverse sun gear, at the same time, it
rotates around its axial line to drive the gear ring and output shaft to generate the forward movement in the speed higher than
that of input shaft (i.e. overspeed) clockwise.
The forward central gear rotates in the speed higher than input shaft and is more than the speed when 3-4 one-way clutch
(OWC) is engaged.
The engagement of clutch C2 is used to reduce the speed difference generated by 3-4 one-way clutch (OWC).
Control:
In the stable status, the status of solenoid valve and valve is shown as follows:
The solenoid valve S1 is powered on ; S2 is powered off.
When the solenoid valve S1 is powered on, the small end of 3-4 shift valve is in 4th-Gear position for the pressure of line 500.
When the solenoid valve S2 is powered off, the large opening of 2-3 shifting valve is in 4th- Gear position for the pressure of
line 500.
The 1-2 Gear shifting valve is kept in 4th-Gear position for the pressure of S2 oil loop.
The 2nd-Gear loop oil (line pressure) from the 1-2 shift valve flows into the brake belt combination regulating valve and 2-3
shift valve directly.
The brake belt combination regulating valve provides the 2nd-Gear loop oil for the brake belt attachment loop (BAF) (adjusted
by product of line pressure and valve ratio)
The brake belt combination lip oil is directly supplied to:
External combination part of front servo
Enter into the internal combination part of front servo piston through 3-4 shift valve
The 1st-Gear-2 switch valve provides a oil-drain port when the transmission is switched to 1st-Gear.
The 2nd-Gear loop oil in 2-3shift valve flows into the 3rd-Gear loop directly.
The 3rd-Gear loop oil from the 2-3 shift valve flows into the clutch combination regulating valve and 4th-Gear-3 sequence
valve directly
The clutch combination regulator valve supplies the oil for the clutch combination loop (CAF) (Regulated by the product of
line pressure and valve rate)
CAF oil is directly supplied to:
clutch C1
4th-Gear-3 sequence valve
The drive oil(line pressure) form the manual-operated valve forces the engagement of clutch C2
Refer to Figure 5.8 and Table 5.9.
Table 5.9
Participating condition of each unit in automatic 4th –Gear (overspeed Gear)
clutch
Name of participation unit
Automatic 4
th-Gear
(overspeed Gear)

e. Take out the manual-operated valve operating lever and parking operating lever.
f. Take out the 10 pin socket connector form the wire bunch bracket adjacent gear sensor.
g. Press down the raised part of 10-pin plug and take out the 10-pin connecting plug from the box.
h. Separate the NO.7 solenoid valve wire bunch form the front end of housing.
i. Remove the brake bar pivot, brake shaft and spring.
j. Remove the shaft and rear servo operating lever.
k. Remove the rear servo cover and piston assembly.
l. Remove the BIR circlip, valve and spring.
m. Remove two brake belt adjusting shims.
n. Check the output shaft bush in box, replace it if necessary.
o. Check the cooler pipeline, replace it if necessary.
p. Check the box for damage.
Caution:
It must not remove the operating lever of parking gear in normal condition.
q. It needs to remove the P-Gear operating lever: take out the circlip from the pivot, knock the external of shaft until it can move
freely in box. Then use a width and thin object to table out the bolt form the box, operating lever and spring.
3. Front clutch cylinder
When take out the front clutch cylinder, please refer to Figure 8.4. The procedure is shown as follows:
Figure 8.4 Assembly of front clutch cylinder
a. Place the assembly on a level surface.
b. Remove the thrust bearing and adjusting shim from the input shaft .
c. Remove the retainer and input shaft form the front end of clutch .
d. Remove the overspeed gear shaft and clutch C1 hub assembly from the clutch cylinder.
e. Take out the clutch disk C1 form the cylinder.
f. Take out the retainer which fix the clutch C3 hub on the rear end of clutch cylinder, then take out the hub.
g. Take out the C2\clutch C4 hub assembly and remove the thrust bearing form the C4 hub.
h. Take out the clutch C2 disc.
i. Reverse the clutch cylinder and take out the clutch C4 sleeve, clutch disk and two wave washers. The 3-4 one-way clutches is
located between the C2 and clutch C4 hub. The other wheel axle can be taken out by rotating a wheel axle in clockwise.
j. Remove the thrust block form the clutch C4 cylinder hub.
Caution
Ensure the spring keeping device does not be clamped in the spring groove and all spring pressure is released.
k. Put end surface of C2\clutch C4 upwardly, connect the clutch cylinder with the tools. Pressed down the piston reset spring,
take out the spring fixing retainer (Refer to Figure 8.5). Remove the tools and take out the ring spring, fixing part and spring.

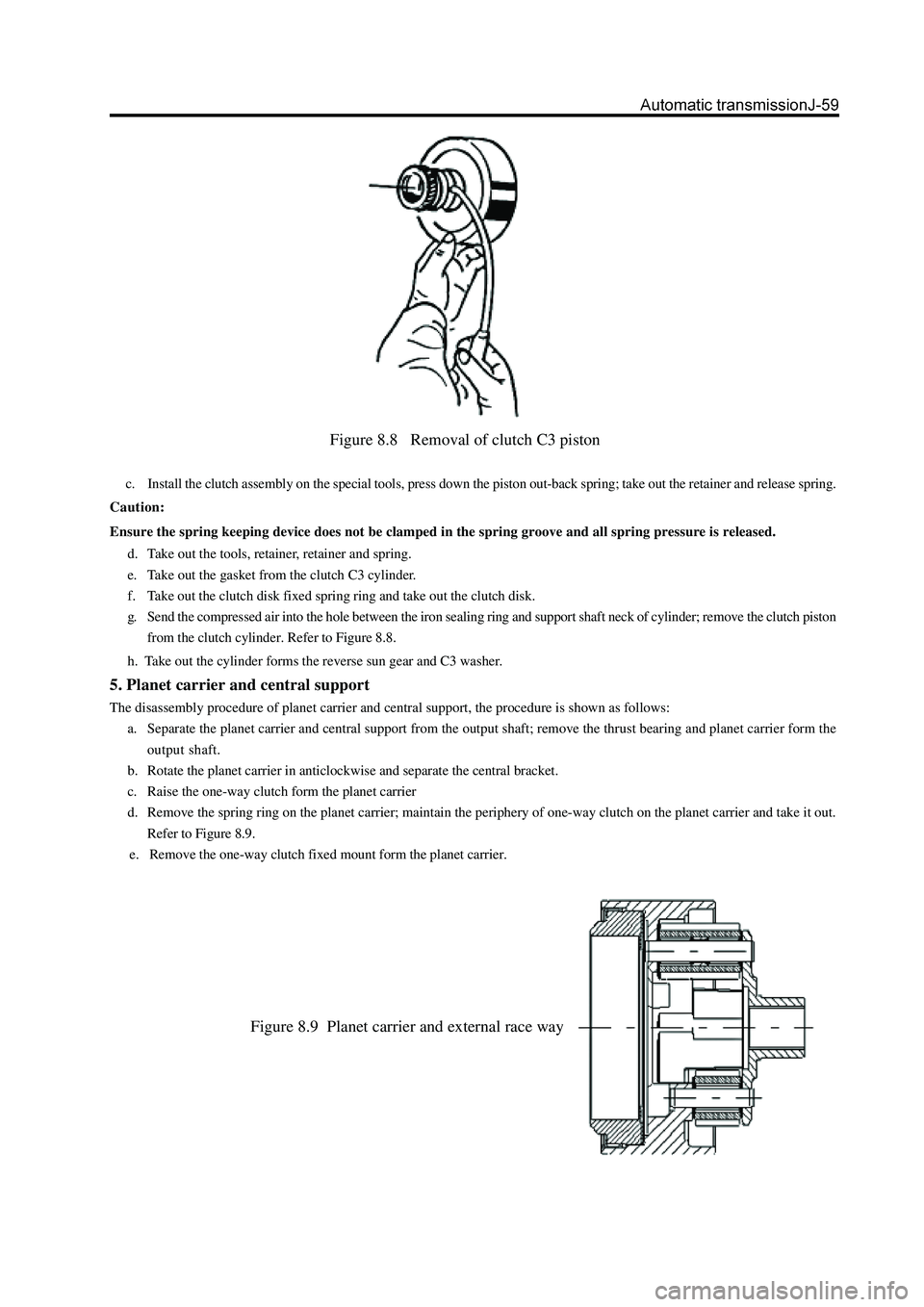

Figure 8.8 Removal of clutch C3 piston
c. Install the clutch assembly on the special tools, press down the piston out-back spring; take out the retainer and release spring.
Caution:
Ensure the spring keeping device does not be clamped in the spring groove and all spring pressure is released.
d. Take out the tools, retainer, retainer and spring.
e. Take out the gasket from the clutch C3 cylinder.
f. Take out the clutch disk fixed spring ring and take out the clutch disk.
g. Send the compressed air into the hole between the iron sealing ring and support shaft neck of cylinder; remove the clutch piston
from the clutch cylinder. Refer to Figure 8.8.
h. Take out the cylinder forms the reverse sun gear and C3 washer.
5. Planet carrier and central support
The disassembly procedure of planet carrier and central support, the procedure is shown as follows:
a. Separate the planet carrier and central support from the output shaft; remove the thrust bearing and planet carrier form the
output shaft.
b. Rotate the planet carrier in anticlockwise and separate the central bracket.
c. Raise the one-way clutch form the planet carrier
d. Remove the spring ring on the planet carrier; maintain the periphery of one-way clutch on the planet carrier and take it out.
Refer to Figure 8.9.
e. Remove the one-way clutch fixed mount form the planet carrier.
Figure 8.9 Planet carrier and external race way

connecting housing (4WD)connecting housing

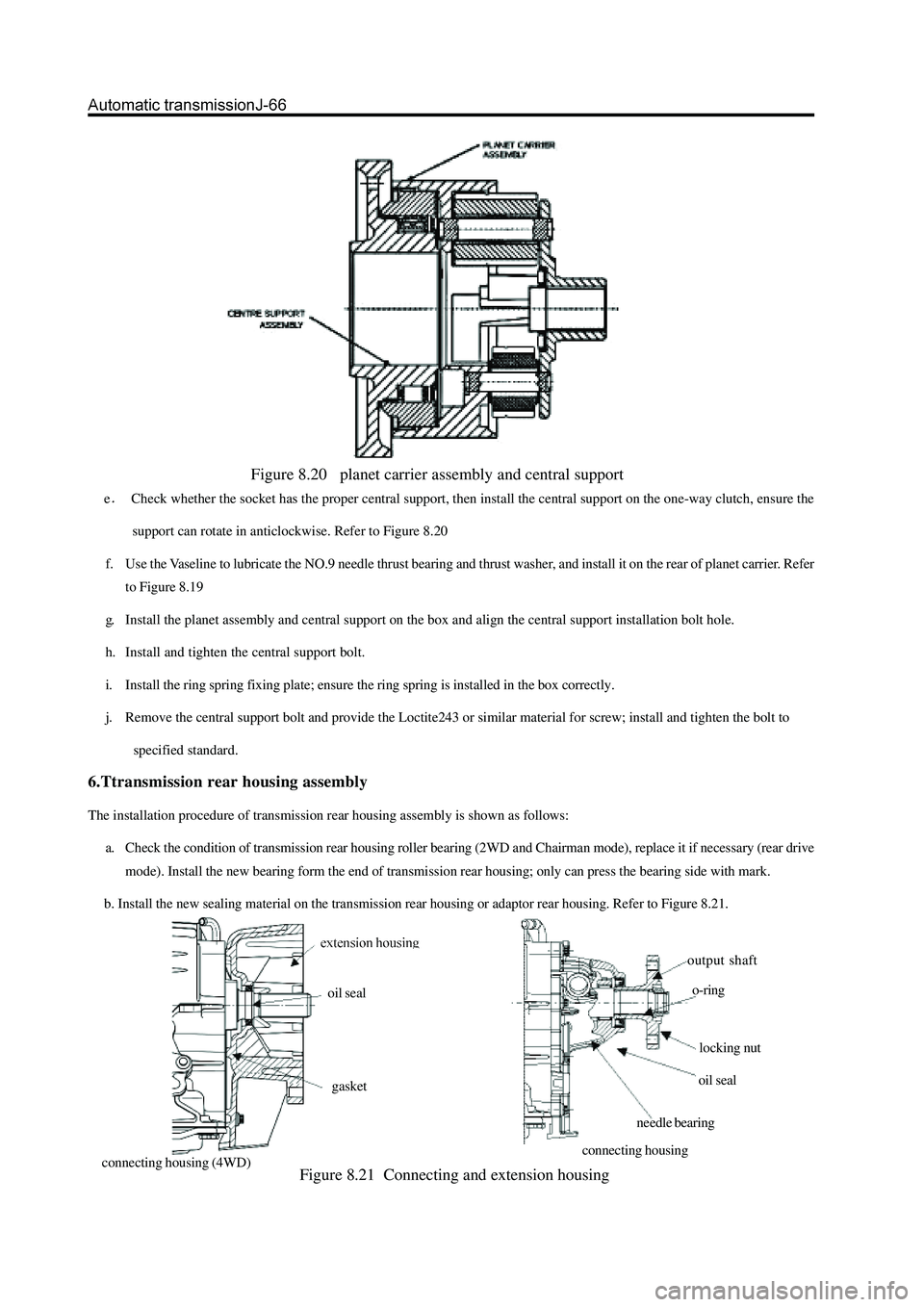

Figure 8.20 planet carrier assembly and central support
eCheck whether the socket has the proper central support, then install the central support on the one-way clutch, ensure the
support can rotate in anticlockwise. Refer to Figure 8.20
f. Use the Vaseline to lubricate the NO.9 needle thrust bearing and thrust washer, and install it on the rear of planet carrier. Refer
to Figure 8.19
g. Install the planet assembly and central support on the box and align the central support installation bolt hole.
h. Install and tighten the central support bolt.
i. Install the ring spring fixing plate; ensure the ring spring is installed in the box correctly.
j. Remove the central support bolt and provide the Loctite243 or similar material for screw; install and tighten the bolt to
specified standard.
6.Ttransmission rear housing assembly
The installation procedure of transmission rear housing assembly is shown as follows:
a. Check the condition of transmission rear housing roller bearing (2WD and Chairman mode), replace it if necessary (rear drive
mode). Install the new bearing form the end of transmission rear housing; only can press the bearing side with mark.
b. Install the new sealing material on the transmission rear housing or adaptor rear housing. Refer to Figure 8.21.
Figure 8.21 Connecting and extension housing
output shaft
o-ring
locking nut
oil seal
needle bearing oil seal
gasket
