HONDA ACCORD 2005 CL7 / 7.G Owners Manual

µ
µ µ
µ
The
seek/skip f unction selects the
various categories in XM, such as
Jazz/Blues, Rock, Classical, etc.
Push the to change the
category f orward. Push the to
change the category backward. To
search f or channels within a
category, turn the TUNE knob
clockwiseorpresstheTUNEbar .
Press and release this
button to change the display. The
display will change in the f ollowing
sequence: channel name, channel
number, category, artist name, and
music title. The scan f unction samples
all channels f or 5 seconds. To
activate the f unction, push the SCAN
button. Push it again to get out of the
sequence.
Each preset icon or each
side of the preset bar can store one
channel in XM1 and one in XM2.
Push the SAT button, you will see
XM1 or XM2.
Use the TUNE, SEEK or SCAN
function to tune the radio to a
desired channel.
Pick a preset icon or number and
hold it until you hear a beep. Once your XM channels are preset,
pressing either side of the CH/DISC
bar will select your preset channels.
Repeat steps 1 through 3 to store a
total of six stations on XM1 and
six on XM2.
1. 2. 3. 4.
Vehicles with navigation system Vehicles with navigation system
SEEK /SK IP (CA T EGORY)
DISPSCAN
Preset
Playing t he XMSatellite Radio
126
——y
y
(%y
y

Satellite radio receives signals f rom
two satellites to produce clear, high-
quality digital reception. It of f ers
many channels in several categories.
Along with a large selection of
dif f erent types of music, satellite
radio also allows you to view channel
and category selections in the audio
display.
The XM satellites are in orbit over
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate f or this, ground-based
repeaters are placed in major
metropolitan areas.
Satellite signals are more likely to be
blocked by tall buildings and
mountains the f arther north you
travel from the equator.
CONT INUED
Satellite Radio Signals
Playing t he XMSatellite Radio
Features
127

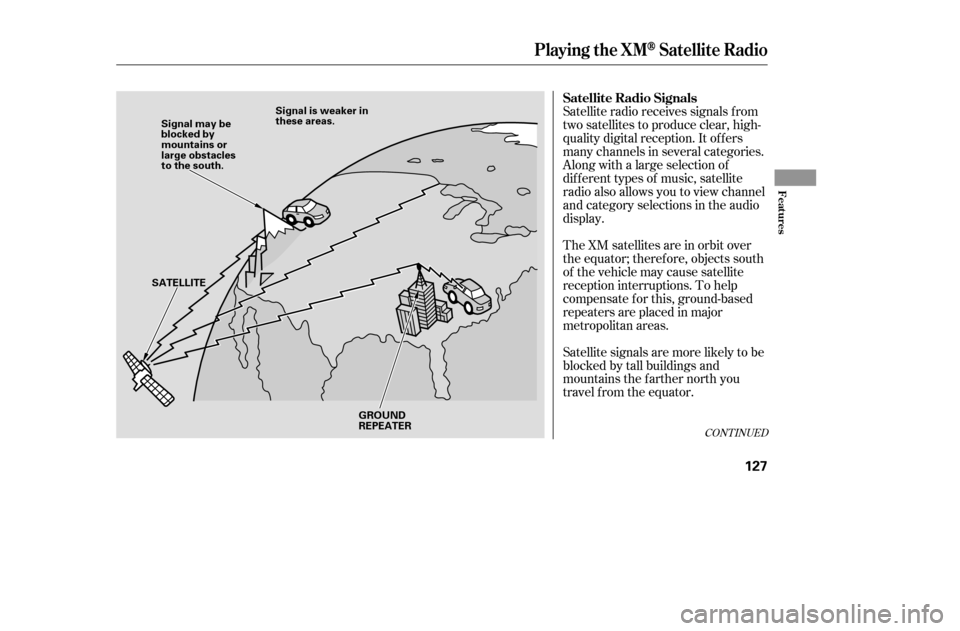

Signal may be
blocked by
mountains or
large obstacles
to the south.
SATELLITE
GROUND
REPEATER
Signal is weaker in
these areas.
——y

y
(%y
y

Depending on where you drive, you
may experience reception problems.
Interf erence can be caused by any of
these conditions:Driving on the south side of an
east/west mountain road
Driving on the north side of a
large commercial truck on an
east/west road
Driving in the tunnels
Driving on a road beside a vertical
wall, steep clif f , or hill to the south
of you
Driving on the lower level of a
multi-tiered road
Driving on a single lane road
alongside dense trees taller than
50 f t. (15 m) to the south of you
There may also be other geographic
situations that could af f ect satellite
radio reception. If your XM Radio service has expired
or you purchased your vehicle f rom
a previous owner, you can listen to a
sampling of the broadcasts available
on XM Satellite Radio. With the
ignition switch in the ACCESSORY
(I) or ON (II) position, push the
PWR/VOL knob to turn on the audio
system, and press the CD/AUX
(XM) button. A variety of music
types and styles will play.As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.Receiving Satellite Radio Service
Playing t he XMSatellite Radio
128
——y
y
(%y

y

If you decide to purchase XM
Satellite Radio service, contact XM
Radio at , or at
1-800-852-9696. You will need to give
them your radio I.D. number and
your credit card number.
To get your radio I.D. number:
Turn the TUNE knob or press the
TUNE bar until ‘‘0’’ appears in the
display. Your I.D. will appear in the
display.After you’ve registered with XM
Radio, keep your audio system in the
Satellite Radio mode while you wait
f or activation. This should take about
30 minutes.
While waiting f or activation, make
sure your vehicle remains in an open
area with good reception. Once your
audio system is activated, ‘‘category’’
or ‘‘CH’’ will appear in the display,
andyou’llbeabletolistentoXM
Radio broadcasts. XM Radio will
continue to send an activation signal
to your vehicle for at least 12 hours
from the activation request. If the
service has not been activated after
36 hours, contact XM Radio.
www.xmradio.com
Playing t he XMSatellite Radio
Features
129
——y
y
(%y
y

Playing a CD
130

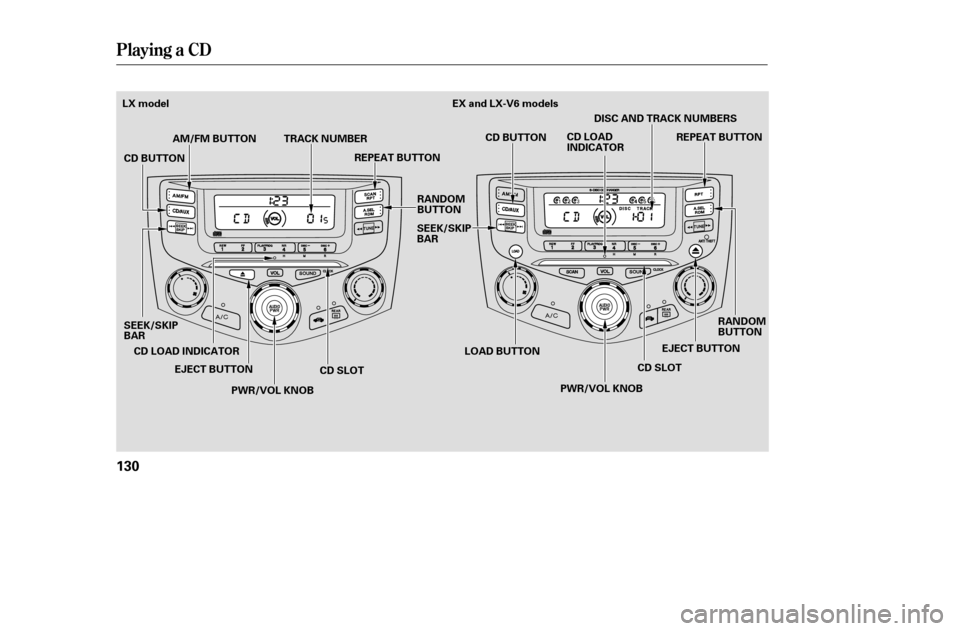

PWR/VOL KNOB
PWR/VOL KNOB
AM/FM BUTTON
CD SLOT
CD LOAD INDICATOR CD BUTTON
CD SLOT
LOAD BUTTON
EJECT BUTTON
EJECT BUTTON TRACK NUMBER
CD BUTTON
SEEK/SKIP
BAR CD LOAD
INDICATOR
DISC AND TRACK NUMBERS
SEEK/SKIP
BAR
LX model
EX and LX-V6 models
REPEAT BUTTON REPEAT BUTTON
RANDOM
BUTTON
RANDOM
BUTTON
——y
y
(%y
y

CONT INUED
Playing a CD
Features
131

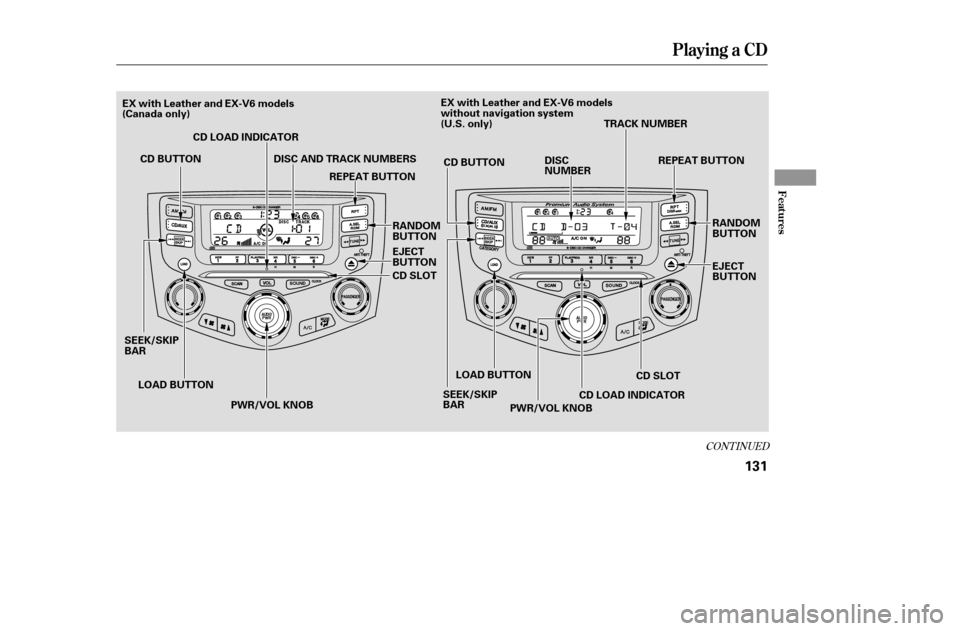

PWR/VOL KNOB
CD SLOT
CD BUTTON
CD SLOT
LOAD BUTTON
CD BUTTON
SEEK/SKIP
BAR SEEK/SKIP
BARDISC
NUMBER
CD LOAD INDICATOR
LOAD BUTTON EJECT
BUTTON
CD LOAD INDICATOR
EJECT
BUTTON
DISC AND TRACK NUMBERS
TRACK NUMBER
PWR/VOL KNOB REPEAT BUTTON
RANDOM
BUTTON REPEAT BUTTON
RANDOM
BUTTON
EX with Leather and EX-V6 models
(Canada only)
EX with Leather and EX-V6 models
without navigation system
(U.S. only)
——y
y
(%y
y

Playing a CD
132

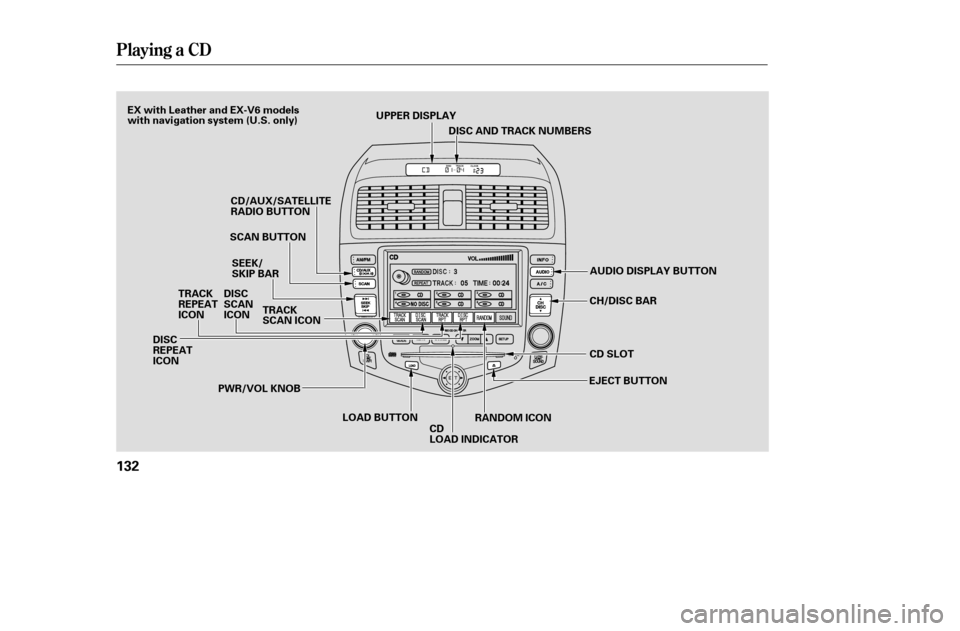

PWR/VOL KNOBUPPER DISPLAY
DISC AND TRACK NUMBERS
CH/DISC BARCD SLOT
EJECT BUTTON
RANDOM ICON
LOAD BUTTON
SCAN BUTTON
DISC
SCANICON TRACK
SCAN ICON
SEEK/
SKIP BAR
CD
LOAD INDICATORAUDIO DISPLAY BUTTON
CD/AUX/SATELLITE
RADIO BUTTON
TRACK
REPEATICON
DISC
REPEATICON
EX with Leather and EX-V6 models
with navigation system (U.S. only)
——y
y
(%y
y

To load or play CDs, the ignition
switch must be in the ACCESSORY
(I) or ON(II) position.
You operate the CD player/CD
changer with the same controls used
for the radio. To select the CD
player/CD changer, press the CD
button. The number of the track
playing is shown in the display. With
the in-dash CD changer, the disc and
track numbers are displayed. The
system will continuously play a CD
until you change modes.
Insert a CD into the CD slot. The
drive will pull the CD in the rest of
the way to play it. When the system
reaches the end of the disc, it will
return to the beginning and play the
disc again.To play the radio when a CD is
playing, press the AM/FM button.
Press the CD button again to switch
back to the CD player.
To play the tape when a CD is
playing, insert a tape in the player
(optional). If a tape is in the player,
press the AUX button. Press the CD
button again to switch back to the
CD player. The cassette player is
optional on all U.S. models.
You can also play 3-inch (8-cm) discs
without using an adapter ring. To listen to satellite radio when a CD
is playing, press the CD/AUX (XM)
button.
If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition,
the disc will stay in the drive. When
youturnthesystembackon,theCD
will begin playing where it lef t of f .Your vehicle’s in-dash CD changer
hold up to six discs.
The disc number/icon f or an
empty position is highlighted and
the red indicator starts blinking.
To load only one CD, press and
release the LOAD button.
Press the LOAD button until you
hear a beep and see ‘‘LOAd’’ in the
display (in the upper display on
vehicles with navigation system).
1. 2.
CONT INUED
On models with Satellite Radio
LX model
Playing a CD
To Play a CD
L oading CDs in t he In-dash CD ChangerFeatures
133
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
——y


y
(%y
y

µµ´
ÛÝ µ
You can also load a CD into an empty
position while a CD is playing by
pressing the appropriate side of a
preset bar or touching a disc icon.
The system stops playing the current
CD and starts the loading sequence.
It plays the CD just loaded.
Insert the disc into the CD slot
when the green CD load indicator
comes on. Insert it only about
half way; the drive will pull it in the
rest of the way. You will see
‘‘BUSY’’ in the display as the CD
load indicator turns red and blinks
as the CD is loaded.
You cannot load and play 3-inch
(8-cm)discsinthissystem.
Repeat this until all six positions
are loaded. If you are not loading
all six positions, the system begins
playing the last CD loaded.
Do not try to insert a disc until
‘‘LOAd’’ appears. You could
damage the audio unit.
When the CD load indicator turns
green and ‘‘LOAd’’ appears in the
screen again, insert the next CD in
the slot.
To select a dif f erent disc, press the
appropriate side of a preset bar
(1 6) or use the Preset 5 (DISC )
to select the previous disc or Preset
6 (DISC ) to select the next disc in
sequence. On models with navigation
system, touch the appropriate disc
icon or press the or side of the
CH/DISC bar. If you select a loaded
position in the CD changer, the system will try to load the CD in the
next available slot.
You operate the CD changer with
the same controls used f or the radio.
The numbers of the disc and track
playingareshowninthedisplay.On
models with navigation system,
these numbers also appear in the
upper display. Each time you
press and release the side, the
player skips f orward to the
beginning of the next track. Press
and release the side, to skip
backward to the beginning of the
current track. Press it again to skip
to the beginning of the previous
track.
To move rapidly within a track, press
andholdthe or side.
4. 5.
3.
On models without navigation system
Playing a CD
To Change or Select Tracks
SEEK /SK IP
134
——y
y
(%y
y

µ
µ
µ
µ
µ
µ
µ
µ
CONT INUED
When you touch
the TRACK RPT icon, the system
continuously plays the same track.
You will see TRACK RPT
highlighted on the audio screen and
RPT in the upper display. Press the
icon again to get out of track repeat. When you touch the
DISC SCAN icon on the audio
display, the system gives you a 10
second sampling of the f irst track on
each disc in the in-dash CD changer.
You will see DISC SCAN highlighted
on the audio screen and D-SCAN in
the upper display. Touch the icon
again to get out of the system.
When you touch
this icon on the audio display or
press the SCAN button, you will get a10secondsamplingof eachtrack
on the current CD. You will see
TRACK SCAN highlighted on the
audioscreenandSCANintheupper
display. Press the icon or button
again to get out of the system.
To use the controls, press the
AUDIO DISPLAY button, the control
icons will appear on the screen. Press and release the
RDM button to play the tracks in
random order. You will see RDM in
the display. Press it again to return
to normal play. To continuously replay
a track, press and release the RPT
button. You will see RPT in the
display. Press it again to turn it of f .
To continuously
replay the current disc, press and
hold the RPT button. You will see
D-RPT in the display. Press the RPT
button again to turn it off.
The scan f unction samples
all the tracks on the selected disc in
the order they are recorded on the
CD. To activate it, press and release
the SCAN button. You will see SCAN
in the display. You will get a 10
second sampling of each track on the
selected CD. Press the SCAN button
again to get out of the system.
This f unction samples
each f irst track of all the discs in the
in-dash CD changer in the order they
are stored. To activate it, select the
D-SCAN mode by pressing and
holding the SCAN button. You will
see D-SCAN in the display. You will
get a 10 second sampling of the f irst
track on each CD. Press the SCAN
button again to get out of the system.
On models with navigation system
Except f or LX model
Except f or LX model
Playing a CD
TRACK RPT
DISC SCAN
TRACK SCAN
RANDOM
REPEAT
D-REPEA T
SCAN
D-SCAN
Features
135
——y
y
(%y
y
