HONDA ACCORD 2023 Owners Manual

Continued109
uuGauges and Driver Information Interface uDriver Information Interface (Left Side Area)
Instrument Panel

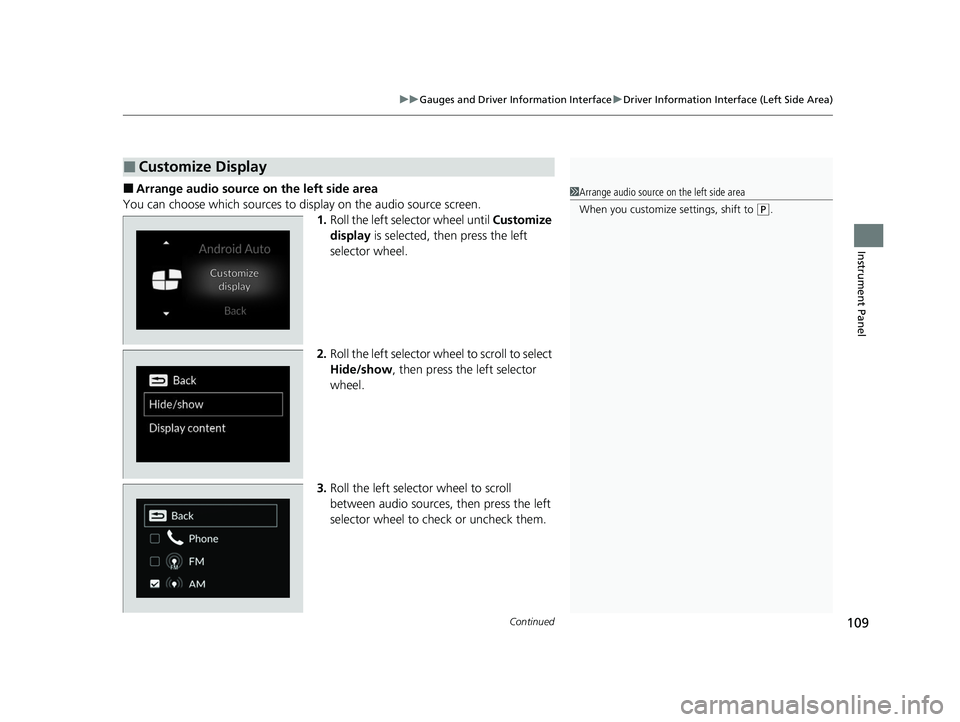

■Arrange audio source on the left side area
You can choose which sources to display on the audio source screen. 1.Roll the left selector wheel until Customize
display is selected, then press the left
selector wheel.
2. Roll the left selector wheel to scroll to select
Hide/show , then press the left selector
wheel.
3. Roll the left selector wheel to scroll
between audio sources, then press the left
selector wheel to check or uncheck them.
■Customize Display
1Arrange audio source on the left side area
When you customize settings, shift to
(P.
23 ACCORD 4D US PET MAP-3130A6000_01.book 109 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

110
uuGauges and Driver Information Interface uDriver Information Interface (Left Side Area)
Instrument Panel

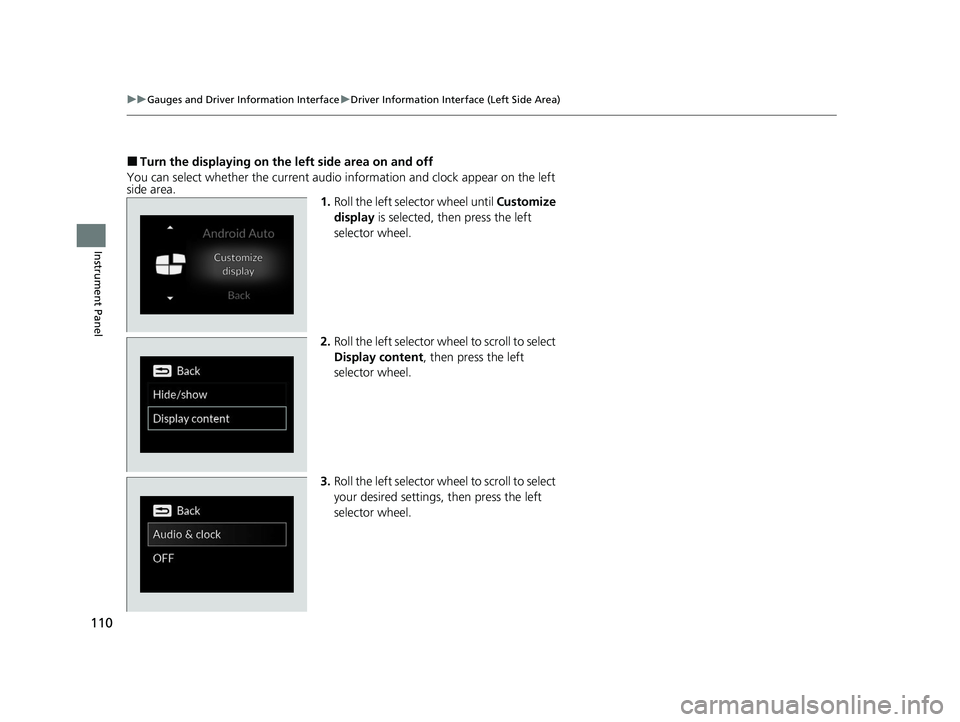

■Turn the displaying on the left side area on and off
You can select whether the current audio information and clock appear on the left
side area. 1.Roll the left selector wheel until Customize
display is selected, then press the left
selector wheel.
2. Roll the left selector wheel to scroll to select
Display content , then press the left
selector wheel.
3. Roll the left selector wheel to scroll to select
your desired settings, then press the left
selector wheel.
23 ACCORD 4D US PET MAP-3130A6000_01.book 110 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

111
uuGauges and Driver Information Interface uDriver Information Interface (Right Side Area)
Continued
Instrument Panel
Driver Information Interfa ce (Right Side Area)
The driver information interface shows information such as the estimated travelable
distance and fuel economy of the vehicle. It also displays messages such as warnings
and other helpful information.
When a warning message displays, please check the message and contact a dealer
to have the vehicle inspected if necessary. Please refer to the pages below if the
Engine oil pressure low or Engine temperature too hot message is displayed.
2If the Engine oil pressure low Warning Appears P. 488
2 Overheating P. 486
23 ACCORD 4D US PET MAP-3130A6000_01.book 111 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

112
uuGauges and Driver Information Interface uDriver Information Interface (Right Side Area)
Instrument Panel

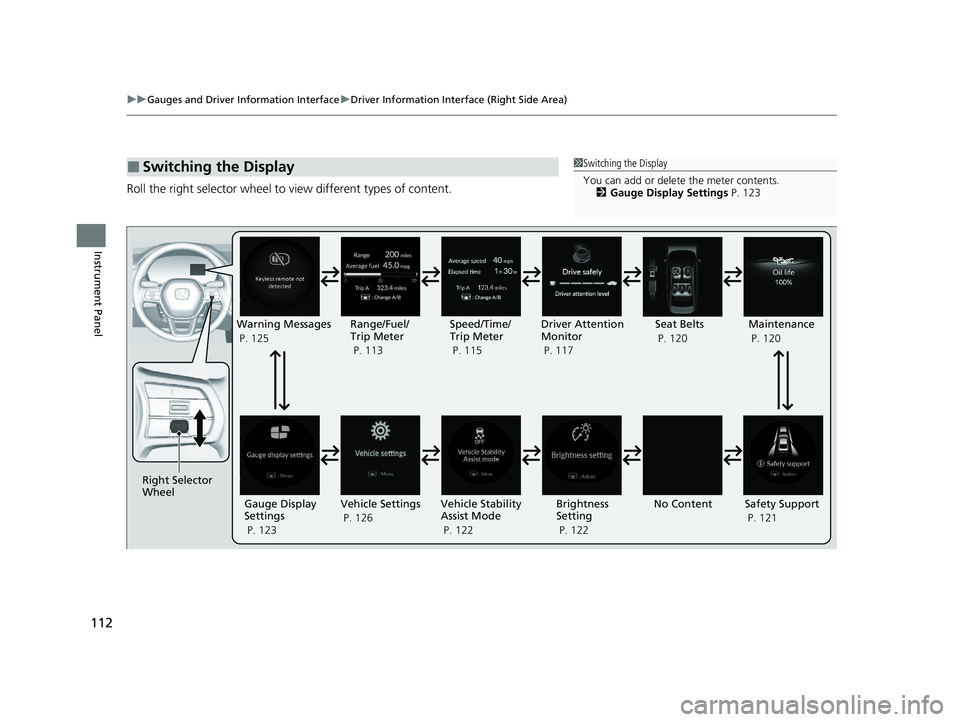

Roll the right selector wheel to view different types of content.
■Switching the Display1Switching the Display
You can add or delete the meter contents.
2 Gauge Display Settings P. 123
Right Selector
Wheel
No ContentMaintenance
P. 120
Safety Support
P. 121
Vehicle Settings
P. 126 Vehicle Stability
Assist Mode
P. 122 Brightness
Setting
P. 122
Warning Messages
P. 125
Range/Fuel/
Trip Meter
P. 113 Driver Attention
Monitor
P. 117
Speed/Time/
Trip Meter
P. 115
Gauge Display
Settings
P. 123 Seat Belts
P. 120
23 ACCORD 4D US PET MAP-3130A6000_01.book 112 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

113
uuGauges and Driver Information Interface uDriver Information Interface (Right Side Area)
Continued
Instrument Panel

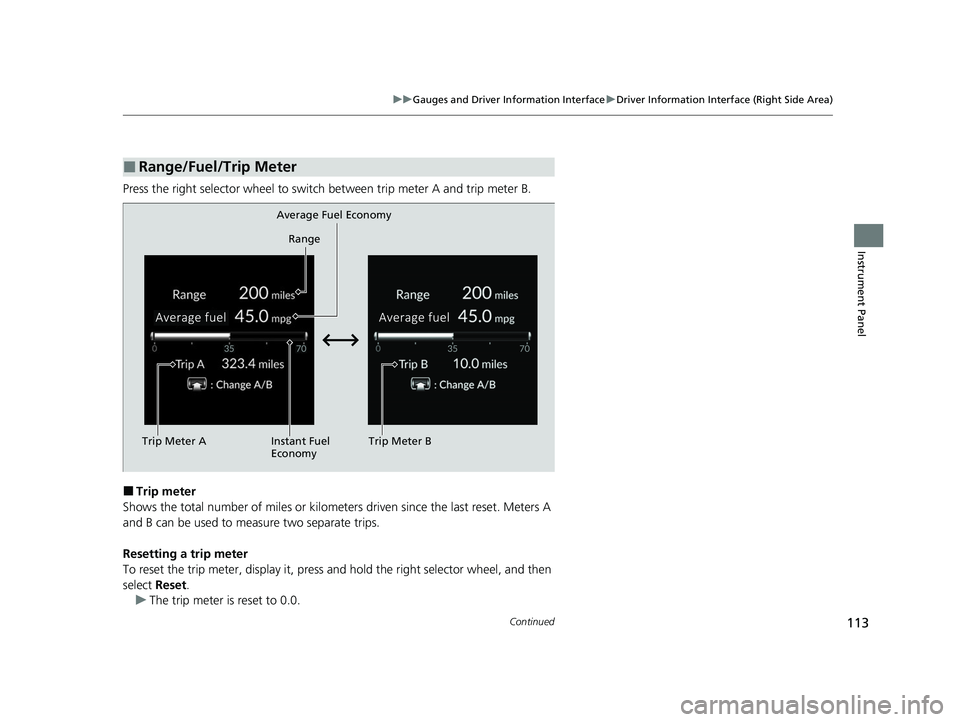

Press the right selector wheel to switch between trip meter A and trip meter B.
■Trip meter
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
Resetting a trip meter
To reset the trip meter, display it, press and hold the right sele ctor wheel, and then
select Reset.
u The trip meter is reset to 0.0.
■Range/Fuel/Trip Meter
Trip Meter A Range
Average Fuel Economy
Instant Fuel
Economy Trip Meter B
23 ACCORD 4D US PET MAP-3130A6000_01.book 113 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

uuGauges and Driver Information Interface uDriver Information Interface (Right Side Area)
114
Instrument Panel

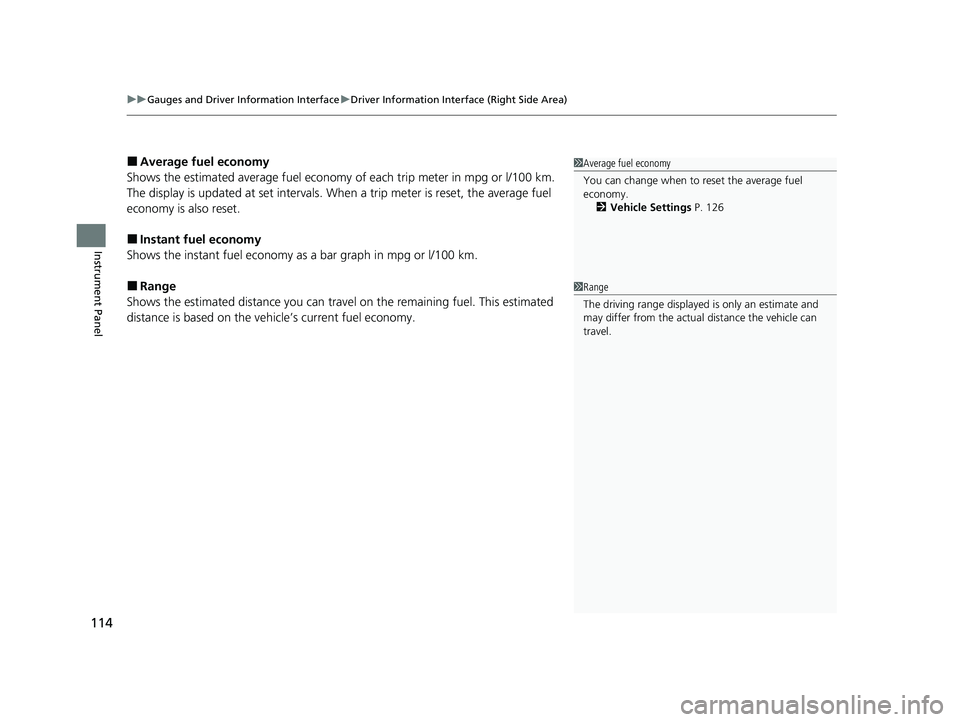

■Average fuel economy
Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. When a trip meter is reset, the average fuel
economy is also reset.
■Instant fuel economy
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
■Range
Shows the estimated distance you can trave l on the remaining fuel. This estimated
distance is based on the vehicle’s current fuel economy.
1 Average fuel economy
You can change when to reset the average fuel
economy.
2 Vehicle Settings P. 126
1Range
The driving range displayed is only an estimate and
may differ from the actual distance the vehicle can
travel.
23 ACCORD 4D US PET MAP-3130A6000_01.book 114 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

115
uuGauges and Driver Information Interface uDriver Information Interface (Right Side Area)
Continued
Instrument Panel

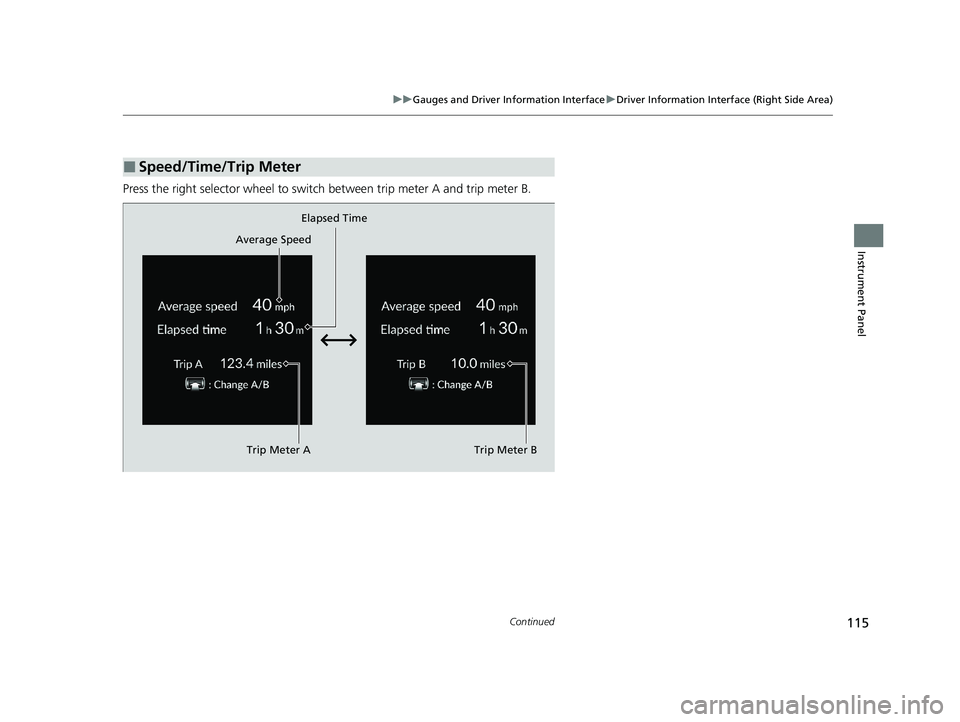

Press the right selector wheel to switch between trip meter A and trip meter B.
■Speed/Time/Trip Meter
Trip Meter AElapsed Time
Trip Meter B
Average Speed
23 ACCORD 4D US PET MAP-3130A6000_01.book 115 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

uuGauges and Driver Information Interface uDriver Information Interface (Right Side Area)
116
Instrument Panel

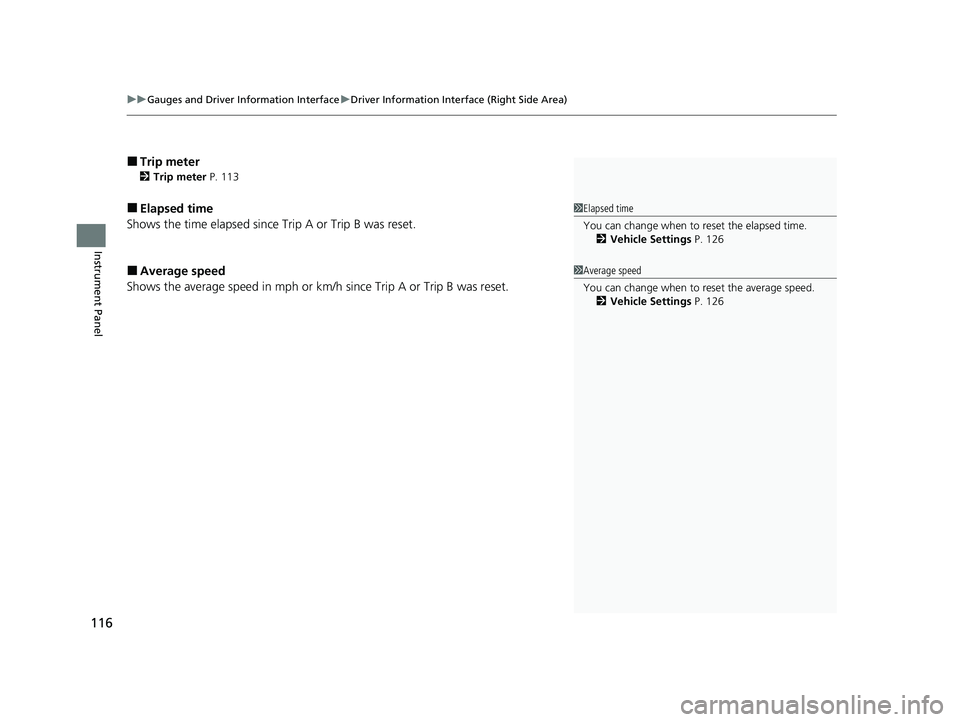

■Trip meter
2 Trip meter P. 113
■Elapsed time
Shows the time elapsed since Trip A or Trip B was reset.
■Average speed
Shows the average speed in mph or km/h since Trip A or Trip B was reset.
1 Elapsed time
You can change when to reset the elapsed time.
2 Vehicle Settings P. 126
1Average speed
You can change when to reset the average speed.
2 Vehicle Settings P. 126
23 ACCORD 4D US PET MAP-3130A6000_01.book 116 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

Continued117
uuGauges and Driver Information Interface uDriver Information Interface (Right Side Area)
Instrument Panel

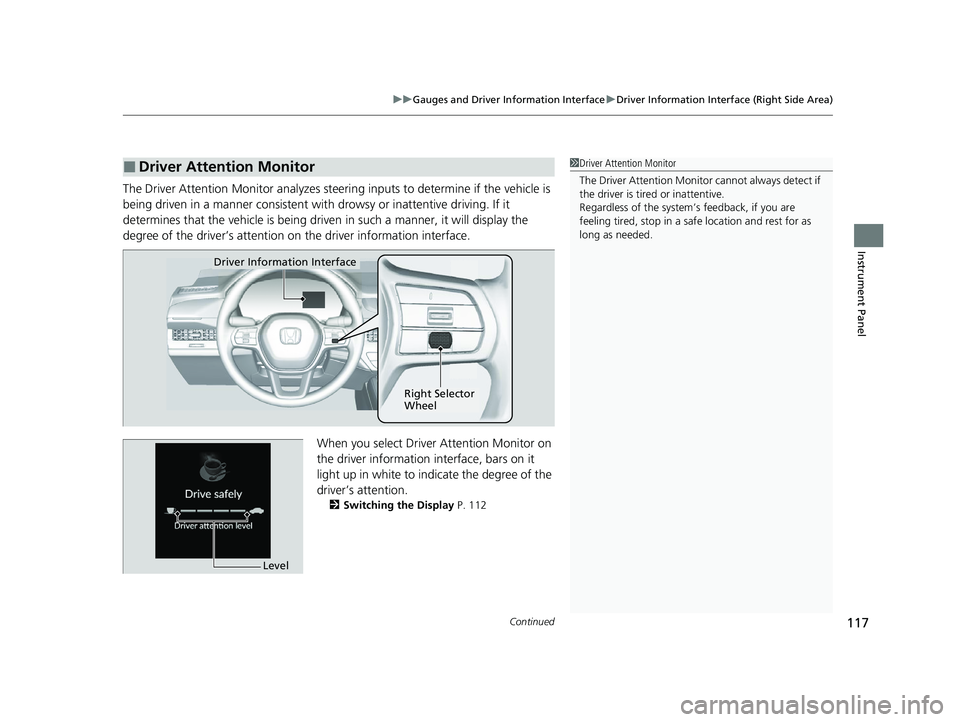

The Driver Attention Monitor analyzes steering inputs to determine if the vehicle is
being driven in a manner consistent with drowsy or inattentive driving. If it
determines that the vehicle is being driven in such a manner, it will display the
degree of the driver’s attention on the driver information interface.
When you select Driver Attention Monitor on
the driver information in terface, bars on it
light up in white to indicate the degree of the
driver’s attention.
2 Switching the Display P. 112
■Driver Attention Monitor1Driver Attention Monitor
The Driver Attenti on Monitor cannot always detect if
the driver is tired or inattentive.
Regardless of the system’s feedback, if you are
feeling tired, stop in a safe location and rest for as
long as needed.
Driver Information Interface
Right Selector
Wheel
Level
23 ACCORD 4D US PET MAP-3130A6000_01.book 117 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

118
uuGauges and Driver Information Interface uDriver Information Interface (Right Side Area)
Instrument Panel

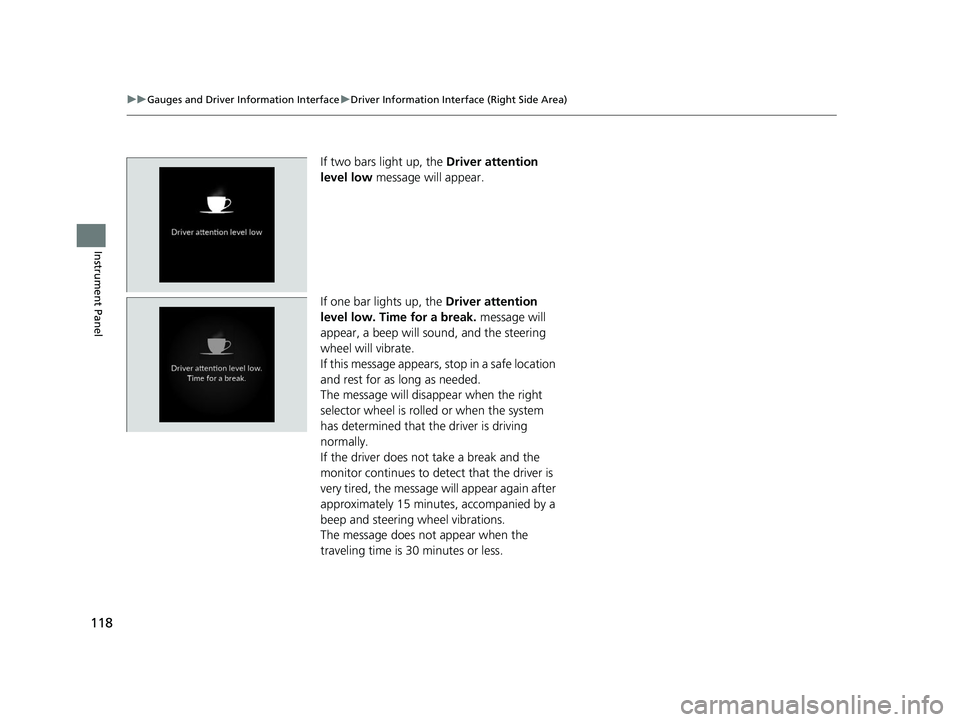

If two bars light up, the Driver attention
level low message will appear.
If one bar lights up, the Driver attention
level low. Time for a break. message will
appear, a beep will sound, and the steering
wheel will vibrate.
If this message appears, stop in a safe location
and rest for as long as needed.
The message will disappear when the right
selector wheel is rolled or when the system
has determined that the driver is driving
normally.
If the driver does not take a break and the
monitor continues to detect that the driver is
very tired, the message will appear again after
approximately 15 minutes, accompanied by a
beep and steering wheel vibrations.
The message does not appear when the
traveling time is 30 minutes or less.
23 ACCORD 4D US PET MAP-3130A6000_01.book 118 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分
