HONDA ACCORD 2023 Owners Manual
Manufacturer: HONDA, Model Year: 2023, Model line: ACCORD, Model: HONDA ACCORD 2023Pages: 533, PDF Size: 20.09 MB

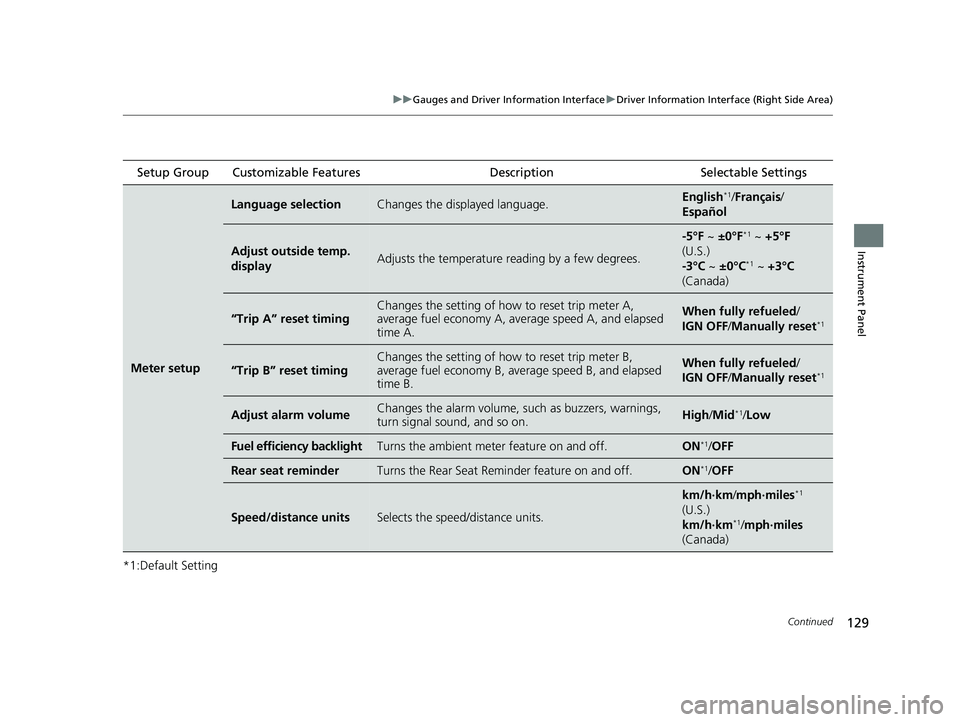

Page 131 of 533

129
uuGauges and Driver Information Interface uDriver Information Interface (Right Side Area)
Continued
Instrument Panel
*1:Default Setting Setup Group Customizable Features
Description Selectable Settings
Meter setup
Language selectionChanges the displayed language.English*1/Français /
Español
Adjust outside temp.
displayAdjusts the temperature r eading by a few degrees.
-5°F ~ ±0°F*1 ~ +5°F
(U.S.)
-3°C ~ ±0°C
*1 ~ +3°C
(Canada)
“Trip A” reset timingChanges the setting of how to reset trip meter A,
average fuel economy A, av erage speed A, and elapsed
time A.When fully refueled /
IGN OFF /Manually reset*1
“Trip B” reset timing
Changes the setting of ho w to reset trip meter B,
average fuel economy B, av erage speed B, and elapsed
time B.When fully refueled /
IGN OFF /Manually reset*1
Adjust alarm volumeChanges the alarm volume, su ch as buzzers, warnings,
turn signal sound, and so on.High /Mid*1/Low
Fuel efficiency backlightTurns the ambient meter feature on and off.ON*1/ OFF
Rear seat reminderTurns the Rear Seat Reminder feature on and off.ON*1/OFF
Speed/distance unitsSelects the speed/distance units.
km/h∙km /mph∙miles*1
(U.S.)
km/h∙km
*1/ mph∙miles
(Canada)
23 ACCORD 4D US PET MAP-3130A6000_01.book 129 ページ 2022年10月19日 水曜日 午前11時49分
Page 132 of 533

130
uuGauges and Driver Information Interface uDriver Information Interface (Right Side Area)
Instrument Panel
*1:Default Setting Setup Group Customizable Features
Description Selectable Settings
Keyless access
setup Door unlock mode
Changes which doors unlock when you grab the driver’s
door handle. Driver door only
*1/
All
doors
Keyless access light
flash Causes some exterior lights to flash when you unlock/
lock the doors.
ON
*1/
OFF
Keyless access beep Causes the beeper to sound when you unlock/lock the
doors.
ON
*1/
OFF
Remote start system
ON/OFF Turns the remote engine start feature on and off.
ON
*1/OFF
Lighting setup
Auto high-beamTurns the auto high-beam on and off.ON*1/OFF
Interior light dimming
timeChanges the length of time the interior lights stay on
after you close the doors.60sec /30sec*1/15sec
Headlight auto off
timerChanges the length of time the exterior lights stay on
after you close the driver’s door.60sec /30sec /15sec*1/0sec
Auto light sensitivity*Changes the timing for the headlights to come on.Max/High/ Mid*1/Low /Min
Auto headlight ON
with wiper ONChanges the settings for th e wiper operation when the
headlights automatically come on while the headlight
switch is in the AUTO position.
ON*1/OFF
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 130 ページ 2022年10月19日 水曜日 午前11時49分

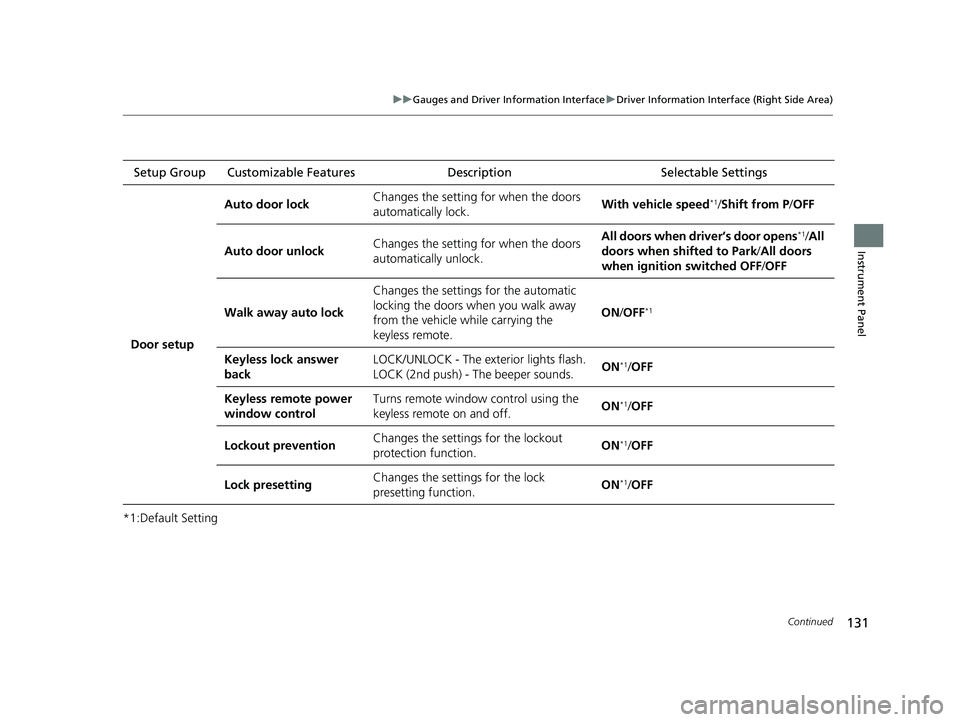

Page 133 of 533

131
uuGauges and Driver Information Interface uDriver Information Interface (Right Side Area)
Continued
Instrument Panel
*1:Default SettingSetup Group Customizable Features
Description Selectable Settings
Door setup Auto door lock
Changes the setting for when the doors
automatically lock. With vehicle speed
*1/
Shift from P /OFF
Auto door unlock Changes the setting for when the doors
automatically unlock. All doors when driver’s door opens
*1/
All
doors when shifted to Park /All doors
when ignition switched OFF /OFF
Walk away auto lock Changes the settings
for the automatic
locking the doors when you walk away
from the vehicle while carrying the
keyless remote. ON
/OFF
*1
Keyless lock answer
back LOCK/UNLOCK - The exterior lights flash.
LOCK (2nd push) - The beeper sounds.
ON*1/
OFF
Keyless remote power
window control Turns remote window
control using the
keyless remote on and off. ON
*1/
OFF
Lockout prevention Changes the settings for the lockout
protection function.
ON
*1/
OFF
Lock presetting Changes the settings for the lock
presetting function. ON
*1/
OFF
23 ACCORD 4D US PET MAP-3130A6000_01.book 131 ページ 2022年10月19日 水曜日 午前11時49分

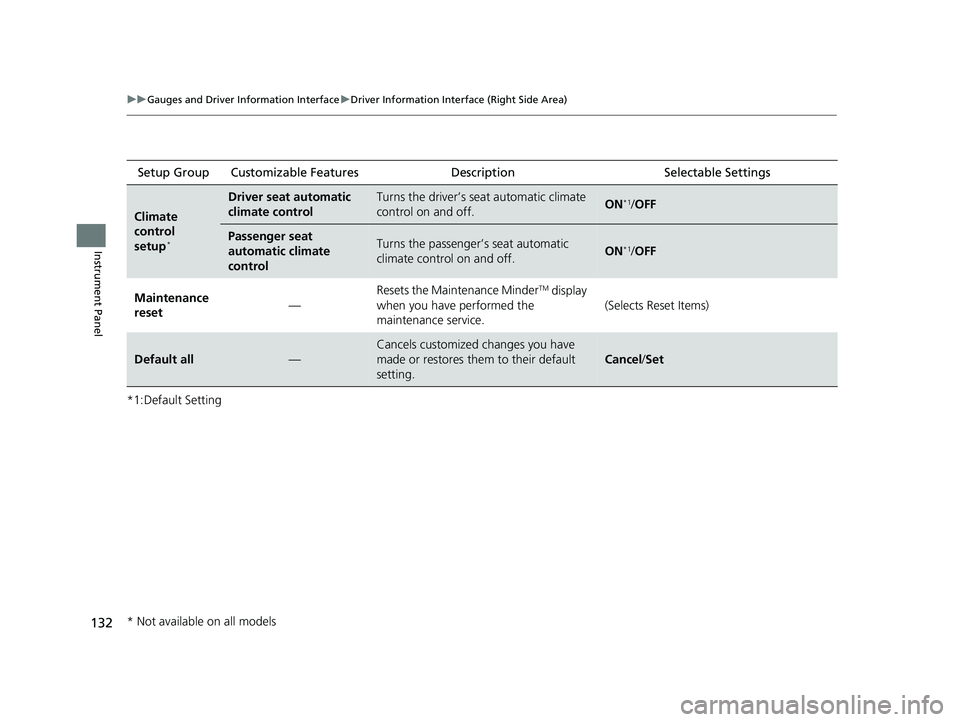

Page 134 of 533

132
uuGauges and Driver Information Interface uDriver Information Interface (Right Side Area)
Instrument Panel
*1:Default SettingSetup Group Customizable Features
Description Selectable Settings
Climate
control
setup
*
Driver seat automatic
climate controlTurns the driver’s seat automatic climate
control on and off.ON*1/OFF
Passenger seat
automatic climate
controlTurns the passenger’s seat automatic
climate control on and off.ON*1/OFF
Maintenance
reset —Resets the Maintenance Minder
TM display
when you have performed the
maintenance service. (Selects Reset Items)
Default all—
Cancels customized changes you have
made or restores them to their default
setting.
Cancel
/Set
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 132 ページ 2022年10月19日 水曜日 午前11時49分

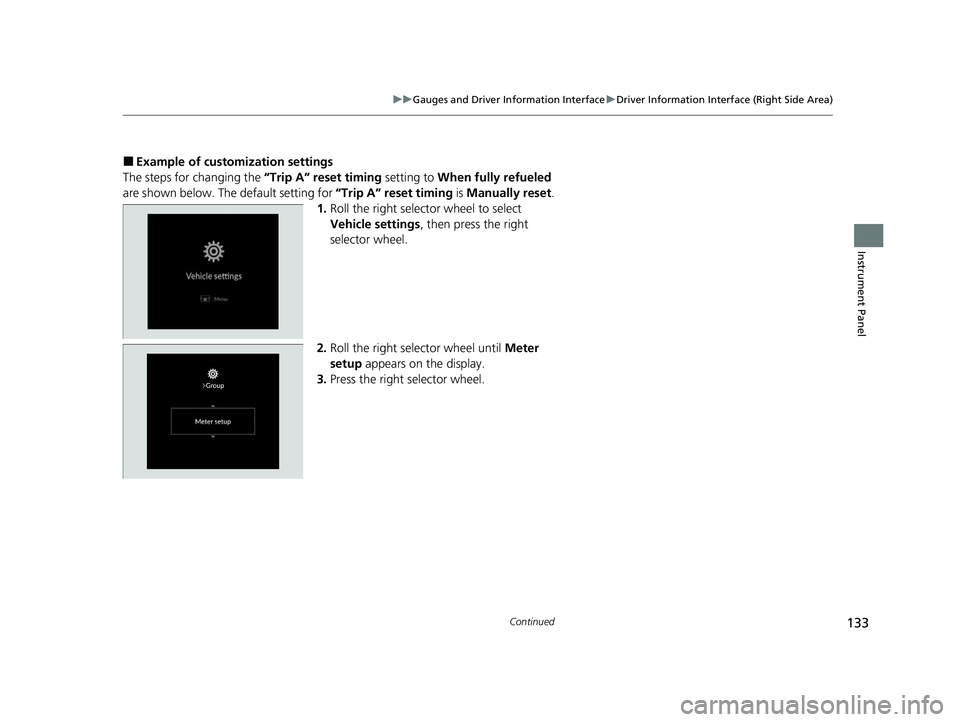

Page 135 of 533

133
uuGauges and Driver Information Interface uDriver Information Interface (Right Side Area)
Continued
Instrument Panel
■Example of customization settings
The steps for changing the “Trip A” reset timing setting to When fully refueled
are shown below. The default setting for “Trip A” reset timing is Manually reset .
1. Roll the right selector wheel to select
Vehicle settings , then press the right
selector wheel.
2. Roll the right selector wheel until Meter
setup appears on the display.
3. Press the right selector wheel.
23 ACCORD 4D US PET MAP-3130A6000_01.book 133 ページ 2022年10月19日 水曜日 午前11時49分

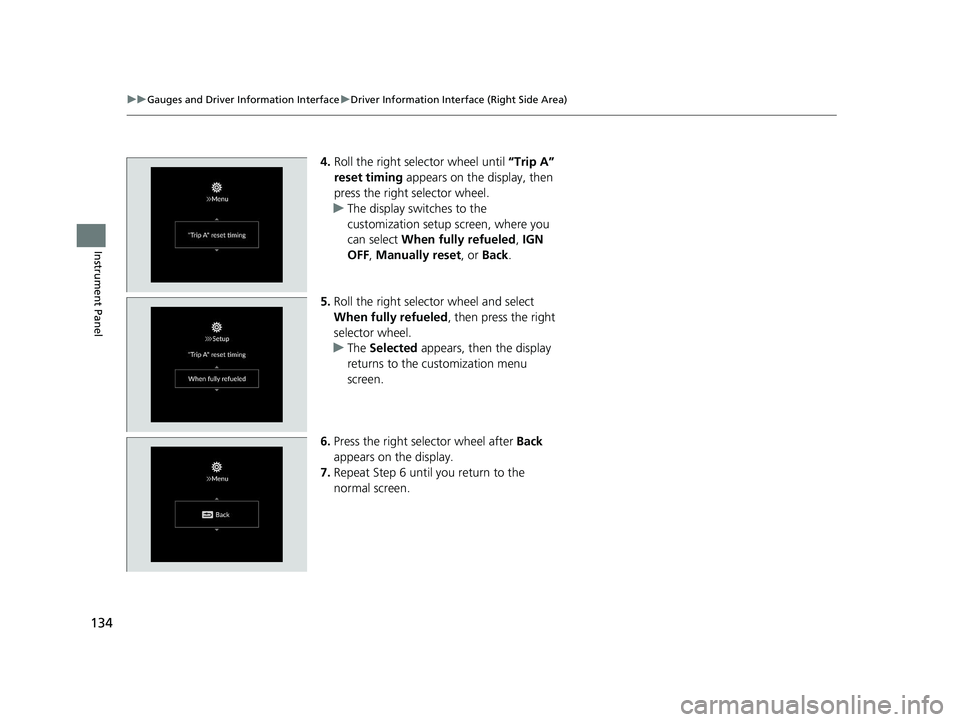

Page 136 of 533

134
uuGauges and Driver Information Interface uDriver Information Interface (Right Side Area)
Instrument Panel
4. Roll the right selector wheel until “Trip A”
reset timing appears on the display, then
press the right selector wheel.
u The display switches to the
customization setup screen, where you
can select When fully refueled , IGN
OFF , Manually reset , or Back.
5. Roll the right selector wheel and select
When fully refueled , then press the right
selector wheel.
u The Selected appears, then the display
returns to the customization menu
screen.
6. Press the right selector wheel after Back
appears on the display.
7. Repeat Step 6 until you return to the
normal screen.
23 ACCORD 4D US PET MAP-3130A6000_01.book 134 ページ 2022年10月19日 水曜日 午前11時49分
Page 137 of 533

135
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 136
Locking and Unlocking the Doors Key .................................................. 137
Low Keyless Remote Signal Strength ... 139
Locking/Unlocking the Doors from the Outside .......................................... 140
Locking/Unlocking the Doors from the Inside ............................................. 149
Childproof Door Locks ..................... 151
Auto Door Locking/Unlocking .......... 152
Opening and Closing the Trunk ....... 153Security System
Immobilizer System .......................... 156
Security System Alarm...................... 156
Windows ........................................... 159
Moonroof
*........................................ 162
Operating the Switches Around the Steering Wheel ENGINE START/STOP Button............. 164
Turn Signals ..................................... 167
Light Switches.................................. 168
Daytime Running Lights ................... 171
Auto High-Beam .............................. 172 Wipers and Washers ........................ 175
Rear Defogger/Heated Door Mirror
*
Button ........................................... 177
Adjusting the Steering Wheel .......... 178
Mirrors Interior Rearview Mirror ................... 179
Power Door Mirrors ......................... 180
Seats .................................................. 181
Interior Convenience Items .............. 190
Climate Control System Using Automatic Climate Control .... 199
Automatic Climate Control Sensors ... 204
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 135 ページ 2022年10月19日 水曜日 午前11時49分

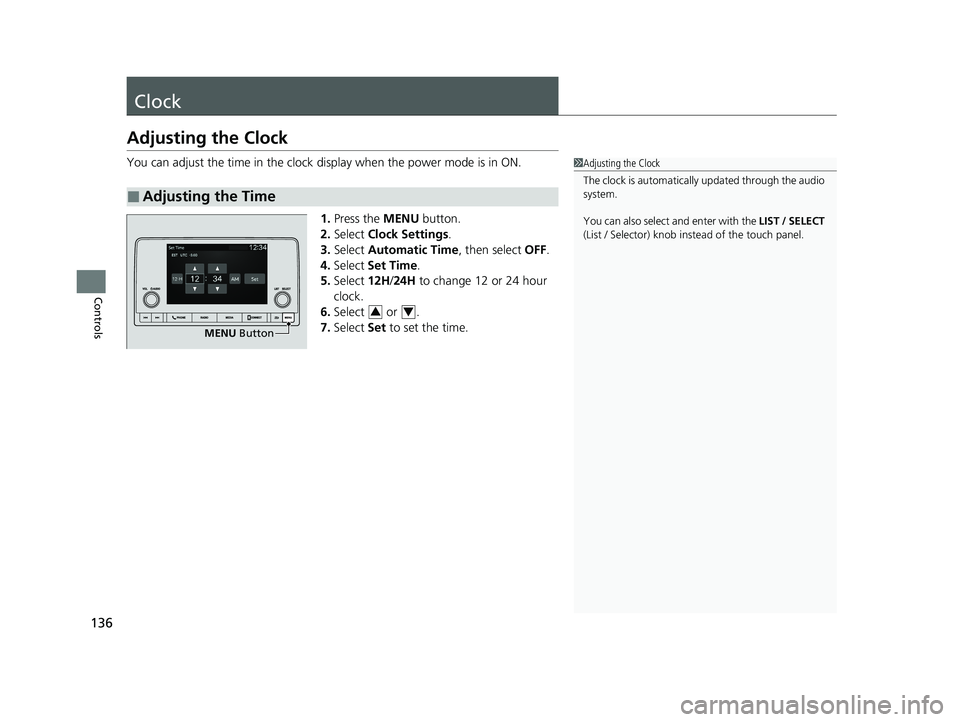

Page 138 of 533

136
Controls
Clock
Adjusting the Clock
You can adjust the time in the clock display when the power mode is in ON.
1. Press the MENU button.
2. Select Clock Settings .
3. Select Automatic Time , then select OFF.
4. Select Set Time.
5. Select 12H/24H to change 12 or 24 hour
clock.
6. Select or .
7. Select Set to set the time.
■Adjusting the Time
1Adjusting the Clock
The clock is automatically updated through the audio
system.
You can also select and enter with the LIST / SELECT
(List / Selector) knob in stead of the touch panel.
MENU Button
34
23 ACCORD 4D US PET MAP-3130A6000_01.book 136 ページ 2022年10月19日 水曜日 午前11時49分
Page 139 of 533

137Continued
Controls
Locking and Unlocking the Doors
Key
This vehicle comes with the following key:
Use the key to start and stop the engine, lock and unlock all the doors and the fuel
fill door, and open the trunk.1 Key
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft. 2 Immobilizer System P. 156
Follow the advice below to prevent damage to the
keys:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.•Keep the keys away from liquids, dust, and sand.
•Do not take the keys apart except to replace the
battery.
If the circuits in the keys are damaged, the engine
may not start, and the remote transmitter may not
work.
If the keys do not work properly, have them
inspected by a dealer.
You can remotely start th e engine using the keyless
remote. 2 Remote Engine Start P. 298
23 ACCORD 4D US PET MAP-3130A6000_01.book 137 ページ 2022年10月19日 水曜日 午前11時49分
Page 140 of 533

uuLocking and Unlocking the Doors uKey
138
Controls
The built-in key can be used to unlock the
doors when the keyless remote battery
becomes weak and the power door unlock
operation is disabled.
To remove the built-in key, push the release
button and then pull out the key. To reinstall
the built-in key, push th e built-in key into the
keyless remote until it clicks.
Contains a number that you will need if you
purchase a replacement key.
■Built-in Key
Built-in Key
Release Button
■Key Number Tag1
Key Number Tag
Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer.
If you lose your key and you cannot start the engine,
contact a dealer.
23 ACCORD 4D US PET MAP-3130A6000_01.book 138 ページ 2022年10月19日 水曜日 午前11時49分
