HONDA ACCORD 2023 Owners Manual

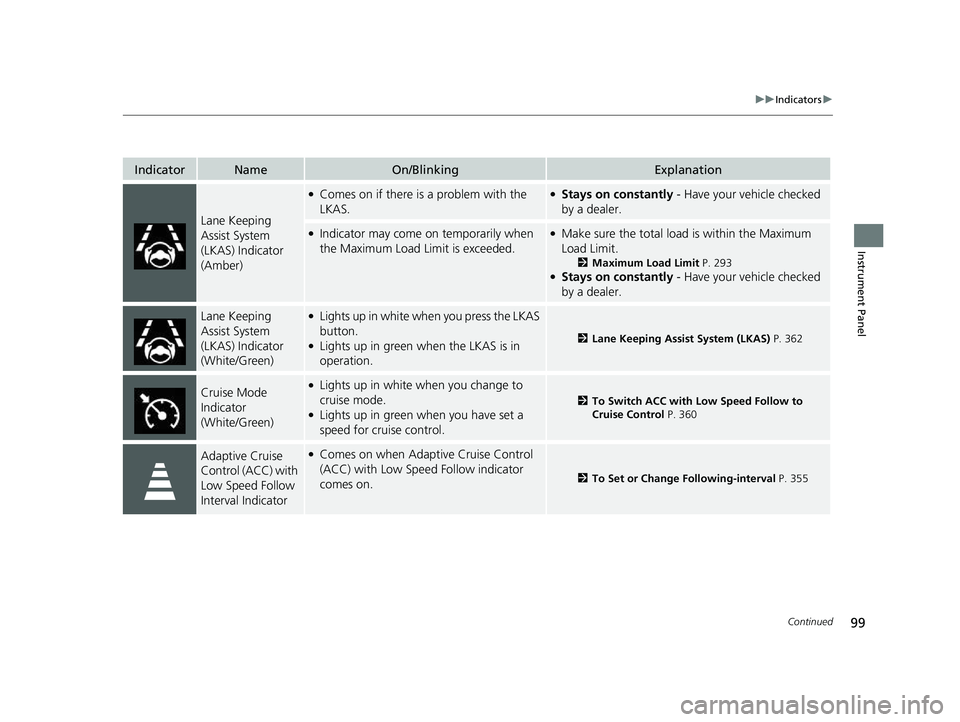

99
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Lane Keeping
Assist System
(LKAS) Indicator
(Amber)
●Comes on if there is a problem with the
LKAS.●Stays on constantly - Have your vehicle checked
by a dealer.
●Indicator may come on temporarily when
the Maximum Load Li mit is exceeded.●Make sure the total load is within the Maximum
Load Limit.
2Maximum Load Limit P. 293●Stays on constantly - Have your vehicle checked
by a dealer.
Lane Keeping
Assist System
(LKAS) Indicator
(White/Green)●Lights up in white wh en you press the LKAS
button.
●Lights up in green when the LKAS is in
operation.2 Lane Keeping Assist System (LKAS) P. 362
Cruise Mode
Indicator
(White/Green)●Lights up in white when you change to
cruise mode.
●Lights up in green when you have set a
speed for cruise control.
2To Switch ACC with Low Speed Follow to
Cruise Control P. 360
Adaptive Cruise
Control (ACC) with
Low Speed Follow
Interval Indicator●Comes on when Adaptive Cruise Control
(ACC) with Low Speed Follow indicator
comes on.
2 To Set or Change Following-interval P. 355
23 ACCORD 4D US PET MAP-3130A6000_01.book 99 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

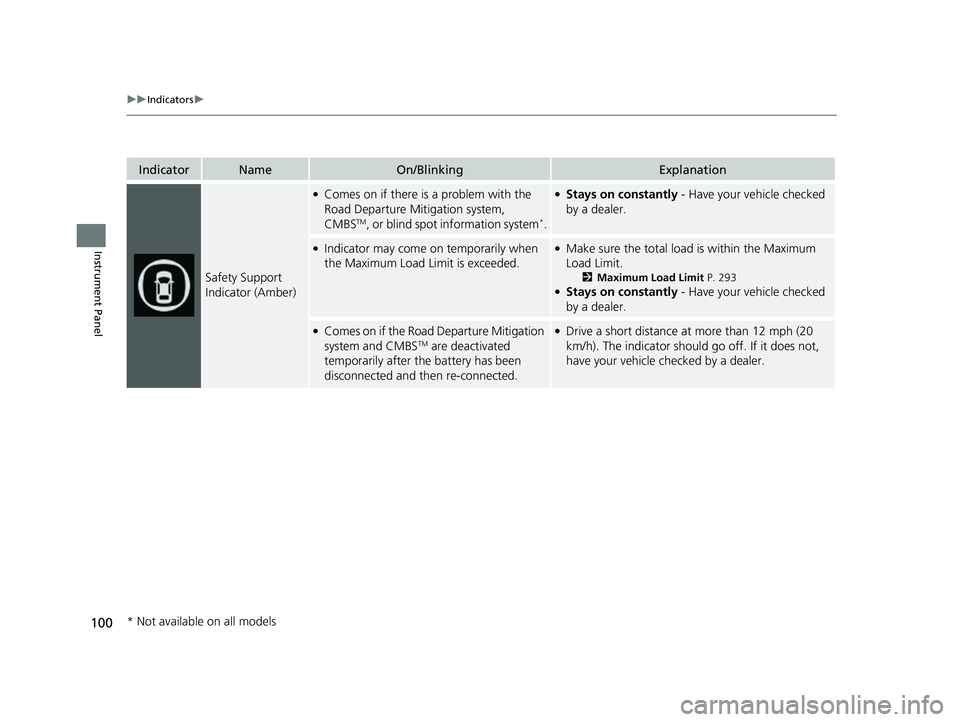

100
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Safety Support
Indicator (Amber)
●Comes on if there is a problem with the
Road Departure Mitigation system,
CMBS
TM, or blind spot information system*.
●Stays on constantly - Have your vehicle checked
by a dealer.
●Indicator may come on temporarily when
the Maximum Load Li mit is exceeded.●Make sure the total load is within the Maximum
Load Limit.
2 Maximum Load Limit P. 293●Stays on constantly - Have your vehicle checked
by a dealer.
●Comes on if the Road Departure Mitigation
system and CMBSTM are deactivated
temporarily after the battery has been
disconnected and then re-connected.
●Drive a short distance at more than 12 mph (20
km/h). The indicator should go off. If it does not,
have your vehicle checked by a dealer.
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 100 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

101
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Safety Support
Indicator (Amber)
●Comes on when the Road Departure
Mitigation system and/or CMBSTM shuts
itself off.
●Indicator may come on temporarily if the radar
sensor cannot detect any objects when passing
through an enclosed space such as a tunnel, or
driving on an open road without any structures
nearby.
●The area around the radar sens or is blocked by dirt,
mud, etc. Stop your vehicle in a safe place and wipe
the debris off with a soft cloth. Indicator may take
some time to go off after the radar sensor is
cleaned.
●Have your vehicle checked by a dealer if the
indicator does not go off even after you have
cleaned the radar sensor.
2 Radar Sensor P. 398
●Stays on - The temperature inside the camera is
too high.
Use the climate control sy stem to cool down the
camera.
The system activates when the temperature inside
the camera cools down.
2 Front Sensor Camera P. 396
23 ACCORD 4D US PET MAP-3130A6000_01.book 101 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

102
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Safety Support
Indicator (Amber)
●Comes on when the Road Departure
Mitigation system and/or CMBSTM shuts
itself off.
●Stays on - The area around the camera is blocked
by dirt, mud, etc. Stop your vehicle in a safe place
and wipe the debris off with a soft cloth.
●Have your vehicle checked by a dealer if the
indicator and message are still displayed even after
you have cleaned the area around the camera.
2Front Sensor Camera P. 396●It may come on when th e ambient conditions are
dark, such as when driving in a tunnel, or at night,
dawn, or dusk.
●Comes on when mud, snow, or ice
accumulates in the vicinity of the blind spot
information system sensor.
●Comes on when the temperature of the
blind spot information system sensor is
high.
●Comes on while driving - Something may be
interfering with the blind spot information system
sensor. Check the vicinity of the blind spot
information system se nsor and remove any
obstacles.
●The system will return to normal when the
temperature cools down.
2 Blind Spot Information System* P. 323
Models with blind spot information system
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 102 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

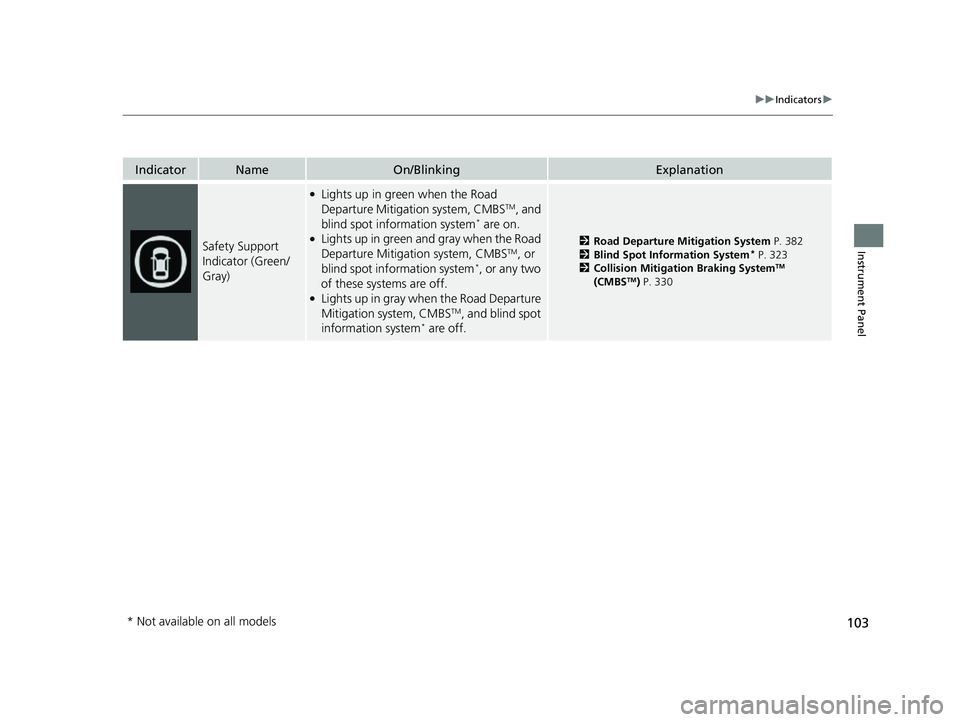

103
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Safety Support
Indicator (Green/
Gray)
●Lights up in green when the Road
Departure Mitigation system, CMBSTM, and
blind spot information system* are on.●Lights up in green and gray when the Road
Departure Mitigation system, CMBSTM, or
blind spot information system*, or any two
of these systems are off.
●Lights up in gray when the Road Departure
Mitigation system, CMBSTM, and blind spot
information system* are off.
2 Road Departure Mitigation System P. 382
2 Blind Spot Information System* P. 323
2 Collision Mitigation Braking SystemTM
(CMBSTM) P. 330
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 103 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

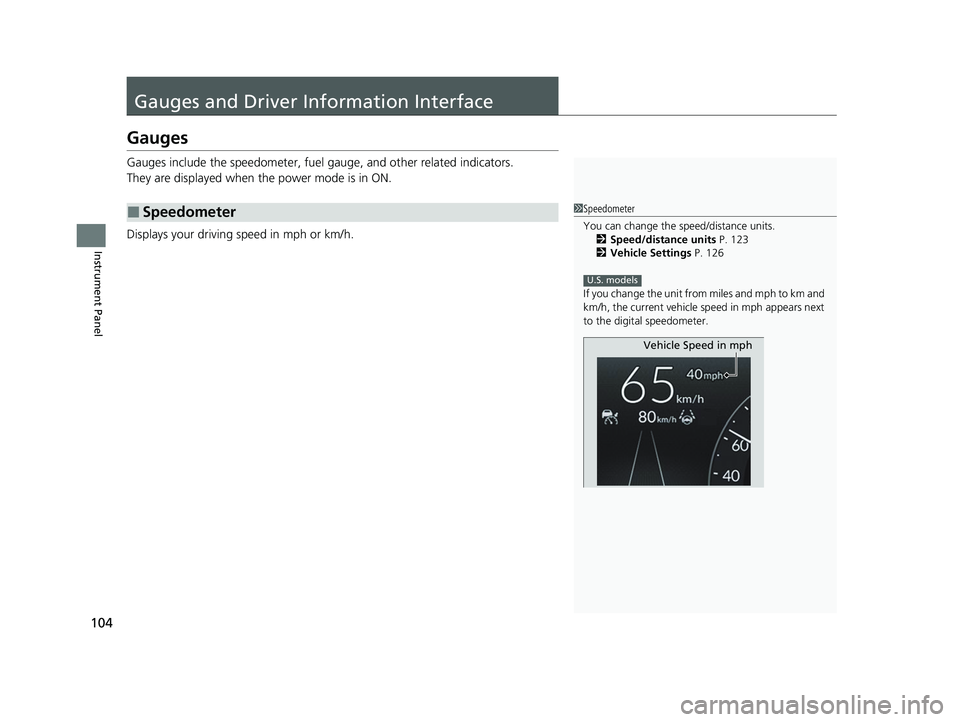

104
Instrument Panel
Gauges and Driver Information Interface
Gauges
Gauges include the speedometer, fuel gauge, and other related indicators.
They are displayed when the power mode is in ON.
Displays your driving speed in mph or km/h.
■Speedometer1 Speedometer
You can change the speed/distance units.
2 Speed/distance units P. 123
2 Vehicle Settings P. 126
If you change the unit from miles and mph to km and
km/h, the current vehicle speed in mph appears next
to the digital speedometer.
U.S. models
Vehicle Speed in mph
23 ACCORD 4D US PET MAP-3130A6000_01.book 104 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

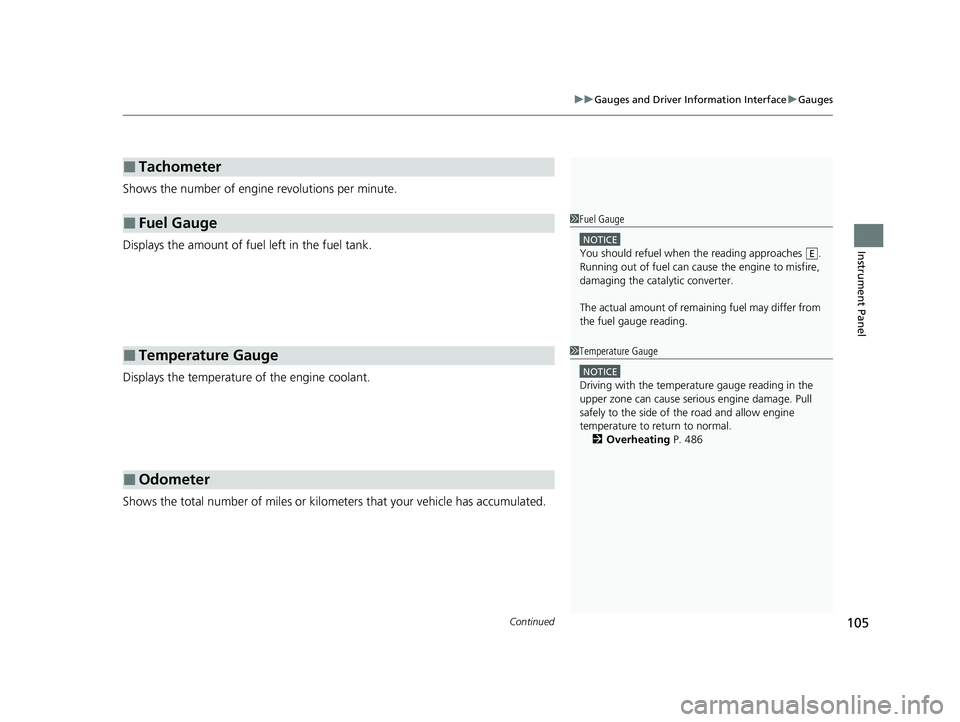

Continued105
uuGauges and Driver Information Interface uGauges
Instrument Panel
Shows the number of engine revolutions per minute.
Displays the amount of fuel left in the fuel tank.
Displays the temperature of the engine coolant.
Shows the total number of miles or kilome ters that your vehicle has accumulated.
■Tachometer
■Fuel Gauge
■Temperature Gauge
■Odometer
1Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
1 Temperature Gauge
NOTICE
Driving with the temperat ure gauge reading in the
upper zone can cause serious engine damage. Pull
safely to the side of th e road and allow engine
temperature to return to normal.
2 Overheating P. 486
23 ACCORD 4D US PET MAP-3130A6000_01.book 105 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

uuGauges and Driver Information Interface uGauges
106
Instrument Panel
Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature display
Adjust the temperature readi ng by up to ±5°F or ±3°C if the temperature reading
seems incorrect.
Shows certain detected traffic signs while driving.
If speed limit warning is activated, the si gn icon blinks when the maximum speed of
the traffic sign detected is exceeded by a threshold, when compared with the vehicle
speed.
2 Traffic Sign Recognition System P. 390
■Outside Temperature
■Traffic Sign Recognition System
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
1Adjusting the outside temperature display
You can adjust the temperature reading.
2 Vehicle Settings P. 126
1Traffic Sign Recognition System
The default speed limit wa rning threshold is the
maximum speed of the traffic sign detected.
You can adjust the threshol d for speed limit warning.
2 Vehicle Settings P. 126
23 ACCORD 4D US PET MAP-3130A6000_01.book 106 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

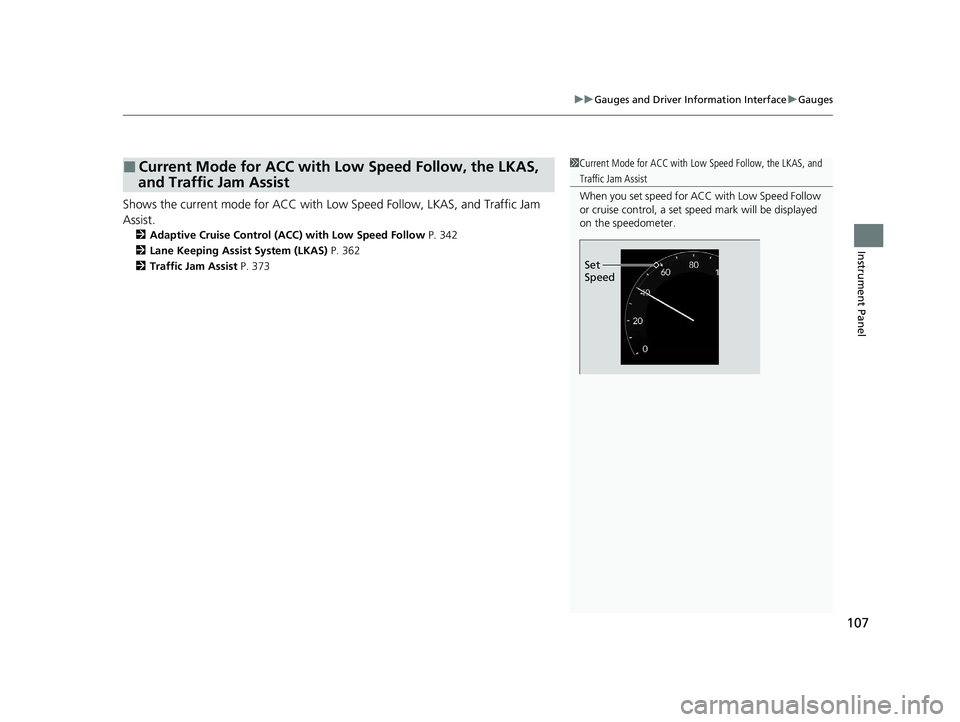

107
uuGauges and Driver Information Interface uGauges
Instrument Panel
Shows the current mode for ACC with Low Speed Follow, LKAS, and Traffic Jam
Assist.
2 Adaptive Cruise Control (ACC) with Low Speed Follow P. 342
2 Lane Keeping Assist System (LKAS) P. 362
2 Traffic Jam Assist P. 373
■Current Mode for ACC with Low Speed Follow, the LKAS,
and Traffic Jam Assist1 Current Mode for ACC with Lo w Speed Follow, the LKAS, and
Traffic Jam Assist
When you set speed for ACC with Low Speed Follow
or cruise control, a set speed mark will be displayed
on the speedometer.
Set
Speed
23 ACCORD 4D US PET MAP-3130A6000_01.book 107 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

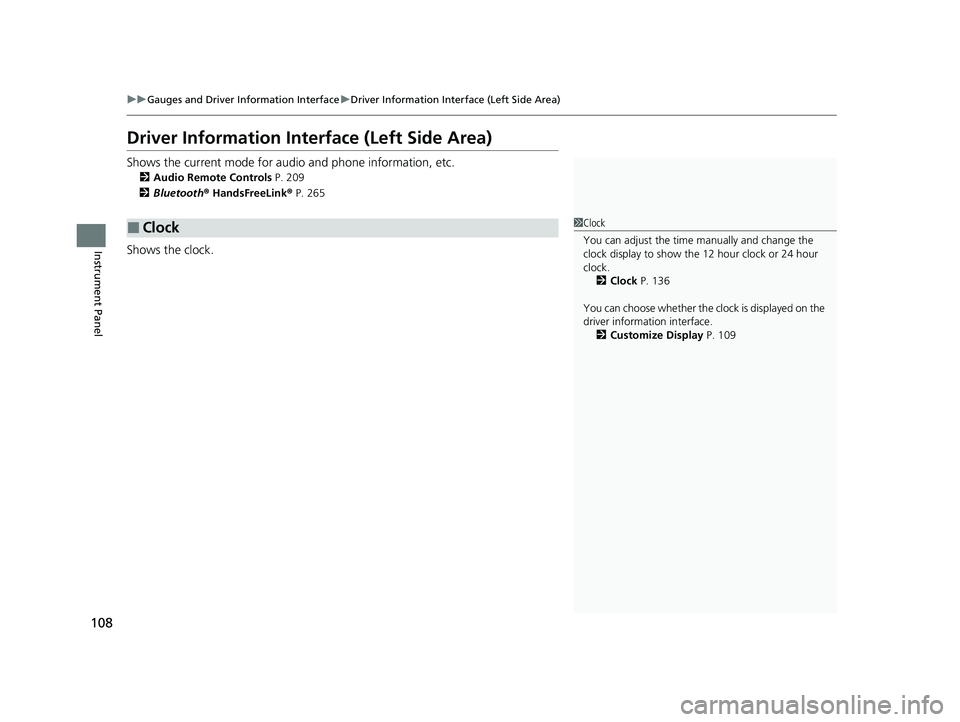

108
uuGauges and Driver Information Interface uDriver Information Interface (Left Side Area)
Instrument Panel
Driver Information Interface (Left Side Area)
Shows the current mode for audio and phone information, etc.
2 Audio Remote Controls P. 209
2 Bluetooth ® HandsFreeLink ® P. 265
Shows the clock.
■Clock1 Clock
You can adjust the time manually and change the
clock display to show the 12 hour clock or 24 hour
clock. 2 Clock P. 136
You can choose whether the clock is displayed on the
driver information interface. 2 Customize Display P. 109
