HONDA ACCORD 2023 Owners Manual

89
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Malfunction
Indicator Lamp
●After you have set the power mode to ON,
the vehicle performs system checks.
However, if the readiness codes have not
been set by that time, this indicator will
blink five times and then go off.●Readiness codes are part of the on-board
diagnostics for the emissions control systems.
2Testing of Readiness Codes P. 513
●Comes on if there is a problem with the
emissions control systems.
●Blinks when a misfire in the engine’s
cylinders is detected.
2If the Malfunction Indicator Lamp Comes On
or Blinks P. 489
Charging System
Indicator
●Comes on when there is a problem with
the charging system.●Stop in a safe place and contact a dealer
immediately.
2Checking the Battery P. 460
2 If the Charging System Indicator Comes On
P. 488
Shift Position
Indicator●Indicates the current shift position.
2 Shifting P. 304
23 ACCORD 4D US PET MAP-3130A6000_01.book 89 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

90
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Transmission
System Indicator●Blinks if the transmission system has a
problem.●Have your vehicle checked by a dealer immediately.
Seat Belt Reminder
Indicator
●Blinks and the beeper sounds for a few
seconds if you are not wearing a seat belt
when you set the power mode to ON, then
the indicator comes on.
●If the front passenger is not wearing a seat
belt, the indicator comes on a few seconds
later.
●Comes on for a while when the rear seat
belt is unfastened while the power mode in
ON.
●Blinks while driving if you and/or any
passenger has not fastened a seat belt. The
beeper sounds and the indicator blinks at
regular intervals.
●The beeper stops and the indicator goes off when
you and the passengers fasten their seat belts.
●Stays on after you and/or the passengers have
fastened the seat belt(s) - A detection error may
have occurred in the sensor. Have your vehicle
checked by a dealer.
2 Seat Belt Reminder P. 42
23 ACCORD 4D US PET MAP-3130A6000_01.book 90 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

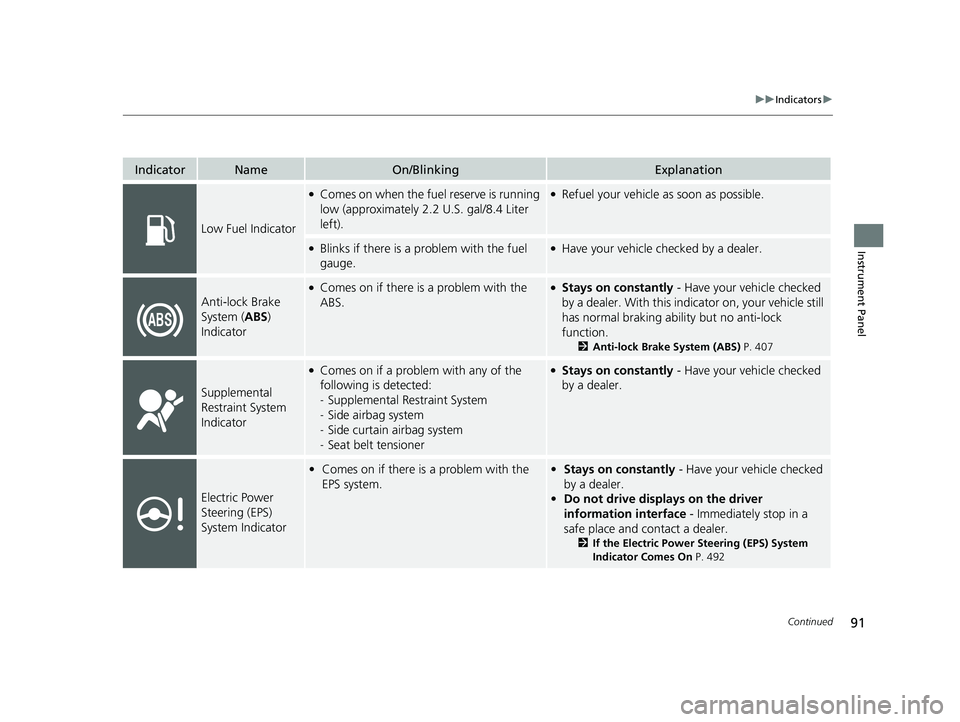

91
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Low Fuel Indicator
●Comes on when the fuel reserve is running
low (approximately 2.2 U.S. gal/8.4 Liter
left).●Refuel your vehicle as soon as possible.
●Blinks if there is a problem with the fuel
gauge.●Have your vehicle checked by a dealer.
Anti-lock Brake
System (ABS)
Indicator
●Comes on if there is a problem with the
ABS.●Stays on constantly - Have your vehicle checked
by a dealer. With this indicator on, your vehicle still
has normal braking ability but no anti-lock
function.
2 Anti-lock Brake System (ABS) P. 407
Supplemental
Restraint System
Indicator
●Comes on if a problem with any of the
following is detected:
-Supplemental Restraint System
- Side airbag system
- Side curtain airbag system
- Seat belt tensioner●Stays on constantly - Have your vehicle checked
by a dealer.
Electric Power
Steering (EPS)
System Indicator
• Comes on if there is a problem with the
EPS system.•Stays on constantly - Have your vehicle checked
by a dealer.
• Do not drive displays on the driver
information interface - Immediately stop in a
safe place and contact a dealer.
2 If the Electric Power Steering (EPS) System
Indicator Comes On P. 492
23 ACCORD 4D US PET MAP-3130A6000_01.book 91 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

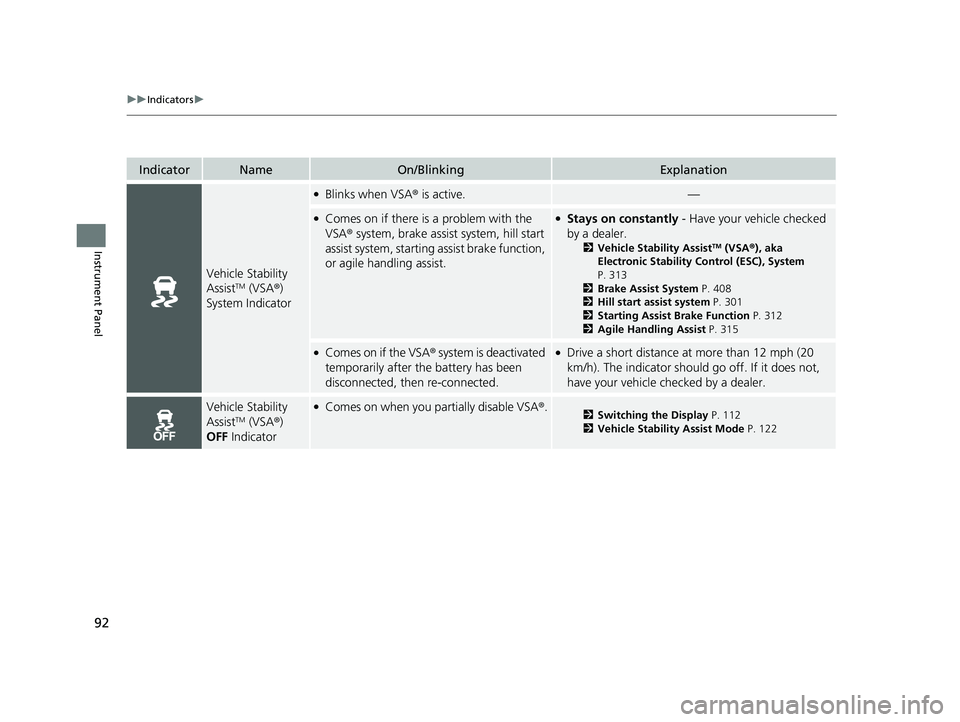

92
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Vehicle Stability
AssistTM (VSA®)
System Indicator
●Blinks when VSA ® is active.—
●Comes on if there is a problem with the
VSA ® system, brake assist system, hill start
assist system, starting assist brake function,
or agile handling assist.●Stays on constantly - Have your vehicle checked
by a dealer.
2 Vehicle Stability AssistTM (VSA ®), aka
Electronic Stability Control (ESC), System
P. 313
2 Brake Assist System P. 408
2 Hill start assist system P. 301
2 Starting Assist Brake Function P. 312
2 Agile Handling Assist P. 315
●Comes on if the VSA® system is deactivated
temporarily after the battery has been
disconnected, then re-connected.●Drive a short distance at more than 12 mph (20
km/h). The indicator should go off. If it does not,
have your vehicle checked by a dealer.
Vehicle Stability
AssistTM (VSA ®)
OFF Indicator
●Comes on when you partially disable VSA ®.2Switching the Display P. 112
2 Vehicle Stability Assist Mode P. 122
23 ACCORD 4D US PET MAP-3130A6000_01.book 92 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

93
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Low Tire Pressure/
TPMS Indicator*
●May come on briefly if the power mode is
set to ON and the vehicle is not moved
within 45 seconds, to indicate the
calibration process is not yet complete.
●Comes on and stays on when:
-One or more tires’ pressures are
determined to be significantly low.
- The system has not been calibrated.
●Comes on while driving - Stop in a safe place,
check tire pressures, and inflate the tire(s) if
necessary.
●Stays on after the tire s are inflated to the
recommended pressures - The system needs to
be calibrated.
2 TPMS Calibration P. 318
●Blinks for about one minute, and then stays
on if there is a problem with the TPMS, or
when a compact spare tire is temporarily
installed.●Blinks and remains on - Have your vehicle
checked by a dealer. If the vehicle is fitted with a
compact spare tire, get your regular tire repaired or
replaced and put back on your vehicle as soon as
you can.
●Comes on if the TPMS is deactivated
temporarily after the battery has been
disconnected, then re-connected.●Drive a short distance at more than 12 mph (20
km/h). The indicator should go off. If it does not,
have your vehicle checked by a dealer.
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 93 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

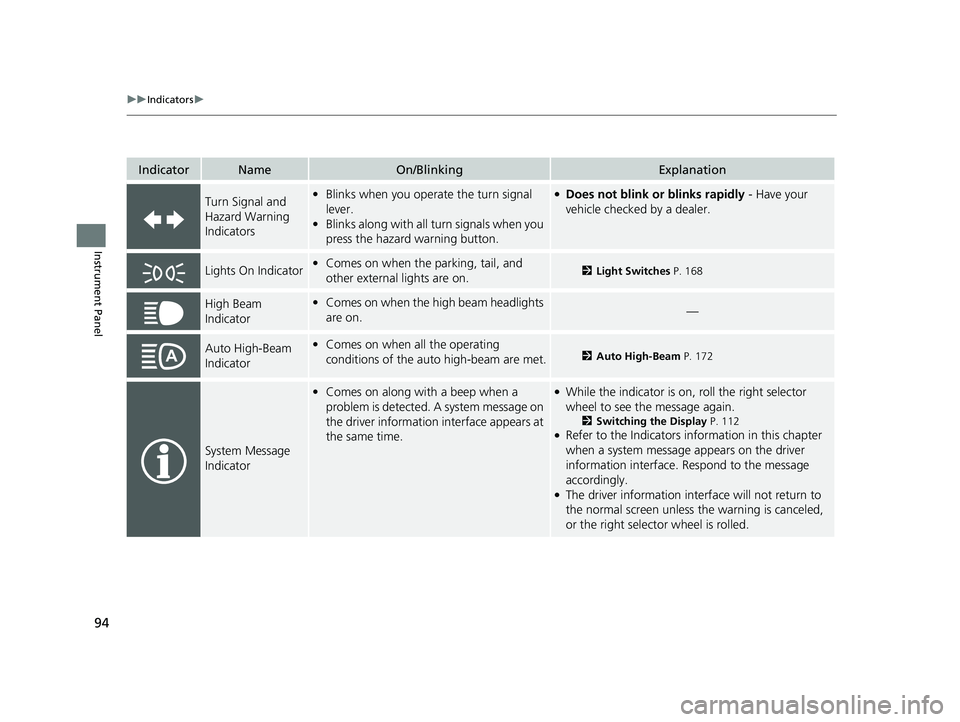

94
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Turn Signal and
Hazard Warning
Indicators•Blinks when you oper ate the turn signal
lever.
• Blinks along with all turn signals when you
press the hazard warning button.●Does not blink or blinks rapidly - Have your
vehicle checked by a dealer.
Lights On Indicator• Comes on when the parking, tail, and
other external lights are on.2 Light Switches P. 168
High Beam
Indicator•Comes on when the high beam headlights
are on.—
Auto High-Beam
Indicator•Comes on when all the operating
conditions of the auto high-beam are met.2 Auto High-Beam P. 172
System Message
Indicator
•Comes on along with a beep when a
problem is detected. A system message on
the driver information interface appears at
the same time.●While the indicator is on, roll the right selector
wheel to see the message again.
2 Switching the Display P. 112●Refer to the Indicators in formation in this chapter
when a system message appears on the driver
information interface. Respond to the message
accordingly.
●The driver information interface will not return to
the normal screen unless the warning is canceled,
or the right selector wheel is rolled.
23 ACCORD 4D US PET MAP-3130A6000_01.book 94 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

95
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
ECON Mode
Indicator●Comes on when the ECON mode is on.
2ECON Mode P. 306
Immobilizer System
Indicator
•Blinks if the immobilizer system cannot
recognize the key information.•Blinks - You cannot start the engine. Set the
power mode to VEHICLE OFF, then select the ON
mode again.
Depress and hold the brake pedal before setting
the power mode to ON.
• Repeatedly blinks - The system may be
malfunctioning. Have your vehicle checked by a
dealer.
• Do not attempt to alter this system or add other
devices to it. Electrical problems can occur.
Security System
Alarm Indicator
•Blinks when the securi ty system alarm has
been set.
2 Security System Alarm P. 156
IndicatorCanadian models
Indicator
23 ACCORD 4D US PET MAP-3130A6000_01.book 95 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

96
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Auto Idle Stop OFF
Indicator
●Comes on when the Auto Idle Stop system
has been turned off by the Auto Idle Stop
OFF button.
2Auto Idle Stop System ON/OFF P. 309
Auto Idle Stop
System Indicator
(Amber)●Blinks if there is a problem with the Auto
Idle Stop system.●Have your vehicle checked by a dealer.
Auto Idle Stop
Indicator (Green)●Comes on when Auto Idle Stop is in
operation. The engine automatically shuts
off.
2 Auto Idle Stop P. 307
23 ACCORD 4D US PET MAP-3130A6000_01.book 96 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

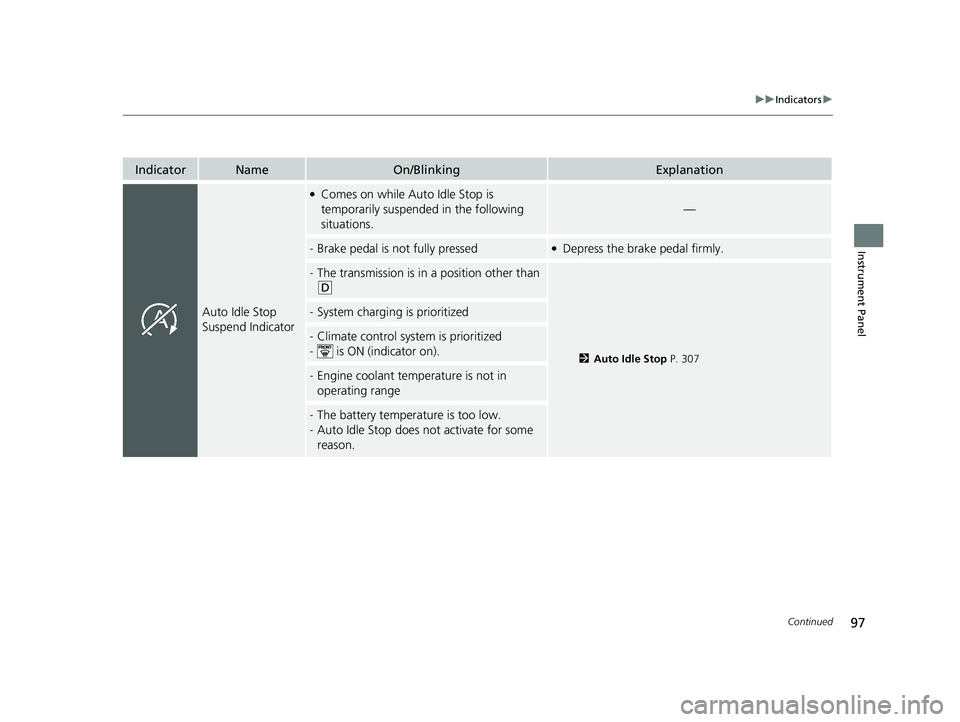

97
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Auto Idle Stop
Suspend Indicator
●Comes on while Auto Idle Stop is
temporarily suspended in the following
situations.
—
-Brake pedal is not fully pressed●Depress the brake pedal firmly.
-The transmission is in a position other than
(D
2 Auto Idle Stop P. 307
-System charging is prioritized
-Climate control system is prioritized
- is ON (indicator on).
-Engine coolant temperature is not in
operating range
-The battery temperature is too low.
- Auto Idle Stop does not activate for some
reason.
23 ACCORD 4D US PET MAP-3130A6000_01.book 97 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

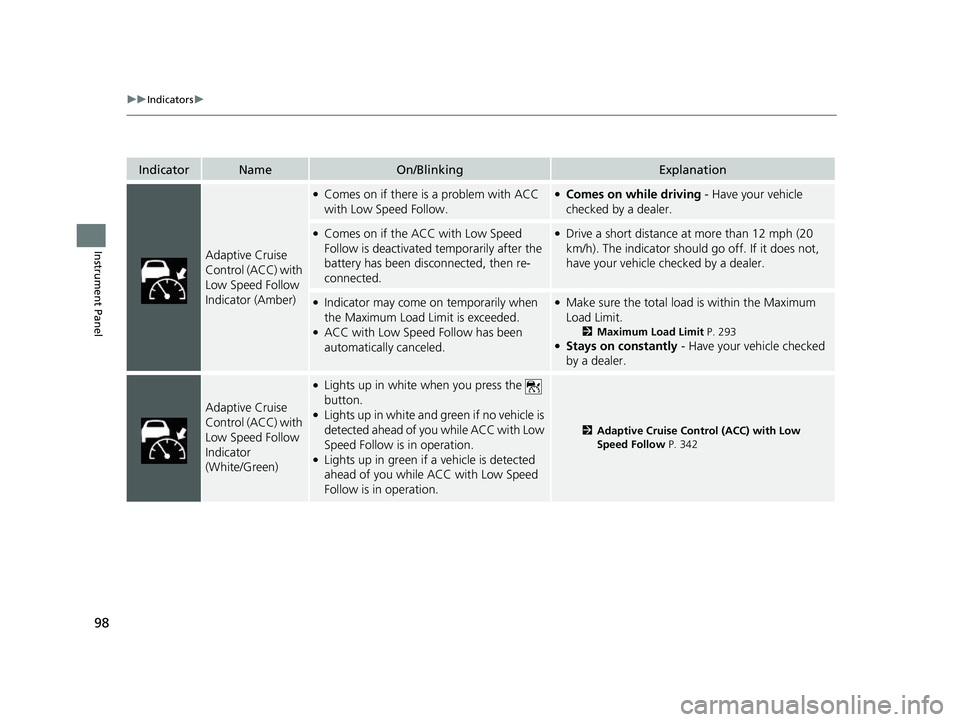

98
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Adaptive Cruise
Control (ACC) with
Low Speed Follow
Indicator (Amber)
●Comes on if there is a problem with ACC
with Low Speed Follow.●Comes on while driving - Have your vehicle
checked by a dealer.
●Comes on if the ACC with Low Speed
Follow is deactivated temporarily after the
battery has been disconnected, then re-
connected.●Drive a short distance at more than 12 mph (20
km/h). The indicator should go off. If it does not,
have your vehicle checked by a dealer.
●Indicator may come on temporarily when
the Maximum Load Limit is exceeded.
●ACC with Low Speed Follow has been
automatically canceled.
●Make sure the total load is within the Maximum
Load Limit.
2 Maximum Load Limit P. 293●Stays on constantly - Have your vehicle checked
by a dealer.
Adaptive Cruise
Control (ACC) with
Low Speed Follow
Indicator
(White/Green)
●Lights up in white when you press the
button.
●Lights up in white and green if no vehicle is
detected ahead of yo u while ACC with Low
Speed Follow is in operation.
●Lights up in green if a vehicle is detected
ahead of you while ACC with Low Speed
Follow is in operation.
2 Adaptive Cruise Control (ACC) with Low
Speed Follow P. 342
