uuChild Safety uSafety of Larger Children
Continued
Safe Driving

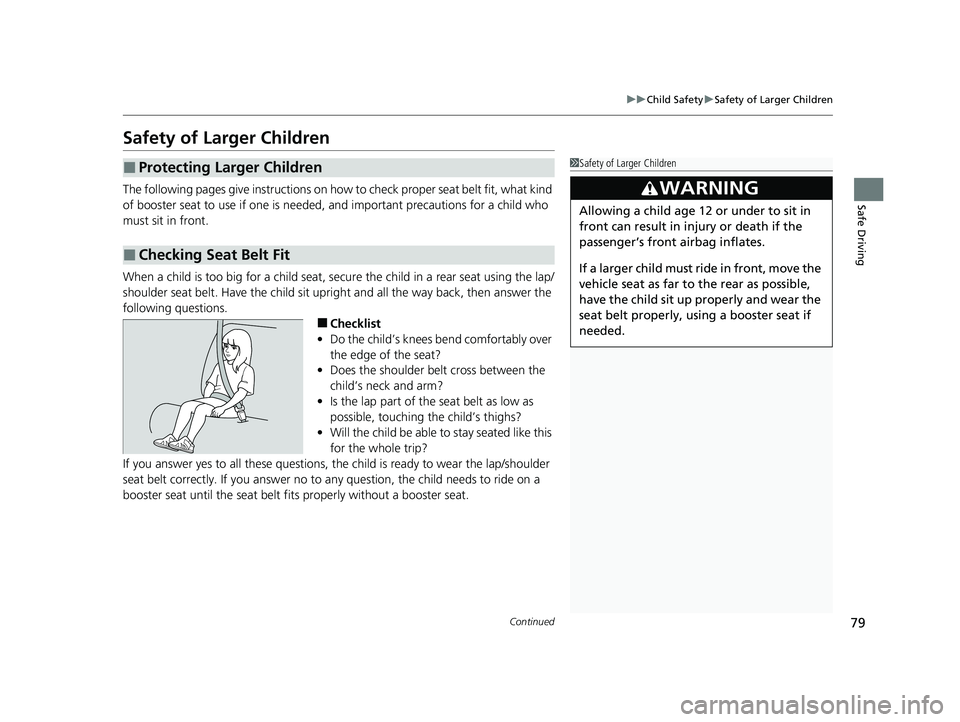

Safety of Larger Children
The following pages give instructions on how to check proper seat belt fit, what kind
of booster seat to use if one is needed, and important precautions for a child who
must sit in front.
When a child is too big for a child seat, secure the child in a rear seat using the lap/
shoulder seat belt. Have the child sit upri ght and all the way back, then answer the
following questions.
■Checklist
• Do the child’s knees bend comfortably over
the edge of the seat?
• Does the shoulder belt cross between the
child’s neck and arm?
• Is the lap part of the seat belt as low as
possible, touching the child’s thighs?
• Will the child be able to stay seated like this
for the whole trip?
If you answer yes to all these questions, th e child is ready to wear the lap/shoulder
seat belt correctly. If you answer no to any question, the child needs to ride on a
booster seat until the seat belt fits properly without a booster seat.
■Protecting Larger Children
■Checking Seat Belt Fit
1 Safety of Larger Children
3WARNING
Allowing a child age 12 or under to sit in
front can result in injury or death if the
passenger’s front airbag inflates.
If a larger child must ride in front, move the
vehicle seat as far to the rear as possible,
have the child sit up properly and wear the
seat belt properly, using a booster seat if
needed.
23 ACCORD 4D US PET MAP-3130A6000_01.book 79 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

uuChild Safety uSafety of Larger Children
80

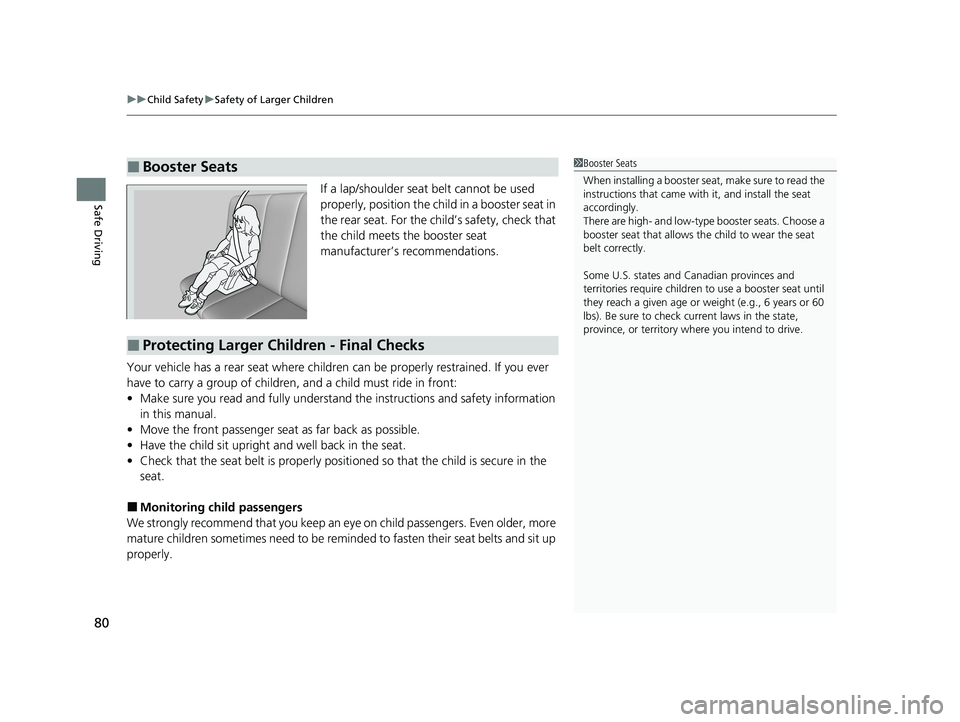

Safe DrivingIf a lap/shoulder seat belt cannot be used
properly, position the child in a booster seat in
the rear seat. For the ch ild’s safety, check that
the child meets the booster seat
manufacturer’s recommendations.
Your vehicle has a rear seat where children can be properly restrained. If you ever
have to carry a group of children, and a child must ride in front:
• Make sure you read and full y understand the instructions and safety information
in this manual.
• Move the front passenger seat as far back as possible.
• Have the child sit upright and well back in the seat.
• Check that the seat belt is properly positi oned so that the child is secure in the
seat.
■Monitoring child passengers
We strongly recommend that you keep an eye on child passengers. Even older, more
mature children sometimes need to be remind ed to fasten their seat belts and sit up
properly.
■Booster Seats1 Booster Seats
When installing a booster seat , make sure to read the
instructions that came with it, and install the seat
accordingly.
There are high- and low-type booster seats. Choose a
booster seat that allows the child to wear the seat
belt correctly.
Some U.S. states and Canadian provinces and
territories require children to use a booster seat until
they reach a given age or weight (e.g., 6 years or 60
lbs). Be sure to check current laws in the state,
province, or territory where you intend to drive.
■Protecting Larger Children - Final Checks
23 ACCORD 4D US PET MAP-3130A6000_01.book 80 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

81
Safe Driving

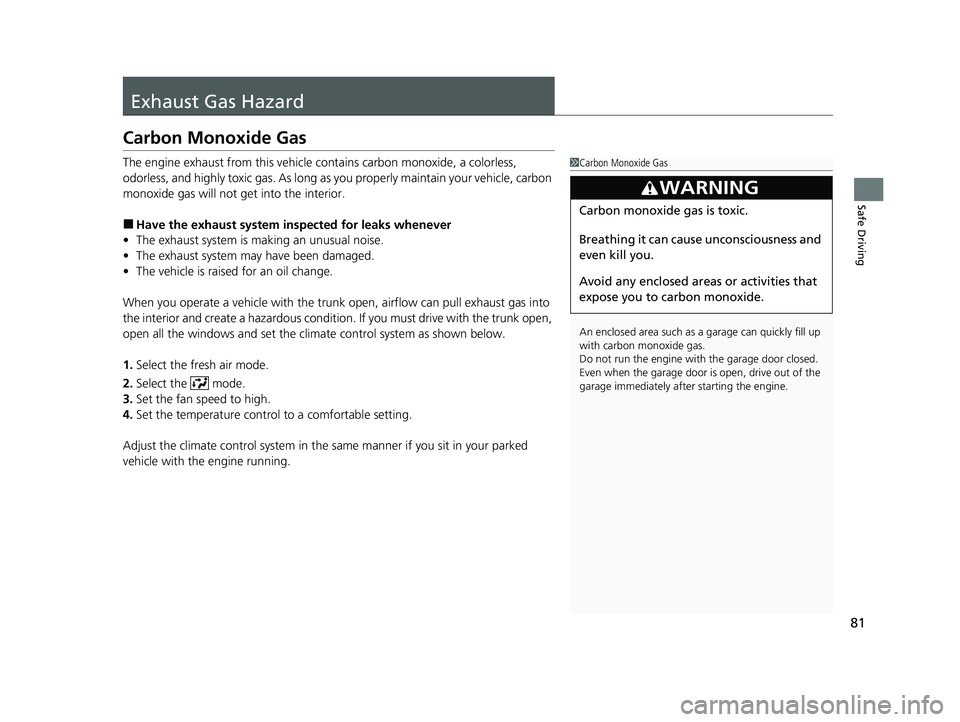

Exhaust Gas Hazard
Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon
monoxide gas will not get into the interior.
■Have the exhaust system in spected for leaks whenever
• The exhaust system is making an unusual noise.
• The exhaust system may have been damaged.
• The vehicle is raised for an oil change.
When you operate a vehicle with the trunk open, airflow can pull exhaust gas into
the interior and create a hazardous condition. If you must drive with the trunk open,
open all the windows and set the climate control system as shown below.
1. Select the fresh air mode.
2. Select the mode.
3. Set the fan speed to high.
4. Set the temperature control to a comfortable setting.
Adjust the climate control system in the same manner if you sit in your parked
vehicle with the engine running.
1 Carbon Monoxide Gas
An enclosed area such as a garage can quickly fill up
with carbon monoxide gas.
Do not run the engine with the garage door closed.
Even when the garage door is open, drive out of the
garage immediat ely after starting the engine.
3WARNING
Carbon monoxide gas is toxic.
Breathing it can cause unconsciousness and
even kill you.
Avoid any enclosed areas or activities that
expose you to carbon monoxide.
23 ACCORD 4D US PET MAP-3130A6000_01.book 81 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

82
Safe Driving

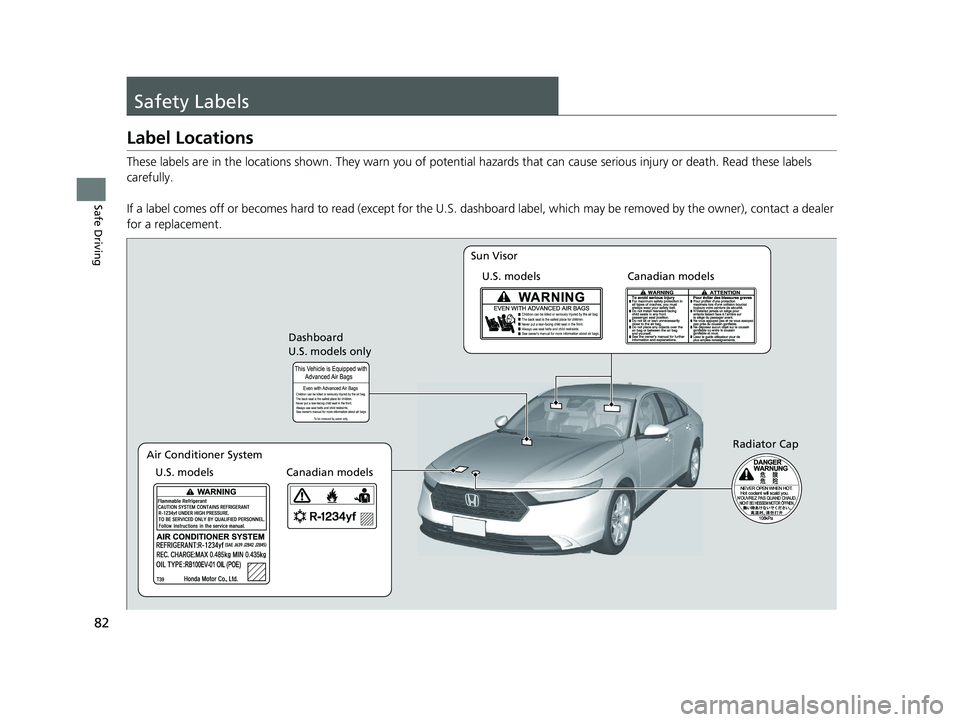

Safety Labels
Label Locations
These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels
carefully.
If a label comes off or becomes hard to read (except for the U.S. dashboard label, which may be removed by the owner), contact a dealer
for a replacement.
Radiator Cap
U.S. models only
Dashboard
U.S. models
Canadian models
Air Conditioner System
Sun Visor
U.S. models Canadian models
23 ACCORD 4D US PET MAP-3130A6000_01.book 82 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

83

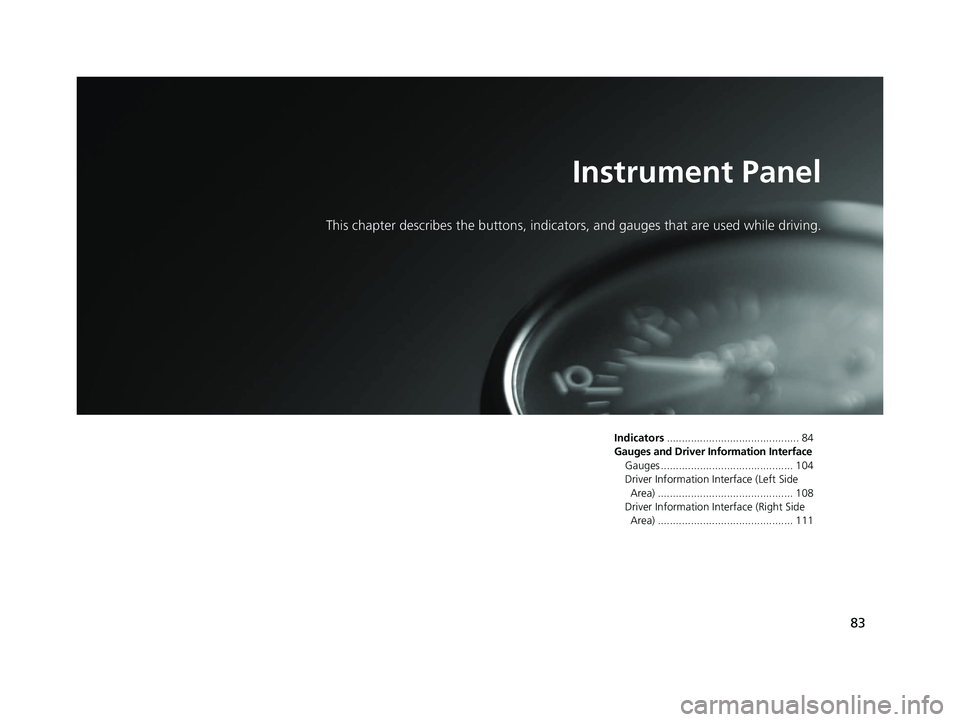

Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 84
Gauges and Driver Information Interface Gauges ............................................ 104
Driver Information Interface (Left Side Area) ............................................. 108
Driver Information Interface (Right Side Area) ............................................. 111
23 ACCORD 4D US PET MAP-3130A6000_01.book 83 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

84
Instrument Panel
Indicators
Indicators come on/blink depending on the condition of the vehicle. Messages may
display on the driver information interface at the same time. Please take the
appropriate action outlined in the message, such as contacting a dealer.
Parking Brake and
Brake System
Indicator (Red)
Parking Brake and
Brake System
Indicator (Amber)U.S.
Canada
U.S.
Canada
Automatic Brake
Hold System
Indicator
Automatic Brake
Hold IndicatorU.S.
Canada
*1 : When you set the power mode to ON, these indicators come on to indicate that system checks are being performed. They go off a few seconds later or after the engine
has started. If an indicator does not come on or turn off, ther e may be a malfunction in the corresponding system. To resolve the issue, follow the instructions in the
owner's manual.
 P. 86
*1Malfunction
Indicator Lamp
Charging System
Indicator
Seat Belt Reminder
Indicator
Low Fuel Indicator

P. 88
 P.

88
 P. 88 
P. 89
 P. 89
*1 *1
*1
Shift Position
Indicator

P. 89
Tr
ansmission System
Indicat
or 
P. 90
 P. 90
 P. 91
*1
Anti-lock Brake System
(ABS ) Indicator
Vehicle Stability
AssistTM (VSA®)
System Indicator
Vehicle Stability Assist
TM
(VSA®) OFF Indicator
Supplemental
Restraint System
Indicator
Electric Power
Steering (EPS) System
Indicator
*1

P. 91
 P. 91
 P. 92*1
*1
 P. 92
*1 P. 91
*1 *1
*1 *1
23 ACCORD 4D US PET MAP-3130A6000_01.book 84 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

85
uuIndicators u
Continued
Instrument Panel
*1 : When you set the power mode to ON, these indicators come on to indicate that system checks are being performed. They go off a few seconds later or after the engine
has started. If an indicator does not come on or turn off, ther e may be a malfunction in the corresponding system. To resolve the issue, follow the instructions in the
owner's manual.
Auto High-Beam
Indicator
Low Tire Pressure/
TPMS Indicator*
Turn Signal and
Hazard Warning
Indicators
Lights On
Indicator
High Beam
Indicator
System Message
Indicator Adaptive Cruise Control
(ACC) with Low Speed
Follow Indicator
(Amber)
Lane Keeping Assist
System (LKAS) Indicator
(Amber)
Safety Support
Indicator (Green/Gray)

P. 93
A
uto Idle Stop System
Indi
cator (Amber) 
P. 96
 P. 94 
P. 98
*1
 P. 94
 P. 94

P. 94
Immobilizer System
Indica
tor 
P. 95
Se
curity System Alarm
Indica
tor 
P. 95
 P. 94 
P. 99
 P. 103
*1
Adaptive Cruise Control
(ACC) with Low Speed
Follow Indicator
(White/Green)
 P. 98
*1
Lane Keeping Assist
System (LKAS) Indicator
(White/Green) 
P. 99*1
*1
Safety Support
Indicator (Amber)
P. 100
*1
ECON Mode
Indicator 
P. 95
Auto Idle Stop OFF
Indicator 
P. 96
Aut
o Idle Stop
Sus
pend Indicator P. 97
Cruise Mode Indicator
(W

hite/Green) 
P. 99
Adaptive Cruise Control
(ACC) with Low Speed
Follow Interval
Indicator 
P. 99
Auto Idle Stop
Indicator (Green) 
P. 96
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 85 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

86
uuIndicators u
Instrument Panel

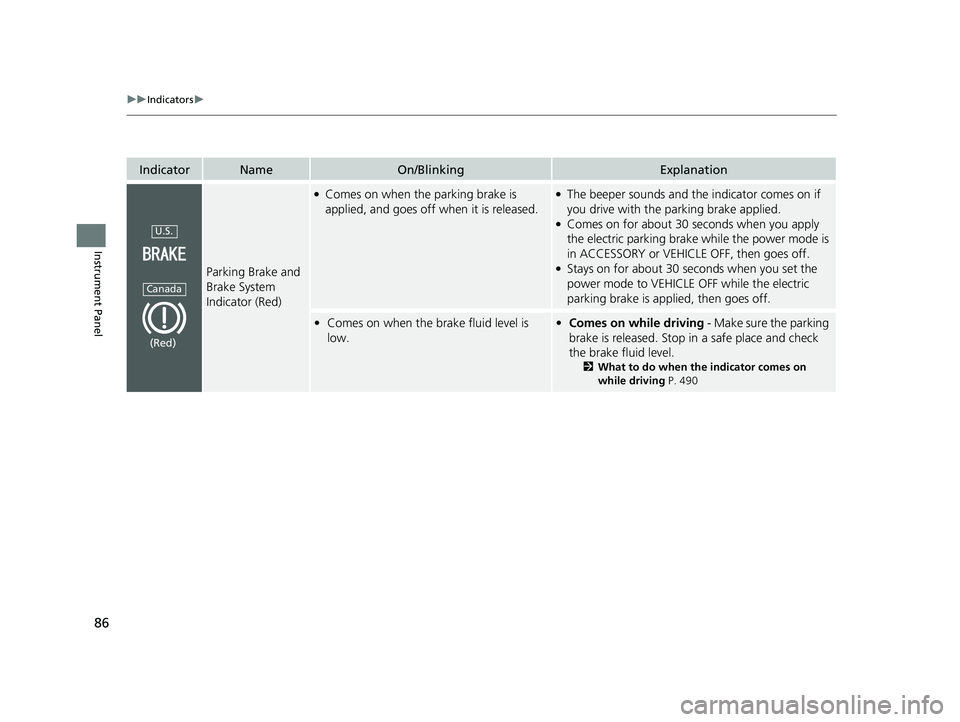

IndicatorNameOn/BlinkingExplanation
Parking Brake and
Brake System
Indicator (Red)
●Comes on when the parking brake is
applied, and goes off when it is released.●The beeper sounds and th e indicator comes on if
you drive with the parking brake applied.
●Comes on for about 30 seconds when you apply
the electric parking brake while the power mode is
in ACCESSORY or VEHICLE OFF, then goes off.
●Stays on for about 30 seconds when you set the
power mode to VEHICLE OFF while the electric
parking brake is applied, then goes off.
• Comes on when the brake fluid level is
low.•Comes on while driving - Make sure the parking
brake is released. Stop in a safe place and check
the brake fluid level.
2 What to do when the indicator comes on
while driving P. 490
U.S.
Canada
(Red)
23 ACCORD 4D US PET MAP-3130A6000_01.book 86 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

87
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Parking Brake and
Brake System
Indicator (Red)
●Comes on if there is a problem with the
brake system.●Comes on along with the Parking Brake and
Brake System Indicator (amber) - Immediately
stop in a safe place. Contact a dealer for repair. The
brake pedal becomes harder to operate. Depress
the pedal further than you normally do.
2 If the Brake System Indicator (Red) Comes On
or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On P. 491
●Comes on along with the ABS indicator - Have
your vehicle checked by a dealer.
2 If the Brake System Indicator (Red) Comes On
or Blinks P. 490
●Blinks and the Parking Brake and Brake System
Indicator (amber) comes on at the same time -
There is a problem with the electric parking brake
system. The parking brake may not be set.
Avoid using the parki ng brake and have your
vehicle checked by a dealer immediately.
2If the Brake System Indicator (Red) Comes On
or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On P. 491
U.S.
Canada
(Red)
23 ACCORD 4D US PET MAP-3130A6000_01.book 87 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

88
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Parking Brake and
Brake System
Indicator (Amber)
●Comes on if there is a problem with a
system related to braking other than the
conventional brake system.●Comes on while driving - Avoid high speeds and
sudden braking. Take the vehicle to a dealer
immediately.
●Comes on if there is a problem with the
electric parking brake system and/or the
automatic brake hold system.●Stays on constantly - Avoid using the parking
brake and have your vehicl e checked by a dealer
immediately.
●Comes on if the brake system is
deactivated temporarily after the battery
has been disconnected, then re-connected.●Drive a short distance at more than 12 mph (20
km/h). The indicator should go off. If it does not,
have your vehicle checked by a dealer.
●Comes on if there is a problem with the
radar sensor.
●Indicator may come on temporarily when
the Maximum Load Limit is exceeded.
●Make sure the total load is within the Maximum
Load Limit.
2 Maximum Load Limit P. 293●Stays on constantly - Have your vehicle checked
by a dealer.
Automatic Brake
Hold System
Indicator●Comes on when the automatic brake hold
system is on.
2 Automatic Brake Hold P. 404
Automatic Brake
Hold Indicator
●Comes on when the automatic brake hold
is activated.
2Automatic Brake Hold P. 404
U.S.
Canada
(Amber)
U.S.
Canada
23 ACCORD 4D US PET MAP-3130A6000_01.book 88 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分
