Page 121 of 429

The ceiling light (with the switch in
the center position) comes on when
you remove the key f rom the ignition
switch. If you do not open a door, the
light stays on, then f ades out in
about 30 seconds.
If you leave either door open with
the key not in the ignition switch, the
ceiling light will go of f af ter three

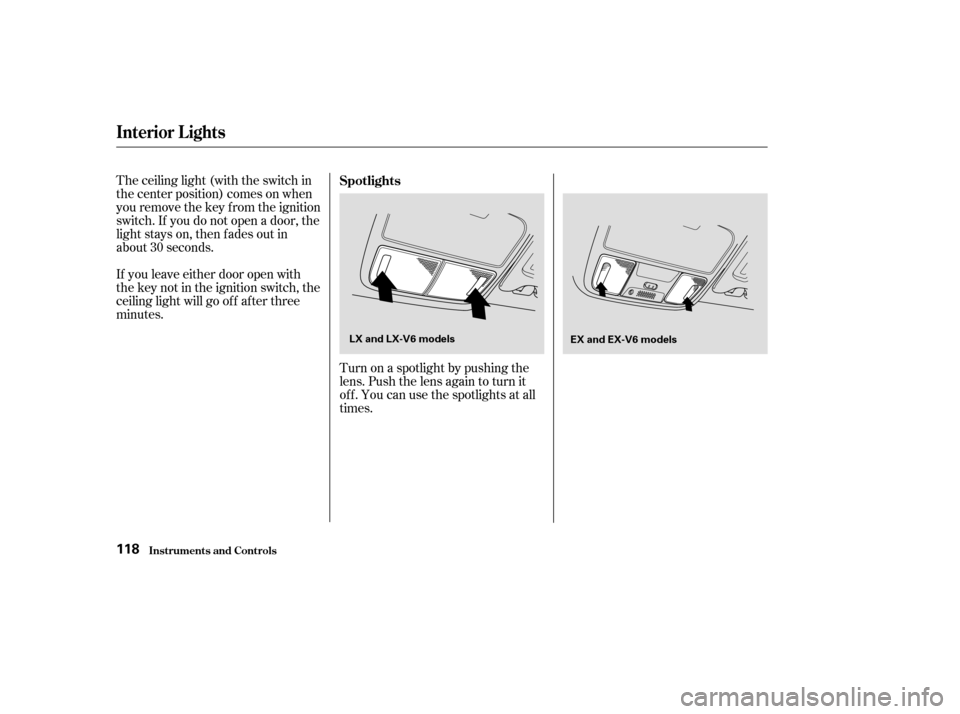

minutes.Turn on a spotlight by pushing the
lens. Push the lens again to turn it
of f . You can use the spotlights at all
times. Spotlights
Interior Lights
Inst rument s and Cont rols118
LX and LX-V6 models EX and EX-V6 models
Page 122 of 429

The courtesy light in each door
comes on when the door is opened,
and goes out when the door is closed.
Your car also has a courtesy light in
the ignition switch. This light comes
on when you open the driver’s door.
It f ades out in about 30 seconds af ter
the door is closed.

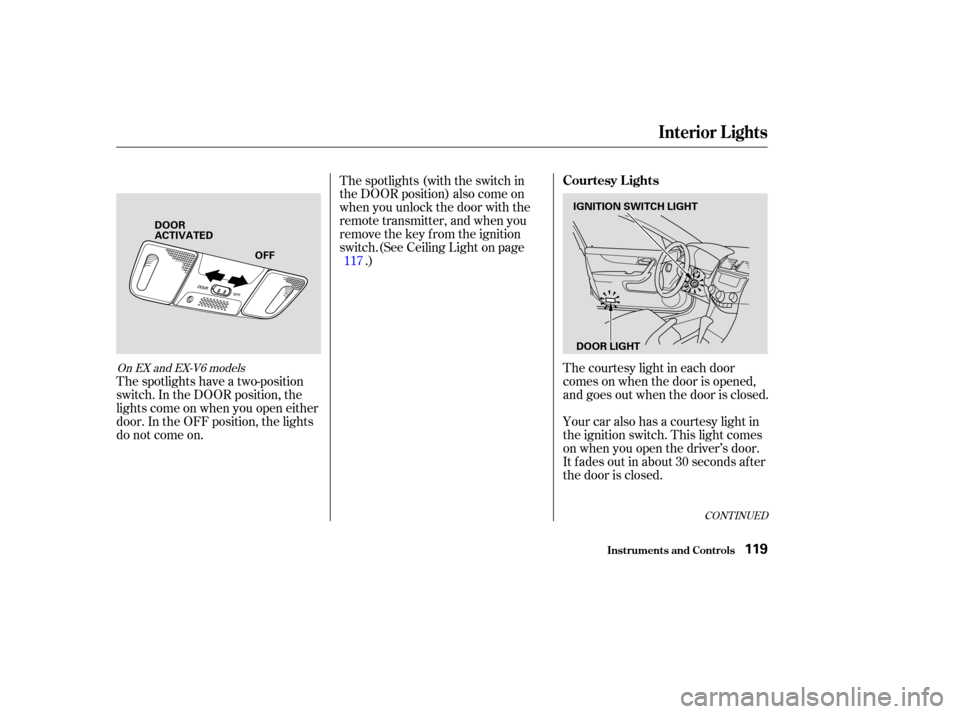

The spotlights (with the switch in
the DOOR position) also come on
when you unlock the door with the
remote transmitter, and when you
remove the key from the ignition
switch.(See Ceiling Light on page
.)
The spotlights have a two-position
switch. In the DOOR position, the
lights come on when you open either
door. In the OFF position, the lights
do not come on. 117
CONT INUED
On EX and EX-V6 models
Interior Lights
Inst rument s and Cont rols
Courtesy Lights
119
IGNITION SWITCH LIGHT
DOOR LIGHT
OFF
DOOR
ACTIVATED
Page 123 of 429

The courtesy light between the
spotlights comes on when you turn
the parking lights on. To adjust its
brightness, turn the Select/Reset
knob on the instrument panel.
On EX and EX-V6 models
Interior Lights
Inst rument s and Cont rols120
COURTESY LIGHT
Page 124 of 429

.....................
Heating and Cooling .122
.........
What Each Control Does . 122
............
How to Use the System . 125
..........
To Turn Everything Of f . 128
...............
Climate Control System . 129
.......
Fully-automatic Operation . 131
.......
Semi-automatic Operation . 132
......
Dual Temperature Control . 137
.......
Fully-automatic Operation . 138
.......
Semi-automatic Operation . 139
......
Dual Temperature Control . 145
Sunlight Sensor/ ............
Temperature Sensor . 147
.......................
Audio System (LX) .148
....
AM/FM/CD Audio System . 148
.................
Operating the Radio . 148
.................
Adjusting the Sound . 152
..............................
Digital Clock .153
.........
Operating the CD Player . 154
.....
Operating the CD Changer . 156
....
CD Player Error Indications . 158
CD Changer Error .............................
Indications .159 Operating the Cassette
....................................
Player .160
...........
Tape Search Functions . 161
Audio System ..............
(EX, EX-V6, LX-V6) . 163
AM/FM/CD Changer Audio ....................................
System .163
.................
Operating the Radio . 164
.................
Adjusting the Sound . 169
..............................
Digital Clock .171
.....
Operating the CD Changer . 173
CD Changer Error .............................
Indications .182
Operating the Cassette ....................................
Player .183
...........
Tape Search Functions . 185
Audio System (U.S. 4-cylinder EX withleather interior, U.S. ............................
EX-V6) .187
AM/FM/CD Changer Audio ....................................
System .187
.................
Operating the Radio . 188
................
Adjusting the Sound . 191.............................
Digital Clock .193
...................
Radio Frequencies . 194
.......................
Radio Reception .194
.....
Operating the CD Changer . 196
CD Changer Error .............................
Indications .204
......
Protecting Compact Discs . 205
Operating the Cassette ....................................
Player .206
...........
Tape Search Functions . 208
Caring f or the Cassette ....................................
Player .210
...........
Remote Audio Controls . 211
.......................
Thef t Protection .212
............................
Security System .213
...............................
Cruise Control .214
Homelink Wireless Control ........................................
System .218
Without Navigation System
With Navigation System Without Navigation System
With Navigation System
Comf ort and Convenience Features
Comf ort and Convenience Feat ures121
Page 125 of 429

Proper use of the Heating and
Cooling system can make the
interior dry and comf ortable, and
keep the windows clear f or the best
visibility.

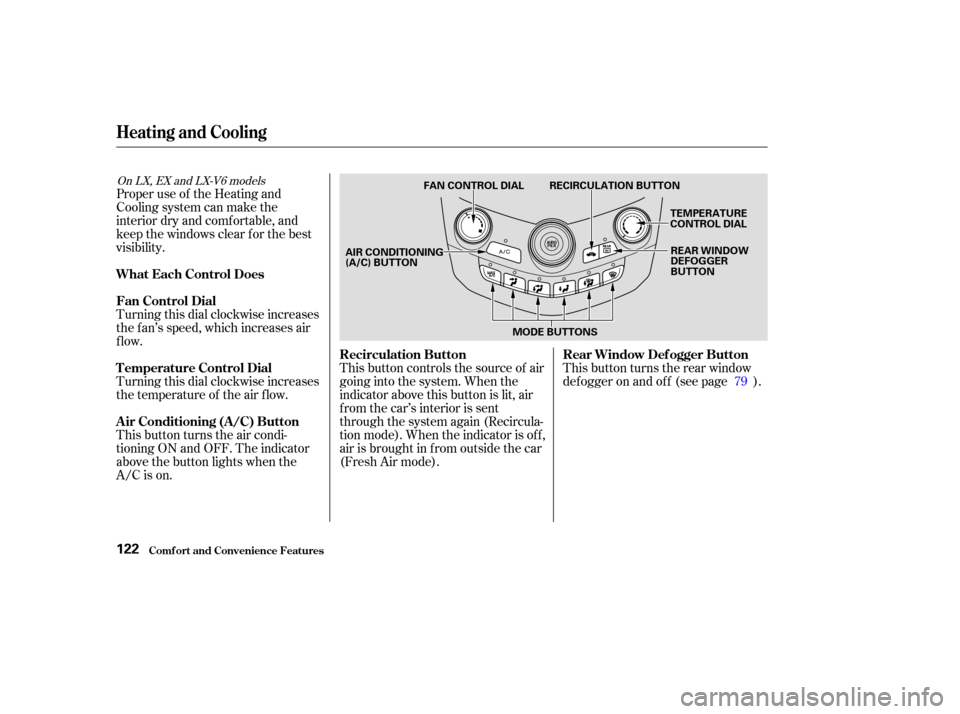

Turning this dial clockwise increases
the f an’s speed, which increases air
flow.
Turning this dial clockwise increases
the temperature of the air flow.
This button turns the air condi-
tioning ON and OFF. The indicator
above the button lights when the
A/C is on.This button controls the source of air
going into the system. When the
indicator above this button is lit, air
from the car’s interior is sent
through the system again (Recircula-
tion mode). When the indicator is off,
air is brought in f rom outside the car
(Fresh Air mode).
This button turns the rear window
def ogger on and of f (see page ).
79
On LX, EX and LX-V6 models
Comf ort and Convenience Feat ures
Heating and Cooling
What Each Control Does
Fan Control Dial
T emperature Control Dial
Air Conditioning (A/C) Button Recirculation Button
Rear Window Def ogger Button
122
TEMPERATURE
CONTROL DIAL
FAN CONTROL DIAL RECIRCULATION BUTTON
REAR WINDOW
DEFOGGER
BUTTON
AIR CONDITIONING
(A/C) BUTTON
MODE BUTTONS
Page 126 of 429

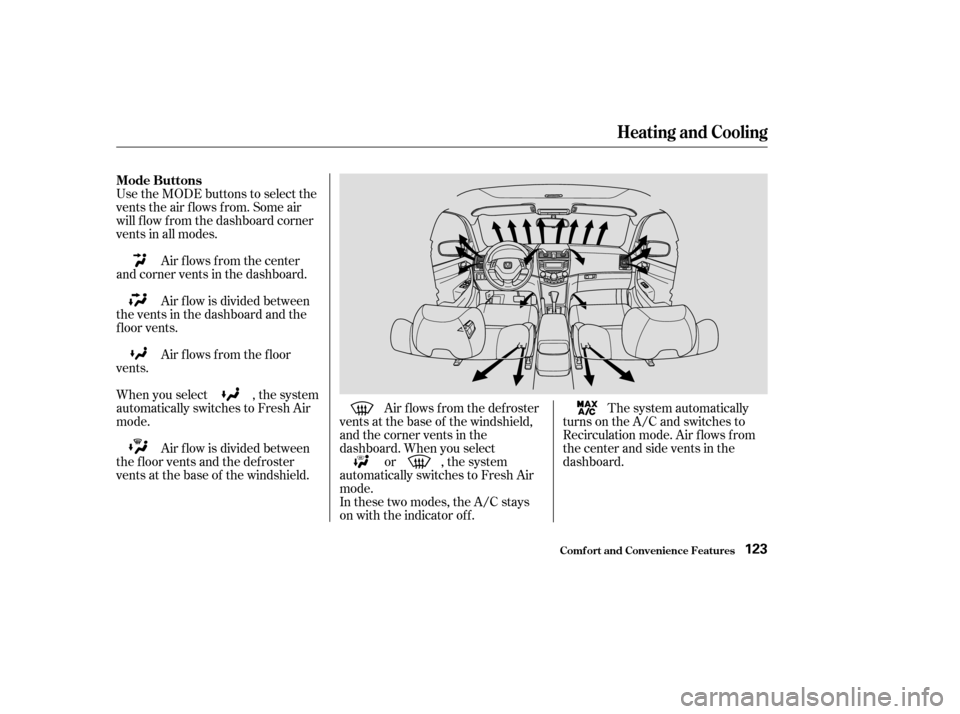

Use the MODE buttons to select the
vents the air flows from. Some air
will f low f rom the dashboard corner
vents in all modes.Air flows from the center
and corner vents in the dashboard.
Air f low is divided between
the vents in the dashboard and the
f loor vents.
Air f lows f rom the f loor
vents.
The system automatically
turns on the A/C and switches to
Recirculation mode. Air f lows f rom
the center and side vents in the
dashboard.
When you select , the system
automatically switches to Fresh Air
mode.
Air f low is divided between
the f loor vents and the def roster
vents at the base of the windshield. Air f lows f rom the def roster
vents at the base of the windshield,
and the corner vents in the
dashboard. When you select or , the system
automatically switches to Fresh Air
mode.
In these two modes, the A/C stays
on with the indicator off.
Heating and Cooling
Comf ort and Convenience Feat ures
Mode Buttons
123
Page 127 of 429

The direction of air f low f rom the
vents in the center and each side of
the dashboard is adjustable.The vents in the corners of the
dashboard can be opened and closed
with the dials underneath them.
To adjust the air flow from each vent,
move the tab in the center of each
vent up-and-down and side-to-side.
Heating and Cooling
Comf ort and Convenience Feat ures
Vent Controls
124
CENTER VENTS TABS
CloseOpen TAB
Open
PASSENGER’S SIDE VENT
DRIVER’S SIDE VENT
Close
TAB
Page 128 of 429

CONT INUED
The f low-through ventilation system
draws in outside air, circulates it
through the interior, then exhausts it
through vents near the rear window.Turn the temperature control dial
all the way to the lef t.
Make sure the A/C is of f .
Select and Fresh Air mode.
Set the f an to the desired speed.
The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep
these clear of leaves and other
debris.
This section covers how to set up the
system controls f or ventilation,
heating, cooling, dehumidif ying, and
def rosting.
The engine must be running f or the
heater and air conditioning to
generate hot and cold air. The heater
uses engine coolant to warm the air.
If the engine is cold, it will be several
minutes bef ore you f eel warm air
coming from the system.
It is best to leave the system in Fresh
Air mode under almost all conditions.
Keeping the system in Recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
Switch to Recirculation mode when
you are driving through smoky or
dusty conditions, then switch back to
Fresh Air mode when the condition
clears. The air conditioning does not rely on
engine temperature.
1.
2.
3.
Heating and Cooling
Comf ort and Convenience Feat ures
Vent ilat ion
How to Use the System
125
RECIRCULATION BUTTONTEMPERATURE
CONTROL DIAL
FAN CONTROL
DIAL
AIR CONDITIONING
(A/C) BUTTON MODE BUTTONS
Page 129 of 429

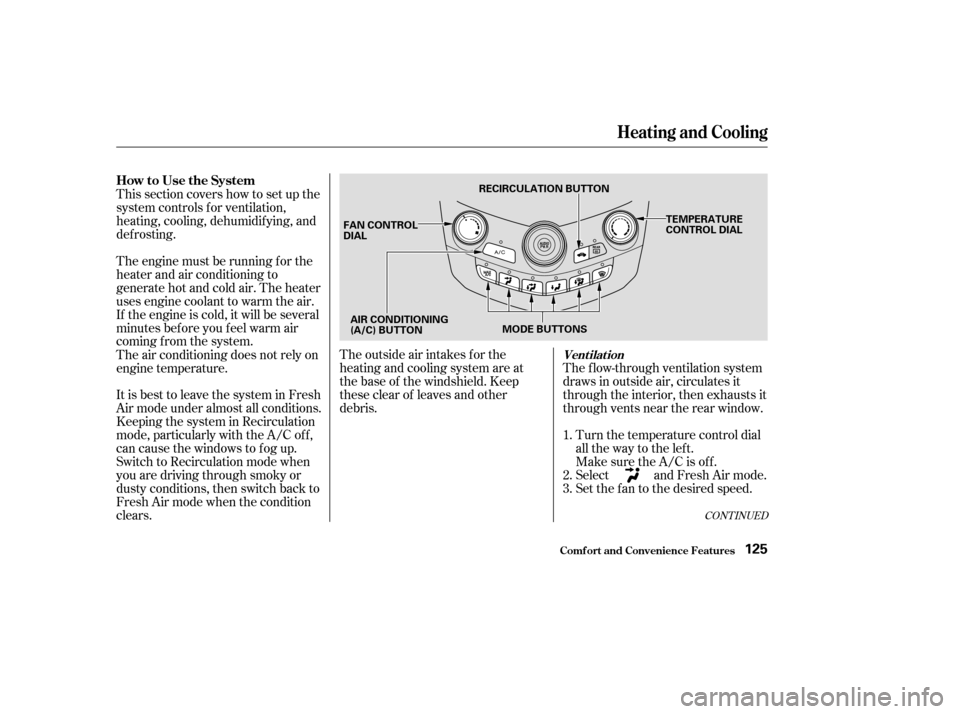

Turn on the A/C by pressing the
A/C button. The light above the
button comes on when a f an speed
is selected.
Make sure the temperature
control dial is all the way to the left.
Select .
If the outside air is humid, select
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
Set the f an to the desired speed.If the interior is very warm f rom
beingparkedinthesun,youcancool
it down more rapidly by setting up
the controls this way:Start the engine.
Turn on the A/C by pressing the
A/C button. Make sure the tem-
perature control dial is turned all
the way to the left.
Set the f an to maximum speed.
Open the windows partially. Select and Fresh Air mode.
To cool the interior with MAX A/C:
Set the f an to the desired speed.
Select the MAX A/C mode.
The system automatically turns on
the A/C, selects and
switches to Recirculation mode.
Make sure the temperature
control dial is all the way to the left. When the interior has cooled down
to a more comf ortable temperature,
close the windows and set the
controls as described f or normal
cooling.
1.
2.
3.
4.
5.
1.
2.
3.
4.
1.
2.
3.
Comf ort and Convenience Feat ures
Heating and Cooling
T o Cool wit h A /C
126
RECIRCULATION BUTTON
TEMPERATURE
CONTROL DIAL
AIR CONDITIONING
(A/C) BUTTON
FAN CONTROL
DIAL
MODE BUTTONS
Page 130 of 429

Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry.To remove f og f rom the inside of the
windows:
Set the f an to the desired speed.
Turn on the air conditioning.
Select and Fresh Air mode.
Adjust the temperature control
dial so the mixture of heated and
cooled air f eels comf ortable.
Once the engine is warmed up, this
setting is suitable f or all driving
conditions. Set the f an to the desired speed.
Select .
When you select , the
system automatically switches to
Fresh Air mode and turns on the
A/C. (The indicator above the
A/C button stays off.)
Adjust the temperature control
dial so the air flow from the
def roster vents f eels warm.
Turn on the rear window def ogger
to help clear the rear window.
When you switch to another mode
f rom , the A/C turns of f .
Butifitwasontostartwith,it
stays on.
Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page
) when driving in stop-and-go
traf f ic or climbing a long, steep hill.
If it moves near the red zone, turn
of f the A/C until the gauge reads
normally.
To warm the interior:
Start the engine.
Select .
When you select , the
system automatically switches to
Fresh Air mode.
Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control dial. 1.
2.
3.
4.
1.
2.
3.
4.
1.
2.
3.
4. 70
CONT INUED
Heating and Cooling
Comf ort and Convenience Feat ures
T o Heat and Dehumidif y wit h A ir
Condit ioning T o Def og and Def rost
To Heat
127
