For saf ety, make sure you have a
clear view through all the windows
bef ore driving away.To shut of f the system temporarily,
turn the fan speed and temperature
control dials all the way to the lef t.
These settings direct all the air f low
to the defroster vents at the base of
the windshield and the side window
def roster vents. The air f low will get
warmer and clear the windows faster
as the engine warms up. You can
close the side vents with the dial
underneath each vent. This will send
more warm air to the windshield
defroster vents.
To remove exterior f rost or ice f rom
the windshield and side windows
after the car has been sitting out in
cold weather:
Start the engine.
Select .
When you select , the
system automatically switches to
Fresh Air mode and turns on the
A/C. (The indicator above the
A/C button stays off.)
Set the f an and temperature
controls to maximum.
To rapidly remove exterior f rost or
ice f rom the windshield (on very cold
days), f irst select the Recirculation
mode. Once the windshield is clear,
select the Fresh Air mode to avoid
f ogging the windows. No air flow can cause the windows to
fogup.Itisrecommendedthatyou
keep the fan on at all times so stale
air and moisture do not build up in
the interior and cause f ogging.
1.
2.
3.
Heating and Cooling
Comf ort and Convenience Feat ures
To Turn Everything Of f
128

CONT INUED
Thesideventscanbeopenedand
closed with the dials underneath
them.
The automatic climate control
system in your Honda picks the
proper combination of air
conditioning, heating, and ventilation
to maintain the interior temperature
you select. The system also adjusts
the fan speed and air flow levels.
You can adjust the temperatures of
thedriver’ssideandthepassenger’s
side independently (see pages
and ). To adjust the air flow from each vent,
move the tab in the center of each
vent up-and-down and side-to-side.
The direction of air f low f rom the
vents in the center and each side of
the dashboard is adjustable. 137 145
On 4-cylinder EX model with leather
interior and EX-V6 model only
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures129
CENTER VENTS TAB
TABS
Close
DRIVER’S SIDE VENT
Open

The climate control system draws air
through the exterior vents at the
bottom of the windshield. Keep
these vents clear of leaves and other
debris.
For the climate control system to
provide heating and cooling, the
engine must be running.
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures130
PASSENGER’S SIDE VENTOpen CloseTAB

To put the Automatic Climate
Control in f ully-automatic mode,
press the AUTO button, then set the
desired temperature by turning the
driver’s temperature control dial.
You will see AUTO in the system’s
display.
The system automatically selects the
proper mix of conditioned and/or
heated air that will, as quickly as
possible, raise or lower the interior
temperature f rom its current level to
the set temperature.
CONT INUED
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
Fully-automatic Operation
Without Navigation System
131
RECIRCULATION BUTTON
OFF BUTTON PASSENGER’S SIDE
TEMPERATURE
CONTROL DIAL
FAN CONTROL
BUTTONS
DRIVER’S SIDE
TEMPERATURE
CONTROL DIAL
AUTO BUTTON TEMPERATURE DISPLAY

You can manually select various
f unctions of the Climate Control
system when it is in f ully automatic
mode. All other f eatures remain auto-
matically controlled. Making any
manual selection causes the word
AUTO in the display to go out.
Press the A/C button to turn the air
conditioningonandoff.Youwillsee
A/C ON or A/C OFF in the display.This button controls the source of air
going into the system. When the
indicator in this button is lit, air f rom
the car’s interior is sent through the
system again (Recirculation mode).
When the indicator is off, air is
brought in f rom outside the car
(Fresh Air mode).
You can, f or example, manually put
the system in recirculation mode
when driving through an area of
smoke or f umes.
When you turn the A/C of f , the sys-
tem cannot regulate the inside tem-
perature if you set the dial below the
outside temperature. With the A/C
of f , use the temperature control dial
to adjust the temperature of the air
flow to a comfortable setting.
When you set the temperature to its
lower limit ‘‘ ’’ or its upper
limit ‘‘ ’’, the system runs at
f ull cooling or heating only. It does
not regulate the interior temperature.
In cold weather, the f an will not
come on automatically until the car
has been driven f or a short time and
the heater starts to develop warm air.
Pressing the OFF button shuts the
climate control system completely
off. No air flow can cause the
windows to fog up. It is
recommended that you keep the f an
on at all times so stale air and
moisture do not build up in the
interior and cause f ogging.
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
Semi-automatic Operation
A ir Condit ioning (A /C) But t on
Recirculat ion But t on
132

ÛÝ
CONT INUED
You can manually select the f an
speed by pressing the f an control
buttons: to increase the f an’s
speed, or to decrease the f an’s
speed.
Press the DUAL button to select the
dual temperature control mode (see
page ).
Use the MODE button to select the
vents the air flows from. Some air
will f low f rom the dashboard corner
vents in all modes; you can turn it of f
with the dial below each vent. Each
time you press the MODE button,
the display shows the mode selected.
Press the button four times to see all
the modes. 137
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
Fan Control Buttons
Mode Button
Dual Button
133
FAN CONTROL BUTTONS
RECIRCULATION BUTTON
DUAL BUTTON MODE BUTTON
AIR CONDITIONING
BUTTON

The main air f low is divided
between the f loor vents and de-
froster vents at the base of the wind-
shield.
The main air flow comes
f rom the f loor vents.
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures134

CONT INUED
The main air f low is divided
between the dashboard vents and
the f loor vents.
The main air flow comes
f rom the dashboard vents.
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures135

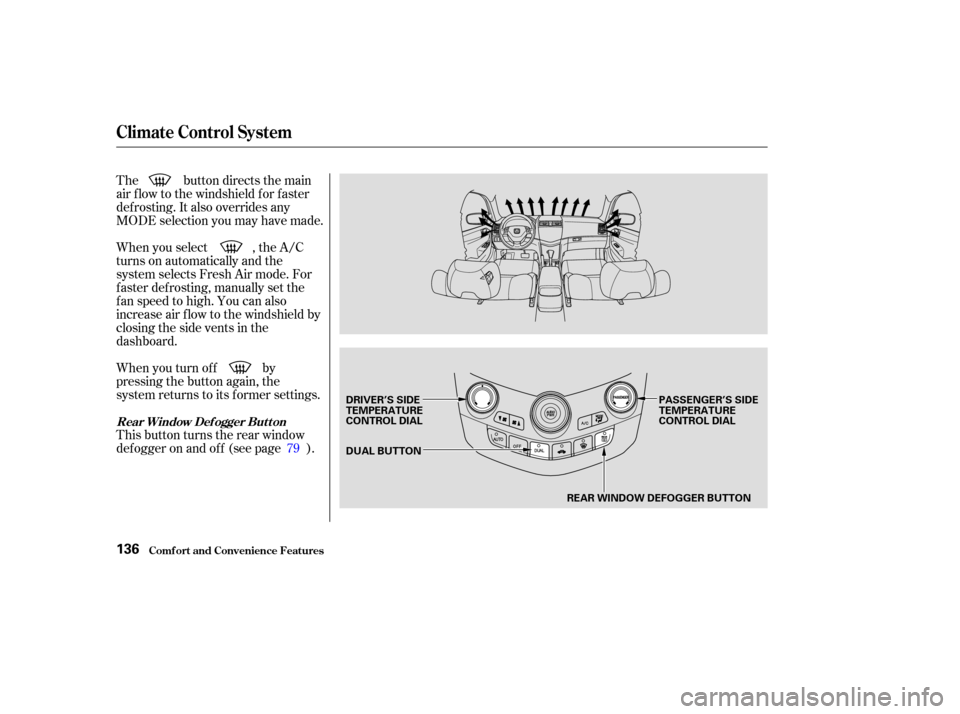

The button directs the main
air f low to the windshield f or f aster
def rosting. It also overrides any
MODE selection you may have made.
When you turn of f by
pressing the button again, the
system returns to its former settings. When you select , the A/C
turns on automatically and the
system selects Fresh Air mode. For
f aster def rosting, manually set the
fanspeedtohigh.Youcanalso
increase air f low to the windshield by
closing the side vents in the
dashboard.
This button turns the rear window
def ogger on and of f (see page ).79
Rear Window Def ogger But t on
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures136
REAR WINDOW DEFOGGER BUTTON
DUAL BUTTON PASSENGER’S SIDE
TEMPERATURE
CONTROL DIAL
DRIVER’S SIDE
TEMPERATURE
CONTROL DIAL

Your car is equipped with two
temperature control dials, one f or
the driver, and one f or the passenger.
Thedriver’ssideandthepassenger’s
side can be controlled independently
by adjusting these dials when the
green indicator in the DUAL button
is lit.
Push the fan, the A/C, the AUTO, or
the button, and the set
temperatures appear in the display.
When the indicator in the DUAL
button is off, you can adjust both
sides to the same temperature by
turning the driver’s control dial.To set the driver’s side temperature
to a different value than the
passenger’s, press the DUAL button,
then turn the driver’s control dial. To
set the passenger’s side to a
different value than the driver’s side,
turn the passenger’s control dial (see
page ). You can adjust the
passenger’s side without pressing
the DUAL button first.131
Dual Temperature Control
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
T emperat ure Cont rol Dials
137
PASSENGER’S SIDE
DRIVER’S SIDE
