uuClimate Control System uUsing Automatic Climate Control
180
Controls
Pressing the button turns the air
conditioning system on and automatically
switches the system to fresh air mode.
Press the button again to turn off, the
system returns to the previous settings.

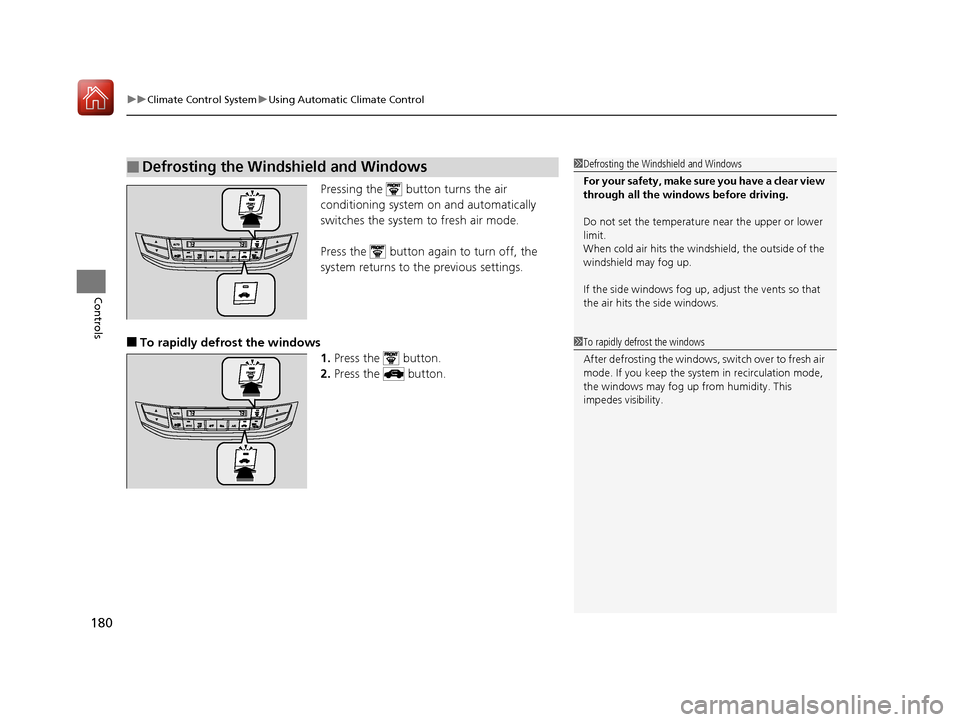

■To rapidly defrost the windows 1.Press the button.
2. Press the button.
■Defrosting the Windshield and Windows1Defrosting the Windshield and Windows
For your safety, make sure you have a clear view
through all the windows before driving.
Do not set the temperatur e near the upper or lower
limit.
When cold air hits the windshield, the outside of the
windshield may fog up.
If the side windows fog up, adjust the vents so that
the air hits th e side windows.
1To rapidly defrost the windows
After defrosting the windows, switch over to fresh air
mode. If you keep the syst em in recirculation mode,
the windows may fog up from humidity. This
impedes visibility.
17 ACCORD FHEV-31T3W6200.book 180 ページ ２０１６年４月１１日　月曜日　午後２時４０分

181
uuClimate Control System uSynchronized Mode
Controls

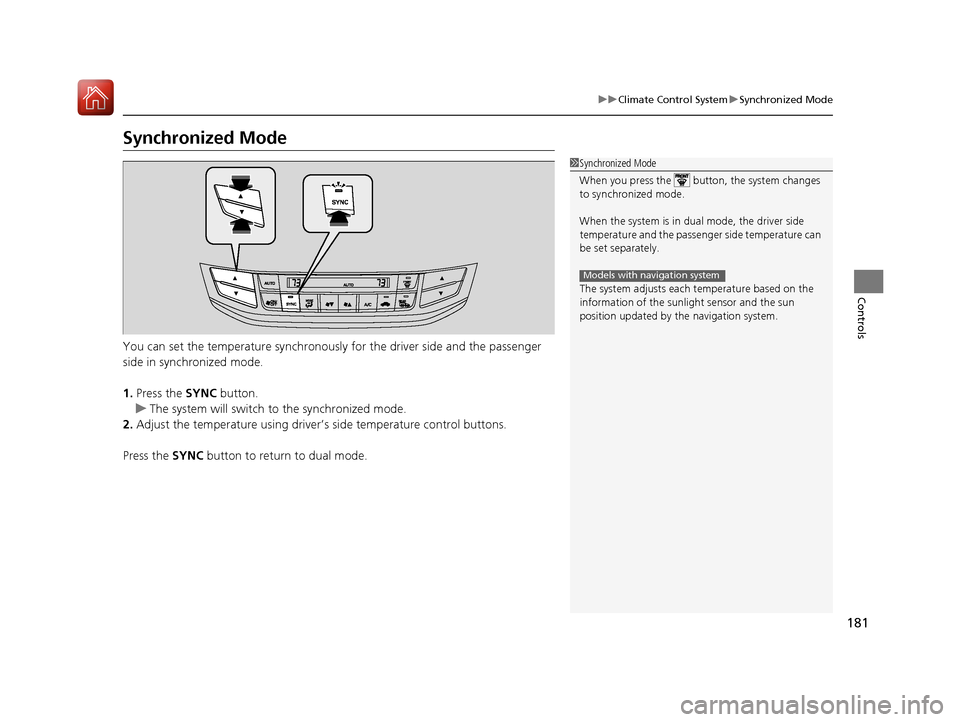

Synchronized Mode
You can set the temperature synchronously for the driver side and the passenger
side in synchronized mode.
1. Press the SYNC button.
u The system will switch to the synchronized mode.
2. Adjust the temperature using driver’s side temperature control buttons.
Press the SYNC button to return to dual mode.
1Synchronized Mode
When you press the button, the system changes
to synchronized mode.
When the system is in dua l mode, the driver side
temperature and the passenger side temperature can
be set separately.
The system adjusts each temperature based on the
information of the sunli ght sensor and the sun
position updated by the navigation system.
Models with navigation system
17 ACCORD FHEV-31T3W6200.book 181 ページ ２０１６年４月１１日　月曜日　午後２時４０分

182
uuClimate Control System uAutomatic Climate Control Sensors
Controls

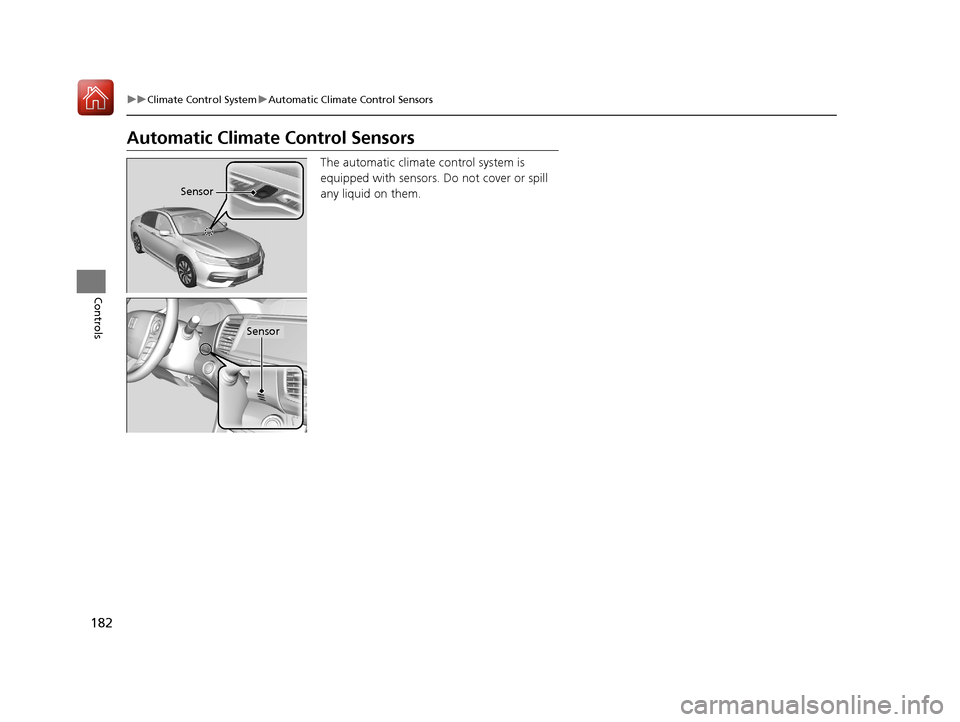

Automatic Climate Control Sensors
The automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.
Sensor
Sensor
17 ACCORD FHEV-31T3W6200.book 182 ページ ２０１６年４月１１日　月曜日　午後２時４０分

183

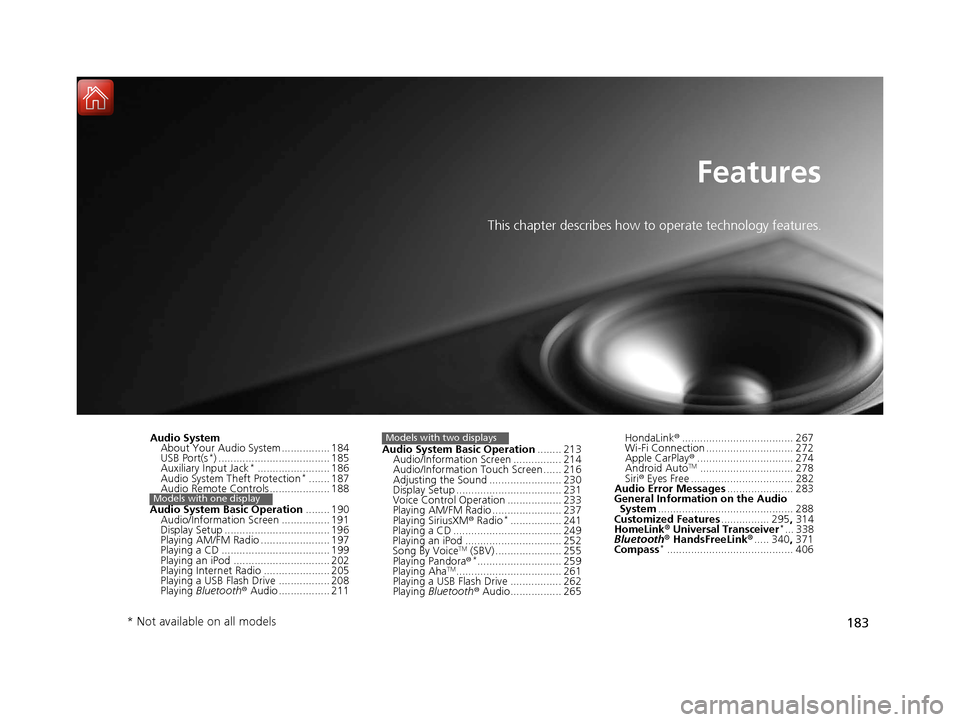

Features
This chapter describes how to operate technology features.
Audio SystemAbout Your Audio System ................ 184
USB Port(s
*) ..................................... 185
Auxiliary Input Jack*........................ 186
Audio System Theft Protection*....... 187
Audio Remote Controls .................... 188
Audio System Basic Operation ........ 190
Audio/Information Screen ................ 191
Display Setup ................................... 196
Playing AM/FM Radio ....................... 197
Playing a CD .................................... 199
Playing an iPod ................................ 202
Playing Internet Radio ...................... 205
Playing a USB Flash Drive ................. 208
Playing Bluetooth ® Audio ................. 211
Models with one display
Audio System Basic Operation ........ 213
Audio/Information Screen ................ 214
Audio/Information Touch Screen ...... 216
Adjusting the Sound ........................ 230
Display Setup ................................... 231
Voice Control Operation .................. 233
Playing AM/FM Radio ....................... 237
Playing SiriusXM ® Radio
*................. 241
Playing a CD .................................... 249
Playing an iPod ................................ 252
Song By Voice
TM (SBV) ...................... 255
Playing Pandora ®*............................ 259
Playing AhaTM................................... 261
Playing a USB Flash Drive ................. 262
Playing Bluetooth ® Audio................. 265
Models with two displaysHondaLink ®..................................... 267
Wi-Fi Connection ............................. 272
Apple CarPlay ®................................ 274
Android Auto
TM............................... 278
Siri ® Eyes Free .................................. 282
Audio Error Messages ...................... 283
General Information on the Audio System ............................................. 288
Customized Features ................ 295, 314
HomeLink ® Universal Transceiver
*... 338
Bluetooth ® HandsFreeLink® ..... 340, 371
Compass
*.......................................... 406
* Not available on all models
17 ACCORD FHEV-31T3W6200.book 183 ページ ２０１６年４月１１日　月曜日　午後２時４０分

184
Features

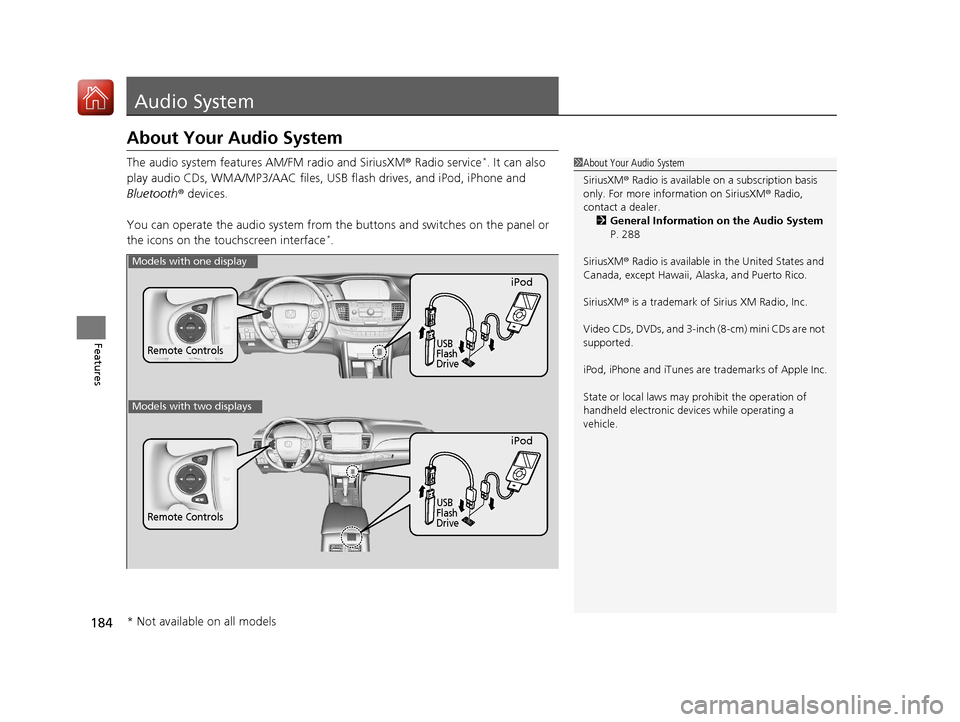

Audio System
About Your Audio System
The audio system features AM/FM radio and SiriusXM ® Radio service*. It can also
play audio CDs, WMA/MP3/AAC files, USB flash drives, and iPod, iPhone and
Bluetooth ® devices.
You can operate the audio system from the buttons and switches on the panel or
the icons on the touchscreen interface
*.
1 About Your Audio System
SiriusXM ® Radio is available on a subscription basis
only. For more information on SiriusXM ® Radio,
contact a dealer.
2 General Information on the Audio System
P. 288
SiriusXM ® Radio is available in the United States and
Canada, except Ha waii, Alaska, and Puerto Rico.
SiriusXM ® is a trademark of Sirius XM Radio, Inc.
Video CDs, DVDs, and 3-inch (8-cm) mini CDs are not
supported.
iPod, iPhone and iTunes are trademarks of Apple Inc.
State or local laws may pr ohibit the operation of
handheld electronic devi ces while operating a
vehicle.
Remote Controls
iPod
USB
Flash
Drive
Models with one display
Remote Controls
iPod
USB
Flash
Drive
Models with two displays
* Not available on all models
17 ACCORD FHEV-31T3W6200.book 184 ページ ２０１６年４月１１日　月曜日　午後２時４０分

185
uuAudio System uUSB Port(s*)
Features

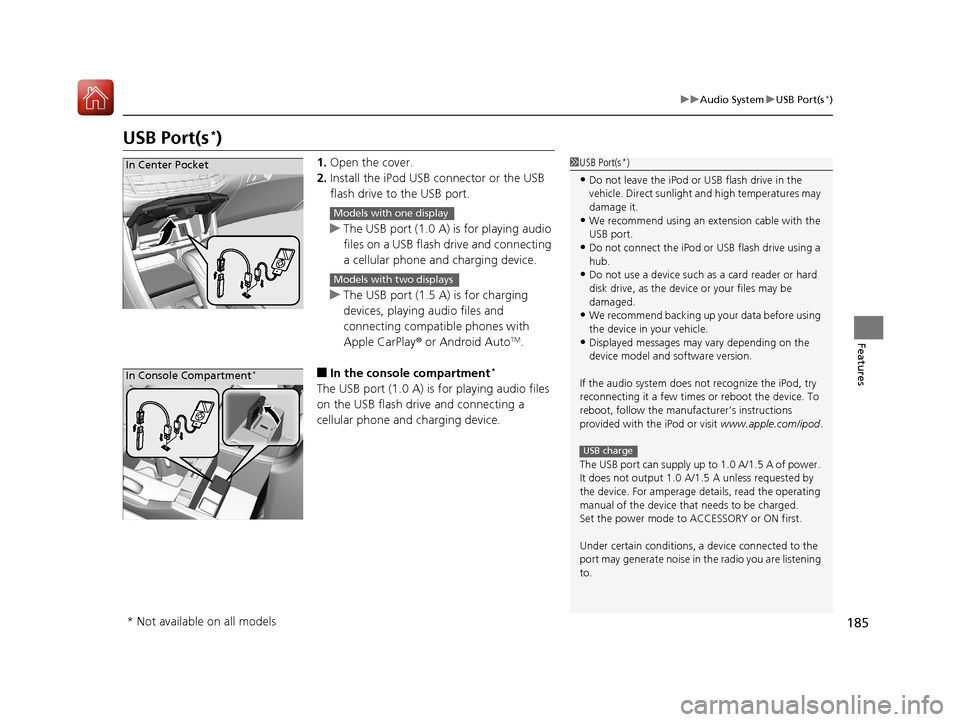

USB Port(s*)
1. Open the cover.
2. Install the iPod USB connector or the USB
flash drive to the USB port.
u The USB port (1.0 A) is for playing audio
files on a USB flash drive and connecting
a cellular phone and charging device.
u The USB port (1.5 A) is for charging
devices, playing audio files and
connecting compatib le phones with
Apple CarPlay ® or Android Auto
TM.
■In the consol e compartment*
The USB port (1.0 A) is for playing audio files
on the USB flash drive and connecting a
cellular phone and charging device.
1USB Port(s*)
•Do not leave the iPod or USB flash drive in the
vehicle. Direct sunlight and high temperatures may
damage it.
•We recommend using an extension cable with the
USB port.
•Do not connect the iPod or USB flash drive using a
hub.
•Do not use a device such as a card reader or hard
disk drive, as the device or your files may be
damaged.
•We recommend backing up yo ur data before using
the device in your vehicle.
•Displayed messages may vary depending on the
device model and software version.
If the audio system does not recognize the iPod, try
reconnecting it a few times or reboot the device. To
reboot, follow the manufac turer’s instructions
provided with the iPod or visit www.apple.com/ipod.
The USB port can supply up to 1.0 A/1.5 A of power.
It does not output 1.0 A/1. 5 A unless requested by
the device. For amperage de tails, read the operating
manual of the device that needs to be charged.
Set the power mode to ACCESSORY or ON first.
Under certain condi tions, a device connected to the
port may generate noise in the radio you are listening
to.
USB charge
In Center Pocket
Models with one display
Models with two displays
In Console Compartment*
* Not available on all models
17 ACCORD FHEV-31T3W6200.book 185 ページ ２０１６年４月１１日　月曜日　午後２時４０分

186
uuAudio System uAuxiliary Input Jack*
Features

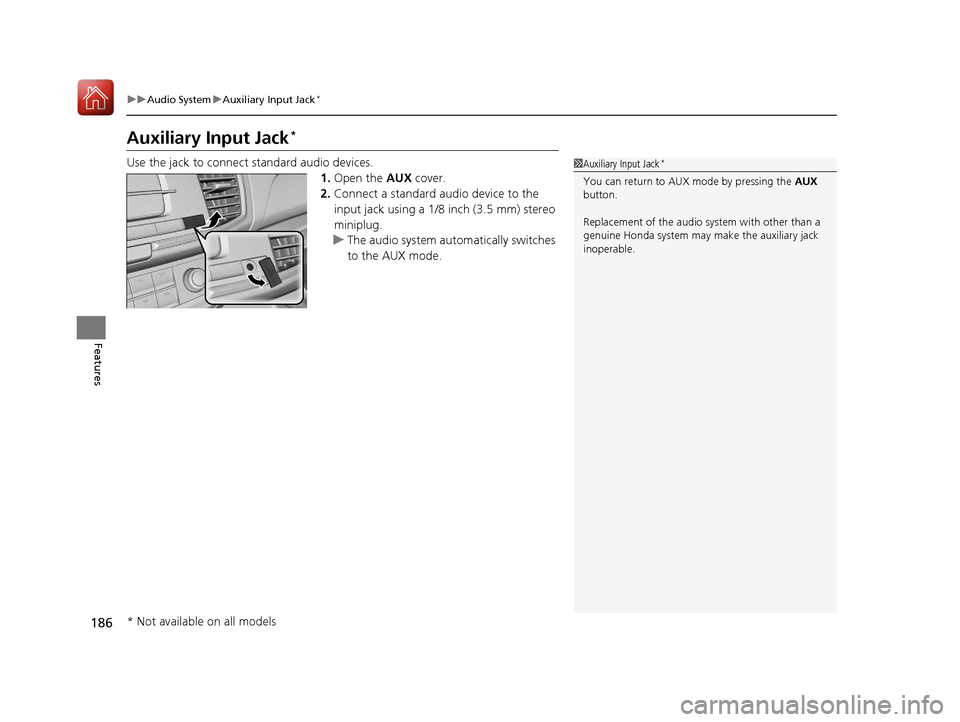

Auxiliary Input Jack*
Use the jack to connect standard audio devices.
1.Open the AUX cover.
2. Connect a standard audio device to the
input jack using a 1/8 inch (3.5 mm) stereo
miniplug.
u The audio system automatically switches
to the AUX mode.1Auxiliary Input Jack*
You can return to AUX mode by pressing the AUX
button.
Replacement of the audio sy stem with other than a
genuine Honda system may make the auxiliary jack
inoperable.
* Not available on all models
17 ACCORD FHEV-31T3W6200.book 186 ページ ２０１６年４月１１日　月曜日　午後２時４０分

187
uuAudio System uAudio System Theft Protection*
Features

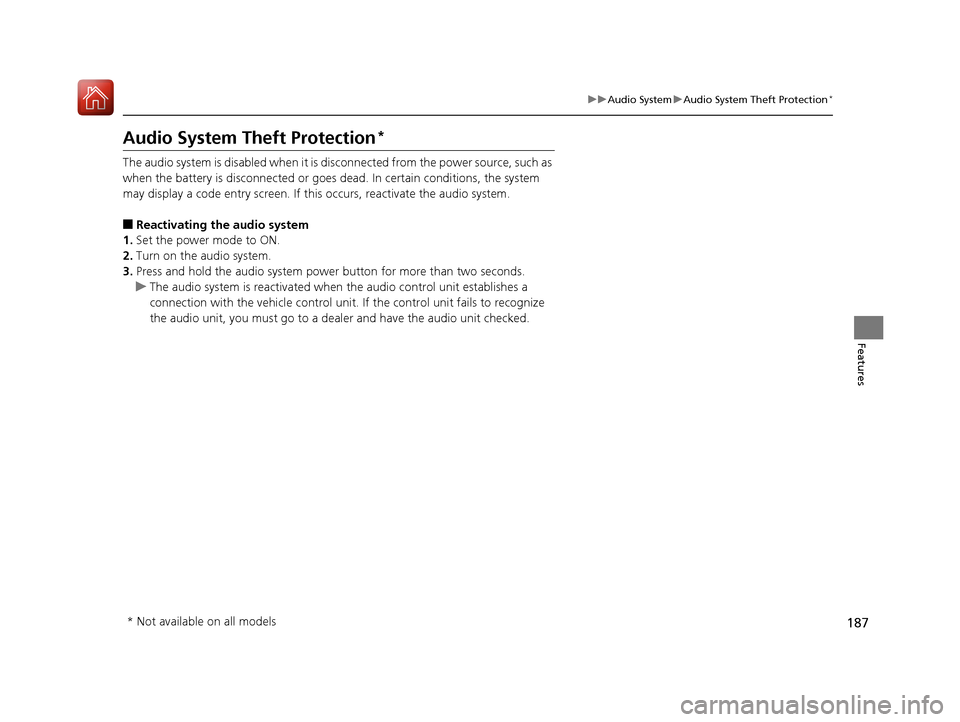

Audio System Theft Protection*
The audio system is disabled when it is disconnected from the power source, such as
when the battery is disconnected or goes dead. In certain conditions, the system
may display a code entry screen. If this occurs, reactivate the audio system.
■Reactivating the audio system
1. Set the power mode to ON.
2. Turn on the audio system.
3. Press and hold the audio system powe r button for more than two seconds.
u The audio system is reac tivated when the audio co ntrol unit establishes a
connection with the vehicl e control unit. If the control unit fails to recognize
the audio unit, you must go to a deal er and have the audio unit checked.
* Not available on all models
17 ACCORD FHEV-31T3W6200.book 187 ページ ２０１６年４月１１日　月曜日　午後２時４０分

188
uuAudio System uAudio Remote Controls
Features

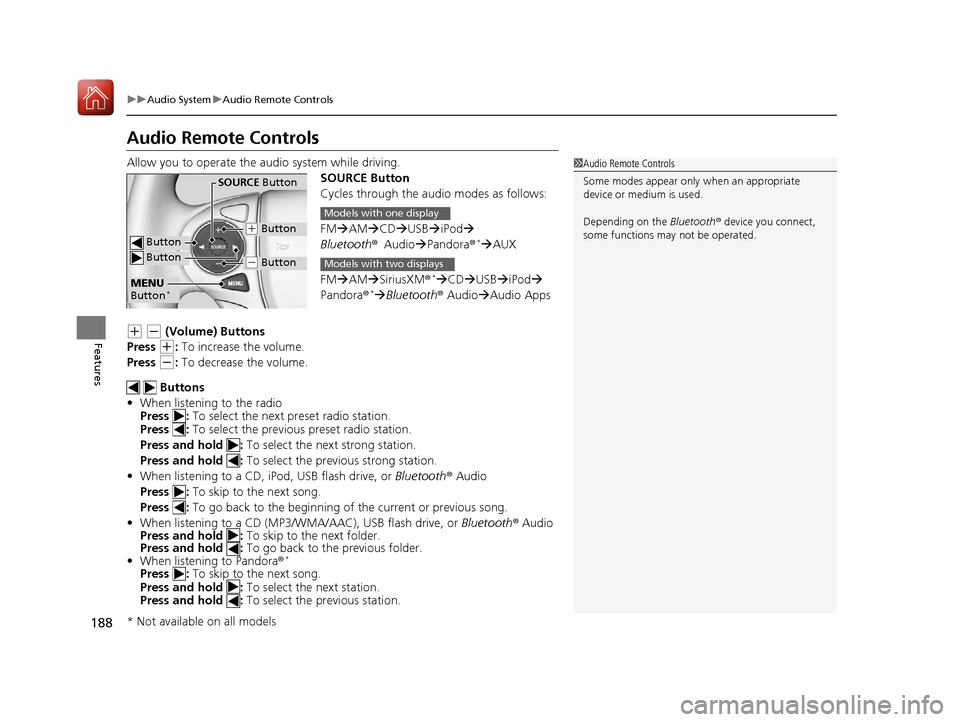

Audio Remote Controls
Allow you to operate the au dio system while driving.
SOURCE Button
Cycles through the audio modes as follows:
FMAM CD USBiPod 
Bluetooth ®Audio Pandora ®
*AUX
FM AM SiriusXM ®
*CD USBiPod 
Pandora®* Bluetooth ® Audio Audio Apps
(+ (- (Volume) Buttons
Press
(+: To increase the volume.
Press
(-: To decrease the volume.
Buttons
• When listening to the radio
Press : To select the next preset radio station.
Press : To select the previous preset radio station.
Press and hold : To select the next strong station.
Press and hold : To select the previous strong station.
• When listening to a CD, iPod, USB flash drive, or Bluetooth® Audio
Press : To skip to the next song.
Press : To go back to the beginning of the current or previous song.
• When listening to a CD (MP3/W MA/AAC), USB flash drive, or Bluetooth® Audio
Press and hold : To skip to the next folder.
Press and hold : To go back to the previous folder.
• When listening to Pandora ®
*
Press : To skip to the next song.
Press and hold : To select the next station.
Press and hold : To select the previous station.
1Audio Remote Controls
Some modes appear only when an appropriate
device or medium is used.
Depending on the Bluetooth® device you connect,
some functions ma y not be operated.
Button
SOURCE Button
Button
(+ Button
(- Button
MENU
Button*
Models with one display
Models with two displays
* Not available on all models
17 ACCORD FHEV-31T3W6200.book 188 ページ ２０１６年４月１１日　月曜日　午後２時４０分

189
uuAudio System uAudio Remote Controls
Features

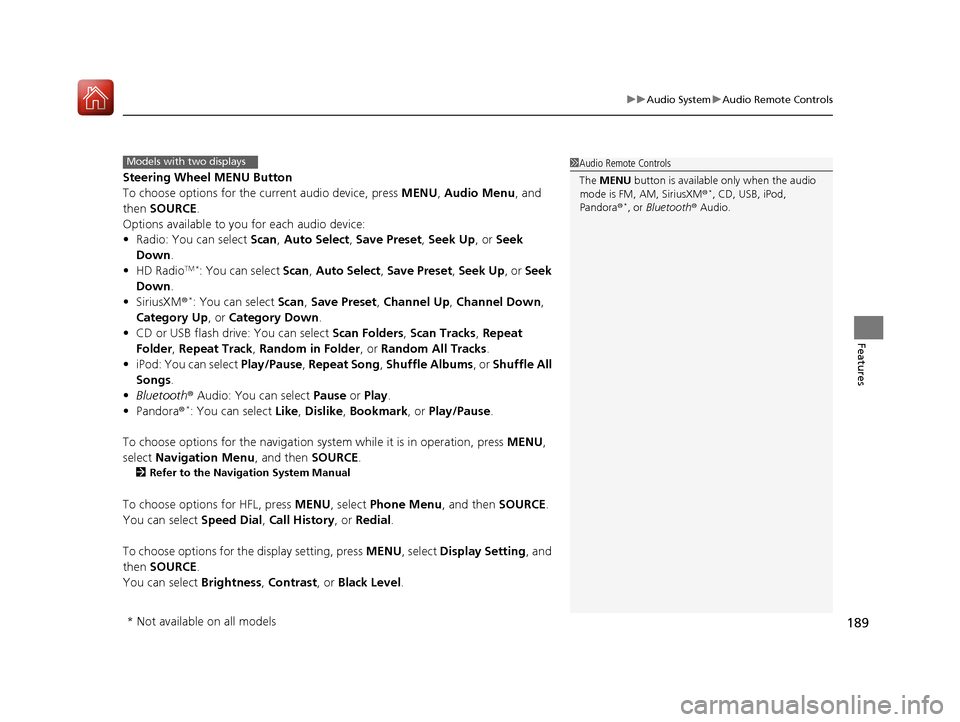

Steering Wheel MENU Button
To choose options for the current audio device, press MENU, Audio Menu , and
then SOURCE .
Options available to you for each audio device:
• Radio: You can select Scan, Auto Select , Save Preset , Seek Up , or Seek
Down .
• HD Radio
TM *: You can select Scan, Auto Select, Save Preset, Seek Up, or Seek
Down .
• SiriusXM ®
*: You can select Scan, Save Preset , Channel Up , Channel Down ,
Category Up , or Category Down .
• CD or USB flash drive: You can select Scan Folders, Scan Tracks, Repeat
Folder, Repeat Track , Random in Folder , or Random All Tracks .
• iPod: You can select Play/Pause, Repeat Song, Shuffle Albums, or Shuffle All
Songs .
• Bluetooth ® Audio: You can select Pause or Play .
• Pandora ®
*: You can select Like, Dislike , Bookmark, or Play/Pause .
To choose options for the navigation system while it is in operation, press MENU,
select Navigation Menu , and then SOURCE.
2Refer to the Navigation System Manual
To choose options for HFL, press MENU, select Phone Menu , and then SOURCE.
You can select Speed Dial, Call History , or Redial.
To choose options for the display setting, press MENU, select Display Setting , and
then SOURCE .
You can select Brightness, Contrast, or Black Level .
1Audio Remote Controls
The MENU button is available only when the audio
mode is FM, AM, SiriusXM ®
*, CD, USB, iPod,
Pandora ®*, or Bluetooth® Audio.
Models with two displays
* Not available on all models
17 ACCORD FHEV-31T3W6200.book 189 ページ ２０１６年４月１１日　月曜日　午後２時４０分
