HONDA ACCORD HYBRID 2017 9.G Owners Manual

uuAudio System Basic Operation uPlaying a USB Flash Drive

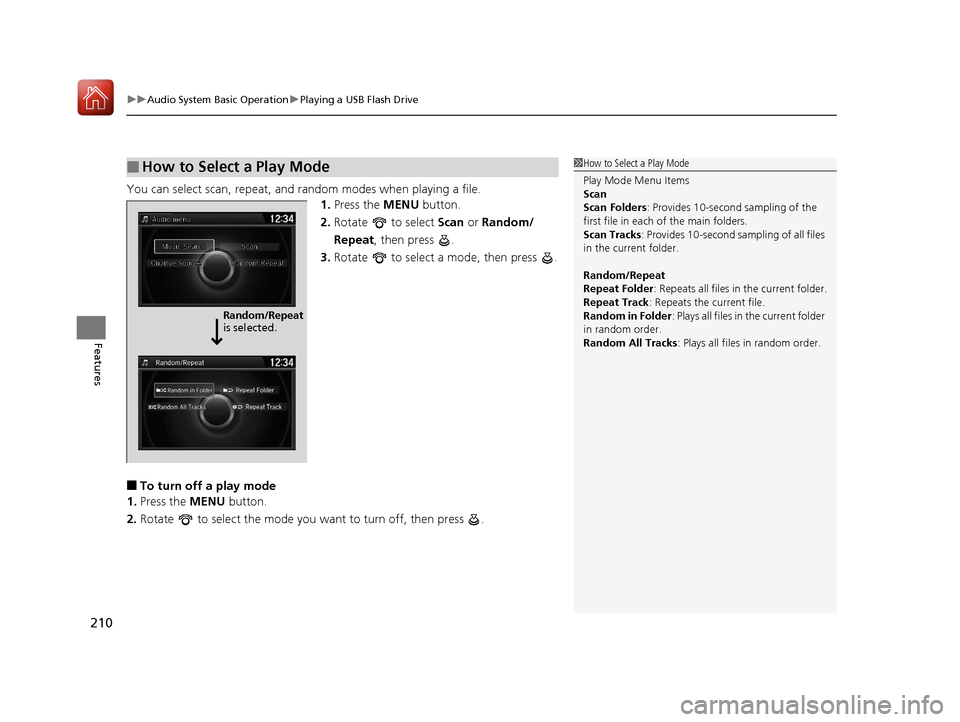

210
Features
You can select scan, repeat, and random modes when playing a file.
1.Press the MENU button.
2. Rotate to select Scan or Random/
Repeat, then press .
3. Rotate to select a mode, then press .
■To turn off a play mode
1. Press the MENU button.
2. Rotate to select the mode you want to turn off, then press .
■How to Select a Play Mode1How to Select a Play Mode
Play Mode Menu Items
Scan
Scan Folders : Provides 10-second sampling of the
first file in each of the main folders.
Scan Tracks : Provides 10-second sa mpling of all files
in the current folder.
Random/Repeat
Repeat Folder : Repeats all files in the current folder.
Repeat Track: Repeats the current file.
Random in Folder : Plays all files in the current folder
in random order.
Random All Tracks : Plays all files in random order.
Random/Repeat
is selected.
17 ACCORD FHEV-31T3W6200.book 210 ページ ２０１６年４月１１日　月曜日　午後２時４０分

211
uuAudio System Basic Operation uPlaying Bluetooth ® Audio
Continued
Features

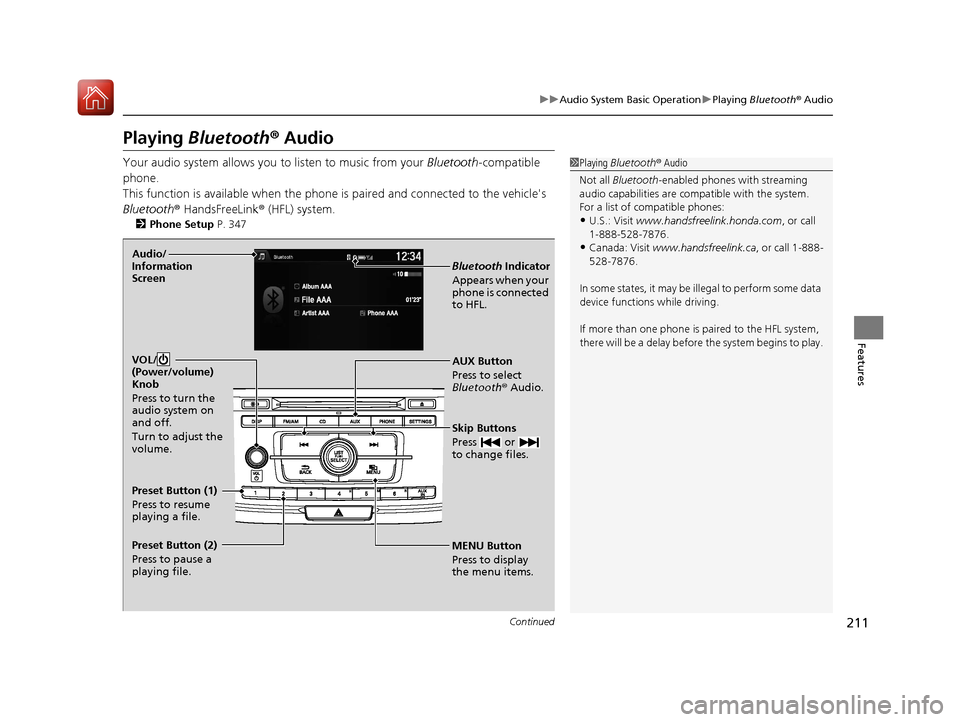

Playing Bluetooth ® Audio
Your audio system allows you to listen to music from your Bluetooth-compatible
phone.
This function is available when the phone is paired an d connected to the vehicle's
Bluetooth ® HandsFreeLink ® (HFL) system.
2Phone Setup P. 347
1Playing Bluetooth ® Audio
Not all Bluetooth -enabled phones with streaming
audio capabilities are compatible with the system.
For a list of compatible phones:
•U.S.: Visit www.handsfreelink.honda.com , or call
1-888-528-7876.
•Canada: Visit www.handsfreelink.ca , or call 1-888-
528-7876.
In some states, it may be il legal to perform some data
device functions while driving.
If more than one phone is paired to the HFL system,
there will be a delay before the system begins to play.
MENU Button
Press to display
the menu items. AUX Button
Press to select
Bluetooth® Audio.
Skip Buttons
Press or
to change files.
Bluetooth Indicator
Appears when your
phone is connected
to HFL.
VOL/
(Power/volume)
Knob
Press to turn the
audio system on
and off.
Turn to adjust the
volume.Audio/
Information
Screen
Preset Button (1)
Press to resume
playing a file.
Preset Button (2)
Press to pause a
playing file.
17 ACCORD FHEV-31T3W6200.book 211 ページ ２０１６年４月１１日　月曜日　午後２時４０分

uuAudio System Basic Operation uPlaying Bluetooth ® Audio

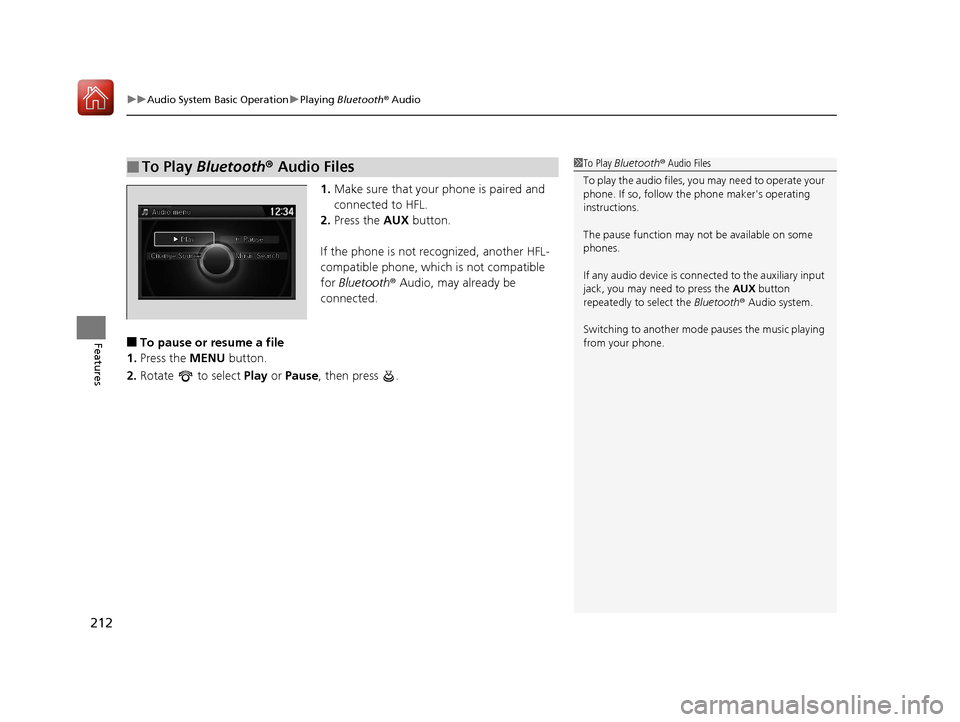

212
Features
1. Make sure that your phone is paired and
connected to HFL.
2. Press the AUX button.
If the phone is not recognized, another HFL-
compatible phone, which is not compatible
for Bluetooth ® Audio, may already be
connected.
■To pause or resume a file
1. Press the MENU button.
2. Rotate to select Play or Pause , then press .
■To Play Bluetooth® Audio Files1To Play Bluetooth ® Audio Files
To play the audio files, y ou may need to operate your
phone. If so, follow the phone maker's operating
instructions.
The pause function may no t be available on some
phones.
If any audio device is conne cted to the auxiliary input
jack, you may need to press the AUX button
repeatedly to select the Bluetooth® Audio system.
Switching to another mode pauses the music playing
from your phone.
17 ACCORD FHEV-31T3W6200.book 212 ページ ２０１６年４月１１日　月曜日　午後２時４０分

213
Features

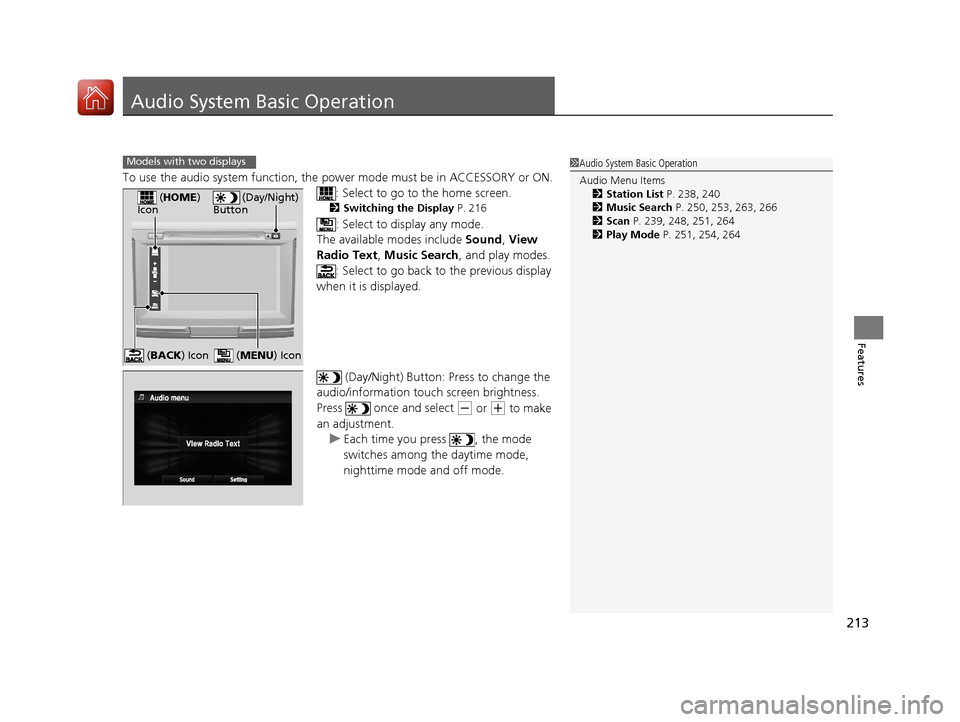

Audio System Basic Operation
To use the audio system function, the power mode must be in ACCESSORY or ON.
: Select to go to the home screen.
2 Switching the Display P. 216
: Select to display any mode.
The available modes include Sound, View
Radio Text , Music Search , and play modes.
: Select to go back to the previous display
when it is displayed.
(Day/Night) Button: Press to change the
audio/information touch screen brightness.
Press once and select
(- or (+ to make
an adjustment. u Each time you press , the mode
switches among the daytime mode,
nighttime mode and off mode.
Models with two displays1Audio System Basic Operation
Audio Menu Items
2 Station List P. 238, 240
2 Music Search P. 250, 253, 263, 266
2 Scan P. 239, 248, 251, 264
2 Play Mode P. 251, 254, 264
(Day/Night)
Button ( HOME )
Icon
( MENU ) Icon (BACK ) Icon
17 ACCORD FHEV-31T3W6200.book 213 ページ ２０１６年４月１１日　月曜日　午後２時４０分

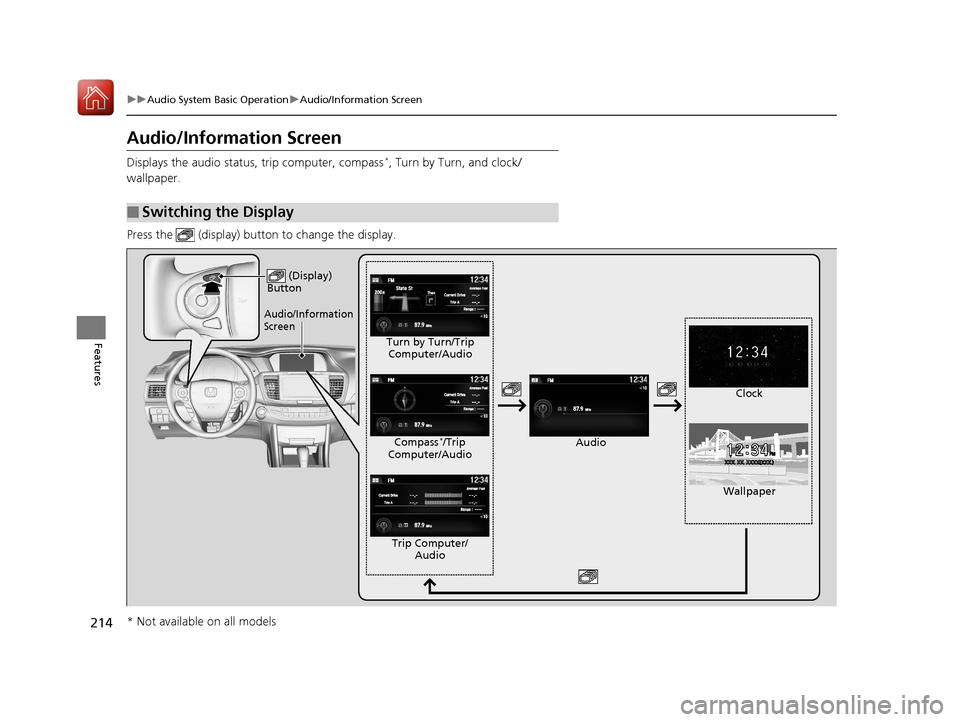

214
uuAudio System Basic Operation uAudio/Information Screen
Features
Audio/Information Screen
Displays the audio status, trip computer, compass*, Turn by Turn, and clock/
wallpaper.
Press the (display) butto n to change the display.
■Switching the Display
(Display)
Button
Audio
Compass*/Trip
Computer/Audio Clock
Turn by Turn/Trip
Computer/Audio
Audio/Information
Screen
Wallpaper
Trip Computer/ Audio
* Not available on all models
17 ACCORD FHEV-31T3W6200.book 214 ページ ２０１６年４月１１日　月曜日　午後２時４０分

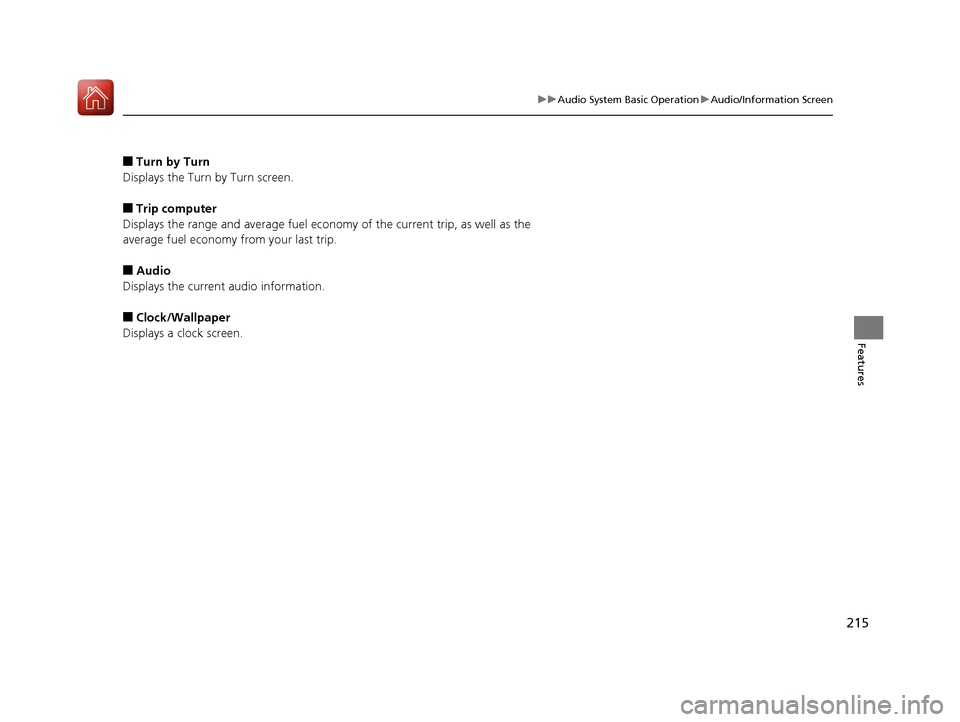

215
uuAudio System Basic Operation uAudio/Information Screen
Features
■Turn by Turn
Displays the Turn by Turn screen.
■Trip computer
Displays the range and average fuel econom y of the current trip, as well as the
average fuel economy from your last trip.
■Audio
Displays the current audio information.
■Clock/Wallpaper
Displays a clock screen.
17 ACCORD FHEV-31T3W6200.book 215 ページ ２０１６年４月１１日　月曜日　午後２時４０分

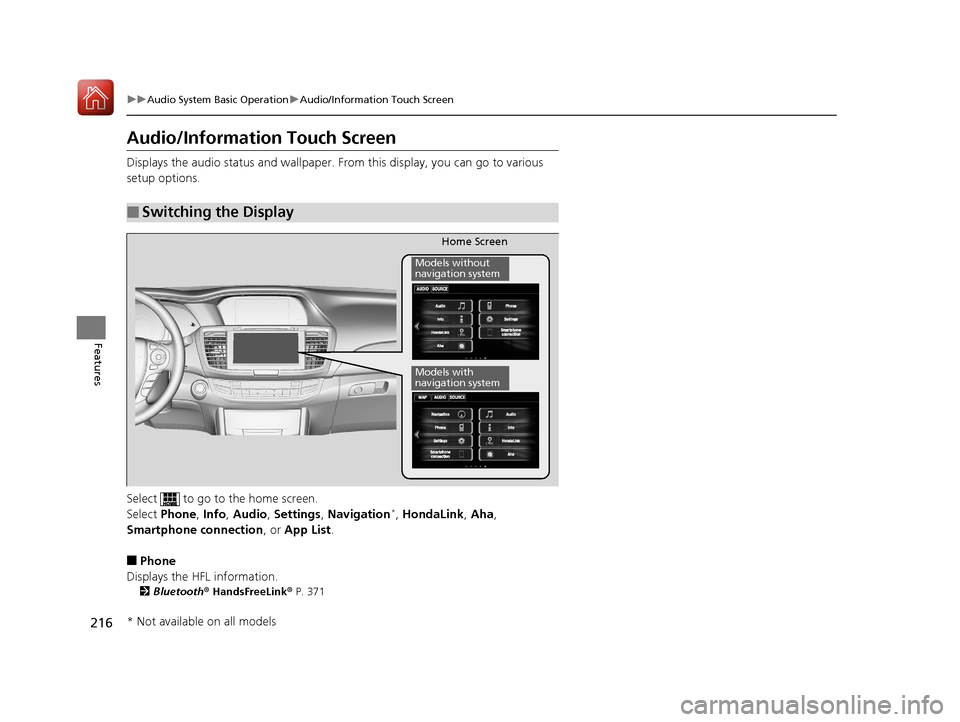

216
uuAudio System Basic Operation uAudio/Information Touch Screen
Features
Audio/Information Touch Screen
Displays the audio status and wallpaper. From this display, you can go to various
setup options.
Select to go to the home screen.
Select Phone, Info, Audio , Settings , Navigation
*, HondaLink , Aha ,
Smartphone connection, or App List .
■Phone
Displays the HFL information.
2 Bluetooth® HandsFreeLink ® P. 371
■Switching the Display
Home Screen
Models without
navigation system
Models with
navigation system
* Not available on all models
17 ACCORD FHEV-31T3W6200.book 216 ページ ２０１６年４月１１日　月曜日　午後２時４０分

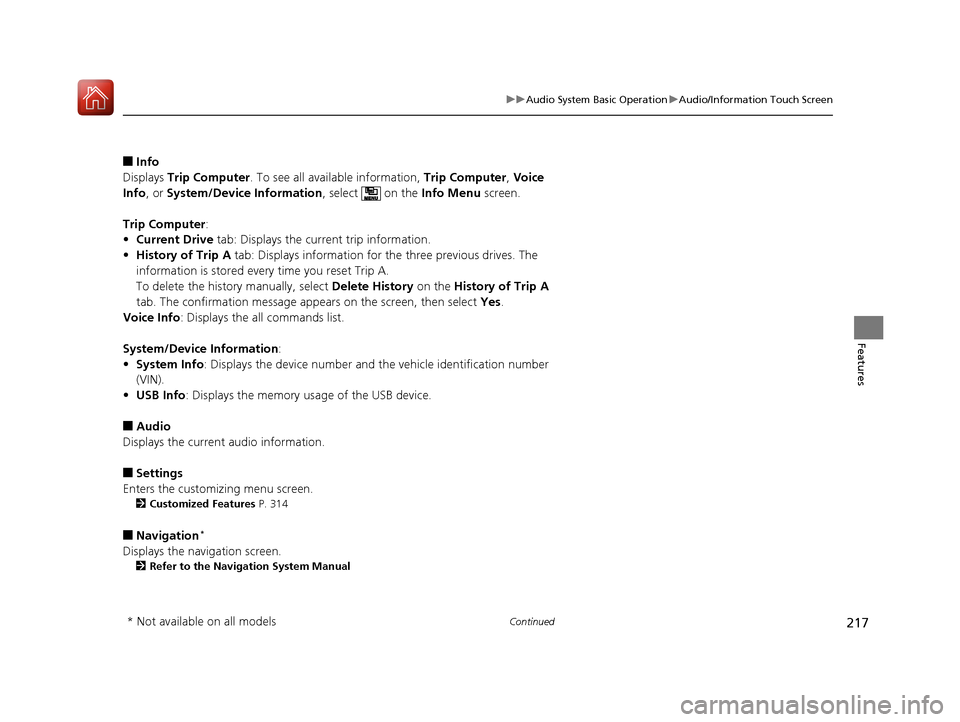

217
uuAudio System Basic Operation uAudio/Information Touch Screen
Continued
Features
■Info
Displays Trip Computer . To see all available information, Trip Computer, Voice
Info , or System/Device Information , select on the Info Menu screen.
Trip Computer :
• Current Drive tab: Displays the current trip information.
• History of Trip A tab: Displays information for the three previous drives. The
information is stored every time you reset Trip A.
To delete the history manually, select Delete History on the History of Trip A
tab. The confirmation message appears on the screen, then select Yes.
Voice Info : Displays the all commands list.
System/Device Information :
• System Info : Displays the device number and the vehicle identification number
(VIN).
• USB Info : Displays the memory usage of the USB device.
■Audio
Displays the current audio information.
■Settings
Enters the customizing menu screen.
2 Customized Features P. 314
■Navigation*
Displays the navigation screen.
2Refer to the Navigation System Manual
* Not available on all models
17 ACCORD FHEV-31T3W6200.book 217 ページ ２０１６年４月１１日　月曜日　午後２時４０分

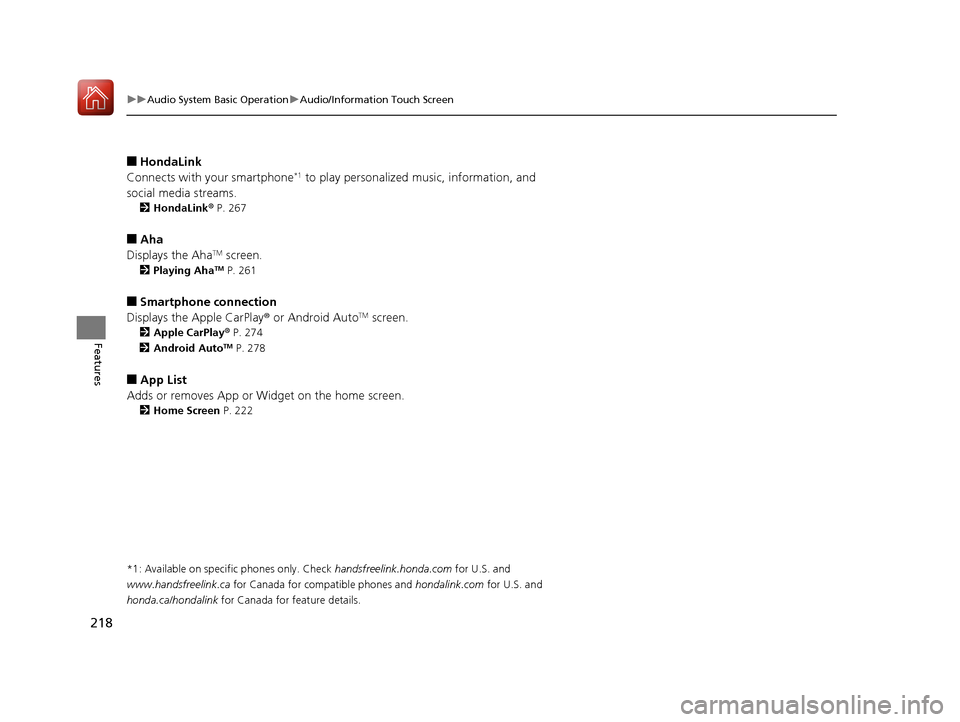

218
uuAudio System Basic Operation uAudio/Information Touch Screen
Features
■HondaLink
Connects with your smartphone*1 to play personalized music, information, and
social media streams.
2 HondaLink® P. 267
■Aha
Displays the AhaTM screen.
2 Playing AhaTM P. 261
■Smartphone connection
Displays the Apple CarPlay® or Android AutoTM screen.
2 Apple CarPlay® P. 274
2 Android AutoTM P. 278
■App List
Adds or removes App or Widget on the home screen.
2 Home Screen P. 222
*1: Available on specific phones only. Check handsfreelink.honda.com for U.S. and
www.handsfreelink.ca for Canada for compatible phones and hondalink.com for U.S. and
honda.ca/hondalink for Canada for feature details.
17 ACCORD FHEV-31T3W6200.book 218 ページ ２０１６年４月１１日　月曜日　午後２時４０分

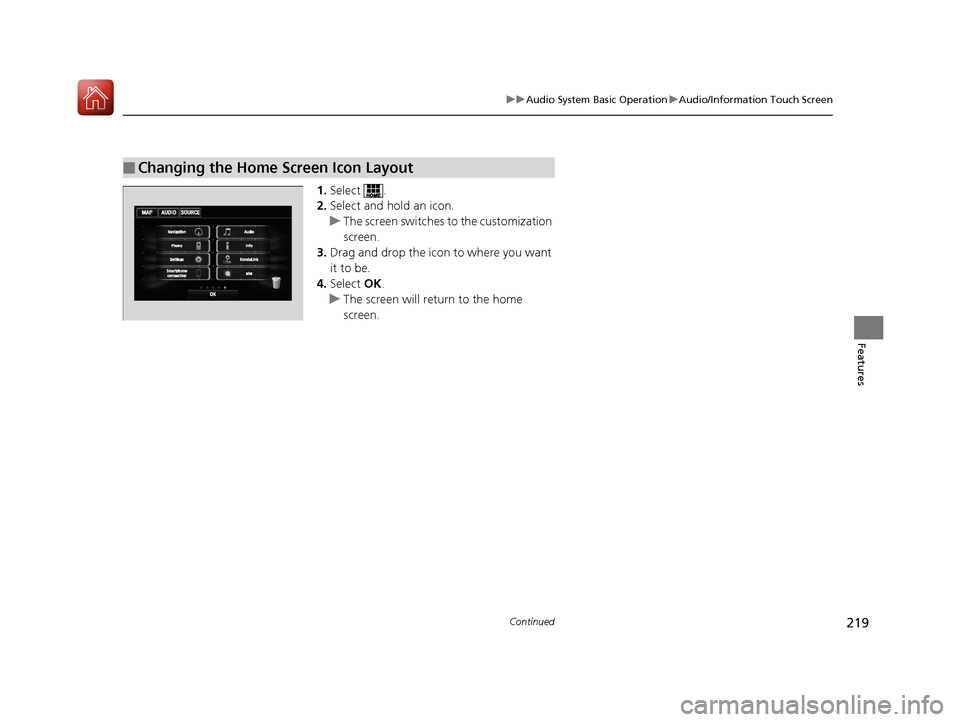

219
uuAudio System Basic Operation uAudio/Information Touch Screen
Continued
Features
1. Select .
2. Select and hold an icon.
u The screen switches to the customization
screen.
3. Drag and drop the icon to where you want
it to be.
4. Select OK.
u The screen will return to the home
screen.
■Changing the Home Screen Icon Layout
