HONDA ACCORD HYBRID 2017 9.G Owners Manual

310
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings

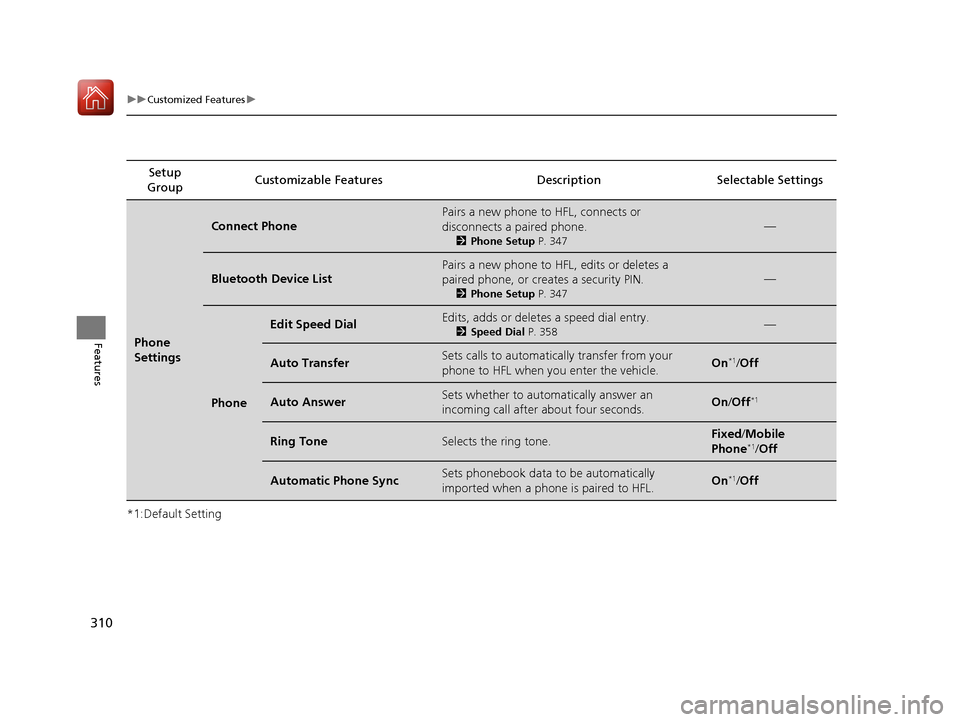

Phone
Settings
Connect Phone
Pairs a new phone to HFL, connects or
disconnects a paired phone.
2Phone Setup P. 347
—
Bluetooth Device List
Pairs a new phone to HFL, edits or deletes a
paired phone, or creates a security PIN.
2Phone Setup P. 347
—
Phone
Edit Speed DialEdits, adds or deletes a speed dial entry.
2Speed Dial P. 358—
Auto TransferSets calls to automatically transfer from your
phone to HFL when you enter the vehicle.On*1/Off
Auto AnswerSets whether to automatically answer an
incoming call after about four seconds.On /Off*1
Ring ToneSelects the ring tone.Fixed /Mobile
Phone*1/ Off
Automatic Phone SyncSets phonebook data to be automatically
imported when a phone is paired to HFL.On*1/Off
17 ACCORD FHEV-31T3W6200.book 310 ページ ２０１６年４月１１日　月曜日　午後２時４０分

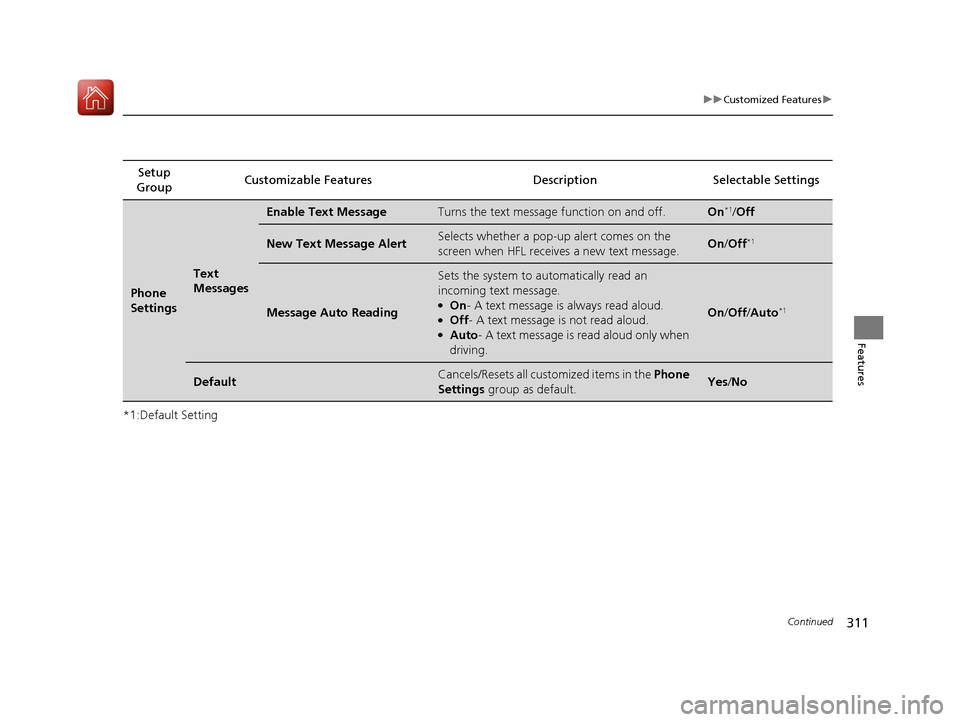

311
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features
DescriptionSelectable Settings
Phone
Settings
Text
Messages
Enable Text MessageTurns the text message function on and off.On*1/Off
New Text Message AlertSelects whether a pop-up alert comes on the
screen when HFL receives a new text message.On /Off*1
Message Auto Reading
Sets the system to automatically read an
incoming text message.
●On - A text message is always read aloud.●Off - A text message is not read aloud.●Auto - A text message is read aloud only when
driving.
On /Off /Auto*1
DefaultCancels/Resets all customized items in the Phone
Settings group as default.Yes/No
17 ACCORD FHEV-31T3W6200.book 311 ページ ２０１６年４月１１日　月曜日　午後２時４０分

312
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings

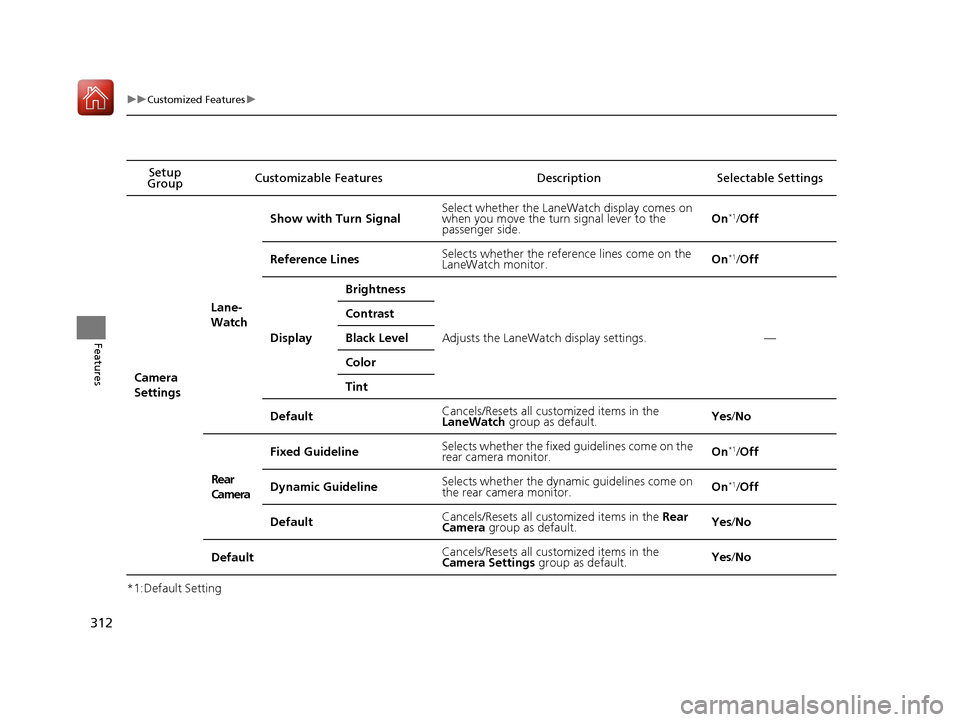

Camera
Settings Lane-
WatchShow with Turn Signal
Select whether the LaneWatch display comes on
when you move the turn signal lever to the
passenger side. On
*1/
Off
Reference Lines Selects whether the reference lines come on the
LaneWatch monitor. On
*1/
Off
Display Brightness
Adjusts the LaneWatch display settings. —
Contrast
Black Level
Color
Tint
Default Cancels/Resets all cust
omized items in the
LaneWatch group as default. Yes
/No
Rear
Camera Fixed Guideline
Selects whether the fixed guidelines come on the
rear camera monitor.
On
*1/
Off
Dynamic Guideline Selects whether the dynamic guidelines come on
the rear camera monitor. On
*1/
Off
Default Cancels/Resets all cust
omized items in the Rear
Camera group as default. Yes
/No
Default Cancels/Resets all cust
omized items in the
Camera Settings group as default. Yes
/No
17 ACCORD FHEV-31T3W6200.book 312 ページ ２０１６年４月１１日　月曜日　午後２時４０分

313
uuCustomized Features uDefaulting All the Settings
Features

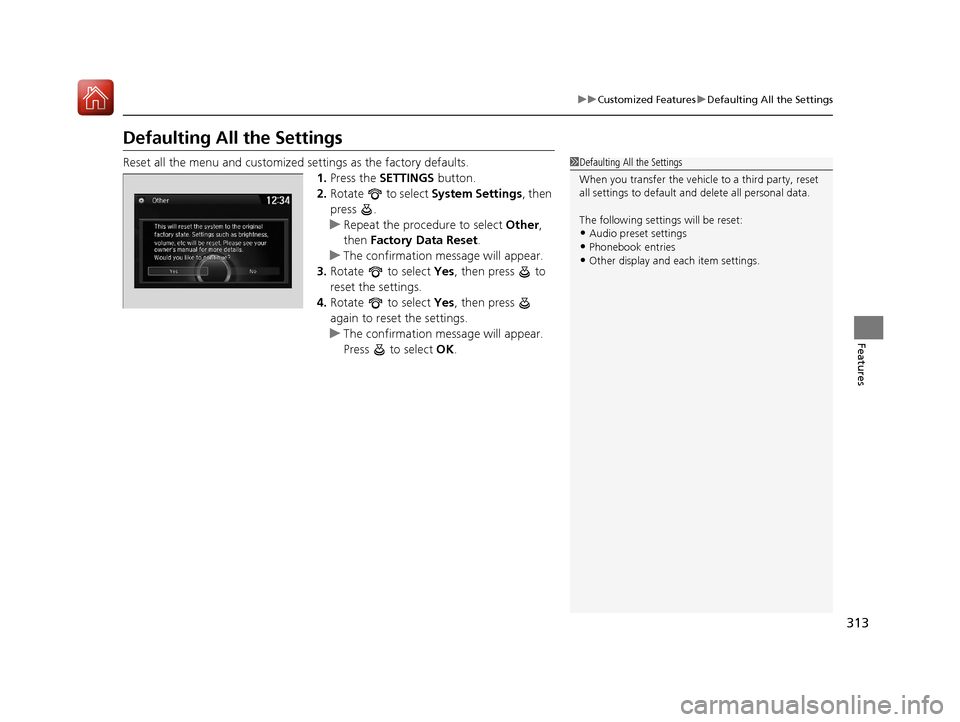

Defaulting All the Settings
Reset all the menu and customized settings as the factory defaults.
1.Press the SETTINGS button.
2. Rotate to select System Settings, then
press .
u Repeat the procedure to select Other,
then Factory Data Reset .
u The confirmation message will appear.
3. Rotate to select Yes, then press to
reset the settings.
4. Rotate to select Yes, then press
again to reset the settings.
u The confirmation message will appear.
Press to select OK.1Defaulting All the Settings
When you transfer the vehicle to a third party, reset
all settings to default a nd delete all personal data.
The following settin gs will be reset:
•Audio preset settings
•Phonebook entries
•Other display and each item settings.
17 ACCORD FHEV-31T3W6200.book 313 ページ ２０１６年４月１１日　月曜日　午後２時４０分

314
Features

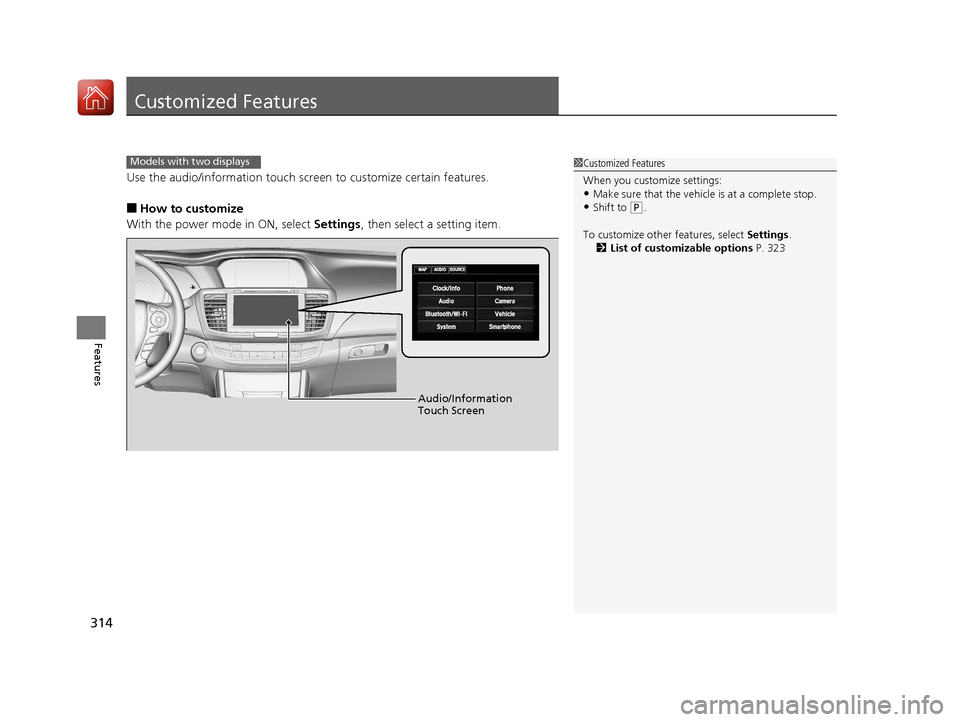

Customized Features
Use the audio/information touch screen to customize certain features.
■How to customize
With the power mode in ON, select Settings, then select a setting item.
1Customized Features
When you customize settings:
•Make sure that the vehicle is at a complete stop.
•Shift to (P.
To customize other features, select Settings .
2 List of customizable options P. 323
Models with two displays
Audio/Information
Touch Screen
17 ACCORD FHEV-31T3W6200.book 314 ページ ２０１６年４月１１日　月曜日　午後２時４０分

315
uuCustomized Features u
Continued
Features

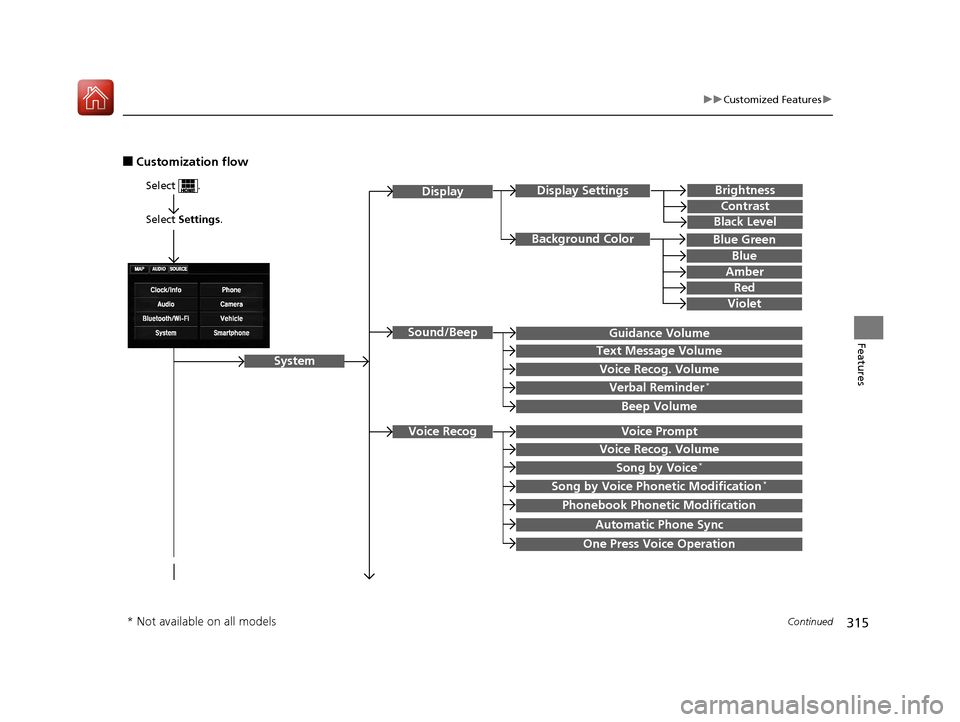

■Customization flow
Select Settings .
Brightness
Contrast
Black Level
Sound/Beep
System
DisplayDisplay Settings
Background Color
Guidance Volume
Text Message Volume
Select .
Voice RecogVoice Prompt
Blue
Amber
Red
Violet
Voice Recog. Volume
Beep Volume
Voice Recog. Volume
Song by Voice*
Song by Voice Phonetic Modification*
Phonebook Phonetic Modification
Automatic Phone Sync
One Press Voice Operation
Verbal Reminder*
Blue Green
* Not available on all models
17 ACCORD FHEV-31T3W6200.book 315 ページ ２０１６年４月１１日　月曜日　午後２時４０分

316
uuCustomized Features u
Features

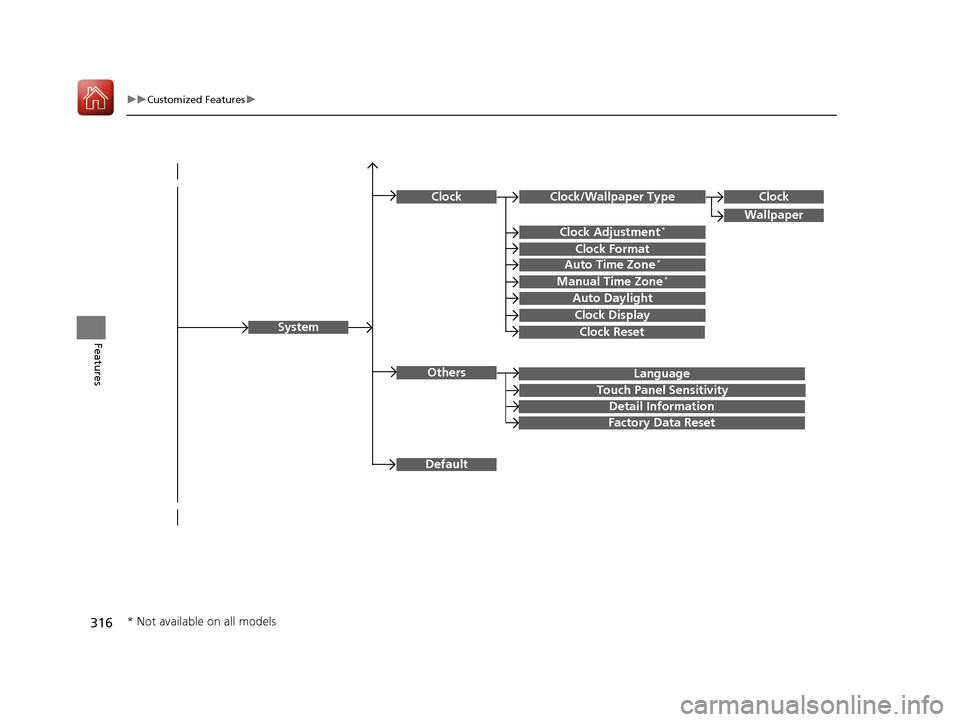

Language
Default
System
Others
Clock/Wallpaper Type
Clock Adjustment*
ClockClock
Wallpaper
Manual Time Zone*
Auto Daylight
Clock Display
Touch Panel Sensitivity
Clock Format
Auto Time Zone*
Detail Information
Factory Data Reset
Clock Reset
* Not available on all models
17 ACCORD FHEV-31T3W6200.book 316 ページ ２０１６年４月１１日　月曜日　午後２時４０分

317
uuCustomized Features u
Continued
Features

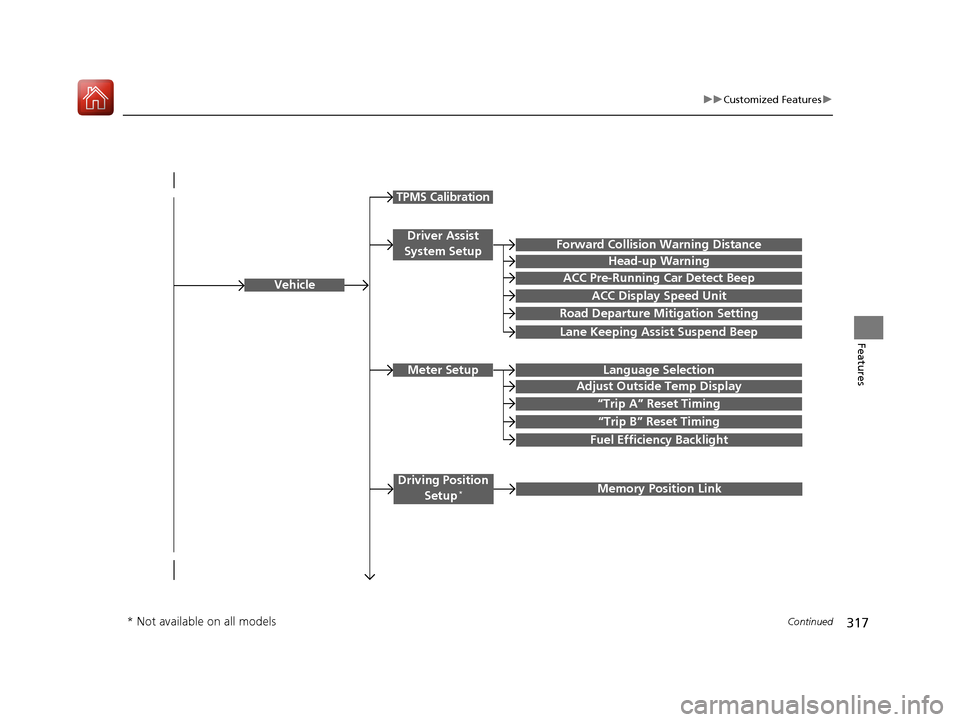

Vehicle
Driver Assist
System SetupForward Collision Warning Distance
ACC Pre-Running Car Detect Beep
Road Departure Mi tigation Setting
Lane Keeping Assist Suspend Beep
Meter SetupLanguage Selection
Adjust Outside Temp Display
“Trip A” Reset Timing
“Trip B” Reset Timing
Fuel Efficiency Backlight
Driving Position
Setup*Memory Position Link
TPMS Calibration
ACC Display Speed Unit
Head-up Warning
* Not available on all models
17 ACCORD FHEV-31T3W6200.book 317 ページ ２０１６年４月１１日　月曜日　午後２時４０分

318
uuCustomized Features u
Features

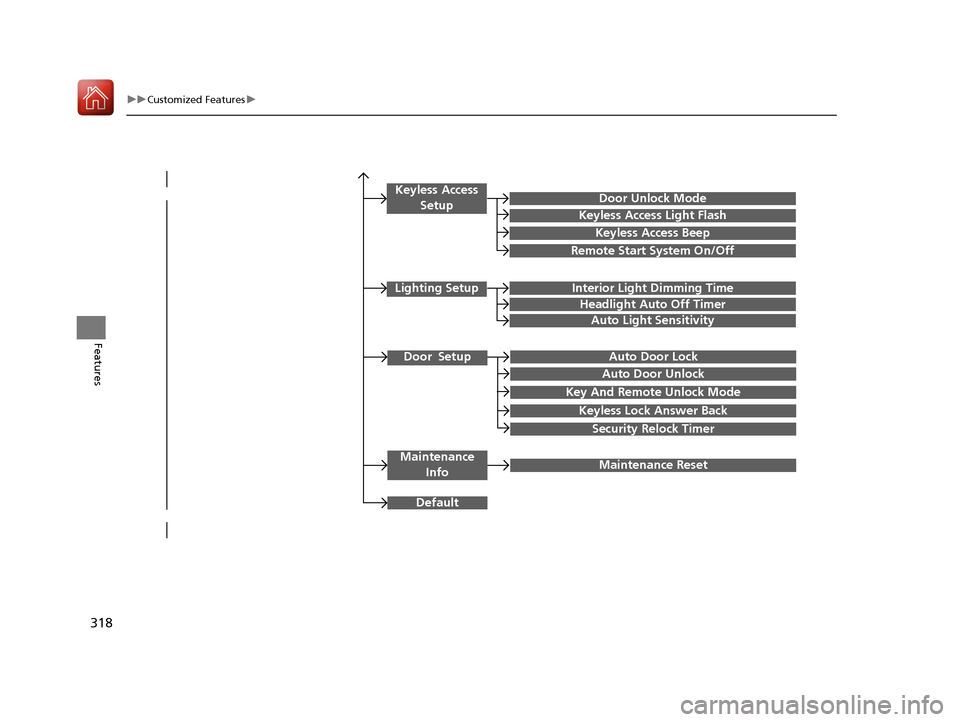

Door SetupAuto Door Lock
Auto Door Unlock
Key And Remote Unlock Mode
Keyless Lock Answer Back
Security Relock Timer
Maintenance
InfoMaintenance Reset
Default
Lighting SetupInterior Light Dimming Time
Headlight Auto Off Timer
Auto Light Sensitivity
Keyless Access
SetupDoor Unlock Mode
Keyless Access Light Flash
Keyless Access Beep
Remote Start System On/Off
17 ACCORD FHEV-31T3W6200.book 318 ページ ２０１６年４月１１日　月曜日　午後２時４０分

319
uuCustomized Features u
Continued
Features

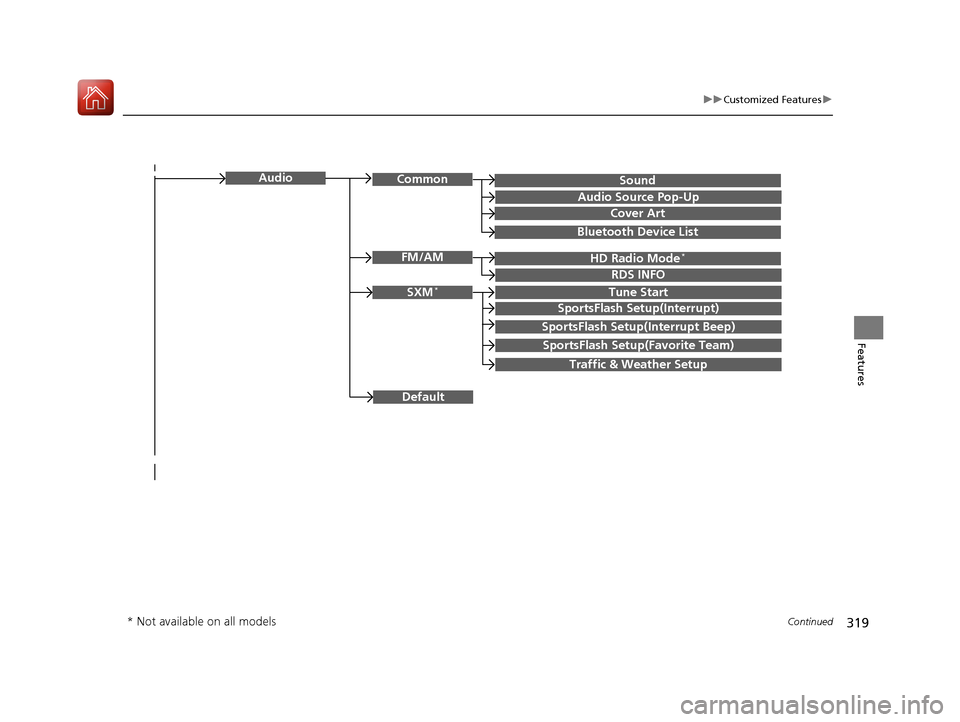

SoundAudioCommon
Audio Source Pop-Up
Cover Art
HD Radio Mode*FM/AM
RDS INFO
SXM*Tune Start
SportsFlash Setup(Interrupt)
SportsFlash Setup(Interrupt Beep)
SportsFlash Setup(Favorite Team)
Traffic & Weather Setup
Bluetooth Device List
Default
* Not available on all models
17 ACCORD FHEV-31T3W6200.book 319 ページ ２０１６年４月１１日　月曜日　午後２時４０分
