Quick Reference Guide

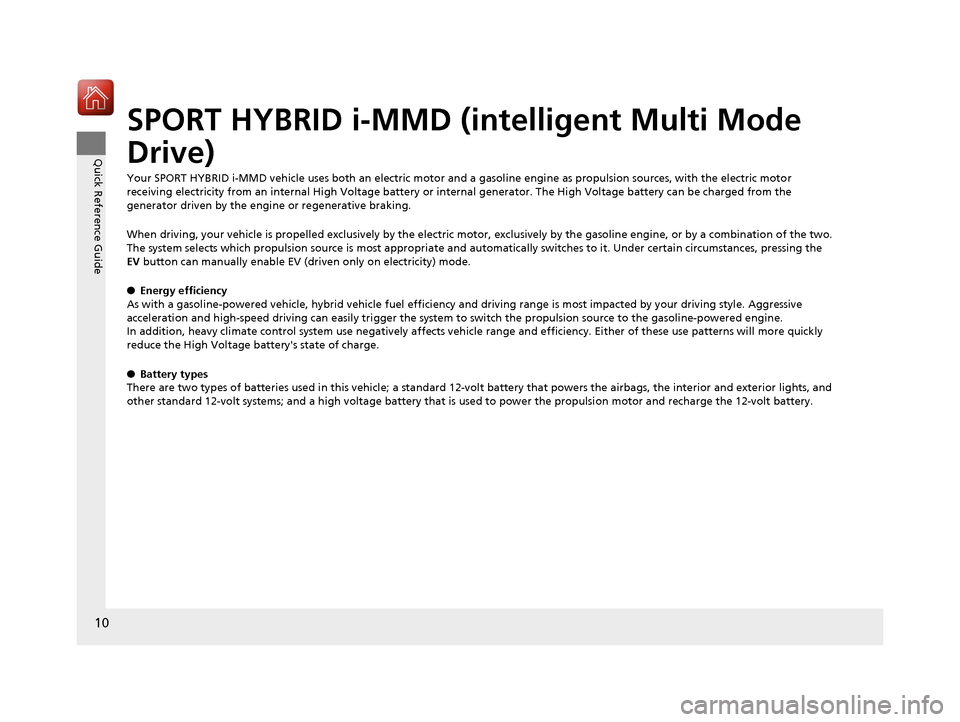

SPORT HYBRID i-MMD (intelligent Multi Mode
Drive)
Your SPORT HYBRID i-MMD vehicle uses both an electric motor and a gasoline engine as propulsion sources, with the electric motor
receiving electricity from an internal High Voltage battery or internal generator. Th e High Voltage battery can be charged from the
generator driven by the engine or regenerative braking.
When driving, your vehicle is propelled exclusively by the elec tric motor, exclusively by the gasoline engine, or by a combinat ion of the two.
The system selects which propulsion source is most appropriate and automatically switches to it. Under certain circumstances, p ressing the
EV button can manually enable EV (driven only on electricity) mode.
● Energy efficiency
As with a gasoline-powered vehicle, hybrid vehicle fuel efficiency and driving range is most impacted by your driving style. Aggressive
acceleration and high-speed driving can easily trigger the system to switch the propulsion source to the gasoline-powered engin e.
In addition, heavy climate control system us e negatively affects vehicle range and efficiency. Either of these use patterns wil l more quickly
reduce the High Voltage battery's state of charge.
● Battery types
There are two types of batteries used in this vehicle; a standa rd 12-volt battery that powers the airbags, the interior and exterior lights, and
other standard 12-volt systems; and a high voltage battery that is used to power the propulsion motor and recharge the 12-volt battery.
17 ACCORD FHEV-31T3W6200.book 10 ページ ２０１６年４月１１日　月曜日　午後２時４０分

11
Quick Reference Guide

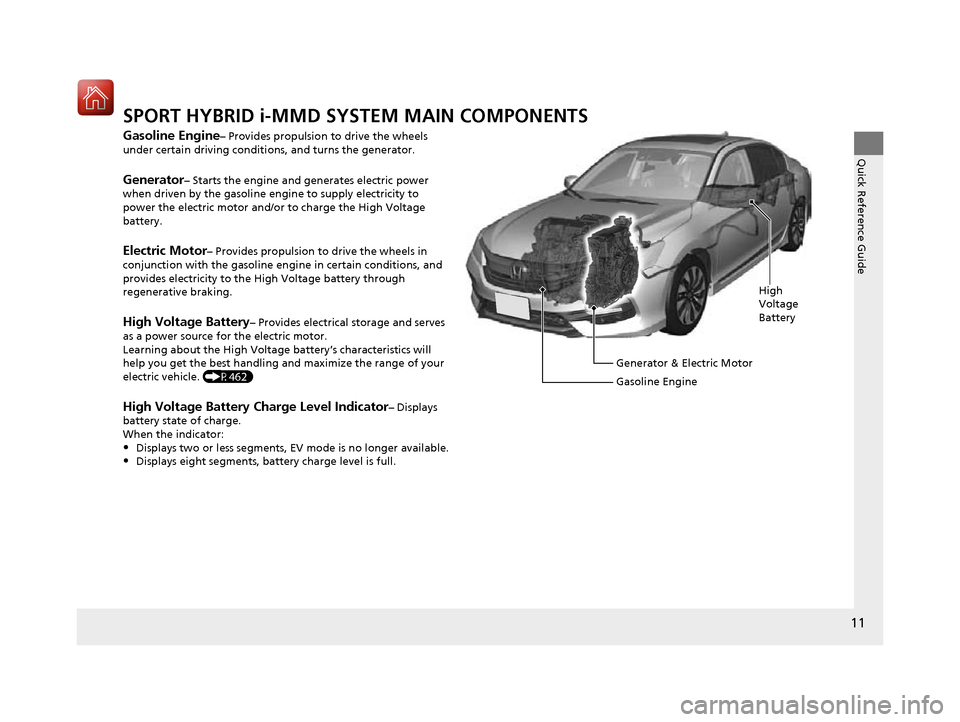

SPORT HYBRID i-MMD SYSTEM MAIN COMPONENTS
Gasoline Engine– Provides propulsion to drive the wheels
under certain driving conditions, and turns the generator.
Generator– Starts the engine and generates electric power
when driven by the gasoline engi ne to supply electricity to
power the electric motor and/or to charge the High Voltage
battery.
Electric Motor– Provides propulsion to drive the wheels in
conjunction with the gasoline engine in certain conditions, and
provides electricity to the High Voltage battery through
regenerative braking.
High Voltage Battery– Provides electrical storage and serves
as a power source for the electric motor.
Learning about the High Voltage battery’s characteristics will
help you get the best handling and maximize the range of your
electric vehicle. (P462)
High Voltage Battery Charge Level Indicator– Displays
battery state of charge.
When the indicator:
•Displays two or less segments, EV mode is no longer available.
•Displays eight segments, battery charge level is full.
High
Voltage
Battery
Generator & Electric Motor
Gasoline Engine
17 ACCORD FHEV-31T3W6200.book 11 ページ ２０１６年４月１１日　月曜日　午後２時４０分

12
Quick Reference Guide

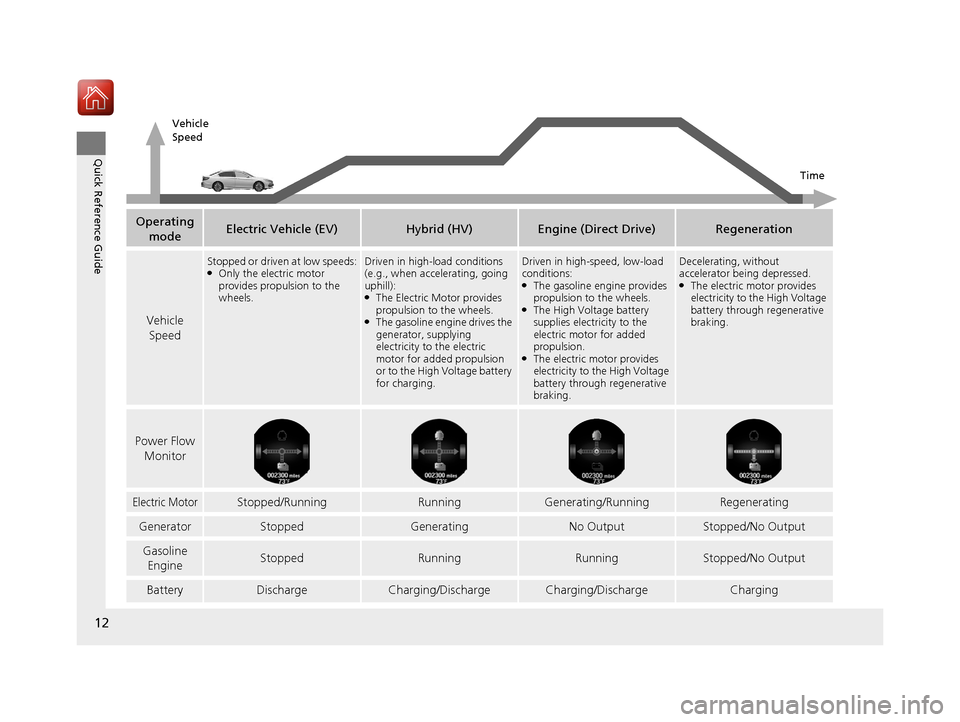

Operating modeElectric Vehicle (EV)Hybrid (HV)Engine (Direct Drive)Regeneration
Vehicle Speed
Stopped or driven at low speeds:●Only the electric motor
provides propulsion to the
wheels.Driven in high-load conditions
(e.g., when accelerating, going
uphill):
●The Electric Motor provides
propulsion to the wheels.
●The gasoline engine drives the
generator, supplying
electricity to the electric
motor for added propulsion
or to the High Voltage battery
for charging.
Driven in high-speed, low-load
conditions:
●The gasoline engine provides
propulsion to the wheels.
●The High Voltage battery
supplies electricity to the
electric motor for added
propulsion.
●The electric motor provides
electricity to the High Voltage
battery through regenerative
braking.
Decelerating, without
accelerator be ing depressed.
●The electric motor provides
electricity to the High Voltage
battery through regenerative
braking.
Power Flow
Monitor
Electric MotorStopped/RunningRunningGenerating/RunningRegenerating
GeneratorStoppedGeneratingNo OutputStopped/No Output
Gasoline EngineStoppedRunningRunningStopped/No Output
BatteryDischargeCharging/DischargeCharging/DischargeCharging
Vehicle
Speed
Time
17 ACCORD FHEV-31T3W6200.book 12 ページ ２０１６年４月１１日　月曜日　午後２時４０分

13
Quick Reference Guide

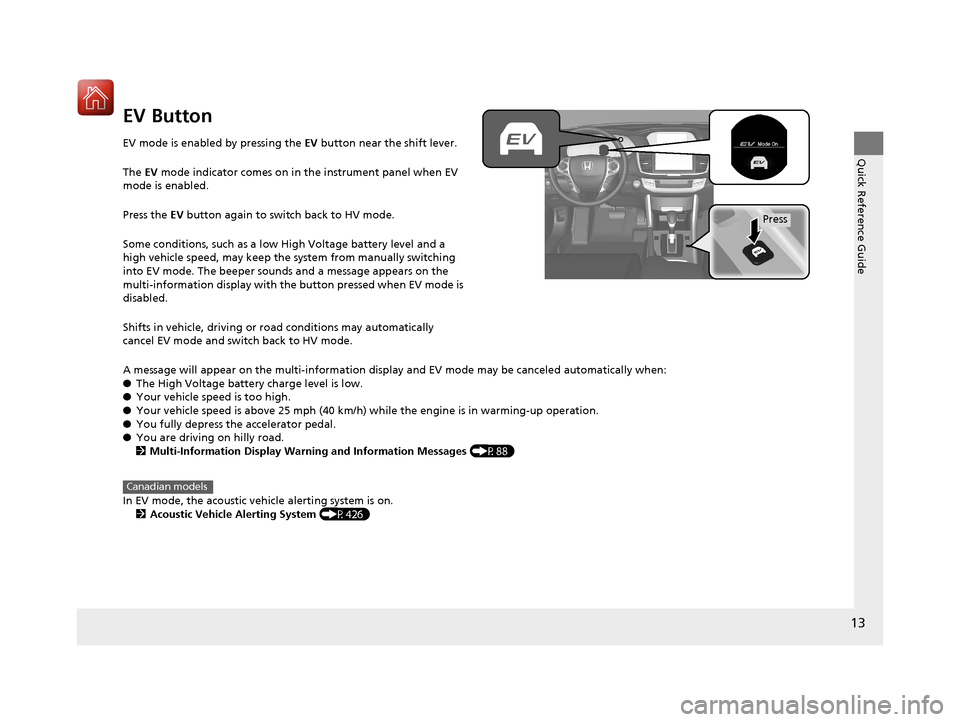

EV Button
EV mode is enabled by pressing the EV button near the shift lever.
The EV mode indicator comes on in the instrument panel when EV
mode is enabled.
Press the EV button again to switch back to HV mode.
Some conditions, such as a low High Voltage battery level and a
high vehicle speed, may keep the system from manually switching
into EV mode. The beeper sounds and a message appears on the
multi-information display with the button pressed when EV mode is
disabled.
Shifts in vehicle, driving or road conditions may automatically
cancel EV mode and switch back to HV mode.
A message will appear on the multi-information display and EV mode may be canceled automatically when:
● The High Voltage battery charge level is low.
● Your vehicle speed is too high.
● Your vehicle speed is above 25 mph (40 km/h) while the engine is in warming-up operation.
● You fully depress the accelerator pedal.
● You are driving on hilly road.
2 Multi-Information Display Warning and Information Messages (P88)
In EV mode, the acoustic vehicle alerting system is on. 2 Acoustic Vehicle Alerting System (P426)
Press
Canadian models
17 ACCORD FHEV-31T3W6200.book 13 ページ ２０１６年４月１１日　月曜日　午後２時４０分

14
Quick Reference Guide

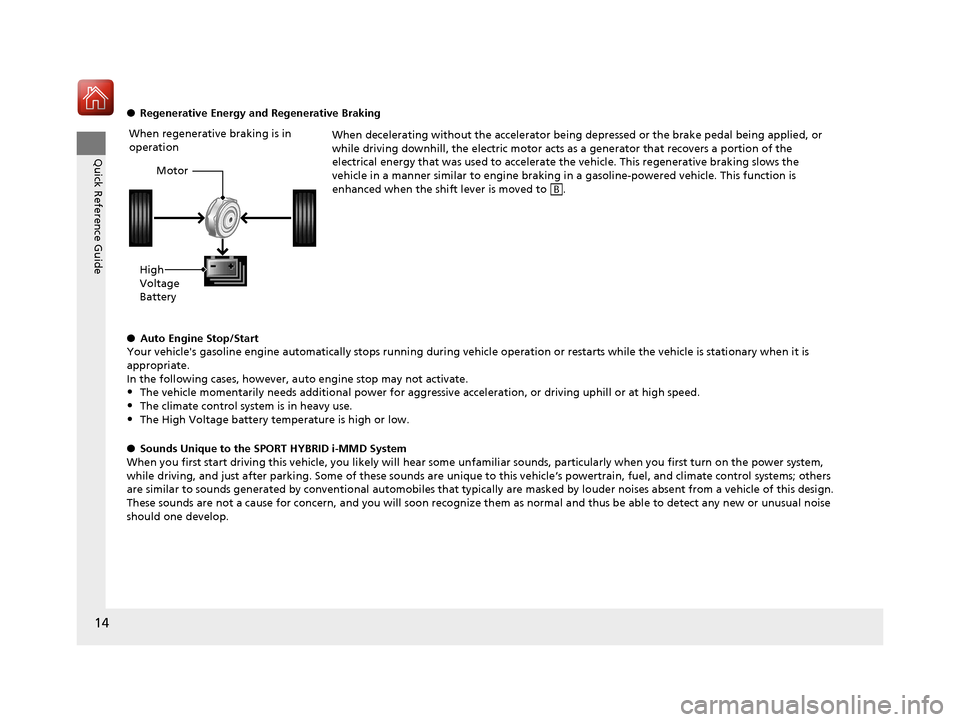

●Regenerative Energy and Regenerative Braking
When decelerating without the accelerator being depressed or the brake pedal being applied, or
while driving downhill, the electric motor acts as a generator that recovers a portion of the
electrical energy that was used to accelerate th e vehicle. This regenerative braking slows the
vehicle in a manner similar to engine braking in a gasoline-powered vehicle. This function is
enhanced when the shift lever is moved to .
● Auto Engine Stop/Start
Your vehicle's gasoline engine automatically stops running duri ng vehicle operation or restarts while the vehicle is stationary when it is
appropriate.
In the following cases, however, au to engine stop may not activate.
•The vehicle momentarily needs additional power for aggressive acceleration, or driving uphill or at high speed.•The climate control system is in heavy use.
•The High Voltage battery temperature is high or low.
● Sounds Unique to the SPORT HYBRID i-MMD System
When you first start driving this vehicle, you likely will hear some unfamiliar sounds, particularly when you first turn on the power system,
while driving, and just after parking. Some of these sounds are unique to this vehicle‘s powertrain, fuel, and climate control systems; others
are similar to sounds generated by conventional automobiles that typically are masked by louder noises absent from a vehicle of this design.
These sounds are not a cause for concern, and you will soon recognize them as normal and thus be able to detect any new or unus ual noise
should one develop.
When regenerative braking is in
operation
Motor
High
Voltage
Battery
B
17 ACCORD FHEV-31T3W6200.book 14 ページ ２０１６年４月１１日　月曜日　午後２時４０分

18
Quick Reference Guide

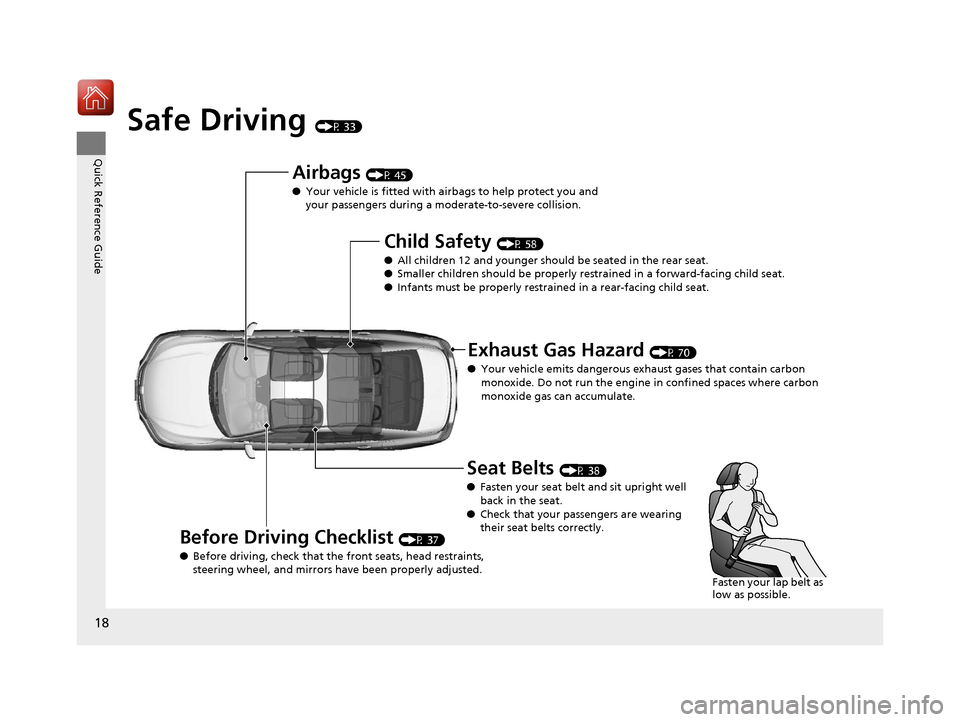

Safe Driving (P 33)
Airbags (P 45)
● Your vehicle is fitted with ai rbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P 58)
● All children 12 and younger should be seated in the rear seat.
● Smaller children should be properly restra ined in a forward-facing child seat.
● Infants must be properly restraine d in a rear-facing child seat.
Exhaust Gas Hazard (P 70)
● Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P 37)
● Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P 38)
● Fasten your seat belt and sit upright well
back in the seat.
● Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
17 ACCORD FHEV-31T3W6200.book 18 ページ ２０１６年４月１１日　月曜日　午後２時４０分

29
Quick Reference Guide

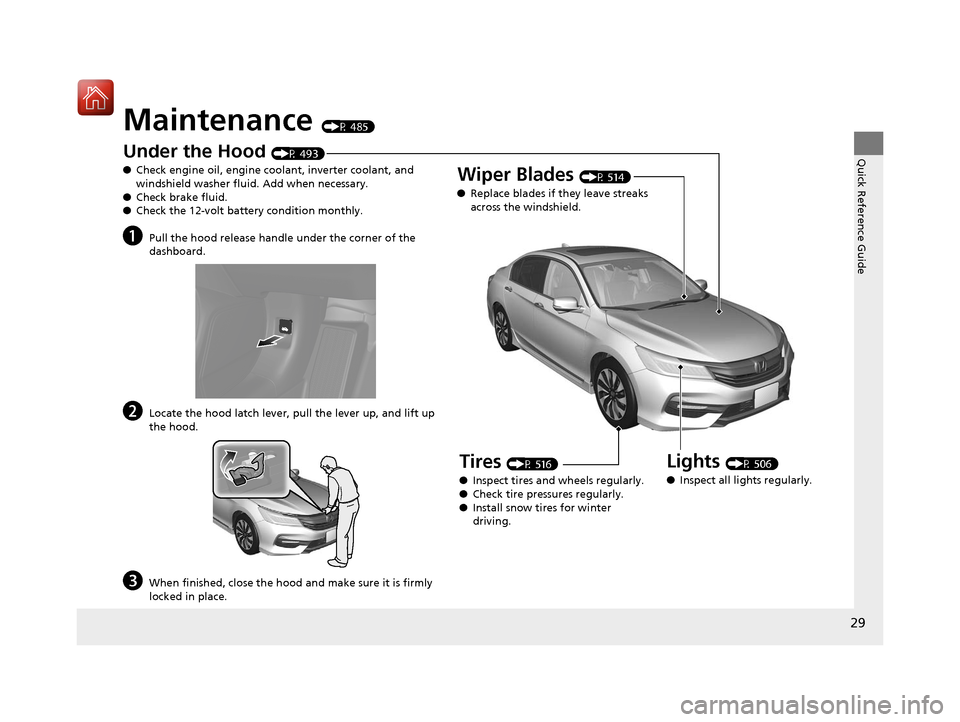

Maintenance (P 485)
Under the Hood (P 493)
● Check engine oil, engine coolant, inverter coolant, and
windshield washer fluid. Add when necessary.
● Check brake fluid.
● Check the 12-volt battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, pull the lever up, and lift up
the hood.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P 506)
● Inspect all lights regularly.
Wiper Blades (P 514)
● Replace blades if they leave streaks
across the windshield.
Tires (P 516)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter
driving.
17 ACCORD FHEV-31T3W6200.book 29 ページ ２０１６年４月１１日　月曜日　午後２時４０分

70
Safe Driving
Exhaust Gas Hazard
Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon
monoxide gas will not get into the interior.
■Have the exhaust system in spected for leaks whenever
• The exhaust system is m aking an unusual noise.
• The exhaust system may have been damaged.
• The vehicle is raised for an oil change.
When you operate a vehicle with the trunk open, airflow can pull exhaust gas into
the interior and create a hazardous condition. If you must drive with the trunk open,
open all the windows and set the climate control system as shown below.
1. Select the fresh air mode.
2. Select the mode.
3. Set the fan speed to high.
4. Set the temperature control to a comfortable setting.
Adjust the climate control system in the same manner if you sit in your parked
vehicle with the engine running.
1 Carbon Monoxide Gas
An enclosed area such as a garage can quickly fill up
with carbon monoxide gas.
Do not turn the power system on with the garage
door closed. Even when th e garage door is open,
drive out of the garage i mmediately after turning the
power system on.
3WARNING
Carbon monoxide gas is toxic.
Breathing it can cause unconsciousness and
even kill you.
Avoid any enclosed areas or activities that
expose you to carbon monoxide.
17 ACCORD FHEV-31T3W6200.book 70 ページ ２０１６年４月１１日　月曜日　午後２時４０分

75
uuIndicators u
Continued
Instrument Panel

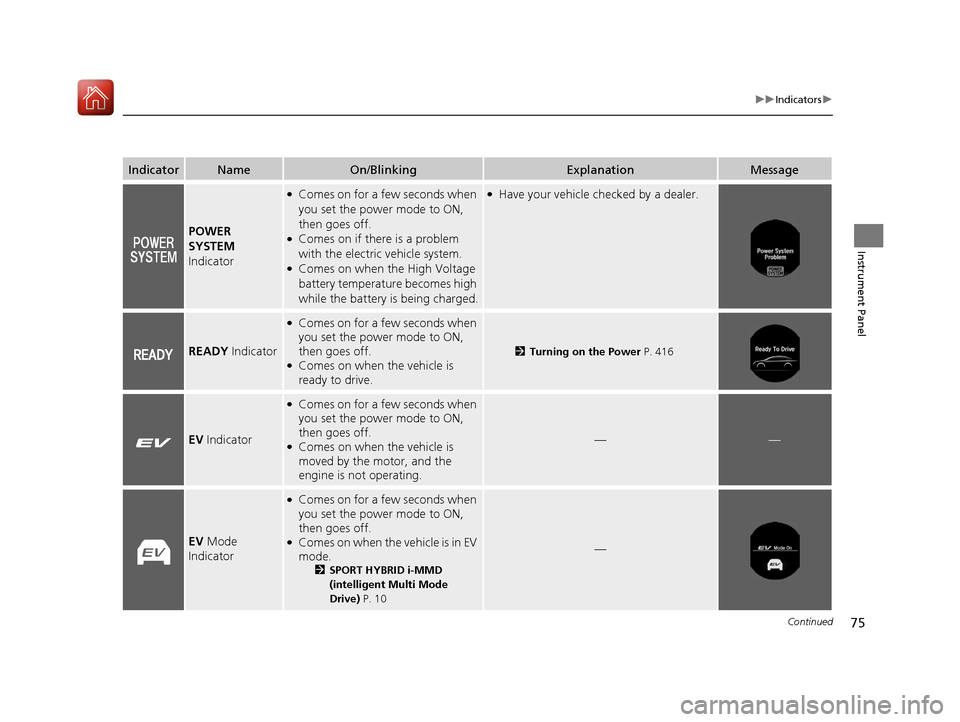

IndicatorNameOn/BlinkingExplanationMessage
POWER
SYSTEM
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on if there is a problem
with the electric vehicle system.
●Comes on when the High Voltage
battery temperature becomes high
while the battery is being charged.
●Have your vehicle checked by a dealer.
READY Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on when the vehicle is
ready to drive.
2Turning on the Power P. 416
EV Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on when the vehicle is
moved by the motor, and the
engine is not operating.——
EV Mode
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on when the vehicle is in EV
mode.
2 SPORT HYBRID i-MMD
(intelligent Multi Mode
Drive) P. 10
—
17 ACCORD FHEV-31T3W6200.book 75 ページ ２０１６年４月１１日　月曜日　午後２時４０分

76
uuIndicators u
Instrument Panel

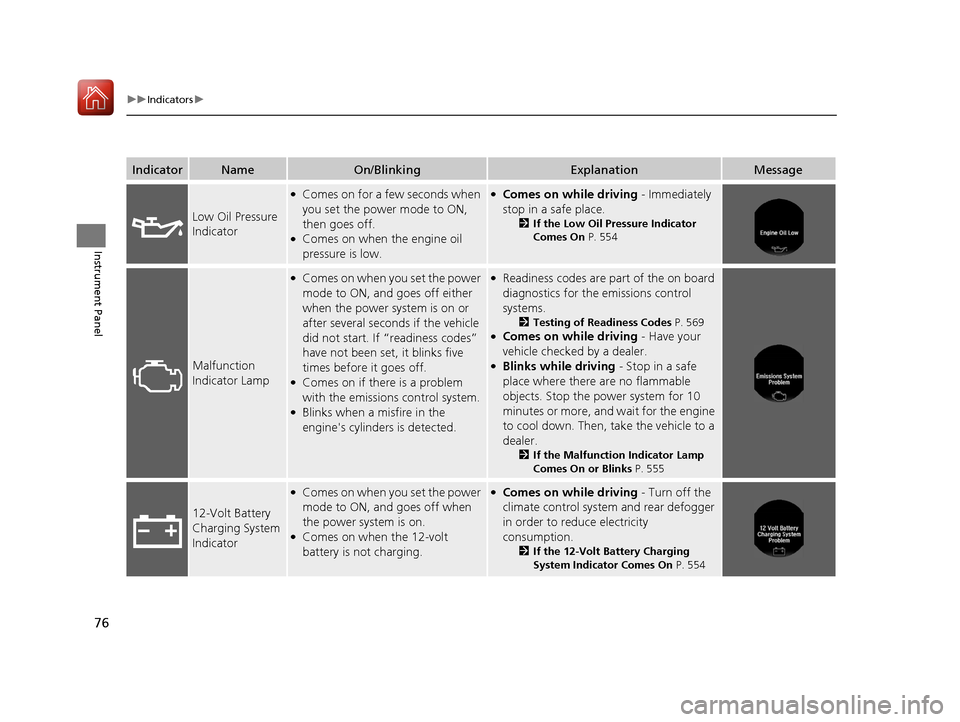

IndicatorNameOn/BlinkingExplanationMessage
Low Oil Pressure
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on when the engine oil
pressure is low.
●Comes on while driving - Immediately
stop in a safe place.
2 If the Low Oil Pressure Indicator
Comes On P. 554
Malfunction
Indicator Lamp
●Comes on when you set the power
mode to ON, and goes off either
when the power system is on or
after several seconds if the vehicle
did not start. If “readiness codes”
have not been set, it blinks five
times before it goes off.
●Comes on if there is a problem
with the emissions control system.
●Blinks when a misfire in the
engine's cylinders is detected.
●Readiness codes are part of the on board
diagnostics for the emissions control
systems.
2 Testing of Readiness Codes P. 569●Comes on while driving - Have your
vehicle checked by a dealer.
●Blinks while driving - Stop in a safe
place where there are no flammable
objects. Stop the power system for 10
minutes or more, and wait for the engine
to cool down. Then, take the vehicle to a
dealer.
2 If the Malfunction Indicator Lamp
Comes On or Blinks P. 555
12-Volt Battery
Charging System
Indicator
●Comes on when you set the power
mode to ON, and goes off when
the power system is on.
●Comes on when the 12-volt
battery is not charging.
●Comes on while driving - Turn off the
climate control system and rear defogger
in order to reduce electricity
consumption.
2 If the 12-Volt Battery Charging
System Indicator Comes On P. 554
17 ACCORD FHEV-31T3W6200.book 76 ページ ２０１６年４月１１日　月曜日　午後２時４０分
