HONDA ACCORD HYBRID 2019 Owners Manual

89 uu Indicators u
Continued
Instrument Panel
Indicator Name On/Blinking Explanation Message
Seat Belt
Reminder
Indicator • Blinks and the beep er sounds for a
few seconds if you are not wearing
a seat belt when you set the power
mode to ON, then the indicator
comes on.
• If the front passenger is not
wearing a seat belt, the indicator
comes on a few seconds later.
• Blinks while driving if either you
and/or the front passenger has not
fastened a seat belt. The beeper
sounds and the indi cator blinks at
regular intervals. • The beeper stops and the indicator goes
off when you and the front passenger
fasten their seat belts.
• Stays on after you and/or the front
passenger has fastened the seat
belt(s) - A detection error may have
occurred in the sensor. Have your vehicle
checked by a dealer. 2 Seat Belt Reminder P. 39
Low Fuel
Indicator • Comes on when the fuel reserve is
running low (approximately
2.2 U.S. gal./8.4 L left).
• Blinks if there is a problem with the
fuel gauge. • Comes on - Refuel your vehicle as soon
as possible.
• Blinks - Have your vehicle checked by a
dealer.

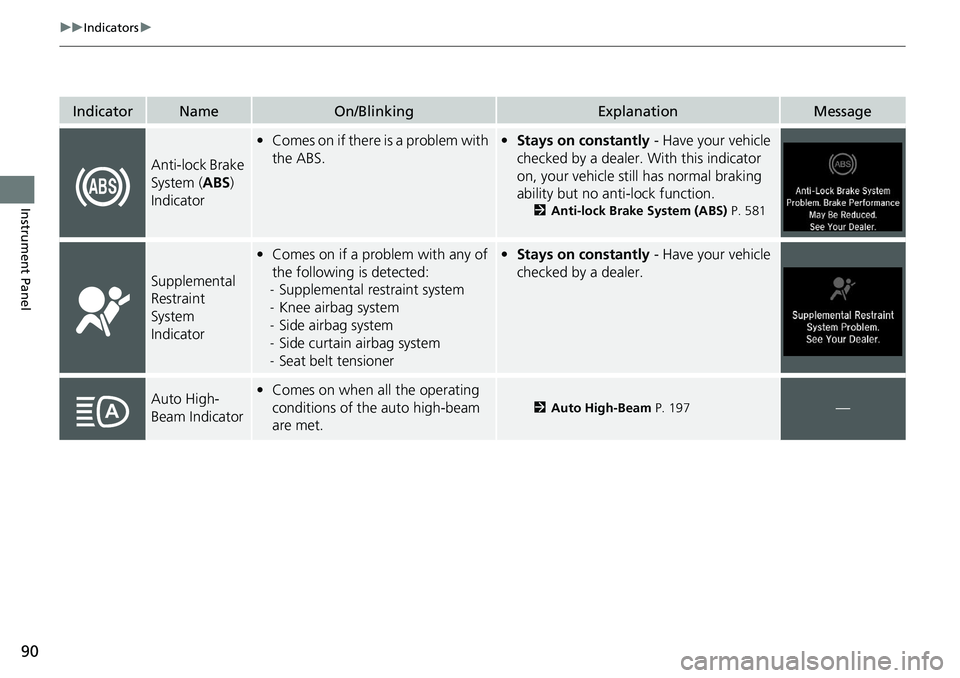

90 uu Indicators u
Instrument Panel Indicator Name On/Blinking Explanation Message
Anti-lock Brake
System ( ABS )
Indicator • Comes on if there is a problem with
the ABS. • Stays on constantly - Have your vehicle
checked by a dealer. With this indicator
on, your vehicle still has normal braking
ability but no anti-lock function. 2 Anti-lock Brake System (ABS) P. 581
Supplemental
Restraint
System
Indicator • Comes on if a problem with any of
the following is detected:
- Supplemental restraint system
- Knee airbag system
- Side airbag system
- Side curtain airbag system
- Seat belt tensioner • Stays on constantly - Have your vehicle
checked by a dealer.
Auto High-
Beam Indicator • Comes on when all the operating
conditions of the auto high-beam
are met. 2 Auto High-Beam P. 197
—

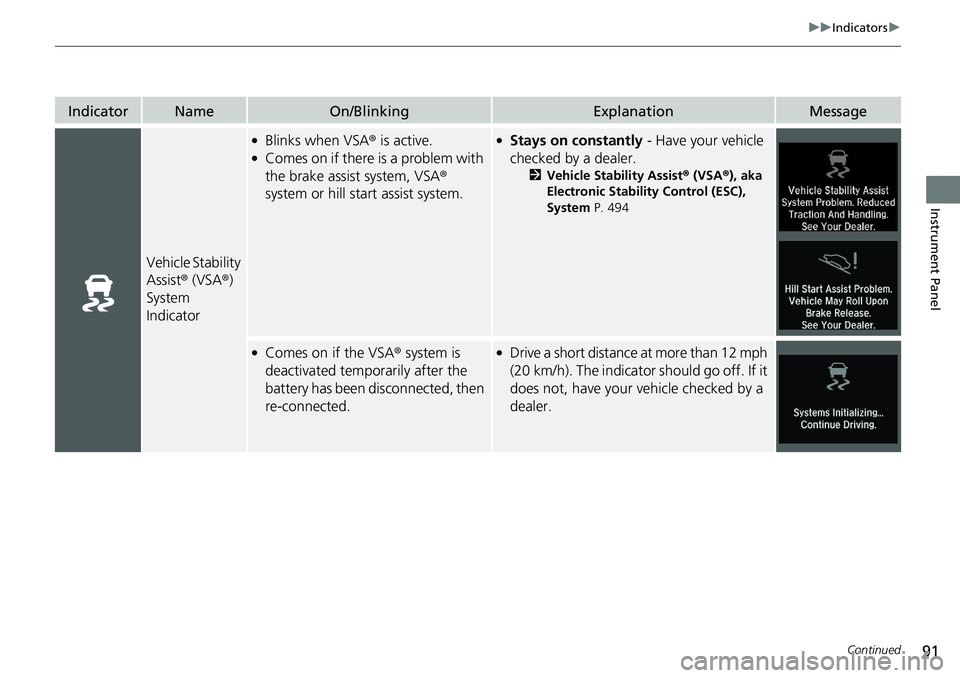

91 uu Indicators u
Continued
Instrument Panel
Indicator Name On/Blinking Explanation Message
Vehicle Stability
Assist ® (VSA ® )
System
Indicator ●
Blinks when VSA ® is active. ●
Comes on if there is a problem with
the brake assist system, VSA ®
system or hill start assist system. ●
Stays on constantly - Have your vehicle
checked by a dealer. 2 Vehicle Stability Assist ® (VSA ® ), aka
Electronic Stability Control (ESC),
System P. 494●
Comes on if the VSA ® system is
deactivated temporarily after the
battery has been disconnected, then
re-connected. ●
Drive a short distance at more than 12 mph
(20 km/h). The indicator should go off. If it
does not, have your vehicle checked by a
dealer.

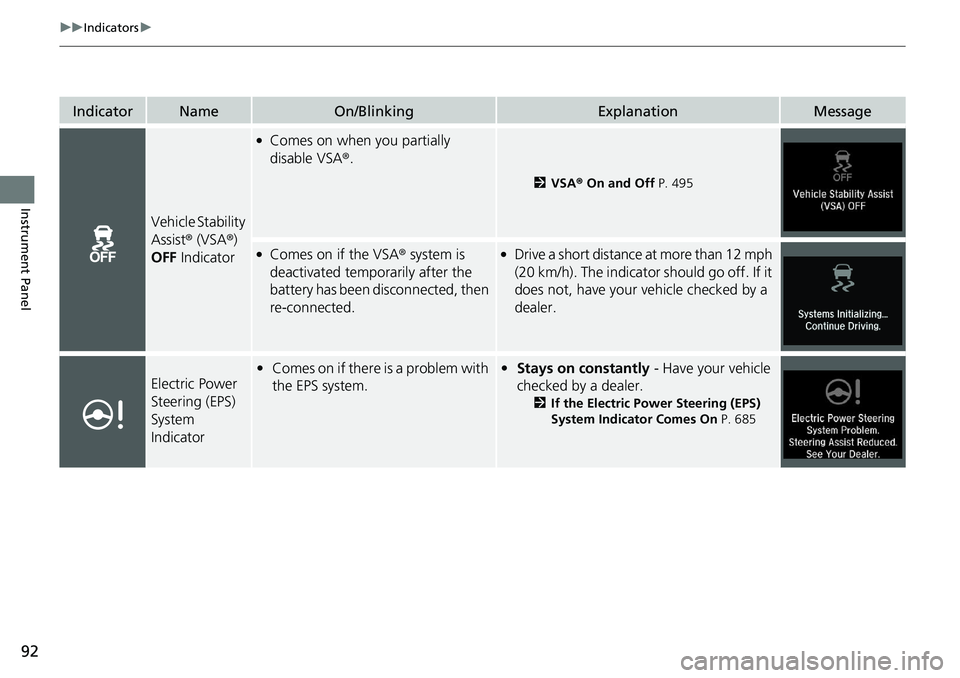

92 uu Indicators u
Instrument Panel Indicator Name On/Blinking Explanation Message
Vehicle Stability
Assist ® (VSA ® )
OFF Indicator ●
Comes on when you partially
disable VSA ® . 2 VSA ® On and Off P. 495●
Comes on if the VSA ® system is
deactivated temporarily after the
battery has been disconnected, then
re-connected. ●
Drive a short distance at more than 12 mph
(20 km/h). The indicator should go off. If it
does not, have your vehicle checked by a
dealer.
Electric Power
Steering (EPS)
System
Indicator • Comes on if there is a problem with
the EPS system. • Stays on constantly - Have your vehicle
checked by a dealer. 2 If the Electric Power Steering (EPS)
System Indicator Comes On P. 685

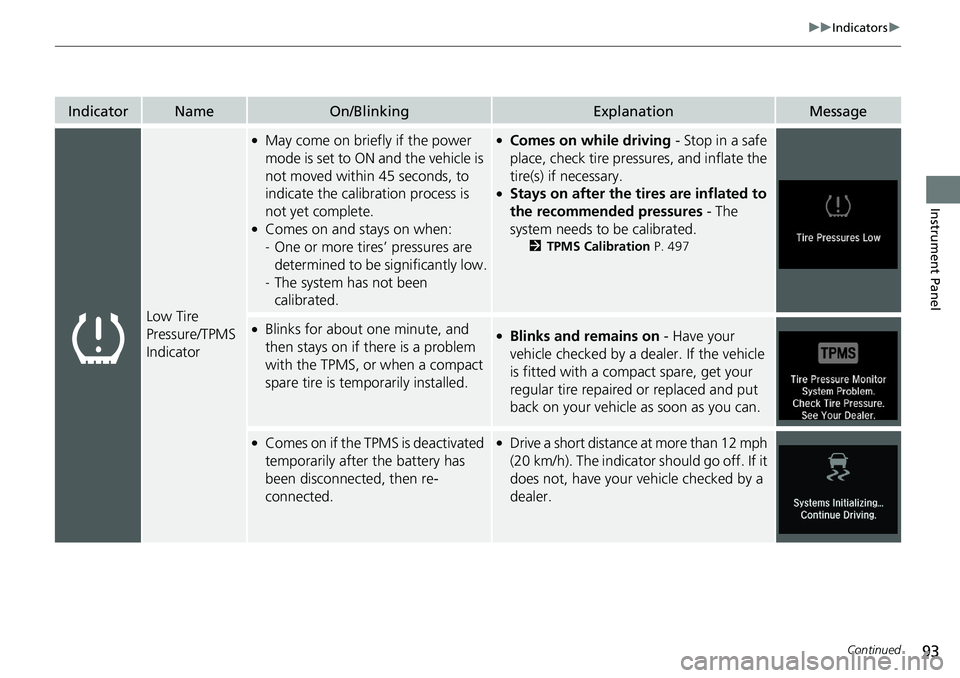

93 uu Indicators u
Continued
Instrument Panel
Indicator Name On/Blinking Explanation Message
Low Tire
Pressure/TPMS
Indicator ●
May come on briefly if the power
mode is set to ON and the vehicle is
not moved within 45 seconds, to
indicate the calibration process is
not yet complete. ●
Comes on and stays on when:
- One or more tires’ pressures are
determined to be significantly low.
- The system has not been
calibrated. ●
Comes on while driving - Stop in a safe
place, check tire pres sures, and inflate the
tire(s) if necessary. ●
Stays on after the tires are inflated to
the recommended pressures - The
system needs to be calibrated. 2 TPMS Calibration P. 497●
Blinks for about one minute, and
then stays on if there is a problem
with the TPMS, or when a compact
spare tire is temporarily installed. ●
Blinks and remains on - Have your
vehicle checked by a dealer. If the vehicle
is fitted with a compact spare, get your
regular tire repaired or replaced and put
back on your vehicle as soon as you can.●
Comes on if the TPMS is deactivated
temporarily after the battery has
been disconnected, then re-
connected. ●
Drive a short distance at more than 12 mph
(20 km/h). The indicator should go off. If it
does not, have your vehicle checked by a
dealer.

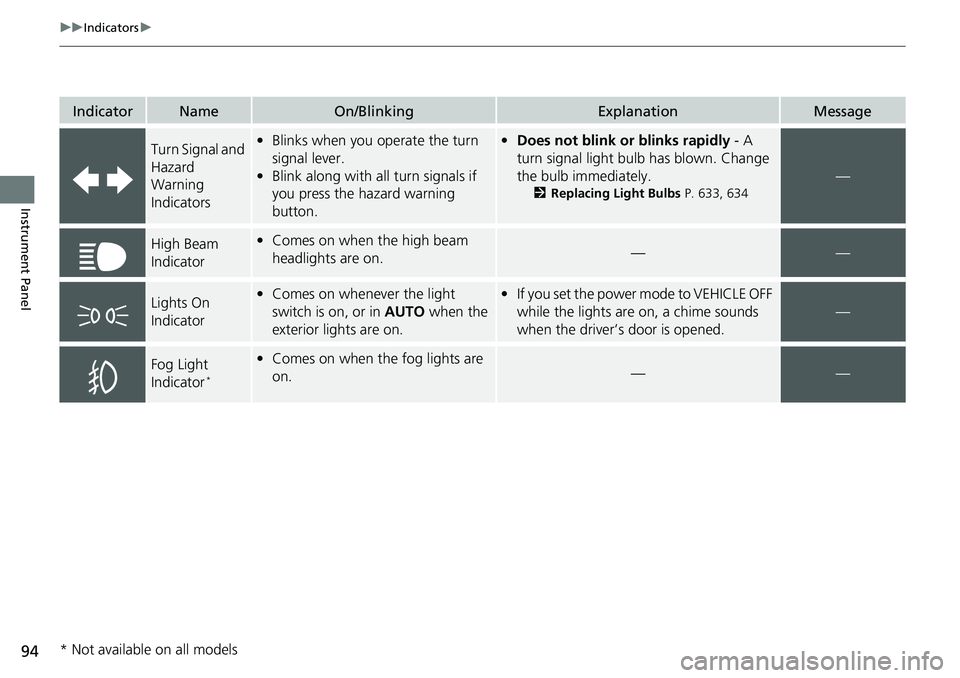

94 uu Indicators u
Instrument Panel Indicator Name On/Blinking Explanation Message
Turn Signal and
Hazard
Warning
Indicators • Blinks when you operate the turn
signal lever.
• Blink along with al l turn signals if
you press the hazard warning
button. • Does not blink or blinks rapidly - A
turn signal light bulb has blown. Change
the bulb immediately. 2 Replacing Light Bulbs P. 633, 634
—
High Beam
Indicator • Comes on when the high beam
headlights are on. — —
Lights On
Indicator • Comes on whenever the light
switch is on, or in AUTO when the
exterior lights are on. • If you set the power mode to VEHICLE OFF
while the lights are on, a chime sounds
when the driver’s door is opened. —
Fog Light
Indicator *
• Comes on when the fog lights are
on. — —
* Not available on all models

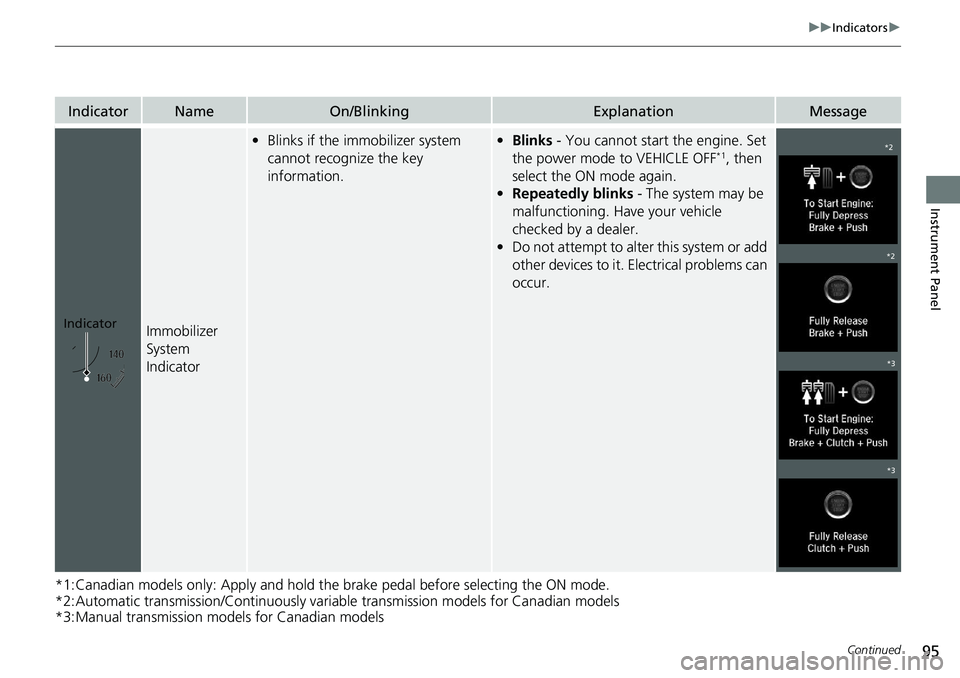

95 uu Indicators u
Continued
Instrument Panel
*1:Canadian models only: Apply and hold th e brake pedal before selecting the ON mode.
*2:Automatic transmission/Continuously variable transmission models for Canadian models
*3:Manual transmission models for Canadian models Indicator Name On/Blinking Explanation Message
Immobilizer
System
Indicator • Blinks if the immobilizer system
cannot recognize the key
information. • Blinks - You cannot start the engine. Set
the power mode to VEHICLE OFF *1
, then
select the ON mode again.
• Repeatedly blinks - The system may be
malfunctioning. Have your vehicle
checked by a dealer.
• Do not attempt to alter this system or add
other devices to it. Electrical problems can
occur.Indicator *2
*2
*3
*3

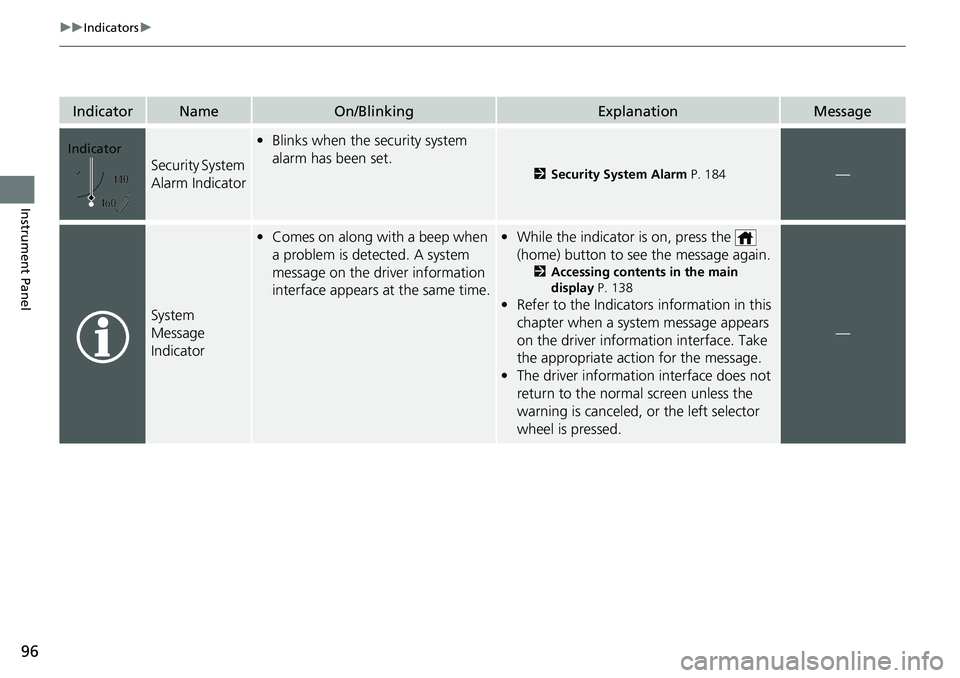

96 uu Indicators u
Instrument Panel Indicator Name On/Blinking Explanation Message
Security System
Alarm Indicator • Blinks when the security system
alarm has been set. 2 Security System Alarm P. 184
—
System
Message
Indicator • Comes on along with a beep when
a problem is detected. A system
message on the dr iver information
interface appears at the same time. • While the indicator is on, press the
(home) button to see the message again. 2 Accessing contents in the main
display P. 138
• Refer to the Indicators information in this
chapter when a system message appears
on the driver information interface. Take
the appropriate action for the message.
• The driver informatio n interface does not
return to the normal screen unless the
warning is canceled, or the left selector
wheel is pressed. —Indicator

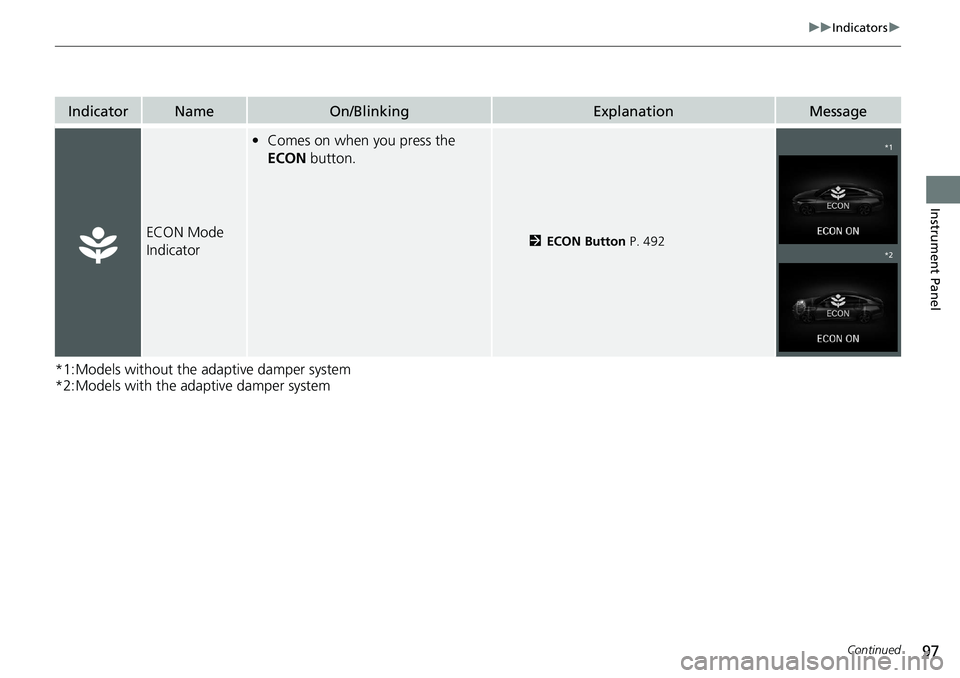

97 uu Indicators u
Continued
Instrument Panel
*1:Models without the adaptive damper system
*2:Models with the adaptive damper system Indicator Name On/Blinking Explanation Message
ECON Mode
Indicator • Comes on when you press the
ECON button.
2 ECON Button P. 492 *1
*2

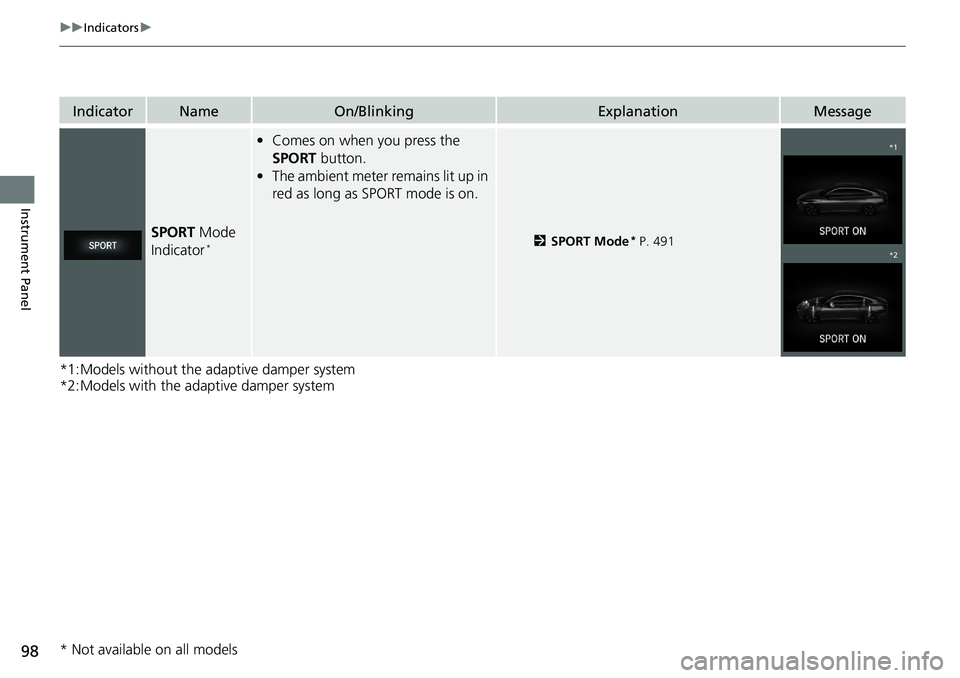

98 uu Indicators u
Instrument Panel *1:Models without the adaptive damper system
*2:Models with the adaptive damper system Indicator Name On/Blinking Explanation Message
SPORT Mode
Indicator *
• Comes on when you press the
SPORT button.
• The ambient meter remains lit up in
red as long as SPORT mode is on. 2 SPORT Mode *
P. 491 *1
*2
* Not available on all models
