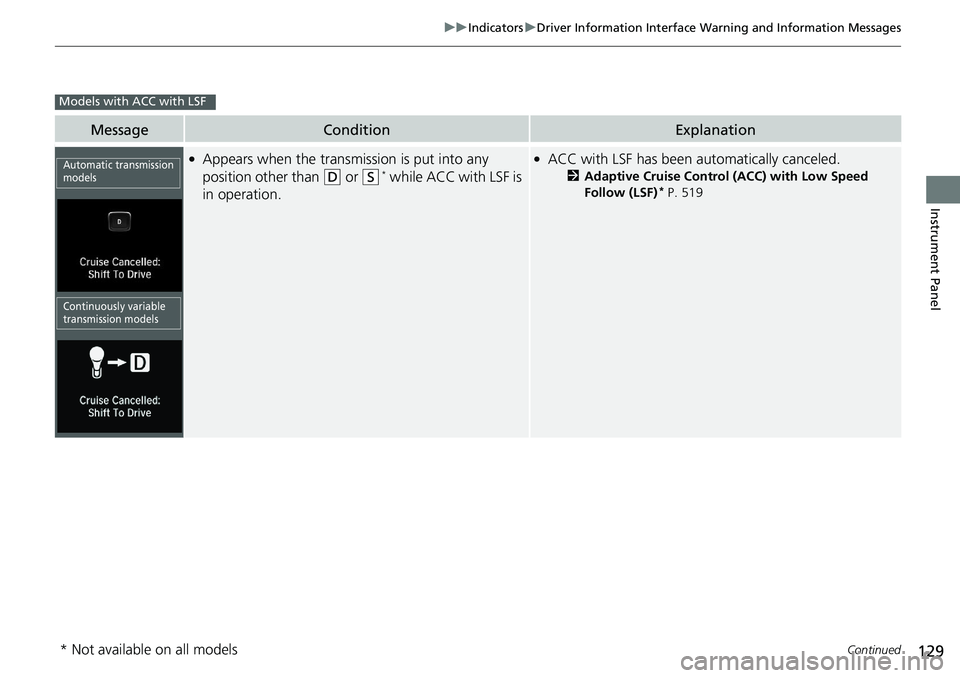

129uu Indicators u Driver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
Message Condition Explanation●
Appears when the transmi ssion is put into any
position other than ( D
or ( S *
while ACC with LSF is
in operation. ●
ACC with LSF has been au tomatically canceled.2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) *
P. 519Models with ACC with LSF
Automatic transmission
models
Continuously variable
transmission models
* Not available on all models

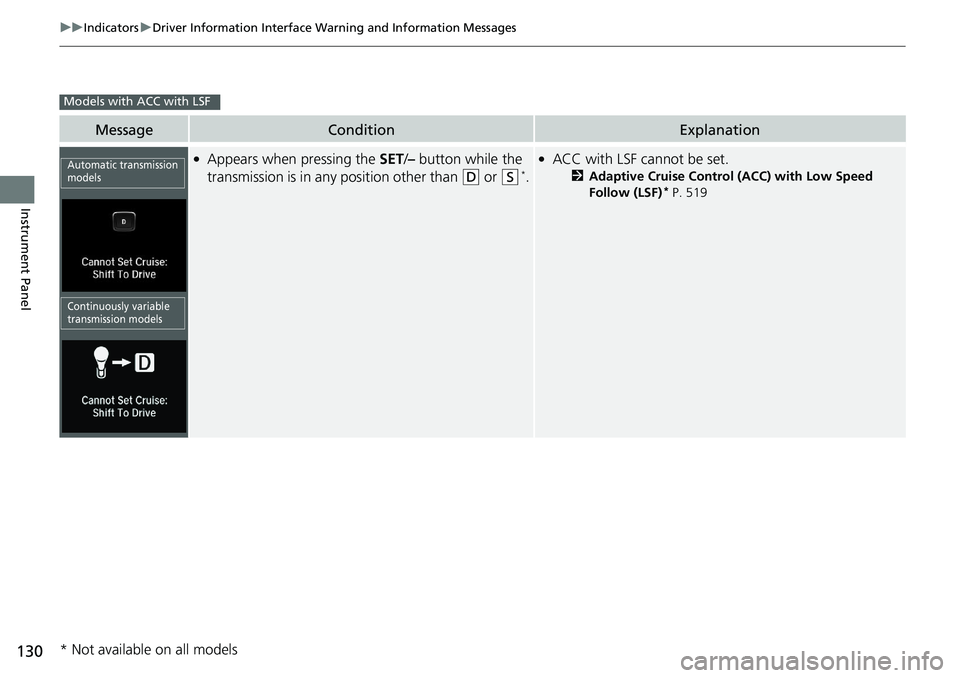

130 uu Indicators u Driver Information Interface Wa rning and Information Messages
Instrument Panel Message Condition Explanation●
Appears when pressing the SET / – button while the
transmission is in any position other than ( D
or ( S *
. ●
ACC with LSF cannot be set. 2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) *
P. 519Models with ACC with LSF
Automatic transmission
models
Continuously variable
transmission models
* Not available on all models

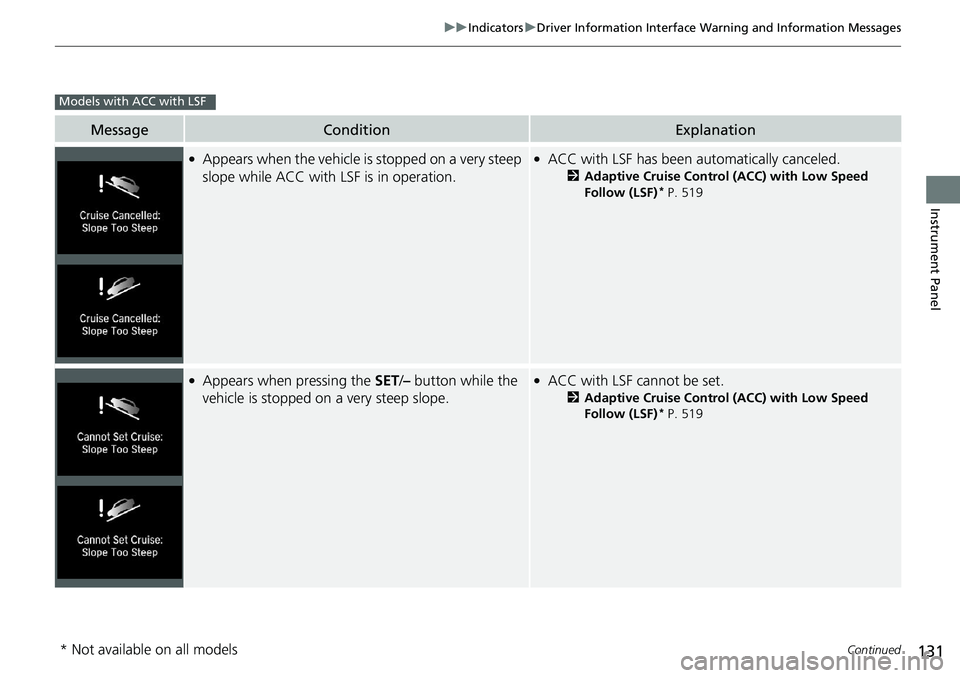

131uu Indicators u Driver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
Message Condition Explanation●
Appears when the vehicle is stopped on a very steep
slope while ACC with LSF is in operation. ●
ACC with LSF has been au tomatically canceled.2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) *
P. 519●
Appears when pressing the SET / – button while the
vehicle is stopped on a very steep slope. ●
ACC with LSF cannot be set. 2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) *
P. 519Models with ACC with LSF
* Not available on all models

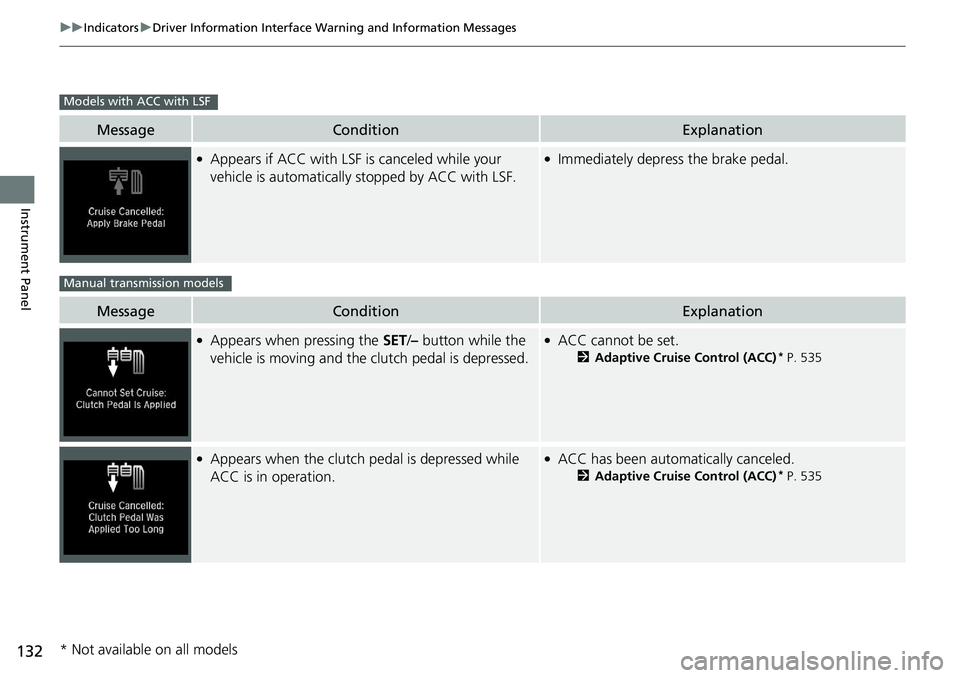

132 uu Indicators u Driver Information Interface Wa rning and Information Messages
Instrument Panel Message Condition Explanation●
Appears if ACC with LSF is canceled while your
vehicle is automatically stopped by ACC with LSF. ●
Immediately depress the brake pedal.
Message Condition Explanation●
Appears when pressing the SET / – button while the
vehicle is moving and the clutch pedal is depressed. ●
ACC cannot be set. 2 Adaptive Cruise Control (ACC) *
P. 535●
Appears when the clutch pedal is depressed while
ACC is in operation. ●
ACC has been automatically canceled. 2 Adaptive Cruise Control (ACC) *
P. 535Models with ACC with LSF
Manual transmission models
* Not available on all models

133uu Indicators u Driver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
Message Condition Explanation●
Appears if anything covers the radar sensor cover
and prevents the sensor fro m detecting a vehicle in
front. ●
May appear when driving in bad weather (rain,
snow, fog, etc.). ●
When the radar sensor gets dirty, stop your vehicle in a
safe place, and wipe off dirt using a soft cloth. ●
Have your vehicle checked by a dealer if the message
does not disappear even after you clean the sensor
cover. 2 Radar Sensor P. 570●
Appears if the temperature inside the front sensor
camera is too high and some driver assist systems
and auto high-beam cannot be activated. ●
Use the climate control sy stem to cool down the
camera. ●
Disappears - The camera has been cooled down and
the systems are activated normally. 2 Front Sensor Camera P. 568
2 Auto High-Beam P. 197●
Appears if the area around the front sensor camera is
blocked by dirt, mud, etc. and be prevented from
detecting a vehicle in front. ●
May appear when driving in bad weather (rain,
snow, fog, etc.). ●
When the front window gets dirty, stop your vehicle in
a safe place, and wipe it off with a soft cloth. ●
Have your vehicle checked by a dealer if the message
does not disappear even a fter you cleaned the area
around the camera. 2 Front Sensor Camera P. 568
2 Auto High-Beam P. 197

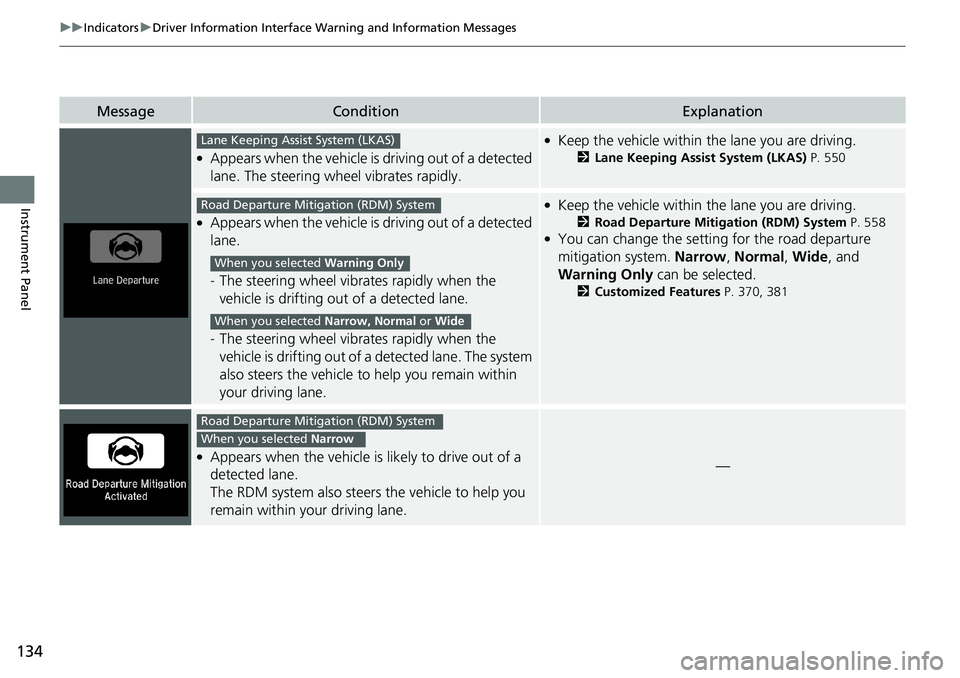

134 uu Indicators u Driver Information Interface Wa rning and Information Messages
Instrument Panel Message Condition Explanation●
Appears when the vehicle is driving out of a detected
lane. The steering wheel vibrates rapidly. ●
Keep the vehicle within the lane you are driving.2 Lane Keeping Assist System (LKAS) P. 550●
Appears when the vehicle is driving out of a detected
lane.
- The steering wheel vibrates rapidly when the
vehicle is drifting out of a detected lane.
- The steering wheel vibrates rapidly when the
vehicle is drifting out of a detected lane. The system
also steers the vehicle to help you remain within
your driving lane. ●
Keep the vehicle within the lane you are driving.2 Road Departure Mitigation (RDM) System P. 558 ●
You can change the setting for the road departure
mitigation system. Narrow , Normal , Wide , and
Warning Only can be selected.2 Customized Features P. 370, 381●
Appears when the vehicle is likely to drive out of a
detected lane.
The RDM system also steers the vehicle to help you
remain within your driving lane. —Lane Keeping Assist System (LKAS)
Road Departure Mitigation (RDM) System
When you selected Warning Only
When you selected Narrow, Normal or Wide
Road Departure Mitigation (RDM) System
When you selected Narrow

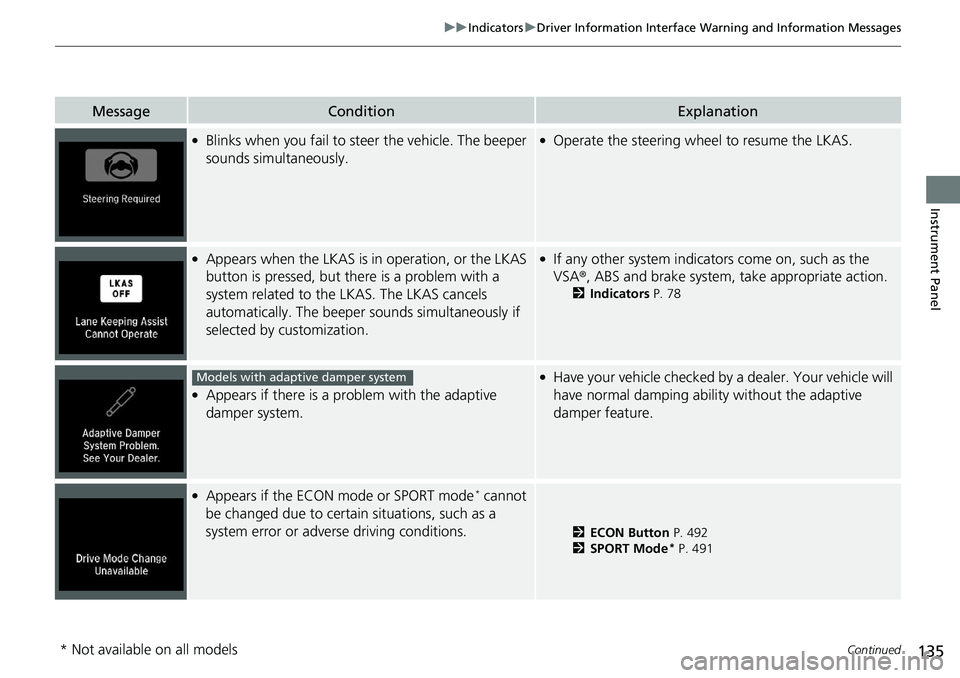

135uu Indicators u Driver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
Message Condition Explanation●
Blinks when you fail to steer the vehicle. The beeper
sounds simultaneously. ●
Operate the steering wheel to resume the LKAS.●
Appears when the LKAS is in operation, or the LKAS
button is pressed, but there is a problem with a
system related to the LKAS. The LKAS cancels
automatically. The beeper s ounds simultaneously if
selected by customization. ●
If any other system indicators come on, such as the
VSA ® , ABS and brake system, take appropriate action. 2 Indicators P. 78●
Appears if there is a pr oblem with the adaptive
damper system. ●
Have your vehicle checked by a dealer. Your vehicle will
have normal damping abili ty without the adaptive
damper feature.●
Appears if the ECON mode or SPORT mode *
cannot
be changed due to certain situations, such as a
system error or adverse driving conditions. 2 ECON Button P. 492
2 SPORT Mode *
P. 491Models with adaptive damper system
* Not available on all models

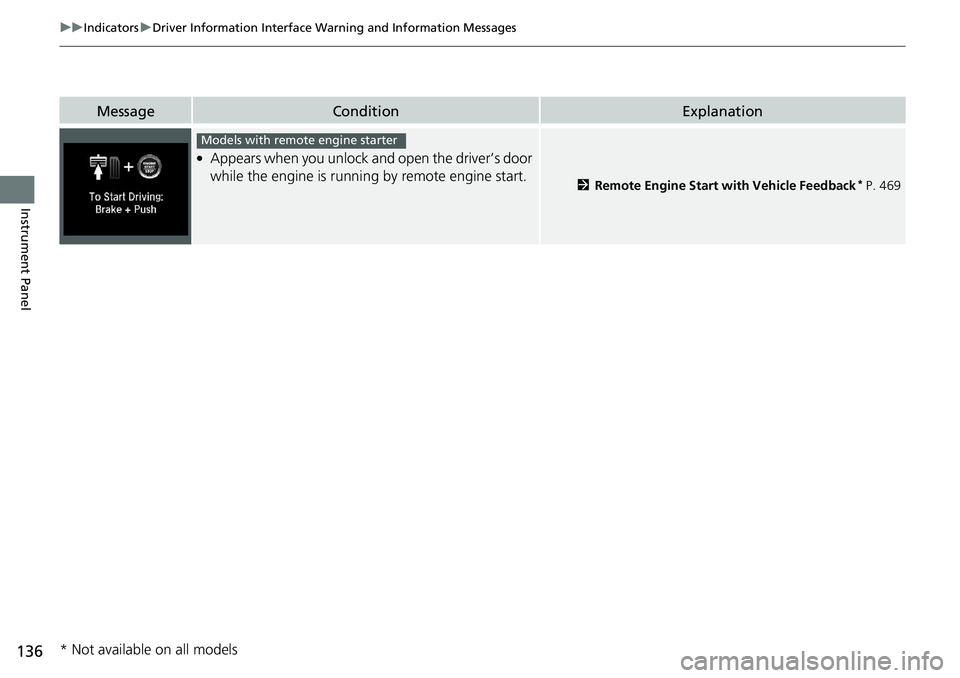

136 uu Indicators u Driver Information Interface Wa rning and Information Messages
Instrument Panel Message Condition Explanation●
Appears when you unlock an d open the driver’s door
while the engine is running by remote engine start. 2 Remote Engine Start with Vehicle Feedback *
P. 469Models with remote engine starter
* Not available on all models

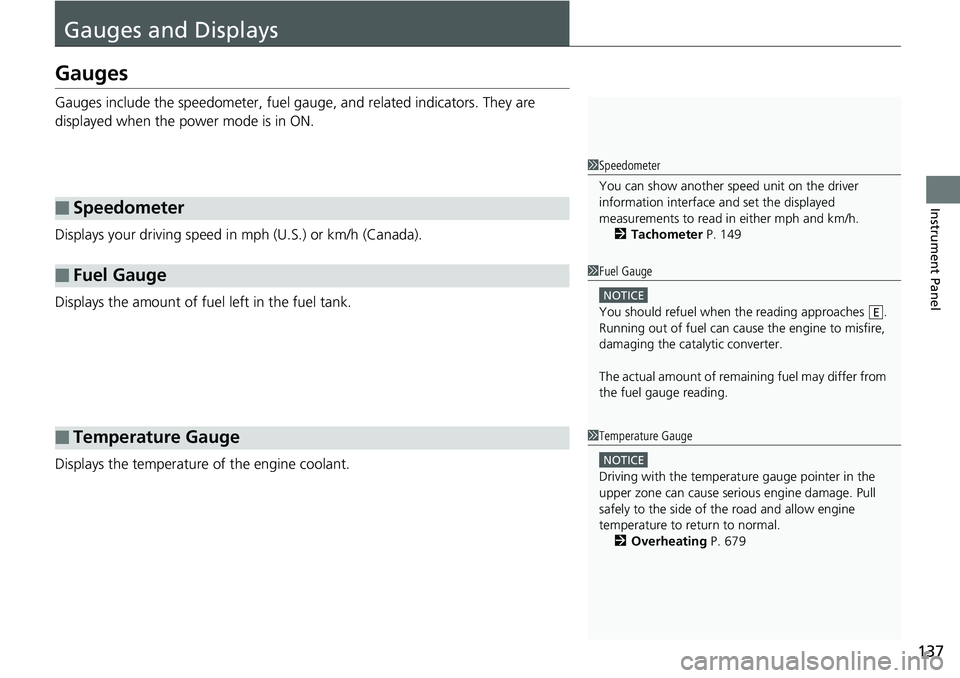

137
Instrument Panel
Gauges and DisplaysGauges Gauges include the speedometer, fuel gaug e, and related indicators. They are
displayed when the power mode is in ON.
Displays your driving speed in mph (U.S.) or km/h (Canada).
Displays the amount of fuel left in the fuel tank.
Displays the temperature of the engine coolant.■ Speedometer
■ Fuel Gauge
■ Temperature Gauge 1 Speedometer
You can show another speed unit on the driver
information interface and set the displayed
measurements to read in either mph and km/h.
2 Tachometer P. 149
1 Fuel Gauge NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading. E
1 Temperature Gauge
NOTICE
Driving with the temperat ure gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of th e road and allow engine
temperature to return to normal.
2 Overheating P. 679

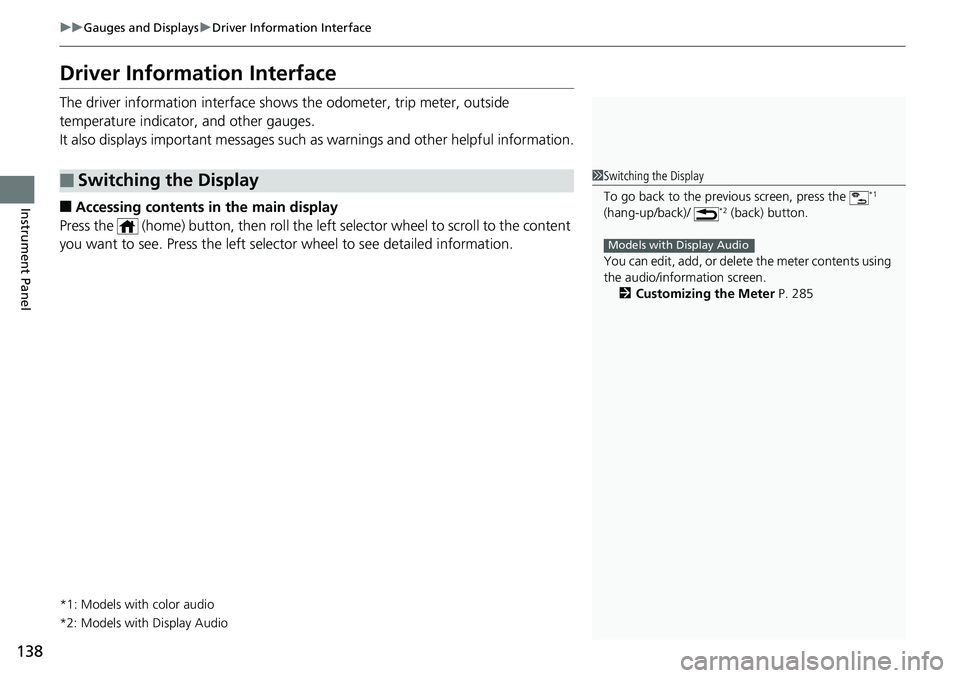

138 uu Gauges and Displays u Driver Information Interface
Instrument Panel Driver Information Interface The driver information interface shows the odometer, trip meter, outside
temperature indicator, and other gauges.
It also displays important messages such as warnings and other helpful information.
■ Accessing contents in the main display
Press the (home) button, then roll the le ft selector wheel to scroll to the content
you want to see. Press the left select or wheel to see detailed information.
*1: Models with color audio
*2: Models with Display Audio■ Switching the Display 1 Switching the Display
To go back to the previous screen, press the *1

(hang-up/back)/ *2
(back) button.
You can edit, add, or delete the meter contents using
the audio/information screen.
2 Customizing the Meter P. 285Models with Display Audio
