HONDA ACCORD HYBRID 2019 Owners Manual

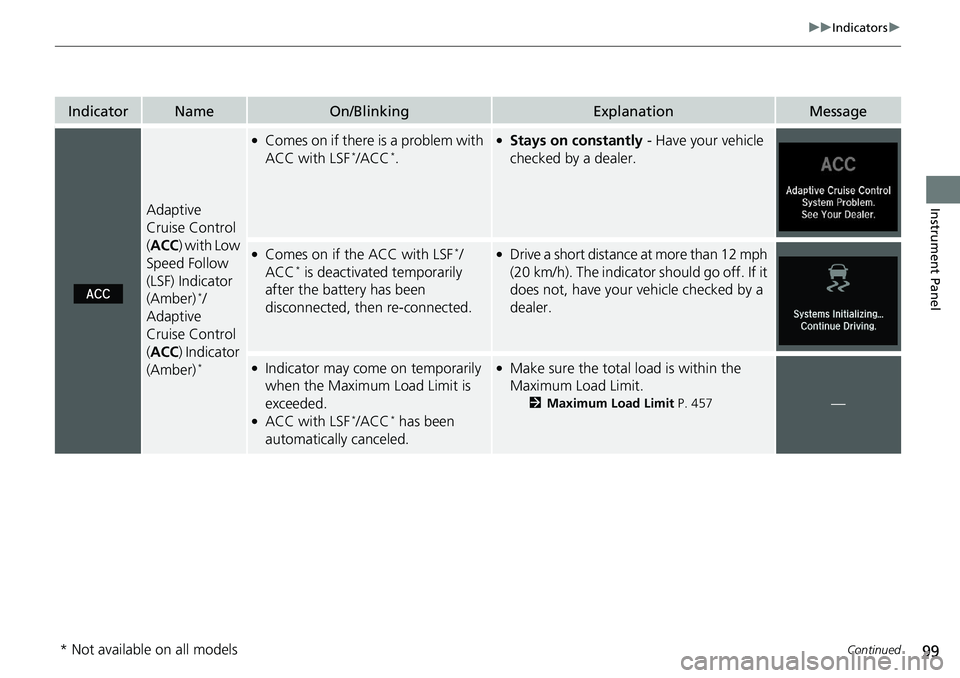

99 uu Indicators u
Continued
Instrument Panel
Indicator Name On/Blinking Explanation Message
Adaptive
Cruise Control
( ACC ) with Low
Speed Follow
(LSF) Indicator
(Amber) *
/
Adaptive
Cruise Control
( ACC ) Indicator
(Amber) * ●
Comes on if there is a problem with
ACC with LSF *
/ACC *
. ●
Stays on constantly - Have your vehicle
checked by a dealer.●
Comes on if the ACC with LSF *
/
ACC *
is deactivated temporarily
after the battery has been
disconnected, then re-connected. ●
Drive a short distance at more than 12 mph
(20 km/h). The indicator should go off. If it
does not, have your vehicle checked by a
dealer.●
Indicator may come on temporarily
when the Maximum Load Limit is
exceeded. ●
ACC with LSF *
/ACC *
has been
automatically canceled. ●
Make sure the total load is within the
Maximum Load Limit. 2 Maximum Load Limit P. 457
—
* Not available on all models

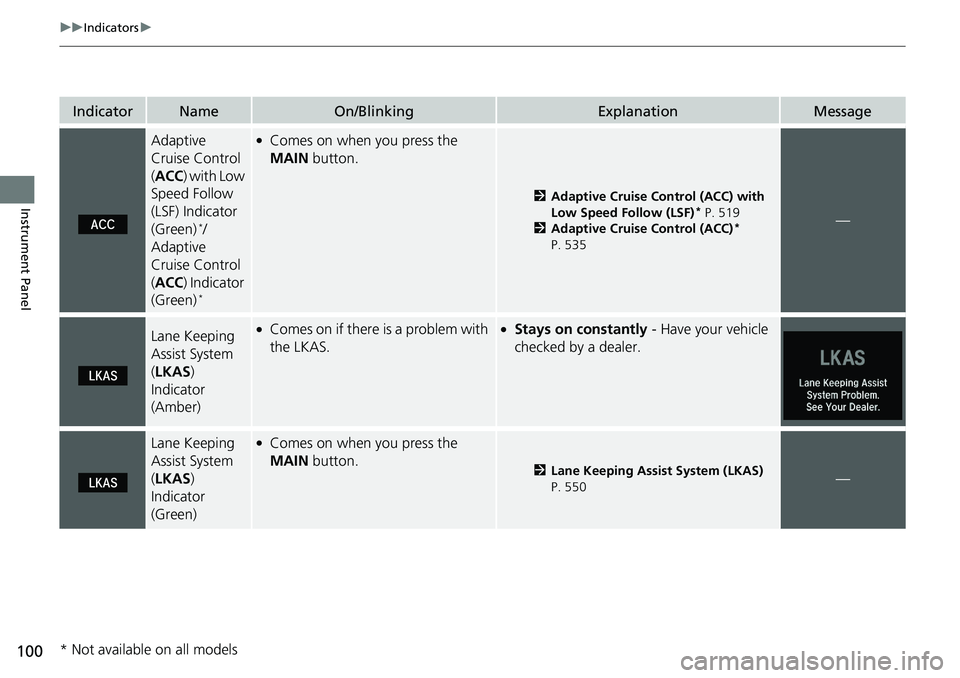

100 uu Indicators u
Instrument Panel Indicator Name On/Blinking Explanation Message
Adaptive
Cruise Control
( ACC ) with Low
Speed Follow
(LSF) Indicator
(Green) *
/
Adaptive
Cruise Control
( ACC ) Indicator
(Green) * ●
Comes on when you press the
MAIN button. 2 Adaptive Cruise Control (ACC) with
Low Speed Follow (LSF) *
P. 519
2 Adaptive Cruise Control (ACC) *

P. 535
—
Lane Keeping
Assist System
( LKAS )
Indicator
(Amber) ●
Comes on if there is a problem with
the LKAS. ●
Stays on constantly - Have your vehicle
checked by a dealer.
Lane Keeping
Assist System
( LKAS )
Indicator
(Green) ●
Comes on when you press the
MAIN button. 2 Lane Keeping Assist System (LKAS)
P. 550
—
* Not available on all models

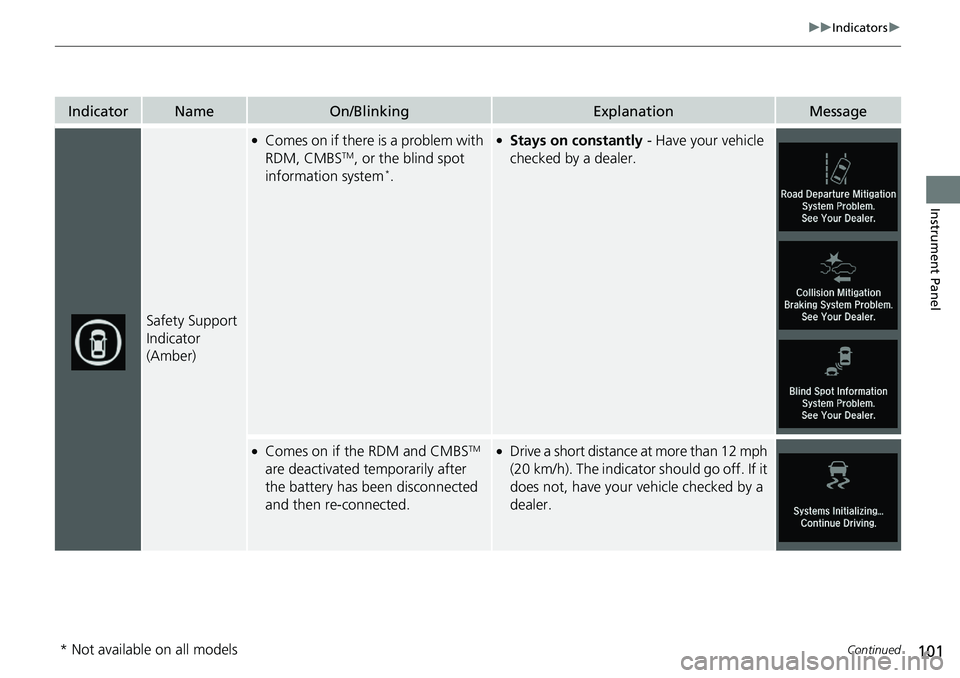

101 uu Indicators u
Continued
Instrument Panel
Indicator Name On/Blinking Explanation Message
Safety Support
Indicator
(Amber) ●
Comes on if there is a problem with
RDM, CMBS TM
, or the blind spot
information system *
. ●
Stays on constantly - Have your vehicle
checked by a dealer.
●
Comes on if the RDM and CMBS TM

are deactivated temporarily after
the battery has been disconnected
and then re-connected. ●
Drive a short distance at more than 12 mph
(20 km/h). The indicator should go off. If it
does not, have your vehicle checked by a
dealer.
* Not available on all models

102 uu Indicators u
Instrument Panel Indicator Name On/Blinking Explanation Message
Safety Support
Indicator
(Amber) ●
Comes on when RDM and/or
CMBS TM
shuts itself off. ●
Indicator may come on temporarily when
passing through an en closed space, such
as tunnel. ●
The area around the radar sensor is
blocked by dirt, mud, etc. Stop your
vehicle in a safe place and wipe the debris
off with a soft cloth. ●
Have your vehicle checked by a dealer if
the indicator does not go off even after
you have cleaned the radar sensor. 2 Collision Mitigation Braking
System TM
(CMBS TM
) P. 510 ●
Stays on - The temperature inside the
camera is too high.
Use the climate control system to cool
down the camera.
The system activates when the
temperature inside the camera cools
down. 2 Front Sensor Camera P. 568
* Not available on all models

103 uu Indicators u
Continued
Instrument Panel
Indicator Name On/Blinking Explanation Message
Safety Support
Indicator
(Amber) ●
Comes on when RDM and/or
CMBS TM
shuts itself off. ●
Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your
vehicle in a safe place and wipe the debris
off with a soft cloth. ●
Have your vehicle checked by a dealer if
the indicator and message are still
displayed even after you have cleaned the
area around the camera. 2 Front Sensor Camera P. 568●
Comes on when mud, snow, or ice
has accumulated in the vicinity of
the blind spot information system
sensor. ●
Comes on while driving - Something
may be interfering wi th the blind spot
information system sensor. Check the
vicinity of the blind spot information
system sensor and remove any obstacles. 2 Blind spot information System *

P. 502●
Indicator may come on temporarily
when the Maximum Load Limit is
exceeded. ●
Make sure the total load is within the
Maximum Load Limit. 2 Maximum Load Limit P. 457
—Models with the blind spot
information system
* Not available on all models

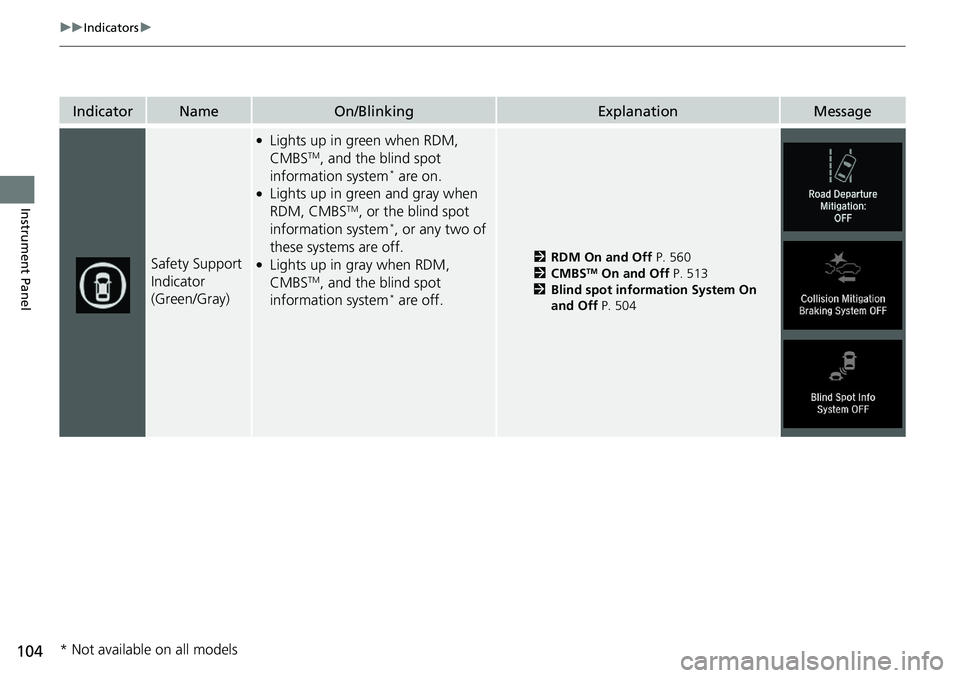

104 uu Indicators u
Instrument Panel Indicator Name On/Blinking Explanation Message
Safety Support
Indicator
(Green/Gray) ●
Lights up in green when RDM,
CMBS TM
, and the blind spot
information system *
are on. ●
Lights up in green and gray when
RDM, CMBS TM
, or the blind spot
information system *
, or any two of
these systems are off. ●
Lights up in gray when RDM,
CMBS TM
, and the blind spot
information system *
are off. 2 RDM On and Off P. 560
2 CMBS TM
On and Off P. 513
2 Blind spot information System On
and Off P. 504
* Not available on all models

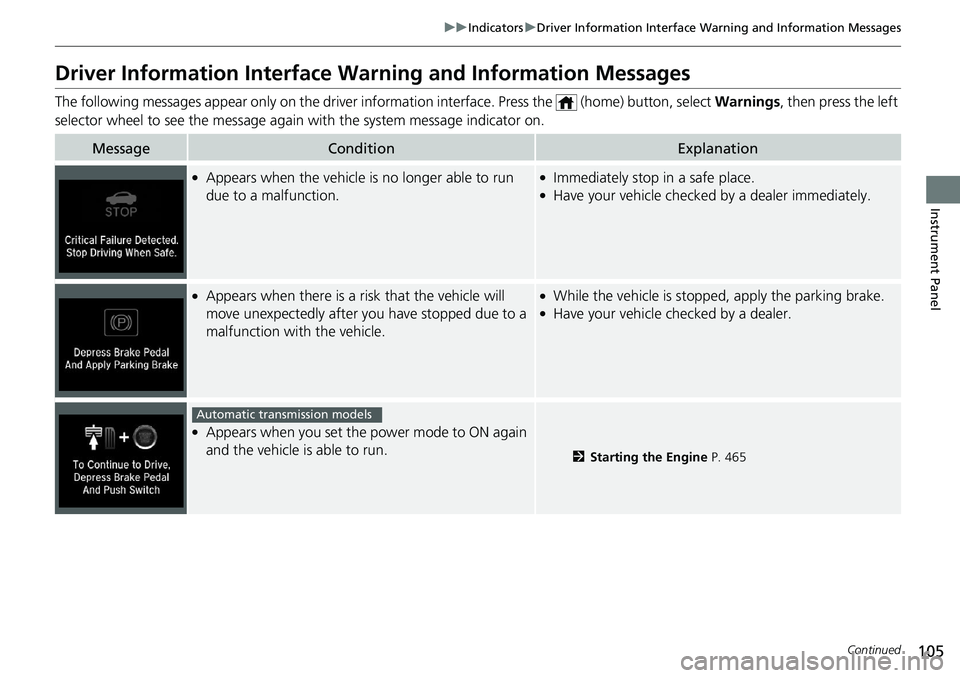

105uu Indicators u Driver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
Driver Information Interface Warning and Information Messages The following messages appear only on the driver info rmation interface. Press the (home) button, select Warnings , then press the left
selector wheel to see the message agai n with the system message indicator on.
Message Condition Explanation●
Appears when the vehicle is no longer able to run
due to a malfunction. ●
Immediately stop in a safe place. ●
Have your vehicle checked by a dealer immediately.●
Appears when there is a ri sk that the vehicle will
move unexpectedly after you have stopped due to a
malfunction with the vehicle. ●
While the vehicle is stoppe d, apply the parking brake. ●
Have your vehicle checked by a dealer.●
Appears when you set the power mode to ON again
and the vehicle is able to run. 2 Starting the Engine P. 465Automatic transmission models

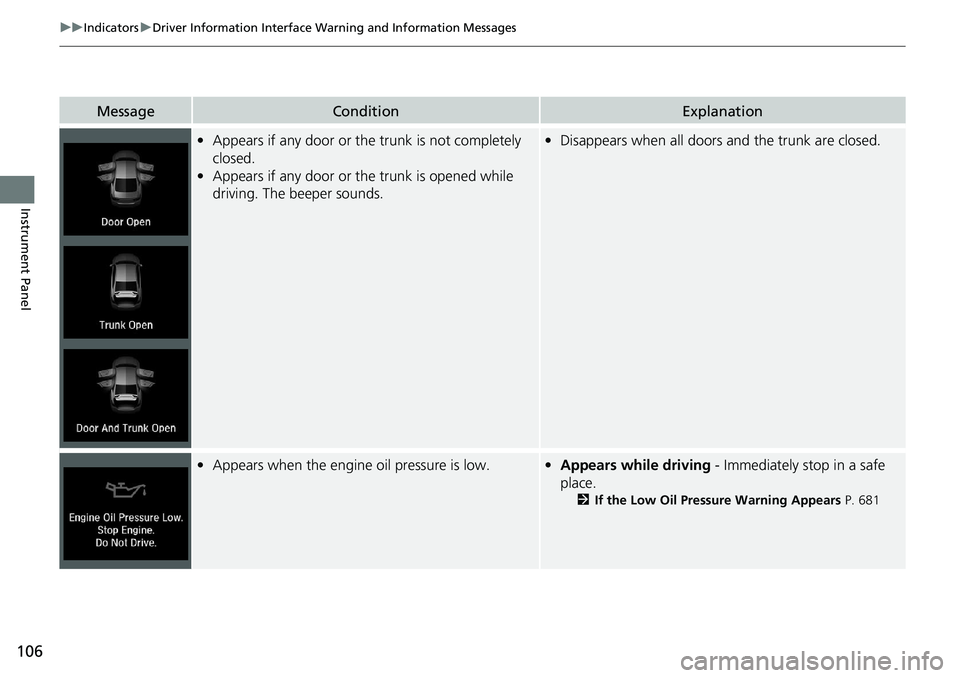

106 uu Indicators u Driver Information Interface Wa rning and Information Messages
Instrument Panel Message Condition Explanation
• Appears if any door or the trunk is not completely
closed.
• Appears if any door or the trunk is opened while
driving. The beeper sounds. • Disappears when all doors and the trunk are closed.
• Appears when the engine oil pressure is low. • Appears while driving - Immediately stop in a safe
place. 2 If the Low Oil Pressure Warning Appears P. 681

107uu Indicators u Driver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
Message Condition Explanation
• Appears if there is a problem with the shutter grille,
and the radiator coolant temperature is too high. • Power output will be reduced, so you may not be able
to accelerate or maintain yo ur current speed. Have your
vehicle checked by a dealer.●
Appears when the washer fluid is low. ●
Refill the washer fluid. 2 Refilling Window Washer Fluid P. 630●
Appears when the schedul ed maintenance is due
soon. ●
Consequently, Maintenance Due Now and
Maintenance Past Due follow. 2 Maintenance Minder Messages on the Driver
Information Interface P. 609●
Appears when there is a pr oblem with the sensor on
the battery. ●
Have your vehicle checked by a dealer. 2 Checking the Battery P. 651●
Appears along with the ba ttery charging system
indicator when the battery is not charging. ●
Turn off the climate control system and rear defogger to
reduce electricity consumption.
2 If the Charging System Indicator Comes On P. 681Models with shutter grille
Canadian models

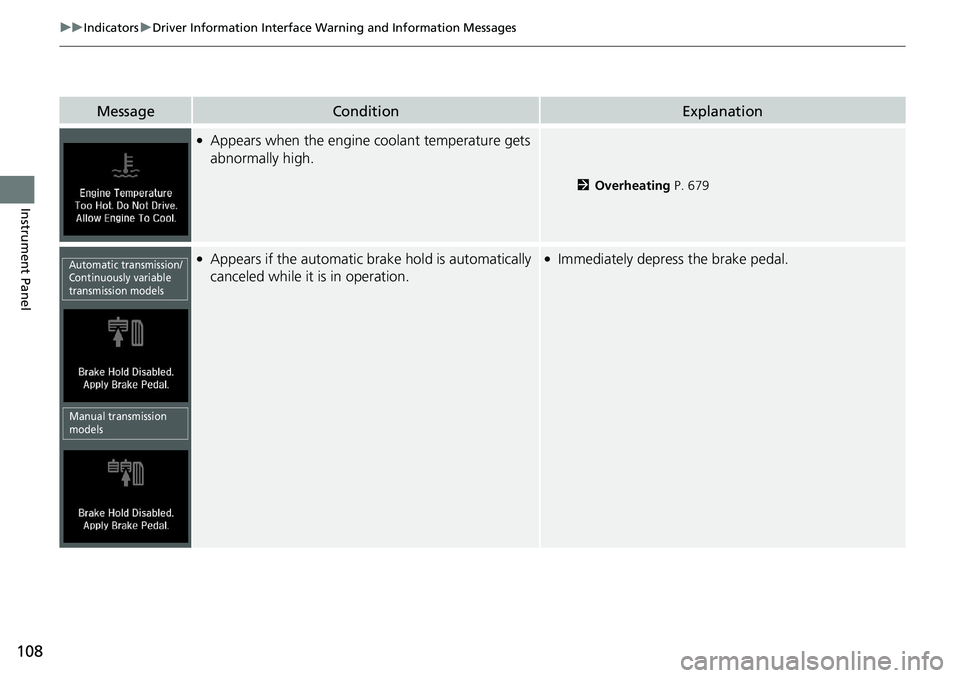

108 uu Indicators u Driver Information Interface Wa rning and Information Messages
Instrument Panel Message Condition Explanation●
Appears when the engine coolant temperature gets
abnormally high. 2 Overheating P. 679●
Appears if the automatic brake hold is automatically
canceled while it is in operation. ●
Immediately depress the brake pedal.Automatic transmission/
Continuously variable
transmission models
Manual transmission
models
