HONDA ACCORD HYBRID 2023 Owners Manual

89
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 90
Gauges and Displays Gauges ............................................ 110
Driver Information Interface (Left Side Area) ............................................. 115
Driver Information Interface (Right Side Area) ............................................. 118
Head-Up Display
*............................ 135
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 89 ページ ２０２２年１０月１３日　木曜日 　午後４時５０分

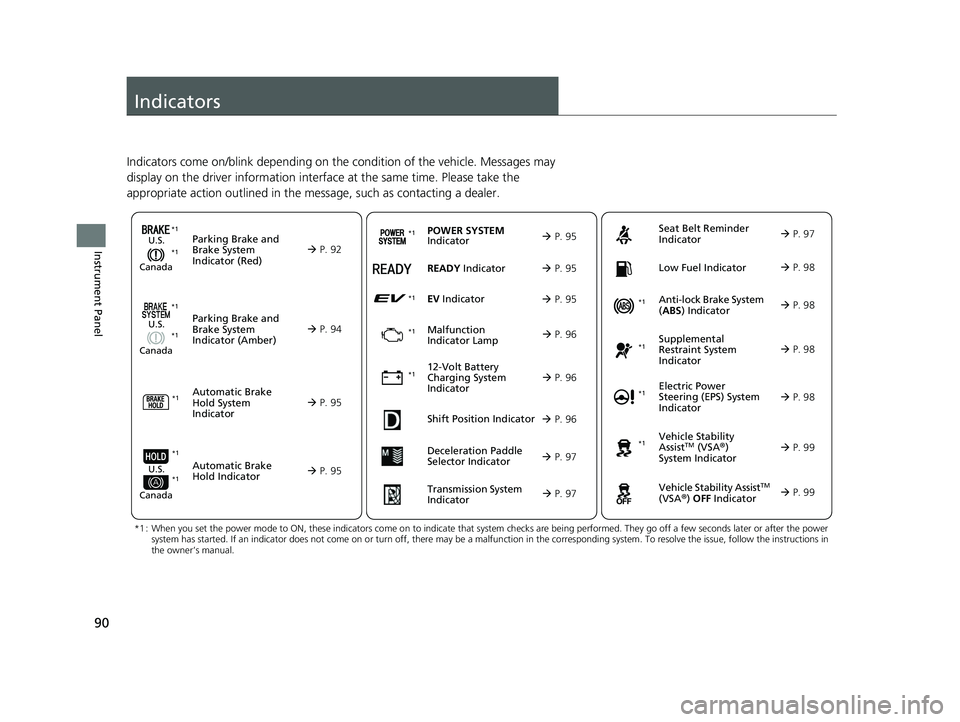

90
Instrument Panel
Indicators
Indicators come on/blink depending on the condition of the vehicle. Messages may
display on the driver information interface at the same time. Please take the
appropriate action outlined in the message, such as contacting a dealer.
Deceleration Paddle
Selector Indicator
P. 97
Parking Brake and
Brake System
Indicator (Red)
Parking Brake and
Brake System
Indicator (Amber)U.S.
Canada
U.S.
Canada
Automatic Brake
Hold System
Indicator
Automatic Brake
Hold IndicatorU.S.
Canada
*1 : When you set the power mode to ON, these indicators come on to indicate that system checks are being performed. They go off a few seconds later or after the power
system has started. If an indicator does not come on or turn off, there may be a malfunction in the corresponding system. To re solve the issue, follow the instructions in
the owner’s manual.
 P. 92
*1
Malfunction
Indicator Lamp
12-Volt Battery
Charging System
Indicator
Seat Belt Reminder
Indicator
Low Fuel Indicator
 P. 94
 P. 95
 P. 95 
P. 9

6
 P. 96
*1
*1
*1
Shift Position Indicator P. 96
Transm
ission System
Indicator 
P. 97
 P. 97
 P. 98
*1
Anti-lock Brake System
(ABS ) Indicator
Vehicle Stability
AssistTM (VSA®)
System Indicator
Vehicle Stability Assist
TM
(VSA®) OFF Indicator
Supplemental
Restraint System
Indicator
Electric Power
Steering (EPS) System
Indicator
*1

P. 98
 P. 98
 P. 99*1
*1
 P. 99
*1 P. 98
*1 *1
*1 *1
POWER SYSTEM
Indicator
READY Indicator
EV Indicator 
P. 95
 P. 95
 P. 9
5*1
*1
23 ACCORD 4D US HEV MAP-3130B6000.book 90 ページ ２０２２年１０月１３日　木曜日 　午後４時５０分

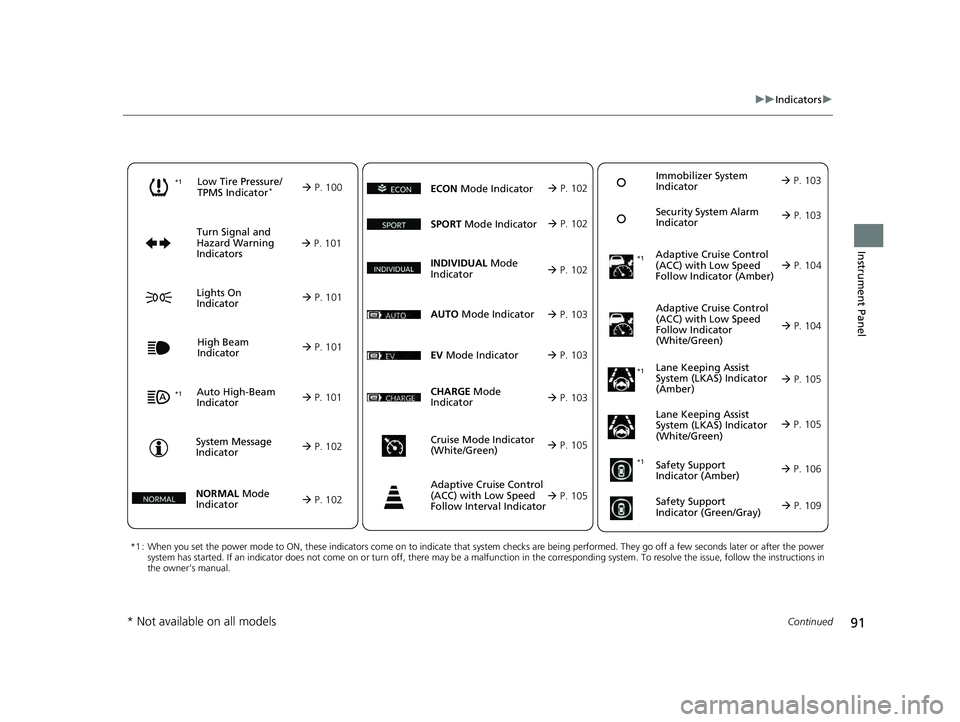

91
uuIndicators u
Continued
Instrument Panel
*1 : When you set the power mode to ON, these indicators come on to indicate that system checks are being performed. They go off a few seconds later or after the power
system has started. If an indicator does not come on or turn off, there may be a malfunction in the corresponding system. To re solve the issue, follow the instructions in
the owner’s manual.
Auto High-Beam
Indicator
Low Tire Pressure/
TPMS Indicator*
Turn Signal and
Hazard Warning
Indicators
Lights On
Indicator
High Beam
Indicator
System Message
Indicator Adaptive Cruise Control
(ACC) with Low Speed
Follow Indicator (Amber)
Lane Keeping Assist
System (LKAS) Indicator
(Amber)
Safety Support
Indicator (Green/Gray)

P. 100
CHARGE Mode
Indica

tor
P. 103

P.

101 
P. 10 4
*1

P. 101
 P. 101

P. 101 Immobilizer System
Indicator

P. 103
S

ecu
rity System Alarm
Indicator 
P. 103
 P. 102 
P. 105
 P. 109
*1
Adaptive Cruise Control
(ACC) with Low Speed
Follow Indicator
(White/Green)
 P. 104
*1
Lane Keeping Assist
System (LKAS) Indicator
(White/Green) 
P. 105
*1Safety Support
Indicator (Amber) 
P. 106
*1
NORMAL Mode
Indicator 
P. 102
AUTO Mode Indicator
 P. 103
EV Mode Indicator  P. 103
SPORT


Mode Indic

ator
P. 102
Cruise Mode Indicator
(White/Green) 
P. 105
Adaptive Cruise Control
(ACC) with Low Speed
Follow Interv al Indicator
P. 105
ECON Mode Indicator
 P. 102 INDIVIDUAL
Mode
Indicator 
P.

102
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 91 ページ ２０２２年１０月１３日　木曜日 　午後４時５０分

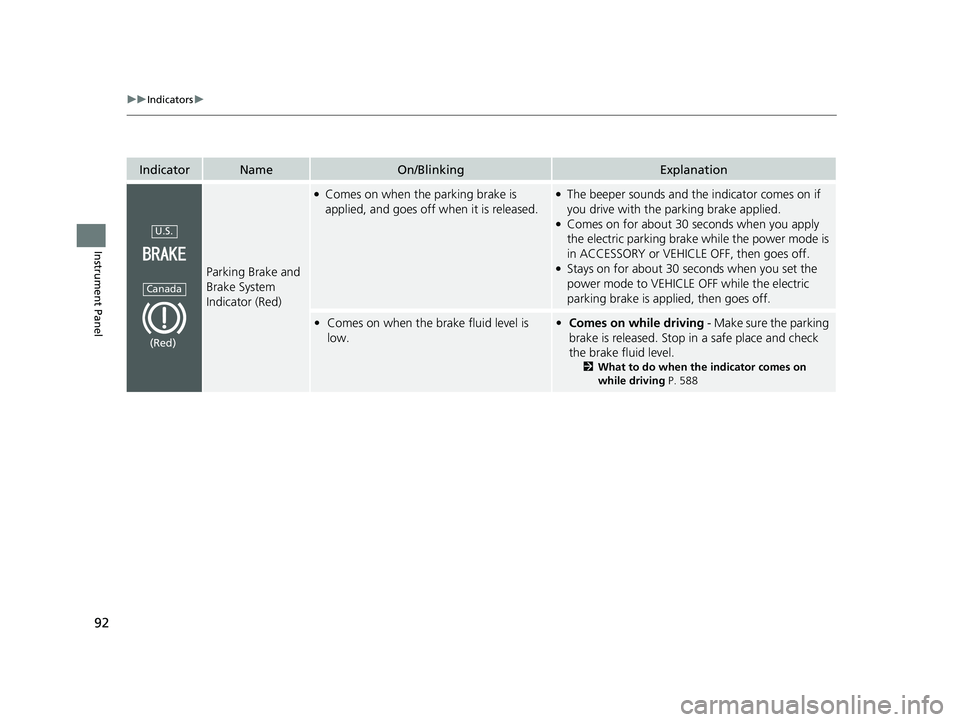

92
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Parking Brake and
Brake System
Indicator (Red)
●Comes on when the parking brake is
applied, and goes off wh en it is released.●The beeper sounds and th e indicator comes on if
you drive with the parking brake applied.
●Comes on for about 30 seconds when you apply
the electric parking brake wh ile the power mode is
in ACCESSORY or VEHICLE OFF, then goes off.
●Stays on for about 30 seconds when you set the
power mode to VEHICLE OFF while the electric
parking brake is applied, then goes off.
• Comes on when the brake fluid level is
low.•Comes on while driving - Make sure the parking
brake is released. Stop in a safe place and check
the brake fluid level.
2 What to do when th e indicator comes on
while driving P. 588
U.S.
Canada
(Red)
23 ACCORD 4D US HEV MAP-3130B6000.book 92 ページ ２０２２年１０月１３日　木曜日 　午後４時５０分

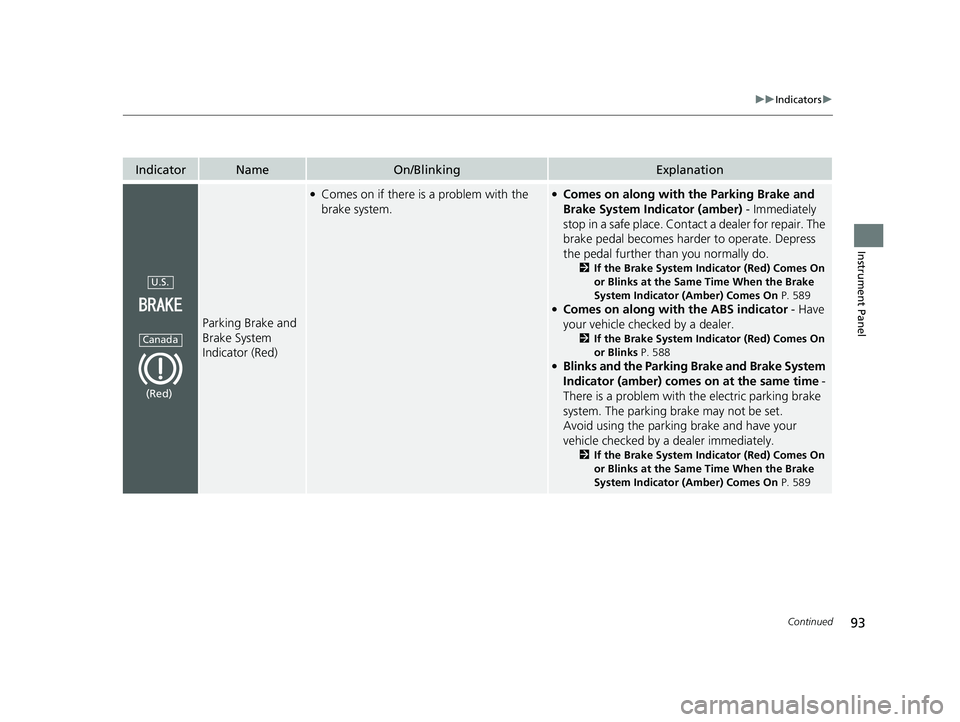

93
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Parking Brake and
Brake System
Indicator (Red)
●Comes on if there is a problem with the
brake system.●Comes on along with the Parking Brake and
Brake System Indicator (amber) - Immediately
stop in a safe place. Contact a dealer for repair. The
brake pedal becomes harder to operate. Depress
the pedal further than you normally do.
2 If the Brake System Indicator (Red) Comes On
or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On P. 589
●Comes on along with the ABS indicator - Have
your vehicle checked by a dealer.
2 If the Brake System Indicator (Red) Comes On
or Blinks P. 588
●Blinks and the Parking Brake and Brake System
Indicator (amber) comes on at the same time -
There is a problem with the electric parking brake
system. The parking brake may not be set.
Avoid using the parking brake and have your
vehicle checked by a dealer immediately.
2 If the Brake System Indicator (Red) Comes On
or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On P. 589
U.S.
Canada
(Red)
23 ACCORD 4D US HEV MAP-3130B6000.book 93 ページ ２０２２年１０月１３日　木曜日 　午後４時５０分

94
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Parking Brake and
Brake System
Indicator (Amber)
●Comes on if there is a problem with a
system related to braking other than the
conventional brake system.●Comes on while driving - Avoid high speeds and
sudden braking. Take the vehicle to a dealer
immediately.
●Comes on if there is a problem with the
electric parking brake system and/or the
automatic brake hold system.●Stays on constantly - Avoid using the parking
brake and have your vehicl e checked by a dealer
immediately.
●Comes on if the brake system is
deactivated temporarily after the 12-volt
battery has been disconnected, then re-
connected.●Drive a short distance at more than 12 mph (20
km/h). The indicator should go off. If it does not,
have your vehicle checked by a dealer.
●Comes on if there is a problem with the
radar sensor.
●Indicator may come on temporarily when
the Maximum Load Limit is exceeded.
●Make sure the total load is within the Maximum
Load Limit.
2 Maximum Load Limit P. 367●Stays on constantly - Have your vehicle checked
by a dealer.
U.S.
Canada
(Amber)
23 ACCORD 4D US HEV MAP-3130B6000.book 94 ページ ２０２２年１０月１３日　木曜日 　午後４時５０分

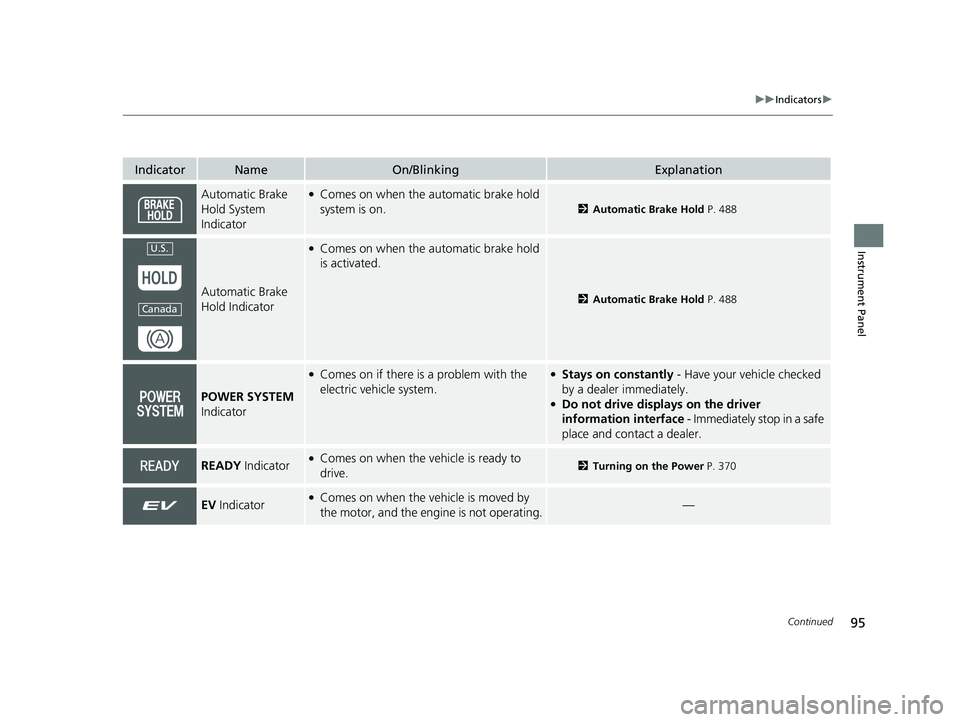

95
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Automatic Brake
Hold System
Indicator●Comes on when the automatic brake hold
system is on.
2Automatic Brake Hold P. 488
Automatic Brake
Hold Indicator
●Comes on when the automatic brake hold
is activated.
2Automatic Brake Hold P. 488
POWER SYSTEM
Indicator
●Comes on if there is a problem with the
electric vehicle system.●Stays on constantly - Have your vehicle checked
by a dealer immediately.
●Do not drive displays on the driver
information interface - Immediately stop in a safe
place and contact a dealer.
READY Indicator●Comes on when the vehicle is ready to
drive.2Turning on the Power P. 370
EV Indicator●Comes on when the vehicle is moved by
the motor, and the engine is not operating.—
U.S.
Canada
23 ACCORD 4D US HEV MAP-3130B6000.book 95 ページ ２０２２年１０月１３日　木曜日 　午後４時５０分

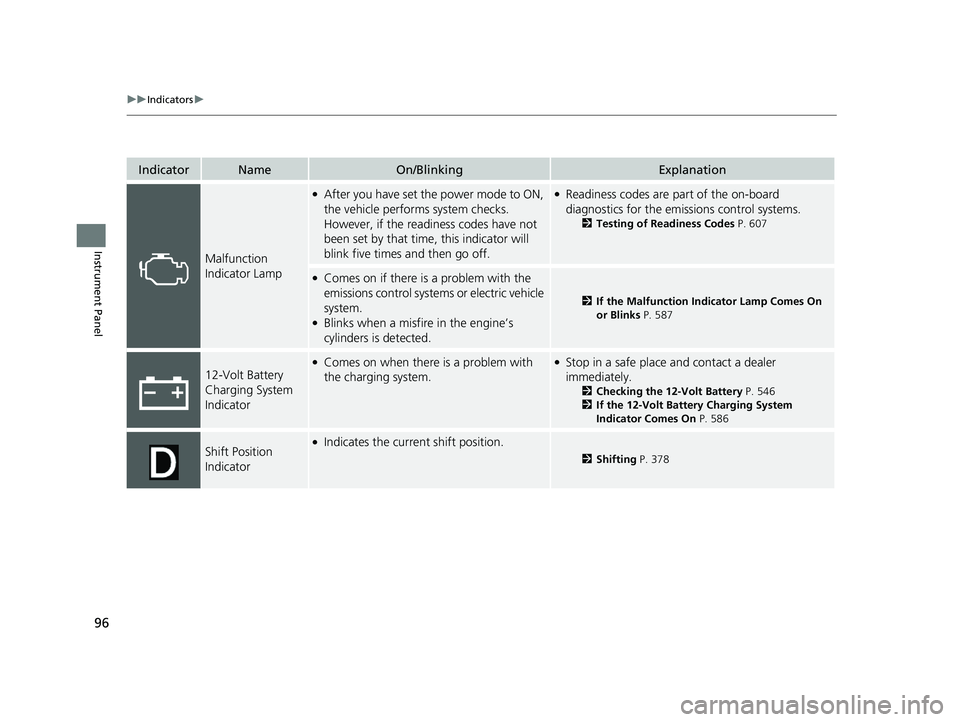

96
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Malfunction
Indicator Lamp
●After you have set the power mode to ON,
the vehicle performs system checks.
However, if the readiness codes have not
been set by that time , this indicator will
blink five times and then go off.●Readiness codes are part of the on-board
diagnostics for the emissions control systems.
2 Testing of Readiness Codes P. 607
●Comes on if there is a problem with the
emissions control systems or electric vehicle
system.
●Blinks when a misfire in the engine’s
cylinders is detected.
2 If the Malfunction Indicator Lamp Comes On
or Blinks P. 587
12-Volt Battery
Charging System
Indicator
●Comes on when there is a problem with
the charging system.●Stop in a safe place and contact a dealer
immediately.
2Checking the 12-Volt Battery P. 546
2 If the 12-Volt Battery Charging System
Indicator Comes On P. 586
Shift Position
Indicator●Indicates the current shift position.
2Shifting P. 378
23 ACCORD 4D US HEV MAP-3130B6000.book 96 ページ ２０２２年１０月１３日　木曜日 　午後４時５０分

97
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Deceleration
Paddle Selector
Indicator
●Comes on when the paddle selector is
pulled.
●Blinks when deceleration does not occur
while pulling the paddle selector.
●Comes on with M when SPORT mode is
selected or pulling the paddle selector.
2 Deceleration Paddle Selector P. 380
Transmission
System Indicator
●Blinks if the transmission system has a
problem.●Have your vehicle checked by a dealer immediately.●Do not drive displays on the driver
information interface - Immediately stop in a safe
place and contact a dealer.
Seat Belt Reminder
Indicator
●Blinks and the beeper sounds for a few
seconds if you are not wearing a seat belt
when you set the power mode to ON, then
the indicator comes on.
●If the front passenger is not wearing a seat
belt, the indicator comes on a few seconds
later.
●Comes on for a while when the rear seat
belt is unfastened while the power mode in
ON.
●Blinks while driving if you and/or any
passenger has not fastened a seat belt. The
beeper sounds and the indicator blinks at
regular intervals.
●The beeper stops and the indicator goes off when
you and the passengers fasten their seat belts.
●Stays on after you and/or the passengers have
fastened the seat belt(s) - A detection error may
have occurred in the sensor. Have your vehicle
checked by a dealer.
2 Seat Belt Reminder P. 48
23 ACCORD 4D US HEV MAP-3130B6000.book 97 ページ ２０２２年１０月１３日　木曜日 　午後４時５０分

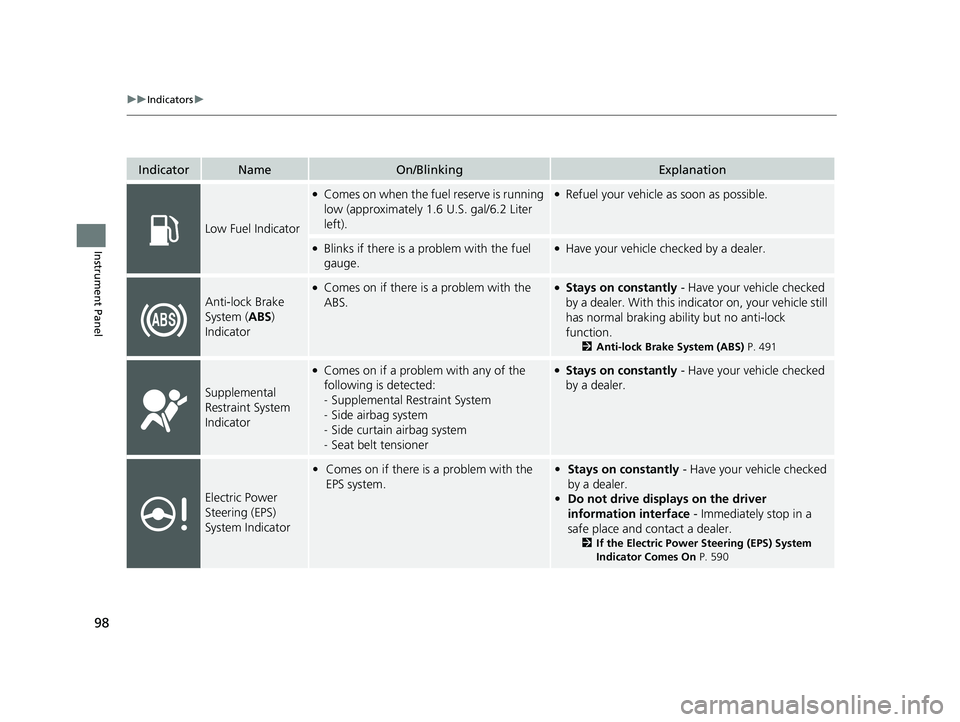

98
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Low Fuel Indicator
●Comes on when the fuel reserve is running
low (approximately 1. 6 U.S. gal/6.2 Liter
left).●Refuel your vehicle as soon as possible.
●Blinks if there is a problem with the fuel
gauge.●Have your vehicle checked by a dealer.
Anti-lock Brake
System ( ABS)
Indicator
●Comes on if there is a problem with the
ABS.●Stays on constantly - Have your vehicle checked
by a dealer. With this indicator on, your vehicle still
has normal braking abil ity but no anti-lock
function.
2 Anti-lock Brake System (ABS) P. 491
Supplemental
Restraint System
Indicator
●Comes on if a problem with any of the
following is detected:
-Supplemental Restraint System
- Side airbag system
- Side curtain airbag system
- Seat belt tensioner●Stays on constantly - Have your vehicle checked
by a dealer.
Electric Power
Steering (EPS)
System Indicator
• Comes on if there is a problem with the
EPS system.•Stays on constantly - Have your vehicle checked
by a dealer.
• Do not drive displays on the driver
information interface - Immediately stop in a
safe place and contact a dealer.
2 If the Electric Power Steering (EPS) System
Indicator Comes On P. 590
23 ACCORD 4D US HEV MAP-3130B6000.book 98 ページ ２０２２年１０月１３日　木曜日 　午後４時５０分
