119
uuGauges and Displays uDriver Information Interface (Right Side Area)
Continued
Instrument Panel

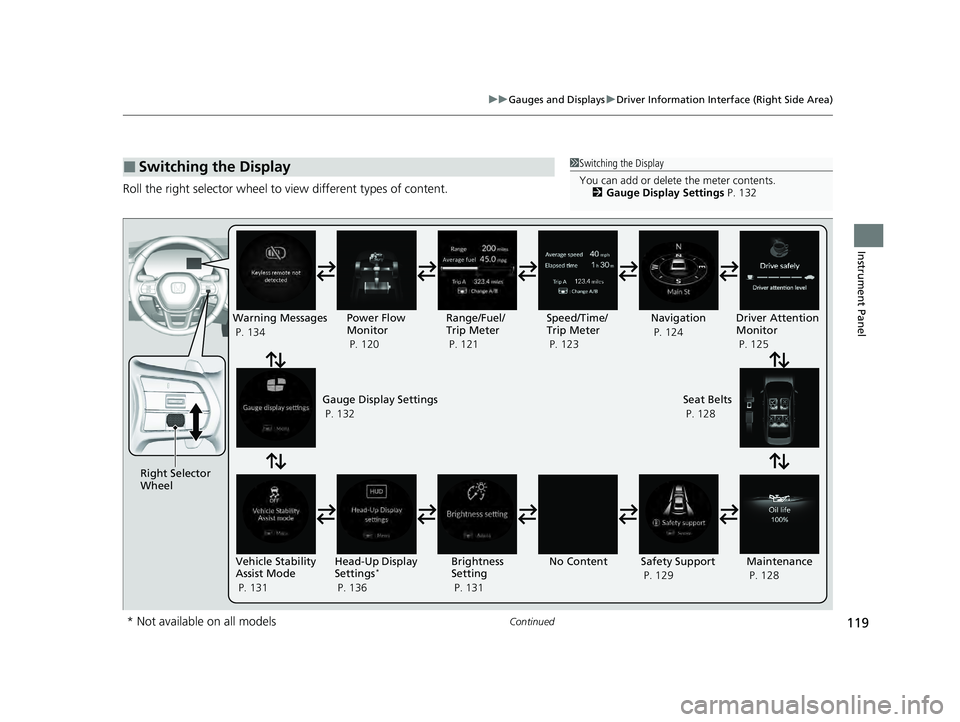

Roll the right selector wheel to view different types of content.
■Switching the Display1Switching the Display
You can add or delete the meter contents.
2 Gauge Display Settings P. 132
Right Selector
WheelWarning Messages
P. 134
Range/Fuel/
Trip Meter
P. 121
No Content Driver Attention
Monitor
P. 125
Navigation
P. 124
Speed/Time/
Trip Meter
P. 123
Gauge Display Settings
P. 132
Maintenance
P. 128
Safety Support
P. 129 Seat Belts
P. 128
Head-Up Display
Settings
*
P. 136 Brightness
Setting
P. 131
Vehicle Stability
Assist Mode
P. 131Power Flow
Monitor
P. 120
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 119 ページ 2022年10月13日 木曜日 午後4時50分
Page 122 of 627

uuGauges and Displays uDriver Information Interface (Right Side Area)
120
Instrument Panel

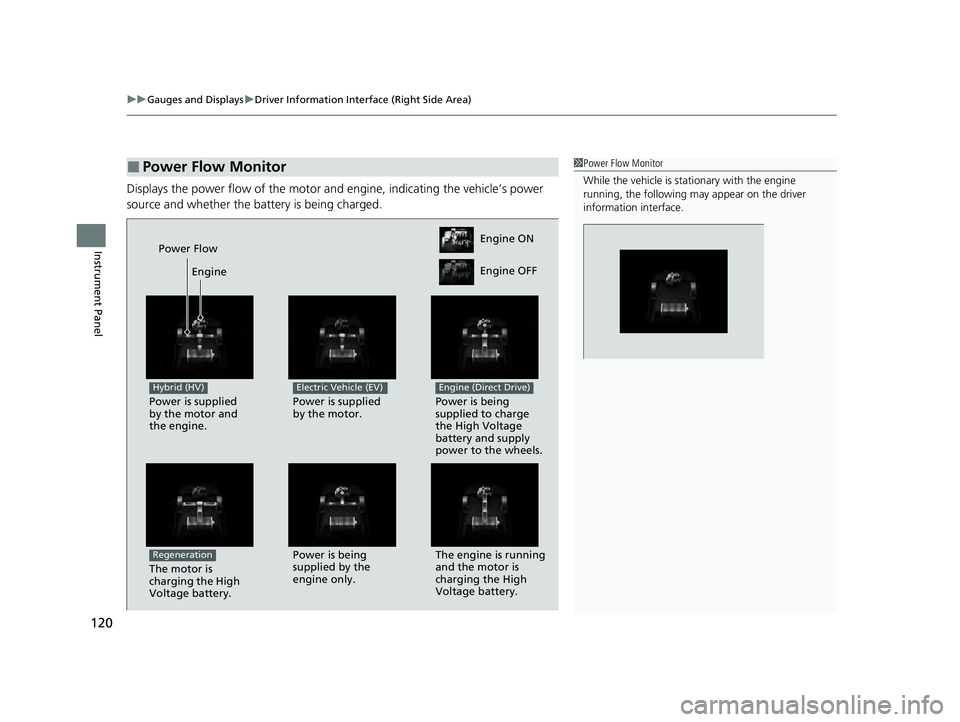

Displays the power flow of the motor an d engine, indicating the vehicle’s power
source and whether the battery is being charged.
■Power Flow Monitor1 Power Flow Monitor
While the vehicle is stat ionary with the engine
running, the following ma y appear on the driver
information interface.
The motor is
charging the High
Voltage battery.
Regeneration
Engine OFF
Power Flow
Power is being
supplied by the
engine only. The engine is running
and the motor is
charging the High
Voltage battery.
Engine ON
Engine
Power is supplied
by the motor and
the engine.
Hybrid (HV)
Power is supplied
by the motor.
Electric Vehicle (EV)
Power is being
supplied to charge
the High Voltage
battery and supply
power to the wheels.
Engine (Direct Drive)
23 ACCORD 4D US HEV MAP-3130B6000.book 120 ページ 2022年10月13日 木曜日 午後4時50分
Page 123 of 627

121
uuGauges and Displays uDriver Information Interface (Right Side Area)
Continued
Instrument Panel
Press the right selector wheel to switch between trip meter A and trip meter B.
■Trip meter
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
Resetting a trip meter
To reset the trip meter, display it, press and hold the right sele ctor wheel, and then
select Reset.
u The trip meter is reset to 0.0.

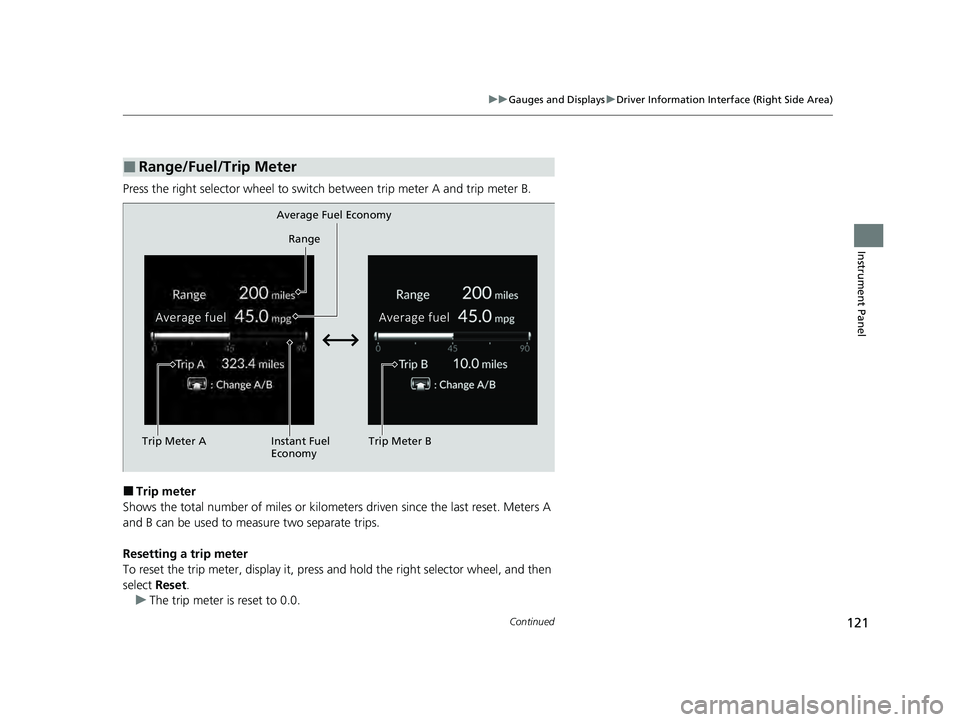

■Range/Fuel/Trip Meter
Trip Meter A Range
Average Fuel Economy
Instant Fuel
Economy Trip Meter B
23 ACCORD 4D US HEV MAP-3130B6000.book 121 ページ 2022年10月13日 木曜日 午後4時50分
Page 124 of 627

uuGauges and Displays uDriver Information Interface (Right Side Area)
122
Instrument Panel

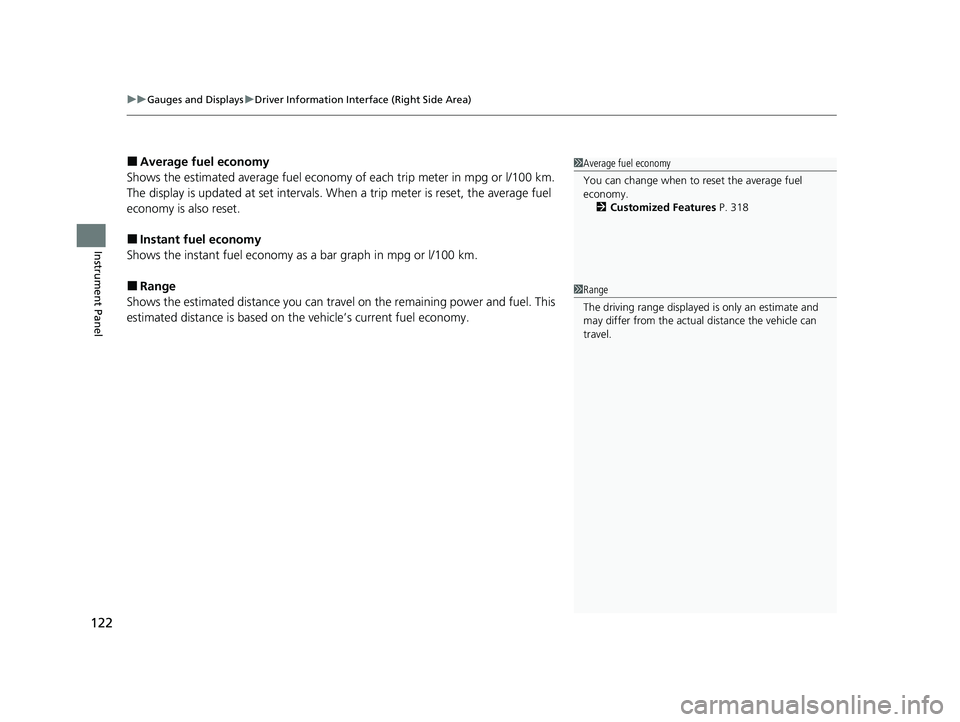

■Average fuel economy
Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. Wh en a trip meter is reset, the average fuel
economy is also reset.
■Instant fuel economy
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
■Range
Shows the estimated distance you can travel on the remaining power and fuel. This
estimated distance is based on the vehicle’s current fuel economy.
1 Average fuel economy
You can change when to reset the average fuel
economy.
2 Customized Features P. 318
1Range
The driving range displayed is only an estimate and
may differ from the actual distance the vehicle can
travel.
23 ACCORD 4D US HEV MAP-3130B6000.book 122 ページ 2022年10月13日 木曜日 午後4時50分
Page 125 of 627

123
uuGauges and Displays uDriver Information Interface (Right Side Area)
Continued
Instrument Panel
Press the right selector wheel to switch between trip meter A and trip meter B.

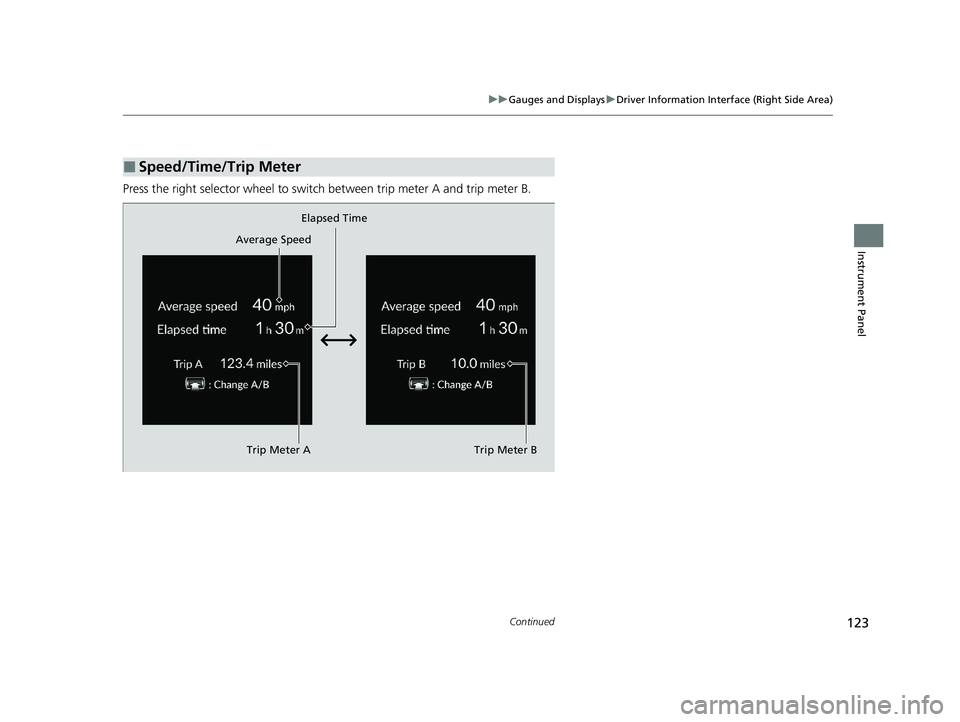

■Speed/Time/Trip Meter
Trip Meter AElapsed Time
Trip Meter B
Average Speed
23 ACCORD 4D US HEV MAP-3130B6000.book 123 ページ 2022年10月13日 木曜日 午後4時50分
Page 126 of 627

uuGauges and Displays uDriver Information Interface (Right Side Area)
124
Instrument Panel

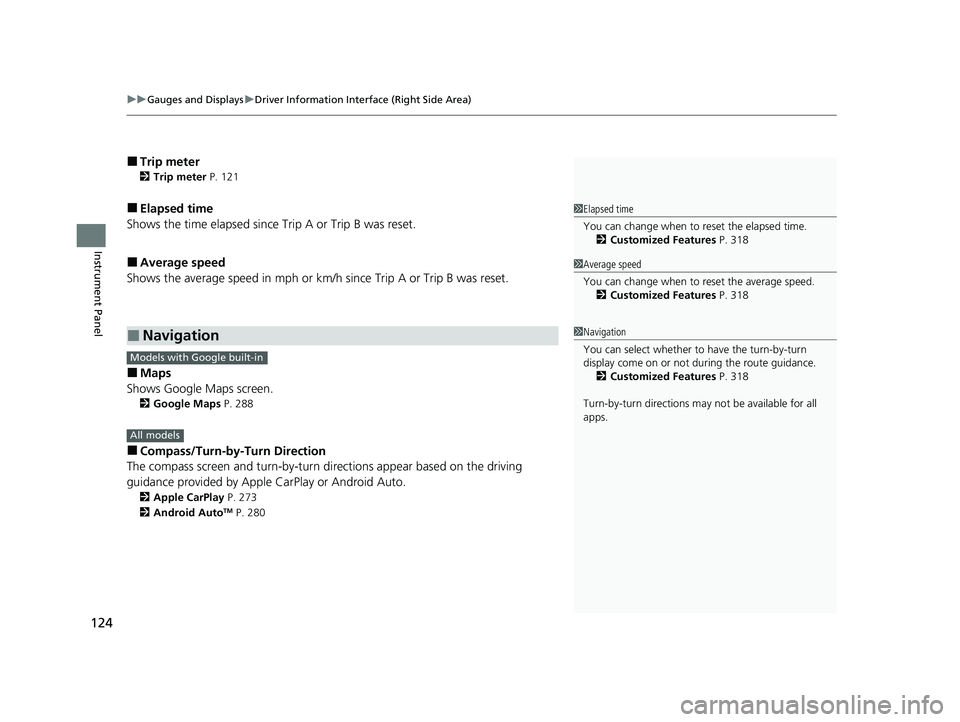

■Trip meter
2 Trip meter P. 121
■Elapsed time
Shows the time elapsed since Trip A or Trip B was reset.
■Average speed
Shows the average speed in mph or km/h since Trip A or Trip B was reset.
■Maps
Shows Google Maps screen.
2 Google Maps P. 288
■Compass/Turn-by- Turn Direction
The compass screen and turn-by-turn di rections appear based on the driving
guidance provided by Apple CarPlay or Android Auto.
2 Apple CarPlay P. 273
2 Android AutoTM P. 280
■Navigation
1Elapsed time
You can change when to reset the elapsed time.
2 Customized Features P. 318
1Average speed
You can change when to reset the average speed.
2 Customized Features P. 318
1Navigation
You can select whether to have the turn-by-turn
display come on or not dur ing the route guidance.
2 Customized Features P. 318
Turn-by-turn directions may not be available for all
apps.
Models with Google built-in
All models
23 ACCORD 4D US HEV MAP-3130B6000.book 124 ページ 2022年10月13日 木曜日 午後4時50分
Page 127 of 627

Continued125
uuGauges and Displays uDriver Information Interface (Right Side Area)
Instrument Panel

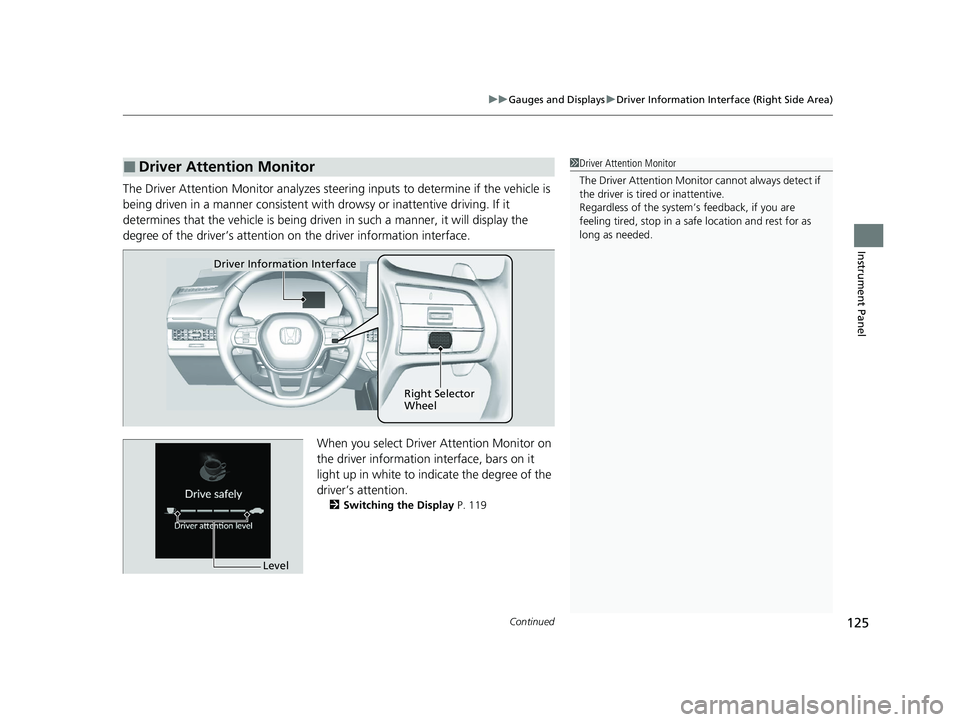

The Driver Attention Monitor an alyzes steering inputs to determine if the vehicle is
being driven in a manner consistent with drowsy or inattentive driving. If it
determines that the vehicle is being driven in such a manner, it will display the
degree of the driver’s attention on the driver information interface.
When you select Driver Attention Monitor on
the driver information in terface, bars on it
light up in white to indicate the degree of the
driver’s attention.
2 Switching the Display P. 119
■Driver Attention Monitor1Driver Attention Monitor
The Driver Attenti on Monitor cannot always detect if
the driver is tired or inattentive.
Regardless of the system’s feedback, if you are
feeling tired, stop in a safe location and rest for as
long as needed.
Driver Information Interface
Right Selector
Wheel
Level
23 ACCORD 4D US HEV MAP-3130B6000.book 125 ページ 2022年10月13日 木曜日 午後4時50分
Page 128 of 627

126
uuGauges and Displays uDriver Information Interface (Right Side Area)
Instrument Panel

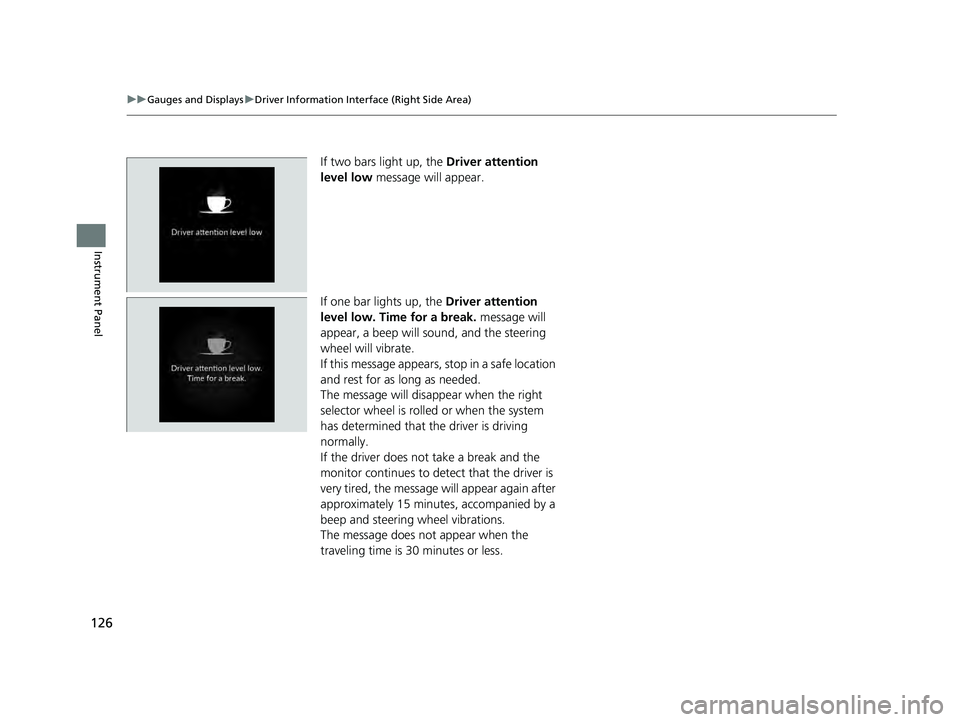

If two bars light up, the Driver attention
level low message will appear.
If one bar lights up, the Driver attention
level low. Time for a break. message will
appear, a beep will sound, and the steering
wheel will vibrate.
If this message appears, stop in a safe location
and rest for as long as needed.
The message will disa ppear when the right
selector wheel is rolled or when the system
has determined that the driver is driving
normally.
If the driver does not take a break and the
monitor continues to dete ct that the driver is
very tired, the message will appear again after
approximately 15 minutes, accompanied by a
beep and steering wheel vibrations.
The message does not appear when the
traveling time is 30 minutes or less.
23 ACCORD 4D US HEV MAP-3130B6000.book 126 ページ 2022年10月13日 木曜日 午後4時50分
Page 129 of 627

Continued127
uuGauges and Displays uDriver Information Interface (Right Side Area)
Instrument Panel

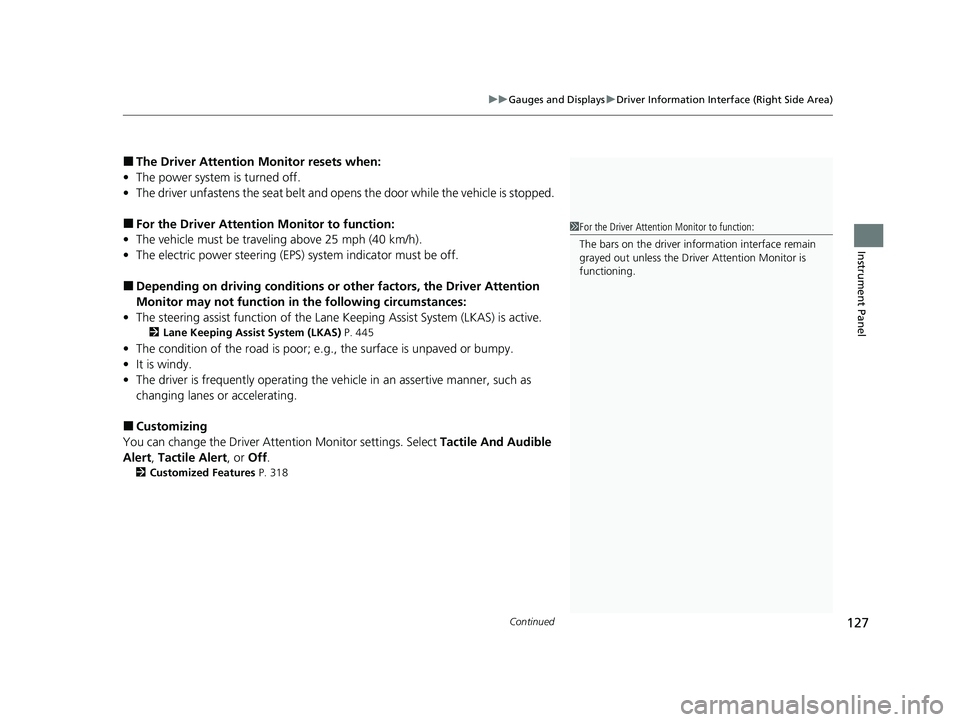

■The Driver Attention Monitor resets when:
• The power system is turned off.
• The driver unfastens the seat belt and ope ns the door while the vehicle is stopped.
■For the Driver Attention Monitor to function:
• The vehicle must be traveling above 25 mph (40 km/h).
• The electric power steering (EPS) system indicator must be off.
■Depending on driving conditions or other factors, the Driver Attention
Monitor may not function in the following circumstances:
• The steering assist function of the Lane Keeping Assist System (LKAS) is active.
2Lane Keeping Assist System (LKAS) P. 445
•The condition of the road is poor; e. g., the surface is unpaved or bumpy.
• It is windy.
• The driver is frequently op erating the vehicle in an assertive manner, such as
changing lanes or accelerating.
■Customizing
You can change the Driver Attention Monitor settings. Select Tactile And Audible
Alert , Tactile Alert , or Off.
2Customized Features P. 318
1For the Driver Attention Monitor to function:
The bars on the driver information interface remain
grayed out unless the Driv er Attention Monitor is
functioning.
23 ACCORD 4D US HEV MAP-3130B6000.book 127 ページ 2022年10月13日 木曜日 午後4時50分
Page 130 of 627

128
uuGauges and Displays uDriver Information Interface (Right Side Area)
Instrument Panel

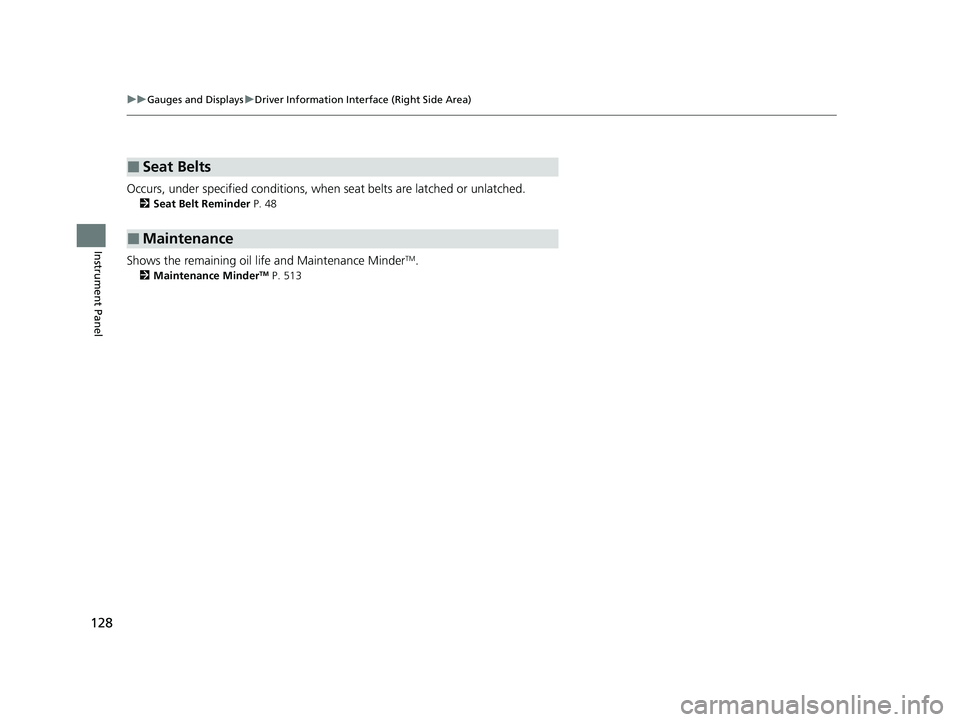

Occurs, under specified conditions, when seat belts are latched or unlatched.
2Seat Belt Reminder P. 48
Shows the remaining oil life and Maintenance MinderTM.
2Maintenance MinderTM P. 513
■Seat Belts
■Maintenance
