HONDA ACCORD HYBRID 2023 User Guide

9

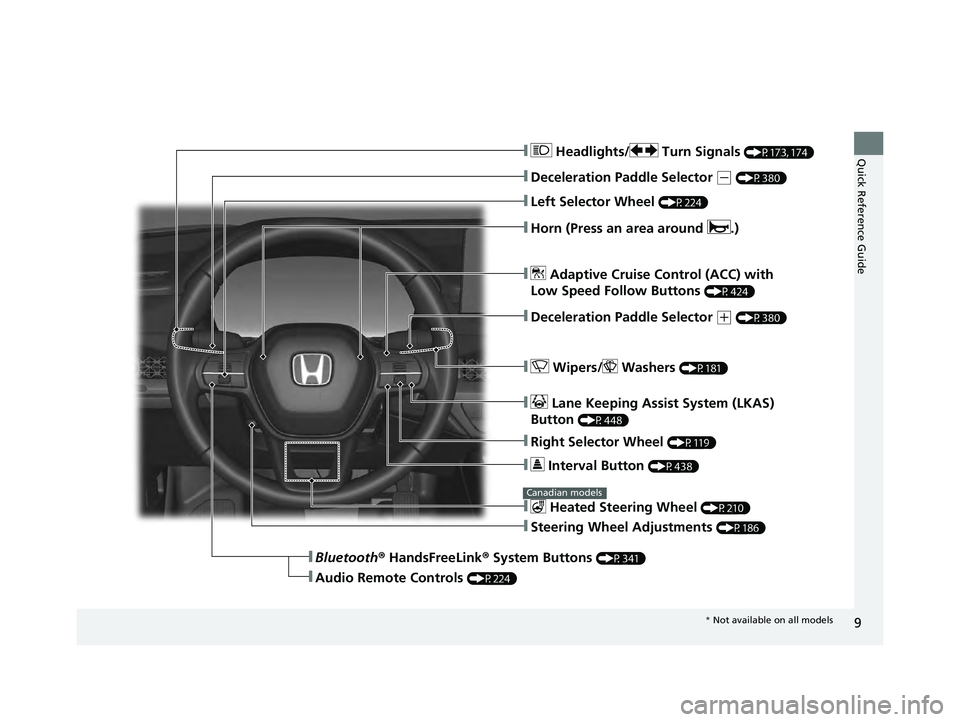

Quick Reference Guide❚ Headlights/ Turn Signals (P173, 174)
❚Deceleration Paddle Selector (- (P380)
❚Left Selector Wheel (P224)
❚ Wipers/ Washers (P181)
❚ Lane Keeping Assist System (LKAS)
Button
(P448)
❚ Interval Button (P438)
❚Steering Wheel Adjustments (P186)
❚ Heated Steering Wheel (P210)
$BOBEJBO
NPEFMT
❚Deceleration Paddle Selector (+ (P380)
❚Horn (Press an area around .)
❚ Adaptive Cruise Control (ACC) with
Low Speed Follow Buttons
(P424)
❚Audio Remote Controls (P224)
❚Bluetooth ® HandsFreeLink ® System Buttons (P341)
❚Right Selector Wheel (P119)
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 9 ページ ２０２２年１０月１３日　木曜日　 午後４時５０分

Visual Index
10

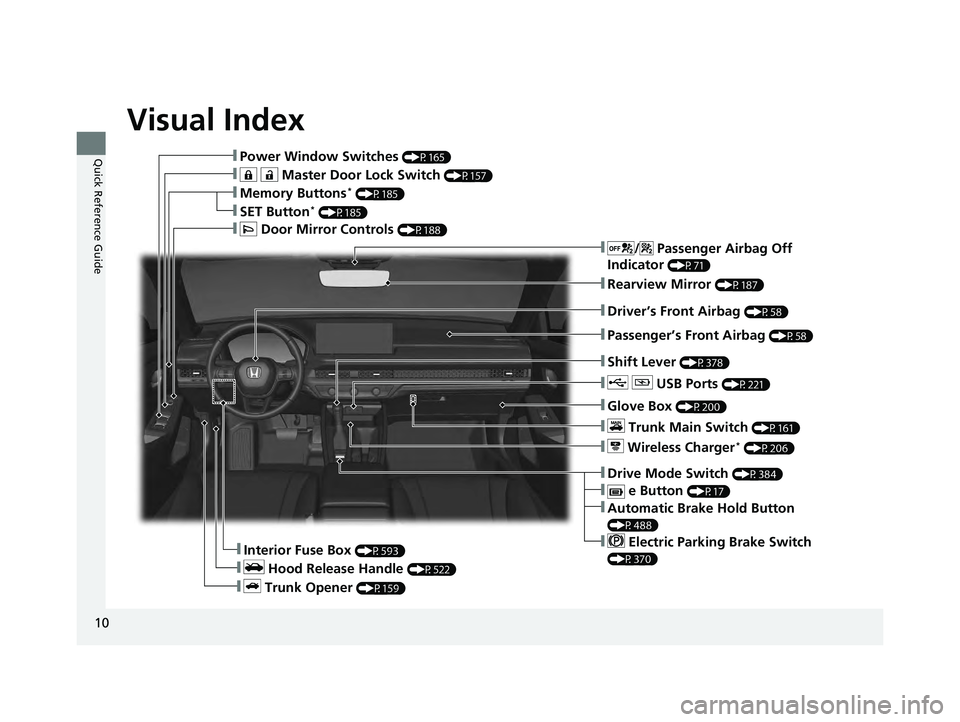

Quick Reference Guide❚Power Window Switches (P165)
❚ Master Door Lock Switch (P157)
❚Memory Buttons* (P185)
❚SET Button* (P185)
❚ Door Mirror Controls (P188)
❚/ Passenger Airbag Off
Indicator
(P71)
❚Rearview Mirror (P187)
❚Driver’s Front Airbag (P58)
❚Passenger’s Front Airbag (P58)
❚Shift Lever (P378)
❚ USB Ports (P221)
❚Glove Box (P200)
❚ Trunk Main Switch (P161)
❚ Wireless Charger* (P206)
❚Drive Mode Switch (P384)
❚ e Button (P17)
❚Automatic Brake Hold Button
(P488)
❚ Electric Parking Brake Switch
(P370)❚Interior Fuse Box (P593)
❚ Hood Release Handle (P522)
❚ Trunk Opener (P159)
23 ACCORD 4D US HEV MAP-3130B6000.book 10 ページ ２０２２年１０月１３日　木曜日 　午後４時５０分

11

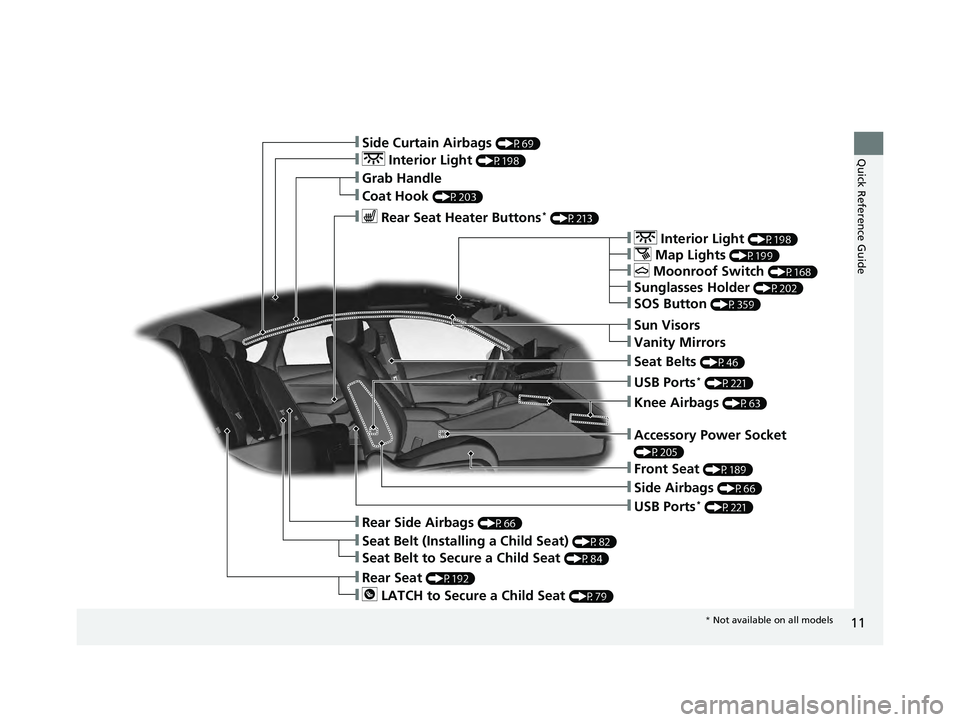

Quick Reference Guide❚Side Curtain Airbags (P69)
❚ Interior Light (P198)
❚Grab Handle
❚Rear Seat (P192)
❚ Rear Seat Heater Buttons* (P213)
❚Rear Side Airbags (P66)
❚Side Airbags (P66)
❚Seat Belt to Secure a Child Seat (P84)
❚Seat Belt (Installing a Child Seat) (P82)
❚ LATCH to Secure a Child Seat (P79)
❚USB Ports* (P221)
❚Front Seat (P189)
❚USB Ports* (P221)
❚Seat Belts (P46)
❚Sun Visors
❚Knee Airbags (P63)
❚Vanity Mirrors
❚ Interior Light (P198)
❚ Map Lights (P199)
❚ Moonroof Switch (P168)
❚Sunglasses Holder (P202)
❚SOS Button (P359)
❚Coat Hook (P203)
❚Accessory Power Socket
(P205)
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 11 ページ ２０２２年１０月１３日　木曜日 　午後４時５０分

Visual Index
12
Quick Reference Guide

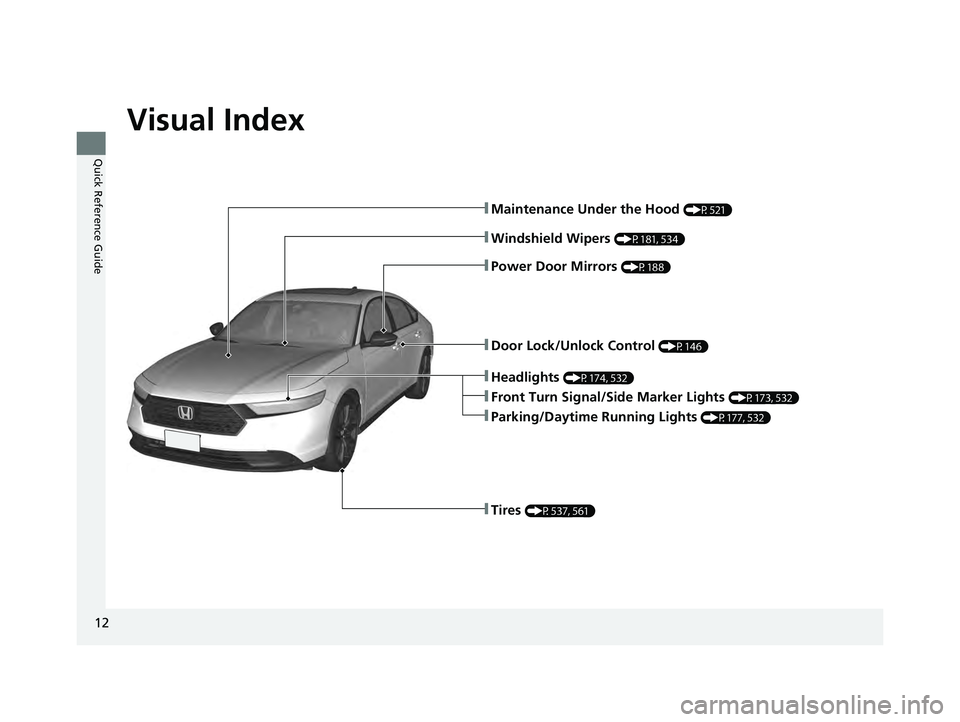

❚Maintenance Under the Hood (P521)
❚Windshield Wipers (P181, 534)
❚Door Lock/Unlock Control (P146)
❚Power Door Mirrors (P188)
❚Front Turn Signal/Side Marker Lights (P173, 532)
❚Tires (P537, 561)
❚Headlights (P174, 532)
❚Parking/Daytime Running Lights (P177, 532)
23 ACCORD 4D US HEV MAP-3130B6000.book 12 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

13
Quick Reference Guide

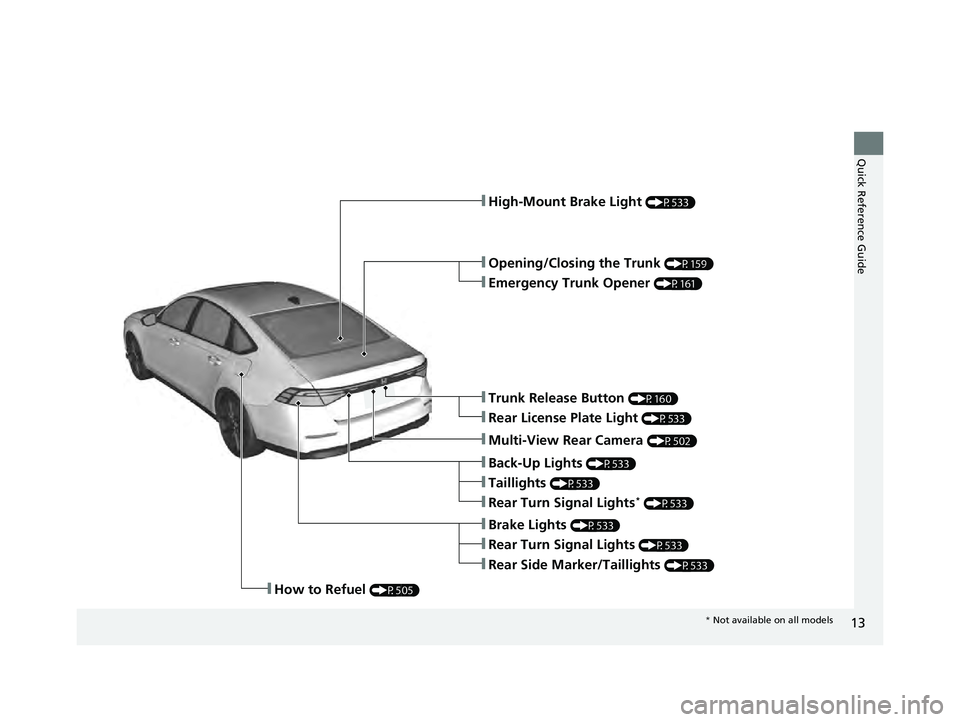

❚High-Mount Brake Light (P533)
❚Emergency Trunk Opener (P161)
❚Opening/Closing the Trunk (P159)
❚Trunk Release Button (P160)
❚Brake Lights (P533)
❚Rear Turn Signal Lights (P533)
❚How to Refuel (P505)
❚Multi-View Rear Camera (P502)
❚Rear License Plate Light (P533)
❚Rear Side Marker/Taillights (P533)
❚Back-Up Lights (P533)
❚Taillights (P533)
❚Rear Turn Signal Lights* (P533)
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 13 ページ ２０２２年１０月１３日　木曜日 　午後４時５０分

14
Quick Reference Guide

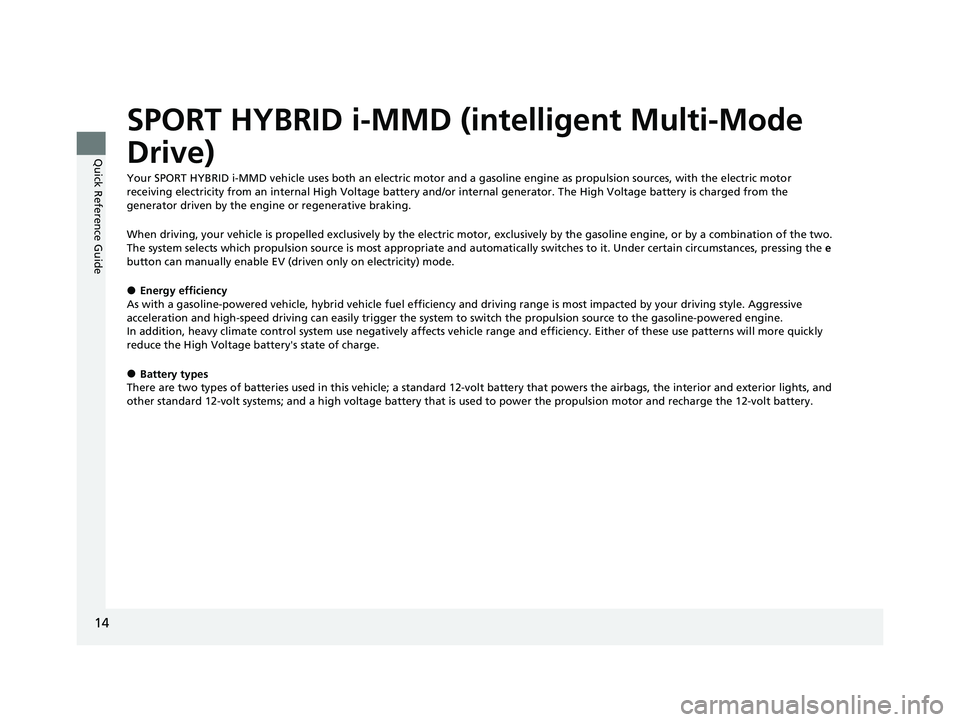

SPORT HYBRID i-MMD (intelligent Multi-Mode
Drive)
Your SPORT HYBRID i-MMD vehicle uses both an electric motor and a gasoline engine as propulsion sources, with the electric motor
receiving electricity from an internal High Voltage battery and/or internal generator. The High Voltage battery is charged from the
generator driven by the engine or regenerative braking.
When driving, your vehicle is propelled exclusively by the elec tric motor, exclusively by the gasoline engine, or by a combination of the two.
The system selects which propulsion source is most appropriate and automatically switches to it. Under certain circumstances, p ressing the e
button can manually enable EV (driven only on electricity) mode.
●Energy efficiency
As with a gasoline-powered vehicle, hybrid vehicle fuel efficiency and driving range is most impacted by your driving style. Aggressive
acceleration and high-speed driving can easily trigger the system to switch the propulsion source to the gasoline-powered engin e.
In addition, heavy climate control system us e negatively affects vehicle range and efficiency. Either of these use patterns wil l more quickly
reduce the High Voltage battery's state of charge.
●Battery types
There are two types of batteries used in this vehicle; a standa rd 12-volt battery that powers the airbags, the interior and exterior lights, and
other standard 12-volt systems; and a high voltage battery that is used to power the propulsion motor and recharge the 12-volt battery.
23 ACCORD 4D US HEV MAP-3130B6000.book 14 ページ ２０２２年１０月１３日　木曜日 　午後４時５０分

15
Quick Reference Guide

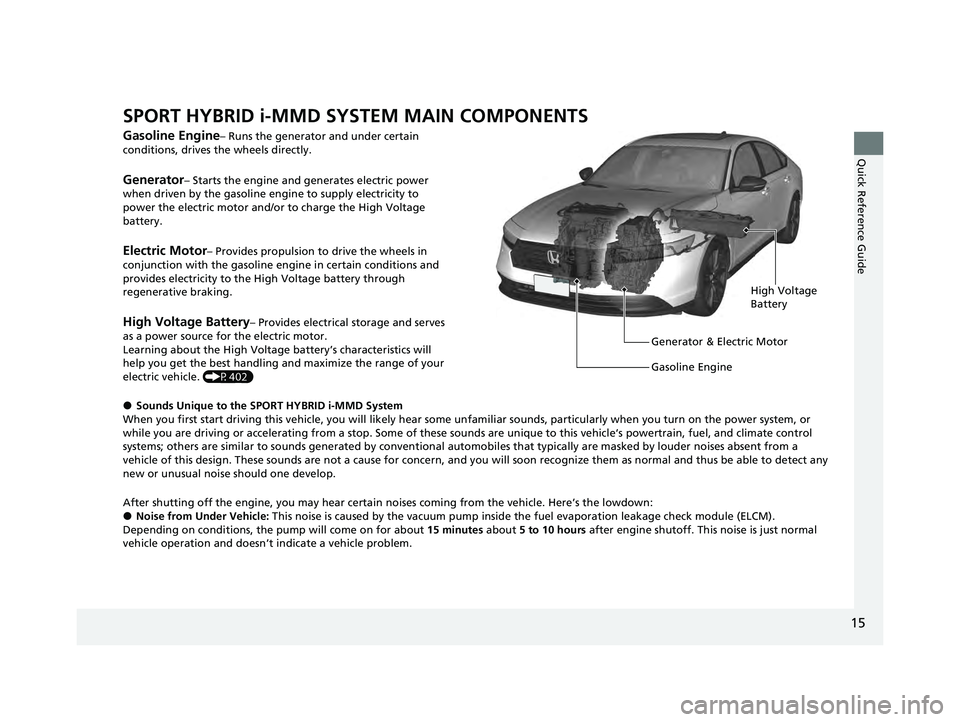

SPORT HYBRID i-MMD SYSTEM MAIN COMPONENTS
Gasoline Engine– Runs the generator and under certain
conditions, drives the wheels directly.
Generator– Starts the engine and generates electric power
when driven by the gasoline engi ne to supply electricity to
power the electric motor and/or to charge the High Voltage
battery.
Electric Motor– Provides propulsion to drive the wheels in
conjunction with the gasoline engine in certain conditions and
provides electricity to the High Voltage battery through
regenerative braking.
High Voltage Battery– Provides electrical storage and serves
as a power source for the electric motor.
Learning about the High Voltage battery’s characteristics will
help you get the best handling and maximize the range of your
electric vehicle. (P402)
●Sounds Unique to the SPORT HYBRID i-MMD System
When you first start driving this vehicle, you will likely hear so me unfamiliar sounds, particularly when you turn on the power system, or
while you are driving or accelerating from a stop. Some of thes e sounds are unique to this vehicle‘s powertrain, fuel, and climate control
systems; others are similar to sounds generated by conventional automobile s that typically are masked by louder noises absent from a
vehicle of this design. These sounds are not a cause for concern, and you will soon recognize them as normal and thus be able to detect any
new or unusual noise should one develop.
After shutting off the engine, you ma y hear certain noises coming from the vehicle. Here’s the lowdown:
●Noise from Under Vehicle: This noise is caused by the vacuum pump inside the fuel evaporation leakage check module (ELCM).
Depending on conditions, the pump will come on for about 15 minutes about 5 to 10 hours after engine shutoff. This noise is just normal
vehicle operation and doesn’t indicate a vehicle problem.
High Voltage
Battery
Generator & Electric Motor
Gasoline Engine
23 ACCORD 4D US HEV MAP-3130B6000.book 15 ページ ２０２２年１０月１３日　木曜日 　午後４時５０分

16
Quick Reference Guide

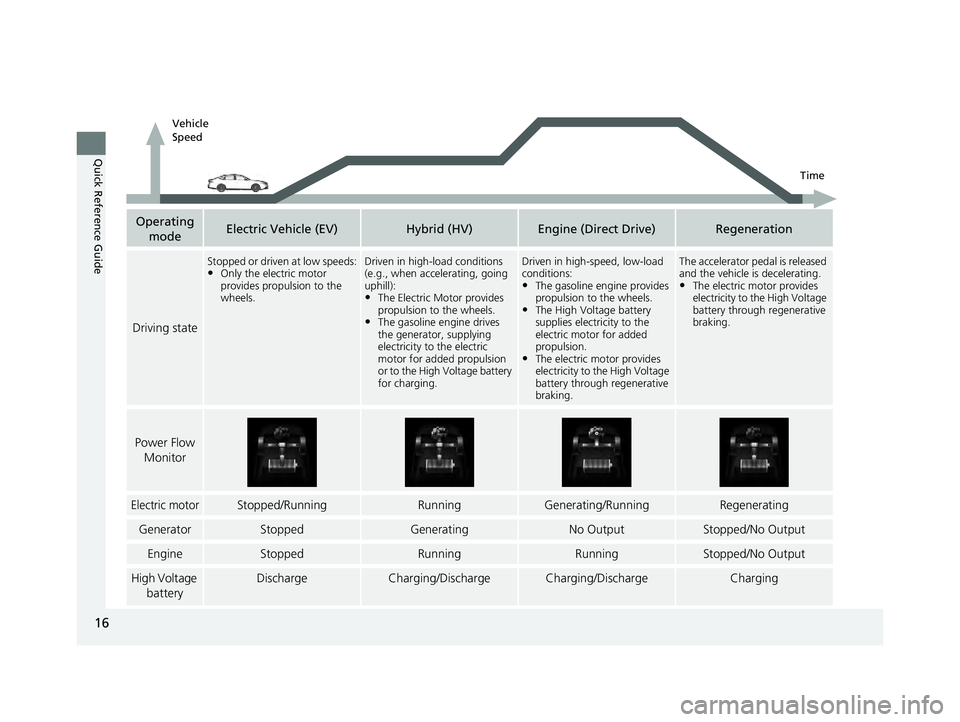

Operating modeElectric Vehicle (EV)Hybrid (HV)Engine (Direct Drive)Regeneration
Driving state
Stopped or driven at low speeds:•Only the electric motor
provides propulsion to the
wheels.Driven in high-load conditions
(e.g., when accelerating, going
uphill):
•The Electric Motor provides
propulsion to the wheels.
•The gasoline e ngine drives
the generator, supplying
electricity to the electric
motor for added propulsion
or to the High Voltage battery
for charging.
Driven in high-speed, low-load
conditions:
•The gasoline engine provides
propulsion to the wheels.
•The High Voltage battery
supplies electricity to the
electric motor for added
propulsion.
•The electric motor provides
electricity to the High Voltage
battery through regenerative
braking.
The accelerator pedal is released
and the vehicle is decelerating.
•The electric motor provides
electricity to the High Voltage
battery through regenerative
braking.
Power Flow
Monitor
Electric motorStopped/RunningRunningGenerating/RunningRegenerating
GeneratorStoppedGeneratingNo OutputStopped/No Output
EngineStoppedRunningRunningStopped/No Output
High Voltage
batteryDischargeCharging/DischargeCharging/DischargeCharging
Vehicle
Speed
Time
23 ACCORD 4D US HEV MAP-3130B6000.book 16 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

17
Quick Reference Guide

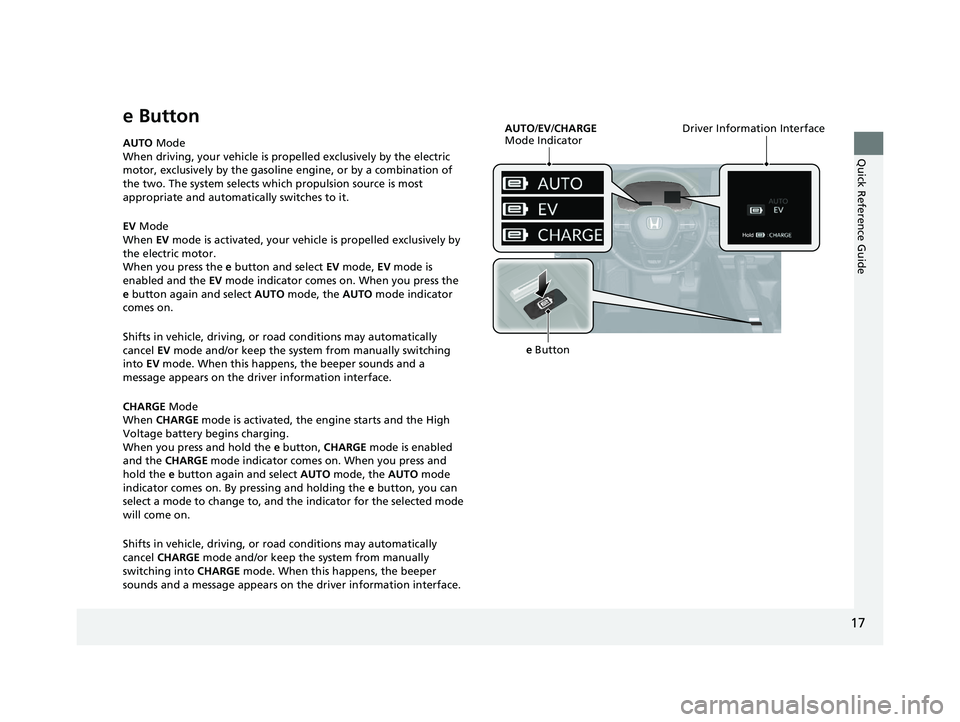

e Button
AUTO Mode
When driving, your vehicle is pr opelled exclusively by the electric
motor, exclusively by the gasoline engine, or by a combination of
the two. The system selects which propulsion source is most
appropriate and automatically switches to it.
EV Mode
When EV mode is activated, your vehicle is propelled exclusively by
the electric motor.
When you press the e button and select EV mode, EV mode is
enabled and the EV mode indicator comes on. When you press the
e button again and select AUTO mode, the AUTO mode indicator
comes on.
Shifts in vehicle, driving, or road conditions may automatically
cancel EV mode and/or keep the system from manually switching
into EV mode. When this happens, the beeper sounds and a
message appears on the driv er information interface.
CHARGE Mode
When CHARGE mode is activated, the engine starts and the High
Voltage battery begins charging.
When you press and hold the e button, CHARGE mode is enabled
and the CHARGE mode indicator comes on. When you press and
hold the e button again and select AUTO mode, the AUTO mode
indicator comes on. By pressing and holding the e button, you can
select a mode to change to, and the indicator for the selected mode
will come on.
Shifts in vehicle, driving, or road conditions may automatically
cancel CHARGE mode and/or keep the system from manually
switching into CHARGE mode. When this happens, the beeper
sounds and a message appears on the driver information interface.
AUTO /EV/CHARGE
Mode Indicator Driver Information Interface
e Button
23 ACCORD 4D US HEV MAP-3130B6000.book 17 ページ ２０２２年１０月１３日　木曜日
　午後４時５０分

18
Quick Reference Guide

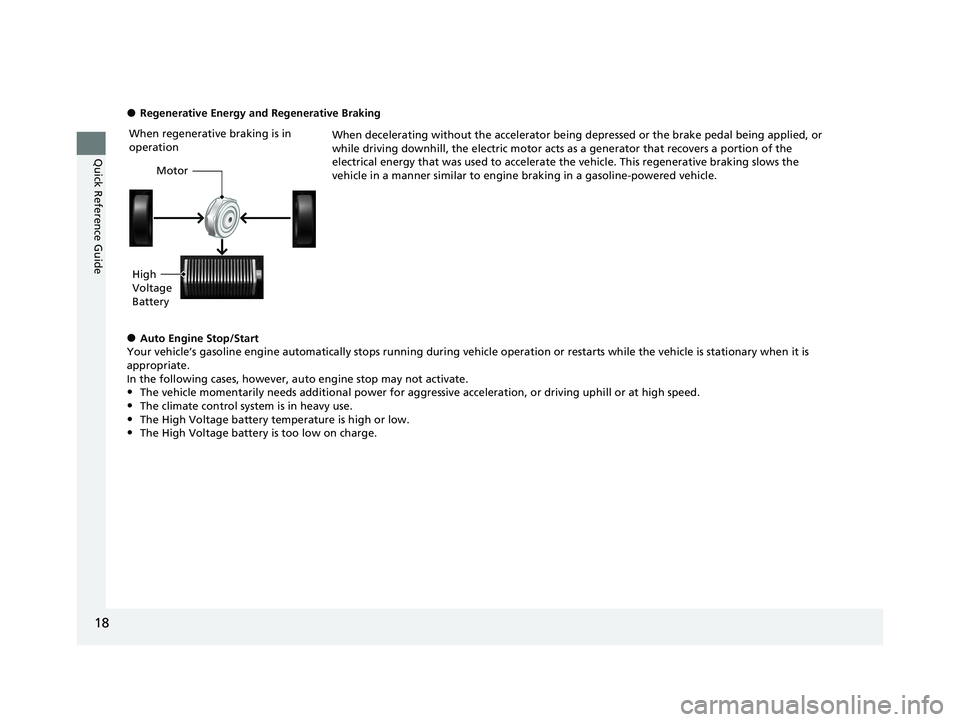

●Regenerative Energy and Regenerative BrakingWhen decelerating without the accelerator being depressed or the brake pedal being applied, or
while driving downhill, the electric motor acts as a generator that recovers a portion of the
electrical energy that was used to accelerate th e vehicle. This regenerative braking slows the
vehicle in a manner similar to engine braking in a gasoline-powered vehicle.
●Auto Engine Stop/Start
Your vehicle’s gasoline engine automatically stops running duri ng vehicle operation or restarts while the vehicle is stationary when it is
appropriate.
In the following cases, however, au to engine stop may not activate.
•The vehicle momentarily needs additional power for aggressive acceleration, or driving uphill or at high speed.•The climate control system is in heavy use.
•The High Voltage battery temperature is high or low.
•The High Voltage battery is too low on charge.
When regenerative braking is in
operation
Motor
High
Voltage
Battery
