HONDA ACCORD HYBRID 2023 Owner's Manual

19
Quick Reference Guide

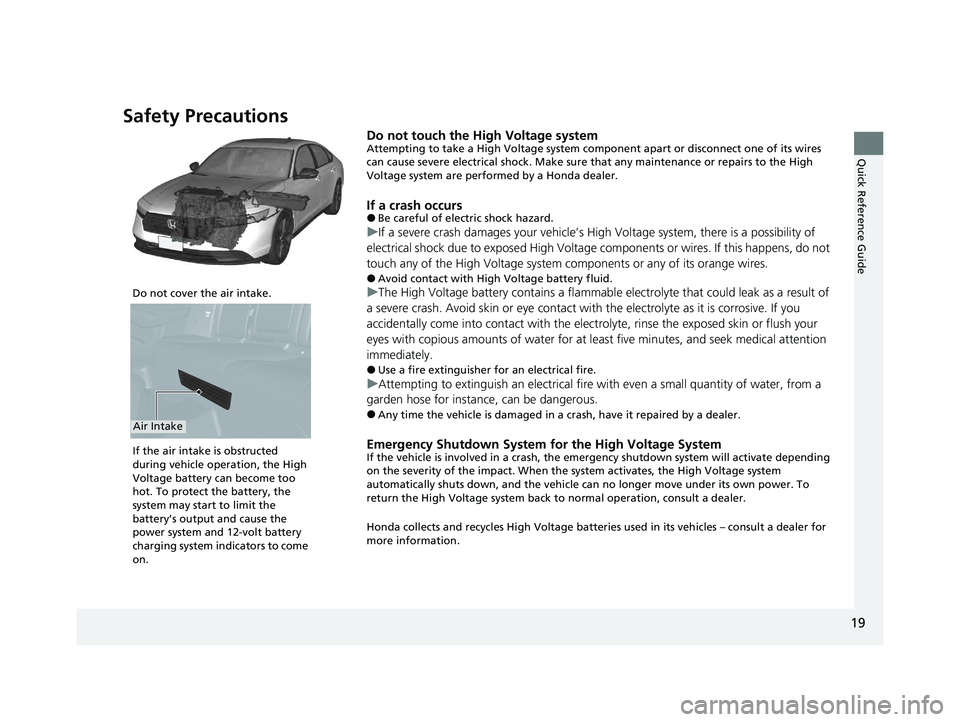

Safety Precautions
Do not touch the High Voltage systemAttempting to take a High Voltage system component apart or disconnect one of its wires
can cause severe electrical shock. Make sure that any maintenance or repairs to the High
Voltage system are performed by a Honda dealer.
If a crash occurs●Be careful of electric shock hazard.
u If a severe crash damages your vehicle’s Hi gh Voltage system, there is a possibility of
electrical shock due to exposed Hi gh Voltage components or wires. If this happens, do not
touch any of the High Voltage system components or any of its orange wires.
●Avoid contact with High Voltage battery fluid.
u The High Voltage battery contains a flammable electrolyte that could leak as a result of
a severe crash. Avoid skin or eye contact with the electrolyte as it is corrosive. If you
accidentally come into contac t with the electrolyte, rinse the exposed skin or flush your
eyes with copious amounts of water for at least five minutes, and seek medical attention
immediately.
●Use a fire extinguisher for an electrical fire.
u Attempting to extinguish an electrical fire with even a small quantity of water, from a
garden hose for instance, can be dangerous.
●Any time the vehicle is damaged in a crash, have it repaired by a dealer.
Emergency Shutdown System fo r the High Voltage SystemIf the vehicle is involved in a crash, the em ergency shutdown system will activate depending
on the severity of the impact. When the system activates, the High Voltage system
automatically shuts down, and the vehicle can no longer move under its own power. To
return the High Voltage system back to normal operation, consult a dealer.
Honda collects and recycles High Voltage batteries used in its vehicles – consult a dealer for
more information.
Do not cover the air intake.
If the air intake is obstructed
during vehicle operation, the High
Voltage battery can become too
hot. To protect the battery, the
system may start to limit the
battery’s output and cause the
power system and 12-volt battery
charging system indicators to come
on.
Air Intake
23 ACCORD 4D US HEV MAP-3130B6000.book 19 ページ ２０２２年１０月１３日　木曜日 　午後４時５０分

20
Quick Reference Guide

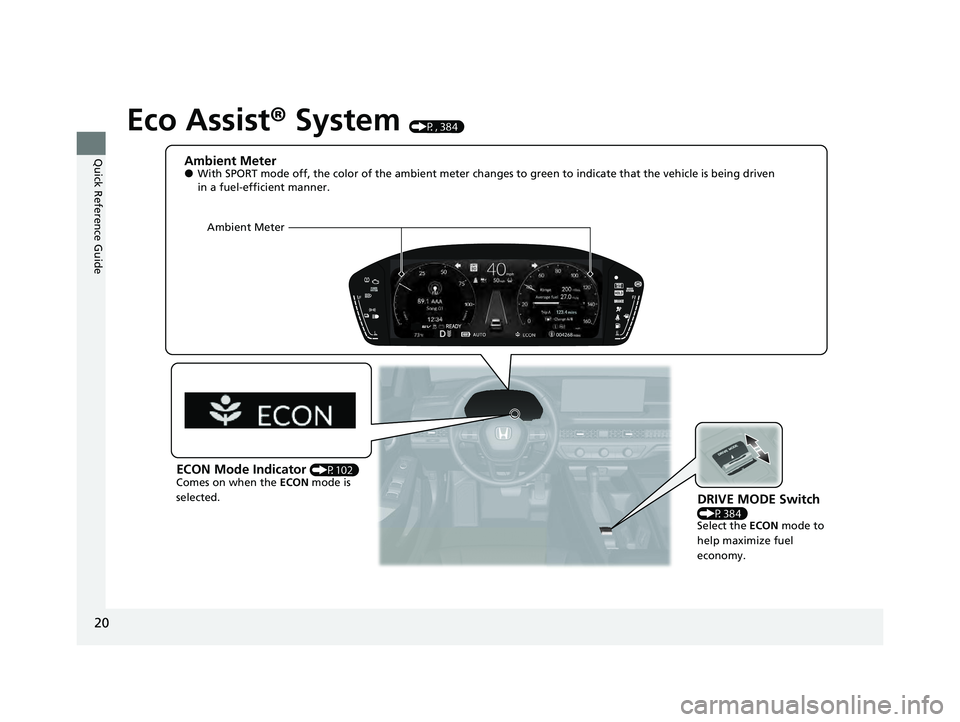

Eco Assist® System (P, 384)
Ambient Meter●With SPORT mode off, the color of the ambient meter change s to green to indicate that the vehicle is being driven
in a fuel-efficient manner.
DRIVE MODE Switch
(P384) Select the ECON mode to
help maximize fuel
economy.
ECON Mode Indicator (P102)
Comes on when the ECON mode is
selected. Ambient Meter
23 ACCORD 4D US HEV MAP-3130B6000.book 20 ページ ２０２２年１０月１３日　木曜日
　午後４時５０分

21
Quick Reference Guide

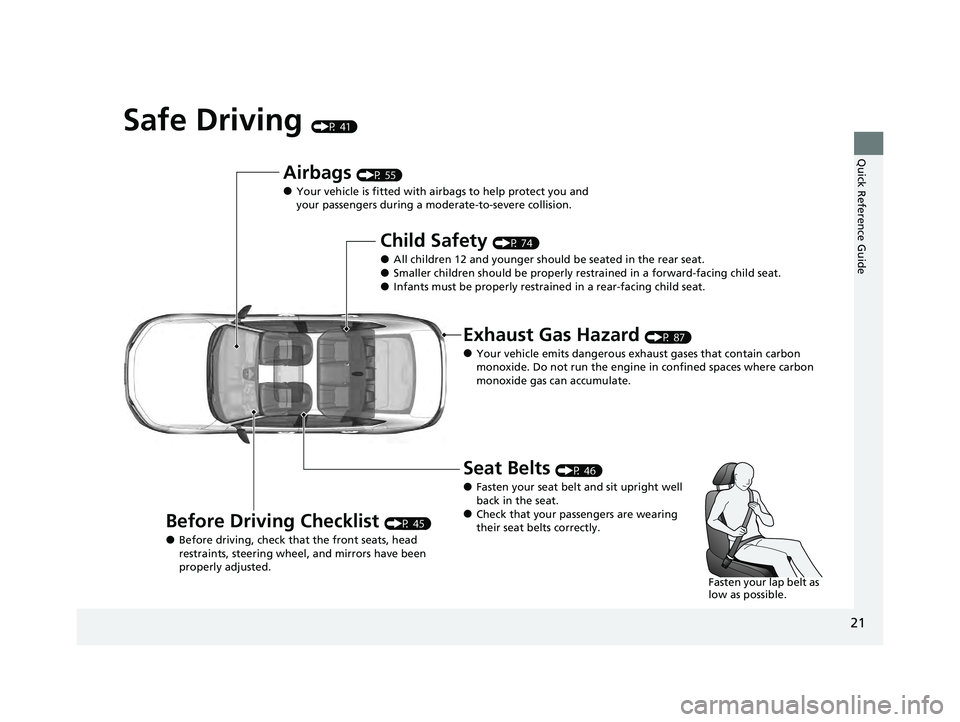

Safe Driving (P 41)
Airbags (P 55)
●Your vehicle is fitted with airbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P 74)
●All children 12 and younger should be seated in the rear seat.●Smaller children should be properly restrained in a forward-facing child seat.●Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard (P 87)
●Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P 45)
●Before driving, check that the front seats, head
restraints, steering wheel, and mirrors have been
properly adjusted.
Seat Belts (P 46)
●Fasten your seat belt and sit upright well
back in the seat.
●Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
23 ACCORD 4D US HEV MAP-3130B6000.book 21 ページ ２０２２年１０月１３日　木曜日 　午後４時５０分

22
Quick Reference Guide

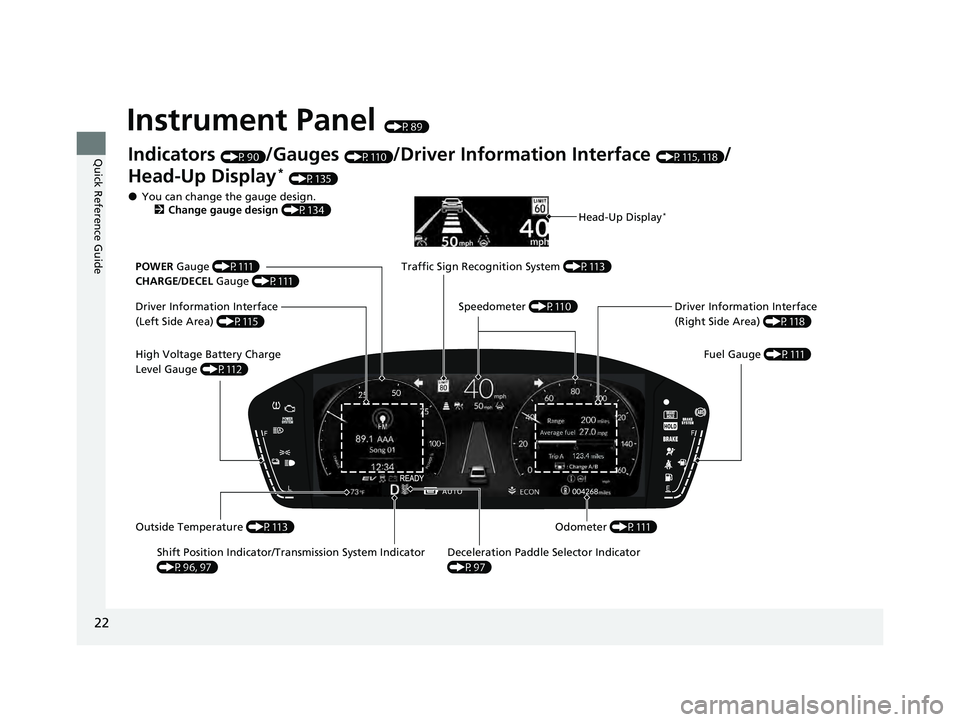

Instrument Panel (P89)
Indicators (P90)/Gauges (P110)/Driver Information Interface (P115, 118)/
Head-Up Display
* (P135)
Shift Position Indicator/Tr ansmission System Indicator
(P96, 97) Deceleration Paddle Selector Indicator
(P97) Fuel Gauge
(P111)
Driver Information Interface
(Right Side Area)
(P118)
POWER
Gauge (P111)
CHARGE /DECEL Gauge (P111)
Speedometer (P110)
Traffic Sign Recognition System
(P113)
Odometer (P111)
High Voltage Battery Charge
Level Gauge
(P112)
Driver Information Interface
(Left Side Area)
(P115)
Outside Temperature (P113)
Head-Up Display*
●You can change the gauge design.
2 Change gauge design (P134)
23 ACCORD 4D US HEV MAP-3130B6000.book 22 ページ ２０２２年１０月１３日　木曜日 　午後４時５０分

23
Quick Reference Guide

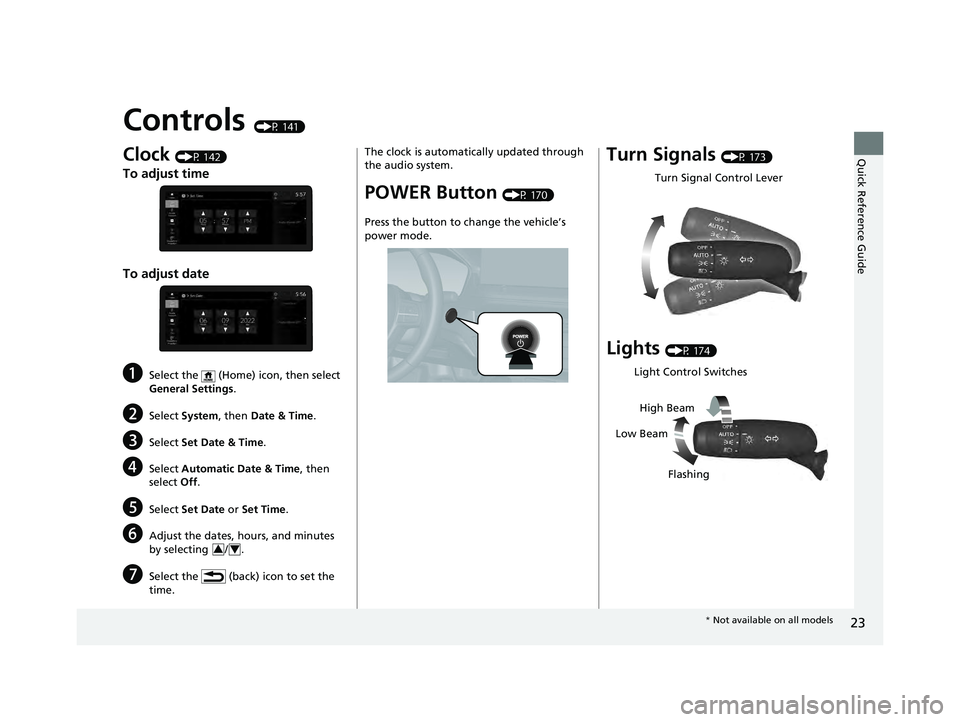

Controls (P 141)
Clock (P 142)
To adjust time
To adjust date
aSelect the (Home) icon, then select
General Settings.
bSelect System , then Date & Time .
cSelect Set Date & Time .
dSelect Automatic Date & Time , then
select Off.
eSelect Set Date or Set Time.
fAdjust the dates, hours, and minutes
by selecting / .
gSelect the (back) icon to set the
time.
34
5IF
DMPDL
JT
BVUPNBUJ DBMMZ
VQEBUFE
UISPVHI

UIF
BVEJP
TZTUFN
POWER Button (P 170)
Press the button to ch ange the vehicle’s
power mode.
Turn Signals (P 173)
Lights (P 174)
Turn Signal Control Lever
Light Control Switches
Low Beam High Beam
Flashing
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 23 ページ ２０２２年１０月１３日　木曜日 　午後４時５０分

24
Quick Reference Guide

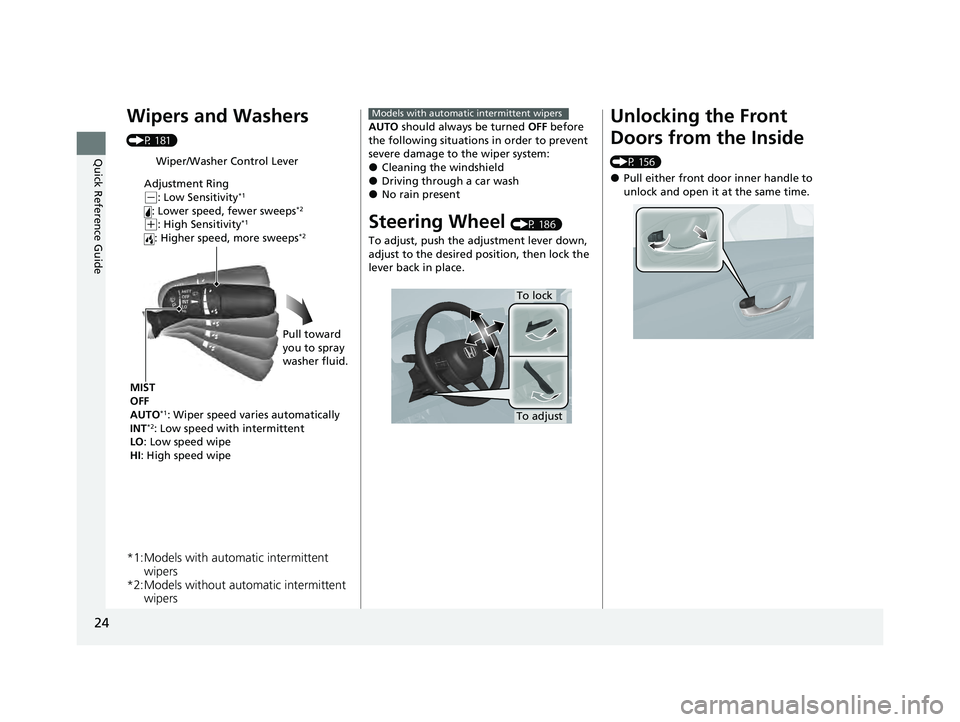

Wipers and Washers
(P 181)
*1:Models with automatic intermittent wipers
*2:Models without automatic intermittent wipers
Wiper/Washer Control Lever
Adjustment Ring
( -: Low Sensitivity*1
: Lower speed, fewer sweeps*2
(+: High Sensitivity*1
: Higher speed, more sweeps*2
MIST
OFF
AUTO
*1: Wiper speed varies automatically
INT*2: Low speed with intermittent
LO : Low speed wipe
HI: High speed wipe Pull toward
you to spray
washer fluid.
AUTO
should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
●Cleaning the windshield●Driving through a car wash●No rain present
Steering Wheel (P 186)
To adjust, push the adjustment lever down,
adjust to the desired po sition, then lock the
lever back in place.
Models with automatic intermittent wipers
To lock
To adjust
Unlocking the Front
Doors from the Inside
(P 156)
●Pull either front door inner handle to
unlock and open it at the same time.
23 ACCORD 4D US HEV MAP-3130B6000.book 24 ページ ２０２２年１０月１３日　木曜日 　午後４時５０分

25
Quick Reference Guide

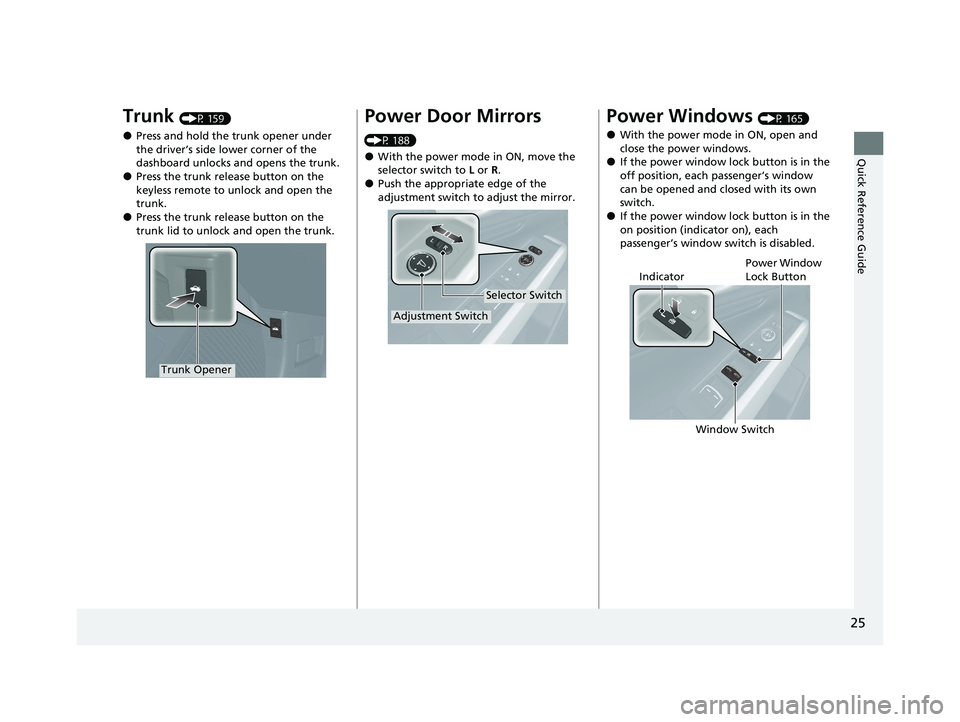

Trunk (P 159)
●Press and hold the trunk opener under
the driver’s side lower corner of the
dashboard unlocks and opens the trunk.
●Press the trunk release button on the
keyless remote to unlock and open the
trunk.
●Press the trunk release button on the
trunk lid to unlock and open the trunk.
Trunk Opener
Power Door Mirrors
(P 188)
●With the power mode in ON, move the
selector switch to L or R.
●Push the appropriate edge of the
adjustment switch to adjust the mirror.
Selector Switch
Adjustment Switch
Power Windows (P 165)
●With the power mode in ON, open and
close the power windows.
●If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
●If the power window lock button is in the
on position (indicator on), each
passenger’s window switch is disabled.
Power Window
Lock Button
Window Switch
Indicator
23 ACCORD 4D US HEV MAP-3130B6000.book 25 ページ ２０２２年１０月１３日　木曜日
　午後４時５０分

26
Quick Reference Guide

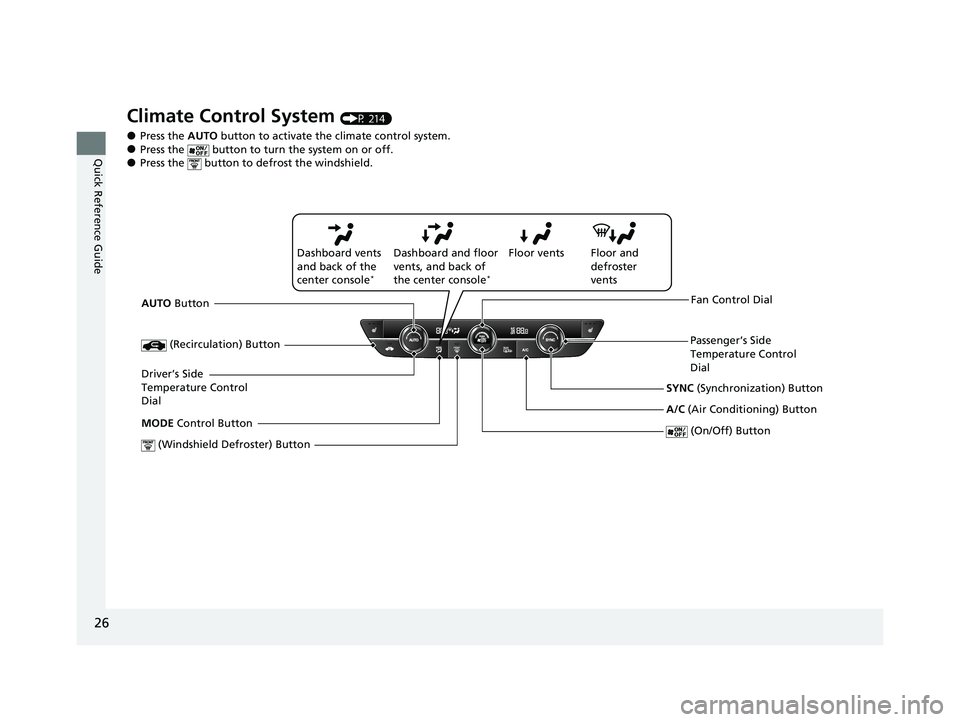

Climate Control System (P 214)
●Press the AUTO button to activate the climate control system.●Press the button to turn the system on or off.●Press the button to defrost the windshield.
Driver’s Side
Temperature Control
Dial
(Windshield Defroster) Button
SYNC (Synchronization) Button
Floor and
defroster
vents
Floor vents
Dashboard and floor
vents, and back of
the center console
*
Dashboard vents
and back of the
center console
*
AUTO Button
(On/Off) Button
(Recirculation) Button
MODE Control Button Fan Control Dial
A/C (Air Conditioning) Button
Passenger’s Side
Temperature Control
Dial
23 ACCORD 4D US HEV MAP-3130B6000.book 26 ページ ２０２２年１０月１３日　木曜日 　午後４時５０分

27
Quick Reference Guide

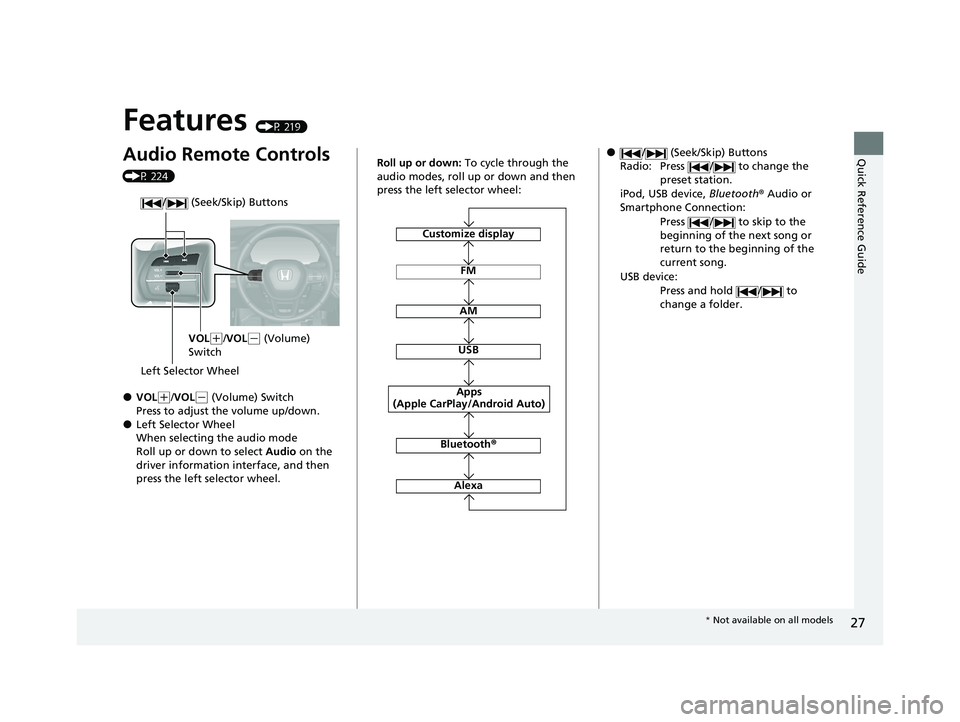

Features (P 219)
Audio Remote Controls
(P 224)
●VOL(+/VOL( - (Volume) Switch
Press to adjust the volume up/down.
●Left Selector Wheel
When selecting the audio mode
Roll up or down to select Audio on the
driver information interface, and then
press the left selector wheel.
/ (Seek/Skip) Buttons
Left Selector Wheel VOL
(
+/VOL( - (Volume)
Switch
FM
AM
USB
Bluetooth ®
Apps
(Apple CarPlay/Android Auto)
Roll up or down: To cycle through the
audio modes, roll up or down and then
press the left selector wheel:
Alexa
Customize display
●/ (Seek/Skip) Buttons
Radio: Press / to change the preset station.
iPod, USB device, Bluetooth® Audio or
Smartphone Connection:
Press / to skip to the
beginning of the next song or
return to the beginning of the
current song.
USB device: Press and hold / to
change a folder.
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 27 ページ ２０２２年１０月１３日　木曜日 　午後４時５０分

28
Quick Reference Guide

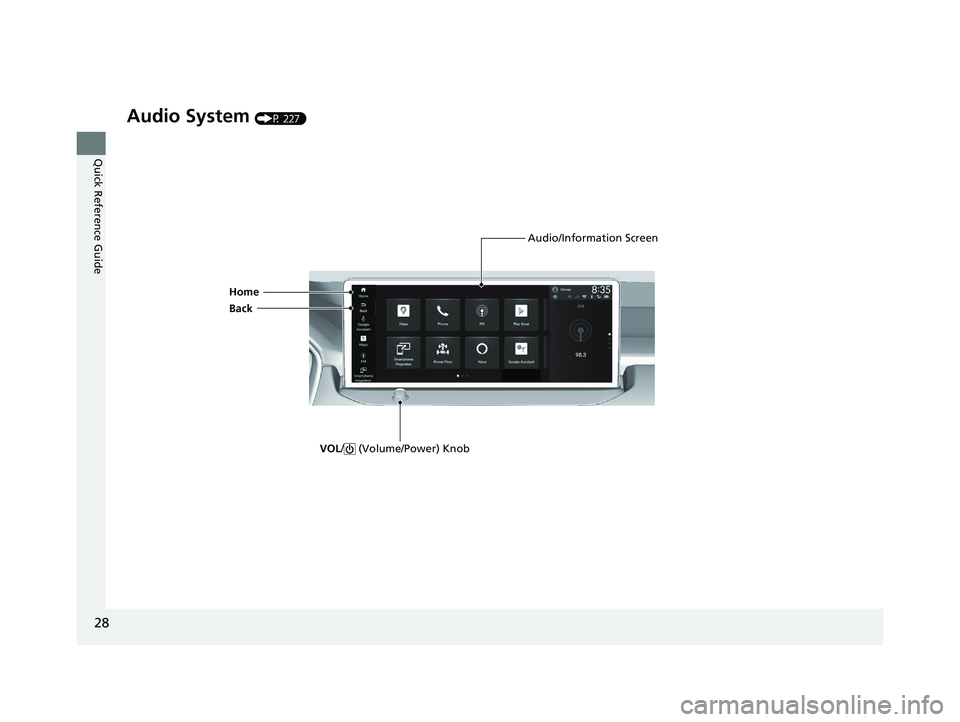

Audio System (P 227)
Home
BackAudio/Information Screen
VOL / (Volume/Power) Knob
23 ACCORD 4D US HEV MAP-3130B6000.book 28 ページ ２０２２年１０月１３日　木曜日 　午後４時５０分
