HONDA ACCORD HYBRID 2023 Owner's Guide

29
Quick Reference Guide

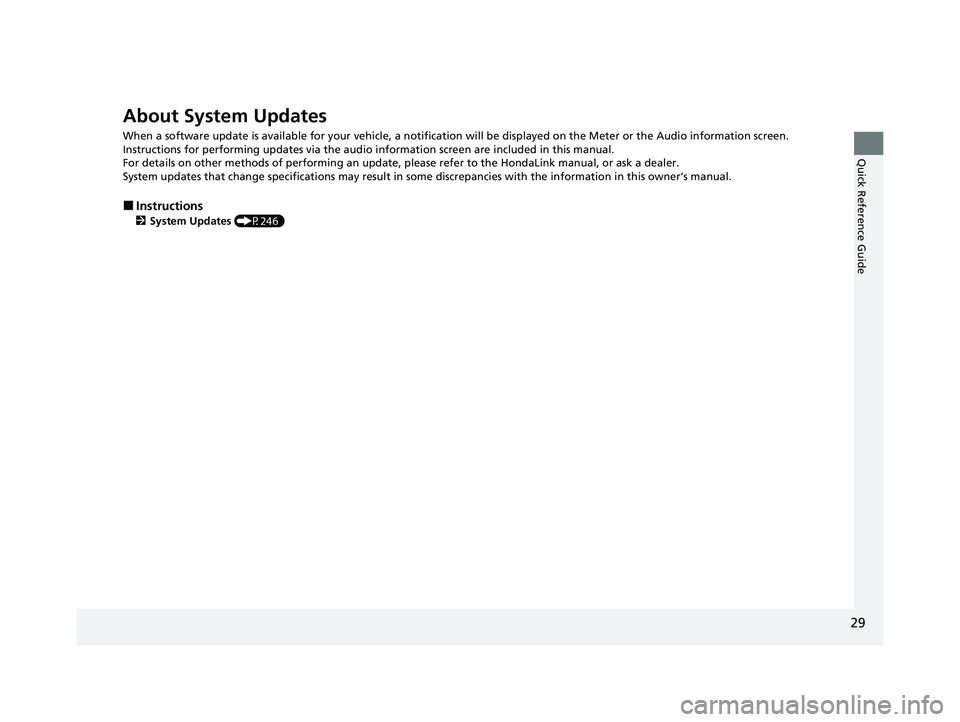

About System Updates
When a software update is available for your vehicle, a notification will be displayed on the Meter or the Audio information screen.
Instructions for performing update s via the audio information screen are included in this manual.
For details on other methods of performing an update, please refer to the HondaLink manual, or ask a dealer.
System updates that change specifications may result in some discrepancies with the information in this owner’s manual.
■Instructions
2 System Updates (P246)
23 ACCORD 4D US HEV MAP-3130B6000.book 29 ページ ２０２２年１０月１３日　木曜日 　午後４時５０分

30
Quick Reference Guide

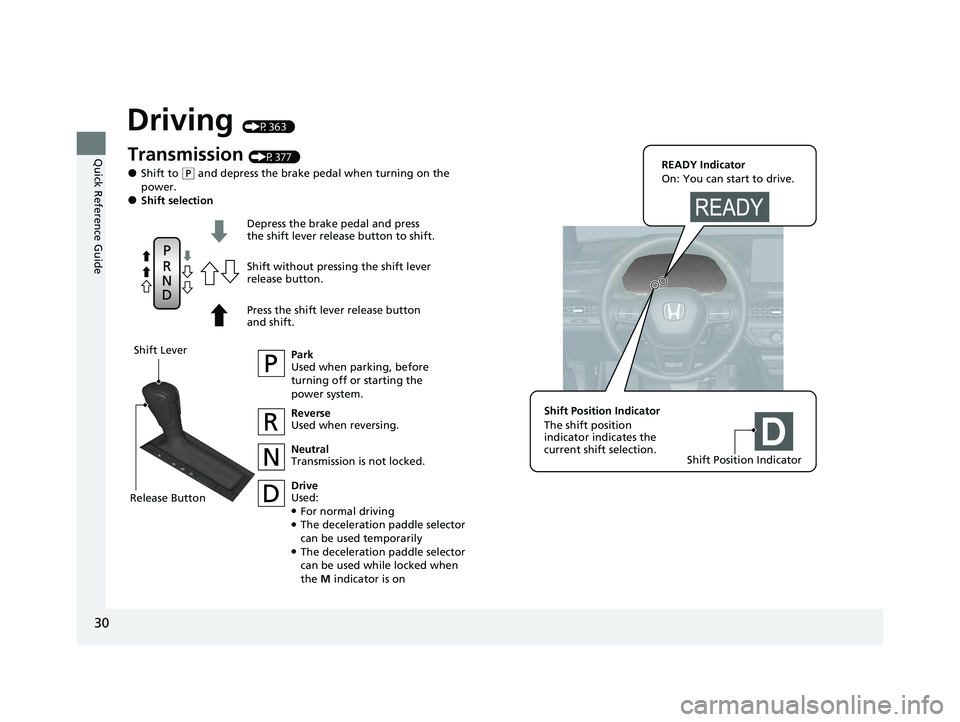

Driving (P363 )
Transmission (P377 )
●Shift to (P and depress the brake pedal when turning on the
power.
●Shift selection
Park
Used when parking, before
turning off or starting the
power system.
Reverse
Used when reversing.
Neutral
Transmission is not locked.
Drive
Used:
●For normal driving●The deceleration paddle selector
can be used temporarily
●The deceleration paddle selector
can be used while locked when
the M indicator is on
Depress the brake pedal and press
the shift lever release button to shift.
Shift without pressing the shift lever
release button.
Press the shift lever release button
and shift.
Shift Lever
Release Button
READY Indicator
On: You can start to drive.
Shift Position Indicator
The shift position
indicator indicates the
current shift selection. Shift Position Indicator
23 ACCORD 4D US HEV MAP-3130B6000.book 30 ページ ２０２２年１０月１３日　木曜日 　午後４時５０分

31
Quick Reference Guide

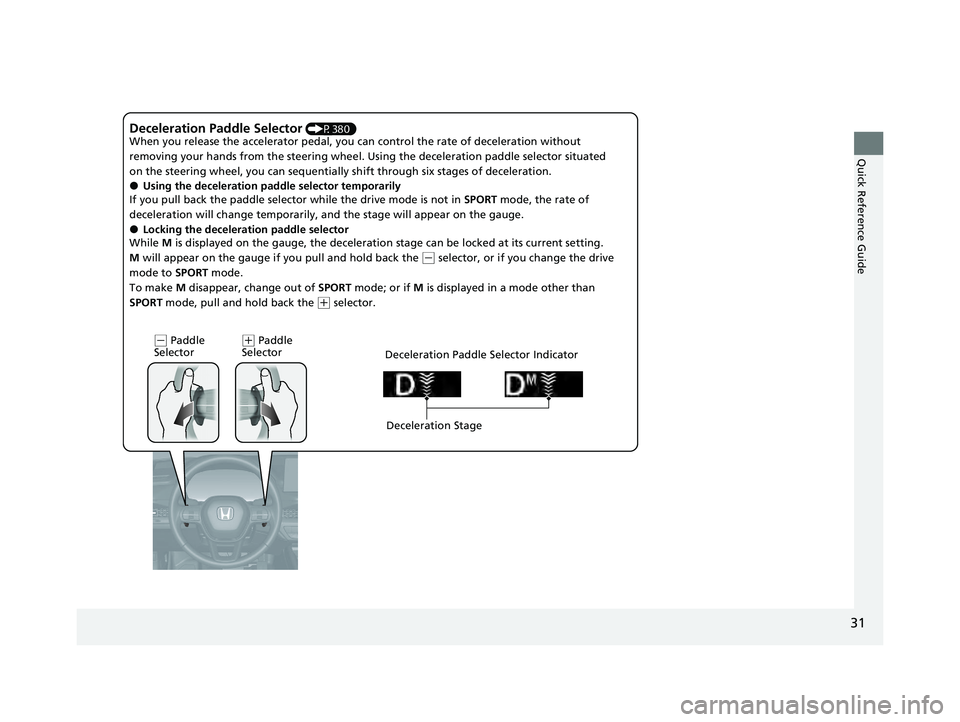

Deceleration Paddle Selector (P380)
When you release the accelerator pedal, you ca n control the rate of deceleration without
removing your hands from the steering wheel. Usin g the deceleration paddle selector situated
on the steering wheel, you can sequentially shift through six stages of deceleration.
●Using the deceleration paddle selector temporarily
If you pull back the paddle selector while the drive mode is not in SPORT mode, the rate of
deceleration will change temporarily, and the stage will appear on the gauge.
●Locking the deceleration paddle selector
While M is displayed on the gauge, the deceleration stage can be locked at its current setting.
M will appear on the gauge if you pull and hold back the
(- selector, or if you change the drive
mode to SPORT mode.
To make M disappear, change out of SPORT mode; or if M is displayed in a mode other than
SPORT mode, pull and hold back the
(+ selector.
(- Paddle
Selector( + Paddle
Selector Deceleration Paddle Selector Indicator
Deceleration Stage
23 ACCORD 4D US HEV MAP-3130B6000.book 31 ページ ２０２２年１０月１３日　木曜日 　午後４時５０分

32
Quick Reference Guide

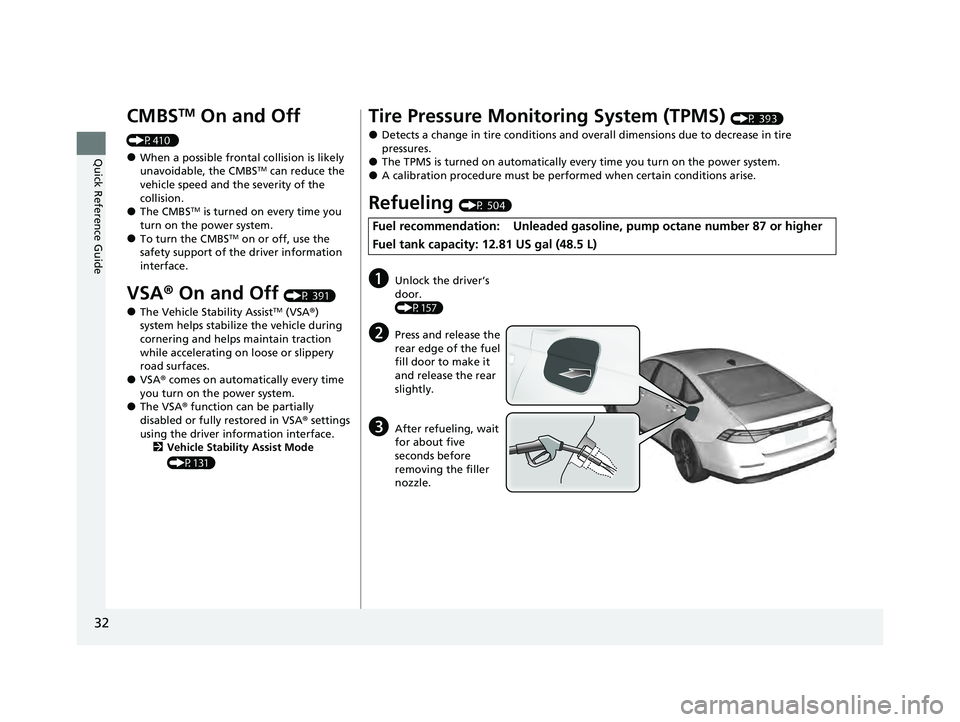

CMBSTM On and Off
(P410 )
●When a possible frontal collision is likely
unavoidable, the CMBSTM can reduce the
vehicle speed and the severity of the
collision.
●The CMBSTM is turned on every time you
turn on the power system.
●To turn the CMBSTM on or off, use the
safety support of th e driver information
interface.
VSA ® On and Off (P 391)
●The Vehicle Stability AssistTM (VSA® )
system helps stabilize the vehicle during
cornering and helps maintain traction
while accelerating on loose or slippery
road surfaces.
●VSA ® comes on automatically every time
you turn on the power system.
●The VSA ® function can be partially
disabled or fully restored in VSA ® settings
using the driver information interface. 2 Vehicle Stability Assist Mode
(P131)
Tire Pressure Monitoring System (TPMS) (P 393)
●Detects a change in tire conditions and overall dimensions due to decrease in tire
pressures.
●The TPMS is turned on automatically every time you turn on the power system.●A calibration procedure must be performed when certain conditions arise.
Refueling (P 504)
Fuel recommendation: Unleaded gasoline , pump octane number 87 or higher
Fuel tank capacity: 12.81 US gal (48.5 L)
aUnlock the driver’s
door.
(P157)
bPress and release the
rear edge of the fuel
fill door to make it
and release the rear
slightly.
cAfter refueling, wait
for about five
seconds before
removing the filler
nozzle.
23 ACCORD 4D US HEV MAP-3130B6000.book 32 ページ ２０２２年１０月１３日　木曜日 　午後４時５０分

33
Quick Reference Guide

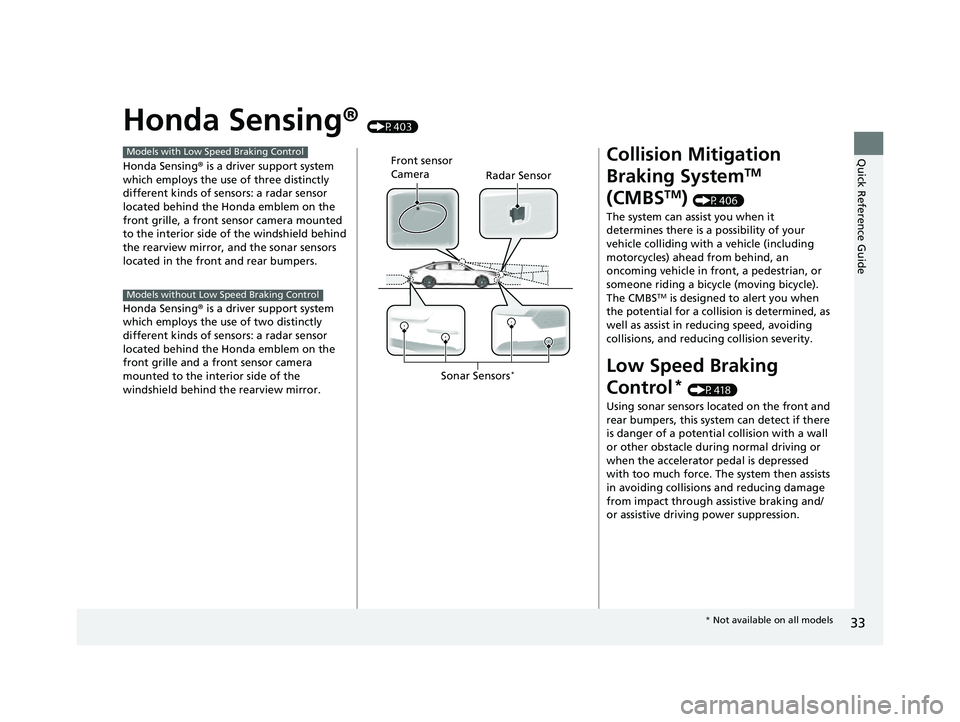

Honda Sensing® (P403)
Honda Sensing ® is a driver support system
which employs the use of three distinctly
different kinds of sensors: a radar sensor
located behind the Honda emblem on the
front grille, a front sensor camera mounted
to the interior side of the windshield behind
the rearview mirror, and the sonar sensors
located in the front and rear bumpers.
Honda Sensing ® is a driver support system
which employs the use of two distinctly
different kinds of sensors: a radar sensor
located behind the Honda emblem on the
front grille and a front sensor camera
mounted to the interior side of the
windshield behind the rearview mirror.
Models with Low Speed Braking Control
Models without Low Speed Braking Control
Front sensor
Camera
Sonar Sensors
*
Radar Sensor
Collision Mitigation
Braking System
TM
(CMBS
TM) (P406)
The system can assist you when it
determines there is a possibility of your
vehicle colliding with a vehicle (including
motorcycles) ahead from behind, an
oncoming vehicle in front, a pedestrian, or
someone riding a bicycle (moving bicycle).
The CMBS
TM is designed to alert you when
the potential for a collision is determined, as
well as assist in reducing speed, avoiding
collisions, and reducing collision severity.
Low Speed Braking
Control
* (P418)
Using sonar sensors located on the front and
rear bumpers, this system can detect if there
is danger of a potential collision with a wall
or other obstacle during normal driving or
when the accelerator pedal is depressed
with too much force. The system then assists
in avoiding collisions and reducing damage
from impact through assistive braking and/
or assistive driving power suppression.
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 33 ページ ２０２２年１０月１３日　木曜日 　午後４時５０分

34
Quick Reference Guide

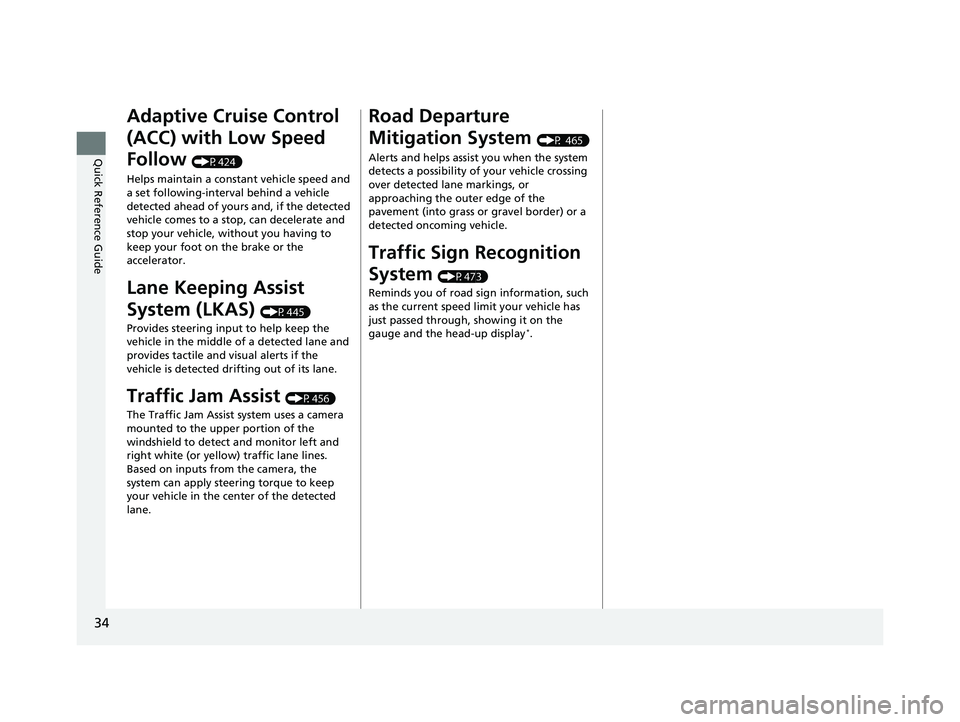

Adaptive Cruise Control
(ACC) with Low Speed
Follow
(P424)
Helps maintain a constant vehicle speed and
a set following-interval behind a vehicle
detected ahead of yours and, if the detected
vehicle comes to a stop, can decelerate and
stop your vehicle, without you having to
keep your foot on the brake or the
accelerator.
Lane Keeping Assist
System (LKAS)
(P445)
Provides steering input to help keep the
vehicle in the middle of a detected lane and
provides tactile and visual alerts if the
vehicle is detected drifting out of its lane.
Traffic Jam Assist (P456)
The Traffic Jam Assist system uses a camera
mounted to the uppe r portion of the
windshield to detect and monitor left and
right white (or yellow) traffic lane lines.
Based on inputs from the camera, the
system can apply steering torque to keep
your vehicle in the center of the detected
lane.
Road Departure
Mitigation System
(P 465)
Alerts and helps assist you when the system
detects a possibility of your vehicle crossing
over detected lane markings, or
approaching the outer edge of the
pavement (into grass or gravel border) or a
detected oncoming vehicle.
Traffic Sign Recognition
System
(P473)
Reminds you of road si gn information, such
as the current speed limit your vehicle has
just passed through, showing it on the
gauge and the head-up display
*.
23 ACCORD 4D US HEV MAP-3130B6000.book 34 ページ ２０２２年１０月１３日　木曜日 　午後４時５０分

35
Quick Reference Guide

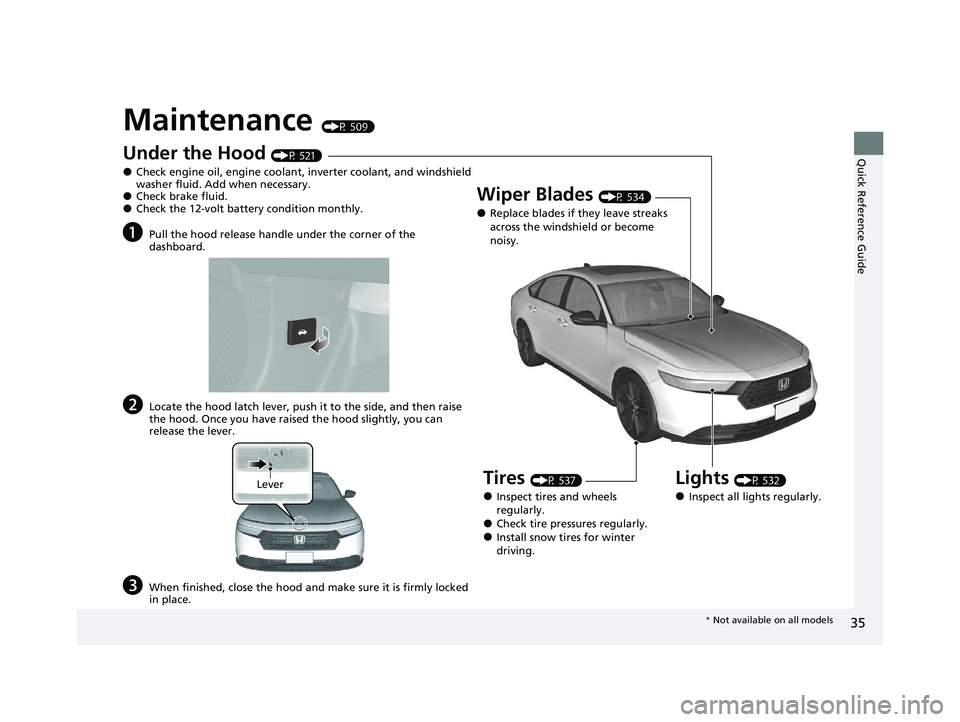

Maintenance (P 509)
Under the Hood (P 521)
●Check engine oil, engine coolant, inverter coolant, and windshield
washer fluid. Add when necessary.
●Check brake fluid.●Check the 12-volt battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, push it to the side, and then raise
the hood. Once you have raised the hood slightly, you can
release the lever.
cWhen finished, close the hood and make sure it is firmly locked
in place.
LeverLights (P 532)
●Inspect all lights regularly.
Wiper Blades (P 534)
●Replace blades if they leave streaks
across the windshield or become
noisy.
Tires (P 537)
●Inspect tires and wheels
regularly.
●Check tire pressures regularly.●Install snow tires for winter
driving.
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 35 ページ ２０２２年１０月１３日　木曜日 　午後４時５０分

36
Quick Reference Guide

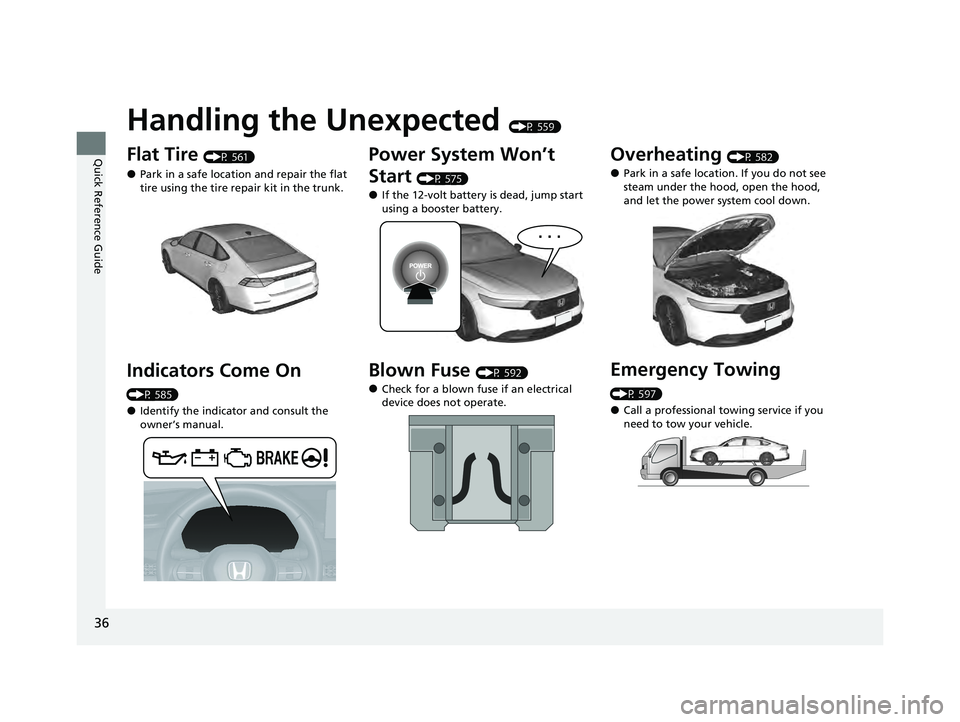

Handling the Unexpected (P 559)
Flat Tire (P 561)
●Park in a safe location and repair the flat
tire using the tire repair kit in the trunk.
Indicators Come On
(P 585)
●Identify the indicator and consult the
owner’s manual.
Power System Won’t
Start
(P 575)
●If the 12-volt battery is dead, jump start
using a booster battery.
Blown Fuse (P 592)
●Check for a blown fuse if an electrical
device does not operate.
Overheating (P 582)
●Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the power system cool down.
Emergency Towing
(P 597)
●Call a professional towing service if you
need to tow your vehicle.
23 ACCORD 4D US HEV MAP-3130B6000.book 36 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

37
Quick Reference Guide

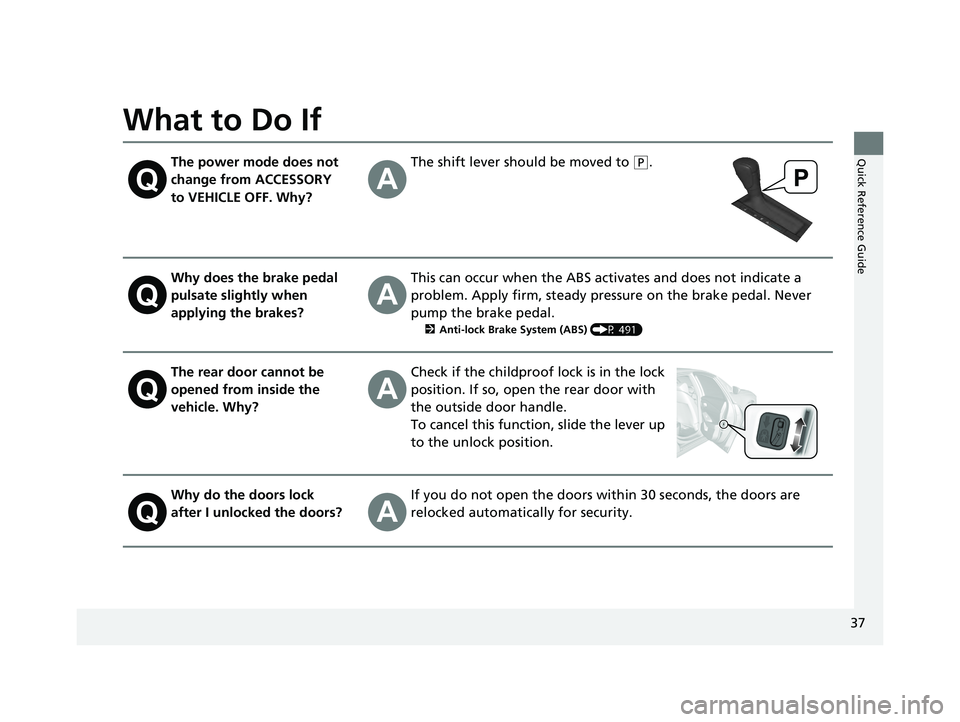

What to Do If
The power mode does not
change from ACCESSORY
to VEHICLE OFF. Why?The shift lever should be moved to (P.
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
2Anti-lock Brake System (ABS) (P 491)
The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in the lock
position. If so, open the rear door with
the outside door handle.
To cancel this function, slide the lever up
to the unlock position.
Why do the doors lock
after I unlocked the doors?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
23 ACCORD 4D US HEV MAP-3130B6000.book 37 ページ ２０２２年１０月１３日　木曜日 　午後４時５０分

38
Quick Reference Guide

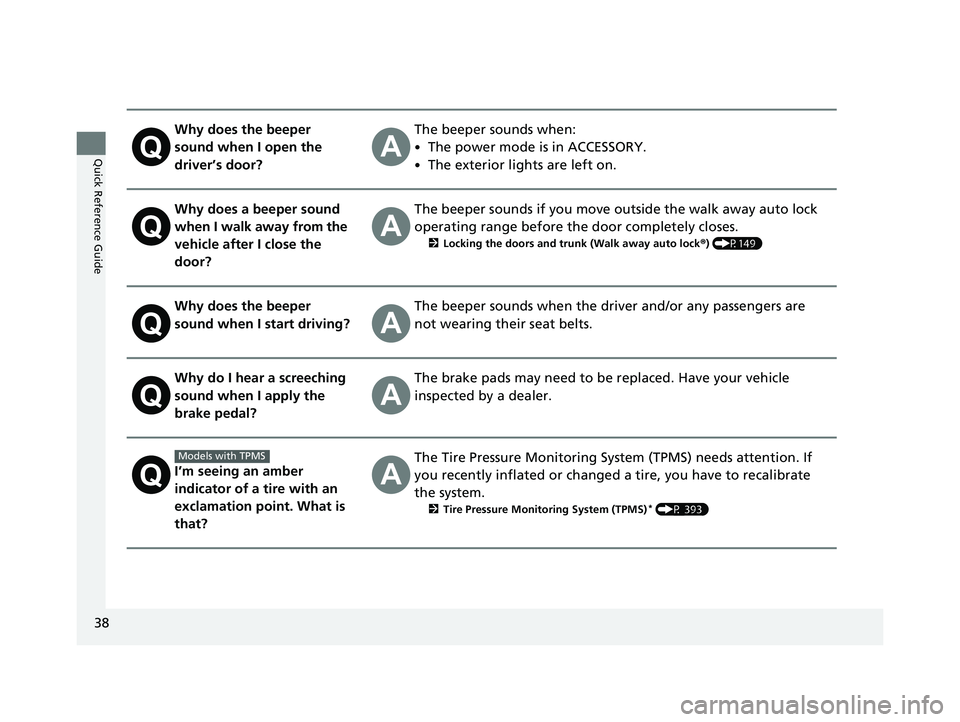

Why does the beeper
sound when I open the
driver’s door?The beeper sounds when:
•The power mode is in ACCESSORY.
•The exterior lights are left on.
Why does a beeper sound
when I walk away from the
vehicle after I close the
door?The beeper sounds if you move outside the walk away auto lock
operating range before the door completely closes.
2Locking the doors and trunk (Walk away auto lock ®) (P149)
Why does the beeper
sound when I start driving?The beeper sounds when the driver and/or any passengers are
not wearing their seat belts.
Why do I hear a screeching
sound when I apply the
brake pedal?The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.
I’m seeing an amber
indicator of a tire with an
exclamation point. What is
that?
The Tire Pressure Monitoring Syst em (TPMS) needs attention. If
you recently inflated or changed a tire, you have to recalibrate
the system.
2 Tire Pressure Monitoring System (TPMS)* (P 393)
Models with TPMS
