HONDA ACCORD HYBRID 2023 Owners Manual
Manufacturer: HONDA, Model Year: 2023, Model line: ACCORD HYBRID, Model: HONDA ACCORD HYBRID 2023Pages: 627, PDF Size: 23 MB
Page 331 of 627

Continued329
uuCustomized Features u
Features

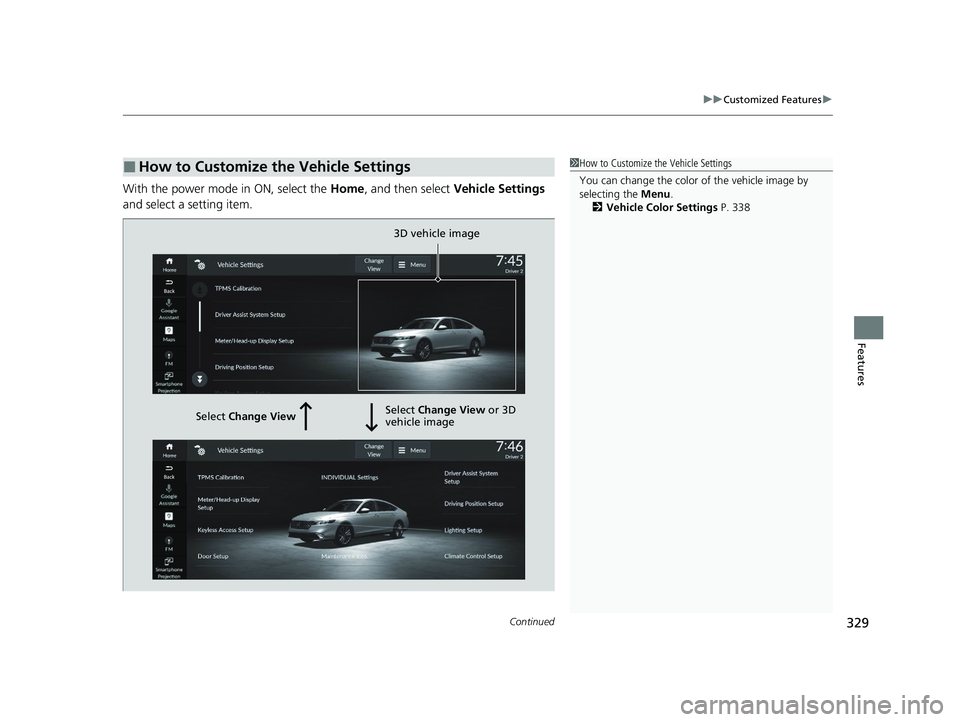

With the power mode in ON, select the Home, and then select Vehicle Settings
and select a setting item.
■How to Customize the Vehicle Settings1 How to Customize the Vehicle Settings
You can change the color of the vehicle image by
selecting the Menu.
2 Vehicle Color Settings P. 338
Select Change View 3D vehicle image
Select Change
View or 3D
vehicle image
23 ACCORD 4D US HEV MAP-3130B6000.book 329 ページ 2022年10月13日 木曜日 午後4時50分
Page 332 of 627

330
uuCustomized Features u
Features
■TPMS Calibration*
■Driver Assist System Setup
*1:Default Setting
Customizable Features DescriptionSelectable Settings
TPMS CalibrationCalibrates the tire pressure monitoring system (TPMS).
2Tire Pressure Monitoring System (TPMS)* P. 393Calibrate
Customizable Features DescriptionSelectable Settings
Forward Collision Warning
DistanceSelects distance for Forward Collision Warning audible and visual
alerts.
2 Collision Mitigation Braking SystemTM (CMBSTM) P. 406
Long/ Normal*1/Short
Head-up Warning*Turns warning light On/Off for head-up flash alert. On*1/Off
ACC Forward Vehicle Detect
BeepTurns audible notification On/Off wh en vehicle has moved in/out of
Adaptive Cruise Control wi th Low Speed Follow range.
2Adaptive Cruise Control (ACC) with Low Speed Follow P. 424
On/Off*1
Road Departure Mitigation
Setting Selects operating mode of the Ro
ad Departure Mitigation system.
2Road Departure Mitigation System P. 465
Narrow/Normal*1/Wide /
Warning only
Lane Keeping Assist
Suspend BeepTurns the LKAS alert On/Off fo r not detecting road lines.
2Lane Keeping Assist System (LKAS) P. 445On /Off*1
Blind Spot Information Turns the blind spot informatio
n system audible alert On/Off.2Blind Spot Information System P. 398
Audible And Visual Alert*1/
Visual Alert
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 330 ページ 2022年10月13日 木曜日 午後4時50分
Page 333 of 627

331
uuCustomized Features u
Continued
Features
*1:Default Setting
Customizable Features Description Selectable Settings
Traffic Sign Recognition
System Display SettingDisplays the traffic sign recognition system on instrument panel.
2Traffic Sign Recognition System P. 473On*1/Off
Traffic Sign Recognition
System Speed Limit
Warning Enables over speed limit warning
when speed limit is exceeded.
2Traffic Sign Recognition System P. 473On/Off*1
Speed Limit Warning
Threshold Setting
When Traffic Sign Recognition Sy stem Speed Limit Warning
setting is on, select speed limit warning threshold based on personal
preference.
2 Traffic Sign Recognition System P. 473
Speed Limit*1/
Speed Limit+3mph /
Speed Limit+5mph /
Speed Limit+10mph
(When mph is selected)
Speed Limit
*1/
Speed Limit+5km/h /
Speed Limit+10km/h /
Speed Limit+15km/h
(When km/h is selected)
Driver Attention Monitor Changes the setting for the
driver attention monitor.
2Driver Attention Monitor P. 125
Tactile And Audible Alert*1/
Tactile Alert /Off
Rear Sensor Setting*
Turns the Rear Parking Sensor ON or OFF. This selection will also
affect the rear Low Speed Braking Control*.
2 Parking Sensor System* P. 495
2 Low Speed Braking Control* P. 418
On*1/Off
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 331 ページ 2022年10月13日 木曜日 午後4時50分
Page 334 of 627

332
uuCustomized Features u
Features

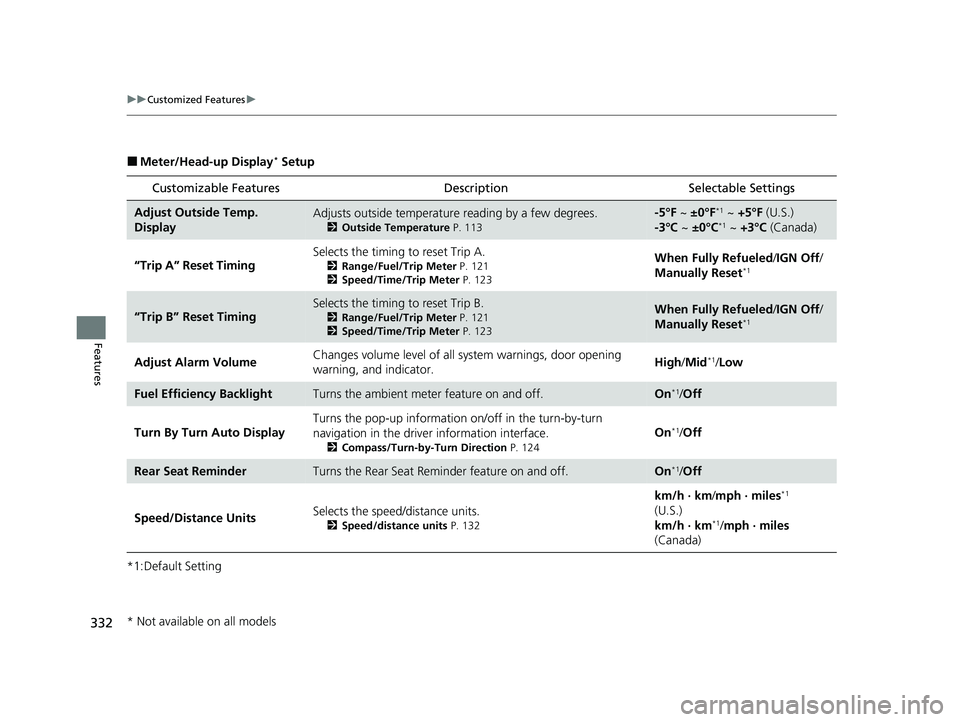

■Meter/Head-up Display* Setup
*1:Default Setting
Customizable Features Description Selectable Settings
Adjust Outside Temp.
DisplayAdjusts outside temperature reading by a few degrees.
2Outside Temperature P. 113
-5°F ~ ±0°F*1 ~ +5°F (U.S.)
-3°C ~ ±0°C*1 ~ +3°C (Canada)
“Trip A” Reset Timing Selects the timing to reset Trip A.
2
Range/Fuel/Trip Meter P. 121
2 Speed/Time/Trip Meter P. 123When Fully Refueled/IGN Off /
Manually Reset*1
“Trip B” Reset TimingSelects the timing to reset Trip B.
2 Range/Fuel/Trip Meter P. 121
2 Speed/Time/Trip Meter P. 123When Fully Refueled/IGN Off /
Manually Reset*1
Adjust Alarm Volume Changes volume level of all system warnings, door opening
warning, and indicator.
High
/Mid*1/Low
Fuel Efficiency BacklightTurns the ambient meter feature on and off.On*1/Off
Turn By Turn Auto Display Turns the pop-up information
on/off in the turn-by-turn
navigation in the driver information interface.
2Compass/Turn-by-Turn Direction P. 124
On*1/Off
Rear Seat ReminderTurns the Rear Seat Reminder feature on and off.On*1/Off
Speed/Distance Units Selects the speed/distance units.
2
Speed/distance units P. 132
km/h · km/mph · miles*1
(U.S.)
km/h · km
*1/ mph · miles
(Canada)
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 332 ページ 2022年10月13日 木曜日 午後4時50分
Page 335 of 627

333
uuCustomized Features u
Continued
Features
■Driving Position Setup*
*1:Default Setting
■Keyless Access Setup
*1:Default Setting
Customizable Features Description Selectable Settings
Memory Position LinkTurns the driving position memory system on and off.On*1/Off
Seat Position Movement At
Entry/Exit Moves the seat rearward when you
get in/get out of the vehicle.
Changes the setting for this feature. On
*1/
Off
Customizable Features Description Selectable Settings
Door Unlock ModeChanges which doors unlock when you grab the driver’s door
handle.Driver Door Only*1/All
Doors
Keyless Access Light Flash Causes some exterior lights to
flash when you unlock/lock the
doors. On
*1/
Off
Keyless Access BeepCauses the beeper to sound wh en you unlock/lock the doors.On*1/Off
Remote Start System On/Off Turns the remote engine start feature on and off. On
*1/Off
Lockout PreventionChanges the settings for the lo ckout protection function.On*1/Off
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 333 ページ 2022年10月13日 木曜日 午後4時50分
Page 336 of 627

334
uuCustomized Features u
Features

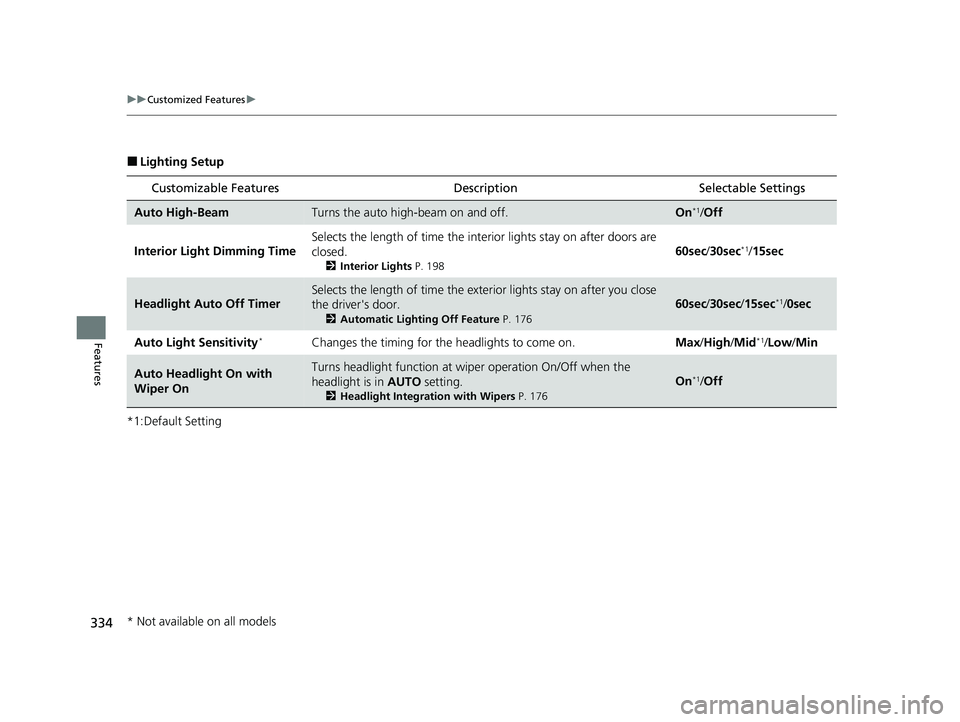

■Lighting Setup
*1:Default Setting
Customizable Features DescriptionSelectable Settings
Auto High-BeamTurns the auto high-beam on and off.On*1/Off
Interior Light Dimming Time Selects the length of time the inte
rior lights stay on after doors are
closed.
2 Interior Lights P. 198
60sec/30sec*1/15sec
Headlight Auto Off Timer
Selects the length of time the exterior lights stay on after you close
the driver's door.
2 Automatic Lighting Off Feature P. 176
60sec/30sec /15sec*1/0sec
Auto Light Sensitivity
*Changes the timing for the headlights to come on. Max/High/ Mid*1/Low /Min
Auto Headlight On with
Wiper OnTurns headlight function at wi per operation On/Off when the
headlight is in AUTO setting.
2Headlight Integration with Wipers P. 176
On*1/Off
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 334 ページ 2022年10月13日 木曜日 午後4時50分
Page 337 of 627

335
uuCustomized Features u
Continued
Features

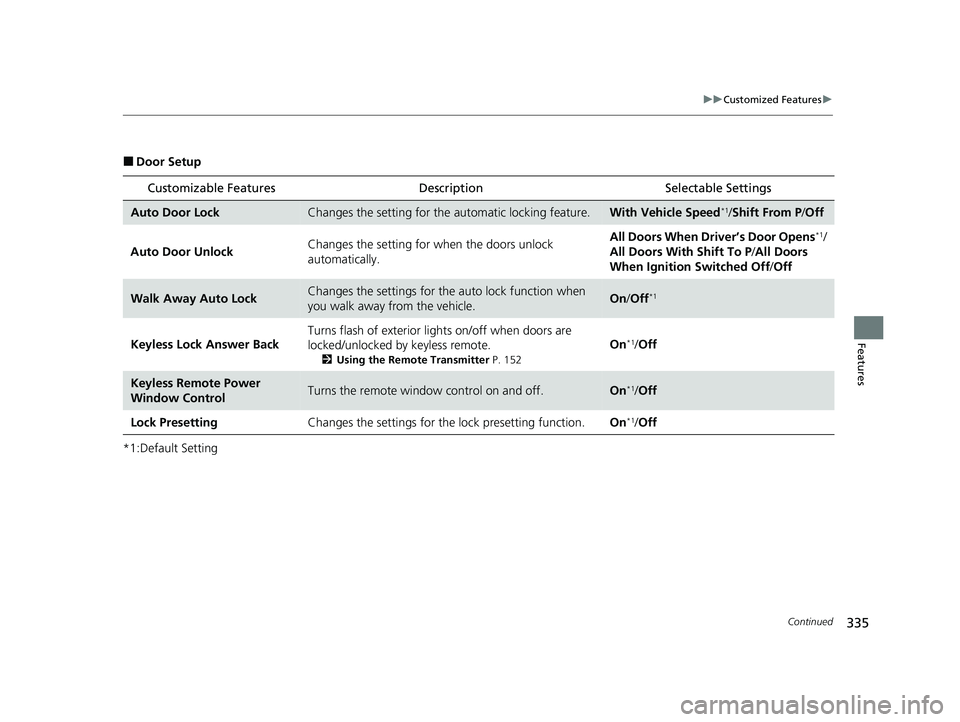

■Door Setup
*1:Default Setting
Customizable Features Description Selectable Settings
Auto Door LockChanges the setting for the automatic locking feature.With Vehicle Speed*1/Shift From P /Off
Auto Door Unlock Changes the setting for when the doors unlock
automatically. All Doors When Driver’s Door Opens
*1/
All Doors With Shift To P /All Doors
When Ignition Switched Off /Off
Walk Away Auto LockChanges the settings for the auto lock function when
you walk away from the vehicle.On /Off*1
Keyless Lock Answer Back
Turns flash of exterior li ghts on/off when doors are
locked/unlocked by keyless remote.
2 Using the Remote Transmitter P. 152
On*1/Off
Keyless Remote Power
Window ControlTurns the remote window control on and off.On*1/Off
Lock PresettingChanges the settings for the lock presetting function.On*1/Off
23 ACCORD 4D US HEV MAP-3130B6000.book 335 ページ 2022年10月13日 木曜日 午後4時50分
Page 338 of 627

336
uuCustomized Features u
Features
■Climate Control Setup
*1:Default Setting
■INDIVIDUAL Settings
*1:Default Setting Customizable Features Description Selectable Settings
Driver Seat automatic
Climate ControlAutomatic climate control of Driver Seat with automatic air
conditioner. Changes the interlocking control setting.On*1/
Off
Passenger Seat automatic
Climate Control Automatic climate control of Passenger Seat with automatic air
conditioner. Changes the interlocking control setting.
On
*1/
Off
Customizable Features DescriptionSelectable Settings
PowertrainSelects the responsiveness of the powertrain.
2Customizing the INDIVIDUAL Settings P. 389ECON/NORMAL*1/SPORT
Steering Selects the level of steering effort.
2
Customizing the INDIVIDUAL Settings P. 389NORMAL*1/SPORT
ACC
Selects the acceleration to set ve hicle speed of Adaptive Cruise
Control with Low Speed Follow.
2 Customizing the INDIVIDUAL Settings P. 389
ECON/NORMAL*1
Gauge Selects the gauges to be displa
yed in the Driver Information
Interface.
2 Customizing the INDIVIDUAL Settings P. 389
NORMAL*1/SPORT
23 ACCORD 4D US HEV MAP-3130B6000.book 336 ページ 2022年10月13日 木曜日 午後4時50分
Page 339 of 627

337
uuCustomized Features u
Continued
Features

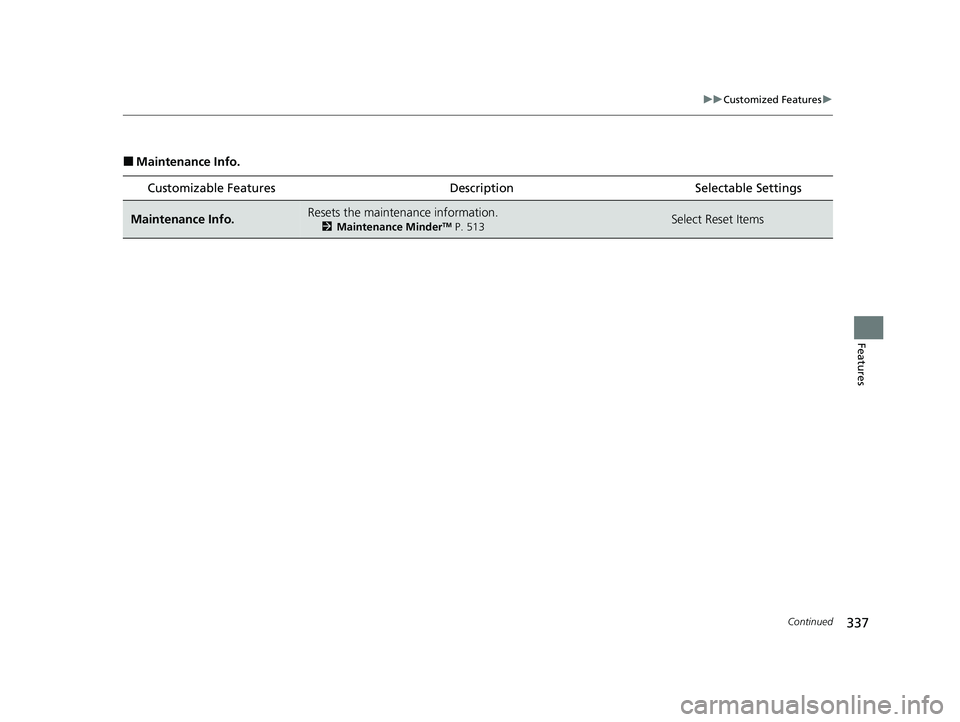

■Maintenance Info.
Customizable Features Descri ption Selectable Settings
Maintenance Info.Resets the maintenance information.
2Maintenance MinderTM P. 513Select Reset Items
23 ACCORD 4D US HEV MAP-3130B6000.book 337 ページ 2022年10月13日 木曜日 午後4時50分
Page 340 of 627

338
uuCustomized Features u
Features

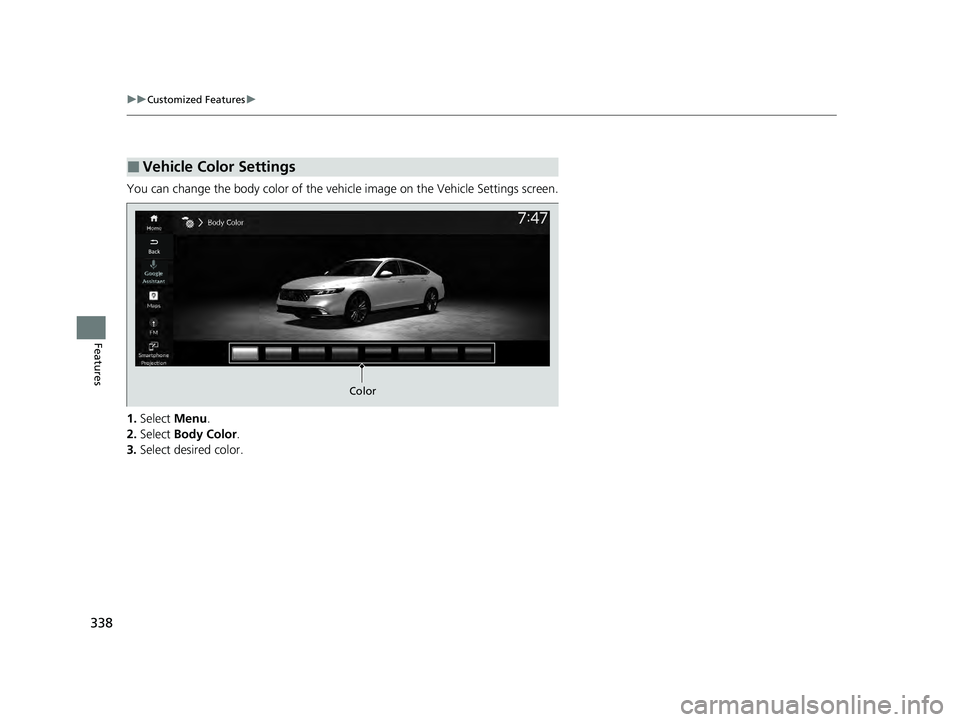

You can change the body color of the ve hicle image on the Vehicle Settings screen.
1. Select Menu.
2. Select Body Color .
3. Select desired color.
■Vehicle Color Settings
Color
23 ACCORD 4D US HEV MAP-3130B6000.book 338 ページ 2022年10月13日 木曜日 午後4時50分
