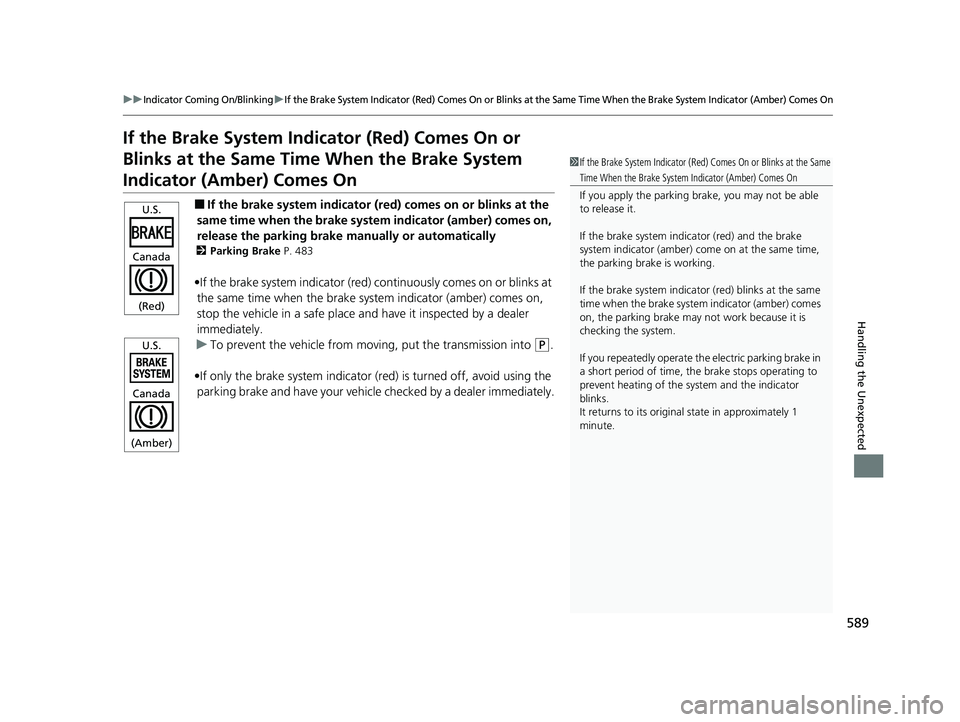

uuIndicator Coming On/BlinkinguIf the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the Brake System Indicator (Amber) Comes On
Handling the Unexpected
If the Brake System Indicator (Red) Comes On or
Blinks at the Same Time When the Brake System
Indicator (Amber) Comes On
■If the brake system indicator (red) comes on or blinks at the
same time when the brake syst em indicator (amber) comes on,
release the parking brake ma nually or automatically
2Parking Brake P. 483
•If the brake system indicator (red) continuously comes on or blinks at
the same time when the brake sy stem indicator (amber) comes on,
stop the vehicle in a safe place an d have it inspected by a dealer
immediately.
u To prevent the vehicle from movi ng, put the transmission into
(P.
•If only the brake system indicator (r ed) is turned off, avoid using the
parking brake and have your vehicle checked by a dealer immediately.
1If the Brake System Indicator (Red) Comes On or Blinks at the Same
Time When the Brake System Indicator (Amber) Comes On
If you apply the parking br ake, you may not be able
to release it.
If the brake system indicator (red) and the brake
system indicator (amber) come on at the same time,
the parking brake is working.
If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking brake may not work because it is
checking the system.
If you repeatedly operate the electric parking brake in
a short period of time, the brake stops operating to
prevent heating of the system and the indicator
blinks.
It returns to its original state in approximately 1
minute.
U.S.
Canada
(Red)
U.S.
Canada
(Amber)
23 ACCORD 4D US HEV MAP-3130B6000.book 589 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

590

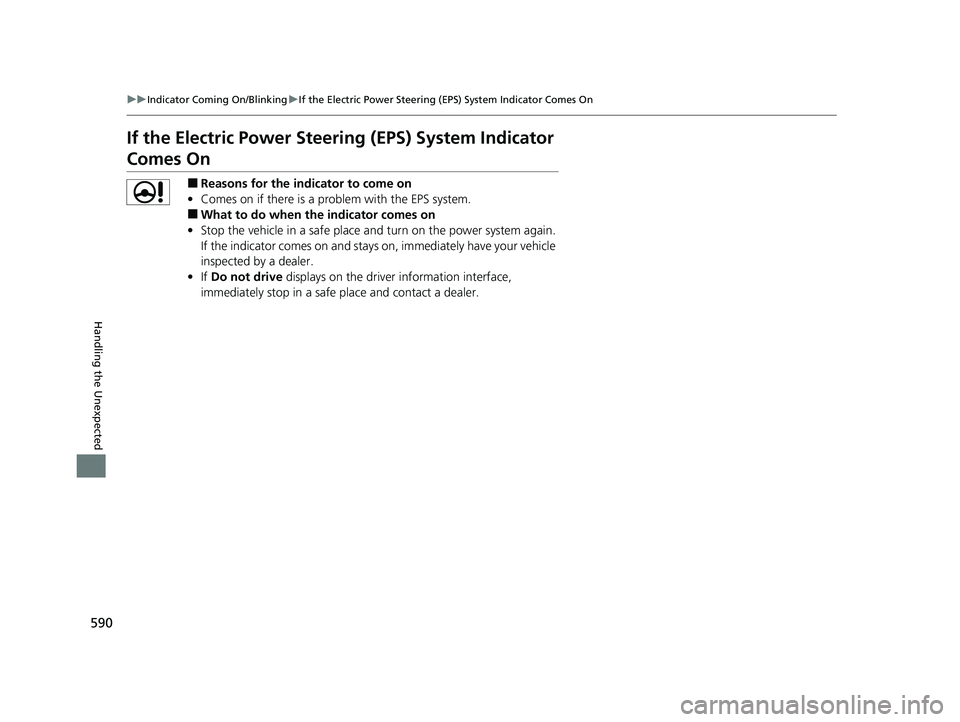

uuIndicator Coming On/Blinking uIf the Electric Power Steering (EPS) System Indicator Comes On
Handling the Unexpected
If the Electric Power Steeri ng (EPS) System Indicator
Comes On
■Reasons for the indicator to come on
• Comes on if there is a problem with the EPS system.
■What to do when the indicator comes on
• Stop the vehicle in a safe place and turn on the power system again.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
• If Do not drive displays on the driver information interface,
immediately stop in a safe place and contact a dealer.
23 ACCORD 4D US HEV MAP-3130B6000.book 590 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

591

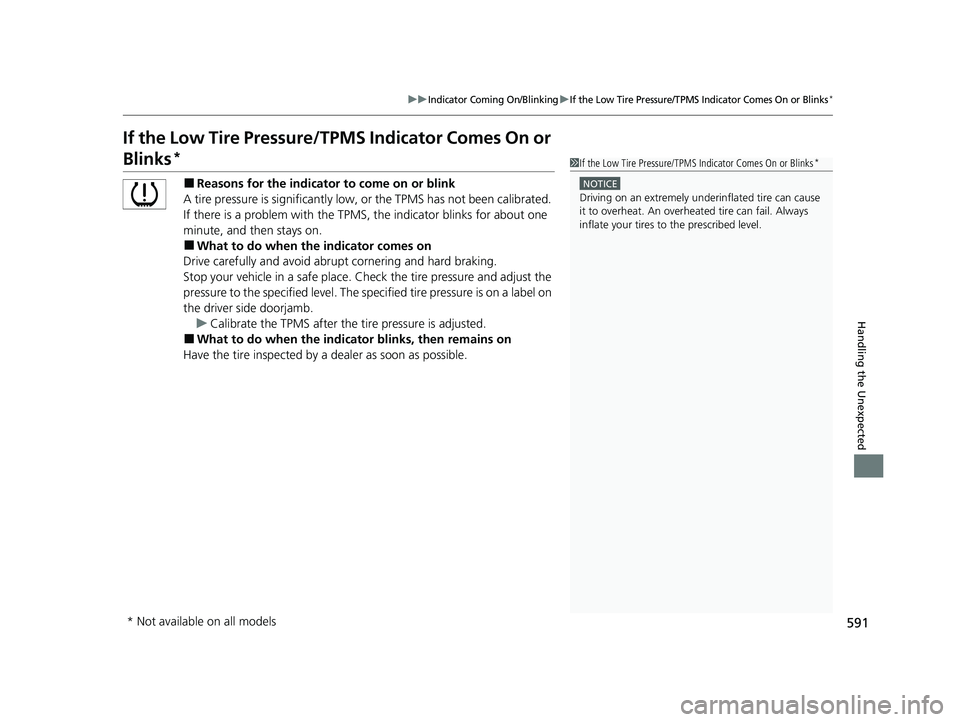

uuIndicator Coming On/BlinkinguIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks*
Handling the Unexpected
If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks*
■Reasons for the indicator to come on or blink
A tire pressure is significantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS, the indicator blinks for about one
minute, and then stays on.
■What to do when th e indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The spec ified tire pressure is on a label on
the driver side doorjamb.
u Calibrate the TPMS after the tire pressure is adjusted.
■What to do when the indicator blinks, then remains on
Have the tire inspected by a dealer as soon as possible.
1If the Low Tire Pressure/TPMS Indicator Comes On or Blinks*
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed levelM
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 591 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

592
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF, and check
to see if any applicable fuse is blown.
Located near the 12-volt battery. Push the
tabs to open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse
Box
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1BATTERY175 A
2
−30 A
−40A
F/BOX OPTION60 A
A/C PTC1 (40 A)
F/BOX OPTION260 A
−60 A
F/BOX MAIN 60 A
3
AUDIO AMP(30 A)
−30 A
A/C PTC3(40 A)
−30 A
−50 A
HTR MTR40 A
RR DEFROSTER40 A
4 ABS/VSA FSR 40 A
ABS/VSA MTR 40 A
ENG WATER PUMP 40 A ESB 40 A
IG MAIN 30 A −40A
R/M2 30 A
5
SUB FUSE30 A
WIPER30 A
EPS70 A
R/M130 A
RFC60 A
−(30 A)
F/BOX MAIN260 A
6− −
7IG MAIN230 A
8− −
9BACK UP15 A
10 WASHER 15 A
11−−
12 RR H/SEAT*(20 A)
13−−
14 RFC RLY CL+ 10 A
15SHUTTER GRILLE(10 A)
16 − −
17−−
18 HORN 10 A
19AUDIO SUB*(15 A)
20 AUDIO 7.5 A
Circuit ProtectedAmps
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 592 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

593
uuFuses uFuse Locations
Handling the Unexpected
21EVTC20 A
22 DBW 15 A
23HAZARD15 A
24 BACKUP FI-ECU 10 A
25IGP15 A
26 − −
27LCM L20 A
28 INJ 20 A
29STOP10 A
30 LCM R 20 A
31IG COIL15 A
32 ICM 10 A
33PCU EWP10 A
34 − −
35−−
38 − −
39IGA10 A
40 IGB 10 A
41−−
42 MON2 7.5 A
43−−
44 − −
45IGPS (LAF)10 A
46 − −
Circuit ProtectedAmps
Located under the dashboard.
Fuse locations are shown on the label under
the steering column.
Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1P/W DR20 A
2P/W AS20 A
3P/W RR R20 A
4P/W RR L20 A
5OPTION10 A
6SRS10 A
7TRUNK LOCK ACT10 A
8−−
9FR ACC SOCKET20 A
10DOOR LOCK20 A
11METER10 A
12−(10 A)
13OPTION210 A
14MISS SOL10 A
15DR DOOR UNLOCK(10 A)
16−−
17−−
18−−
19−−
20CGW10 A
23 ACCORD 4D US HEV MAP-3130B6000.book 593 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

594
uuFuses uFuse Locations
Handling the Unexpected
21−−
22SMART10 A
23DR DOOR LOCK(10 A)
24−−
25−−
26SRS10 A
27ACG10 A
28VSA/ABS10 A
29FUEL PUMP20 A
30L SIDE DOOR UNLOCK10 A
31R SIDE DOOR UNLOCK10 A
32SUN ROOF(20 A)
33CTR DISP(7.5 A)
34USB CHG10 A
35−−
36−−
37−−
38IGA2 (IGHOLD3)(20 A)
39R SIDE DOOR LOCK10 A
40DR P/SEAT SLIDE(20 A)
Circuit ProtectedAmps
41DR P/SEAT REC(20 A)
42OPTION3(10 A)
43A/C10 A
44DRL10 A
45ACC10 A
46ACC KEY LOCK10 A
47L SIDE DOOR LOCK10 A
48FR H/SEAT*(20 A)
49AS P/SEAT REC*(20 A)
50P/LUMBAR DR(10 A)
51−−
52−−
53AS P/SEAT SLIDE*(20 A)
54OPTION110 A
55−−
56−−
Circuit ProtectedAmps
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 594 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

595
uuFuses uInspecting and Changing Fuses
Continued
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the main fuse in the engine
compartment fuse box.
u Look at the fuse through the hole.
u If the fuse is blown, have it replaced by a
dealer.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse labelM
2 Fuse Locations P. 592
Replace a fuse with a spare fuse of the same specified
amperage.
Main Fuse
Hole
23 ACCORD 4D US HEV MAP-3130B6000.book 595 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

uuFuses uInspecting and Changing Fuses
596
Handling the Unexpected
4. Check the combined fuses in the engine
compartment fuse box.
u Look into the space between the fuses.
u If the fuse is blown, have it replaced by a
dealer.
5. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined Fuse Blown Fuse
Fuse Puller
23 ACCORD 4D US HEV MAP-3130B6000.book 596 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

597
Handling the Unexpected

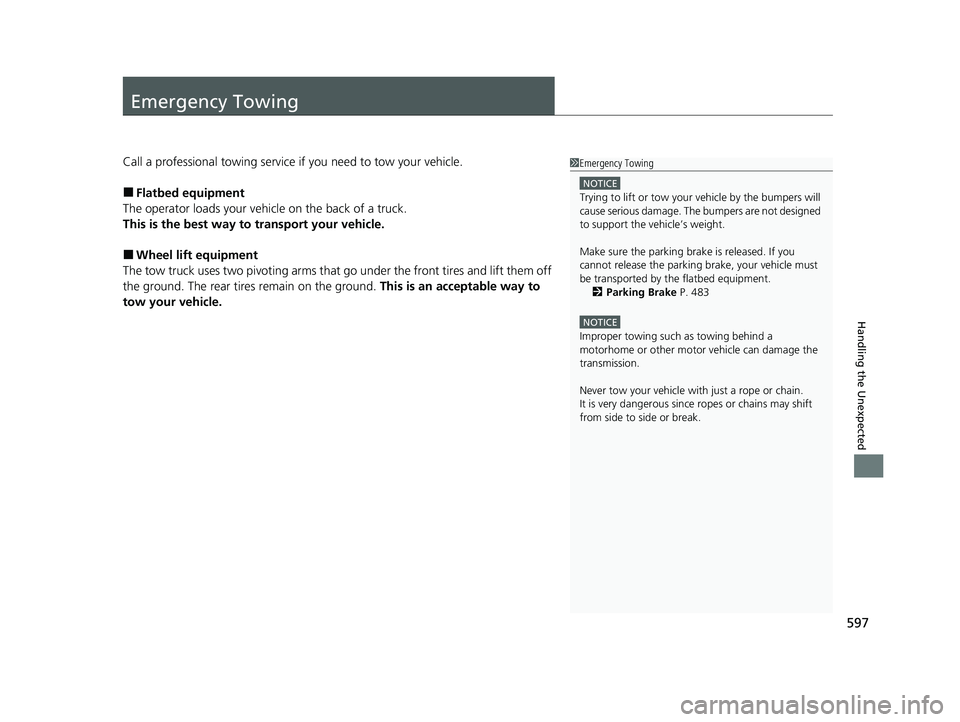

Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flatbed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.
Make sure the parking brake is released. If you
cannot release the parking brake, your vehicle must
be transported by the flatbed equipment. 2 Parking Brake P. 483
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
23 ACCORD 4D US HEV MAP-3130B6000.book 597 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

598
Handling the Unexpected

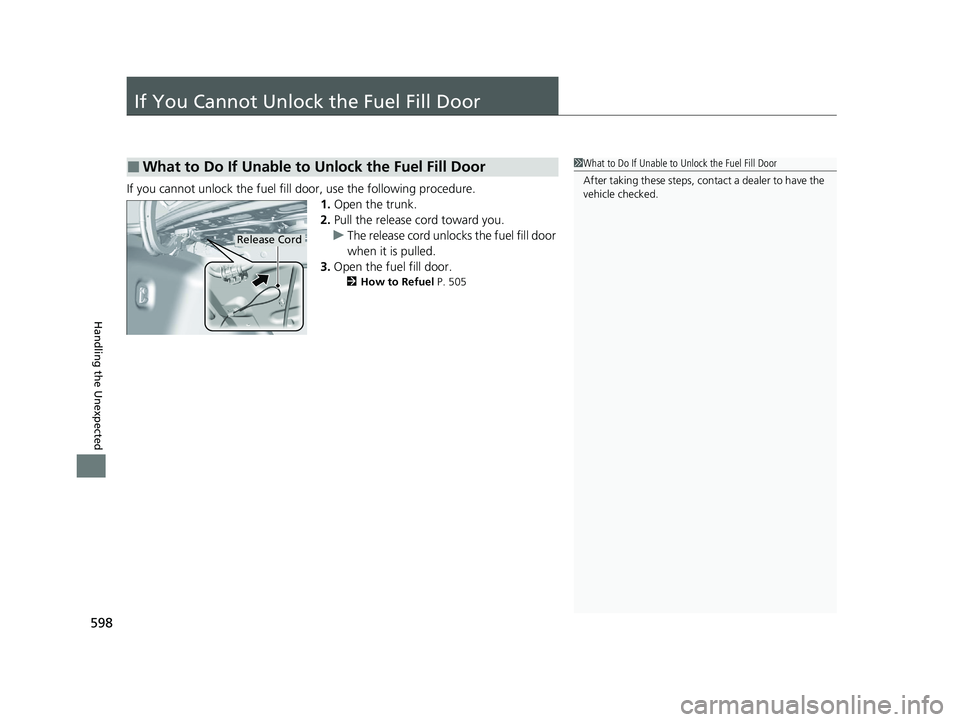

If You Cannot Unlock the Fuel Fill Door
