HONDA ACCORD HYBRID 2023 Owners Manual

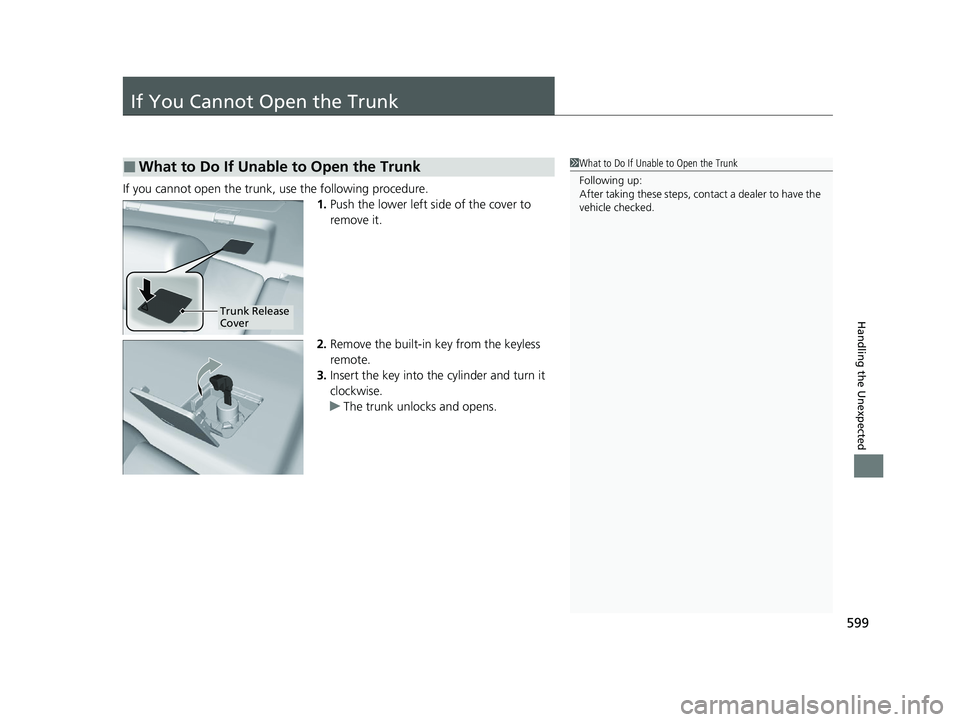

599
Handling the Unexpected
If You Cannot Open the Trunk
If you cannot open the trunk, use the following procedure.1.Push the lower left si de of the cover to
remove it.
2. Remove the built-in key from the keyless
remote.
3. Insert the key into th e cylinder and turn it
clockwise.
u The trunk unlocks and opens.
■What to Do If Unable to Open the Trunk1What to Do If Unable to Open the Trunk
Following up:
After taking these steps, cont act a dealer to have the
vehicle checked.
Trunk Release
Cover
23 ACCORD 4D US HEV MAP-3130B6000.book 599 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

600
Handling the Unexpected
Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel pr ovided with your vehicle.
1.Turn off the power system.
2. Open the fuel fill door.
2 How to Refuel P. 505
3.Take the funnel out of the tool case in the
trunk.
2 Types of Tools P. 560
4.Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
5. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
6. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
7. Shut the fuel fill door by hand.
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel systemM
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuelM
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Turn the power system off, and keep
heat, sparks, and flames away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Funnel
23 ACCORD 4D US HEV MAP-3130B6000.book 600 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

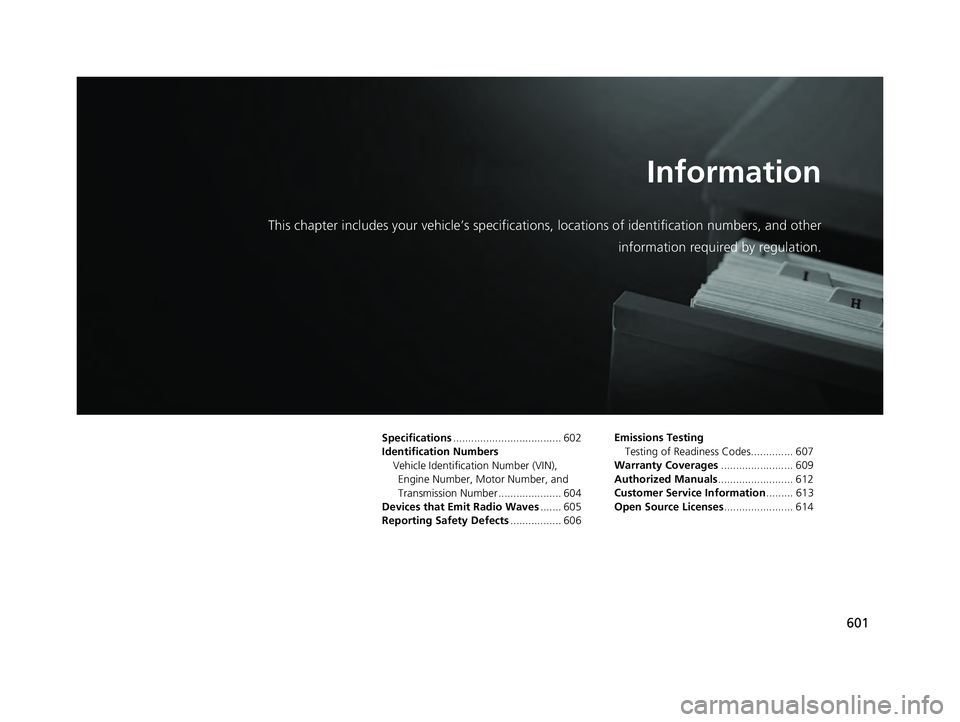

601
Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 602
Identification Numbers Vehicle Identification Number (VIN), Engine Number, Motor Number, and
Transmission Number ..................... 604
Devices that Emit Radio Waves ....... 605
Reporting Safety Defects ................. 606Emissions Testing
Testing of Readiness Codes.............. 607
Warranty Coverages ........................ 609
Authorized Manuals ......................... 612
Customer Service Information ......... 613
Open Source Licenses ....................... 614
23 ACCORD 4D US HEV MAP-3130B6000.book 601 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

602
Information
Specifications
■Vehicle Specifications
■ Air Conditioning
ModelACCORD HYBRID
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight RatingSee the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 15.3 – 17.1 oz (435 – 485 g)
Lubricant TypeND-OIL 11 (POE)
Quantity 7.32 – 8.24 cu-in (120 – 135 cm3)
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement121.57 cu-in (1,993 cm3)
Spark Plugs NGK DILZKAR7G11Y
TypeUnleaded gasoline, pump octane number
87 or higher
Fuel Tank Capacity 12.81 US gal (48.5 L)
Tank CapacityU.S.: 1.6 US qt (1.5 L)
Canada: 4.8 US qt (4.5 L)
■ Light Bulbs
Headlights (Low Beam)LED
Headlights (High Beam) LED
Parking/Daytime Running LightsLED
Front Turn Signal Lights LED
Front Side Marker LightsLED
Side Turn Signal Lights*
(on Door Mirrors) LED
Brake LightsLED
Taillights LED
Rear Side Marker/TaillightsLED
Rear Turn Signal Lights LED
Back-Up LightsLED
High-Mount Brake Light LED
Rear License Plate LightLED
Interior Lights Map Lights LED
Ceiling Light LED
Ambient Lights LED
Vanity Mirror Lights LED
Center Console Light LED
Trunk Light LED
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 602 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

603
uuSpecifications u
Information
■
Brake Fluid
■ Transmissi on FluidSpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda HEVF-Type 1
Capacity Change 2.6 US qt (2.5 L)
■ Engine Oil
■ Engine Coolant
Recommended·Honda Genuine Motor Oil 0W-20
·API service SN or higher grade 0W-20
Capacity Change 3.9 US qt (3.7 L)
Change
including
filter
4.2 US qt (4.0 L)
SpecifiedHonda Long-Life Antifreeze/Coolant Type 2
Ratio 50/50 with distilled water
Capacity1.49 US gal (5.63 L)
(change including the remaining
0.19 US gal (0.71 L) in the reserve tank)
■ Tire
*1: Original tire size is mentioned on the tire information label on
the driver’s doorjamb.
*2: Models with 225/50R17
*3: Models with 235/40R19
Regular
Size*1225/50R17 94V
235/40R19 96V
Pressure
psi (kPa [kgf/cm2])Front33 (230 [2.3])*2
35 (240 [2.4])*3
Rear32 (220 [2.2])
Wheel SizeRegular17 x 7 1/2J*2
19 x 8 1/2J*3
23 ACCORD 4D US HEV MAP-3130B6000.book 603 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

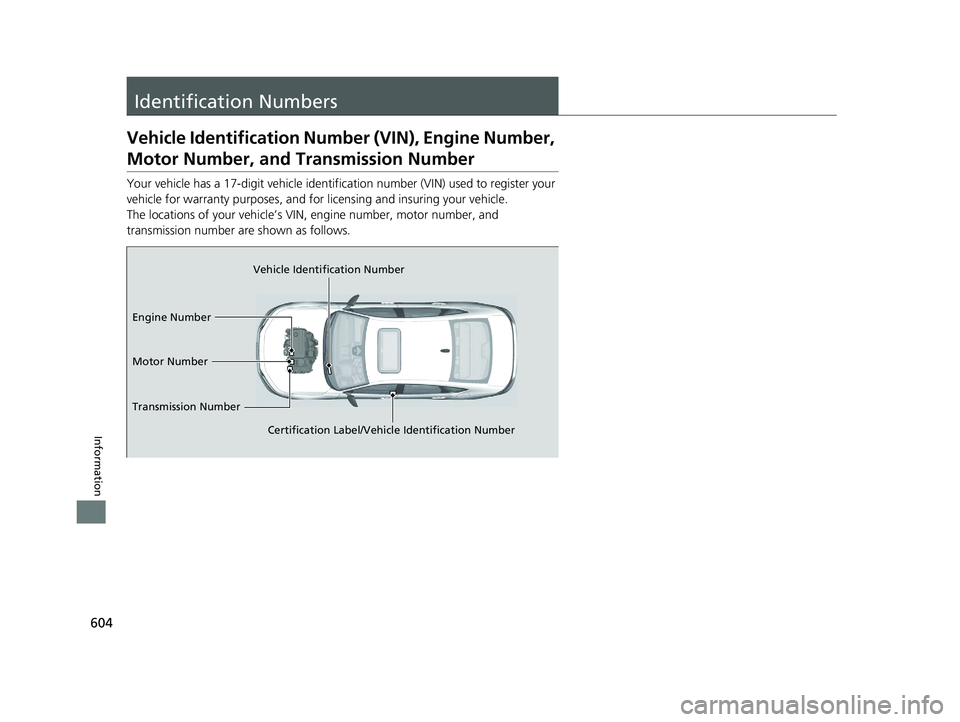

604
Information
Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
Motor Number, and Transmission Number
Your vehicle has a 17-digit vehicle identification number (V IN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, engine number, motor number, and
transmission number are shown as follows.
Engine Number
Certification Label/Vehicle Identification Number
Motor Number Vehicle Identification Number
Transmission Number
23 ACCORD 4D US HEV MAP-3130B6000.book 604 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

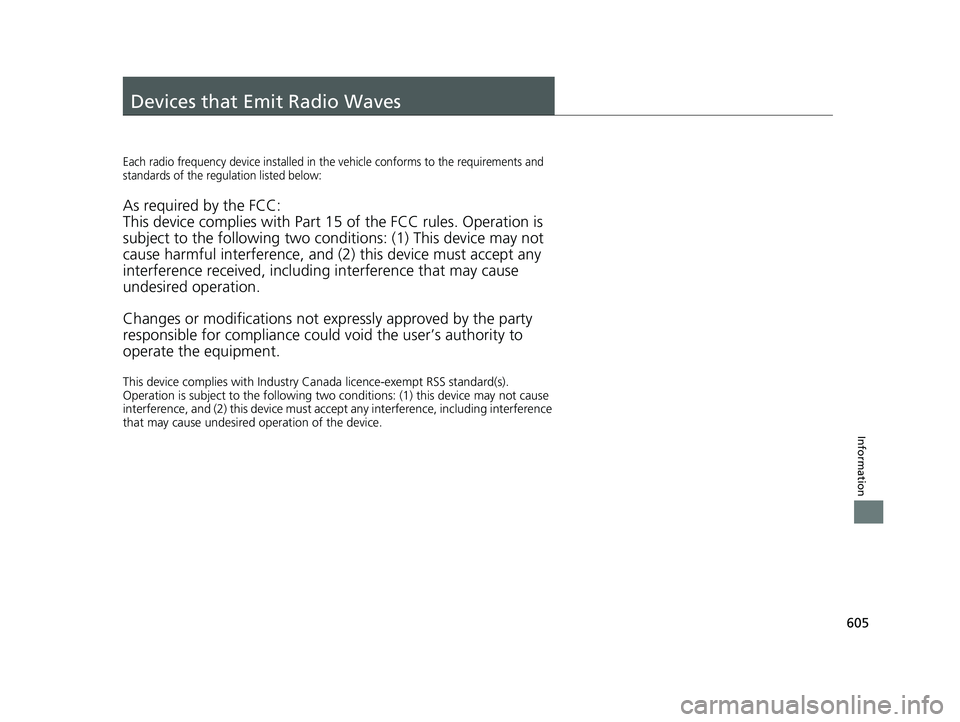

605
Information
Devices that Emit Radio Waves
Each radio frequency device installed in the vehicle conforms to the requirements and
standards of the regulation listed below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must acce pt any interference, including interference
that may cause undesired operation of the device.
23 ACCORD 4D US HEV MAP-3130B6000.book 605 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

606
Information
Reporting Safety Defects
In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the Nati onal Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an inve stigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and reme dy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Ho tline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov ; or write to: Administrator, NHTSA , 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain othe r information about motor vehicle safety from http://
www.safercar.gov .
In Canada
If you believe that your vehicle has a defect which c ould cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety .
23 ACCORD 4D US HEV MAP-3130B6000.book 606 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

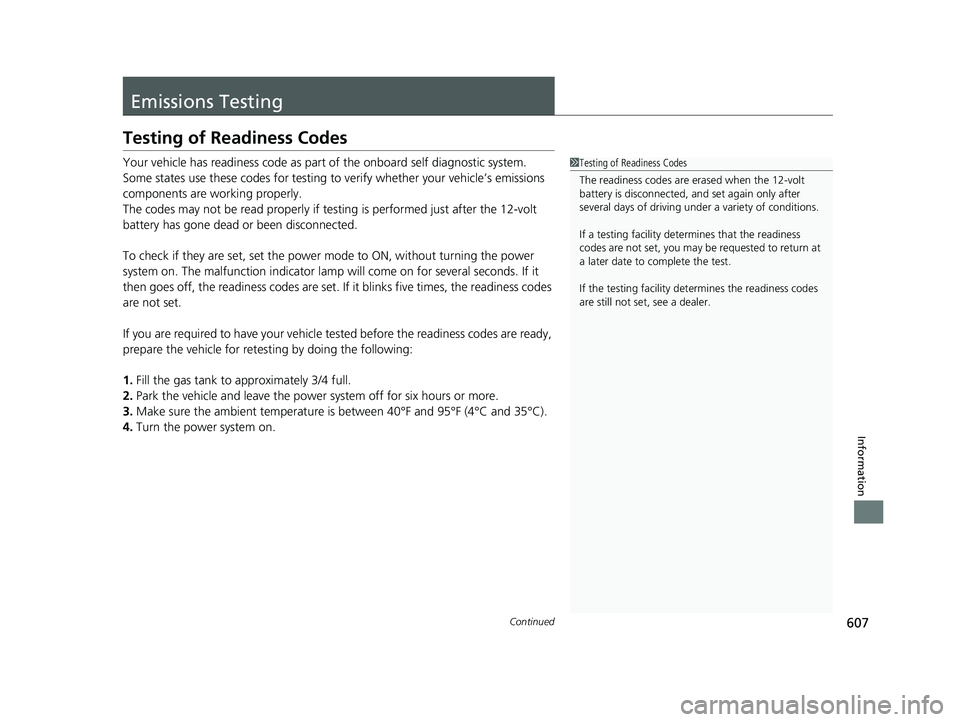

607Continued
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system.
Some states use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if te sting is performed just after the 12-volt
battery has gone dead or been disconnected.
To check if they are set, set the powe r mode to ON, without turning the power
system on. The malfunction indicator lamp will come on for several seconds. If it
then goes off, the readiness co des are set. If it blinks five times, the readiness codes
are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the power system off for six hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Turn the power system on.1Testing of Readiness Codes
The readiness codes are erased when the 12-volt
battery is disconnected, and set again only after
several days of driving unde r a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
23 ACCORD 4D US HEV MAP-3130B6000.book 607 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

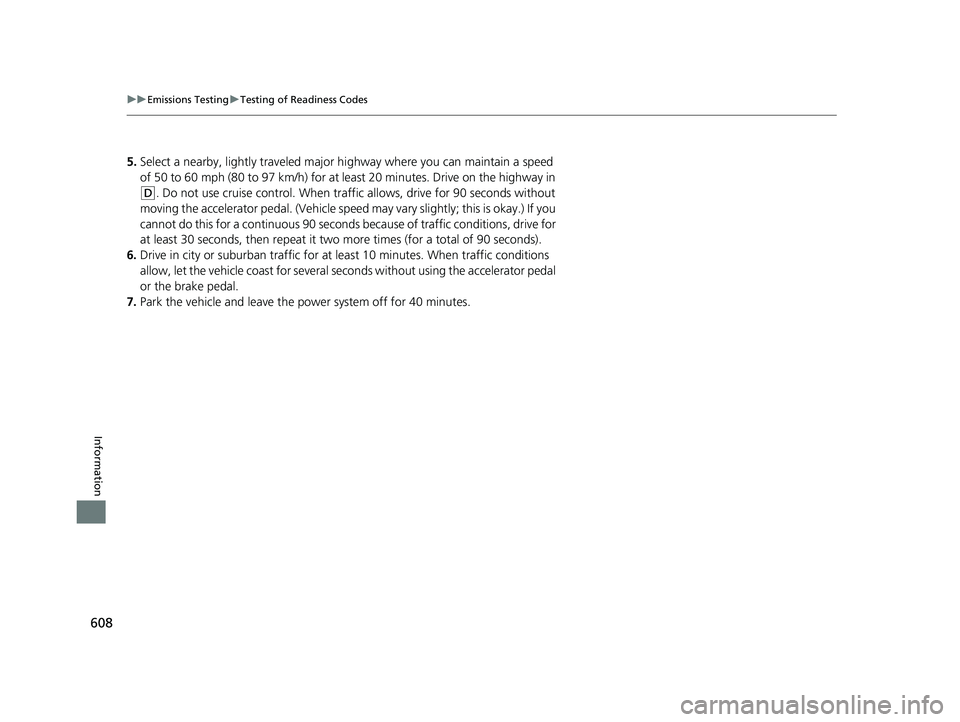

608
uuEmissions Testing uTesting of Readiness Codes
Information
5. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D. Do not use cruise control. When tra ffic allows, drive for 90 seconds without
moving the accelerator pedal. (Vehicle spee d may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two mo re times (for a total of 90 seconds).
6. Drive in city or suburban traffic for at le ast 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
7. Park the vehicle and leave the power system off for 40 minutes.
