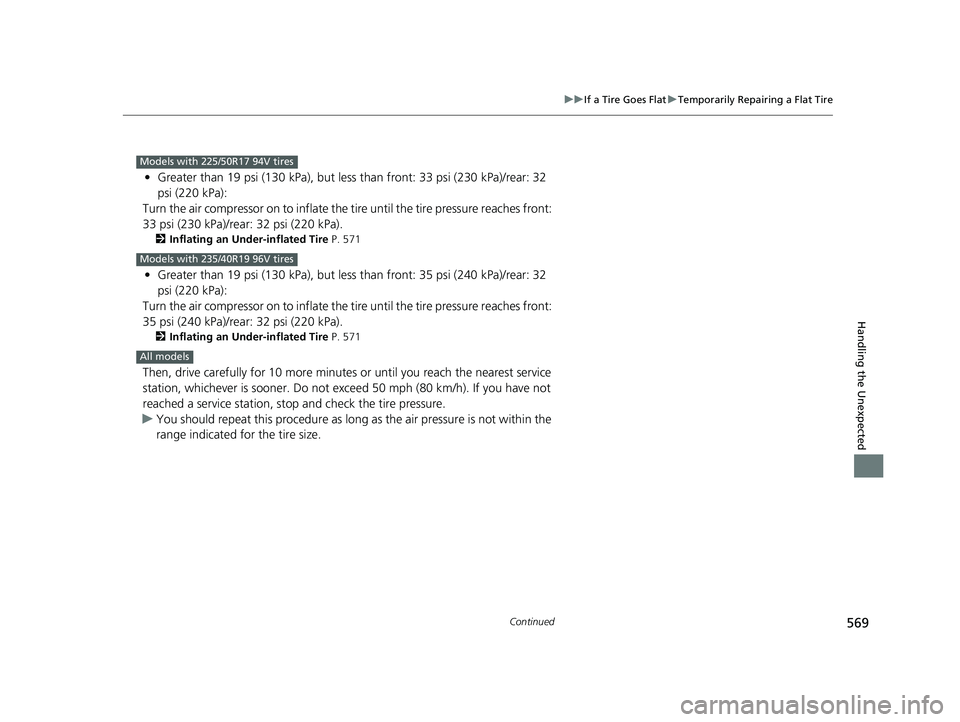

HONDA ACCORD HYBRID 2023 Owners Manual

569
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Continued
Handling the Unexpected
• Greater than 19 psi (130 kPa), but less than front: 33 psi (230 kPa)/rear: 32
psi (220 kPa):
Turn the air compressor on to inflate the ti re until the tire pressure reaches front:
33 psi (230 kPa)/rear : 32 psi (220 kPa).
2Inflating an Under-inflated Tire P. 571
•Greater than 19 psi (130 kPa), but less than front: 35 psi (240 kPa)/rear: 32
psi (220 kPa):
Turn the air compressor on to inflate the ti re until the tire pressure reaches front:
35 psi (240 kPa)/rear : 32 psi (220 kPa).
2Inflating an Under-inflated Tire P. 571
Then, drive carefully for 10 more minutes or until you reach the nearest service
station, whichever is sooner. Do not exceed 50 mph (80 km/h). If you have not
reached a service station, stop and check the tire pressure.
u You should repeat this procedure as long as the air pressure is not within the
range indicated for the tire size.
Models with 225/50R17 94V tires
Models with 235/40R19 96V tires
All models
23 ACCORD 4D US HEV MAP-3130B6000.book 569 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

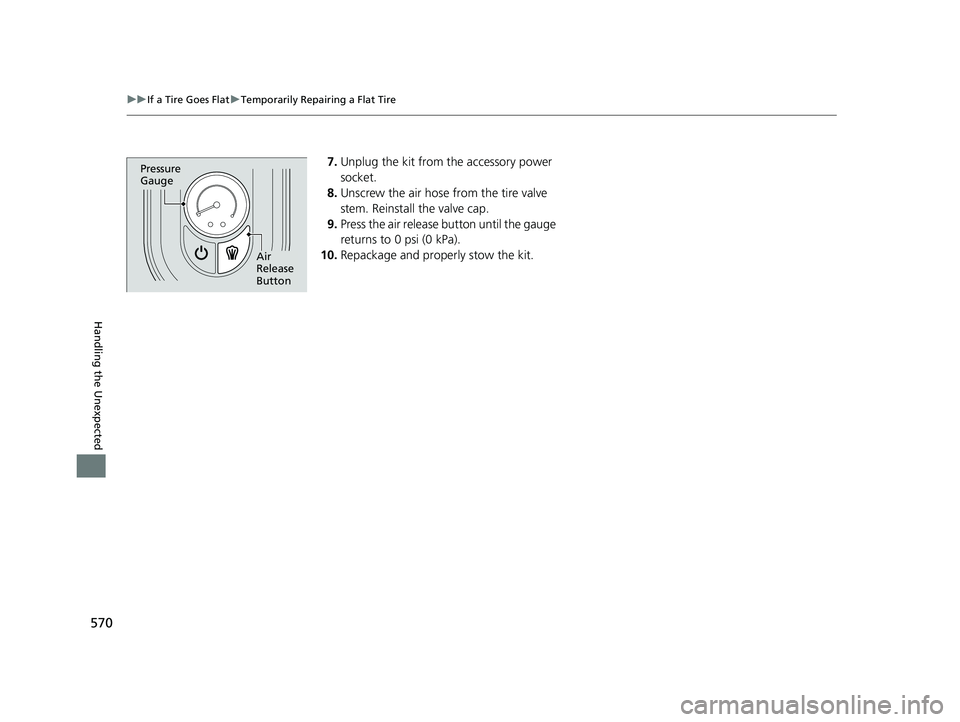

570
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
7. Unplug the kit from the accessory power
socket.
8. Unscrew the air hose from the tire valve
stem. Reinstall the valve cap.
9. Press the air release button until the gauge
returns to 0 psi (0 kPa).
10. Repackage and properly stow the kit.
Air
Release
Button
Pressure
Gauge
23 ACCORD 4D US HEV MAP-3130B6000.book 570 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

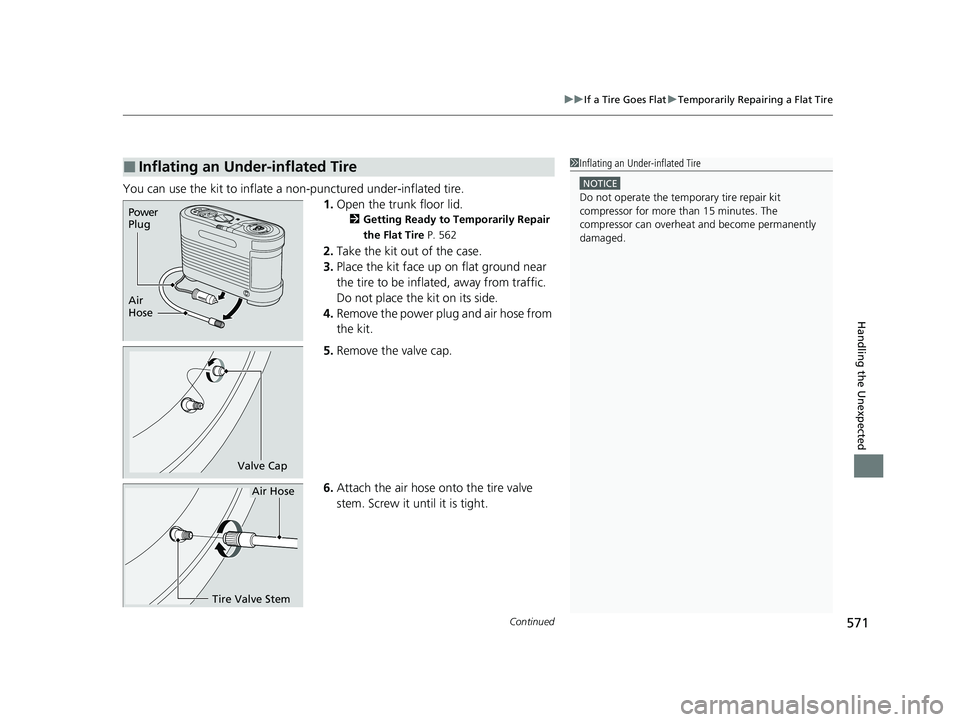

Continued571
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
You can use the kit to inflate a non-punctured under-inflated tire.
1.Open the trunk floor lid.
2 Getting Ready to Temporarily Repair
the Flat Tire P. 562
2.Take the kit out of the case.
3. Place the kit face up on flat ground near
the tire to be inflated, away from traffic.
Do not place the kit on its side.
4. Remove the power plug and air hose from
the kit.
5. Remove the valve cap.
6. Attach the air hose on to the tire valve
stem. Screw it until it is tight.
■Inflating an Under-inflated Tire1 Inflating an Under-inflated Tire
NOTICE
Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.
Power
Plug
Air
Hose
Valve Cap
Tire Valve Stem
Air Hose
23 ACCORD 4D US HEV MAP-3130B6000.book 571 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

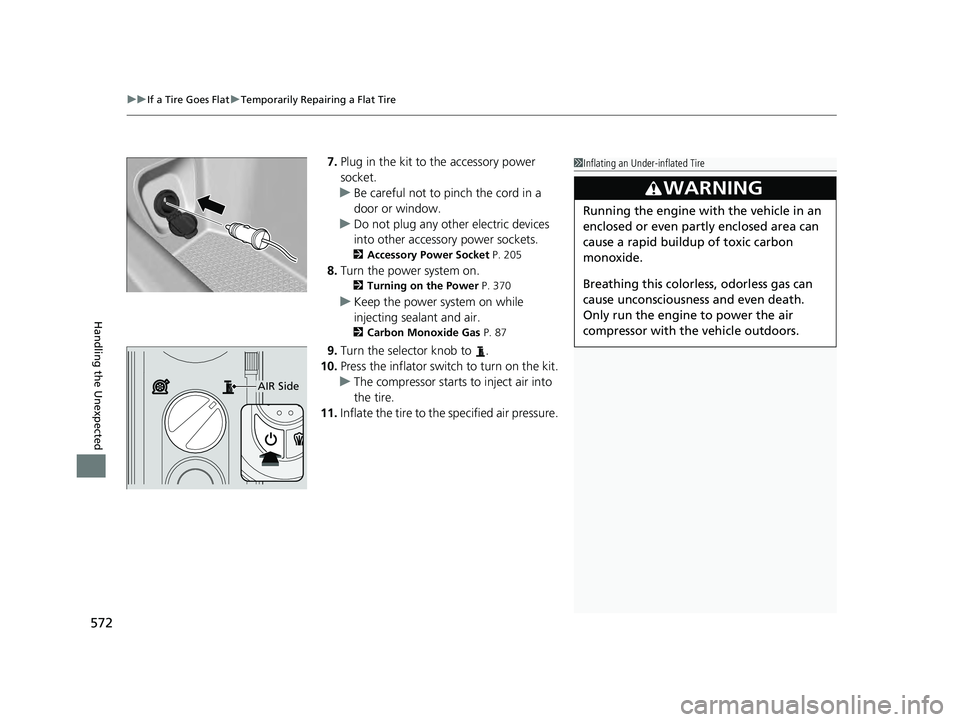

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
572
Handling the Unexpected
7. Plug in the kit to the accessory power
socket.
u Be careful not to pinch the cord in a
door or window.
u Do not plug any other electric devices
into other accessory power sockets.
2 Accessory Power Socket P. 205
8.Turn the power system on.
2 Turning on the Power P. 370
uKeep the power system on while
injecting sealant and air.
2 Carbon Monoxide Gas P. 87
9.Turn the selector knob to .
10. Press the inflator swit ch to turn on the kit.
u The compressor starts to inject air into
the tire.
11. Inflate the tire to the specified air pressure.
1Inflating an Under-inflated Tire
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid buildup of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
AIR Side
23 ACCORD 4D US HEV MAP-3130B6000.book 572 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

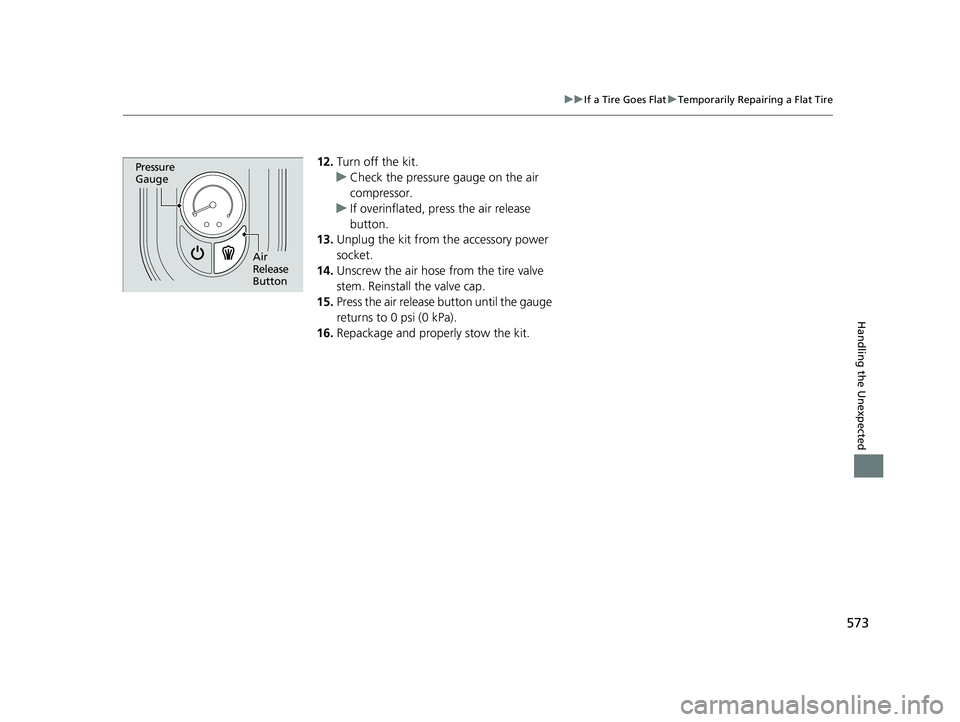

573
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
12. Turn off the kit.
u Check the pressure gauge on the air
compressor.
u If overinflated, press the air release
button.
13. Unplug the kit from the accessory power
socket.
14. Unscrew the air hose from the tire valve
stem. Reinstall the valve cap.
15. Press the air release button until the gauge
returns to 0 psi (0 kPa).
16. Repackage and properly stow the kit.
Air
Release
Button
Pressure
Gauge
23 ACCORD 4D US HEV MAP-3130B6000.book 573 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

574
Handling the Unexpected
Handling of the Jack
Your vehicle has jacking points as shown.
When replacing your tires, consult a dealer.
Jacking Points
23 ACCORD 4D US HEV MAP-3130B6000.book 574 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

575
Handling the Unexpected
Power System Won’t Start
Checking the Procedure
When the READY indicator does not come on the gauge, check th e following items and take appropriate action.
If you cannot turn on the power system after checking all the it ems in the list above, have your vehicle checked by a dealer.
If you must start the vehicle immediately, use an as sisting vehicle or booster battery to jump start it.
2If the 12-Volt Battery Is Dead P. 579
Depending on the situation, it may be possible to temporarily tu rn on the power system using the emergency power system on proc edure.
2Emergency Power System On P. 577
ChecklistConditionWhat to Do
Check if the related
indicator or driver
information interface
messages come on.The Temperature is too cold for vehicle to operate
message appears.●You must wait for an increase in the ambient
temperature or move the vehicle to a warmer
location.
●Contact a dealer if necessary.
The To start, touch start butt on with emblem side of
remote message appears.2 If the Keyless Remote Battery is Weak
P. 576
Check the shift position. The transmission is not in (P. Put the transmission into (P.
Check the immobilizer
system indicator.When the immobilizer system indicator is blinking, the power
system cannot be turned on.2Immobilizer System P. 162
2 Immobilizer System Indicator P. 103
Check the power system
starting procedure. Follow the instructions, and try to start the
power system again.
2
Turning on the Power P. 370
Check the fuses.Check all fuses, or have your vehicle checked by
a dealer.
2Inspecting and Changing Fuses P. 595
23 ACCORD 4D US HEV MAP-3130B6000.book 575 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

576
uuPower System Won’t Start uIf the Keyless Remote Battery is Weak
Handling the Unexpected
If the Keyless Remote Battery is Weak
If the beeper sounds, the To start, touch start butto n with emblem side of
remote message appears on the driver information interface, the POWER button
flashes, and the READY indicator does not come on, tu rn on the power system as
follows: 1.Press the POWER button.
u The beeper sounds and the POWER
button flashes for about 30 seconds.
2. Touch the center of the POWER button
with the H logo on the keyle ss remote while
the POWER button is flashing. The buttons
on the keyless remote should be facing you.
u The beeper sounds, and the POWER
button stays on for about 10 seconds.
3. Depress the brake pedal and press the
POWER button while the POWER button is
on.
u The READY indicator comes on.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.
23 ACCORD 4D US HEV MAP-3130B6000.book 576 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

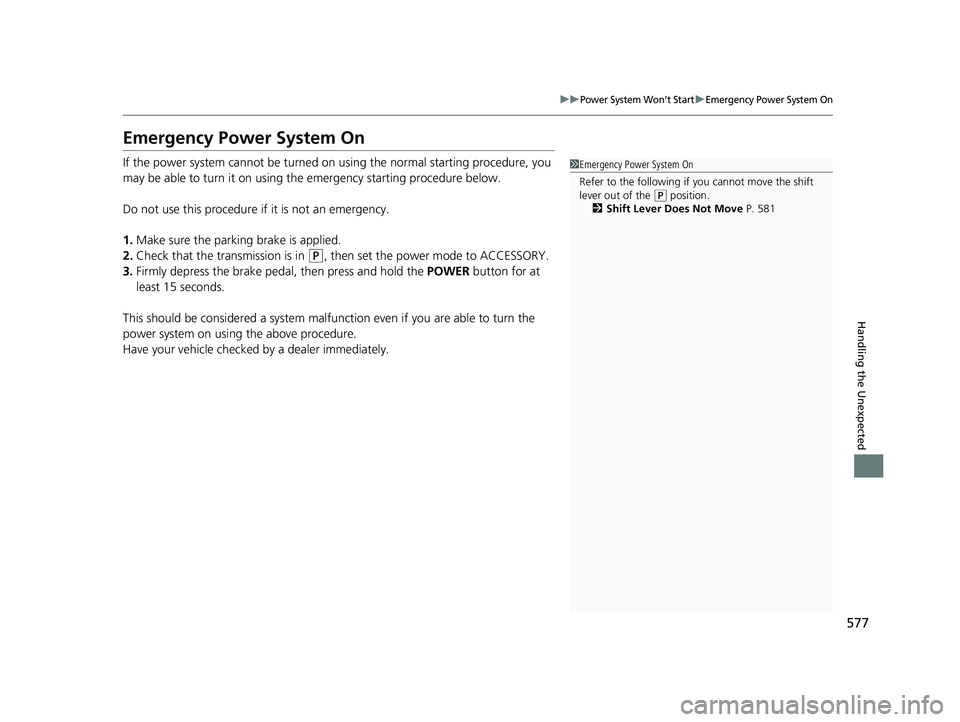

577
uuPower System Won’t StartuEmergency Power System On
Handling the Unexpected
Emergency Power System On
If the power system cannot be turned on using the normal starting procedure, you
may be able to turn it on using the emergency starting procedure below.
Do not use this procedure if it is not an emergency.
1. Make sure the parking brake is applied.
2. Check that the transmission is in
(P, then set the power mode to ACCESSORY.
3. Firmly depress the brake pedal, then press and hold the POWER button for at
least 15 seconds.
This should be considered a system malfun ction even if you are able to turn the
power system on using the above procedure.
Have your vehicle checked by a dealer immediately.
1Emergency Power System On
Refer to the following if you cannot move the shift
lever out of the
( P position.
2 Shift Lever Does Not Move P. 581
23 ACCORD 4D US HEV MAP-3130B6000.book 577 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

578
uuPower System Won’t Start uEmergency Power System Off
Handling the Unexpected
Emergency Power System Off
The POWER button may be used to turn the po wer system off due to an emergency
situation even while driving. If you must turn the powe r system off, do either of the
following operations:
• Press and hold the POWER button for about two seconds.
• Firmly press the POWER button three times.
The steering wheel will not lock. However, because turning off the power system
disables the power assist the power syst em provides to the steering and braking
systems, it will require significantly more physical effort and time to steer and slow
the vehicle. Use both feet on the brake pe dal to slow down the vehicle and stop
immediately in a safe place.
The power mode is in ACCESSORY wh en the power system is stopped.
To change the mode to VEHICLE OFF, put the transmission into
(P after the vehicle
comes to a complete stop.
1 Emergency Power System Off
NOTICE
Do not press the POWER button while driving unless
it is absolutely necessary for the power system to be
turned off.
If you press the POWER button while driving, the
beeper sounds.
23 ACCORD 4D US HEV MAP-3130B6000.book 578 ページ ２０２２年１０月１３日　木曜日　午後４時５０分
