Page 11 of 627
9
Quick Reference Guide❚ Headlights/ Turn Signals (P173, 174)
❚Deceleration Paddle Selector (- (P380)
❚Left Selector Wheel (P224)
❚ Wipers/ Washers (P181)
❚ Lane Keeping Assist System (LKAS)
Button
(P448)
❚ Interval Button (P438)
❚Steering Wheel Adjustments (P186)
❚ Heated Steering Wheel (P210)
$ B O B E J B O N P E F M T
❚Deceleration Paddle Selector (+ (P380)
❚Horn (Press an area around .)
❚ Adaptive Cruise Control (ACC) with
Low Speed Follow Buttons
(P424)
❚Audio Remote Controls (P224)
❚Bluetooth ® HandsFreeLink ® System Buttons (P341)
❚Right Selector Wheel (P119)
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 9 ページ 2022年10月13日 木曜日 午後4時50分
Page 36 of 627
34
Quick Reference Guide
Adaptive Cruise Control
(ACC) with Low Speed
Follow
(P424)
Helps maintain a constant vehicle speed and
a set following-interval behind a vehicle
detected ahead of yours and, if the detected
vehicle comes to a stop, can decelerate and
stop your vehicle, without you having to
keep your foot on the brake or the
accelerator.
Lane Keeping Assist
System (LKAS)
(P445)
Provides steering input to help keep the
vehicle in the middle of a detected lane and
provides tactile and visual alerts if the
vehicle is detected drifting out of its lane.
Traffic Jam Assist (P456)
The Traffic Jam Assist system uses a camera
mounted to the uppe r portion of the
windshield to detect and monitor left and
right white (or yellow) traffic lane lines.
Based on inputs from the camera, the
system can apply steering torque to keep
your vehicle in the center of the detected
lane.
Road Departure
Mitigation System
(P 465)
Alerts and helps assist you when the system
detects a possibility of your vehicle crossing
over detected lane markings, or
approaching the outer edge of the
pavement (into grass or gravel border) or a
detected oncoming vehicle.
Traffic Sign Recognition
System
(P473)
Reminds you of road si gn information, such
as the current speed limit your vehicle has
just passed through, showing it on the
gauge and the head-up display
*.
23 ACCORD 4D US HEV MAP-3130B6000.book 34 ページ 2022年10月13日 木曜日 午後4時50分
Page 93 of 627
91
uuIndicators u
Continued
Instrument Panel
*1 : When you set the power mode to ON, these indicators come on to indicate that system checks are being performed. They go off a few seconds later or after the power
system has started. If an indicator does not come on or turn off, there may be a malfunction in the corresponding system. To re solve the issue, follow the instructions in
the owner’s manual.
Auto High-Beam
Indicator
Low Tire Pressure/
TPMS Indicator*
Turn Signal and
Hazard Warning
Indicators
Lights On
Indicator
High Beam
Indicator
System Message
Indicator Adaptive Cruise Control
(ACC) with Low Speed
Follow Indicator (Amber)
Lane Keeping Assist
System (LKAS) Indicator
(Amber)
Safety Support
Indicator (Green/Gray)
P. 100
CHARGE Mode
Indica
tor
P. 103
P.
101
P. 10 4
*1
P. 101
P. 101
P. 101 Immobilizer System
Indicator
P. 103
S
ecu
rity System Alarm
Indicator
P. 103
P. 102
P. 105
P. 109
*1
Adaptive Cruise Control
(ACC) with Low Speed
Follow Indicator
(White/Green)
P. 104
*1
Lane Keeping Assist
System (LKAS) Indicator
(White/Green)
P. 105
*1Safety Support
Indicator (Amber)
P. 106
*1
NORMAL Mode
Indicator
P. 102
AUTO Mode Indicator
P. 103
EV Mode Indicator P. 103
SPORT
Mode Indic
ator
P. 102
Cruise Mode Indicator
(White/Green)
P. 105
Adaptive Cruise Control
(ACC) with Low Speed
Follow Interv al Indicator
P. 105
ECON Mode Indicator
P. 102 INDIVIDUAL
Mode
Indicator
P.
102
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 91 ページ 2022年10月13日 木曜日 午後4時50分
Page 106 of 627
104
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Adaptive Cruise
Control (ACC) with
Low Speed Follow
Indicator (Amber)
●Comes on if there is a problem with ACC
with Low Speed Follow.●Comes on while driving - Have your vehicle
checked by a dealer.
●Comes on if the ACC with Low Speed
Follow is deactivated temporarily after the
12-volt battery has been disconnected,
then re-connected.●Drive a short distance at more than 12 mph (20
km/h). The indicator should go off. If it does not,
have your vehicle checked by a dealer.
●Indicator may come on temporarily when
the Maximum Load Limit is exceeded.
●ACC with Low Speed Follow has been
automatically canceled.
●Make sure the total load is within the Maximum
Load Limit.
2 Maximum Load Limit P. 367●Stays on constantly - Have your vehicle checked
by a dealer.
Adaptive Cruise
Control (ACC) with
Low Speed Follow
Indicator
(White/Green)
●Lights up in white when you press the
button.
●Lights up in white and green if no vehicle is
detected ahead of yo u while ACC with Low
Speed Follow is in operation.
●Lights up in green if a vehicle is detected
ahead of you while ACC with Low Speed
Follow is in operation.
2 Adaptive Cruise Control (ACC) with Low
Speed Follow P. 424
23 ACCORD 4D US HEV MAP-3130B6000.book 104 ページ 2022年10月13日 木曜日 午後4時50分
Page 107 of 627
105
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Lane Keeping
Assist System
(LKAS) Indicator
(Amber)
●Comes on if there is a problem with the
LKAS.●Stays on constantly - Have your vehicle checked
by a dealer.
●Indicator may come on temporarily when
the Maximum Load Limit is exceeded.●Make sure the total load is within the Maximum
Load Limit.
2 Maximum Load Limit P. 367●Stays on constantly - Have your vehicle checked
by a dealer.
Lane Keeping
Assist System
(LKAS) Indicator
(White/Green)●Lights up in white wh en you press the LKAS
button.
●Lights up in green when the LKAS is in
operation.2 Lane Keeping Assist System (LKAS) P. 445
Cruise Mode
Indicator
(White/Green)●Lights up in white when you change to
cruise mode.
●Lights up in green when you have set a
speed for cruise control.
2To Switch ACC with Low Speed Follow to
Cruise Control P. 443
Adaptive Cruise
Control (ACC) with
Low Speed Follow
Interval Indicator●Comes on when Adaptive Cruise Control
(ACC) with Low Speed Follow indicator
comes on.
2 To Set or Change Following-interval P. 438
23 ACCORD 4D US HEV MAP-3130B6000.book 105 ページ 2022年10月13日 木曜日 午後4時50分
Page 116 of 627
uuGauges and Displays uGauges
114
Instrument Panel
Shows the current mode for ACC with Lo w Speed Follow, LKAS, and Traffic Jam
Assist.
2 Adaptive Cruise Control (ACC) with Low Speed Follow P. 424
2 Lane Keeping Assist System (LKAS) P. 445
2 Traffic Jam Assist P. 456
■Current Mode for ACC with Low Speed Follow, the LKAS,
and Traffic Jam Assist1 Current Mode for ACC with Lo w Speed Follow, the LKAS, and
Traffic Jam Assist
When you set speed for ACC with Low Speed Follow
or cruise control, a set speed mark will be displayed
on the speedometer.
Set
Speed
23 ACCORD 4D US HEV MAP-3130B6000.book 114 ページ 2022年10月13日 木曜日 午後4時50分
Page 137 of 627
135
uuGauges and Displays uHead-Up Display*
Continued
Instrument Panel
Head-Up Display*
Shows the current mode for ACC with Low Speed Follow, LKAS, and Traffic Jam
Assist; compass or turn-by-turn directions ; and vehicle speed. You can choose which
item to be displayed using the driver info rmation interface. They are displayed when
the power mode is in ON. The display also shows the following
messages.
•Lane Departure Warning: When your
vehicle is too close to the traffic lane lines,
the lane departure warning appears.
2 Road Departure Mitigation System
P. 465
2 Lane Keeping Assist System (LKAS)
P. 445
2 Traffic Jam Assist P. 456
•Head-up Warning Lights:
Flash when the BRAKE message appears
on the driver information interface.
2 Collision Mitigation Braking SystemTM
(CMBSTM) P. 406
2 Low Speed Braking Control* P. 418
2 Adaptive Cruise Control (ACC) with
Low Speed Follow P. 424
Lane Departure Warning
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 135 ページ 2022年10月13日 木曜日 午後4時50分
Page 141 of 627
139
uuGauges and Displays uHead-Up Display*
Instrument Panel
Shows your driving speed in mph or km/h.
Shows the current mode for ACC with Low Speed Follow, LKAS, and Traffic Jam
AssistM
2 Adaptive Cruise Control (ACC) with Low Speed Follow P. 424
2 Lane Keeping Assist System (LKAS) P. 445
2 Traffic Jam Assist P. 456
■Compass
Shows the compass screen.
■Turn-by-Turn Directions
When driving guidance is provided by Google Maps*1, Android Auto or Apple
CarPlay, turn-by-turn directions to your destination appear.
2Google Maps P. 288
2 Android AutoTM P. 280
2 Apple CarPlay P. 273
*1: Models with Google built-in
■Speedometer
■Current Mode for ACC with Low Speed Follow, LKAS, and
Traffic Jam Assist
■Navigation
1 Speedometer
Switch between mph and km/h by using the driver
information interface or the customized features on
the audio/information screen.
2 Speed/distance units P. 132
2 Customized Features P. 318
1Navigation
You can select whether the turn-by-turn display
comes on during the route guidance.
2 Customized Features P. 318
Turn-by-turn directions may not be available for all
apps.
23 ACCORD 4D US HEV MAP-3130B6000.book 139 ページ 2022年10月13日 木曜日 午後4時50分

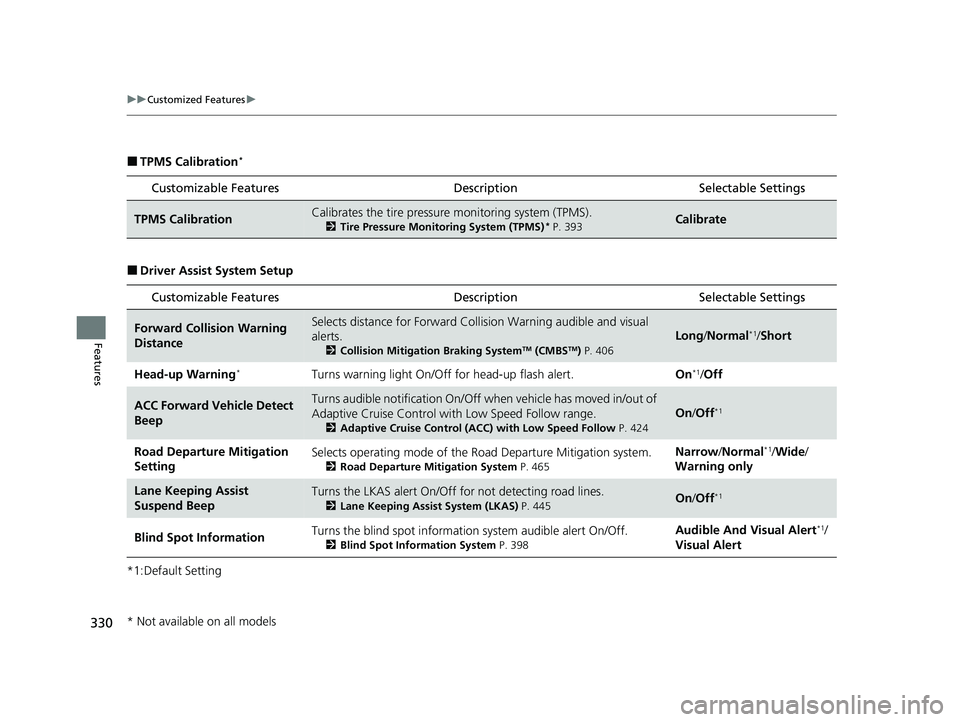

Page 332 of 627
330
uuCustomized Features u
Features
■TPMS Calibration*
■Driver Assist System Setup
*1:Default Setting
Customizable Features DescriptionSelectable Settings
TPMS CalibrationCalibrates the tire pressure monitoring system (TPMS).
2Tire Pressure Monitoring System (TPMS)* P. 393Calibrate
Customizable Features DescriptionSelectable Settings
Forward Collision Warning
DistanceSelects distance for Forward Collision Warning audible and visual
alerts.
2 Collision Mitigation Braking SystemTM (CMBSTM) P. 406
Long/ Normal*1/Short
Head-up Warning*Turns warning light On/Off for head-up flash alert. On*1/Off
ACC Forward Vehicle Detect
BeepTurns audible notification On/Off wh en vehicle has moved in/out of
Adaptive Cruise Control wi th Low Speed Follow range.
2Adaptive Cruise Control (ACC) with Low Speed Follow P. 424
On/Off*1
Road Departure Mitigation
Setting Selects operating mode of the Ro
ad Departure Mitigation system.
2Road Departure Mitigation System P. 465
Narrow/Normal*1/Wide /
Warning only
Lane Keeping Assist
Suspend BeepTurns the LKAS alert On/Off fo r not detecting road lines.
2Lane Keeping Assist System (LKAS) P. 445On /Off*1
Blind Spot Information Turns the blind spot informatio
n system audible alert On/Off.2Blind Spot Information System P. 398
Audible And Visual Alert*1/
Visual Alert
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 330 ページ 2022年10月13日 木曜日 午後4時50分

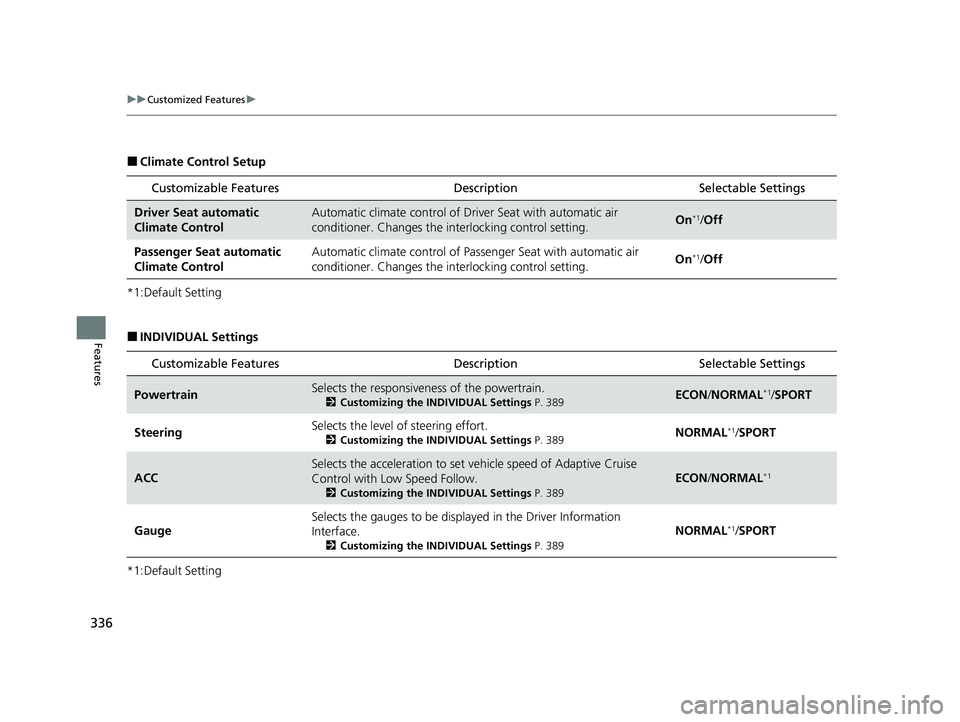

Page 338 of 627
336
uuCustomized Features u
Features
■Climate Control Setup
*1:Default Setting
■INDIVIDUAL Settings
*1:Default Setting Customizable Features Description Selectable Settings
Driver Seat automatic
Climate ControlAutomatic climate control of Driver Seat with automatic air
conditioner. Changes the interlocking control setting.On*1/
Off
Passenger Seat automatic
Climate Control Automatic climate control of Passenger Seat with automatic air
conditioner. Changes the interlocking control setting.
On
*1/
Off
Customizable Features DescriptionSelectable Settings
PowertrainSelects the responsiveness of the powertrain.
2Customizing the INDIVIDUAL Settings P. 389ECON/NORMAL*1/SPORT
Steering Selects the level of steering effort.
2
Customizing the INDIVIDUAL Settings P. 389NORMAL*1/SPORT
ACC
Selects the acceleration to set ve hicle speed of Adaptive Cruise
Control with Low Speed Follow.
2 Customizing the INDIVIDUAL Settings P. 389
ECON/NORMAL*1
Gauge Selects the gauges to be displa
yed in the Driver Information
Interface.
2 Customizing the INDIVIDUAL Settings P. 389
NORMAL*1/SPORT
23 ACCORD 4D US HEV MAP-3130B6000.book 336 ページ 2022年10月13日 木曜日 午後4時50分
