HONDA ACCORD SEDAN 2001 Owner's Manual (in English)

Audio System
Operating the Cassette Player
(Optional)
The cassette system features Dolby B* noise reduction, automatic
sensing of chromium-dioxide (CrO2)
tape, and autoreverse for continuous

play.

Make sure the tape opening on the cassette is facing to the right, then
insert the cassette most of the way
into the slot. The system will pull it
in the rest of the way, and begin to
play.

* Dolby noise reduction manufactured under
license from Dolby Laboratories Licensing Corpo-
ration. "DOLBY" and the double-D symbol are trademarks of Dolby Laboratories
Licensing Corporation.
AM/FM BUTTON

REPEAT BUTTON

REW BUTTON
PLAY/PROG BUTTON

Comfort and Convenience Features
FF BUTTON
NR BUTTON

CD/TAPE BUTTON

Audio System
The tape direction indicator will light to show you which side of the cassette is playing. The indicates
the side you inserted facing upward
is now playing. If you want to play
the other side, press the PROG
button. Dolby B noise reduction turns on
when you insert a cassette. If the tape was not recorded with Dolby B
noise reduction, turn it off by
pressing the NR button.
Dolby remains off until you turn it on
by pressing the button again.
When the system reaches the end of the tape, it will automatically reversedirection and play the other side. If
you want to remove the cassette
from the drive, press the EJECT button on the cassette player.
If you turn the system off while a

tape is playing, either with the PWR/

VOL knob or by turning off the
ignition, the cassette will remain in

the drive. When you turn the system

back on, the cassette player will be in

pause mode. To begin playing, press

the PLAY button.

To switch to the radio or CD player
while a tape is playing, press the

AM/FM, or CD button. To change
back to the cassette player, push the
CD button.
Comfort and Convenience Features

Audio System

Tape Search Functions
With a cassette playing, you can usethe FF, REW, SKIP, or REPEAT
function to find a desired program. FF/REW — Fast Forward and Re-
wind move the tape rapidly. To re-
wind the tape, push the REW button.
You will see REW in the display. To fast forward the tape, push the FFbutton. You will see FF displayed.
Press the PLAY button to take thesystem out of rewind or fast forward.
If the system reaches the end of the
tape while in fast forward or rewind, it automatically stops that function,
reverses direction, and begins to play. SKIP — The skip function allows
you to find the beginning of a song or passage. To activate SKIP, press
the SEEK/SKIP bar. Press the side to advance to the
beginning of the next song or passage, or the side to return to
the beginning of the current song or
passage. FF or REW will flash in the
display as the tape moves. When the
system reaches the beginning of the
next song or passage (FF), or the
beginning of the current one (REW), it goes back to PLAY mode.
Comfort and Convenience Features

Audio System

REPEAT — The Repeat function continuously replays the current
song or passage. Press the RPT
button to activate it; you will see RPT displayed as a reminder. When the
system reaches the end of the song
or passage currently playing, it will
automatically go into rewind. When
it senses the beginning of the same song or passage, the system returns
to PLAY mode. It will continue to
repeat this same program until you deactivate REPEAT by pressing the
button again. The SKIP and REPEAT functions
use silent periods on the tape to find
the end of a song or passage. These
features may not work to your satisfaction if there is almost no gap
between selections, a high noise
level between selections, or a silent
period in the middle of a selection. Caring for the Cassette Player
The cassette player picks up dirt and oxides from the tape. This contami-
nation builds up over time and causes the sound quality to degrade.
To prevent this, you should clean the player after every 30 hours of use.
Your dealer has a cleaning kit
available.

If you do not clean the cassette
player regularly, it may eventually
become impossible to remove the contamination with a normal
cleaning kit.
Use 100-minute or shorter cassettes.Cassettes longer than that use
thinner tape that may break or jam
the drive.

CONTINUED

Comfort and Convenience Features

Audio System

Look at the cassette before you
insert it. If the tape is loose, tighten
it by turning a hub with a pencil or
your finger.
If the label is peeling off, remove it
from the cassette or it could cause
the cassette to jam in the player. Never try to insert a warped ordamaged cassette in the player. When they are not in use, store
cassettes in their cases to protect
them from dust and moisture. Never
place cassettes where they will be exposed to direct sunlight, high heat,or high humidity. If a cassette isexposed to extreme heat or cold, let
it reach a moderate temperature
before inserting it in the player.
Never try to insert foreign objects
into the cassette player. If you see the error indication on the display, press
the EJECT button and remove the cassette from the unit. Make sure
the tape is not damaged. If the cassette will not eject or the error
indication stays on after the cassette
ejects, take the car to your Honda
dealer.

Comfort and Convenience Features

Audio System

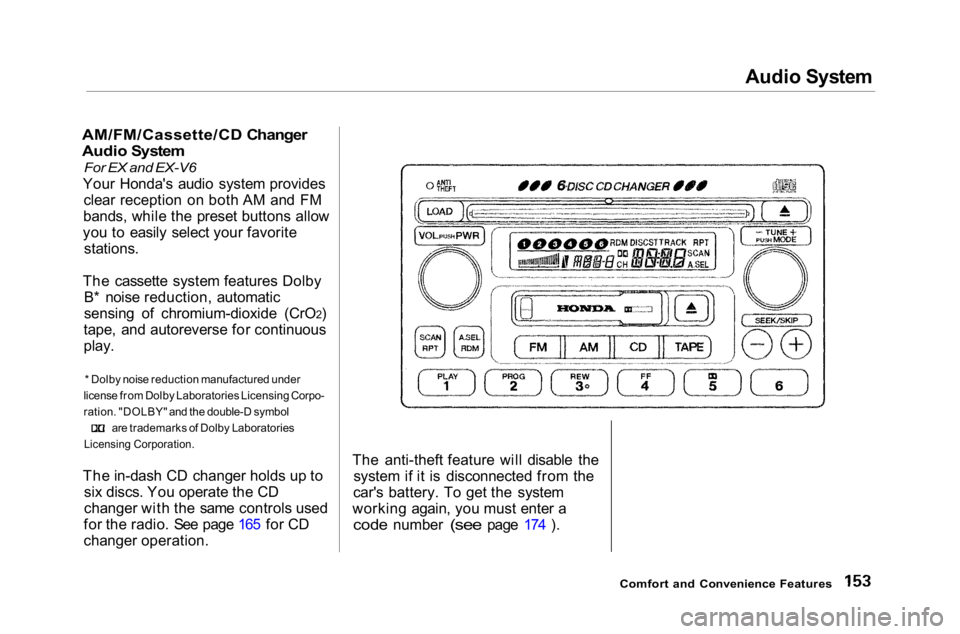

AM/FM/Cassette/CD Changer
Audio System For EX and EX-V6

Your Honda's audio system provides clear reception on both AM and FM
bands, while the preset buttons allow
you to easily select your favorite stations.
The cassette system features Dolby B* noise reduction, automaticsensing of chromium-dioxide (CrO2)
tape, and autoreverse for continuous
play.
* Dolby noise reduction manufactured under
license from Dolby Laboratories Licensing Corpo-
ration. "DOLBY" and the double-D symbol are trademarks of Dolby Laboratories

Licensing Corporation.

The in-dash CD changer holds up to six discs. You operate the CD
changer with the same controls used
for the radio. See page 165 for CD
changer operation. The anti-theft feature will disable the
system if it is disconnected from the
car's battery. To get the system
working again, you must enter a
code number (see page 174 ).

Comfort and Convenience Features

Audio System

Operating the Radio
The ignition switch must be in
ACCESSORY (I) or ON (II) to operate the audio system. Turn the
system on by pressing the PWR/
VOL knob or the AM or FM button.
Adjust the volume by turning the knob.
The band and frequency that the radio was last tuned to is displayed.
To change bands, press the AM or FM button. On the FM band, ST will
be displayed if the station is broad- casting in stereo. Stereo
reproduction on AM is not available. You can use any of four methods to
find radio stations on the selected
band: TUNE, SEEK, SCAN or thePreset buttons.
TUNE — Use the TUNE knob to tune the radio to a desired frequency.
Turn the TUNE knob to the right to tune to a higher frequency, or to theleft to tune to a lower frequency.
Turn the knob right or left until the display reaches the desired
frequency.
SEEK — The SEEK functionsearches the band for a station with
a strong signal. To activate it, press either SEEK button ( or ), then
release it. Depending on which
SEEK button you press, the system
scans upward or downward from the
current frequency. It stops when it
finds a station with a strong signal. SCAN — The SCAN function
samples all the stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. When the system is in the SCAN mode, SCAN shows in
the display. The system will scan up
the band for a station with a strongsignal. When it finds one, it will stop
and play that station for
approximately five seconds. If you do
nothing, the system will then scan
for the next strong station and play
that for five seconds. When it plays a station that you want to continue
listening to, press the SCAN button
again.

Comfort and Convenience Features

Audio System

Preset — You can store the
frequencies of your favorite radio stations in the six preset buttons.
Each button will store one frequency
on the AM band, and two
frequencies on the FM band.
To store a frequency:
1. Select the desired band, AM or FM. FM1 and FM2 let you store
two frequencies with each Preset

button.

2. Use the TUNE or SEEK function to tune the radio to a desired
station.

3. Pick the Preset button you want for that station. Press the button
and hold it until you hear a beep.
4. Repeat steps 1 to 3 to store a total of six stations on AM and twelve

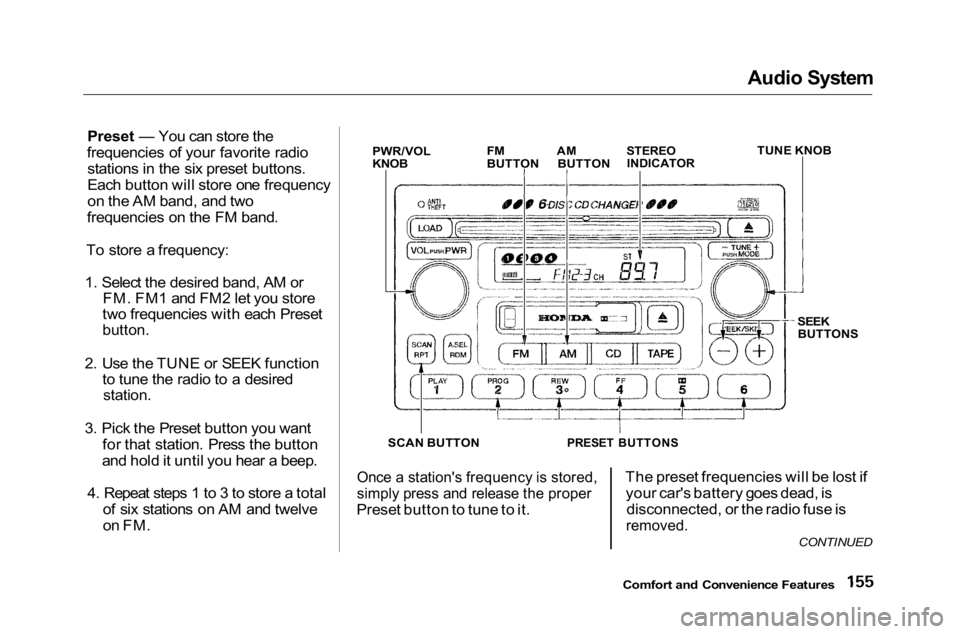

on FM. PWR/VOL
KNOB
FM
BUTTON TUNE KNOB
SEEKBUTTONS
SCAN BUTTON
PRESET BUTTONS

Once a station's frequency is stored,

simply press and release the proper

Preset button to tune to it. The preset frequencies will be lost if
your car's battery goes dead, is disconnected, or the radio fuse is

removed.

Comfort and Convenience Features
CONTINUED

AM

BUTTON
STEREO
INDICATOR

Audio System

AUTO SELECT — If you are
traveling far from home and can no
longer receive the stations you
preset, you can use the Auto Select
feature to find stations in the local
area.

To activate Auto Select, press the A. SEL button. A. SEL will flash inthe display, and the system will gointo scan mode for several seconds.
It automatically scans both bands,
looking for stations with strong signals. It stores the frequencies of
six AM stations and twelve FM
stations in the preset buttons. You
can then use the preset buttons to
select those stations.
If you are in a remote area, Auto
Select may not find six strong AM stations or twelve strong FM stations.
If this happens, you will see a "0" displayed when you press any preset
button that does not have a station
stored.
If you do not like the stations Auto
Select has stored, you can store
other frequencies in the preset
buttons. Use the TUNE, SEEK, or SCAN function to find the desired
frequencies, then store them in the selected preset buttons as described
previously. Auto Select does not erase the
frequencies that you preset pre-
viously. When you return home, turn off Auto Select by pressing the
A. SEL button. The preset buttons will then select the frequencies you originally set.

Comfort and Convenience Features

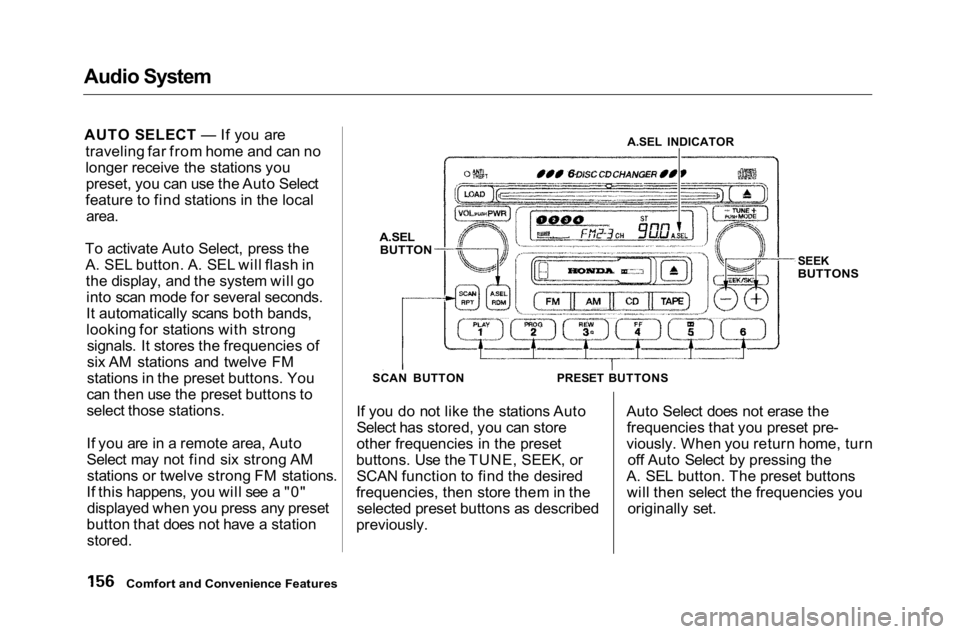

SCAN BUTTON
PRESET BUTTONS
SEEK

BUTTONS

A.SEL INDICATOR

A.SEL
BUTTON

Audio System

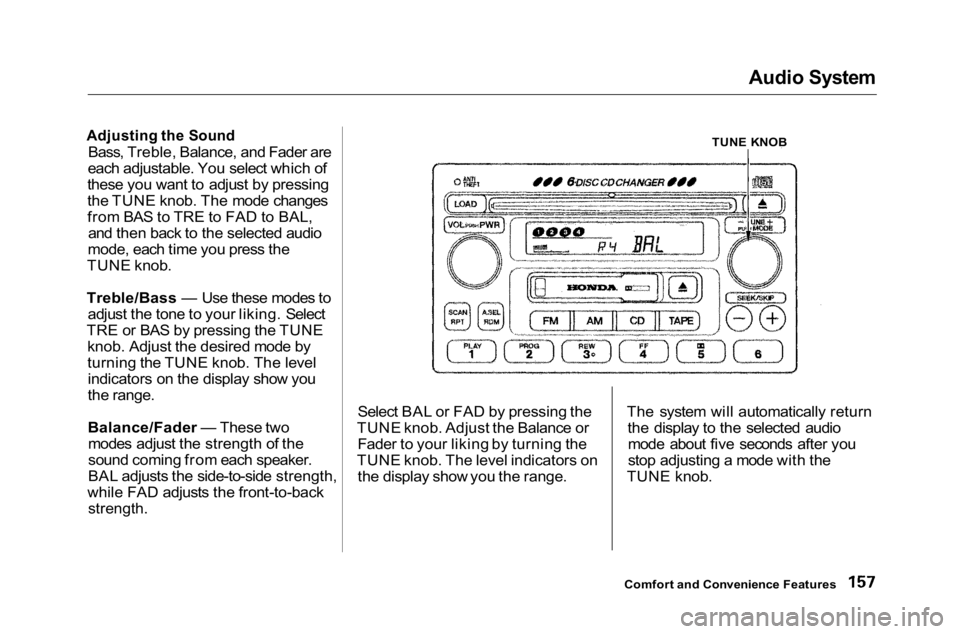

Adjusting the Sound
Bass, Treble, Balance, and Fader are
each adjustable. You select which of
these you want to adjust by pressing
the TUNE knob. The mode changes
from BAS to TRE to FAD to BAL, and then back to the selected audio
mode, each time you press the
TUNE knob.
Treble/Bass — Use these modes to adjust the tone to your liking. Select
TRE or BAS by pressing the TUNE knob. Adjust the desired mode by
turning the TUNE knob. The levelindicators on the display show you
the range.
Balance/Fader — These twomodes adjust the strength of the
sound coming from each speaker.
BAL adjusts the side-to-side strength,
while FAD adjusts the front-to-back
strength.
Select BAL or FAD by pressing the
TUNE knob. Adjust the Balance or Fader to your liking by turning the
TUNE knob. The level indicators on the display show you the range. The system will automatically return
the display to the selected audiomode about five seconds after you
stop adjusting a mode with the
TUNE knob.
Comfort and Convenience Features TUNE KNOB
