HONDA ACCORD SEDAN 2001 Owner's Manual (in English)

Break-in Period, Gasoline, Service Station Procedures

Break-in Period
Help assure your car's future
reliability and performance by paying
extra attention to how you drive
during the first 600 miles (1,000 km).
During this period: Avoid full-throttle starts and rapid

acceleration.
Avoid hard braking. New brakes
need to be broken-in by moderate
use for the first 200 miles (300
km).

Do not change the oil until the

recommended time or mileage

interval shown in the maintenance
schedule.

You should follow these same re-
commendations with an overhauled
or exchanged engine, or when the

brakes are relined.
Gasoline

Your Honda is designed to operate on unleaded gasoline with a pump
octane number of 86 or higher. Useof a lower octane gasoline can cause
a persistent, heavy metallic rapping
noise in the engine that can lead to
mechanical damage.
We recommend gasolines containing detergent additives that help prevent
fuel system and engine deposits. Using gasoline containing lead willdamage your car's emissions
controls. This contributes to air
pollution.
In Canada, some gasolines contain
an octane-enhancing additive called
MMT. If you use such gasolines,
your emission control system performance may deteriorate and
the Malfunction Indicator Lamp on
your instrument panel may turn on.If this happens, contact your
authorized Honda dealer for service. Filling the Fuel Tank
1. Because the fuel fill cap is on the driver's side of the car, park with
that side closest to the service

station pumps.

2. Open the fuel fill door by pushing on the handle to the left of the
driver's seat.
Before Driving

Service Station Procedures

3. Remove the fuel fill cap slowly. You may hear a hissing sound as
pressure inside the tank escapes.
Place the cap in the holder on the
fuel fill door.
4. Stop filling the tank after the fuel nozzle automatically clicks off. Do
not try to "top off" the tank, leave
some room for the fuel to expand
with temperature changes.
Your car has an on-board refueling
vapor recovery system to help keep fuel vapors from going into
the atmosphere. If the fuel pump
keeps clicking off even though the
tank is not full, there may be a
problem with this system. Consult
your dealer. 5. Screw the fuel fill cap back on,
tighten it until it clicks several
times. If you do not properly
tighten the cap, the Malfunction
Indicator Lamp may come on (see

page 311).

6. Push the fuel fill door closed until it latches.
Before Driving

FUEL FILL CAP

Gasoline is highly flammable

and explosive. You can be
burned or seriously injured

when handling fuel.
Stop the engine and keep

heat, sparks, and flame away.
Handle fuel only outdoors.

Wipe up spills immediately.

Service Station Procedures

Opening the Hood
1. Shift to Park or Neutral and set the parking brake. Pull the hood
release handle located under the
lower left corner of the dashboard.
The hood will pop up slightly. 2. Standing in front of the car, put
your fingers under the front edgeof the hood to the right of center.
Slide your hand to the left until
you feel the hood latch handle. Push this handle up until it
releases the hood. Lift the hood. If you can open the hood without
lifting the hood latch handle, or the hood latch handle moves stiffly ordoes not spring back as before, the
mechanism should be cleaned and
lubricated (see page 256 ).

Before Driving
HOOD RELEASE HANDLE
LATCH

Service Station Procedures

4-cylinder models
3. Pull the support rod out of its clip and insert the end into the hole on
the front of the hood around the
center. To close the hood, lift it up slightly to
remove the support rod from the
hole. Put the support rod back into
its holding clip. Lower the hood to about a foot (30 cm) above the
fender, then let it drop.
After closing the hood, make sure it is securely latched.
6-cylinder models
3. Lift the hood up most of the way. The hydraulic supports will lift itup the rest of the way and hold it

up.

CONTINUED

Before Driving

SUPPORT ROD

Service Station Procedures

To close the hood, lower it to about a foot (30 cm) above the fender, thenpress down firmly with your hands.
After closing the hood, make sure it is securely latched.
Oil Check

Check the engine oil level every time
you fill the car with fuel. Wait a few minutes after turning the engine off
before you check the oil.
1. Remove the dipstick (orange handle).
Before Driving
4-cylinder models

DIPSTICK
6-cylinder models

DIPSTICK

Service Station Procedures

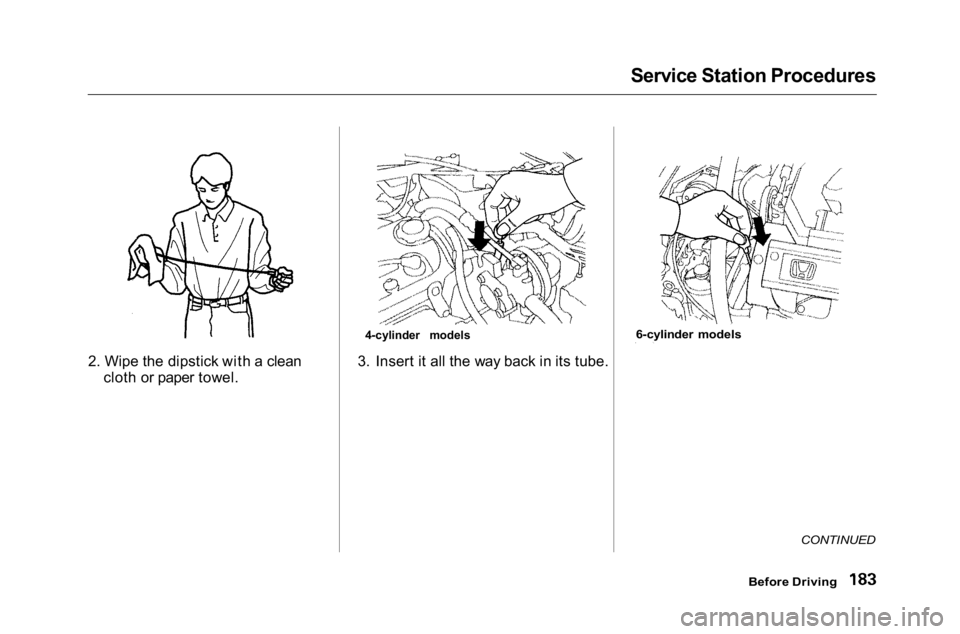

2. Wipe the dipstick with a clean cloth or paper towel. 3. Insert it all the way back in its tube.

CONTINUED

Before Driving

4-cylinder models

6-cylinder models

Service Station Procedures

4. Remove the dipstick again and check the level. It should be
between the upper and lower marks.
If it is near or below the lower mark,
see Adding Oil on page 234 . Engine Coolant Check
Look at the coolant level in the
radiator reserve tank. Make sure it is
between the MAX and MIN lines. If it is below the MIN line, see Adding
Engine Coolant on page 239 for
information on adding the proper

coolant.
Refer to Owner Maintenance
Checks on page 231 for information
on checking other items in your

Honda.

Before Driving
UPPER MARK
LOWER MARK
MAX

RESERVE TANK

MIN

4-cylinder models RESERVE TANK

6-cylinder models
MIN
MAX

Fuel Economy

The condition of your car and your driving habits are the two most
important things that affect the fuel
mileage you get.
Vehicle Condition Always maintain your car according to the maintenance schedule. This
will keep it in top operating condition.
An important part of that mainte- nance is the Owner Maintenance
Checks (see page 231). For
example, an underinflated tire
causes more "rolling resistance,"
which uses fuel. It also wears out faster, so check the tire pressure at
least monthly.
In winter, the build-up of snow on
your car's underside adds weight and rolling resistance. Frequent cleaning
helps your fuel mileage and reduces
the chance of corrosion. Driving Habits
You can improve fuel economy by driving moderately. Rapid acceler-
ation, abrupt cornering, and hard
braking use more fuel.
Always drive in the highest gear that allows the engine to run and acceler-ate smoothly.
Depending on traffic conditions, try
to maintain a constant speed. Every
time you slow down and speed up,
your car uses extra fuel. Use the cruise control, when appropriate, to
increase fuel economy. A cold engine uses more fuel than a
warm engine. It is not necessary to
"warm-up" a cold engine by letting it
idle for a long time. You can drive
away in about a minute, no matter
how cold it is outside. The engine
will warm up faster, and you get better fuel economy. To cut down on
the number of "cold starts," try tocombine several short trips into one.
The air conditioning puts an extra load on the engine which makes ituse more fuel. Turn off the A/C to
cut down on air conditioning use.
Use the flow-through ventilation
when the outside air temperature is moderate.

Before Driving

Accessories and Modifications
Modifying your car, or installing
some non-Honda accessories, can
make your car unsafe. Before you
make any modifications or add any accessories, be sure to read the
following information.

Accessories
Your dealer has Genuine Honda accessories that allow you to
personalize your car. These
accessories have been designed andapproved for your car, and are
covered by warranty.
Non-Honda accessories are usually designed for universal applications.
Although aftermarket accessories may fit on your car, they may not
meet factory specifications, andcould adversely affect your car's
handling and stability. (See "Modifications" on the page 187 for
additional information.) When properly installed, cellular
phones, alarms, two-way radios, and
low-powered audio systems shouldnot interfere with your car's
computer-controlled systems, suchas the SRS and anti-lock brake

system.

However, if electronic accessories
are improperly installed, or exceed
your car's electrical system capacity, they can interfere with the operation of your car, or even cause the
airbags to deploy.
Before installing any accessory: Make sure the accessory does not
obscure any lights, or interfere
with proper car operation or performance. Be sure electronic accessories do
not overload electrical circuits (see page 315). Have the installer contact your
Honda dealer for assistance before
installing any electronic accessory.
If possible, have your dealer inspect
the final installation.

Before Driving
Improper accessories or
modifications can affect your
car's handling, stability and performance, and cause a

crash in which you can be hurt

or killed.

Follow all instructions in this

owner's manual regarding
accessories and modifications.

Accessories and Modifications

Modifications
Do not remove any original equipment or modify your car in any
way that would alter its design or operation. This could make your car
unsafe and illegal to drive.
For example, do not make any
modifications that would change the
ride height of your car, or install
wheels and tires with a different overall diameter.
Such modifications can adversely
affect handling, and interfere with
the operation of the car's anti-lock brakes and other systems. In addition, any modifications that
decrease ground clearance increase
the chance of undercarriage parts striking a curb, speed bump, or other
raised object, which could cause
your airbags to deploy.
Do not modify your steering wheelor any other part of your
Supplemental Restraint System. Modifications could make the
system ineffective.
Additional Safety Precaution
Do not attach or place objects on

the front airbag covers. Any object

attached to or placed on the covers
marked "SRS AIRBAG," in the
center of the steering wheel and on top of the dashboard, could
interfere with the proper operation of the airbags. Or, if the airbags
inflate, the objects could be
propelled inside the car and hurt
someone.
On models equipped with side airbags
Do not attach hard objects on or

near a front door. If a side airbag
inflates, a cup holder or other hard
object attached on or near the door could be propelled inside the
car and hurt someone.
Do not place any objects over the

outside edge of a front seat-back.

Covering the outside edge of a
front seat-back, with a non-Honda seat cover for example, could
prevent the airbag from inflating
properly.
Before Driving
