HONDA ACCORD SEDAN 2001 Owner's Manual (in English)

Audio System

You can use any of five methods tofind radio stations on the selected
band: TUNE, SEEK, SCAN, AUTOSELECT, and the Preset buttons.
TUNE — Use the TUNE knob to tune the radio to a desired frequency.
Turn the knob clockwise to tune to a higher frequency, or
counterclockwise to tune to a lower
frequency.
To change the frequency rapidly, press and hold the top or bottom of
the SEEK bar. Release the bar when
the display reaches the desiredfrequency. Depending on which partof the bar you press, the systemscans upward or downward from the
current frequency. SEEK — The SEEK function
searches the band for a station with
a strong signal. To activate it, press and release the top or bottom of the
SEEK bar. Depending on which part of the bar you press, the system
scans upward or downward from the
current frequency. It stops when it
finds a station with a strong signal. SCAN — The SCAN function
samples all the stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. The system will scan up the band for a station with astrong signal. When it finds one, it
will stop and play that station for approximately five seconds. If you do
nothing, the system will then scan
for the next strong station and play
that for five seconds. When it plays a station that you want to continue
listening to, press the SCAN button
again.

Comfort and Convenience Features

Audio System

Preset — You can store the
frequencies of your favorite radio stations in the six preset buttons.
Each button will store one frequency
on the AM band, and two
frequencies on the FM band.
To store a frequency:
1. Select the desired band, AM or FM. FM1 and FM2 let you store
two frequencies with each Preset

button.

2. Use the TUNE, SEEK, or SCAN function to tune the radio to adesired station.
3. Pick the Preset button you want for that station. Press the buttonand hold it until you hear a beep.
4. Repeat steps 1 to 3 to store a total of six stations on AM and twelve
on FM. Once a station's frequency is stored,
simply press and release the proper
preset button to tune to it.
The preset frequencies will be lost if your car's battery goes dead, is disconnected, or the radio fuse is

removed.

Comfort and Convenience Features

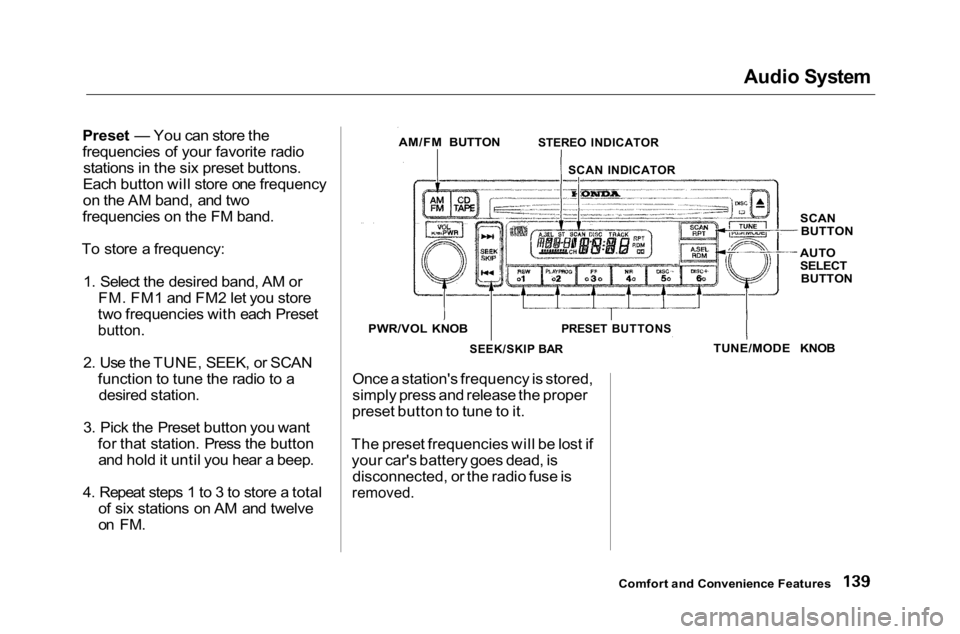

PWR/VOL KNOB

SEEK/SKIP BAR
PRESET BUTTONS

TUNE/MODE KNOBSCAN
BUTTON
AUTO
SELECT BUTTON
AM/FM BUTTON

STEREO INDICATOR

SCAN INDICATOR

Audio System

AUTO SELECT — If you are
traveling far from home and can no
longer receive the stations you
preset, you can use the Auto Select
feature to find stations in the local
area.

To activate Auto Select, press the
A. SEL button. A. SEL will flash in the display, and the system will gointo scan mode for several seconds.
It automatically scans both bands,
looking for stations with strong signals. It stores the frequencies of
six AM stations and twelve FM stations in the preset buttons. You
can then use the preset buttons to select those stations.
If you are in a remote area, Auto
Select may not find six strong AM
stations or twelve strong FM stations.
If this happens, you will see a "0"displayed when you press any preset
button that does not have a station
stored.
If you do not like the stations Auto
Select has stored, you can store
other frequencies in the preset
buttons. Use the TUNE, SEEK, or SCAN function to find the desired
frequencies, then store them in the selected preset buttons as described
previously. Auto Select does not erase the
frequencies that you preset pre-
viously. When you return home, turn off Auto Select by pressing the
A. SEL button. The preset buttons will then select the frequencies youoriginally set.

Comfort and Convenience Features

Audio System

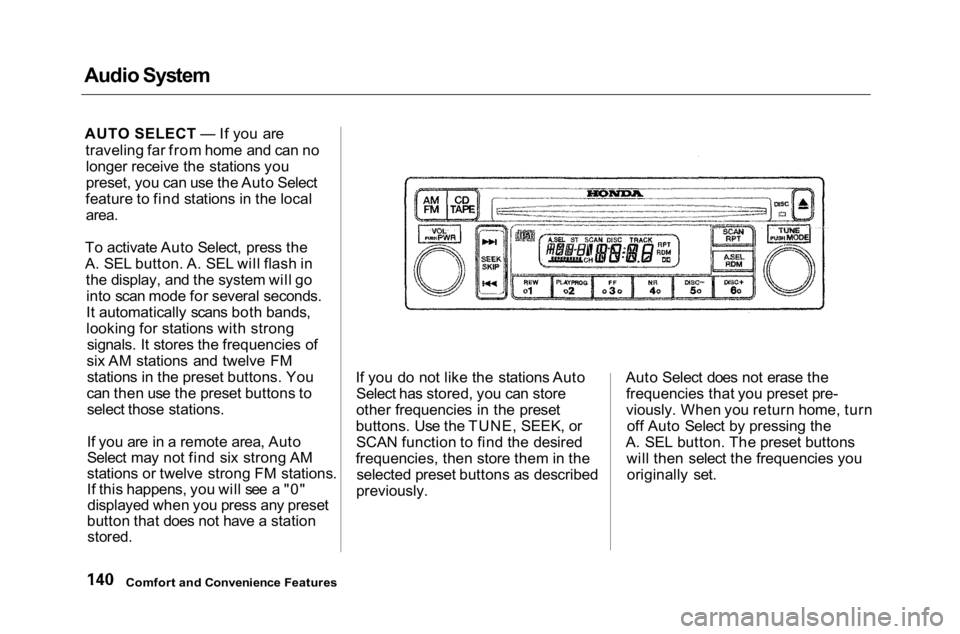

Adjusting the Sound
Bass, Treble, Balance, and Fader are
each adjustable. You select which of
these you want to adjust by pressing
the TUNE knob. The mode changes from BAS to TRE to FAD to BAL,and then back to the selected audio
mode, each time you press the
TUNE knob.
Balance/Fader — These two
modes adjust the strength of the
sound coming from each speaker.
BAL adjusts the side-to-side strength,
while FAD adjusts the front-to-back
strength.

Select BAL or FAD by pressing the
TUNE knob. Adjust the Balance or Fader to your liking by turning the
TUNE knob. The level number on the display shows you the range. LEVEL NUMBER INDICATOR
Treble/Bass — Use these modes to adjust the tone to your liking. Select
TRE or BAS by pressing the TUNE knob. Adjust the desired mode by
turning the TUNE knob. The level number on the display shows you the

range.
The system will automatically return
the display to the selected audiomode about five seconds after youstop adjusting a mode with the
TUNE knob.

Radio Frequencies and Reception
For information, See page 158 .

Comfort and Convenience Features TUNE/MODE KNOB

Audio System

Audio System Lighting You can use the instrument panelbrightness control dial to adjust the il-lumination of the audio system (see
page 62 ). The audio system
illuminates when the parking lightsare on, even if the radio is turned off.
Operating the CD Player
You operate the CD player with the same controls used for the radio.
With the ignition switch in
ACCESSORY (I) or ON (II), insert
the disc into the CD slot. Push the
disc in halfway, the drive will pull it
in the rest of the way and begin to
play. The number of the track that is
playing is shown in the display. You can also play 3-inch (8-cm) discs
without using an adapter ring. Play
only standard round discs. Odd-
shaped CDs may jam in the drive or
cause other problems.
When the system reaches the end of the disc, it will return to the begin-ning and play that disc again.
Comfort and Convenience Features

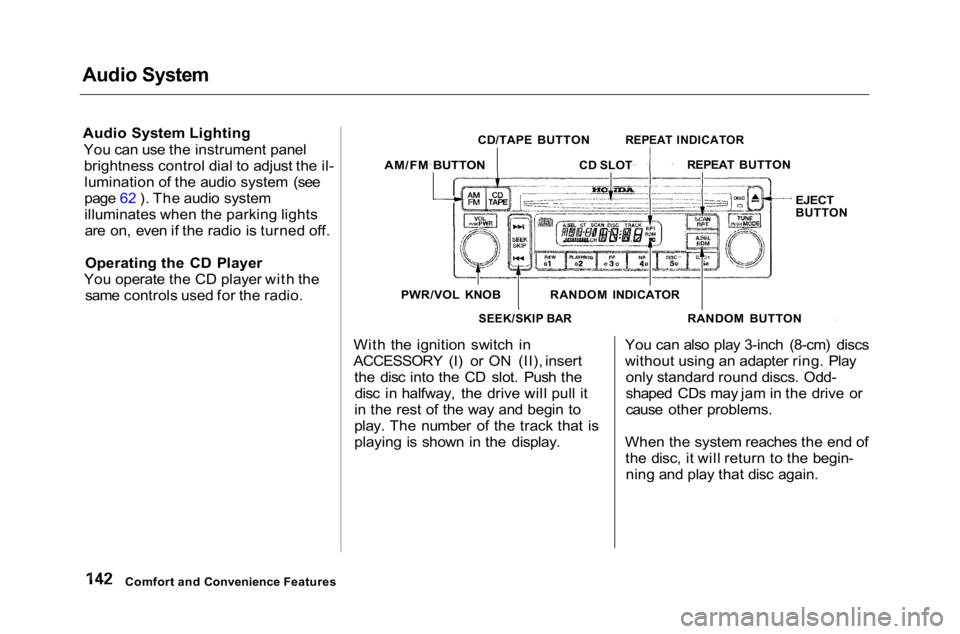

AM/FM BUTTON

CD/TAPE BUTTON

REPEAT INDICATOR

CD SLOT REPEAT BUTTON

EJECT

BUTTON
RANDOM BUTTON
RANDOM INDICATOR

SEEK/SKIP BAR

PWR/VOL KNOB

Audio System

You can switch to the radio while a CD is playing by pressing the AM/
FM button. Press the CD button to
return to playing the CD. The CD
will begin playing where it left off.
If you turn the system off while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition,
the disc will stay in the drive. When
you turn the system back on, the CD will begin playing where it left off. Press the eject button to remove the
disc from the drive.
If you eject the disc, but do not
remove it from the slot, the system
will automatically reload the disc after 15 seconds and put the CD
player in pause mode. To begin
playing the disc, press the CD button. You can use the SEEK/SKIP bar
while a disc is playing to select
passages and change tracks.
To move rapidly within a track, press and hold the SEEK/SKIP bar. Press the side to move forward. You
will see CUE in the display. Press the side to move backward. You
will see REW displayed. Release the
bar when the system reaches the point you want.
Each time you press and release the side of the SEEK/SKIP bar,
the system skips forward to the
beginning of the next track. Press the side to skip backward to the
beginning of the current track. Press
it again to skip to the beginning of
the previous track.
Comfort and Convenience Features

Audio System

REPEAT — To activate the Repeat
feature, press and release the RPT

button. You will see RPT in the
display. The system continuously

replays the current track. Press the
RPT button again to turn it off.

RANDOM PLAY — This feature,

when activated, plays the tracks on
the CD in random order, rather than
in the order they are recorded on the
CD. To activate Random Play, press

the RDM button. You will see RDM
in the display. The system will then
select and play tracks randomly.

This continues until you deactivate
Random Play by pressing the RDM

button again. Operating the CD Changer
(Optional)
A Compact Disc changer is available for your car. It holds up to six discs,providing several hours ofcontinuous entertainment. You
operate this CD changer with the
same controls used for the in-dashCD player.
Load the desired CDs in the
magazine and load the magazine in
the changer according to the instructions that came with the unit.
Play only standard round discs. Odd-shaped CDs may jam in the drive or
cause other problems.
To select the CD changer, press the CD button. The disc and track
numbers will be displayed. To select a different disc, press the
DISC + (Preset 6) or DISC — (Preset 5) button. The next disc in
the changer is loaded and played
when you press the DISC + button. DISC — loads and plays the previousdisc. If you select an empty slot in
the magazine, the changer will, after
finding that slot empty, try to load
the CD in the next slot. This continues until it finds a CD to load
and play.

Comfort and Convenience Features

Audio System

If you load a CD in the in-dash player
while the changer is playing a CD,
the system will stop the changer and begin playing the in-dash CD. Toselect the changer again, press the
CD button. Play will begin where it
left off. Use the CD button to switch
between the player and the changer. If you eject the in-dash CD while it is
playing, the system will automatically
switch to the CD changer and begin
play where it left off. If there are no CDs in the changer, the display will
flash. You will have to select another mode (AM or FM) with the FM or
AM button. When you switch back to CD mode,
the system selects the same unit (in-dash or changer) that was playing
when you switched out of CD mode.
To use the SKIP, REPEAT, and RANDOM functions, refer to the in-
dash player operating instructions.

Protecting Compact Discs
For information on how to handle

and protect compact discs, see page
171.

Comfort and Convenience Features

Audio System

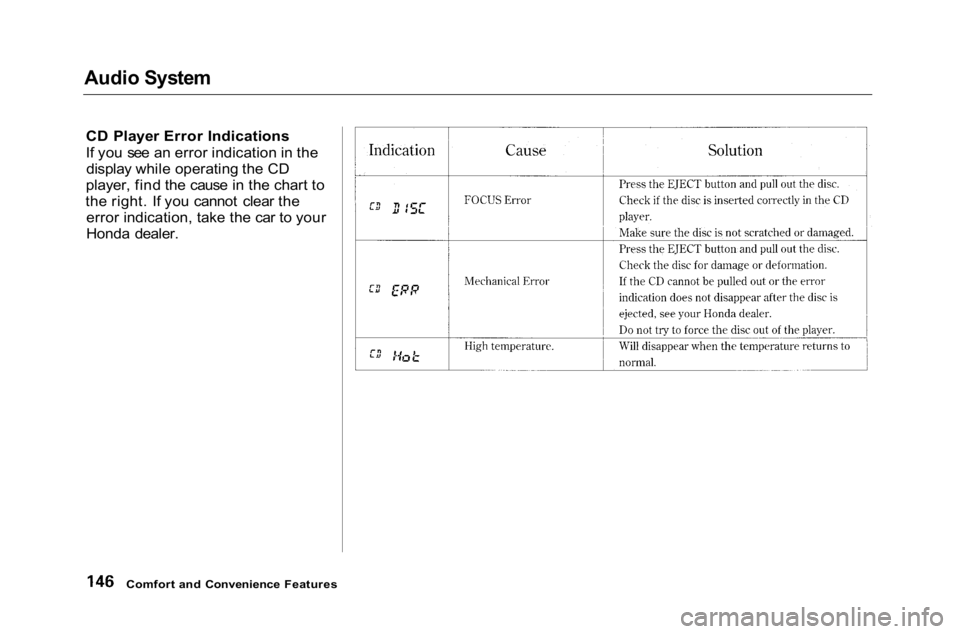

CD Player Error Indications

If you see an error indication in thedisplay while operating the CD
player, find the cause in the chart to
the right. If you cannot clear the error indication, take the car to your
Honda dealer.

Comfort and Convenience Features

Audio System

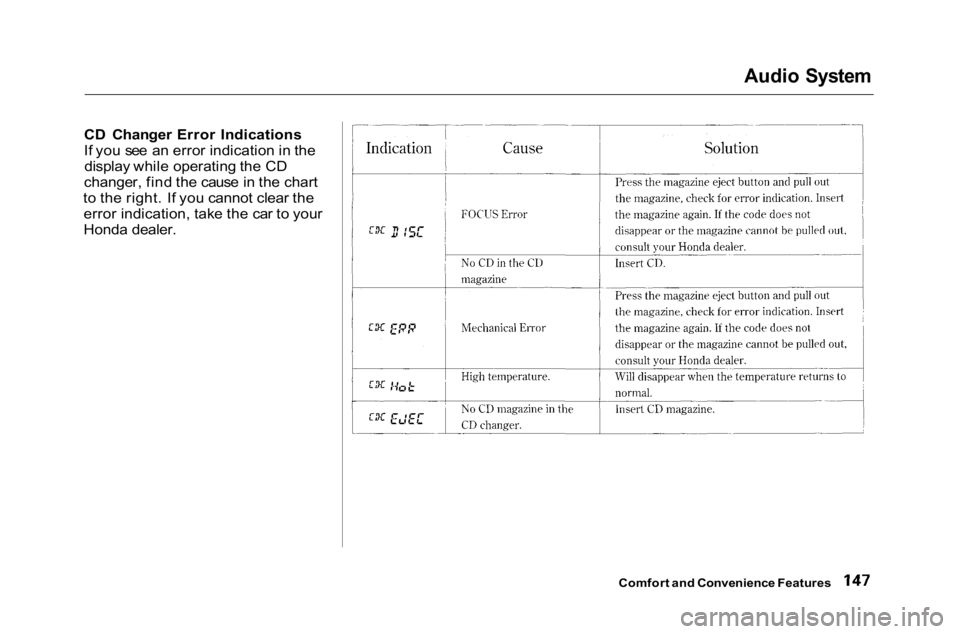

CD Changer Error Indications
If you see an error indication in the display while operating the CD
changer, find the cause in the chart
to the right. If you cannot clear the error indication, take the car to your
Honda dealer.
Comfort and Convenience Features
