HONDA ACCORD SEDAN 2001 Owner's Manual (in English)

Maintenance

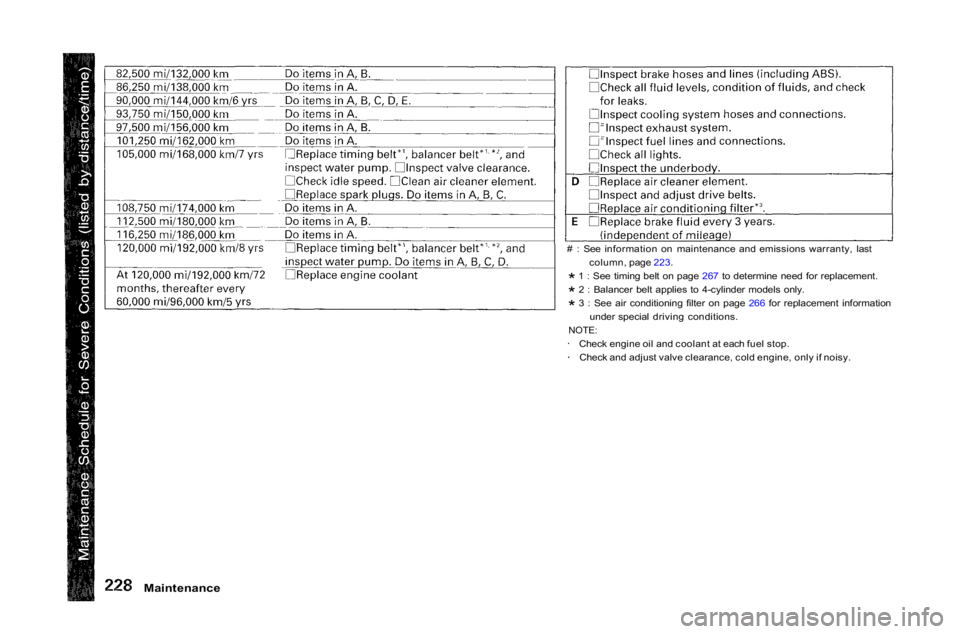

# : See information on maintenance and emissions warranty, last
column, page 223.
* 1 : See timing belt on page 267 to determine need for replacement.
* 2 : Balancer belt applies to 4-cylinder models only.
* 3 : See air conditioning filter on page 266 for replacement information
under special driving conditions.

NOTE:
Check engine oil and coolant at each fuel stop.
Check and adjust valve clearance, cold engine, only if noisy.

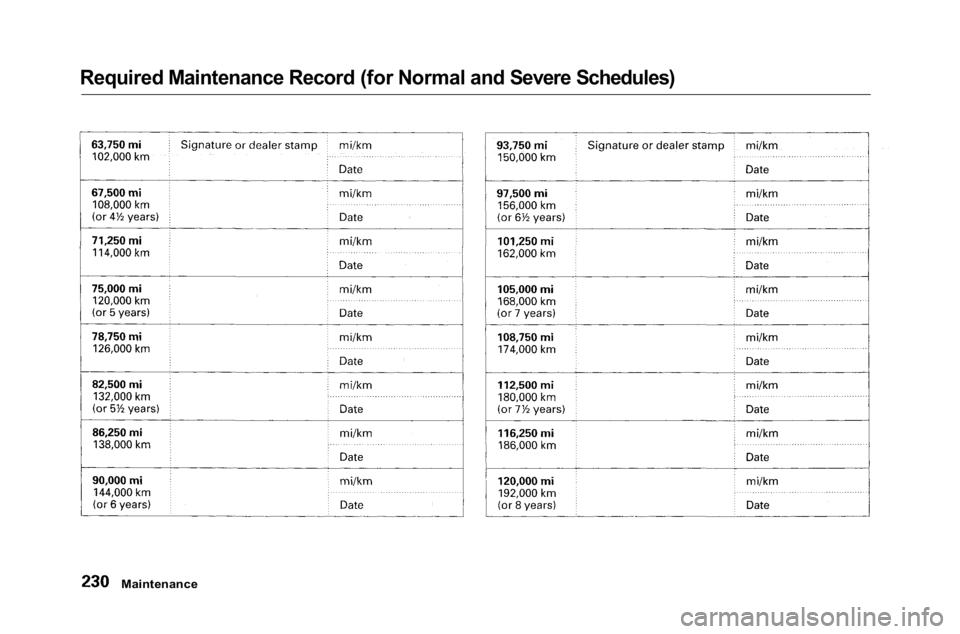

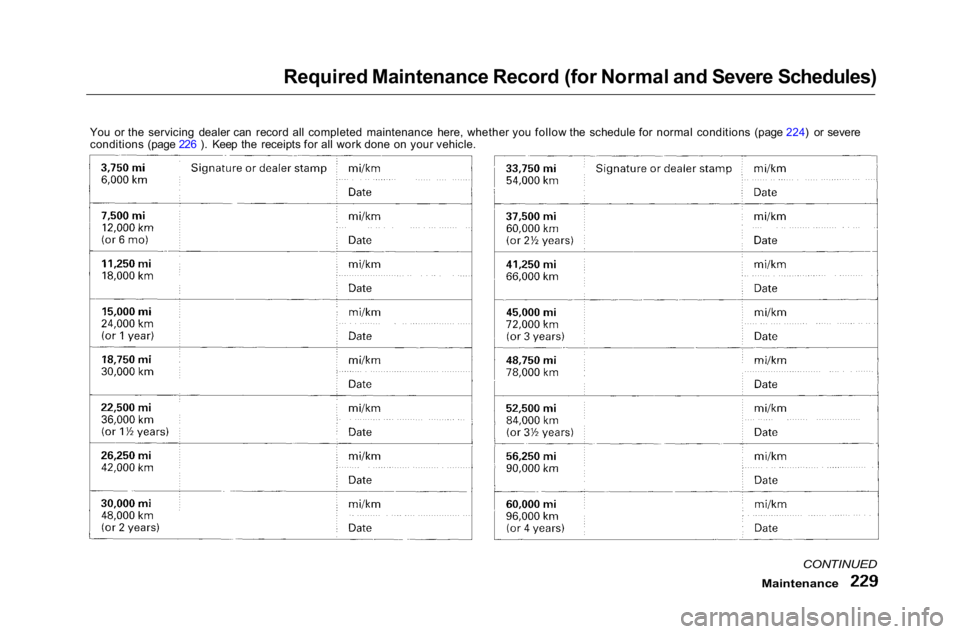

Required Maintenance Record (for Normal and Severe Schedules)
You or the servicing dealer can record all completed maintenance here, whether you follow the schedule for normal conditions (page 224) or severe
conditions (page 226 ). Keep the receipts for all work done on your vehicle.

CONTINUED

Maintenance

Required Maintenance Record (for Normal and Severe Schedules)

Maintenance

Owner Maintenance Checks
You should check the following items at the specified intervals. If
you are unsure of how to perform any check, turn to the page given. Engine oil level — Check every
time you fill the fuel tank. See
page 182. Engine coolant level — Check the
radiator reserve tank every time
you fill the fuel tank. See page 184 .
Windshield washer fluid — Check
the level in the reservoir monthly.If weather conditions cause you to
use the washers frequently, check
the reservoir each time you stop
for fuel. See page 246 . Automatic transmission — Check
the fluid level monthly. See page 247. Brakes — Check the fluid level

monthly. See page 251.
Tires — Check the tire pressure
monthly. Examine the tread for
wear and foreign objects. See page
267.
Lights — Check the operation of
the headlights, parking lights,
taillights, high-mount brake light,
turn signals, brake lights, and
license plate lights monthly. See

page 274.

Maintenance

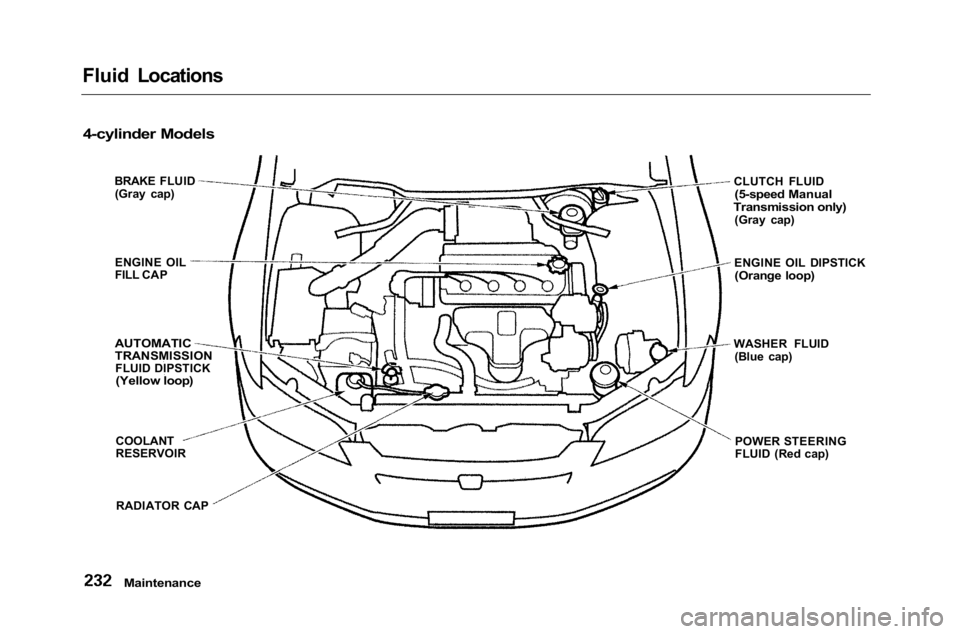

Fluid Locations

Maintenance

4-cylinder Models

BRAKE FLUID(Gray cap)
ENGINE OIL
FILL CAP

AUTOMATIC

TRANSMISSION
FLUID DIPSTICK
(Yellow loop)

COOLANT

RESERVOIR
CLUTCH FLUID

(5-speed Manual

Transmission only)
(Gray cap)
ENGINE OIL DIPSTICK
(Orange loop)

WASHER FLUID (Blue cap)
POWER STEERING
FLUID (Red cap)
RADIATOR CAP

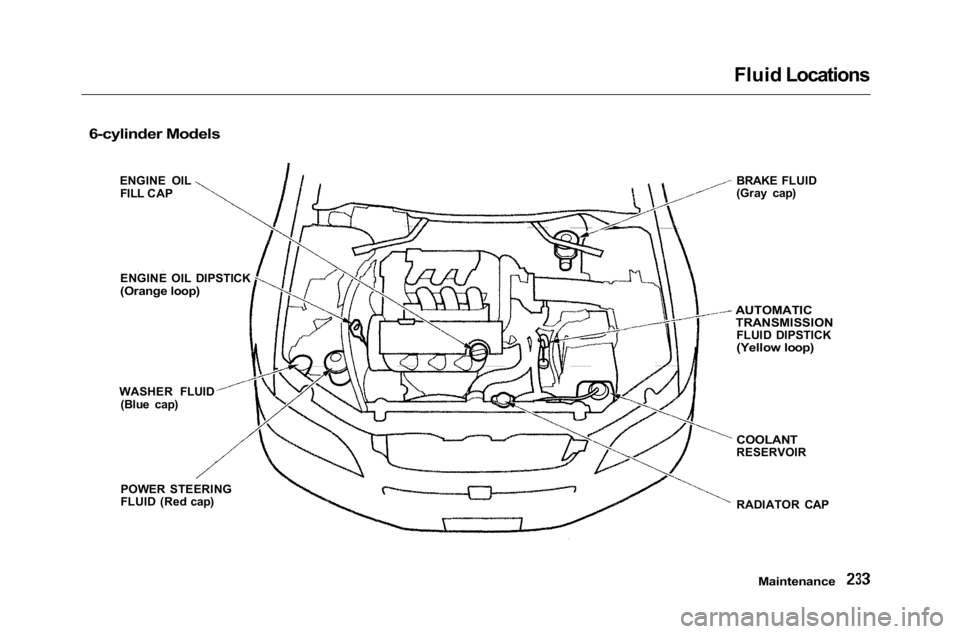

Fluid Locations

Maintenance

RADIATOR CAP
COOLANT

RESERVOIR

AUTOMATIC

TRANSMISSION

FLUID DIPSTICK

(Yellow loop)

6-cylinder Models

ENGINE OILFILL CAP
ENGINE OIL DIPSTICK

(Orange loop)

WASHER FLUID (Blue cap) BRAKE FLUID
(Gray cap)
POWER STEERING
FLUID (Red cap)

Engine Oil

Maintenance

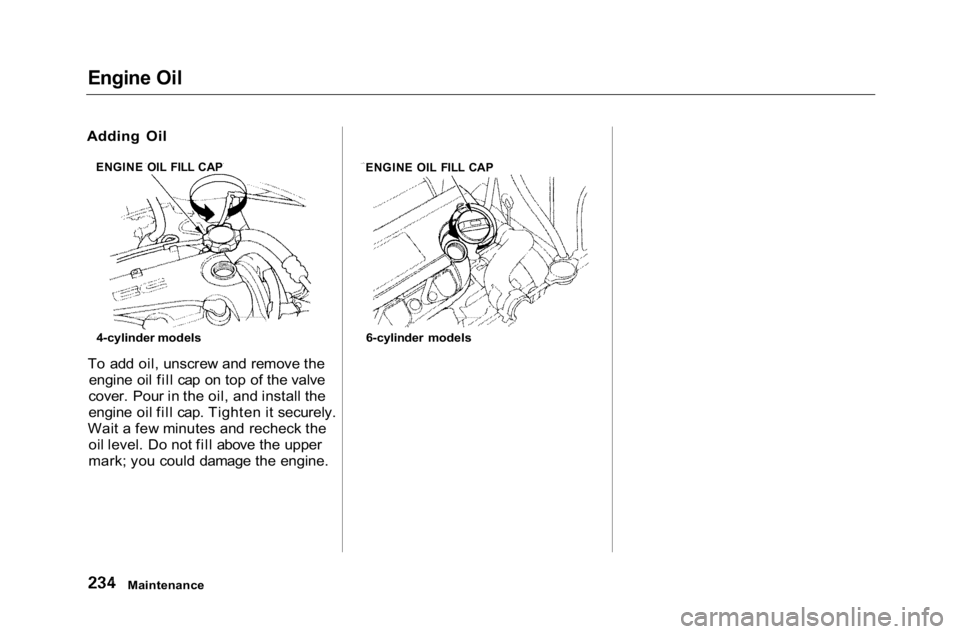

To add oil, unscrew and remove the
engine oil fill cap on top of the valve
cover. Pour in the oil, and install the
engine oil fill cap. Tighten it securely.
Wait a few minutes and recheck the oil level. Do not fill above the upper
mark; you could damage the engine.
ENGINE OIL FILL CAP

6-cylinder models

ENGINE OIL FILL CAP

Adding Oil
4-cylinder models

Engine Oil

Recommended Oil Oil is a major contributor to your
engine's performance and longevity.
Always use a premium-grade 5W-20 detergent oil displaying the API
Certification Seal. This seal indicates
the oil is energy conserving, and that
it meets the American Petroleum
Institute's latest requirements.
Genuine Honda Motor Oil is the
preferred 5W-20 lubricant for your
vehicle. It is highly recommended that you use Genuine Honda MotorOil in your vehicle for optimum
engine protection. Make sure the API Certification Seal
says "For Gasoline Engines."

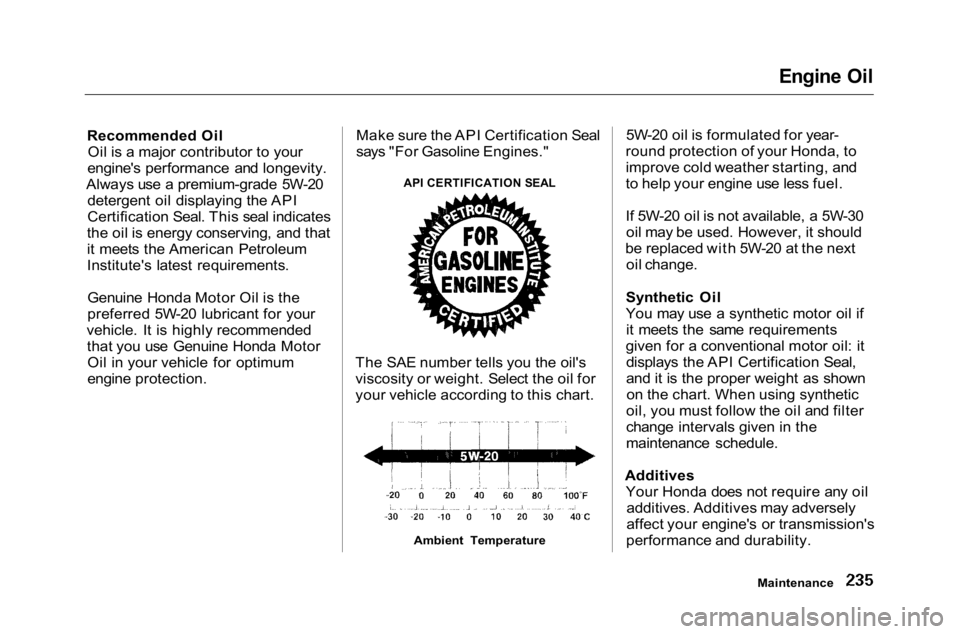

The SAE number tells you the oil's
viscosity or weight. Select the oil for
your vehicle according to this chart. 5W-20 oil is formulated for year-
round protection of your Honda, to
improve cold weather starting, and
to help your engine use less fuel.
If 5W-20 oil is not available, a 5W-30 oil may be used. However, it should
be replaced with 5W-20 at the next oil change.
Synthetic Oil
You may use a synthetic motor oil if it meets the same requirements
given for a conventional motor oil: it displays the API Certification Seal,
and it is the proper weight as shownon the chart. When using synthetic
oil, you must follow the oil and filter
change intervals given in the
maintenance schedule.
Additives Your Honda does not require any oiladditives. Additives may adversely
affect your engine's or transmission's
performance and durability.
Maintenance

API CERTIFICATION SEAL

Ambient Temperature

Engine Oil
Changing the Oil and Filter
Always change the oil and filter according to the time and distance (miles/kilometers) recommenda-
tions in the maintenance schedule.
The oil and filter collect contami- nants that can damage your engine if
they are not removed regularly. Changing the oil and filter requires
special tools and access from
underneath the car. The car should
be raised on a service station-type
hydraulic lift for this service. Unless
you have the knowledge and proper equipment, you should have this
maintenance done by a skilled
mechanic. 1. Run the engine until it reaches
normal operating temperature,
then shut it off.

Maintenance

Engine Oil
4-cylinder models
2. Open the hood and remove the engine oil fill cap. Remove the oil
drain bolt and washer from the
bottom of the engine. Drain the oil
into an appropriate container. 3. Remove the oil filter and let the
remaining oil drain. A special
wrench (available from your
Honda dealer) is required to
remove the filter.
4. Install a new oil filter according to
instructions that come with it.

5. Put a new washer on the drain bolt,
then reinstall the drain bolt.
Tighten it to:
33 Ibf.ft (44 N.m , 4.5 kgf.m)

CONTINUED

Maintenance

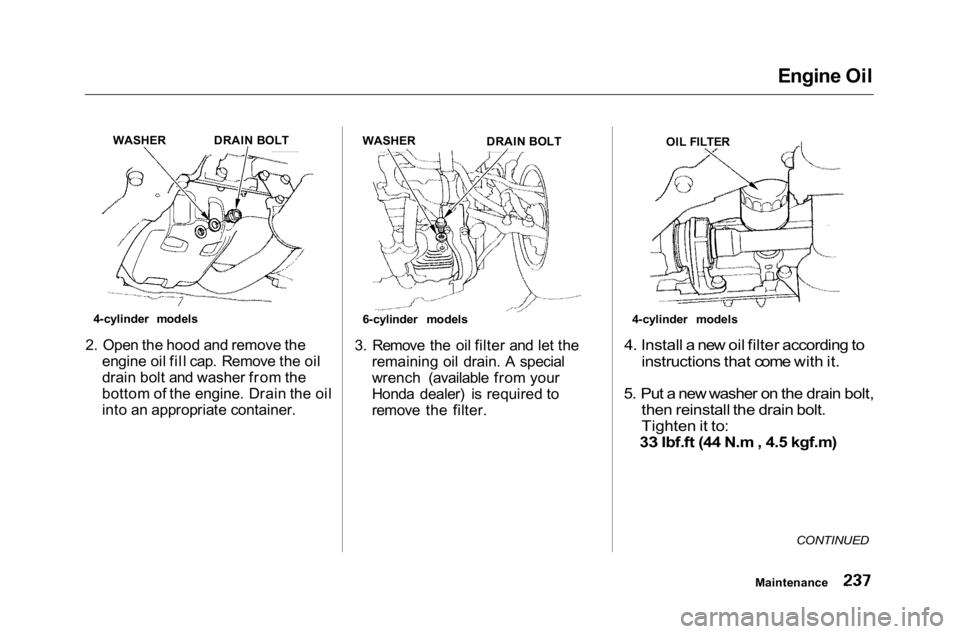

DRAIN BOLT
WASHER
6-cylinder models WASHER

DRAIN BOLT

OIL FILTER
4-cylinder models
