139
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel

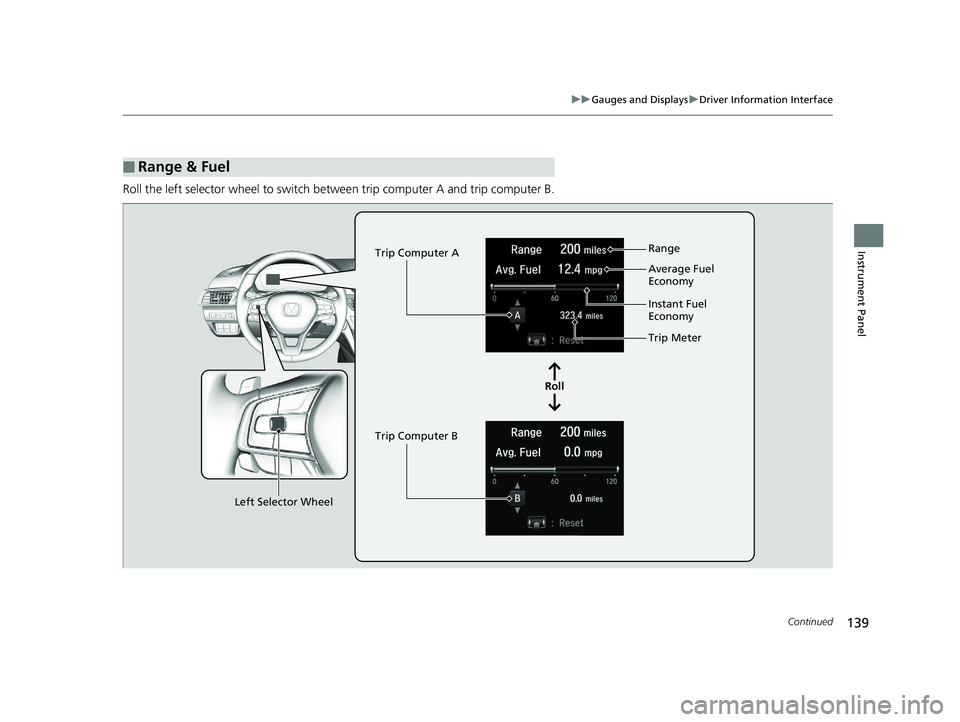

Roll the left selector wheel to switch be tween trip computer A and trip computer B.
■Range & Fuel
Left Selector Wheel
Roll
Trip Computer A
Trip Computer B
Trip Meter Range
Average Fuel
Economy
Instant Fuel
Economy
18 ACCORD HYBRID-31TWA6000.book 139 ページ ２０１８年１月３０日　火曜日　午後７時３８分

uuGauges and Displays uDriver Information Interface
140
Instrument Panel

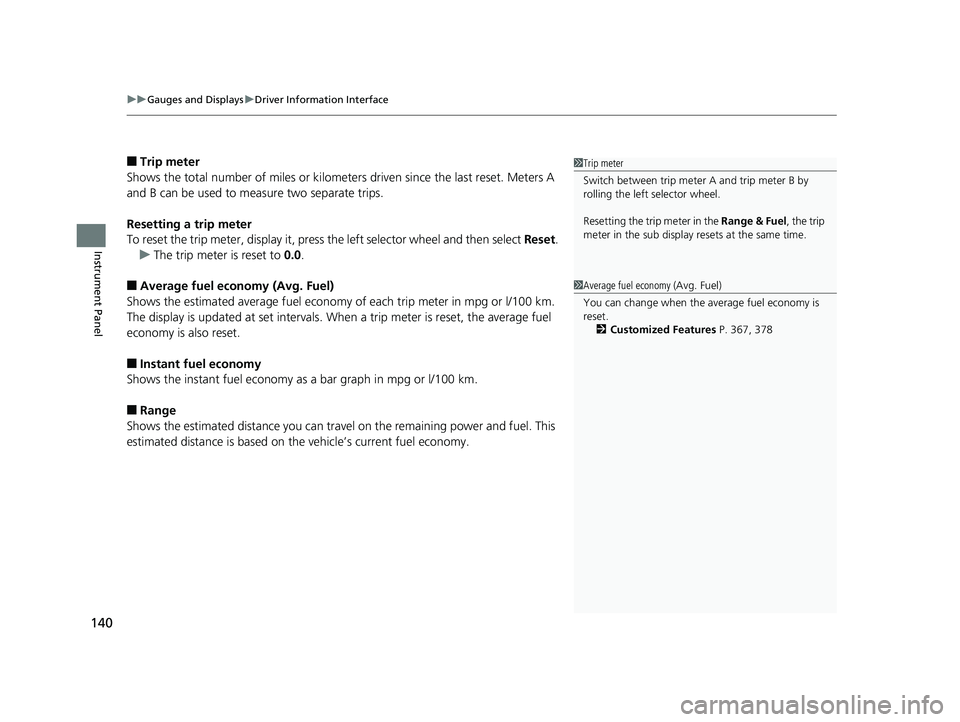

■Trip meter
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
Resetting a trip meter
To reset the trip meter, display it, press the left selector wheel and then select Reset.
u The trip meter is reset to 0.0.
■Average fuel economy (Avg. Fuel)
Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. When a trip meter is reset, the average fuel
economy is also reset.
■Instant fuel economy
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
■Range
Shows the estimated distance you can trave l on the remaining power and fuel. This
estimated distance is based on the vehicle’s current fuel economy.
1 Trip meter
Switch between trip meter A and trip meter B by
rolling the left selector wheel.
Resetting the trip meter in the Range & Fuel, the trip
meter in the sub display resets at the same time.
1 Average fuel economy ( Avg. Fuel)
You can change when the average fuel economy is
reset. 2 Customized Features P. 367, 378
18 ACCORD HYBRID-31TWA6000.book 140 ページ ２０１８年１月３０日　火曜日　午後７時３８分

141
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel

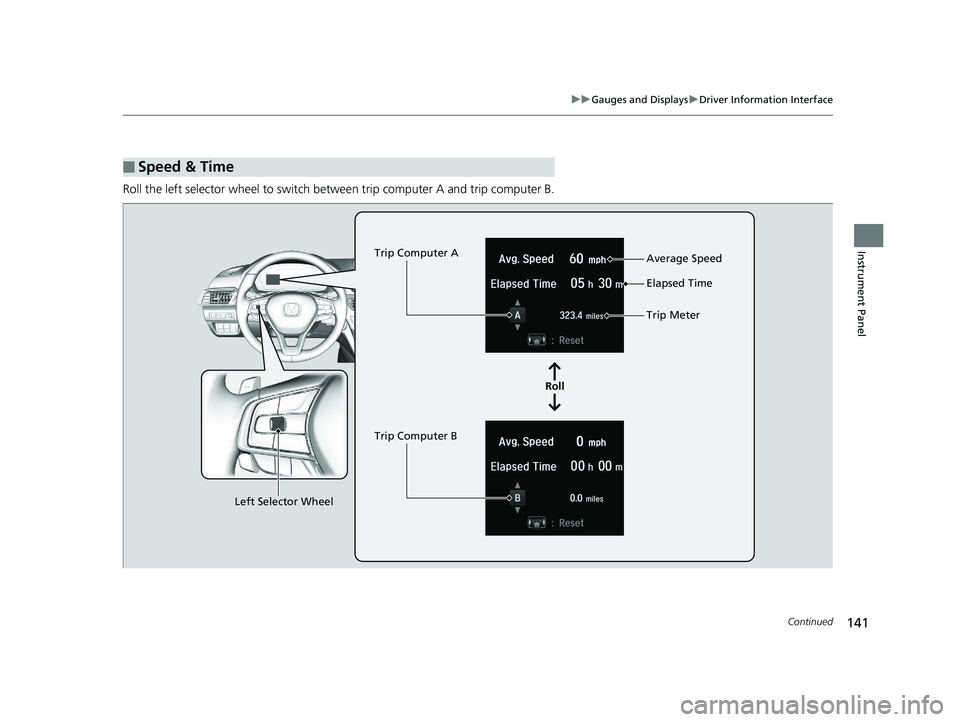

Roll the left selector wheel to switch be tween trip computer A and trip computer B.
■Speed & Time
Roll
Trip Computer A
Trip Computer B
Trip Meter Average Speed
Elapsed Time
Left Selector Wheel
18 ACCORD HYBRID-31TWA6000.book 141 ページ ２０１８年１月３０日　火曜日　午後７時３８分

uuGauges and Displays uDriver Information Interface
142
Instrument Panel

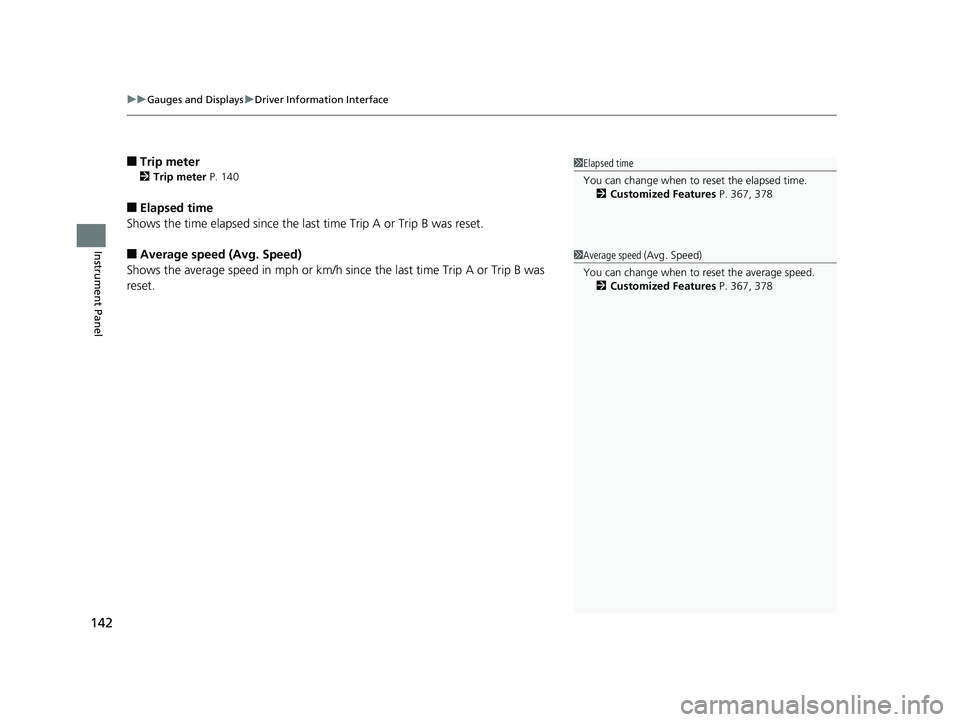

■Trip meter
2 Trip meter P. 140
■Elapsed time
Shows the time elapsed since the last time Trip A or Trip B was reset.
■Average speed (Avg. Speed)
Shows the average speed in mph or km/h si nce the last time Trip A or Trip B was
reset.
1 Elapsed time
You can change when to reset the elapsed time.
2 Customized Features P. 367, 378
1Average speed ( Avg. Speed)
You can change when to reset the average speed. 2 Customized Features P. 367, 378
18 ACCORD HYBRID-31TWA6000.book 142 ページ ２０１８年１月３０日　火曜日　午後７時３８分

Continued143
uuGauges and Displays uDriver Information Interface
Instrument Panel

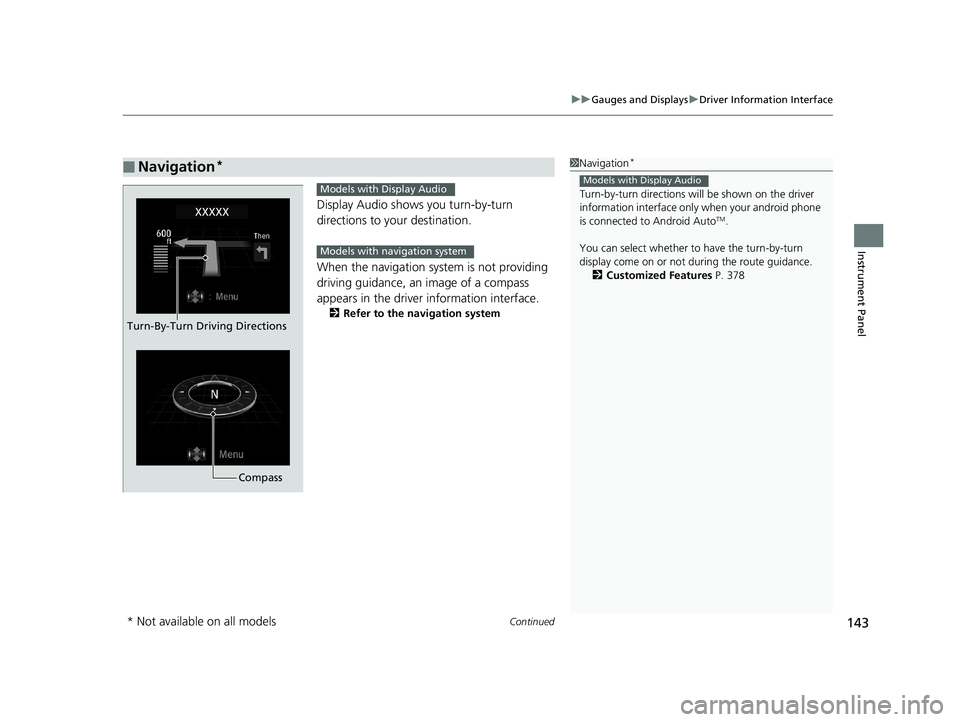

Display Audio shows you turn-by-turn
directions to your destination.
When the navigation system is not providing
driving guidance, an image of a compass
appears in the driver information interface.
2 Refer to the navigation system
■Navigation*1Navigation*
Turn-by-turn directions wi ll be shown on the driver
information interface only when your android phone
is connected to Android Auto
TM.
You can select whether to have the turn-by-turn
display come on or not dur ing the route guidance.
2 Customized Features P. 378
Models with Display Audio
Compass
Turn-By-Turn Driving Directions
Models with Display Audio
Models with navigation system
* Not available on all models
18 ACCORD HYBRID-31TWA6000.book 143 ページ ２０１８年１月３０日　火曜日　午後７時３８分

uuGauges and Displays uDriver Information Interface
144
Instrument Panel
2 Driver Information Interface Warning and
Information Messages P. 108

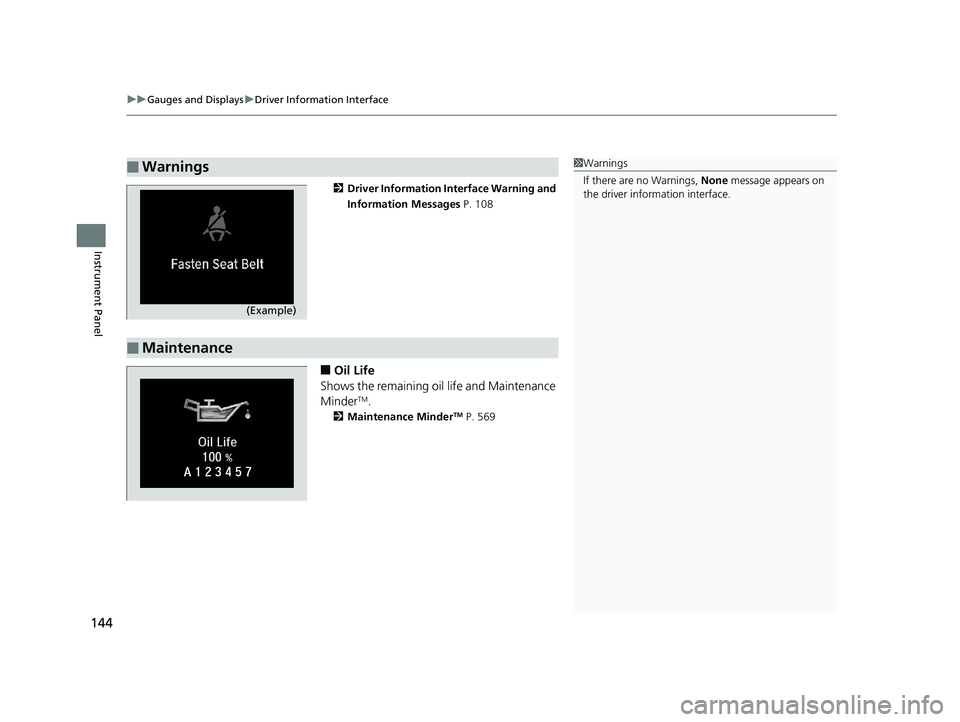

■Oil Life
Shows the remaining oil life and Maintenance
Minder
TM.
2 Maintenance MinderTM P. 569
■Warnings1Warnings
If there are no Warnings, None message appears on
the driver information interface.
(Example)
■Maintenance
18 ACCORD HYBRID-31TWA6000.book 144 ページ ２０１８年１月３０日　火曜日　午後７時３８分

145
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel

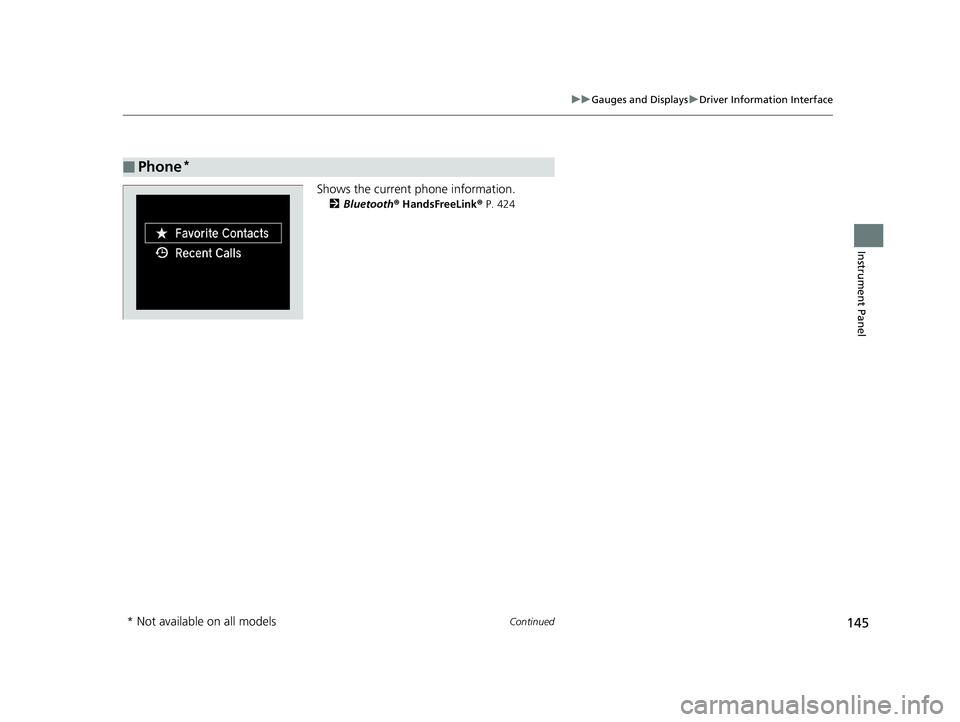

Shows the current phone information.
2 Bluetooth® HandsFreeLink® P. 424
■Phone*
* Not available on all models
18 ACCORD HYBRID-31TWA6000.book 145 ページ ２０１８年１月３０日　火曜日　午後７時３８分

146
uuGauges and Displays uDriver Information Interface
Instrument Panel

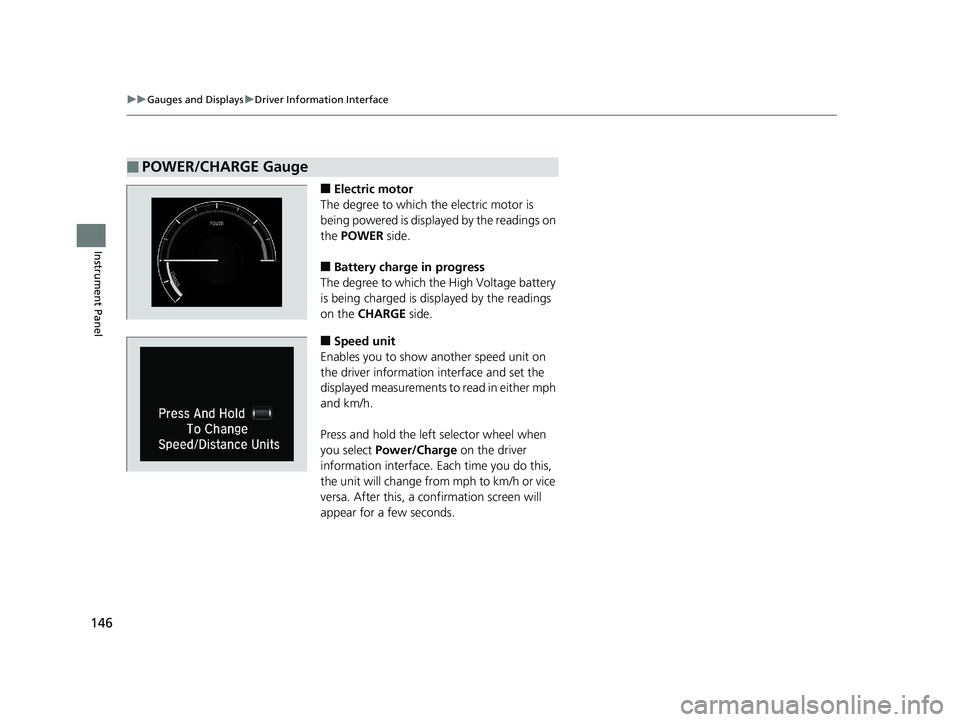

■Electric motor
The degree to which the electric motor is
being powered is displayed by the readings on
the POWER side.
■Battery charge in progress
The degree to which the High Voltage battery
is being charged is displayed by the readings
on the CHARGE side.
■Speed unit
Enables you to show another speed unit on
the driver information interface and set the
displayed measurements to read in either mph
and km/h.
Press and hold the left selector wheel when
you select Power/Charge on the driver
information interface. Each time you do this,
the unit will change from mph to km/h or vice
versa. After this, a confirmation screen will
appear for a few seconds.
■POWER/CHARGE Gauge
18 ACCORD HYBRID-31TWA6000.book 146 ページ ２０１８年１月３０日　火曜日　午後７時３８分

147
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel

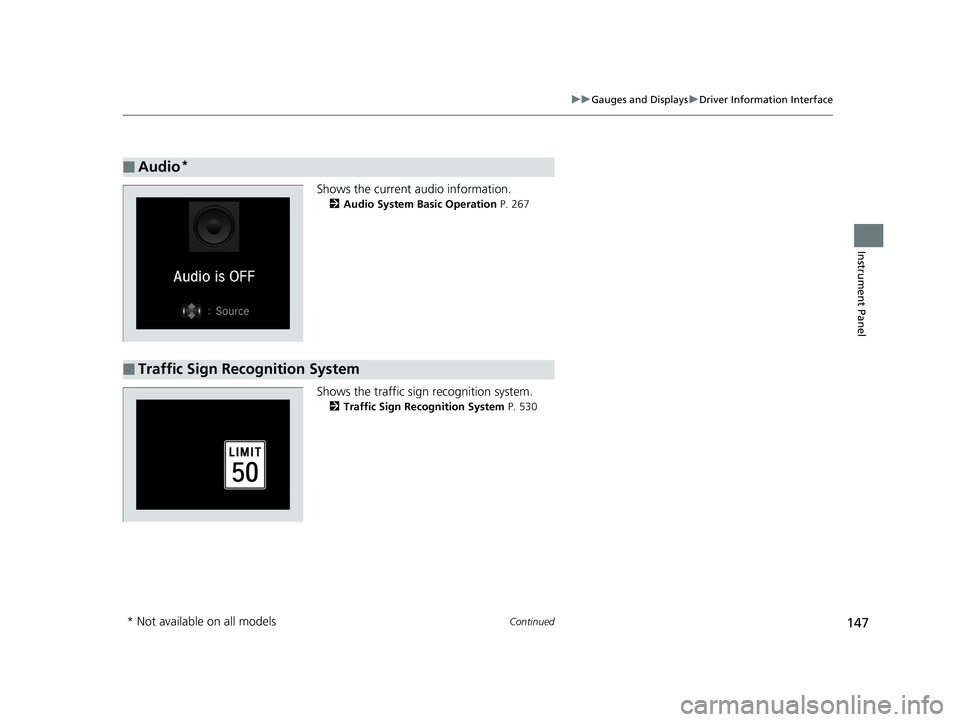

Shows the current audio information.
2 Audio System Basic Operation P. 267
Shows the traffic sign recognition system.
2Traffic Sign Recognition System P. 530
■Audio*
■Traffic Sign Recognition System
* Not available on all models
18 ACCORD HYBRID-31TWA6000.book 147 ページ ２０１８年１月３０日　火曜日　午後７時３８分

uuGauges and Displays uDriver Information Interface
148
Instrument Panel

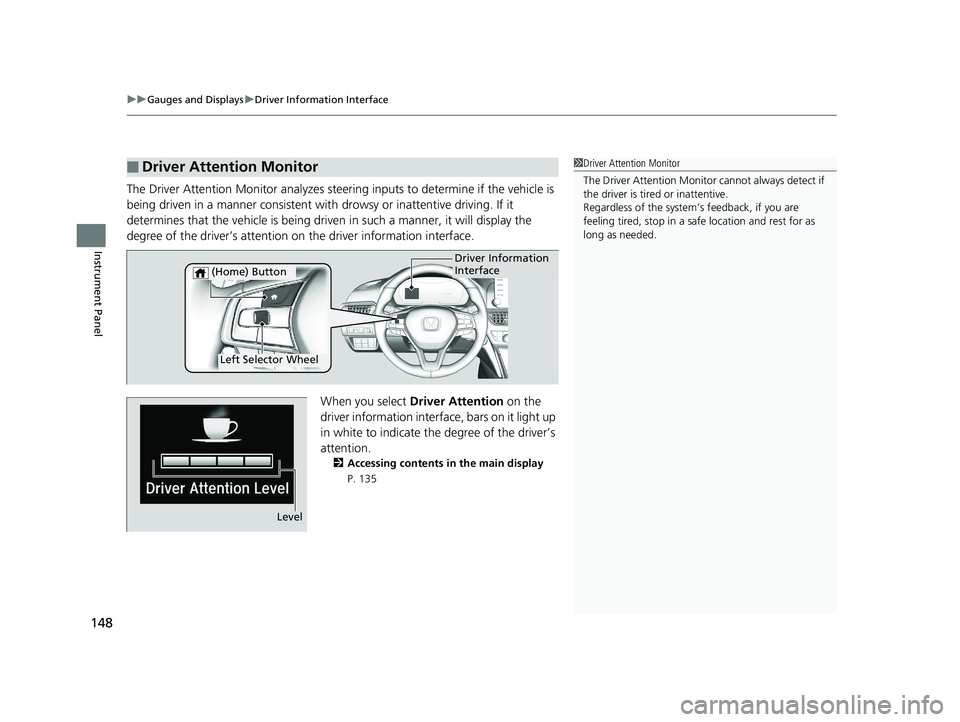

The Driver Attention Monitor analyzes steer ing inputs to determine if the vehicle is
being driven in a manner consistent with drowsy or inattentive driving. If it
determines that the vehicle is being driven in such a manner, it will display the
degree of the driver’s attention on the driver information interface.
When you select Driver Attention on the
driver information interface, bars on it light up
in white to indicate the degree of the driver’s
attention.
2 Accessing contents in the main display
P. 135
■Driver Attention Monitor1 Driver Attention Monitor
The Driver Attenti on Monitor cannot always detect if
the driver is tired or inattentive.
Regardless of the system’s feedback, if you are
feeling tired, stop in a safe location and rest for as
long as needed.
Driver Information
Interface
Left Selector Wheel
(Home) Button
Level
