HONDA ACCORD SEDAN 2018 Owner's Manual (in English)

129
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation

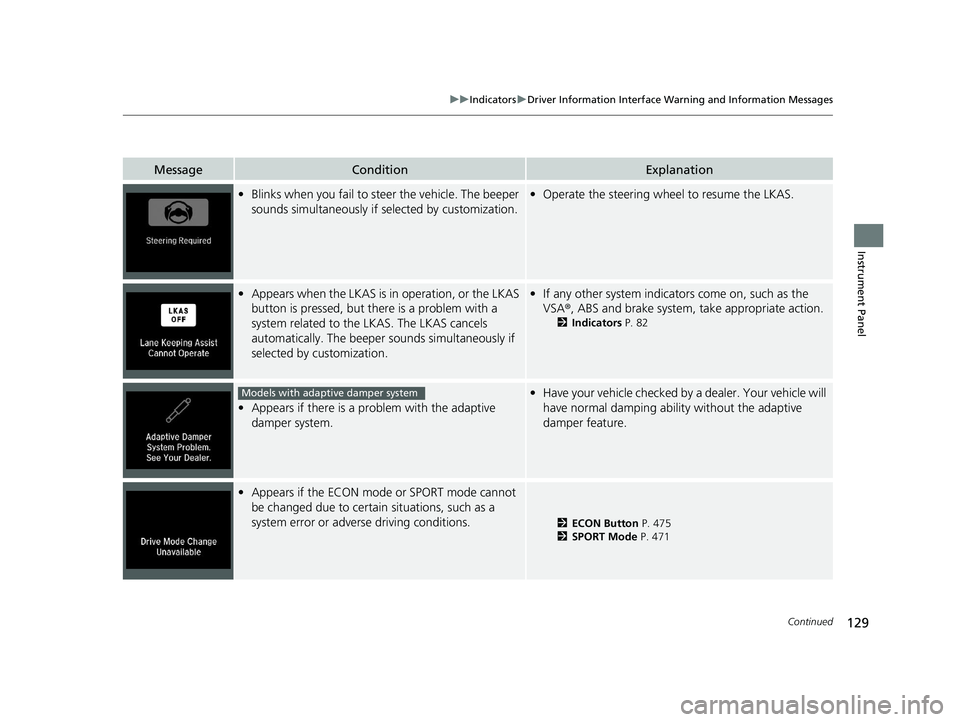

•Blinks when you fail to steer the vehicle. The beeper
sounds simultaneously if selected by customization.• Operate the steering whee l to resume the LKAS.
•Appears when the LKAS is in operation, or the LKAS
button is pressed, but there is a problem with a
system related to the LKAS. The LKAS cancels
automatically. The beeper sounds simultaneously if
selected by customization.• If any other system indicators come on, such as the
VSA ®, ABS and brake system, take appropriate action.
2Indicators P. 82
•Appears if there is a pr oblem with the adaptive
damper system.
• Have your vehicle checked by a dealer. Your vehicle will
have normal damping ability without the adaptive
damper feature.
• Appears if the ECON mode or SPORT mode cannot
be changed due to certai n situations, such as a
system error or adverse driving conditions.
2 ECON Button P. 475
2 SPORT Mode P. 471
Models with adaptive damper system
18 ACCORD HYBRID-31TWA6000.book 129 ページ ２０１８年１月３０日　火曜日　午後７時３８分

130
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation

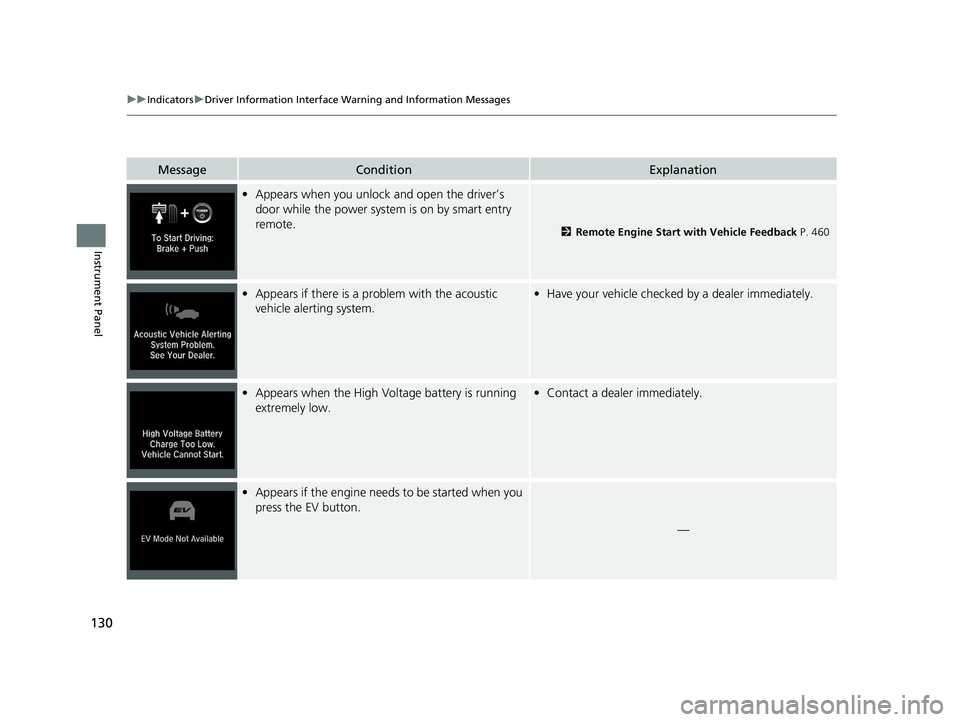

•Appears when you unlock and open the driver’s
door while the power system is on by smart entry
remote.
2 Remote Engine Start with Vehicle Feedback P. 460
•Appears if there is a pr oblem with the acoustic
vehicle alerting system.• Have your vehicle checked by a dealer immediately.
• Appears when the High Vo ltage battery is running
extremely low.• Contact a dealer immediately.
• Appears if the engine needs to be started when you
press the EV button.
—
18 ACCORD HYBRID-31TWA6000.book 130 ページ ２０１８年１月３０日　火曜日　午後７時３８分

131
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation

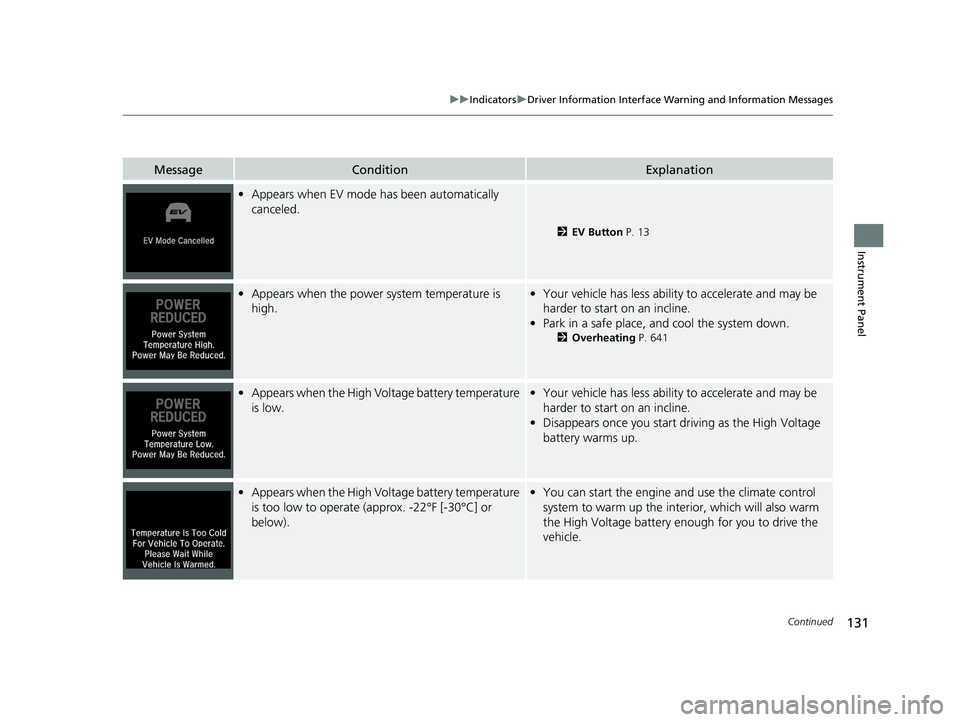

•Appears when EV mode has been automatically
canceled.
2 EV Button P. 13
•Appears when the power system temperature is
high.• Your vehicle has less ability to accelerate and may be
harder to start on an incline.
• Park in a safe place, and cool the system down.
2 Overheating P. 641
•Appears when the High Voltage battery temperature
is low.•Your vehicle has less ability to accelerate and may be
harder to start on an incline.
• Disappears once you start dr iving as the High Voltage
battery warms up.
• Appears when the High Voltage battery temperature
is too low to operate (approx. -22°F [-30°C] or
below).•You can start the engine a nd use the climate control
system to warm up the inte rior, which will also warm
the High Voltage battery enough for you to drive the
vehicle.
18 ACCORD HYBRID-31TWA6000.book 131 ページ ２０１８年１月３０日　火曜日　午後７時３８分

132
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation

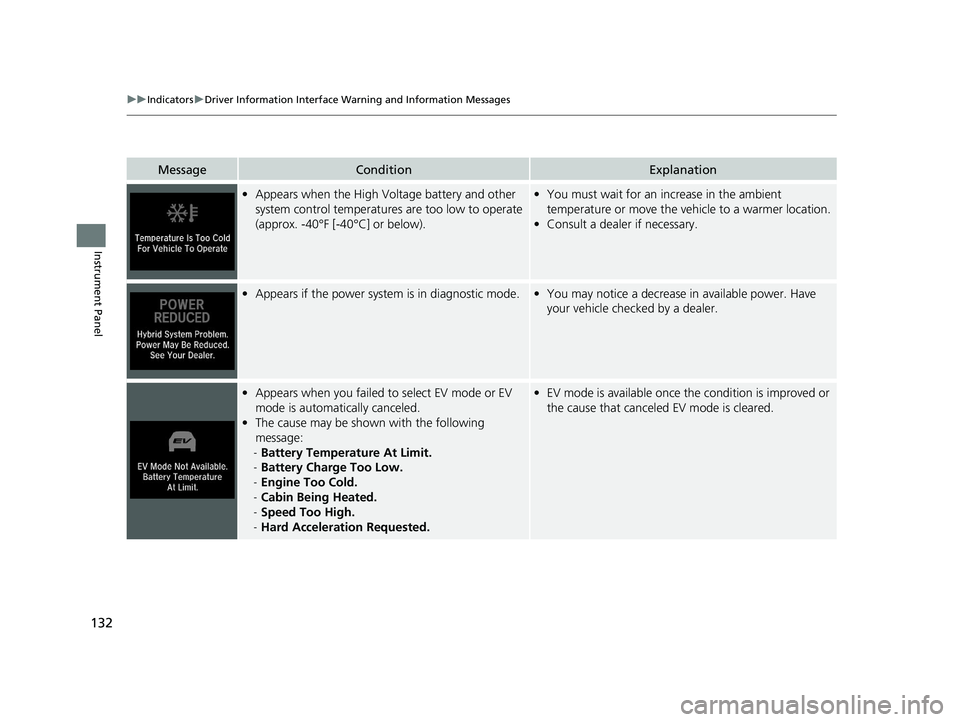

•Appears when the High Voltage battery and other
system control temperatures are too low to operate
(approx. -40°F [-40°C] or below).•You must wait for an increase in the ambient
temperature or move the vehicle to a warmer location.
• Consult a dealer if necessary.
• Appears if the power system is in diagnostic mode.•You may notice a decrease in available power. Have
your vehicle checked by a dealer.
• Appears when you failed to select EV mode or EV
mode is automatically canceled.
• The cause may be shown with the following
message:
- Battery Temperature At Limit.
- Battery Charge Too Low.
- Engine Too Cold.
- Cabin Being Heated.
- Speed Too High.
- Hard Acceleration Requested.• EV mode is available once the condition is improved or
the cause that canceled EV mode is cleared.
18 ACCORD HYBRID-31TWA6000.book 132 ページ ２０１８年１月３０日　火曜日　午後７時３８分

133Continued
Instrument Panel

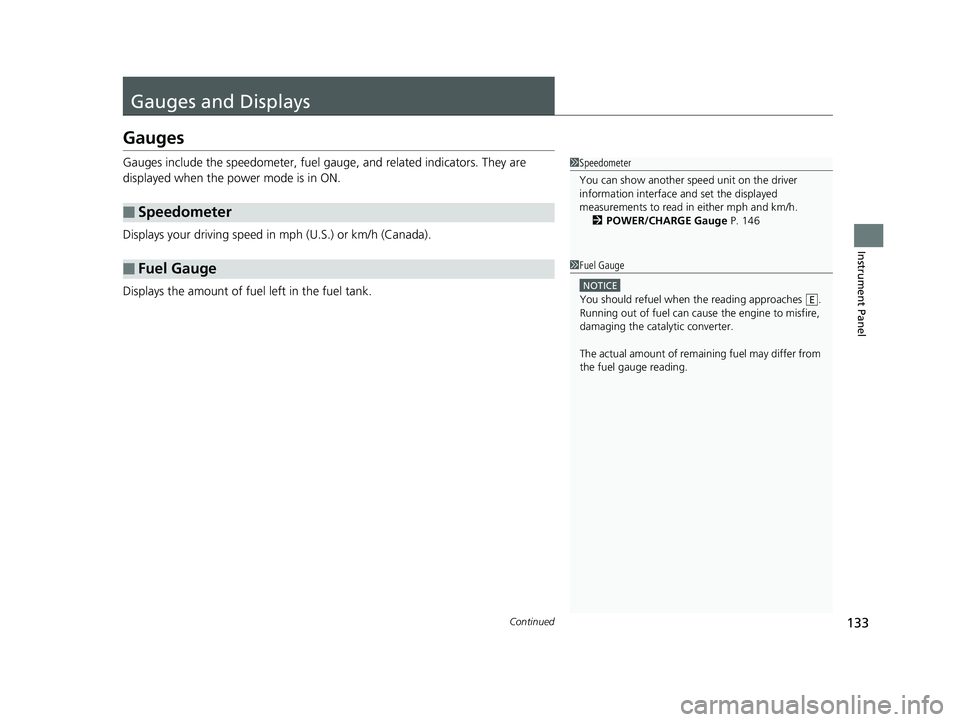

Gauges and Displays
Gauges
Gauges include the speedometer, fuel gauge, and related indicators. They are
displayed when the power mode is in ON.
Displays your driving speed in mph (U.S.) or km/h (Canada).
Displays the amount of fuel left in the fuel tank.
■Speedometer
■Fuel Gauge
1 Speedometer
You can show another speed unit on the driver
information interface and set the displayed
measurements to read in either mph and km/h.
2 POWER/CHARGE Gauge P. 146
1Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
18 ACCORD HYBRID-31TWA6000.book 133 ページ ２０１８年１月３０日　火曜日　午後７時３８分

uuGauges and Displays uGauges
134
Instrument Panel

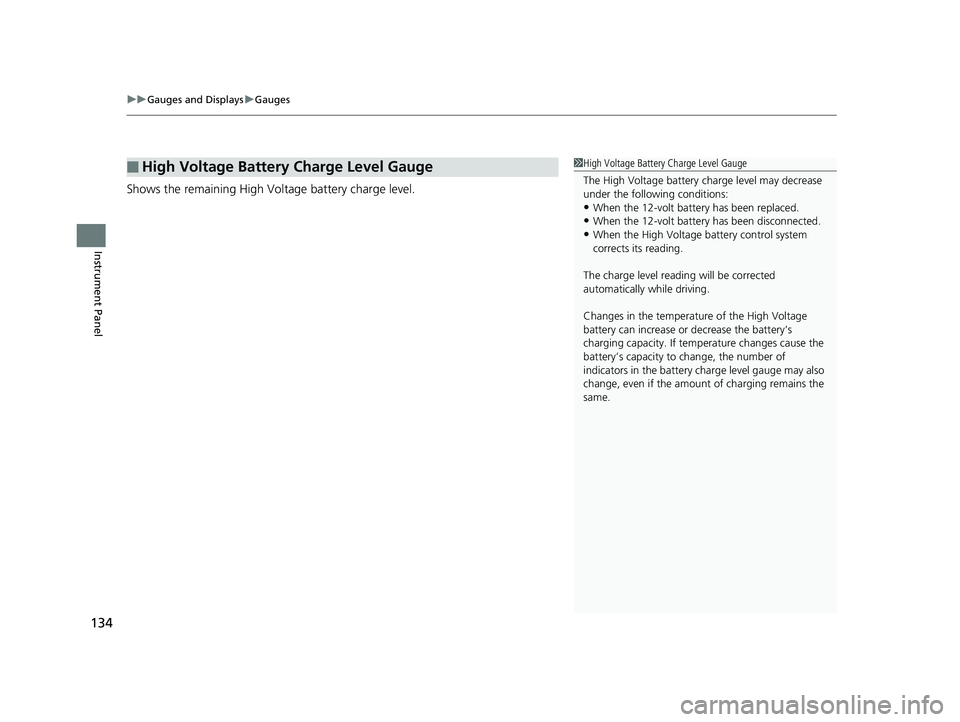

Shows the remaining High Voltage battery charge level.
■High Voltage Battery Charge Level Gauge1High Voltage Battery Charge Level Gauge
The High Voltage battery ch arge level may decrease
under the following conditions:
•When the 12-volt batter y has been replaced.
•When the 12-volt battery has been disconnected.
•When the High Voltage battery control system
corrects its reading.
The charge level readin g will be corrected
automatically while driving.
Changes in the temperature of the High Voltage
battery can increase or decrease the battery’s
charging capacity. If temp erature changes cause the
battery’s capacity to change, the number of
indicators in the battery ch arge level gauge may also
change, even if the amount of charging remains the
same.
18 ACCORD HYBRID-31TWA6000.book 134 ページ ２０１８年１月３０日　火曜日　午後７時３８分

135
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel

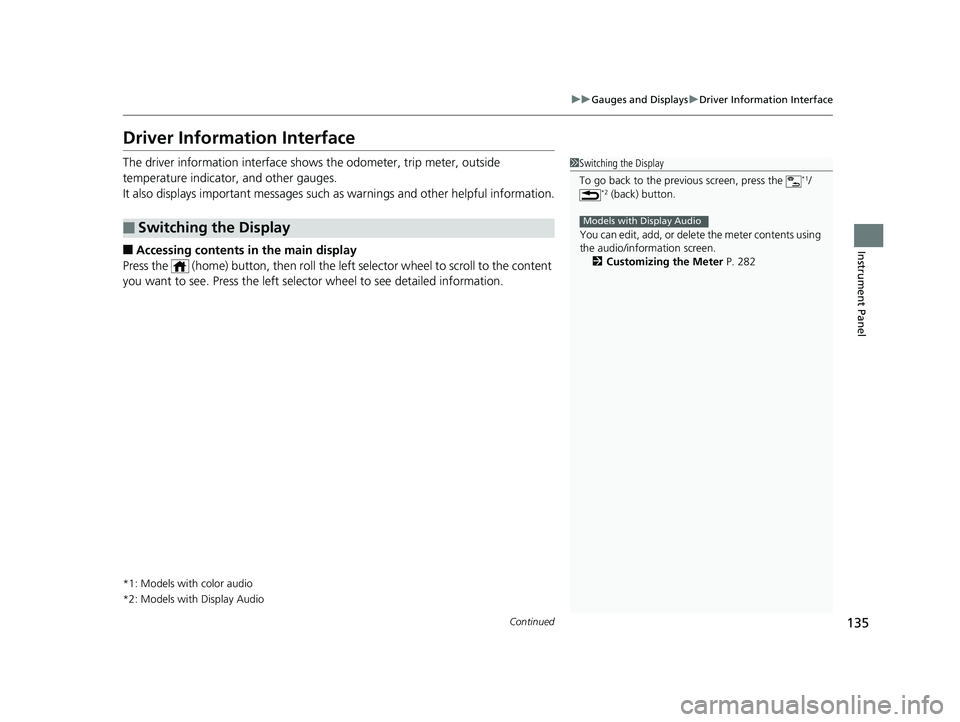

Driver Information Interface
The driver information interface show s the odometer, trip meter, outside
temperature indicator, and other gauges.
It also displays important messages such as warnings and other helpful information.
■Accessing contents in the main display
Press the (home) button, then roll the left selector wheel to sc roll to the content
you want to see. Press the left sele ctor wheel to see detailed information.
*1: Models with color audio
*2: Models with Display Audio
■Switching the Display
1Switching the Display
To go back to the previous screen, press the
*1/ *2 (back) button.
You can edit, add, or delete the meter contents using
the audio/information screen. 2 Customizing the Meter P. 282
Models with Display Audio
18 ACCORD HYBRID-31TWA6000.book 135 ページ ２０１８年１月３０日　火曜日　午後７時３８分

136
uuGauges and Displays uDriver Information Interface
Instrument Panel

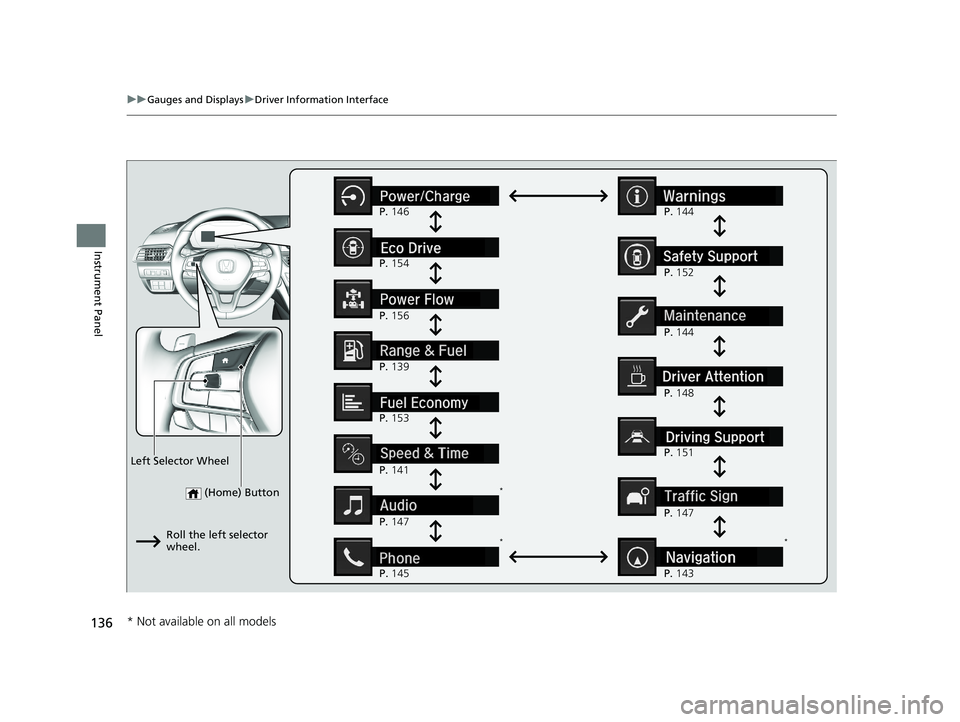

(Home) Button*
*
P. 146
P. 139
P. 141
P. 147 P.
147
P. 145 P.
144
P.
152
P. 151
P.
144
Left Selector Wheel Roll the left selector
wheel.
P.143
P.
148
*
P.154
P. 156
P. 153
* Not available on all models
18 ACCORD HYBRID-31TWA6000.book 136 ページ ２０１８年１月３０日　火曜日　午後７時３８分

137
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel
■Sub display
Press the TRIP button to change the display.
Shows the total number of miles or kilome ters that your vehicle has accumulated.
■Odometer
Odometer
Outside Temperature Trip A Trip B
TRIP Button
TRIP
TRIPTRIP
18 ACCORD HYBRID-31TWA6000.book 137 ページ ２０１８年１月３０日　火曜日　午後７時３８分

uuGauges and Displays uDriver Information Interface
138
Instrument Panel
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then press and hold the TRIP Button. The trip meter
is reset to 0.0.
Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature display
Adjust the temperature readi ng by up to ±5°F or ±3°C if the temperature reading
seems incorrect.
Use the customized features in the audio/information screen to correct the
temperature.
2 Customized Features P. 367, 378
■Trip Meter
■Outside Temperature
1Trip Meter
Switch between trip meter A and trip meter B by
pressing the TRIP Button.
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust fr om another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the te mperature reading has stabilized.
