HONDA CIVIC 2003 7.G Workshop Manual

1.

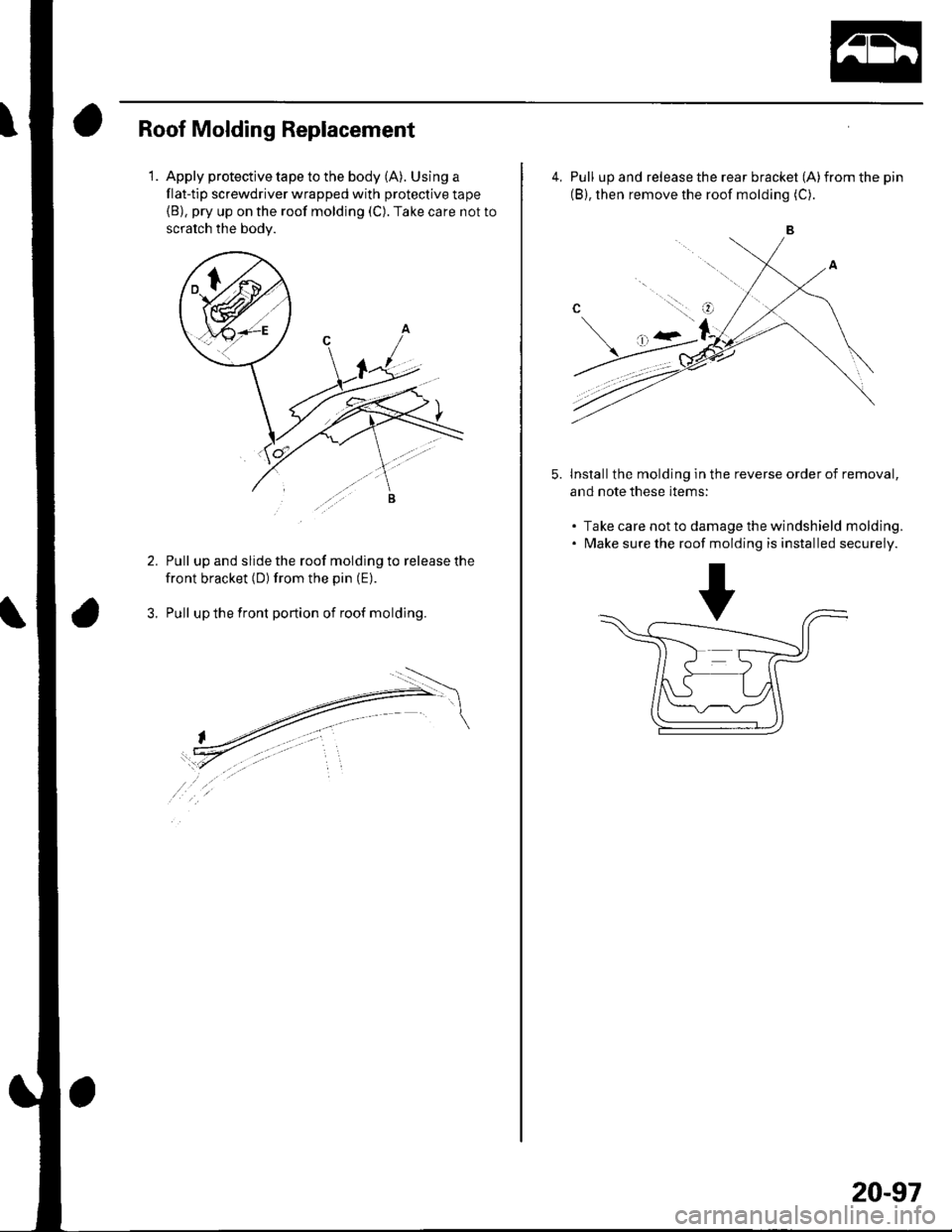

Roof Molding Replacement
Apply protective tape to the body (A). Using a
flat-tip screwdriver wrapped with protective tape(B), pry up on the roof molding (C). Take care not to
scratch the bodv.
Pull up and slide the roof molding to release the
front bracket (D) from the pin (E).
Pull up the front portion of roof molding.
4, Pull up and release the rear bracket (A)from the pin
(B), then remove the roof molding (C).
Install the molding in the reverse order of removal,
and note these items:
. Take care not to damage the windshield molding.. Make sure the roof molding is installed securely.
5.
..:.::.l. g
20-97

Exterior Trim
\

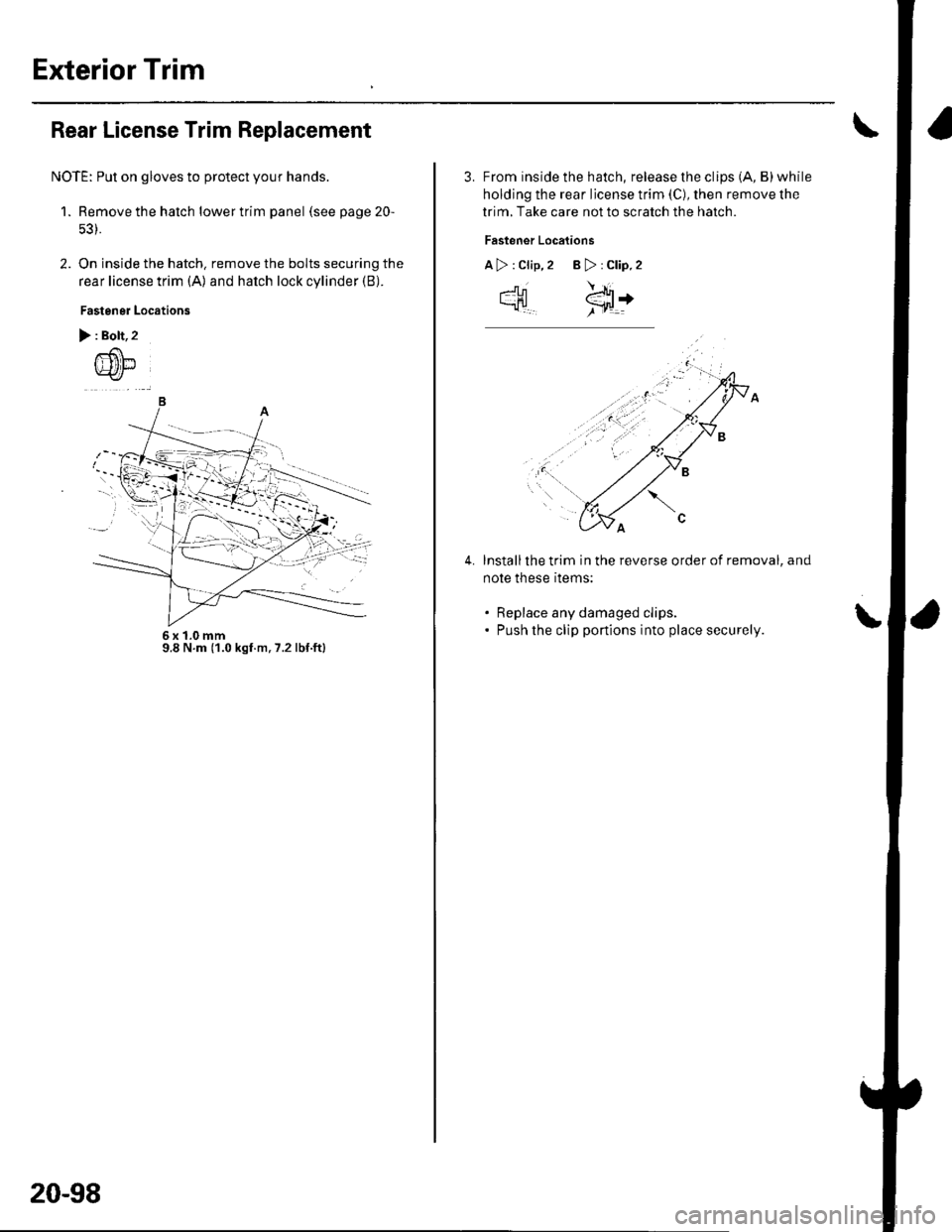

Rear License Trim Replacement
NOTE: Put on gloves to protect your hands.
1. Remove the hatch lower trim panel (see page 20-
2. On inside the hatch. remove the bolts securing the
rear license trim (A) and hatch lock cylinder (B).
Fastener Locations
> : Bolt,2
-)
6x1.0mm9.8 N.m (1.0 kgf.m,7.2lbf.ftl
20-98
3. From inside the hatch, release the clips (A, B)while
holding the rear license trim (C), then remove lhe
trim, Take care not to scratch the hatch.
Fastener Locations
A>:Clip,2 B>:Clip.2
\!-
cHl €:t+
Installthe trim in the reverse order of removal, and
note these rtems:
. Replace any damaged clips.. Push the clip portions into place securely.
4.

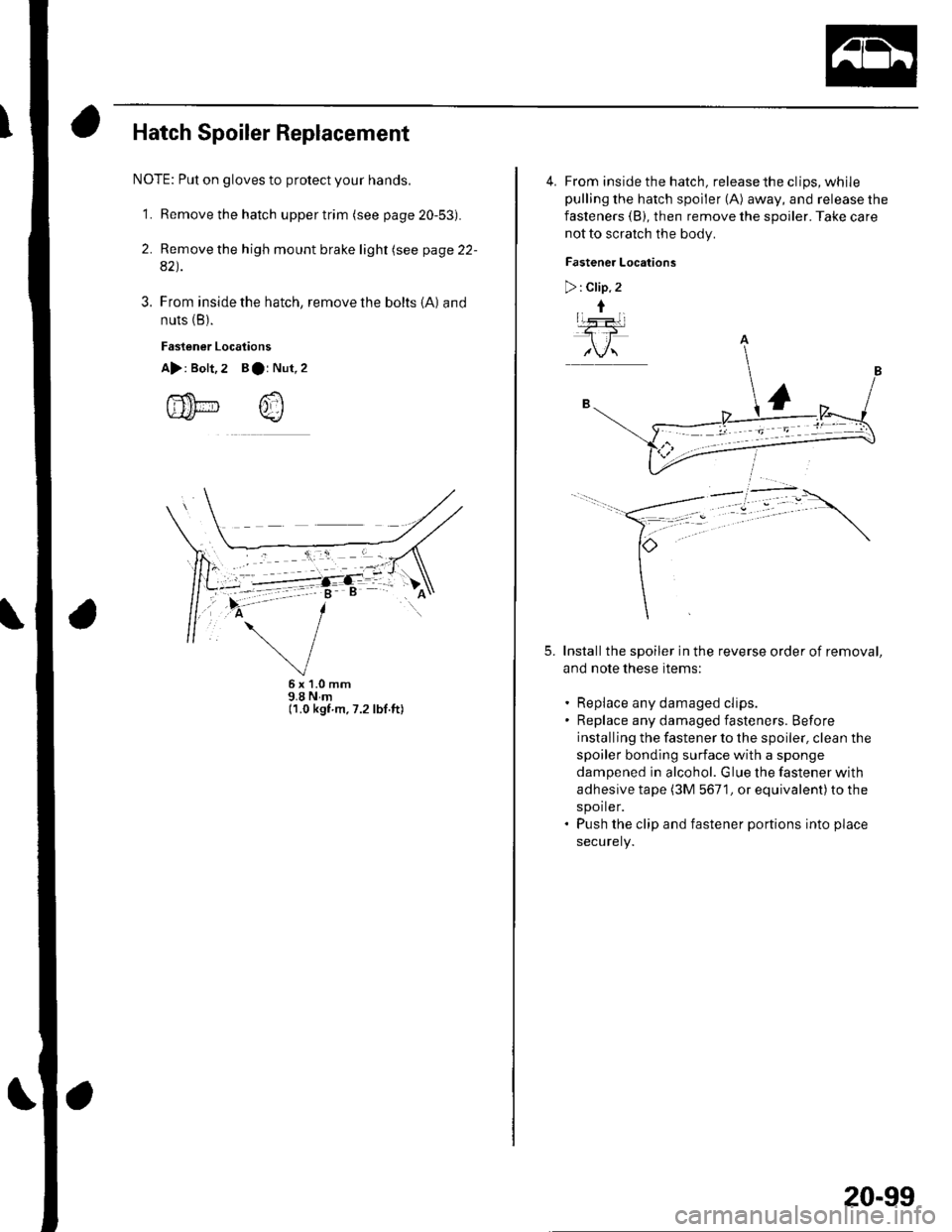

Hatch Spoiler Replacement
NOTE: Put on gloves to protect your hands.
'l. Remove the hatch upper trim (see page 20-53).
2. Remove the high mount brake light (see page 22-
82).
3. From inside the hatch, remove the bolts {A} and
nuts (B).
Fastener Locaiions
A>: Bolt,2 Bar Nut,
fi'f$t-- /,fluLt* v_/
5x1.0mm9.8Nm(1.0 kgf.m.7.2 lbf.ft)
$.A
4. From inside the hatch, release the clips, whilepulling the hatch spoiler (A) away, and release the
fasteners (B), then remove the spoiler. Take care
not to scratch the body.
Fastener Locations
>: Clip. 2
t
Installthe spoiler in the reverse order of removal,
and note these items:
Replace any damaged clips.
Replace any damaged fasteners. Before
installing the fastener to the spoiler, clean the
spoiler bonding surface with a sponge
dampened in alcohol. Glue the fastener with
adhesive tape (3M 5671, or equivalent)to the
spoiler.
Push the clip and fastener portions into place
securely.
5.
20-99

Exterior Trim

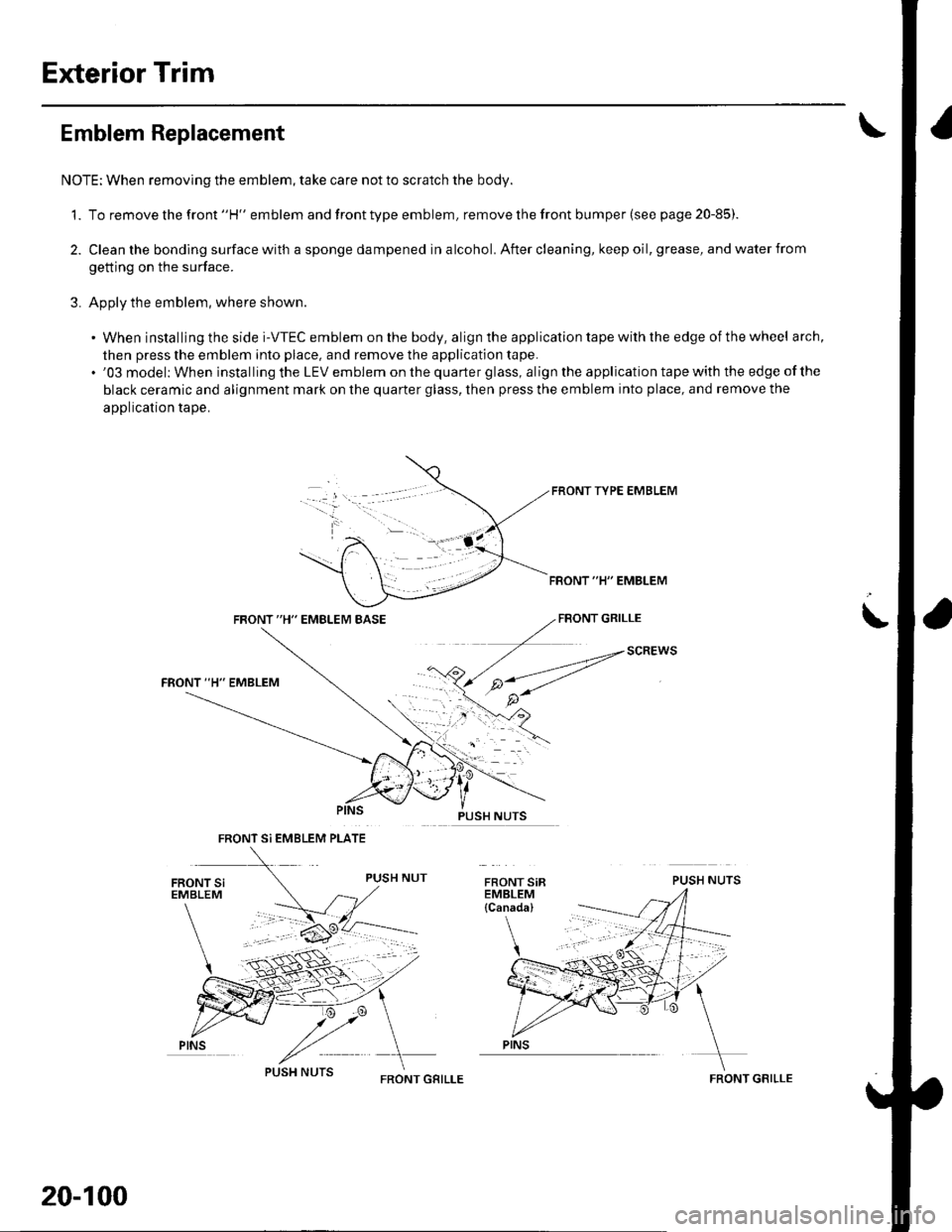

Emblem Replacement
NOTE: When removing the emblem, take care not to scratch the body.
1. To remove the front "H" emblem and front type emblem, remove the front bumper (see page 20-85)
2. Clean the bonding surface with a sponge dampened in alcohol. After cleaning, keep oil, grease, and water from
getting on the surface.
3. Apply the emblem, where shown.
. When installing the side i-VTEC emblem on the body, align the application tape with the edge of the wheel arch,
then press the emblem into place, and remove the application tape.. '03 model: When installing the LEV emblem on the quarter glass, align the application tape with the edge of the
black ceramic and alignment mark on the quarter glass, then press the emblem into place, and remove the
application tape.
FRONT TYPE EMBLEM
FBONT "H" EMBLEM
FRONT "H" EMBLEM BASEFBONT GRILLE
PUSH NUTS
i
SCREWS
FRONT Si EMBLEM PLATE
PINS
20-100
FRONT GRILLEFRONT GRILLE

LEV EMBLEM(Left side only)('03 model)
SIDE |-VTEC EMBLEM
Unit: mm {in.lAdhesive tape: 3M 4213E, o. equivalentThickness:0.8 mm (0.03 in.)
REAR CIVIC EMBLEM
REAR VERSION EMBLEM
REAR "H" EMBLEM
APPLICATION TAPE Edoe ol the black ceramic.
HATCH LINE
Align.
REAR LICENSETRIM REAR si EMBLEM
LEV EMBLEMOnto inside faceof the guarter glass.
REAR SiR EMBLEM
, ilg(1.93)=-t
50
CIVIC EMBLEMEdge ofthehatch.
SIDE i-VTEC EMBLEM
{'!,9?)
SIDE i.WECEMBLEM
ADHESIVE TAPEEdge of thehatch.
Right Side:63 (2.5)
F.l^6 ^l rh-
.=4,
Li.Est y'
BODYLINE
wheelarch.
112
BODYLINEo"f,r,ao.o" (5'5s)Edge of thewheel arch.APPLICATIONTAPETAPE
REAR "H'' EMBLEM
(Canada)
3411.3)
.,!!ll,'ntI (1.s31
Left Side:
. 114 (4.49)
4. After installing the front "H" enblem and front type emblem, reinstall the front bumper.
20-101

Fenderwell

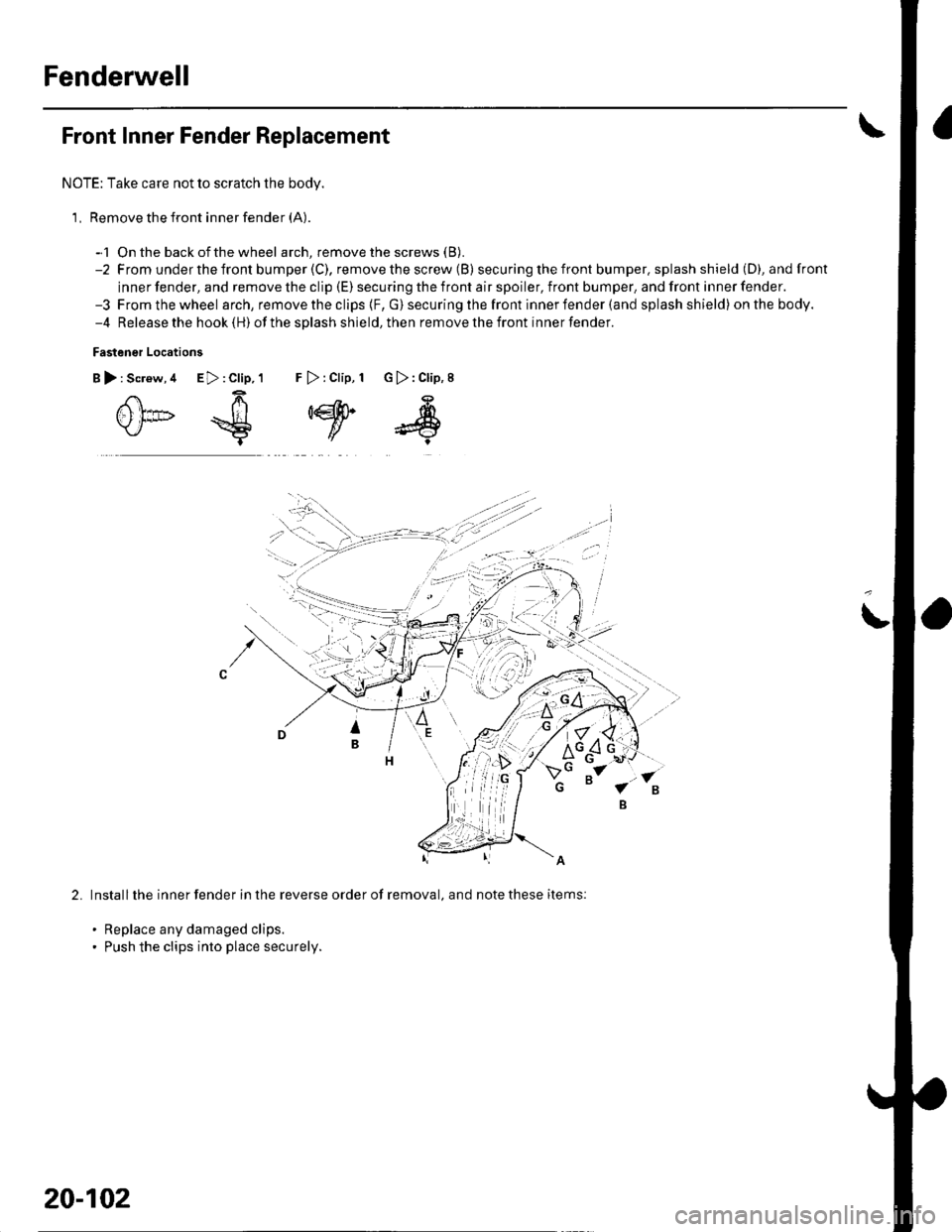

Front Inner Fender Replacement
NOTE: Take care not to scratch the body.
1, Remove the front inner fender (A).
-1 On the back ofthe wheel arch, remove the screws (B).
-2 From underthefront bumper(C), removethescrew (B) secu ring the front bumper. splash shield (D), andfront
inner fender, and remove the clip (E) securing the front air spoiler, front bumper, and front inner fender.-3 Fromthewheel arch, remove the clips {F, G) securing the front inner fender (and splash shield) onthebody.-4 Release the hook (H) ofthe splash shield,then removethefront innerfender.
Fastener Locations
B):Screw,4 E>:Clip,1 F >:Clip, 1 G):Clip,8
0*€
,w
s
2.Install the inner fender in the reverse order of removal, and note these items:
. Replace any damaged clips.. Push the clips into place securely.
20-102

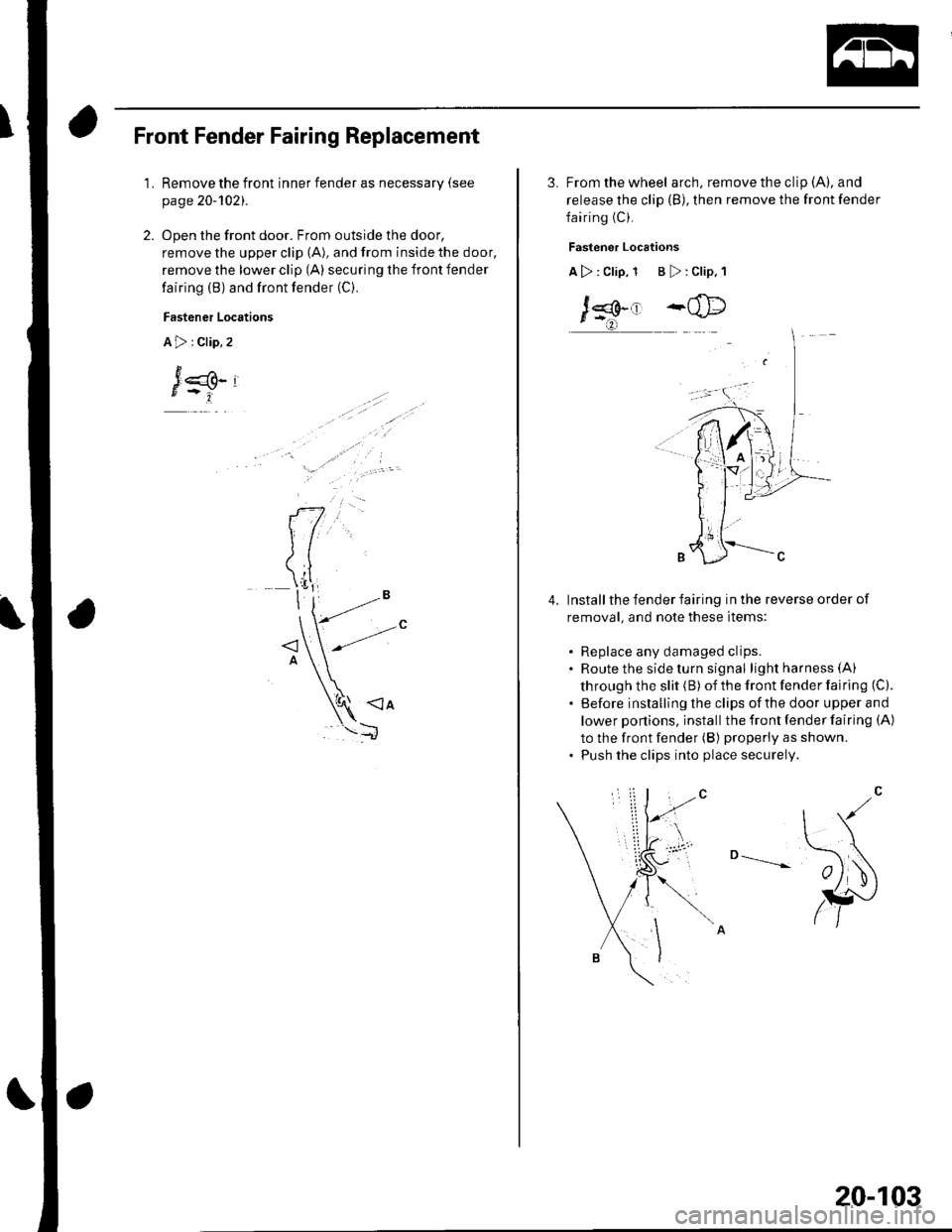

Front Fender Fairing Replacement
1.Remove the front inner fender as necessary (see
page 20-1O21.
Open the front door. From outside the door,
remove the upper clip (A), and from inside the door,
remove the lower clip (A) securing the front fender
fairing (B) and front fender (C).
Fastener Locations
A>:Clip,2
J \
3. From the wheel arch, remove the clip (A), and
release the clip (B), then remove the front fender
fairing (C).
Fastener Locations
A>: Clip, 1 B >: Clip, 1
J*.' -@
Install the fender fairing in the reverse order of
removal, and note these items:
. Replace any damaged clips.. Route the side turn signal lightharness(A)
through the slit (B) of the front fender fairing (C).
. Before installing the clips ofthe door upper and
lower ponions, install the front fender fairing (A)
to the front fender (B) properly as shown.. Push the clips into place securely.
o --____--
4.
20-103

Fenderwell

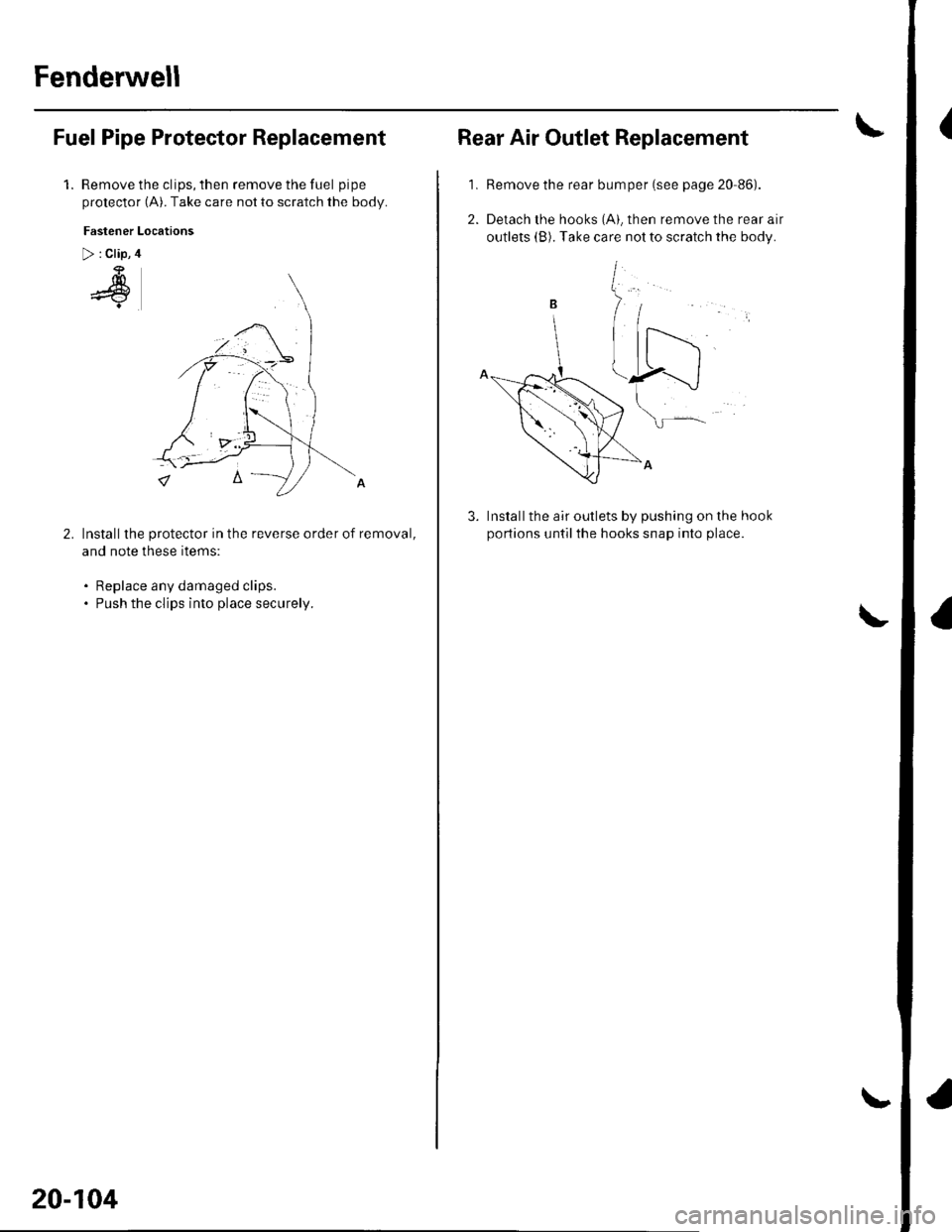

(Fuel Pipe Protector Replacement
1.Remove the clips, then remove the fuel pipe
protector (A). Take care not to scratch the body.
Fastener Locations
> : Clip, 4
4
Installthe protector in the reverse order of removal,
and note these items:
. Replace any damaged clips.. Push the clips into place securelv.
20-104
Rear Air Outlet Replacement
1. Remove the rear bumper (see page 20-86).
Installthe air outlets by pushing on the hook
portions untilthe hooks snap into place.
rne rear atr
the body.

Openers

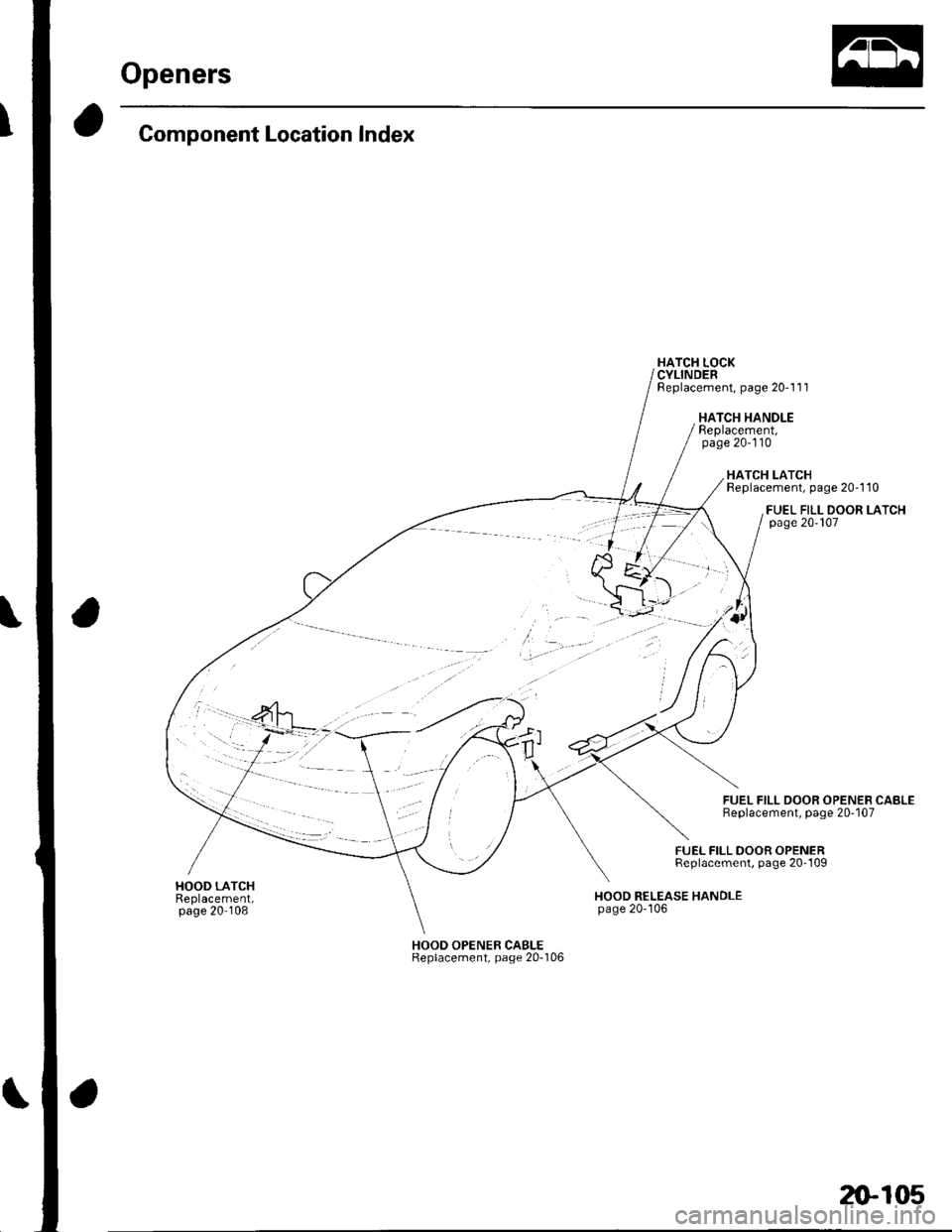

Component Location Index
HATCH LOCKCYLINDERReplacement, page 20-1'l 1
HATCH HANDLEReplacement,page 20-110
FUEL FILL DOOR OPENERReplacement, page 20-109
HATCH LATCHReplacement, page 20'1 10
FUEL FILL DOOR LATCHpage 20-107
FUEL FILL DOOR OPENEB CABLEReplacement, page 20-107
I{OOD RELEASE HANDLEpage 20-'106
HOOD OPENER CABLEReplacement, page 20-106
z)-105

Openers

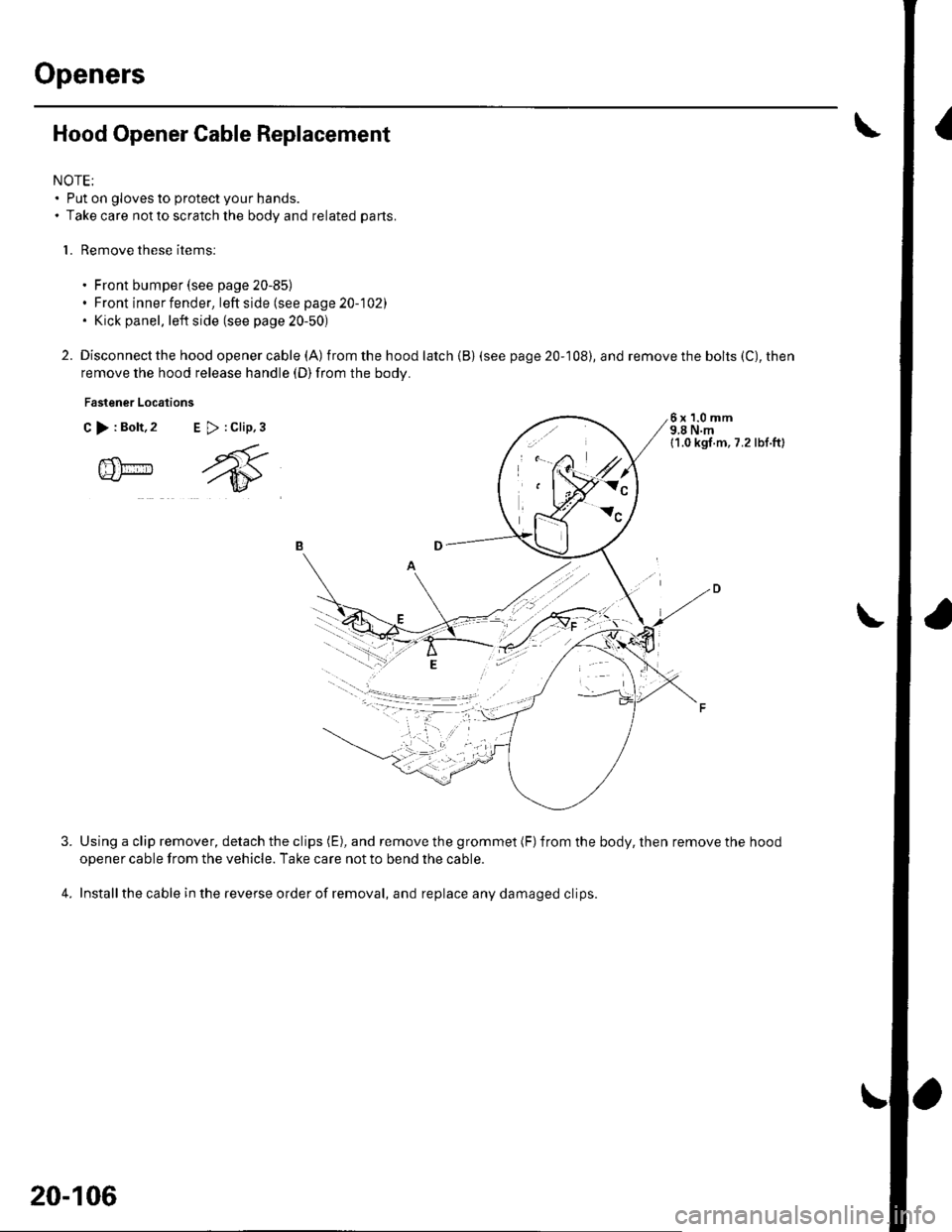

Hood Opener Cable Replacement
NOTE:. Put on gloves to protect your hands.. Take care not to scratch the body and related parts.
l. Remove these items:
. Front bumper (see page 20-85). Front inner fender, leftside(seepage20-102). Kick panel, left side (see page 20-50)
2. Disconnect the hood openercable (A) from the hood latch {B) (see
remove the hood release handle (D)from the body.
Fastener Locations
C >:Bolt,2 E >:Clip,3
page 20-108), and remove the bolts (C), then
6x1.0mm9,8 N.m11.0 kgl.m, 7.2 lbl.ft)
@m
4.
Using a clip remover, detach the clips (E), and remove the grommet (F)from the body, then remove the hood
opener cable from the vehicle. Take care not to bend the cable.
Installthe cable in the reverse order of removal, and replace any damaged clips.
l,.t'.
W:"
20-106
