Page 11 of 840
9

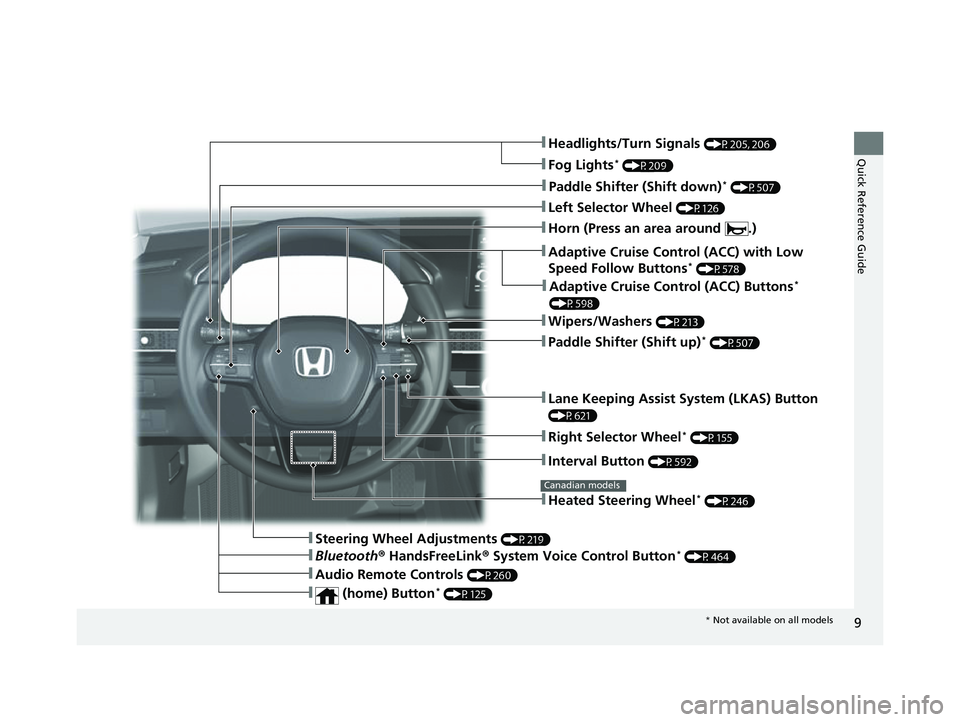

Quick Reference Guide❚Headlights/Turn Signals (P205, 206)
❚Fog Lights* (P209)
❚Paddle Shifter (Shift down)* (P507)
❚Left Selector Wheel (P126)
❚Adaptive Cruise Control (ACC) with Low
Speed Follow Buttons* (P578)
❚Lane Keeping Assist System (LKAS) Button
(P621)
❚Interval Button (P592)
❚Steering Wheel Adjustments (P219)
❚Heated Steering Wheel* (P246)
Canadian models
❚Right Selector Wheel* (P155)
❚Bluetooth® HandsFreeLink ® System Voice Control Button* (P464)
❚Audio Remote Controls (P260)
❚ (home) Button* (P125)
❚Horn (Press an area around .)
❚Adaptive Cruise Control (ACC) Buttons*
(P598)
❚Paddle Shifter (Shift up)* (P507)
❚Wipers/Washers (P213)
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 9 ページ 2022年6月23日 木曜日 午後9時28分
Page 12 of 840

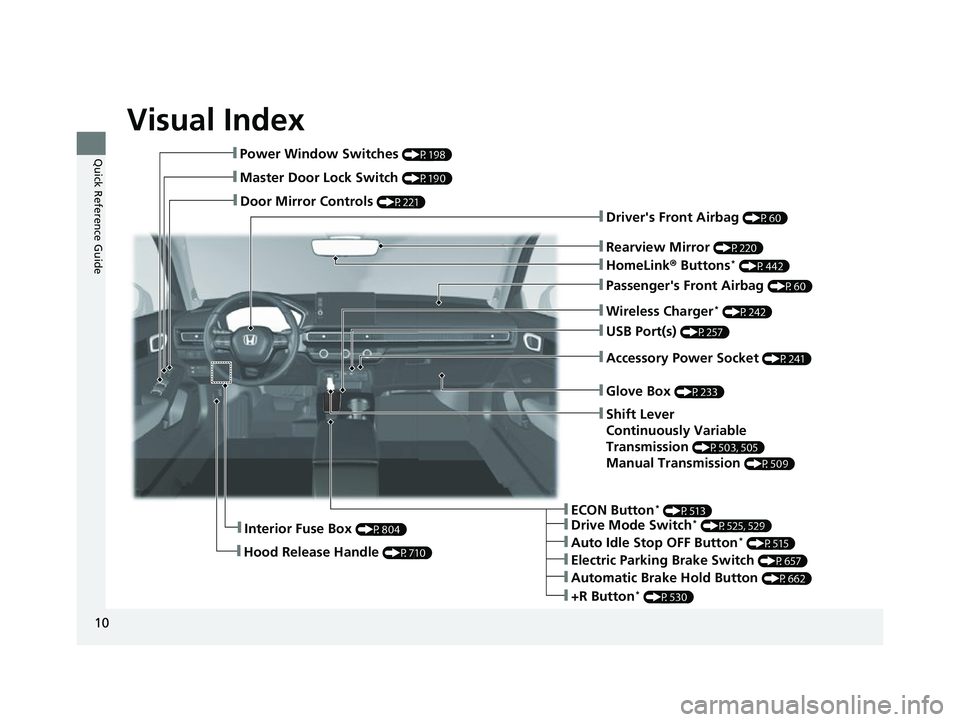

Visual Index
10
Quick Reference Guide❚Power Window Switches (P198)
❚Master Door Lock Switch (P190)
❚Door Mirror Controls (P221)
❚Interior Fuse Box (P804)
❚Hood Release Handle (P710)
❚Driver's Front Airbag (P60)
❚Rearview Mirror (P220)
❚HomeLink® Buttons* (P442)
❚Passenger's Front Airbag (P60)
❚Wireless Charger* (P242)
❚USB Port(s) (P257)
❚Accessory Power Socket (P241)
❚Glove Box (P233)
❚Shift Lever
Continuously Variable
Transmission
(P503, 505)
Manual Transmission (P509)
❚ECON Button* (P513)
❚Electric Parking Brake Switch (P657)
❚Drive Mode Switch* (P525, 529)
❚Auto Idle Stop OFF Button* (P515)
❚Automatic Brake Hold Button (P662)
❚+R Button* (P530)
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 10 ページ 2022年6月23日 木曜日 午後9時28分
Page 13 of 840
11

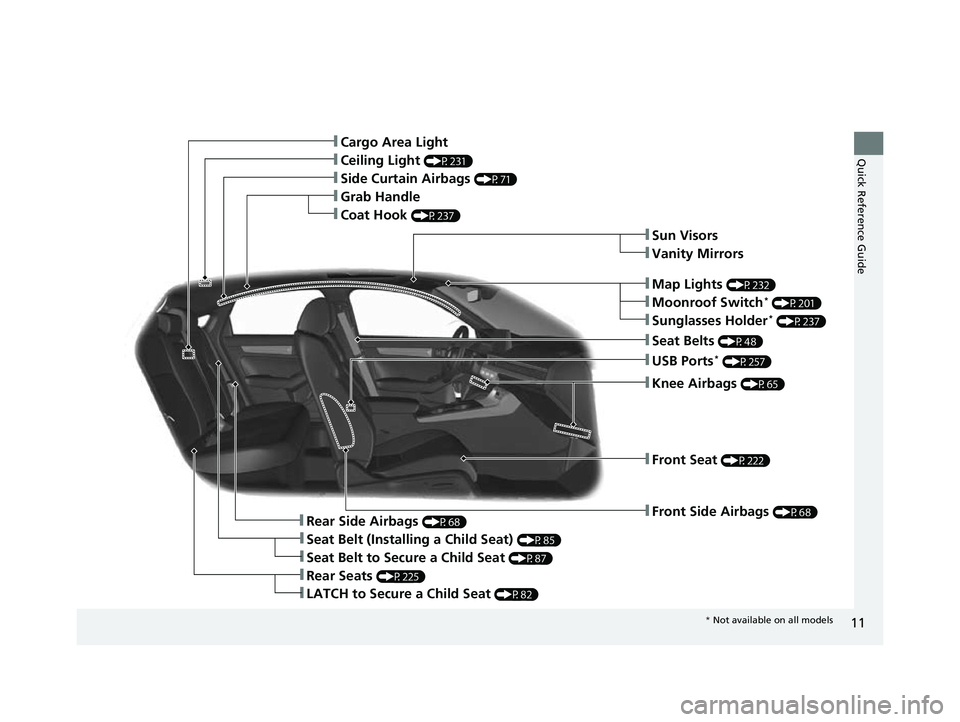

Quick Reference Guide❚Ceiling Light (P231)
❚Side Curtain Airbags (P71)
❚Grab Handle
❚Cargo Area Light
❚Rear Side Airbags (P68)
❚Coat Hook (P237)
❚LATCH to Secure a Child Seat (P82)
❚Rear Seats (P225)
❚Seat Belt (Installing a Child Seat) (P85)
❚Seat Belt to Secure a Child Seat (P87)
❚Sun Visors
❚Vanity Mirrors
❚Map Lights (P232)
❚Moonroof Switch* (P201)
❚Sunglasses Holder* (P237)
❚Seat Belts (P48)
❚Knee Airbags (P65)
❚Front Seat (P222)
❚Front Side Airbags (P68)
❚USB Ports* (P257)
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 11 ページ 2022年6月23日 木曜日 午後9時28分
Page 14 of 840

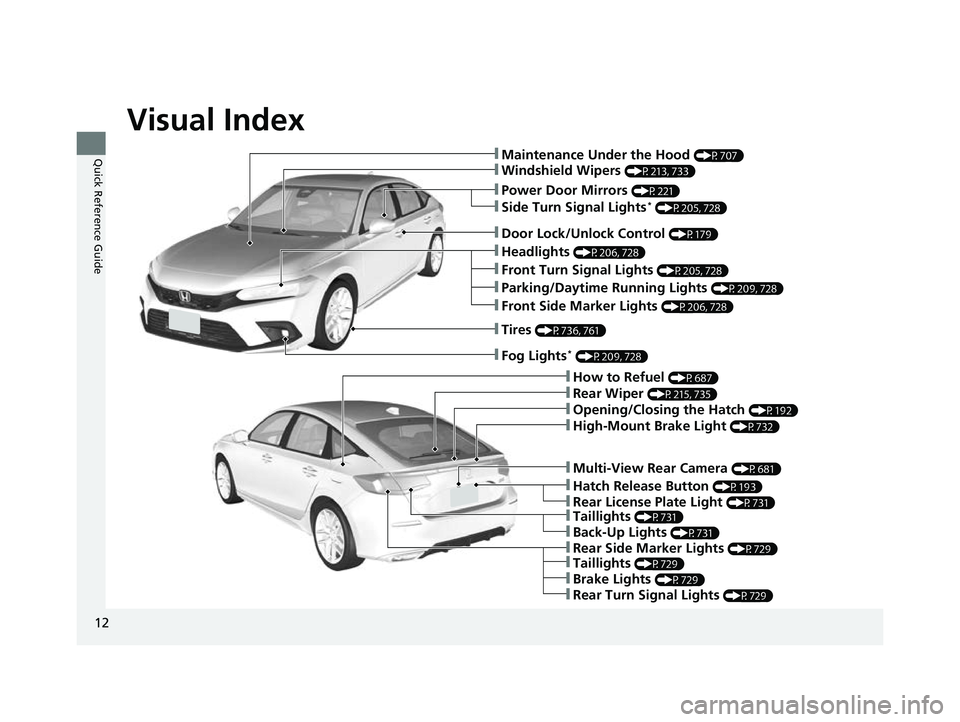

Visual Index
12
Quick Reference Guide❚Maintenance Under the Hood (P707)
❚Windshield Wipers (P213, 733)
❚Tires (P736, 761)
❚Fog Lights* (P209, 728)
❚Power Door Mirrors (P221)
❚How to Refuel (P687)
❚Rear Wiper (P215, 735)
❚Opening/Closing the Hatch (P192)
❚Side Turn Signal Lights* (P205, 728)
❚Headlights (P206, 728)
❚Front Turn Signal Lights (P205, 728)
❚Front Side Marker Lights (P206, 728)
❚Taillights (P731)
❚Rear Side Marker Lights (P729)
❚Hatch Release Button (P193)
❚Rear License Plate Light (P731)
❚Back-Up Lights (P731)
❚High-Mount Brake Light (P732)
❚Door Lock/Unlock Control (P179)
❚Parking/Daytime Running Lights (P209, 728)
❚Multi-View Rear Camera (P681)
❚Brake Lights (P729)
❚Rear Turn Signal Lights (P729)
❚Taillights (P729)
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 12 ページ 2022年6月23日 木曜日 午後9時28分
Page 15 of 840
13
Quick Reference Guide

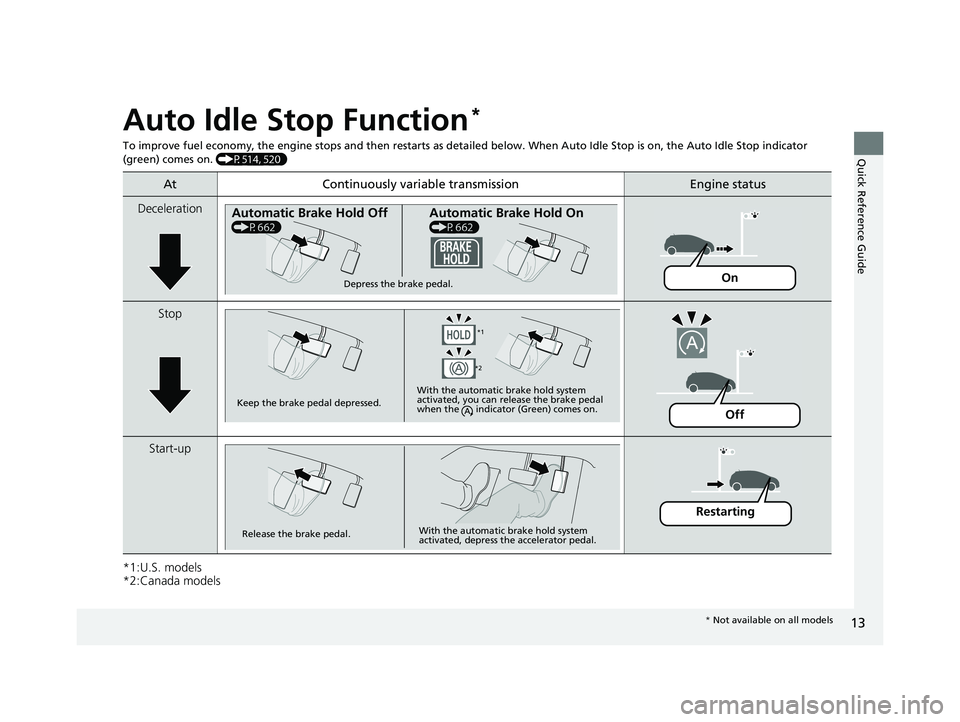

Auto Idle Stop Function*
To improve fuel economy, the engine stops and then restarts as detailed below. When Auto Idle Stop is on, the Auto Idle Stop in dicator
(green) comes on. (P514, 520)
*1:U.S. models
*2:Canada models
At Continuously variable transmissionEngine status
Deceleration
Stop
Start-up
Automatic Brake Hold Off
(P662)
Automatic Brake Hold On
(P662)
Depress the brake pedal.On
Keep the brake pedal depressed. With the automatic brake hold system
activated, you can release the brake pedal
when the indicator (Green) comes on.
*1
*2
Off
Release the brake pedal. With the automatic brake hold system
activated, depress the accelerator pedal.
Restarting
*
Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 13 ページ 2022年6月23日 木曜日 午後9時28分
Page 16 of 840
14
Quick Reference Guide
AtManual transmissionEngine status
Deceleration
Stop
Start-up
1. Depress the brake pedal.
2. Fully depress the clutch pedal.
On
●Continue to depress the brake pedal.●Move the shift lever to (N.●Release the clutch pedal.
Off
1. Depress the clutch pedal fully again.
2. Move the shift lever to
( 1.
3. Depress the accelerator pedal to resume driving.
Restarting
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 14 ページ 2022年6月23日 木曜日 午後9時28分
Page 17 of 840
15
Quick Reference Guide

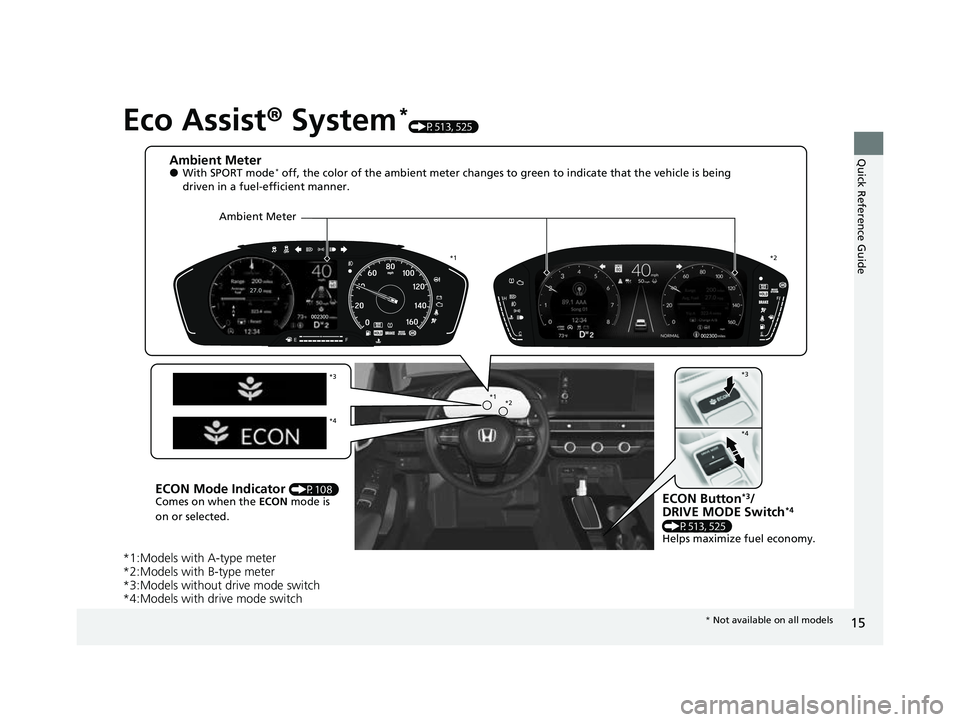

Eco Assist® System*(P513, 525)
*1:Models with A-type meter
*2:Models with B-type meter
*3:Models without drive mode switch
*4:Models with drive mode switch
Ambient Meter●With SPORT mode* off, the color of the ambient meter changes to green to indicate that the vehicle is being
driven in a fuel-efficient manner.
ECON Button*3/
DRIVE MODE Switch*4
(P513, 525)
Helps maximize fuel economy.
ECON Mode Indicator (P108)
Comes on when the ECON mode is
on or selected.
*1 *2
*1 *2
*3
*4 *3
*4
Ambient Meter
*
Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 15 ページ 2022年6月23日 木曜日 午後9時28分
Page 18 of 840
16
Quick Reference Guide
Safe Driving (P43)
Airbags (P57)
●Your vehicle is fitted with airbags to help protect you and your
passengers during a moderate-to-severe collision.
Child Safety (P77)
●All children 12 and younger should be seated in the rear seat.●Smaller children should be properly restrained in a forward-facing child seat.●Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard (P92)
●Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P486)
●Before driving, check that the front seats, head restraints*,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P48)
●Fasten your seat belt and sit upright well
back in the seat.
●Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 16 ページ 2022年6月23日 木曜日 午後9時28分
Page 19 of 840
17
Quick Reference Guide

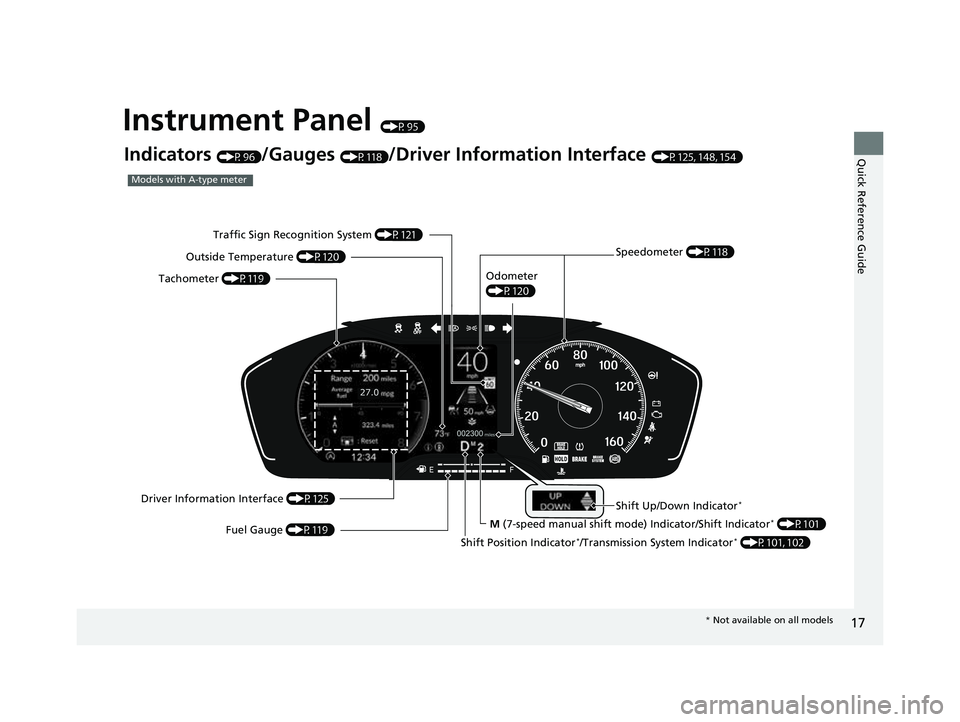

Instrument Panel (P95)
Indicators (P96)/Gauges (P118)/Driver Information Interface (P125, 148, 154)
M (7-speed manual shift mode ) Indicator/Shift Indicator
* (P101)
Models with A-type meter
Shift Position Indicator*/Transmission System Indicator* (P101, 102)
Fuel Gauge
(P119)
Driver Information Interface
(P125)
Tachometer
(P119) Speedometer
(P118)
Traffic Sign Recognition System
(P121)
Odometer
(P120)
Outside Temperature
(P120)
Shift Up/Down Indicator*
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 17 ページ 2022年6月23日 木曜日 午後9時28分
Page 20 of 840
18
Quick Reference Guide

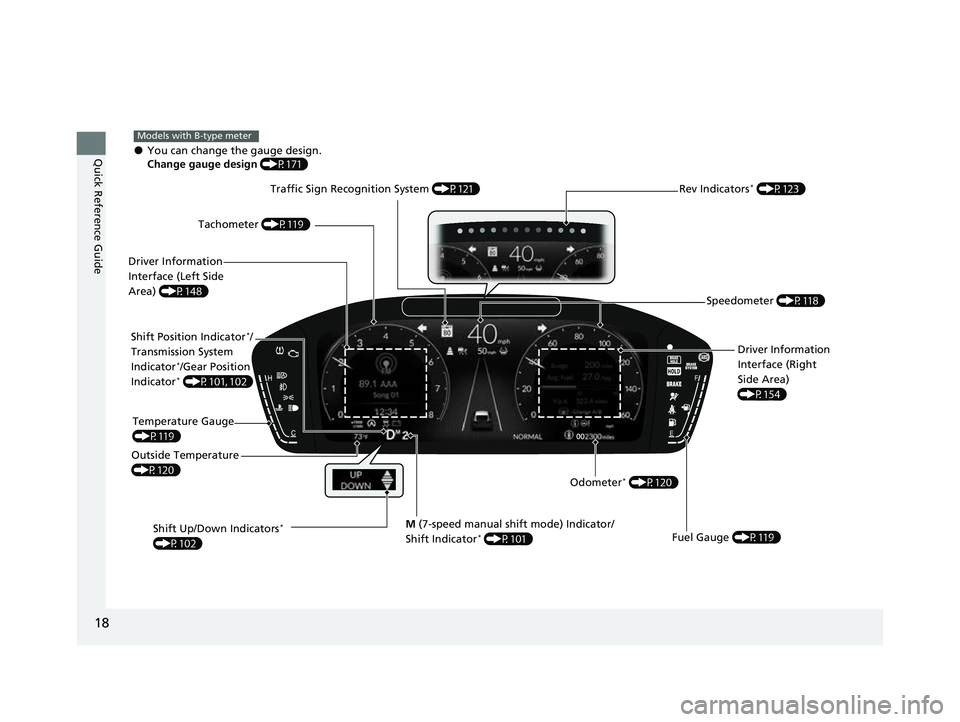

M (7-speed manual shift mode) Indicator/
Shift Indicator* (P101)
●You can change the gauge design.
Change gauge design (P171)
Models with B-type meter
Shift Position Indicator*/
Transmission System
Indicator
*/Gear Position
Indicator* (P101, 102)
Fuel Gauge (P119)Driver Information
Interface (Right
Side Area)
(P154)
Tachometer
(P119)
Speedometer (P118)
Traffic Sign Recognition System
(P121)
Odometer
* (P120)
Temperature Gauge
(P119)
Outside Temperature
(P120) Rev Indicators
*
(P123)
Shift Up/Down Indicators*
(P102)
Driver Information
Interface (Left Side
Area) (P148)
