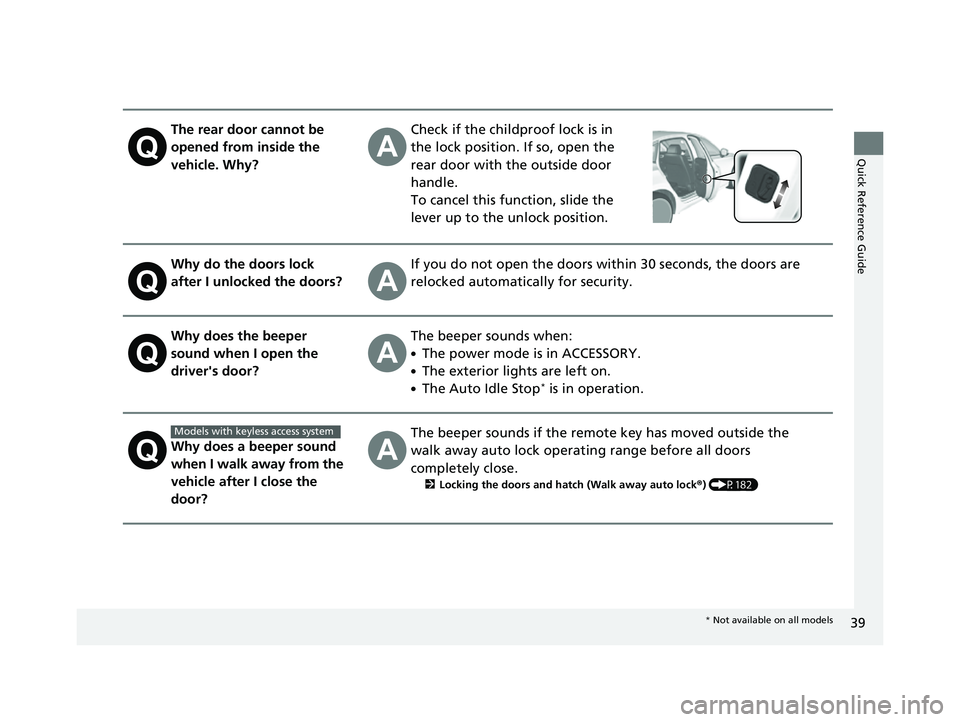

HONDA CIVIC 2023 Service Manual

39
Quick Reference Guide
The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in
the lock position. If so, open the
rear door with the outside door
handle.
To cancel this function, slide the
lever up to the unlock position.
Why do the doors lock
after I unlocked the doors?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver's door?The beeper sounds when:
●The power mode is in ACCESSORY.
●The exterior lights are left on.
●The Auto Idle Stop* is in operation.
Why does a beeper sound
when I walk away from the
vehicle after I close the
door?The beeper sounds if the remote key has moved outside the
walk away auto lock operating range before all doors
completely close.
2Locking the doors and hatch (Walk away auto lock ®) (P182)
Models with keyless access system
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 39 ページ ２０２２年６月２３日　木曜日　午後９時２８分

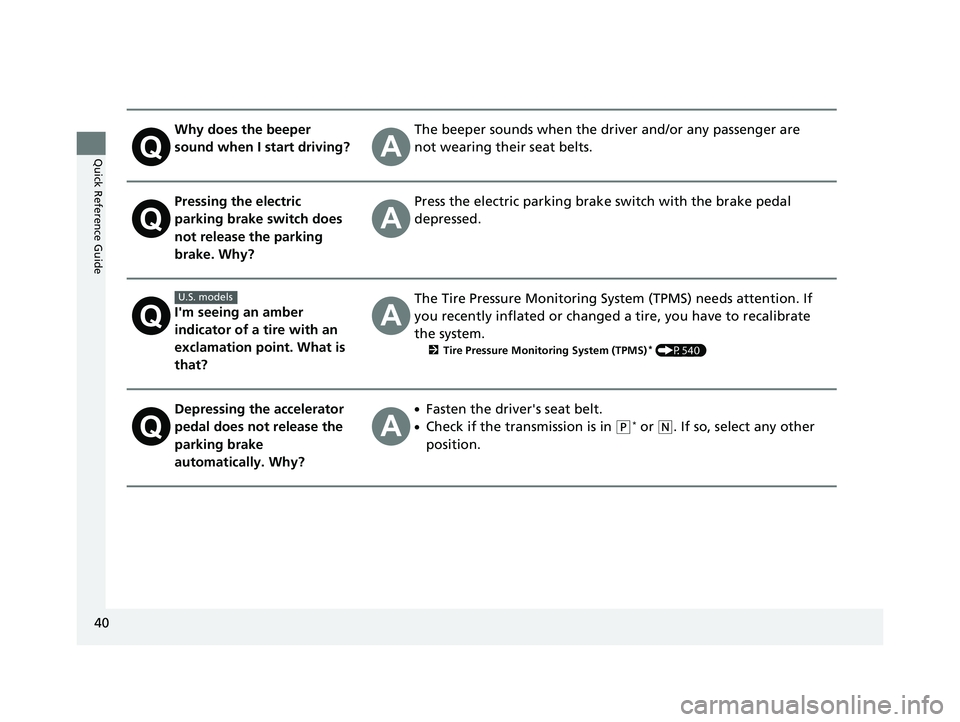

40
Quick Reference Guide
Why does the beeper
sound when I start driving?The beeper sounds when the driver and/or any passenger are
not wearing their seat belts.
Pressing the electric
parking brake switch does
not release the parking
brake. Why?Press the electric parking brake switch with the brake pedal
depressed.
I'm seeing an amber
indicator of a tire with an
exclamation point. What is
that?
The Tire Pressure Monitoring Syst em (TPMS) needs attention. If
you recently inflated or changed a tire, you have to recalibrate
the system.
2 Tire Pressure Monitoring System (TPMS)* (P540)
Depressing the accelerator
pedal does not release the
parking brake
automatically. Why?●Fasten the driver's seat belt.
●Check if the transmission is in (P* or (N. If so, select any other
position.
U.S. models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 40 ページ ２０２２年６月２３日　木曜日　午後９時２８分

41
Quick Reference Guide
Why do I hear a screeching
sound when I apply the
brake pedal?The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.
Unleaded premium
gasoline with a Pump
Octane Number (PON) of
91 or higher is
recommended. Is it
possible to use unleaded
gasoline with a Pump
Octane Number (PON) of
87 or lower on this vehicle?
Use of a lower octane gasoline can cause occasional metallic
knocking noise in the engine and will result in decreased engine
performance.
Use of a gasoline with a pump octane less than 87 can lead to
engine damage.Models without capless fuel filler
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 41 ページ ２０２２年６月２３日　木曜日　午後９時２８分

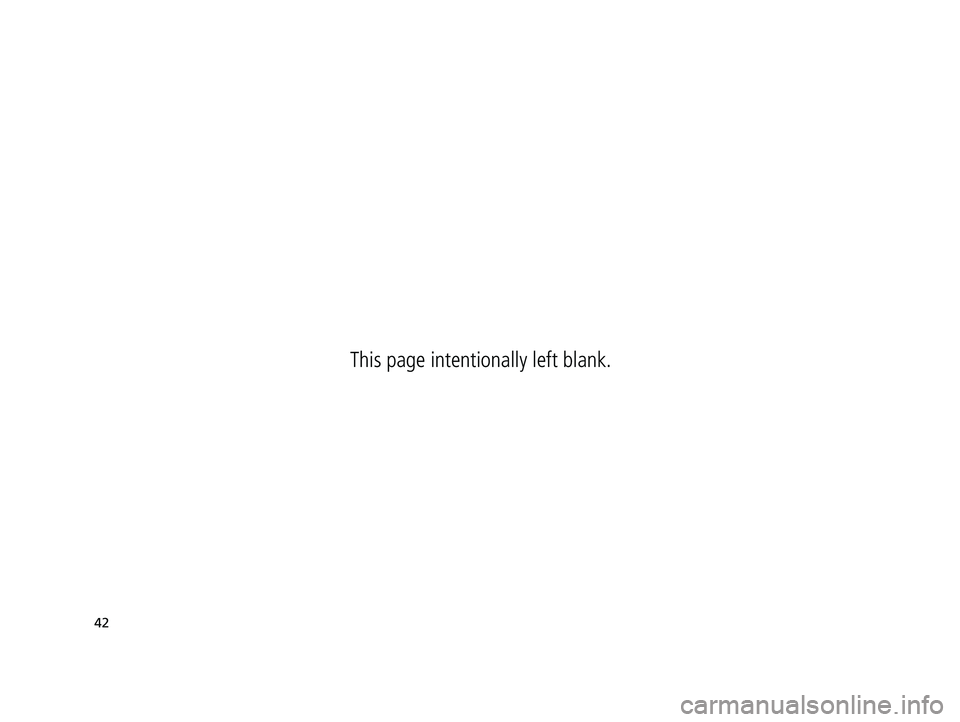

42
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 42 ページ ２０２２年６月２３日　木曜日　午後９時２８分This page intentionally left blank.

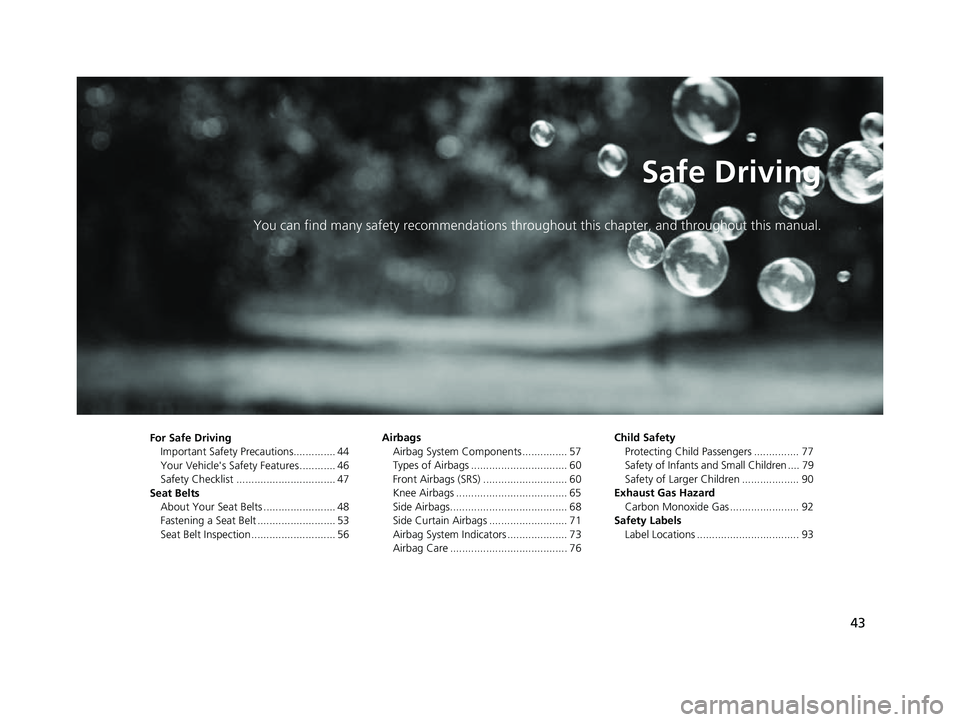

43
Safe Driving
You can find many safety recommendations throughout this chapter, and throughout this manual.
For Safe Driving
Important Safety Precautions.............. 44
Your Vehicle's Safety Features ............ 46
Safety Checklist ................................. 47
Seat Belts About Your Seat Belts ........................ 48
Fastening a Seat Belt .......................... 53
Seat Belt Inspection ............................ 56 Airbags
Airbag System Components ............... 57
Types of Airbags ................................ 60
Front Airbags (SRS) ............................ 60
Knee Airbags ..................................... 65
Side Airbags....................................... 68
Side Curtain Airbags .......................... 71
Airbag System Indicators .................... 73
Airbag Care ....................................... 76 Child Safety
Protecting Child Passengers ............... 77
Safety of Infants and Small Children .... 79
Safety of Larger Children ................... 90
Exhaust Gas Hazard Carbon Monoxide Gas ....................... 92
Safety Labels Label Locations .................................. 93
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 43 ページ ２０２２年６月２３日　木曜日　午後９時２８分

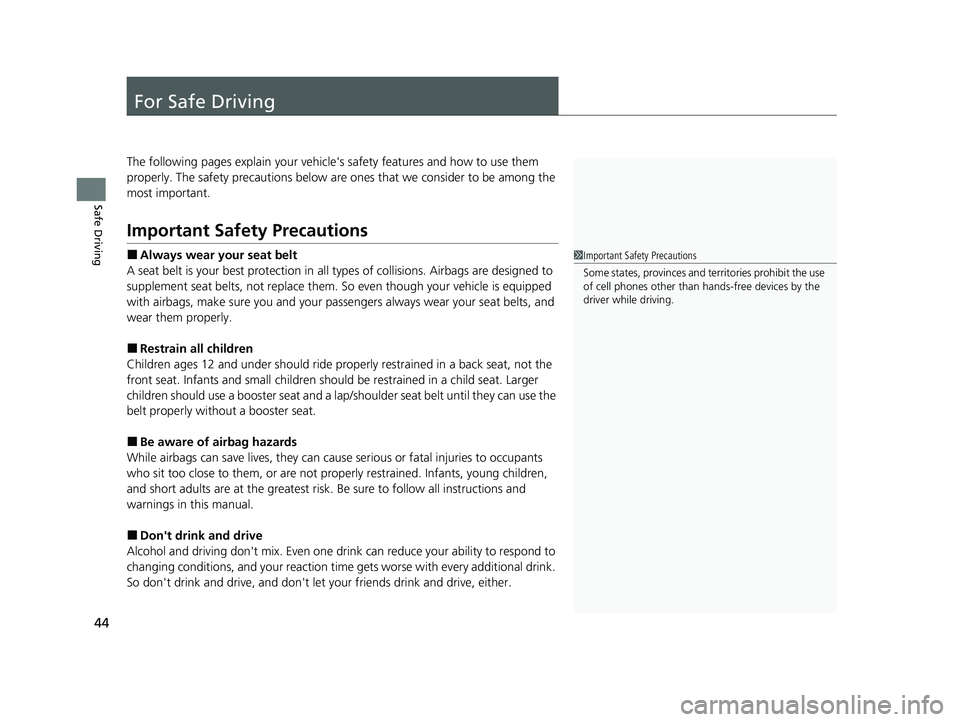

44
Safe Driving
For Safe Driving
The following pages explain your vehicle's safety features and how to use them
properly. The safety precautions below are ones that we consider to be among the
most important.
Important Safety Precautions
■Always wear your seat belt
A seat belt is your best protection in all types of collisions. Airbags are designed to
supplement seat belts, not replace them. So even though your vehicle is equipped
with airbags, make sure you and your passengers always wear your seat belts, and
wear them properly.
■Restrain all children
Children ages 12 and under should ride prop erly restrained in a back seat, not the
front seat. Infants and small children should be restrained in a child seat. Larger
children should use a booster seat and a lap/shoulder seat belt until they can use the
belt properly without a booster seat.
■Be aware of airbag hazards
While airbags can save lives, they can cause serious or fatal injuries to occupants
who sit too close to them, or are not prop erly restrained. Infants, young children,
and short adults are at the greatest risk. Be sure to follow all instructions and
warnings in this manual.
■Don't drink and drive
Alcohol and driving don't mix. Even one dr ink can reduce your ability to respond to
changing conditions, and your reaction time gets worse with every additional drink.
So don't drink and drive, and don't let your friends drink and drive, either.
1Important Safety Precautions
Some states, provinces and te rritories prohibit the use
of cell phones other than hands-free devices by the
driver while driving.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 44 ページ ２０２２年６月２３日　木曜日　午後９時２８分

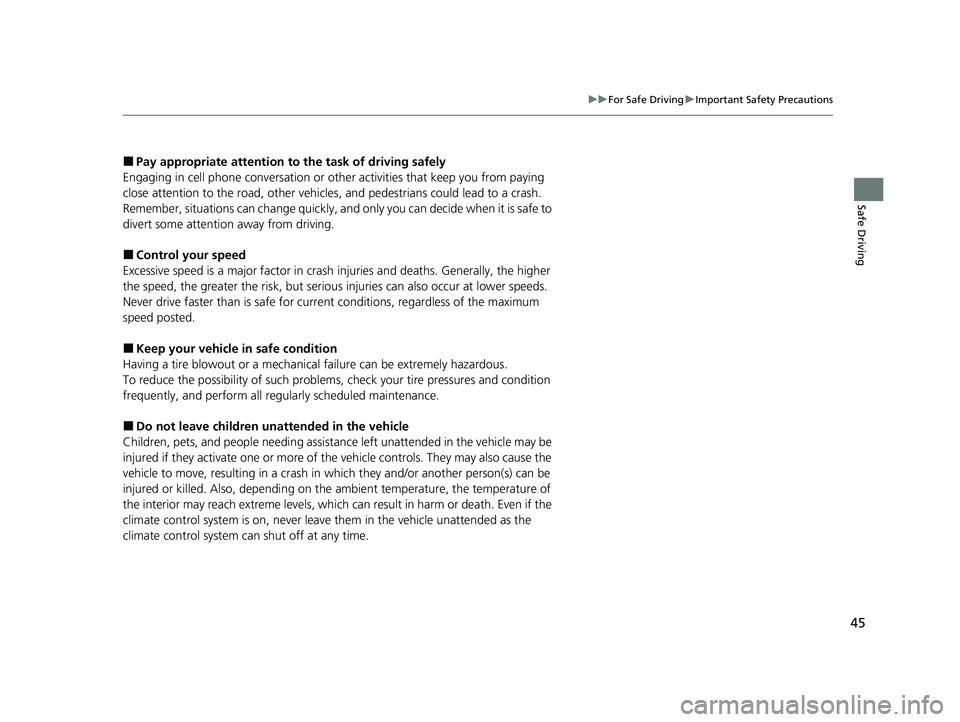

45
uuFor Safe Driving uImportant Safety Precautions
Safe Driving
■Pay appropriate attention to the task of driving safely
Engaging in cell phone conversation or other activities that keep you from paying
close attention to the road, other vehicles , and pedestrians could lead to a crash.
Remember, situations can change quickly, and only you can decide when it is safe to
divert some attention away from driving.
■Control your speed
Excessive speed is a major factor in crash injuries and deaths. Generally, the higher
the speed, the greater the risk, but serious injuries can also occur at lower speeds.
Never drive faster than is safe for current conditions, regardless of the maximum
speed posted.
■Keep your vehicle in safe condition
Having a tire blowout or a mechanical failure can be extremely hazardous.
To reduce the possibility of such problems, check your tire pressures and condition
frequently, and perform all re gularly scheduled maintenance.
■Do not leave children unattended in the vehicle
Children, pets, and people needing assistance left unattended in the vehicle may be
injured if they activate one or more of the vehicle controls. They may also cause the
vehicle to move, resulting in a crash in wh ich they and/or another person(s) can be
injured or killed. Also, depending on the am bient temperature, the temperature of
the interior may reach extreme levels, which ca n result in harm or death. Even if the
climate control system is on, never leave them in the vehicle unattended as the
climate control system can shut off at any time.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 45 ページ ２０２２年６月２３日　木曜日　午後９時２８分

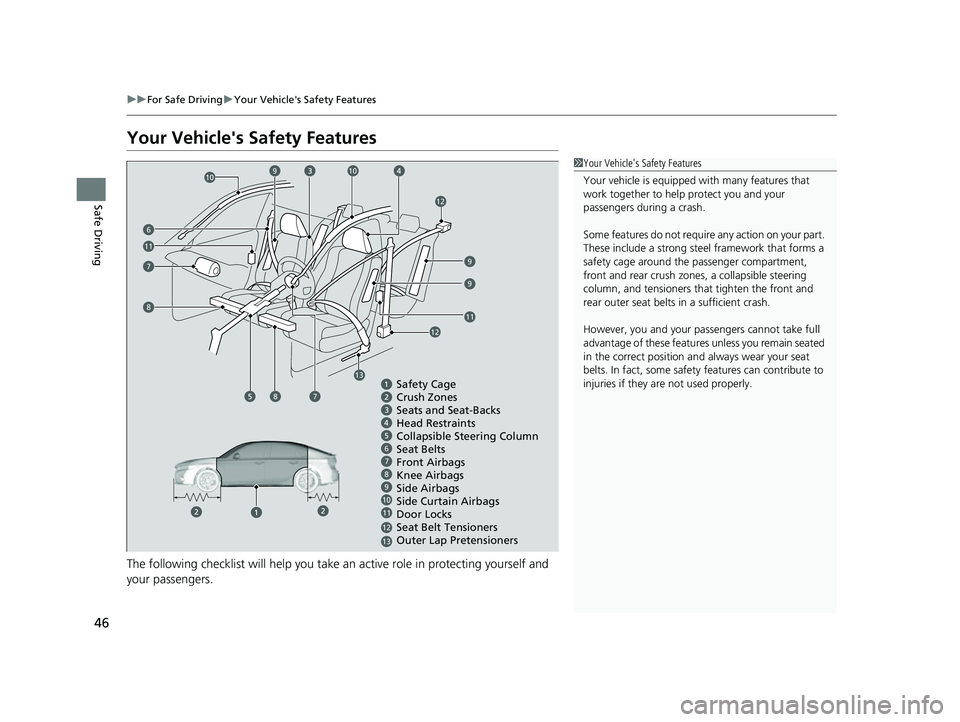

46
uuFor Safe Driving uYour Vehicle's Safety Features
Safe Driving
Your Vehicle's Safety Features
The following checklist will help you take an active role in protecting yourself and
your passengers.
1 Your Vehicle's Safety Features
Your vehicle is equipped wi th many features that
work together to help protect you and your
passengers during a crash.
Some features do not require any action on your part.
These include a strong steel framework that forms a
safety cage around the passenger compartment,
front and rear crush zones, a collapsi ble steering
column, and tensioners th at tighten the front and
rear outer seat belts in a sufficient crash.
However, you and your passe ngers cannot take full
advantage of these features unless you remain seated
in the correct position and always wear your seat
belts. In fact, some safety features can contribute to
injuries if they are not used properly.
67891011
Safety Cage
Crush Zones
Seats and Seat-Backs
Head Restraints
Collapsible Steering Column
Seat Belts
Front Airbags
Side Curtain Airbags
Door Locks Side Airbags
Seat Belt Tensioners7
79
9
8
10
6
11
Outer Lap Pretensioners Knee Airbags12
13
10
12
13
9
11
12
8
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 46 ページ ２０２２年６月２３日　木曜日　午後９時２８分

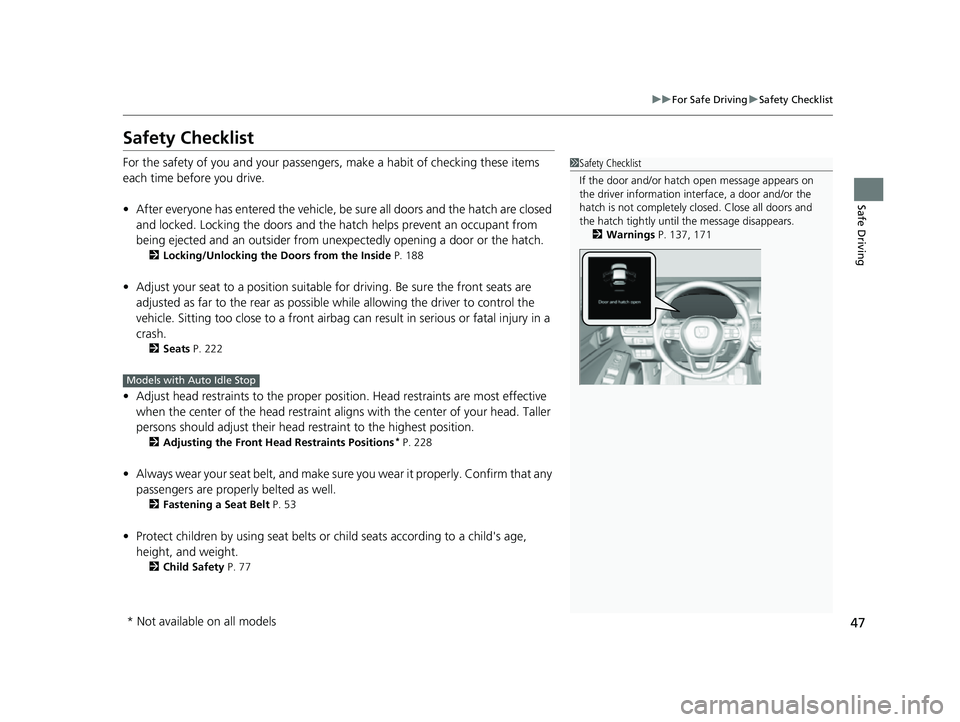

47
uuFor Safe Driving uSafety Checklist
Safe Driving
Safety Checklist
For the safety of you and your passengers, make a habit of checking these items
each time before you drive.
• After everyone has entered the vehicle, be sure all doors and the hatch are closed
and locked. Locking the doors and the hatch helps prevent an occupant from
being ejected and an outsider from unexpectedly opening a door or the hatch.
2 Locking/Unlocking the Doors from the Inside P. 188
•Adjust your seat to a position suitable for driving. Be sure the front seats are
adjusted as far to the rear as possible while allowing the driver to control the
vehicle. Sitting too close to a front airbag can result in serious or fatal injury in a
crash.
2 Seats P. 222
•Adjust head restraints to the proper position. Head restraints are most effective
when the center of the head restraint alig ns with the center of your head. Taller
persons should adjust their head restraint to the highest position.
2 Adjusting the Front Head Restraints Positions* P. 228
•Always wear your seat belt, and make sure you wear it properly. Confirm that any
passengers are properly belted as well.
2 Fastening a Seat Belt P. 53
•Protect children by using seat belts or child seats according to a child's age,
height, and weight.
2 Child Safety P. 77
1Safety Checklist
If the door and/or hatch open message appears on
the driver information inte rface, a door and/or the
hatch is not completely cl osed. Close all doors and
the hatch tightly until the message disappears.
2 Warnings P. 137, 171
Models with Auto Idle Stop
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 47 ページ ２０２２年６月２３日　木曜日　午後９時２８分

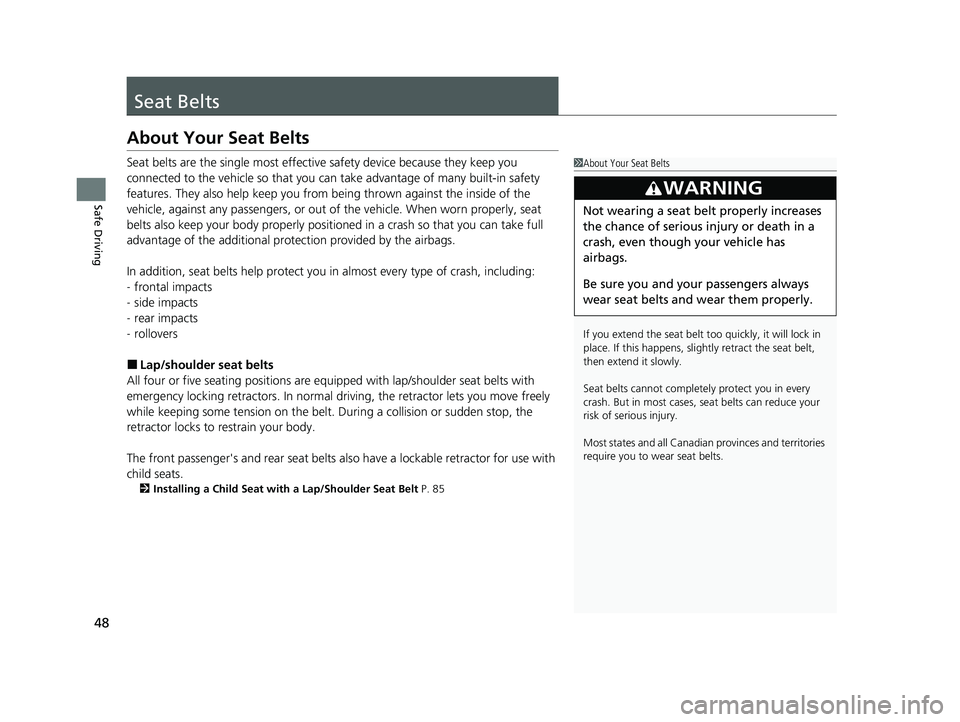

48
Safe Driving
Seat Belts
About Your Seat Belts
Seat belts are the single most effective safety device because they keep you
connected to the vehicle so that you can take advantage of many built-in safety
features. They also help keep you from being thrown against the inside of the
vehicle, against any passenger s, or out of the vehicle. When worn properly, seat
belts also keep your body properly positi oned in a crash so that you can take full
advantage of the additional prot ection provided by the airbags.
In addition, seat belts help protect you in almost every type of crash, including:
- frontal impacts
- side impacts
- rear impacts
- rollovers
■Lap/shoulder seat belts
All four or five seating positions are equipped with lap/shoulder seat belts with
emergency locking retractors. In normal driv ing, the retractor lets you move freely
while keeping some tension on the belt. During a collision or sudden stop, the
retractor locks to restrain your body.
The front passenger's and rear seat belts al so have a lockable retractor for use with
child seats.
2 Installing a Child Seat with a Lap/Shoulder Seat Belt P. 85
1About Your Seat Belts
If you extend the seat belt t oo quickly, it will lock in
place. If this happens, sli ghtly retract the seat belt,
then extend it slowly.
Seat belts cannot complete ly protect you in every
crash. But in most cases, seat belts can reduce your
risk of serious injury.
Most states and all Canadian provinces and territories
require you to wear seat belts.
3WARNING
Not wearing a seat belt properly increases
the chance of serious injury or death in a
crash, even though your vehicle has
airbags.
Be sure you and your passengers always
wear seat belts and wear them properly.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 48 ページ ２０２２年６月２３日　木曜日　午後９時２８分
