Page 31 of 840

29
Quick Reference Guide
Driving (P485)
Manual Transmission* (P509)
Continuously Variable Transmission*
(P502, 503, 505)
●Shift to (P and depress the brake pedal when starting the engine.●Shifting
ParkUsed when parking or starting the engine.
NeutralTransmission is not locked.
Drive (S)*
Used:
●For better acceleration.●To increase engine braking.●When going up or down hills.
Models without
paddle shifterModels with
paddle shifter
Depress the brake pedal
and press the shift lever
release button to shift.
Press the shift lever release
button and shift.
Shift without pressing the
shift lever release button.
ReverseUsed when reversing.
DriveUsed:
●For normal driving.
●When temporarily driving in the 7-speed manual shift mode.●When driving in the 7-speed manual shift mode (when
driving in SPORT mode).
Models with paddle shifters
Low*
●Used to further increase engine braking.●Used when going up or down hills.
Release
Button Shift Lever
*
Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 29 ページ 2022年6月23日 木曜日 午後9時28分
Page 32 of 840

30
Quick Reference Guide

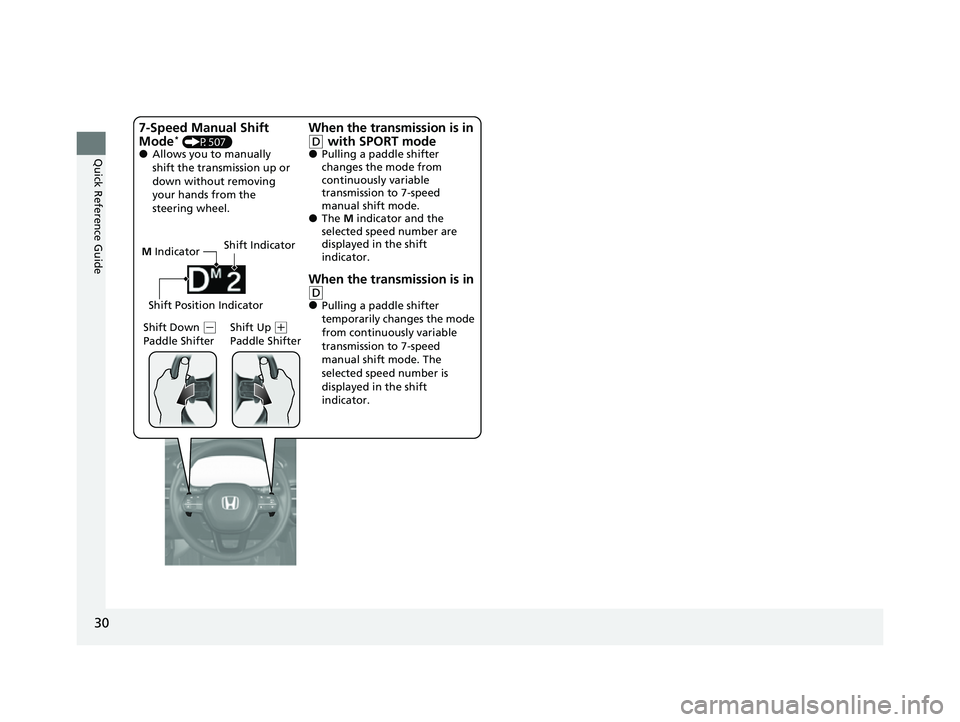

M Indicator
Shift Down
( -
Paddle Shifter Shift Up (
+
Paddle Shifter
7-Speed Manual Shift
Mode* (P507)●Allows you to manually
shift the transmission up or
down without removing
your hands from the
steering wheel.
When the transmission is in
(D with SPORT mode●Pulling a paddle shifter
changes the mode from
continuously variable
transmission to 7-speed
manual shift mode.
●The M indicator and the
selected speed number are
displayed in the shift
indicator.
When the transmission is in (D●Pulling a paddle shifter
temporarily changes the mode
from continuously variable
transmission to 7-speed
manual shift mode. The
selected speed number is
displayed in the shift
indicator.
Shift Position Indicator
Shift Indicator
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 30 ページ 2022年6月23日 木曜日 午後9時28分
Page 33 of 840

31
Quick Reference Guide

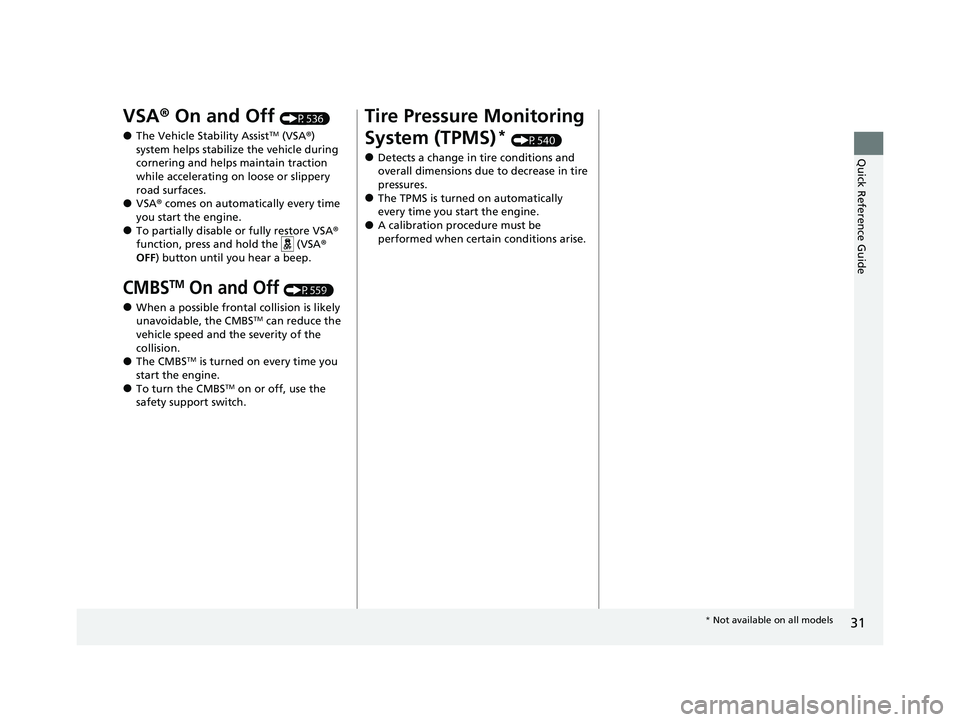

VSA® On and Off (P536)
●The Vehicle Stability AssistTM (VSA® )
system helps stabilize the vehicle during
cornering and helps maintain traction
while accelerating on loose or slippery
road surfaces.
●VSA ® comes on automatically every time
you start the engine.
●To partially disable or fully restore VSA ®
function, press and hold the (VSA ®
OFF) button until you hear a beep.
CMBSTM On and Off (P559)
●When a possible frontal collision is likely
unavoidable, the CMBSTM can reduce the
vehicle speed and the severity of the
collision.
●The CMBSTM is turned on every time you
start the engine.
●To turn the CMBSTM on or off, use the
safety support switch.
Tire Pressure Monitoring
System (TPMS)
* (P540)
●Detects a change in tire conditions and
overall dimensions due to decrease in tire
pressures.
●The TPMS is turned on automatically
every time you start the engine.
●A calibration procedure must be
performed when certain conditions arise.
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 31 ページ 2022年6月23日 木曜日 午後9時28分
Page 34 of 840

32
Quick Reference Guide

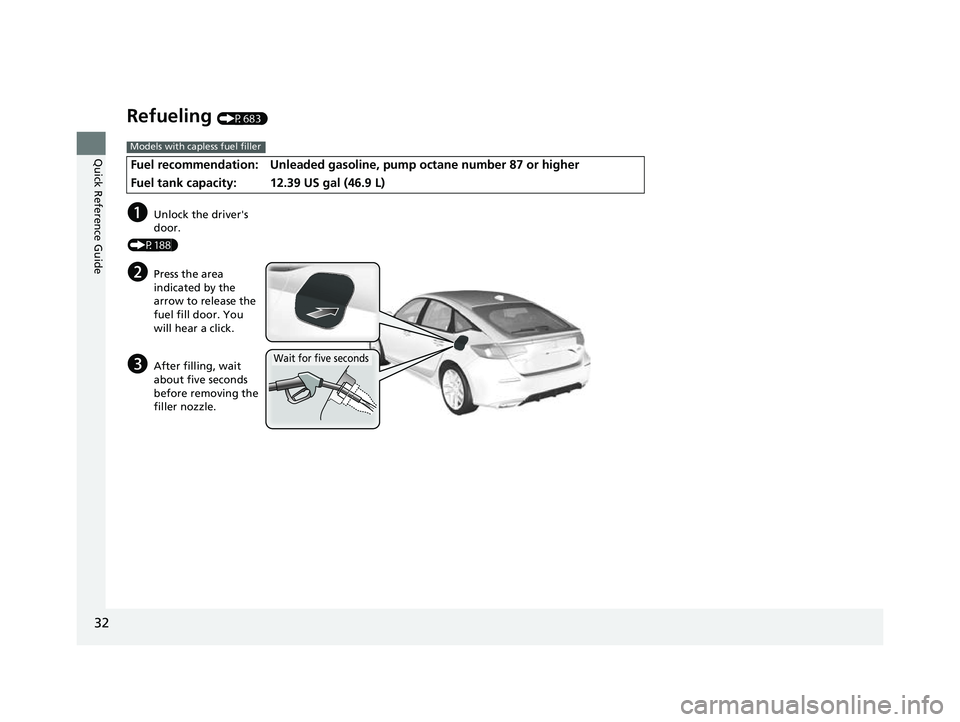

Refueling (P683)
Fuel recommendation: Unleaded gasoline, pump octane number 87 or higher
Fuel tank capacity:
12.39 US gal (46.9 L)
Models with capless fuel filler
aUnlock the driver's
door.
(P188)
bPress the area
indicated by the
arrow to release the
fuel fill door. You
will hear a click.
cAfter filling, wait
about five seconds
before removing the
filler nozzle.Wait for five seconds
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 32 ページ 2022年6月23日 木曜日 午後9時28分
Page 35 of 840

33
Quick Reference Guide

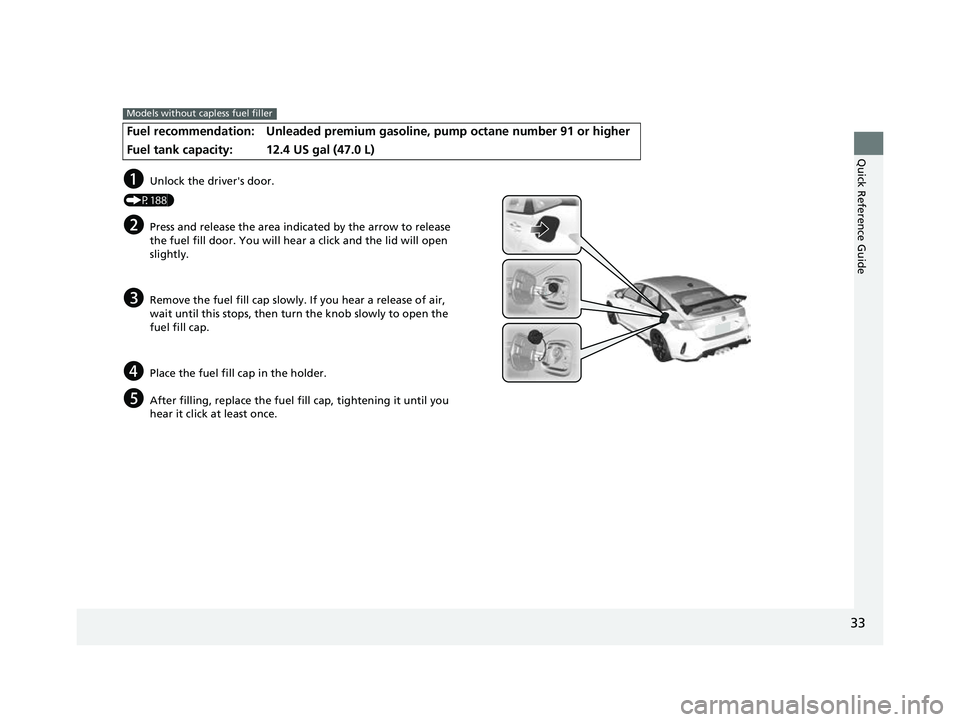

Fuel recommendation: Unleaded premium gasoline, pump octane number 91 or higher
Fuel tank capacity:
12.4 US gal (47.0 L)
Models without capless fuel filler
aUnlock the driver's door.
(P188)
bPress and release the area indicated by the arrow to release
the fuel fill door. You will hear a click and the lid will open
slightly.
cRemove the fuel fill cap slowly. If you hear a release of air,
wait until this stops, then turn the knob slowly to open the
fuel fill cap.
dPlace the fuel fill cap in the holder.
eAfter filling, replace the fuel fill cap, tightening it until you
hear it click at least once.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 33 ページ 2022年6月23日 木曜日 午後9時28分
Page 36 of 840

34
Quick Reference Guide
Honda Sensing® (P551)
Honda Sensing ® is a driver support system
which employs the use of two distinctly
different kinds of sensors: the sonar sensors
located in the front and rear bumpers, and
the front grille, and a front wide view
camera mounted to the interior side of the
windshield, behind the rearview mirror.
Honda Sensing ® is a driver support system
which employs the use of a front wide view
camera mounted to the interior side of the
windshield, behind the rearview mirror.
Models with Low Speed Braking Control
Models without Low Speed Braking Control
Models with Auto Idle Stop
Front Wide View
Camera
Sonar Sensors*
Collision Mitigation
Braking System
TM
(CMBS
TM) (P555)
The system can assist you when it
determines there is a possibility of your
vehicle colliding with a vehicle (including
motorcycles) ahead from behind, an
oncoming vehicle in front, a pedestrian, or
someone riding a bicycle (moving bicycle).
The CMBS
TM is designed to alert you when
the potential for a collision is determined, as
well as assist in reducing speed, avoiding
collisions, and reducing collision severity.
Models without Auto Idle Stop
Front Wide View
Camera
Sonar Sensors*
Low Speed Braking
Control
* (P567)
Using sonar sensors lo cated on the front and
rear bumpers, and the front grille, this
system detects if there is danger of a
potential collision with a wall or other
obstacle during normal driving or when the
accelerator pedal is depressed with too
much force. The system then assists in
avoiding collisions and reducing damage
from impact through assistive braking and/
or assistive driving power suppression.
Low Speed Braking
Control
* (P573)
Using sonar sensors lo cated on the front and
rear bumpers and the front grille, this
system detects if there is danger of a
potential collision with a wall or other
obstacle during normal driving. The system
then assists in avoiding collisions and
reducing damage from impact through
assistive braking.
Continuously variable transmission models
with parking sensor system
Manual transmission models
with parking sensor system
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 34 ページ 2022年6月23日 木曜日 午後9時28分
Page 37 of 840

35
Quick Reference Guide

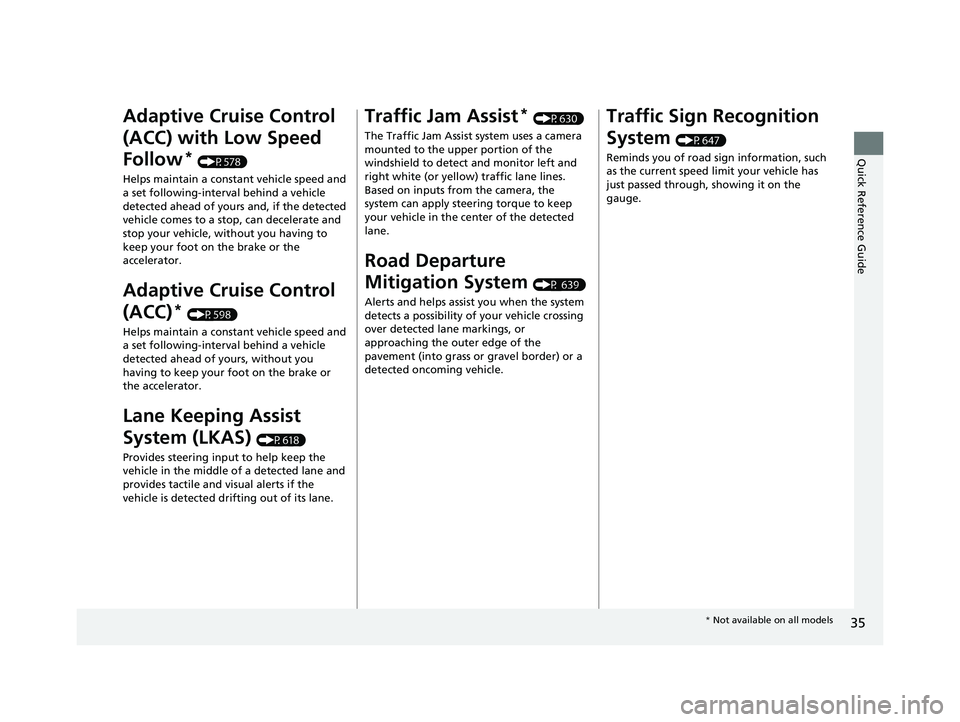

Adaptive Cruise Control
(ACC) with Low Speed
Follow
* (P578)
Helps maintain a constant vehicle speed and
a set following-interval behind a vehicle
detected ahead of yours and, if the detected
vehicle comes to a stop, can decelerate and
stop your vehicle, without you having to
keep your foot on the brake or the
accelerator.
Adaptive Cruise Control
(ACC)
* (P598)
Helps maintain a constant vehicle speed and
a set following-interval behind a vehicle
detected ahead of yours, without you
having to keep your foot on the brake or
the accelerator.
Lane Keeping Assist
System (LKAS)
(P618)
Provides steering input to help keep the
vehicle in the middle of a detected lane and
provides tactile and visual alerts if the
vehicle is detected drifting out of its lane.
Traffic Jam Assist* (P630)
The Traffic Jam Assist system uses a camera
mounted to the upper portion of the
windshield to detect and monitor left and
right white (or yellow) traffic lane lines.
Based on inputs from the camera, the
system can apply steering torque to keep
your vehicle in the center of the detected
lane.
Road Departure
Mitigation System
(P 639)
Alerts and helps assist you when the system
detects a possibility of your vehicle crossing
over detected lane markings, or
approaching the outer edge of the
pavement (into grass or gravel border) or a
detected oncoming vehicle.
Traffic Sign Recognition
System
(P647)
Reminds you of road sign information, such
as the current speed limit your vehicle has
just passed through, showing it on the
gauge.
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 35 ページ 2022年6月23日 木曜日 午後9時28分
Page 38 of 840

36
Quick Reference Guide
Maintenance (P691)
Under the Hood (P707)
●Check engine oil, engine coolant, and windshield washer fluid. Add
when necessary.
●Check brake/clutch* fluid.●Check the battery condition monthly.
aPull the hood release handle under the driver's side lower corner
of the dashboard.
bLocate the hood latch lever, push it to the side, and then raise the
hood. Once you have raised the hood slightly, you can release the
lever.
cWhen finished, close the hood and make sure it is firmly locked in
place.
Lights (P728)
●Inspect all lights regularly.
Wiper Blades (P733)
●Replace blades if they leave streaks
across the windshield or become
noisy.
Tires (P736)
●Inspect tires and wheels
regularly.
●Check tire pressures regularly.●Install snow tires for winter
driving.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 36 ページ 2022年6月23日 木曜日 午後9時28分
Page 39 of 840

Quick Reference Guide
37

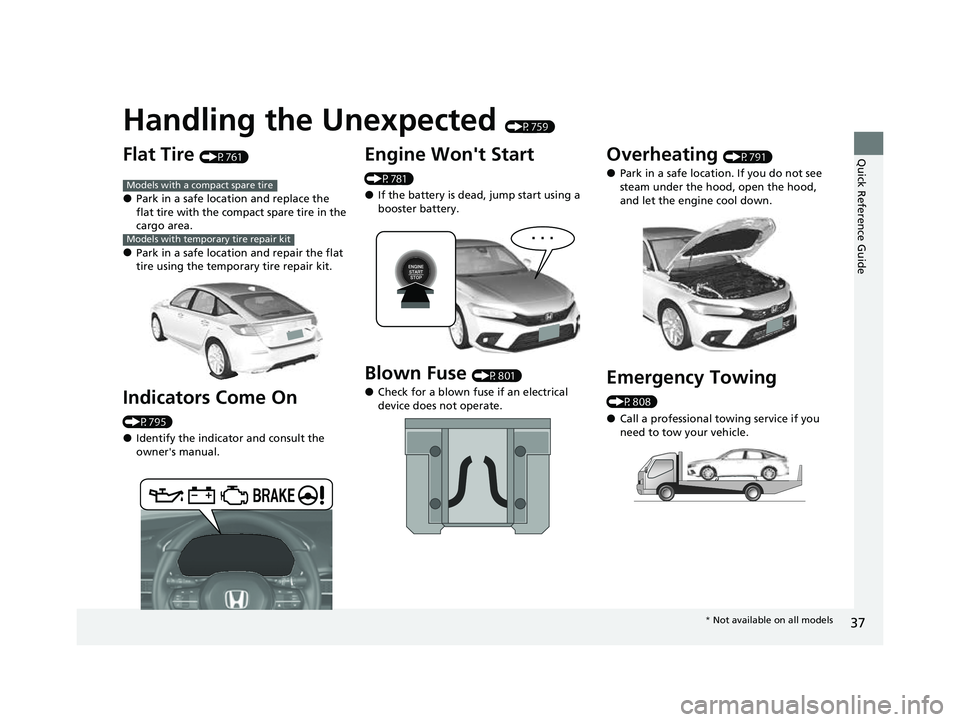

Handling the Unexpected (P759)
Flat Tire (P761)
●Park in a safe location and replace the
flat tire with the compact spare tire in the
cargo area.
●Park in a safe location and repair the flat
tire using the temporary tire repair kit.
Indicators Come On
(P795)
●Identify the indicator and consult the
owner's manual.
Models with a compact spare tire
Models with temporary tire repair kit
Engine Won't Start
(P781)
●If the battery is dead, jump start using a
booster battery.
Blown Fuse (P801)
●Check for a blown fuse if an electrical
device does not operate.
Overheating (P791)
●Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing
(P808)
●Call a professional towing service if you
need to tow your vehicle.
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 37 ページ 2022年6月23日 木曜日 午後9時28分
Page 40 of 840

38
Quick Reference Guide

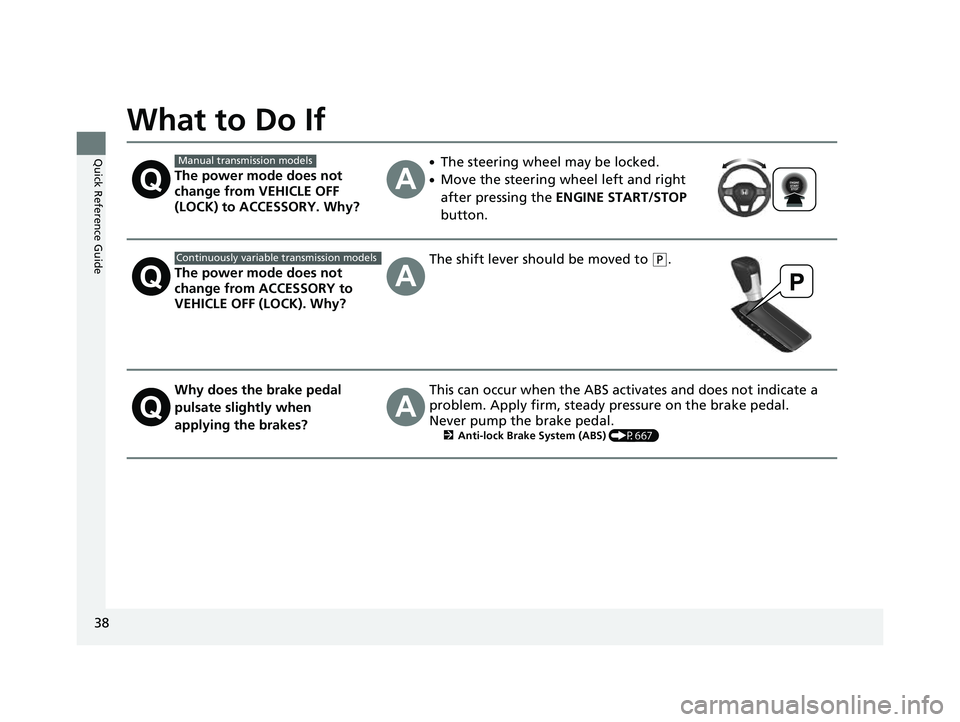

What to Do If
The power mode does not
change from VEHICLE OFF
(LOCK) to ACCESSORY. Why?
●The steering wheel may be locked.
●Move the steering wheel left and right
after pressing the ENGINE START/STOP
button.
The power mode does not
change from ACCESSORY to
VEHICLE OFF (LOCK). Why?
The shift lever should be moved to (P.
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates and does not indicate a
problem. Apply firm, steady pressure on the brake pedal.
Never pump the brake pedal.
2Anti-lock Brake System (ABS) (P667)
Manual transmission models
Continuously variable transmission models
