HONDA CIVIC 2023 Owner's Manual

19

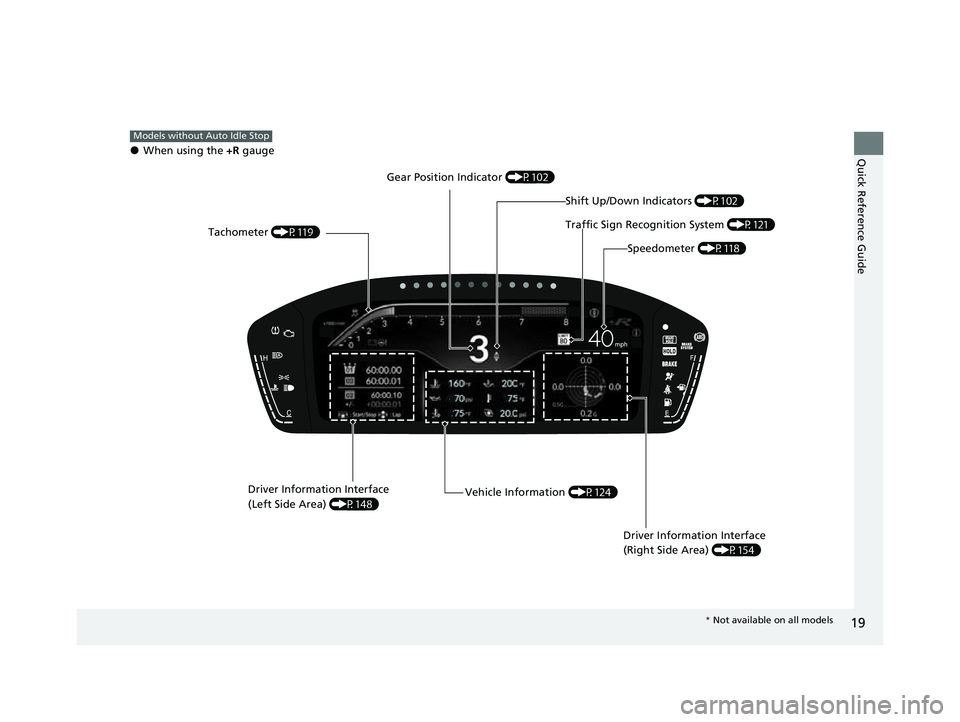

Quick Reference Guide●When using the +R gauge
Models without Auto Idle Stop
Tachometer (P119)
Speedometer (P118)
Driver Information Interface
(Left Side Area) (P148)
Vehicle Information (P124)
Driver Information Interface
(Right Side Area) (P154)
Traffic Sign Recognition System (P121)
Gear Position Indicator
(P102)
Shift Up/Down Indicators (P102)
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 19 ページ ２０２２年６月２３日　木曜日　午後９時２８分

20
Quick Reference Guide

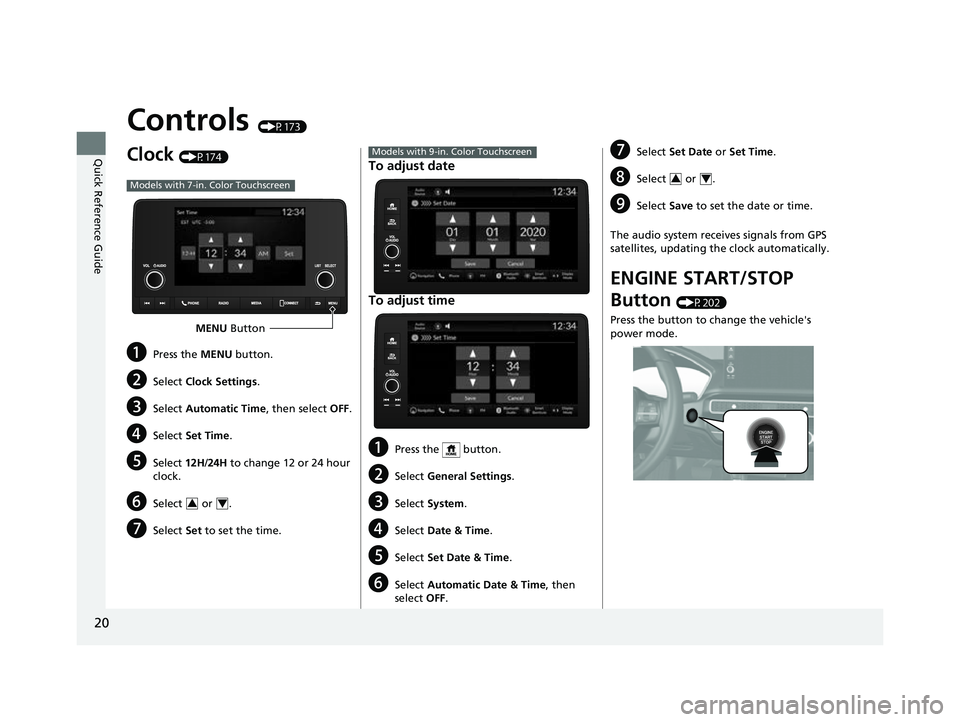

Controls (P173)
Clock (P174)
aPress the MENU button.
bSelect Clock Settings .
cSelect Automatic Time , then select OFF.
dSelect Set Time .
eSelect 12H/24H to change 12 or 24 hour
clock.
fSelect or .
gSelect Set to set the time.
Models with 7-in. Color Touchscreen
MENU Button
34
To adjust date
To adjust time
aPress the button.
bSelect General Settings .
cSelect System .
dSelect Date & Time .
eSelect Set Date & Time .
fSelect Automatic Date & Time , then
select OFF.
Models with 9-in. Color TouchscreengSelect Set Date or Set Time .
hSelect or .
iSelect Save to set the date or time.
The audio system receives signals from GPS
satellites, updating the clock automatically.
ENGINE START/STOP
Button
(P202)
Press the button to change the vehicle's
power mode.
34
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 20 ページ ２０２２年６月２３日　木曜日　午後９時２８分

21
Quick Reference Guide
Turn Signals (P205)
Lights (P206)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P213)
*1:Models with automatic intermittent wipers
*2:Models with manual intermittent operation
AUTO should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
●Cleaning the windshield●Driving through a car wash●No rain present
Wiper/Washer Control Lever
Adjustment Ring
*
( -: Low sensitivity*1
: Lower speed, fewer sweeps*2
(+: High sensitivity*1
: Higher speed, more sweeps*2
MIST
OFF
AUTO
*1: Wiper speed varies automatically
INT*2: Low speed with intermittent
LO : Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
Models with automatic intermittent wipers
Steering Wheel (P219)
●To adjust, push the adjustment lever
down, adjust to the desired position, then
lock the lever back in place.
Unlocking the Front
Doors from the Inside
(P189)
●Pull either front door inner handle to
unlock and open it at the same time.
To adjust
To lock
*
Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 21 ページ ２０２２年６月２３日　木曜日　午後９時２８分

22
Quick Reference Guide

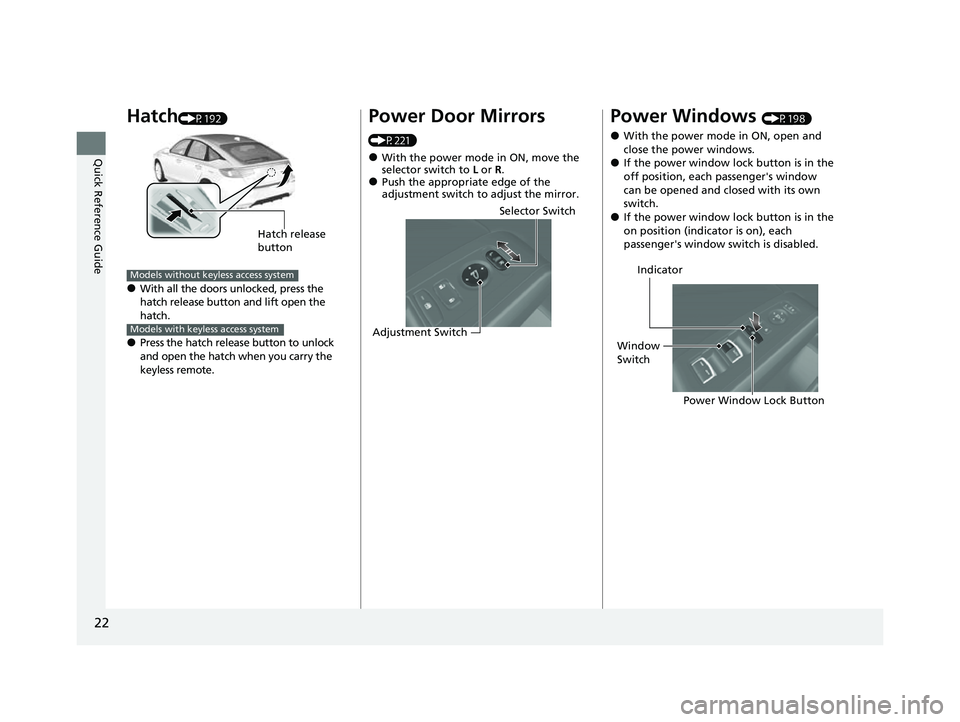

Hatch(P192)
●With all the doors unlocked, press the
hatch release button and lift open the
hatch.
●Press the hatch release button to unlock
and open the hatch when you carry the
keyless remote.
Hatch release
button
Models without keyless access system
Models with keyless access system
Power Door Mirrors
(P221)
●With the power mode in ON, move the
selector switch to L or R.
●Push the appropriate edge of the
adjustment switch to adjust the mirror.
Selector Switch
Adjustment Switch
Power Windows (P198)
●With the power mode in ON, open and
close the power windows.
●If the power window lock button is in the
off position, each passenger's window
can be opened and closed with its own
switch.
●If the power window lock button is in the
on position (indicator is on), each
passenger's window switch is disabled.
Power Window Lock Button
Window
Switch Indicator
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 22 ページ ２０２２年６月２３日　木曜日　午後９時２８分

23
Quick Reference Guide
Climate Control System (P249)
●Press the AUTO button to activate th e climate control system.●Press the button to turn the system on or off.●Press the button to de frost the windshield.
Fan Control Dial
(Windshield Defroster) ButtonDriver's Side Temperature
Control Dial (Recirculation) Button
(ON/OFF ) Button
AUTO Button A/C (Air Conditioning) Button
Dashboard
vent
s D

ashboard
and floor
vents Floor vents Floor and
defroster
vents
Passenger's Side Temperature
Control D ial
SYNC Button
Models with SYNC button
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 23 ページ ２０２２年６月２３日　木曜日　午後９時２８分

24
Quick Reference Guide
(Windshield Defroster) Button
(Recirculation) Button
Fan Control Dial
Temperature Control Dial
(ON/OFF) Button
AUTO Button A/C
(Air Conditioning) Button
Dashboard
vent
s Dashboard
and floor
ven

tsFloor vents Floor and
defroster
vents
Models without SYNC button
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 24 ページ ２０２２年６月２３日　木曜日　午後９時２８分

25
Quick Reference Guide

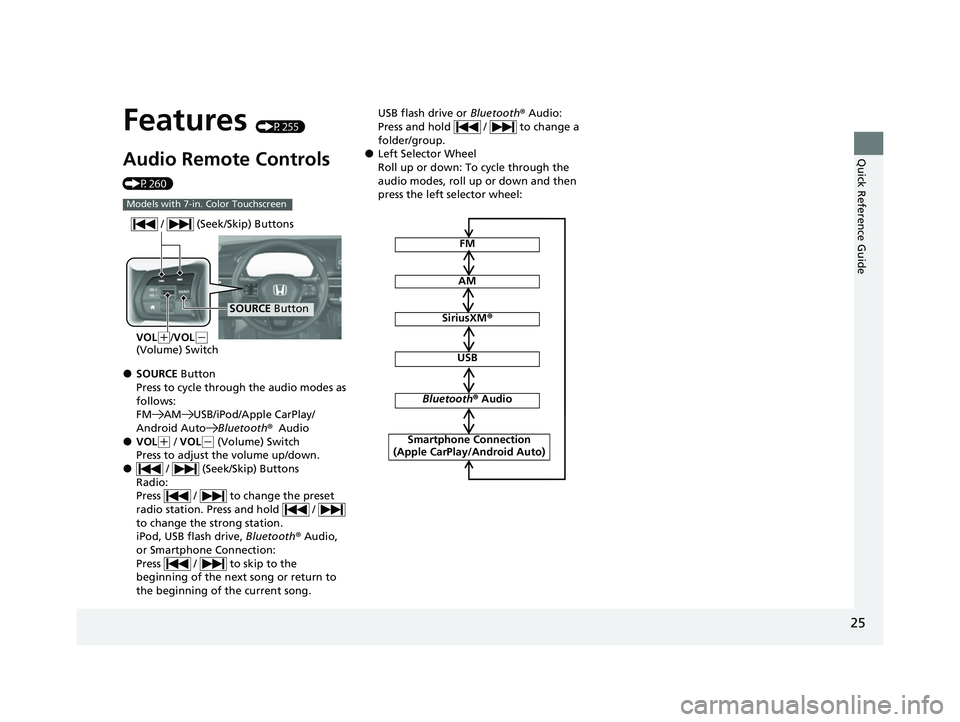

Features (P255)
Audio Remote Controls
(P260)
●SOURCE Button
Press to cycle through the audio modes as
follows:
FM AM USB/iPod/Apple CarPlay/
Android AutoBluetooth®Audio
●VOL(+ / VOL( - (Volume) Switch
Press to adjust the volume up/down.
● / (Seek/Skip) Buttons
Radio:
Press / to change the preset
radio station. Press and hold /
to change the strong station.
iPod, USB flash drive, Bluetooth® Audio,
or Smartphone Connection:
Press / to skip to the
beginning of the next song or return to
the beginning of the current song.
Models with 7-in. Color Touchscreen
SOURCE Button
/ (Seek/Skip) Buttons
VOL(
+/VOL(-
(Volume) Switch
USB flash drive or Bluetooth® Audio:
Press and hold / to change a
folder/group.
●Left Selector Wheel
Roll up or down: To cycle through the
audio modes, roll up or down and then
press the left selector wheel:
AM
SiriusXM ®
USB
Bluetooth ® Audio
Smartphone Connection
(Apple CarPlay/Android Auto)
FM
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 25 ページ ２０２２年６月２３日　木曜日　午後９時２８分

26
Quick Reference Guide

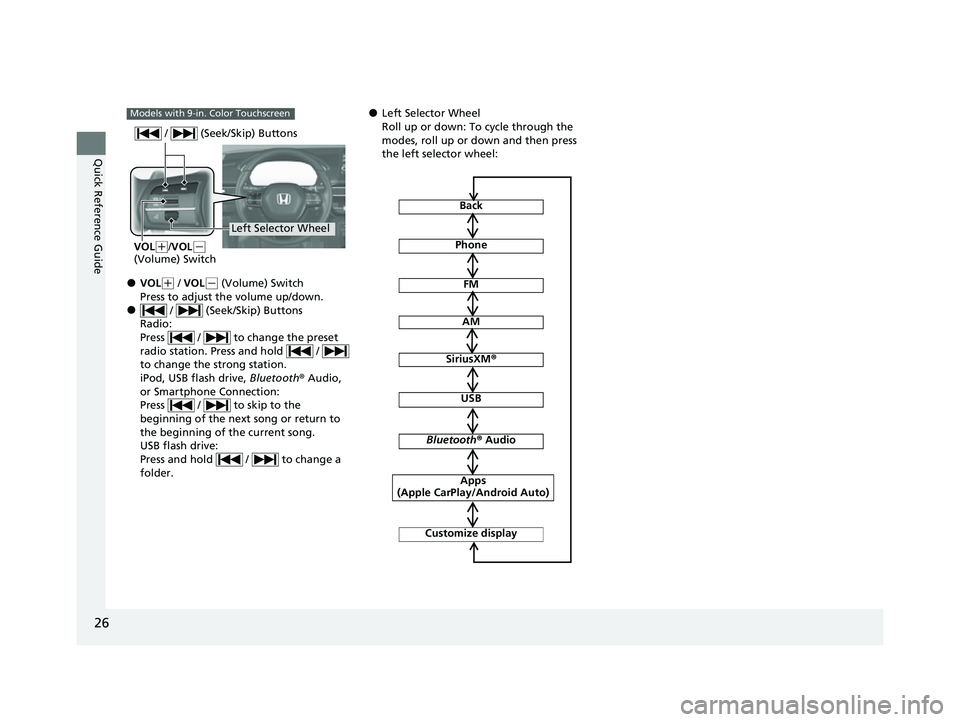

●VOL(+ / VOL(- (Volume) Switch
Press to adjust the volume up/down.
● / (Seek/Skip) Buttons
Radio:
Press / to change the preset
radio station. Press and hold /
to change the strong station.
iPod, USB flash drive, Bluetooth® Audio,
or Smartphone Connection:
Press / to skip to the
beginning of the next song or return to
the beginning of the current song.
USB flash drive:
Press and hold / to change a
folder.
Models with 9-in. Color Touchscreen
Left Selector Wheel
/ (Seek/Skip) Buttons
VOL(
+/VOL(-
(Volume) Switch
●Left Selector Wheel
Roll up or down: To cycle through the
modes, roll up or down and then press
the left selector wheel:
Back
AM
SiriusXM ®
USB
Bluetooth ® Audio
Apps
(Apple CarPlay/Android Auto)
Customize display
Phone
FM
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 26 ページ ２０２２年６月２３日　木曜日　午後９時２８分

27
Quick Reference Guide

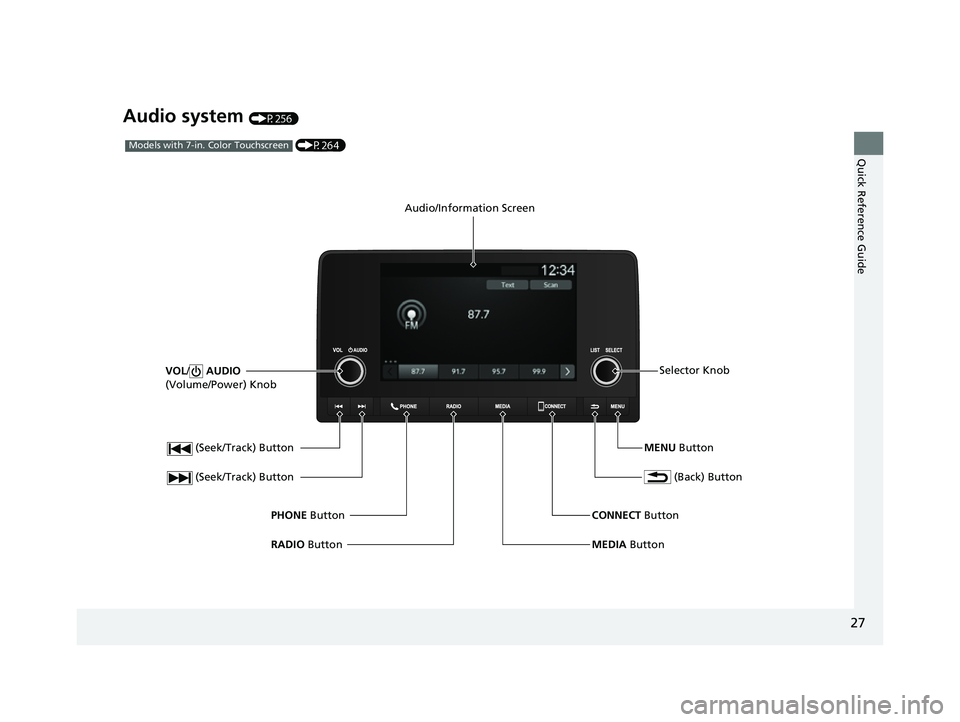

Audio system (P256)
(Seek/Track) Button
RADIO Button
PHONE
Button
(Seek/Track) Button
VOL
/ AUDIO
(Volume/Power) Knob
Audio/Information Screen
(Back) Button
MENU ButtonSelector Knob
MEDIA Button
CONNECT
Button
(P264)Models with 7-in. Color Touchscreen
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 27 ページ ２０２２年６月２３日　木曜日　午後９時２８分

28
Quick Reference Guide

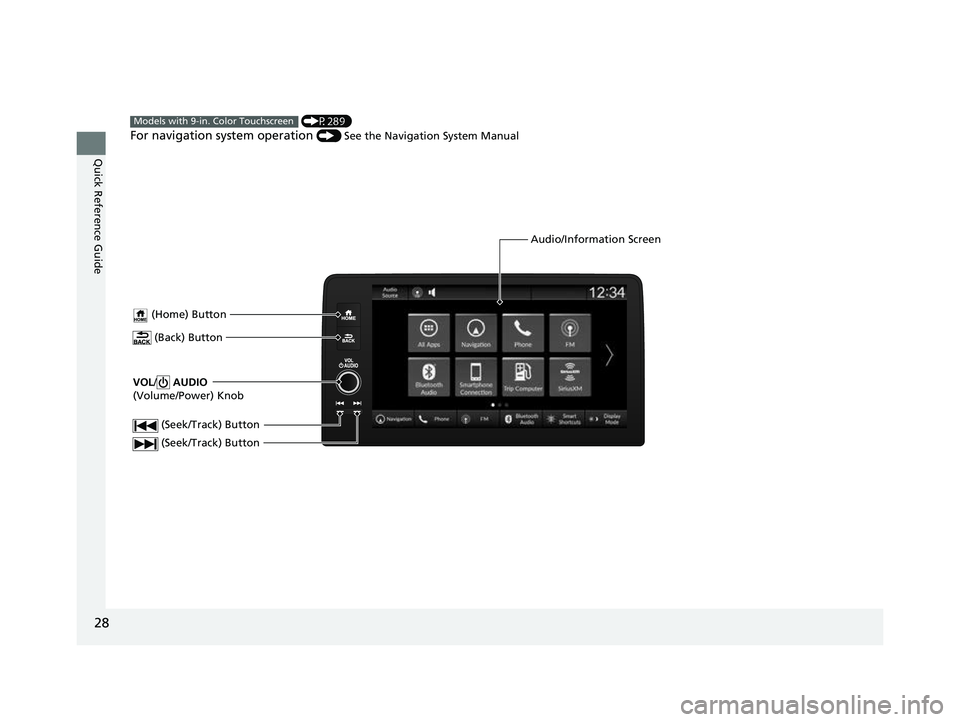

VOL/ AUDIO
(Volume/Power) Knob
(Home) Button
(Back) Button
Audio/Information Screen
(Seek/Track) Button
(Seek/Track) Button
(P289)
For navigation system operation () See the Navigation System Manual
Models with 9-in. Color Touchscreen
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 28 ページ ２０２２年６月２３日　木曜日　午後９時２８分
