HONDA CIVIC COUPE 2016 10.G Owners Manual

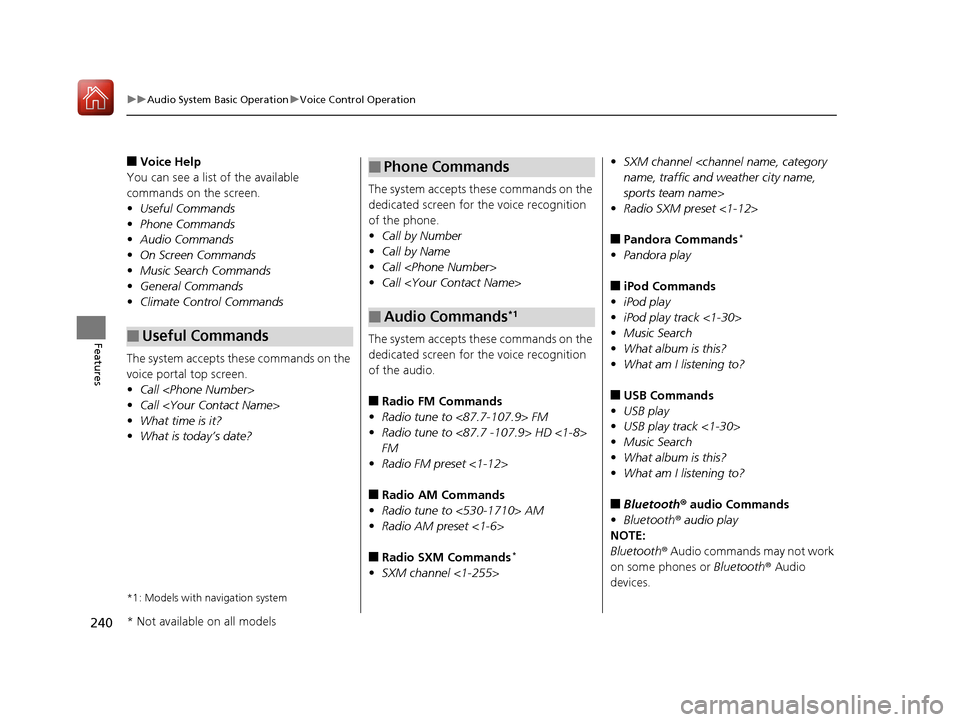

240
uuAudio System Basic OperationuVoice Control Operation
Features
■Voice Help
You can see a list of the available
commands on the screen. • Useful Commands
• Phone Commands
• Audio Commands
• On Screen Commands
• Music Search Commands
• General Commands
• Climate Control Commands
The system accepts these commands on the
voice portal top screen. • Call
• Call
• What time is it?
• What is today

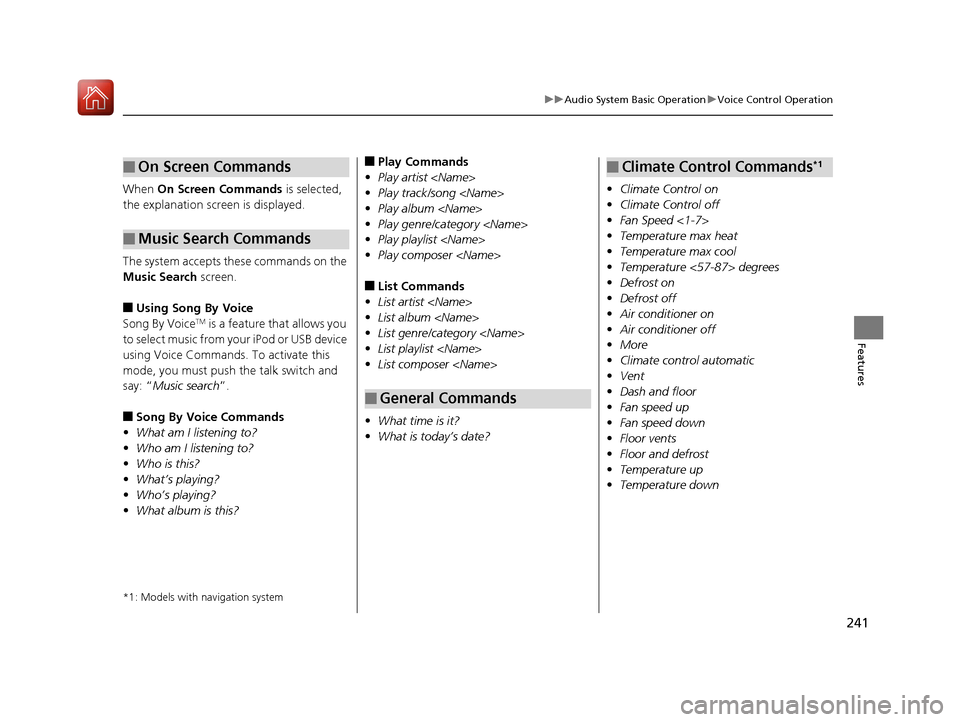

241
uuAudio System Basic OperationuVoice Control Operation
Features
When On Screen Commands is selected,
the explanation scr een is displayed.
The system accepts these commands on the
Music Search screen.
■ Using Song By Voice
Song By Voice TM
is a feature that allows you
to select music from your iPod or USB device
using Voice Commands. To activate this
mode, you must push the talk switch and say: “ Music search ”.
■ Song By Voice Commands
• What am I listening to?
• Who am I listening to?
• Who is this?
• What

242
uuAudio System Basic OperationuPlaying AM/FM Radio
Features
Playing AM/FM Radio
*1:Some or all of the lists may not be displayed.
VOL
HOME
MENU
BACK
AUDIO
VOL (Volume) Icons
Select to adjust the volume.
(Back) Icon
Select to go back to the previous display.
Seek Icons
Select or to search the
selected band up or down for a
station with a strong signal.
/AUDIO (Power/Audio) Icon
Select to turn the audio system
on and off.
Open/Close Icon *1
Displays/hides the detailed
information.
(Menu) Icon
Select to display the menu items.
Tune Icons
Select or to tune the radio frequency.
Audio/Information Screen
Scan Icon
Select to scan each station with a strong signal. Preset Icons
Tune the preset radio frequency. Select and hold the
preset icon to store that station. Select to display
preset 7 onwards.
Driver Information Interface
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 242 ページ >0>.>/６年>0月>/>0日　
金曜日　午後４時>/６分

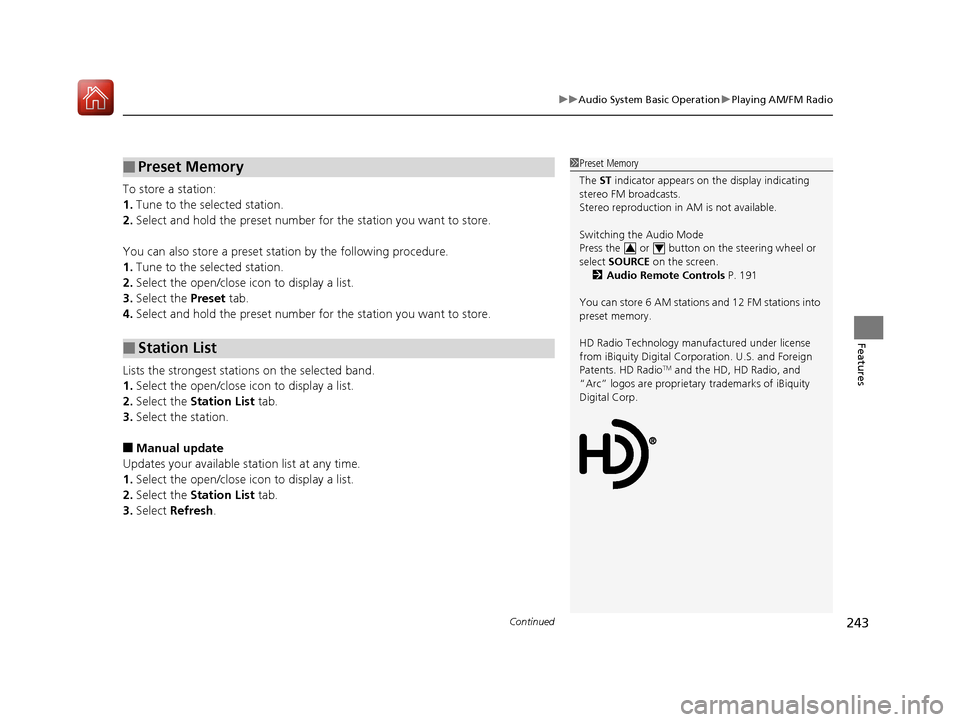

Continued243
uuAudio System Basic OperationuPlaying AM/FM Radio
Features
To store a station: 1.Tune to the selected station.
2. Select and hold the preset number for the station you want to store.
You can also store a preset station by the following procedure.1. Tune to the selected station.
2. Select the open/close icon to display a list.
3. Select the Preset tab.
4. Select and hold the preset number for the station you want to store.
Lists the strongest stations on the selected band. 1. Select the open/close icon to display a list.
2. Select the Station List tab.
3. Select the station.
■ Manual update
Updates your available st ation list at any time.
1. Select the open/close icon to display a list.
2. Select the Station List tab.
3. Select Refresh .
■Preset Memory
■Station List
1Preset Memory
The ST indicator appears on the display indicating
stereo FM broadcasts.
Stereo reproduction in AM is not available.
Switching the Audio Mode
Press the or button on the steering wheel or
select SOURCE on the screen.
2 Audio Remote Controls P. 191
You can store 6 AM stations and 12 FM stations into
preset memory.
HD Radio Technology manufactured under license from iBiquity Digi tal Corporation. U.S. and Foreign
Patents. HD Radio TM
and the HD, HD Radio, and
“Arc” logos are proprietary trademarks of iBiquity
Digital Corp.
34
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 243 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

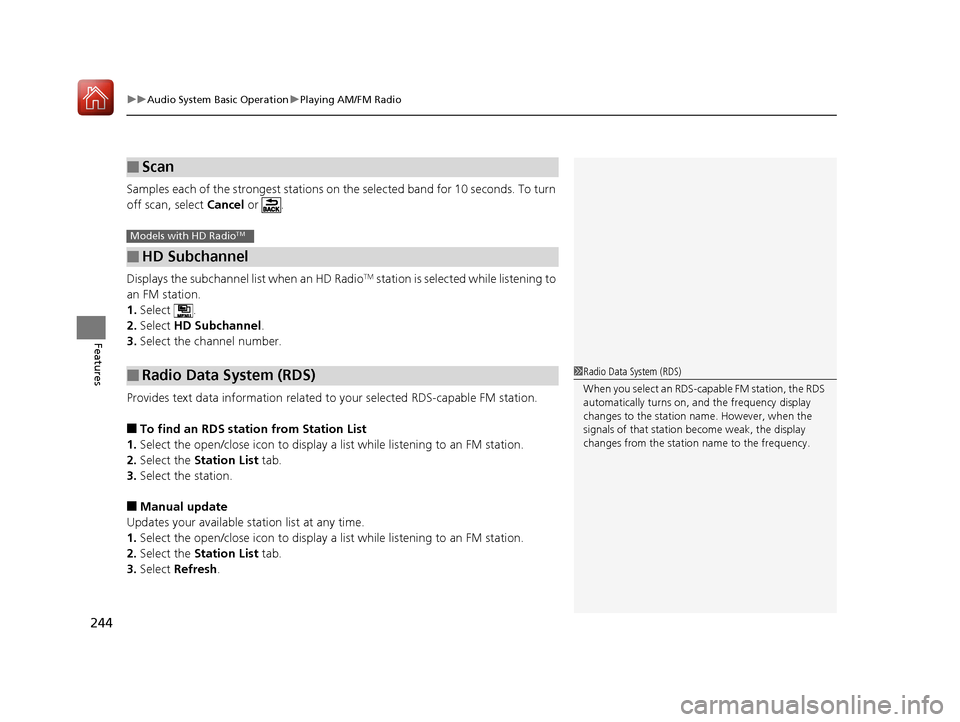

uuAudio System Basic OperationuPlaying AM/FM Radio
244
Features
Samples each of the strongest stations on th e selected band for 10 seconds. To turn
off scan, select Cancel or .
Displays the subchannel list when an HD Radio TM
station is selected while listening to
an FM station. 1. Select .
2. Select HD Subchannel .
3. Select the channel number.
Provides text data information related to your selected RDS-capable FM station.
■ To find an RDS station from Station List
1. Select the open/close icon to display a list while listening to an FM station.
2. Select the Station List tab.
3. Select the station.
■ Manual update
Updates your available station list at any time. 1. Select the open/close icon to display a list while listening to an FM station.
2. Select the Station List tab.
3. Select Refresh .
■Scan
■HD Subchannel
■Radio Data System (RDS)
Models with HD Radio TM
1Radio Data System (RDS)
When you select an RDS-capable FM station, the RDS
automatically turns on, and the frequency display
changes to the station name. However, when the
signals of that station
become weak, the display
changes from the statio n name to the frequency.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 244 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

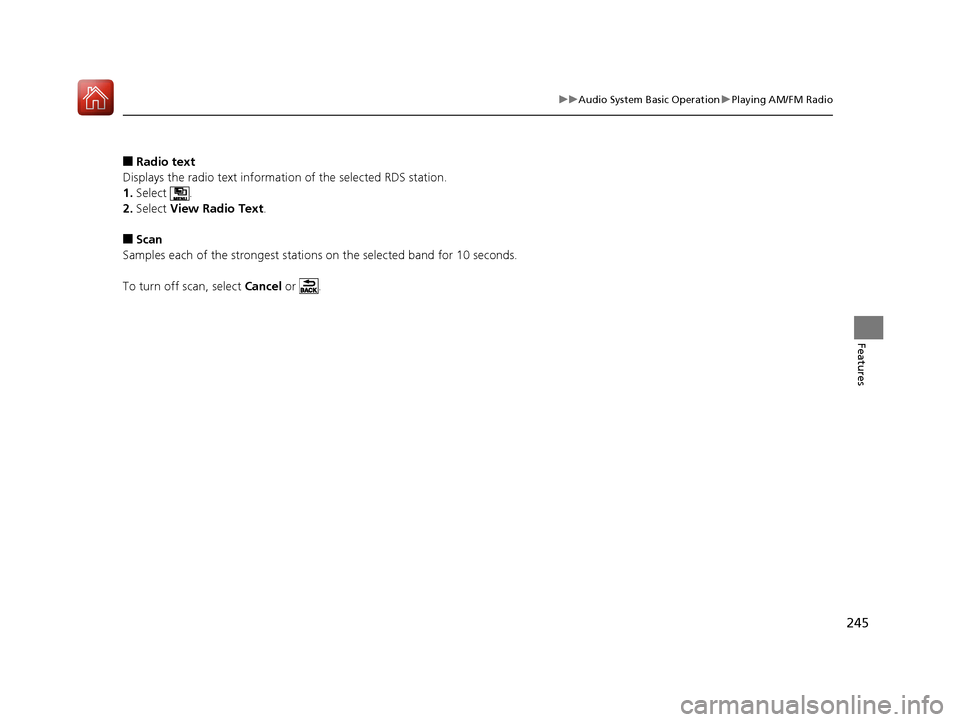

245
uuAudio System Basic OperationuPlaying AM/FM Radio
Features
■Radio text
Displays the radio text information of the selected RDS station. 1. Select .
2. Select View Radio Text .
■ Scan
Samples each of the strongest stations on the selected band for 10 seconds.
To turn off scan, select Cancel or .
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 245 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

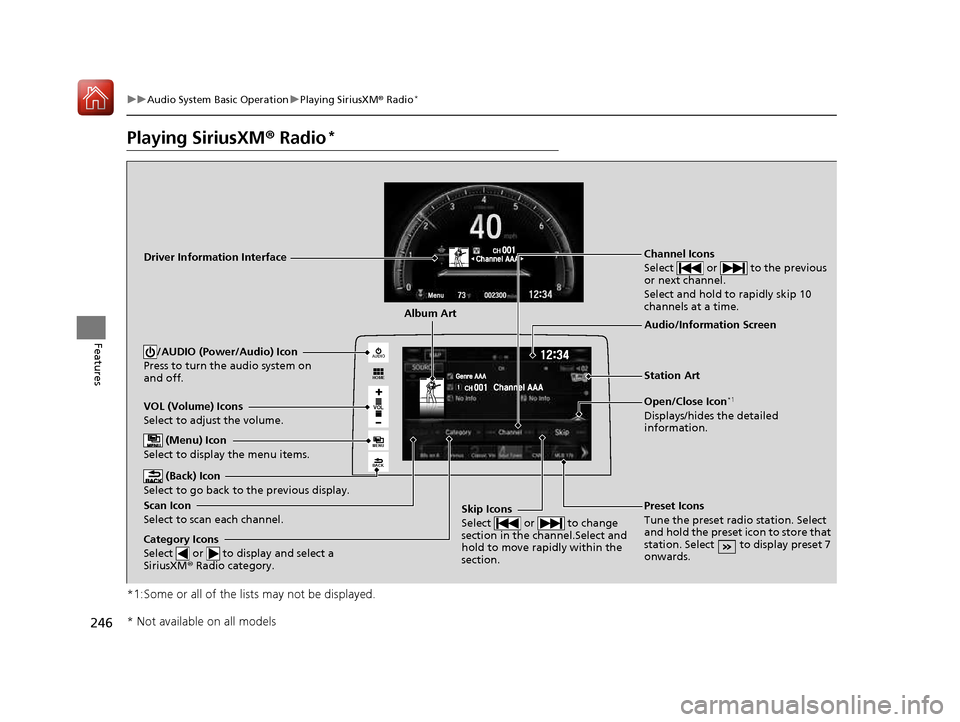

246
uuAudio System Basic OperationuPlaying SiriusXM® Radio *
Features
Playing SiriusXM
® Radio *
*1:Some or all of the lists may not be displayed.
VOL
HOME
MENU
BACK
AUDIO
VOL (Volume) Icons
Select to adjust the volume.
(Back) Icon
Select to go back to the previous display.
Channel Icons
Select or to the previous
or next channel.
Select and hold to rapidly skip 10
channels at a time.
/AUDIO (Power/Audio) Icon
Press to turn the audio system on
and off.
Open/Close Icon *1
Displays/hides the detailed
information.
(Menu) Icon
Select to display the menu items.
Category Icons
Select or to display and select a
SiriusXM ® Radio category.
Audio/Information Screen
Scan Icon
Select to scan each channel. Preset Icons
Tune the preset radio station. Select
and hold the preset icon to store that
station. Select to display preset 7 onwards.Skip Icons
Select or to change
section in the channel.Select and
hold to move rapidly within the section.
Driver Information Interface
Album Art
Station Art
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 246 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

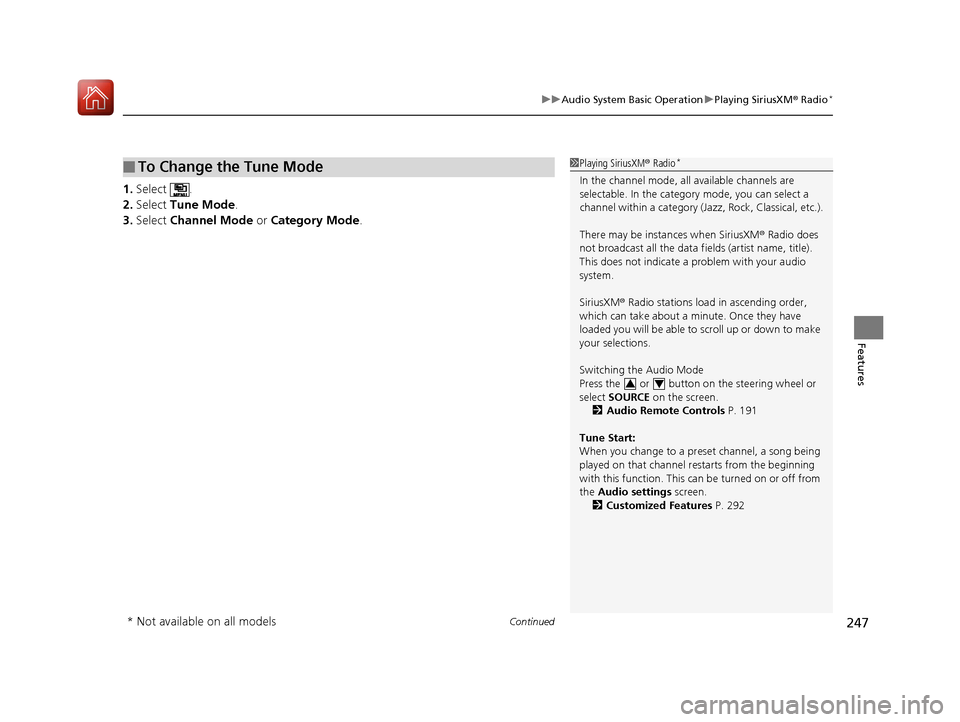

Continued247
uuAudio System Basic OperationuPlaying SiriusXM® Radio *
Features
1.
Select .
2. Select Tune Mode .
3. Select Channel Mode or Category Mode .
■To Change the Tune Mode1Playing SiriusXM® Radio *
In the channel mode, all available channels are
selectable. In the categor y mode, you can select a
channel within a ca tegory (Jazz, Rock, Classical, etc.).
There may be instances when SiriusXM ® Radio does
not broadcast all the data fi elds (artist name, title).
This does not indicate a problem with your audio
system.
SiriusXM ® Radio stations load in ascending order,
which can take about a mi nute. Once they have
loaded you will be able to scroll up or down to make
your selections.
Switching the Audio Mode
Press the or button on the steering wheel or
select SOURCE on the screen.
2 Audio Remote Controls P. 191
Tune Start:
When you change to a pres et channel, a song being
played on that channel restarts from the beginning
with this function. This can be turned on or off from
the Audio settings screen.
2 Customized Features P. 292
34
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 247 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

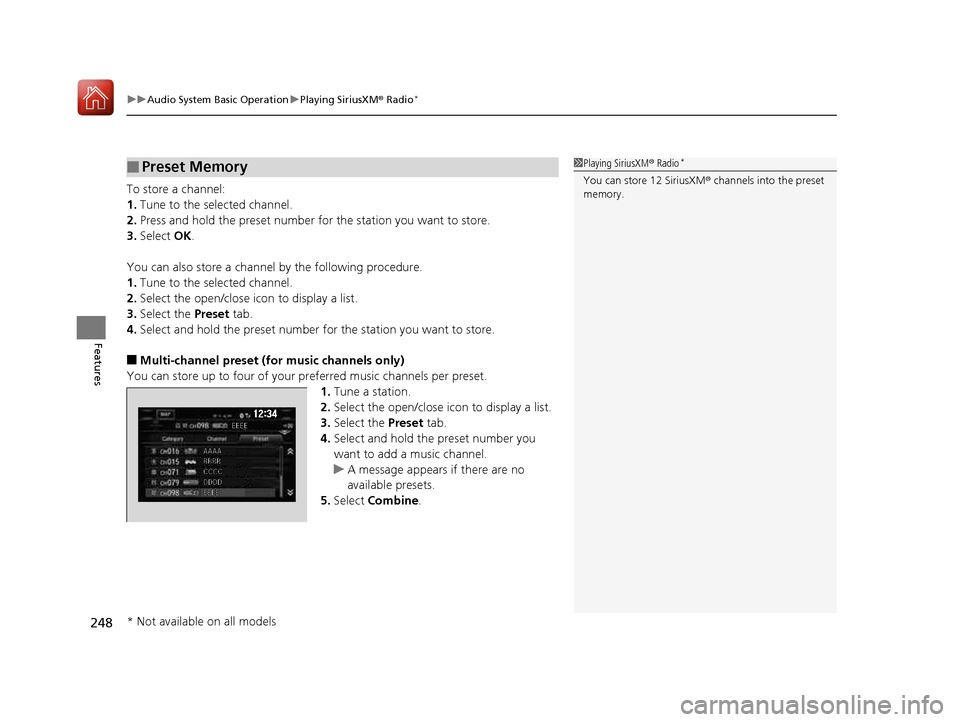

uuAudio System Basic OperationuPlaying SiriusXM® Radio *
248
Features
To store a channel: 1. Tune to the selected channel.
2. Press and hold the preset number for the station you want to store.
3. Select OK.
You can also store a channel by the following procedure.1. Tune to the selected channel.
2. Select the open/close ic on to display a list.
3. Select the Preset tab.
4. Select and hold the preset number fo r the station you want to store.
■ Multi-channel preset (for music channels only)
You can store up to four of your pr eferred music channels per preset.
1. Tune a station.
2. Select the open/close ic on to display a list.
3. Select the Preset tab.
4. Select and hold the preset number you
want to add a music channel.
uA message appears if there are no
available presets.
5. Select Combine .
■Preset Memory1Playing SiriusXM ® Radio *
You can store 12 SiriusXM ® channels into the preset
memory.
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 248 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

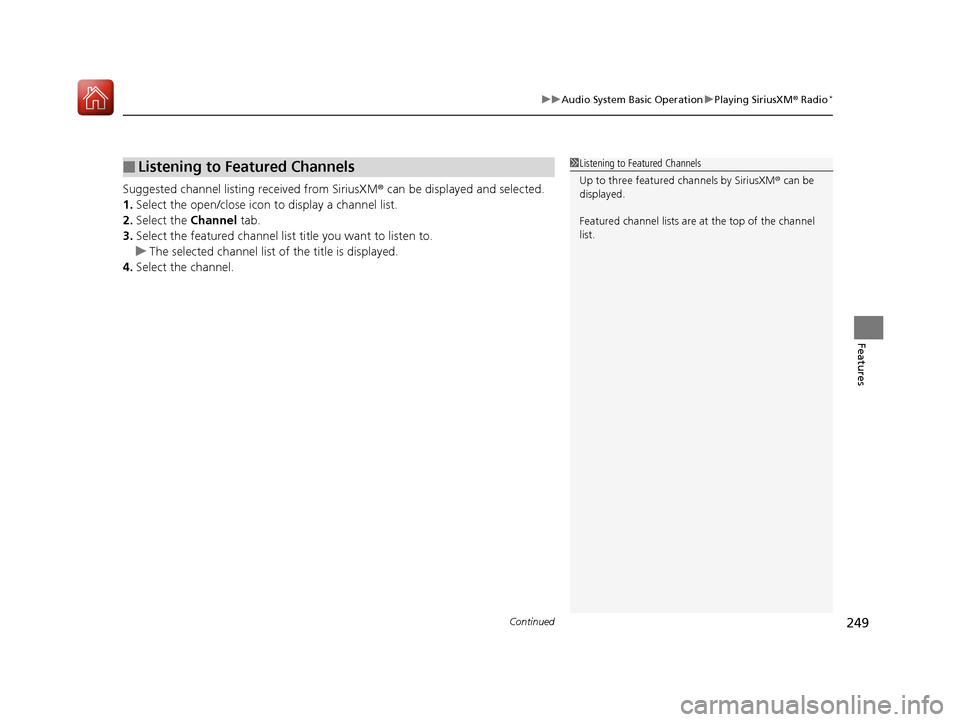

Continued249
uuAudio System Basic OperationuPlaying SiriusXM® Radio *
Features
Suggested channel listing received from SiriusXM
® can be displayed and selected.
1. Select the open/close icon to display a channel list.
2. Select the Channel tab.
3. Select the featured channel list title you want to listen to.
uThe selected channel list of the title is displayed.
4. Select the channel.
■Listening to Featured Channels1Listening to Featured Channels
Up to three featured channels by SiriusXM ® can be
displayed.
Featured channel lists are at the top of the channel
list.
