uuAudio System Basic OperationuAudio/Information Screen
220
Features

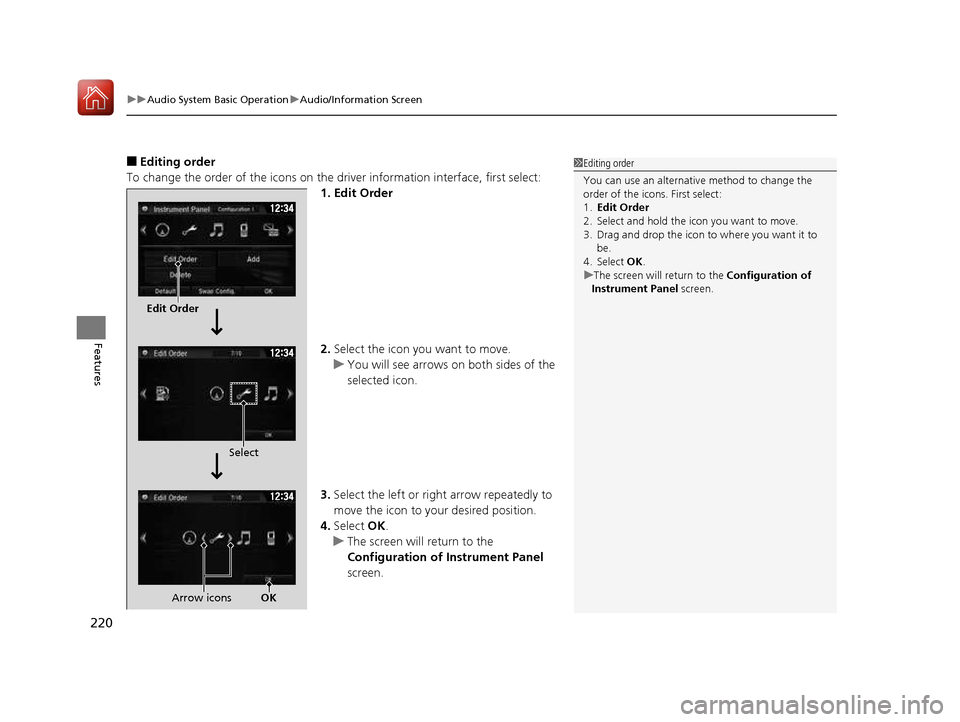

■ Editing order
To change the order of the icons on the driver information interface, first select:
1. Edit Order 2. Select the icon you want to move.
uYou will see arrows on both sides of the selected icon.
3. Select the left or right arrow repeatedly to
move the icon to your desired position.
4. Select OK.
uThe screen will return to the
Configuration of Instrument Panel
screen.
1Editing order
You can use an alternative method to change the
order of the icons. First select: 1. Edit Order
2. Select and hold the icon you want to move.
3. Drag and drop the icon to where you want it to be.
4. Select OK.
uThe screen will return to the Configuration of
Instrument Panel screen.
Edit Order
Select
Arrow icons OK
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 220 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

Continued221
uuAudio System Basic OperationuAudio/Information Screen
Features

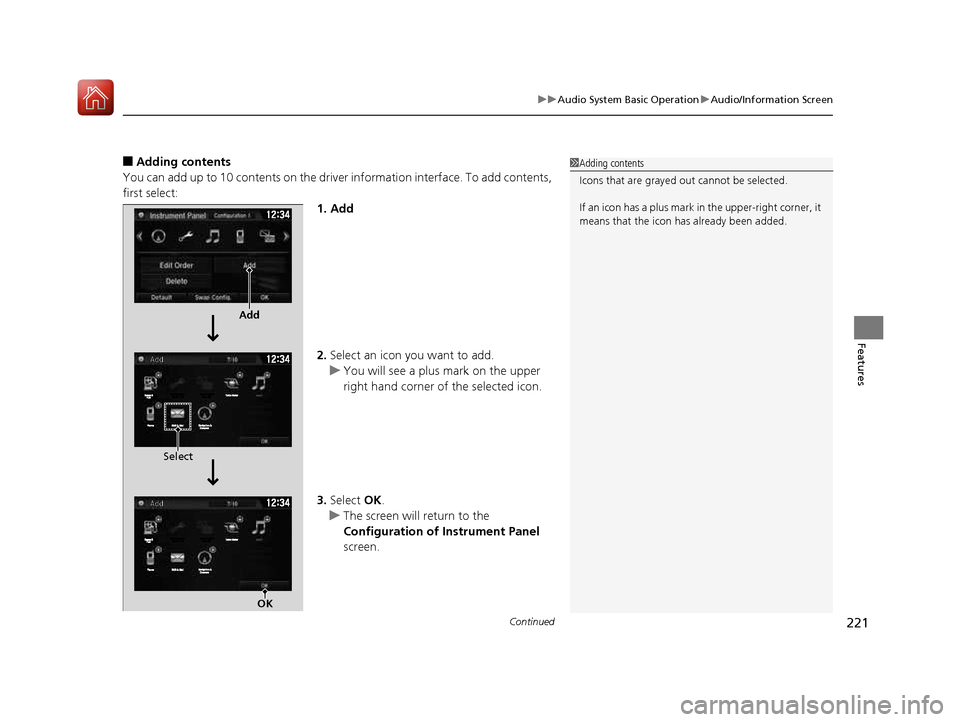

■Adding contents
You can add up to 10 contents on the driver information interface. To add contents, first select: 1. Add 2.Select an icon you want to add.
uYou will see a plus mark on the upper
right hand corner of the selected icon.
3. Select OK.
uThe screen will return to the
Configuration of Instrument Panel
screen.
1Adding contents
Icons that are grayed out cannot be selected.
If an icon has a plus mark in the upper-right corner, it
means that the icon ha s already been added.
Add
Select
OK
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 221 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

uuAudio System Basic OperationuAudio/Information Screen
222
Features

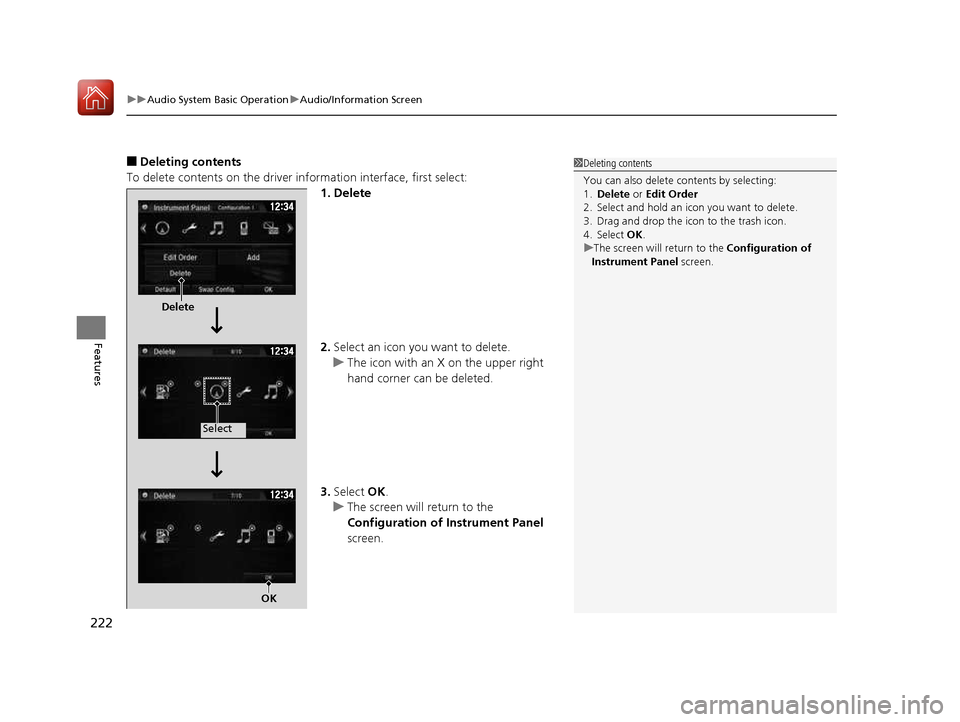

■ Deleting contents
To delete contents on the driver information interface, first select:
1. Delete 2.Select an icon you want to delete.
uThe icon with an X on the upper right
hand corner can be deleted.
3. Select OK.
uThe screen will return to the
Configuration of Instrument Panel
screen.
1Deleting contents
You can also delete c ontents by selecting:
1. Delete or Edit Order
2. Select and hold an icon you want to delete.
3. Drag and drop the icon to the trash icon.
4. Select OK.
uThe screen will return to the Configuration of
Instrument Panel screen.
Delete
Select
OK
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 222 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

Continued223
uuAudio System Basic OperationuAudio/Information Screen
Features

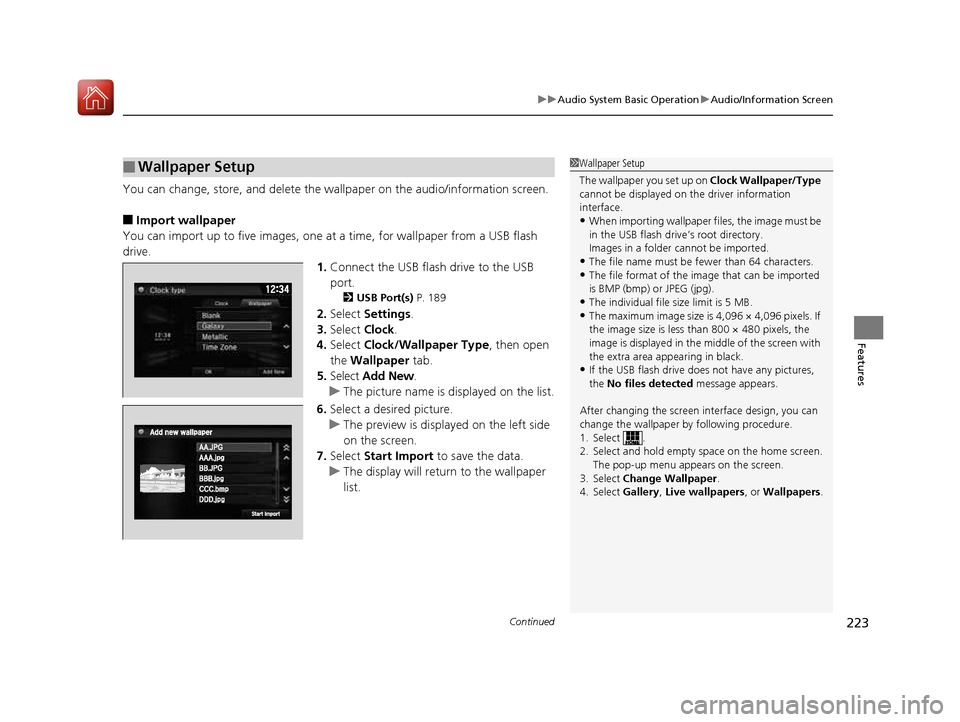

You can change, store, and delete the wallpaper on the audio/information screen.
■ Import wallpaper
You can import up to five images, one at a time, for wallpaper from a USB flash
drive. 1.Connect the USB flash drive to the USB
port.
2 USB Port(s) P. 189
2. Select Settings .
3. Select Clock.
4. Select Clock/Wallpaper Type , then open
the Wallpaper tab.
5. Select Add New .
uThe picture name is displayed on the list.
6. Select a desired picture.
uThe preview is displayed on the left side
on the screen.
7. Select Start Import to save the data.
uThe display will return to the wallpaper
list.
■Wallpaper Setup1Wallpaper Setup
The wallpaper you set up on Clock Wallpaper/Type
cannot be displayed on th e driver information
interface. • When importing wallpaper files, the image must be
in the USB flash driv e’s root directory.
Images in a folder cannot be imported.
• The file name must be fewer than 64 characters.
• The file format of the im age that can be imported
is BMP (bmp) or JPEG (jpg).
• The individual file size limit is 5 MB.
• The maximum image size is 4,096 × 4,096 pixels. If
the image size is less than 800 × 480 pixels, the
image is displayed in the middle of the screen with
the extra area appearing in black.
• If the USB flash drive doe s not have any pictures,
the No files detected message appears.
After changing the screen interface design, you can change the wallpaper by following procedure.
1. Select .
2. Select and hold empty space on the home screen. The pop-up menu appears on the screen.
3. Select Change Wallpaper .
4. Select Gallery, Live wallpapers , or Wallpapers .
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 223 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

uuAudio System Basic OperationuAudio/Information Screen
224
Features
■ Select wallpaper
1. Select Settings .
2. Select Clock.
3. Select Clock/Wallpaper Type , then open the Wallpaper tab.
uThe screen changes to the wallpaper list.
4. Select a desired wallpaper.
uThe preview is displayed on the left side on the screen.
uThe pop-up menu appears on the screen.
5. Select Set.
uThe display will return to the wallpaper list.
■ To view wallpaper once it is set
1. Select .
2. Select Info.
3. Select .
4. Select Clock/Wallpaper .
■ Delete wallpaper
1. Select Settings .
2. Select Clock.
3. Select Clock/Wallpaper Type , then open the Wallpaper tab.
uThe screen changes to the wallpaper list.
4. Select a wallpaper that you want to delete.
uThe preview is displayed on the left side on the screen.
uThe pop-up menu appears on the screen.
5. Select Delete .
uA confirmation message appears on the screen.
6. Select Yes to delete completely.
uThe display will return to the wallpaper list.
1Wallpaper Setup
From the pop-up menu, select Preview to see a
preview at full-size screen.
To go back to the previous screen, select OK, or
select .
When the file size is large, it takes a while to be previewed.
To delete all wallpapers you add, select Delete All,
then Yes.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 224 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

Continued225
uuAudio System Basic OperationuAudio/Information Screen
Features

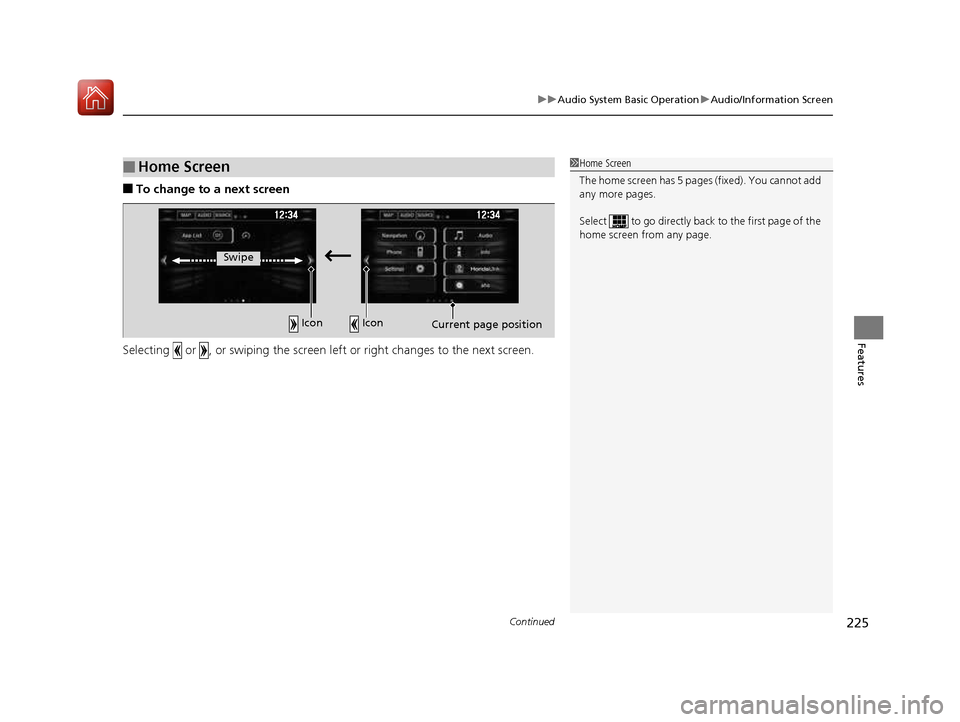

■To change to a next screen
Selecting or , or swiping the screen le ft or right changes to the next screen.
■Home Screen1Home Screen
The home screen has 5 pa ges (fixed). You cannot add
any more pages.
Select to go directly back to the first page of the
home screen from any page.
Swipe
Icon Icon
Current page position
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 225 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

uuAudio System Basic OperationuAudio/Information Screen
226
Features

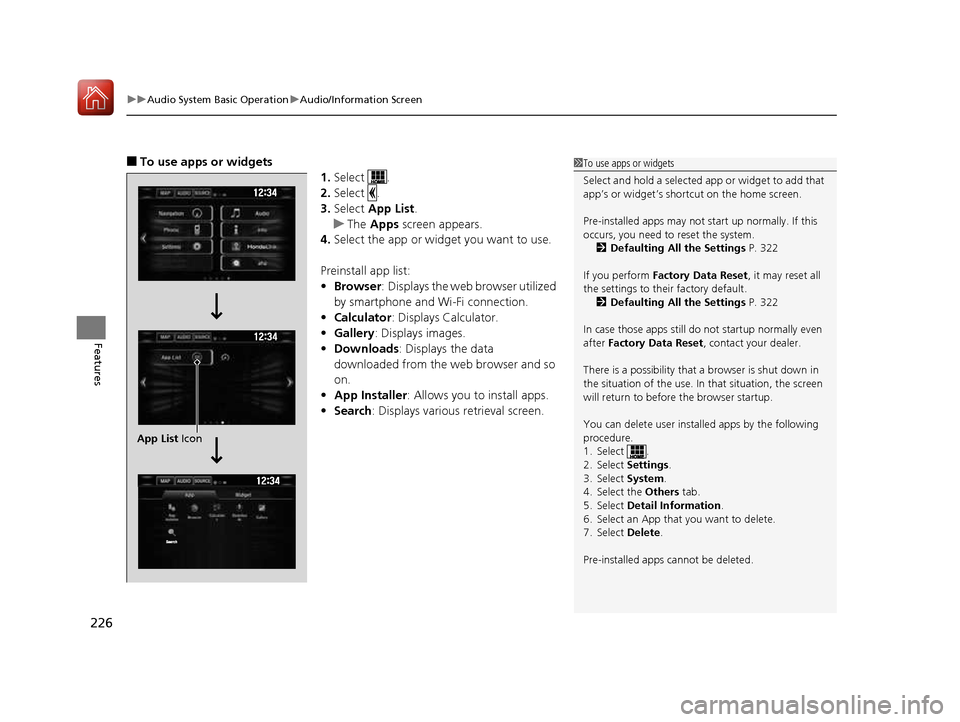

■ To use apps or widgets
1.Select .
2. Select .
3. Select App List .
uThe Apps screen appears.
4. Select the app or widget you want to use.
Preinstall app list: • Browser : Displays the web browser utilized
by smartphone and Wi-Fi connection.
• Calculator : Displays Calculator.
• Gallery : Displays images.
• Downloads : Displays the data
downloaded from the web browser and so
on.
• App Installer : Allows you to install apps.
• Search : Displays various retrieval screen.
1To use apps or widgets
Select and hold a selected app or widget to add that
app’s or widget’s shortcut on the home screen.
Pre-installed apps may not start up normally. If this
occurs, you need to reset the system.
2 Defaulting All the Settings P. 322
If you perform Factory Data Reset , it may reset all
the settings to their factory default.
2 Defaulting All the Settings P. 322
In case those apps still do not startup normally even
after Factory Data Reset , contact your dealer.
There is a possibility that a browser is shut down in
the situation of the use. In that situation, the screen
will return to before the browser startup.
You can delete user installed apps by the following
procedure.
1. Select .
2. Select Settings.
3. Select System.
4. Select the Others tab.
5. Select Detail Information .
6. Select an App that you want to delete.
7. Select Delete.
Pre-installed apps cannot be deleted.
App List Icon
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 226 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

227
uuAudio System Basic OperationuAudio/Information Screen
Continued
Features

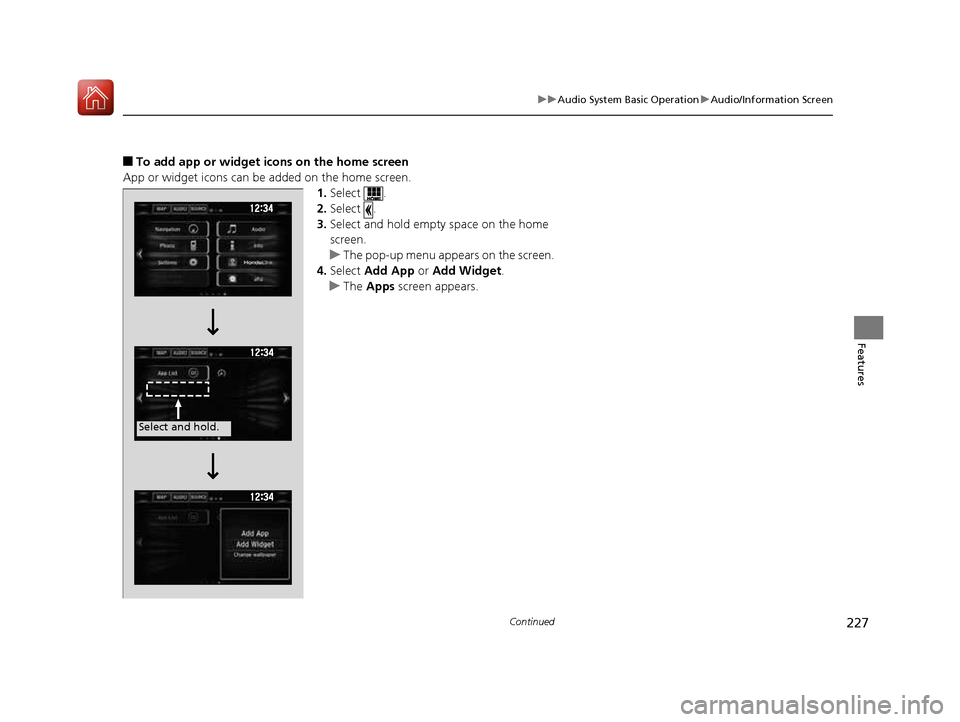

■To add app or widget icons on the home screen
App or widget icons can be added on the home screen. 1.Select .
2. Select .
3. Select and hold empty space on the home
screen.
uThe pop-up menu appears on the screen.
4. Select Add App or Add Widget .
uThe Apps screen appears.
Select and hold.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 227 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

228
uuAudio System Basic OperationuAudio/Information Screen
Features

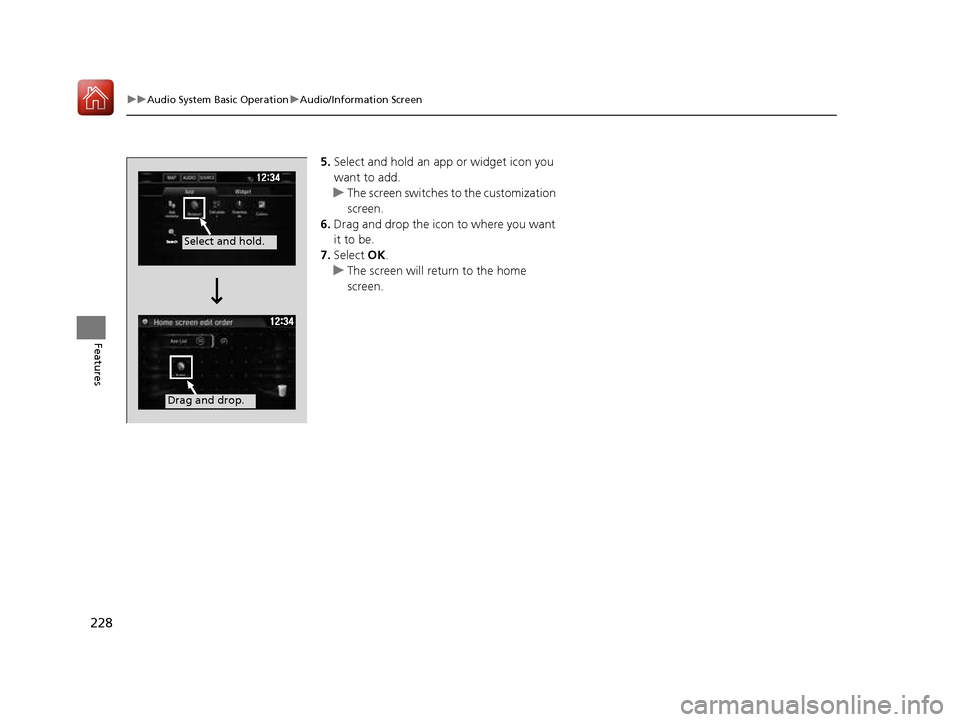

5.Select and hold an a pp or widget icon you
want to add.
uThe screen switches to the customization
screen.
6. Drag and drop the icon to where you want it to be.
7. Select OK.
uThe screen will return to the home screen.
Select and hold.
Drag and drop.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 228 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

Continued229
uuAudio System Basic OperationuAudio/Information Screen
Features

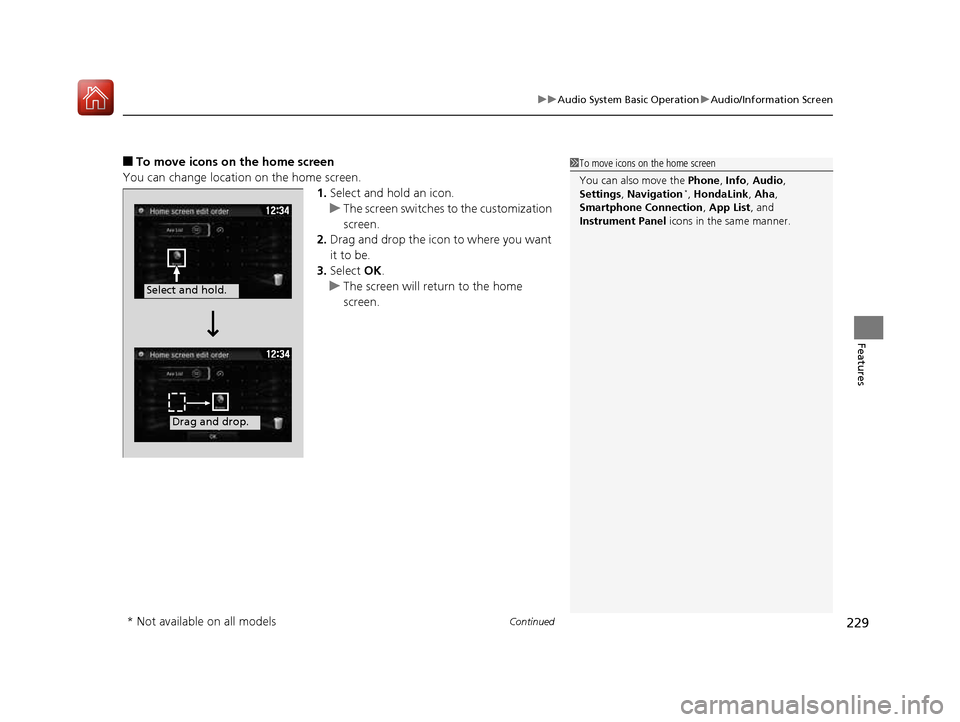

■To move icons on the home screen
You can change location on the home screen. 1.Select and hold an icon.
uThe screen switches to the customization
screen.
2. Drag and drop the icon to where you want it to be.
3. Select OK.
uThe screen will return to the home screen.
1To move icons on the home screen
You can also move the Phone, Info , Audio ,
Settings , Navigation *
, HondaLink , Aha ,
Smartphone Connection , App List , and
Instrument Panel icons in the same manner.
Select and hold.
Drag and drop.
* Not available on all models
