HONDA CIVIC COUPE 2016 10.G Quick Guide
Manufacturer: HONDA, Model Year: 2016, Model line: CIVIC COUPE, Model: HONDA CIVIC COUPE 2016 10.GPages: 82, PDF Size: 5.2 MB
Page 21 of 82
34 || 35
VEHICLE CONTROLS
VEHICLE CONTROLS

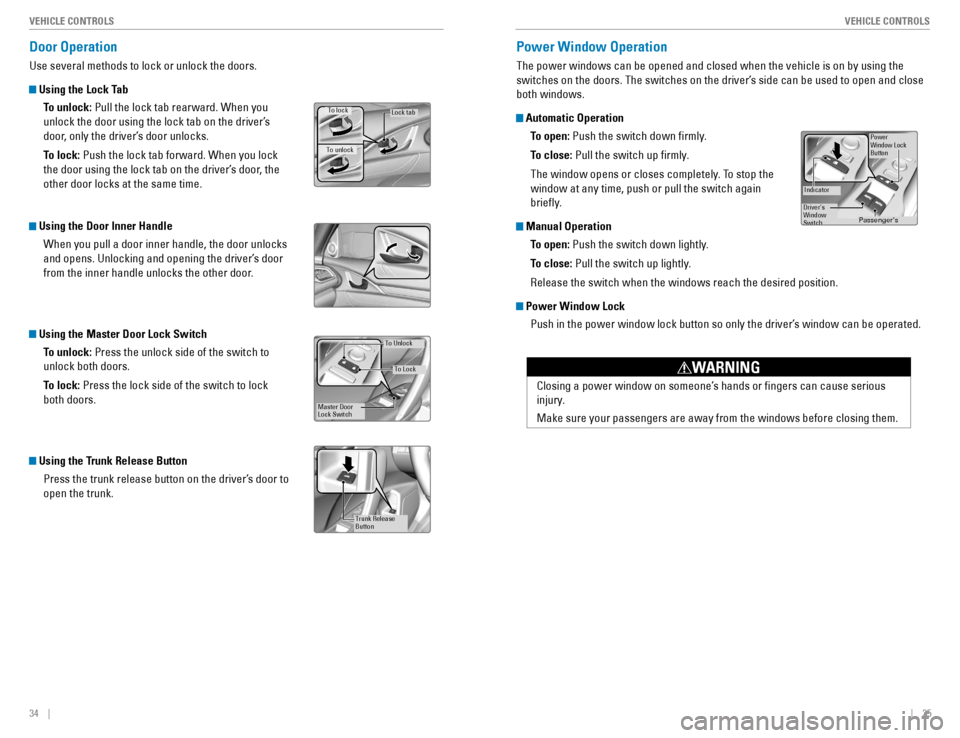

Door Operation
Use several methods to lock or unlock the doors.
Using the Lock Tab
To unlock: Pull the lock tab rearward. When you
unlock the door using the lock tab on the driver’s
door, only the driver’s door unlocks.
To lock: Push the lock tab forward. When you lock
the door using the lock tab on the driver’s door, the other door locks at the same time.
Using the Door Inner Handle
When you pull a door inner handle, the door unlocks
and opens. Unlocking and opening the driver’s door
from the inner handle unlocks the other door.
Using the Master Door Lock Switch
To unlock: Press the unlock side of the switch to
unlock both doors.
To lock: Press the lock side of the switch to lock
both doors.
Using the Trunk Release Button
Press the trunk release button on the driver’s door to open the trunk.
To unlock
Lock ta bTo lock
To Unlock
Lock Switch
Master Door
To Lock
Trunk Release Butto
n
Power Window Operation
The power windows can be opened and closed when the vehicle is on by using the
switches on the doors. The switches on the driver’s side can be used to open and close both windows.
Automatic Operation
To open: Push the switch down rmly.
To close: Pull the switch up rmly.
The window opens or closes completely. To stop the window at any time, push or pull the switch again
brie y.
Manual Operation
To open: Push the switch down lightly.
To close: Pull the switch up lightly.
Release the switch when the windows reach the desired position.
Power Window Lock
Push in the power window lock button so only the driver’s window can be operated.
Power Window Lock
Button
Indicator
Driver’s Switch
Window Passenger’s Window Switch
Closing a power window on someone’s hands or ngers can cause serious
injury.
Make sure your passengers are away from the windows before closing them.
WARNING
Page 22 of 82
36 || 37
VEHICLE CONTROLS
VEHICLE CONTROLS

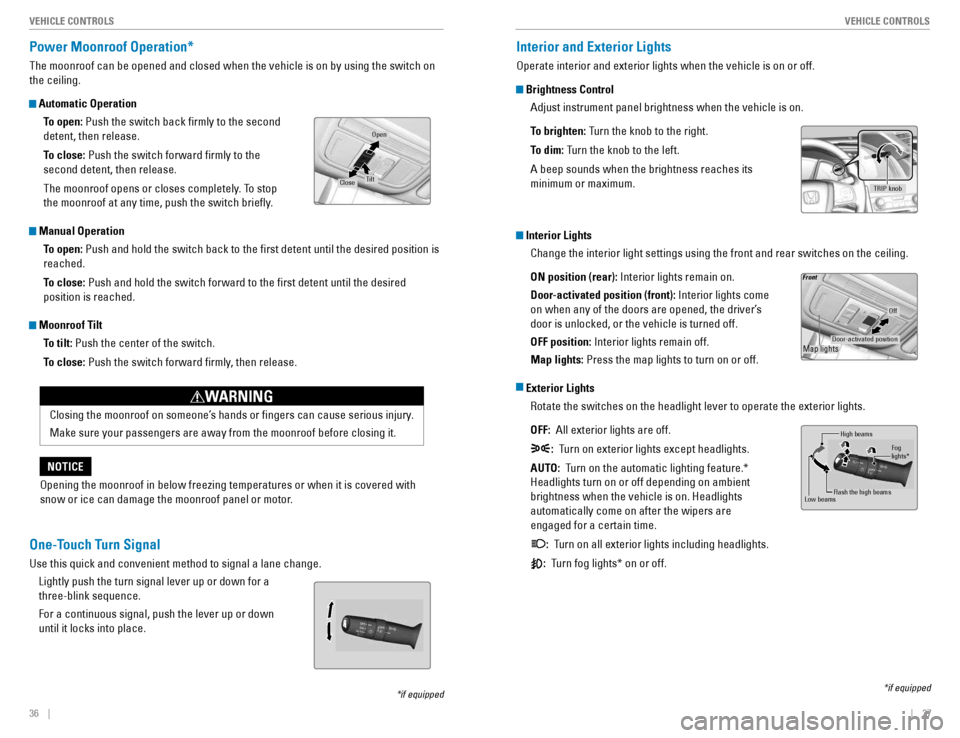

Power Moonroof Operation*
The moonroof can be opened and closed when the vehicle is on by using the switch on the ceiling.
Automatic Operation
To open: Push the switch back rmly to the second
detent, then release.
To close: Push the switch forward rmly to the
second detent, then release.
The moonroof opens or closes completely. To stop
the moonroof at any time, push the switch brie y.
Manual Operation
To open: Push and hold the switch back to the rst detent until the desired position is
reached.
To close: Push and hold the switch forward to the rst detent until the desired
position is reached.
Moonroof Tilt
To tilt: Push the center of the switch.
To close: Push the switch forward rmly, then release.
*if equipped
Open
CloseTilt
Opening the moonroof in below freezing temperatures or when it is covered with
snow or ice can damage the moonroof panel or motor.
NOTICE
Closing the moonroof on someone’s hands or ngers can cause serious injury. Make sure your passengers are away from the moonroof before closing it.
WARNING
Interior and Exterior Lights
Operate interior and exterior lights when the vehicle is on or off.
Brightness Control
Adjust instrument panel brightness when the vehicle is on.
To brighten: Turn the knob to the right.
To dim: Turn the knob to the left.
A beep sounds when the brightness reaches its minimum or maximum.
Interior Lights
Change the interior light settings using the front and rear switches on the ceiling. ON position (rear): Interior lights remain on.
Door-activated position (front): Interior lights come
on when any of the doors are opened, the driver’s door is unlocked, or the vehicle is turned off. OFF position: Interior lights remain off.
Map lights: Press the map lights to turn on or off.
Exterior Lights
Rotate the switches on the headlight lever to operate the exterior lights. OFF: All exterior lights are off.
: Turn on exterior lights except headlights.
AUTO: Turn on the automatic lighting feature.*
Headlights turn on or off depending on ambient brightness when the vehicle is on. Headlights automatically come on after the wipers are engaged for a certain time. : Turn on all exterior lights including headlights.
: Turn fog lights* on or off.
*if equipped
TRIP knob
Door-activated position
Off
Fron t
Map lights
High beams
Flash the high beams
Low beams
Fog lights*
One-Touch Turn Signal
Use this quick and convenient method to signal a lane change.
Lightly push the turn signal lever up or down for a three-blink sequence. For a continuous signal, push the lever up or down until it locks into place.
Page 23 of 82
38 || 39
VEHICLE CONTROLS
VEHICLE CONTROLS
Wiper Operation
The windshield wipers and washers can be used when the vehicle is on. Move the wiper lever up or down to the desired position.
*if equipped
Pull to use
washer.
MIST OFF
INT: Low speed intermittent LO: Low speed wipe HI: High speed wipe
Headlight-Wiper Integration*
When the headlights are in the AUTO position, they automatically turn on when the
front wipers operate several times within a certain interval. The headlights turn off
shortly after the wipers are turned off, or if there is enough ambient light.
Do not use the wipers when the windshield is dry. The windshield may scratch, or the rubber blades may become damaged.
In cold weather, the blades may freeze to the windshield, becoming stuck.
Operating the wipers in this condition may damage the wipers. Use the defroster
to warm the windshield, or manually clear the windshield of ice and snow before turning on the wipers.
NOTICE
Intermittent (INT) Wipers*
When you move the lever to the INT position, the wipers operate based on the delay adjustment.
Rotate the adjustment ring to adjust the wiper delay.
Rotate the adjustment ring.
Lower speed, fewer sweeps Higher speed, more sweeps
INT position
Automatic (AUTO) Rain-Sensing Wipers*
When you move the lever to the AUTO position while
driving in rainy weather, the wipers operate based on the amount of detected rainfall. Put the lever in the AUTO position only when driving
in rainy weather. Rotate the adjustment ring to adjust the rainfall
sensor sensitivity. Return the lever to the OFF position when rain stops.
Rotate the adjustment ring.
Low sensitivity: Wipers operate whenmore rainfall is detected. High sensitivity: Wipers operate whenless rainfall is detected.
AUTO position
Always ensure the wiper lever is in the OFF position before entering a car wash to prevent severe damage to the windshield wiper system.
NOTICE
*if equipped
Page 24 of 82
40 || 41
VEHICLE CONTROLS
VEHICLE CONTROLS

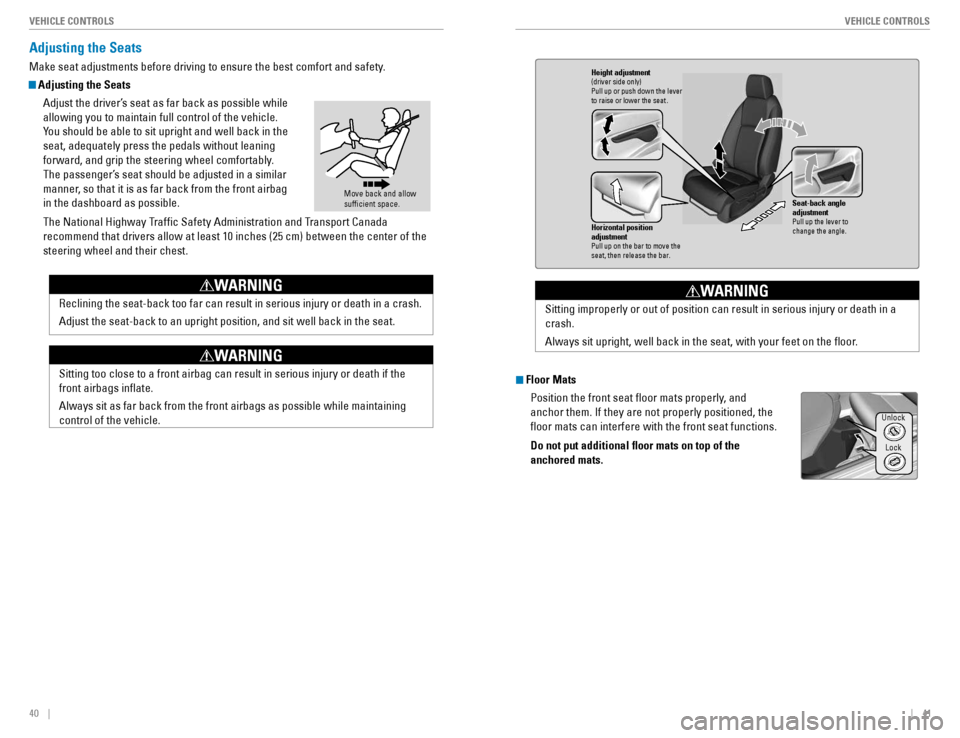

Adjusting the Seats
Make seat adjustments before driving to ensure the best comfort and safety.
Adjusting the Seats
Adjust the driver’s seat as far back as possible while allowing you to maintain full control of the vehicle.
You should be able to sit upright and well back in the seat, adequately press the pedals without leaning
forward, and grip the steering wheel comfortably.
The passenger’s seat should be adjusted in a similar
manner, so that it is as far back from the front airbag in the dashboard as possible.
The National Highway Traf c Safety Administration and Transport Canada
recommend that drivers allow at least 10 inches (25 cm) between the center of the steering wheel and their chest.
Move back and allow suf cient space.
Reclining the seat-back too far can result in serious injury or death in a crash. Adjust the seat-back to an upright position, and sit well back in the seat.
WARNING
Sitting too close to a front airbag can result in serious injury or death if the front airbags in ate. Always sit as far back from the front airbags as possible while maintaining control of the vehicle.
WARNING
Floor Mats
Position the front seat oor mats properly, and anchor them. If they are not properly positioned, the oor mats can interfere with the front seat functions. Do not put additional oor mats on top of the anchored mats.
Horizontal position adjustment
Pull up on the bar to move the seat, then release the bar.
Height adjustment(driver side only )
Pull up or push down the lever to raise or lower the seat .
Seat-back angle adjustment
Pull up the lever to
change the angle.
Sitting improperly or out of position can result in serious injury or death in a crash.
Always sit upright, well back in the seat, with your feet on the oor.
WARNING
Unlock
Lock
Page 25 of 82
42 || 43
VEHICLE CONTROLS
VEHICLE CONTROLS

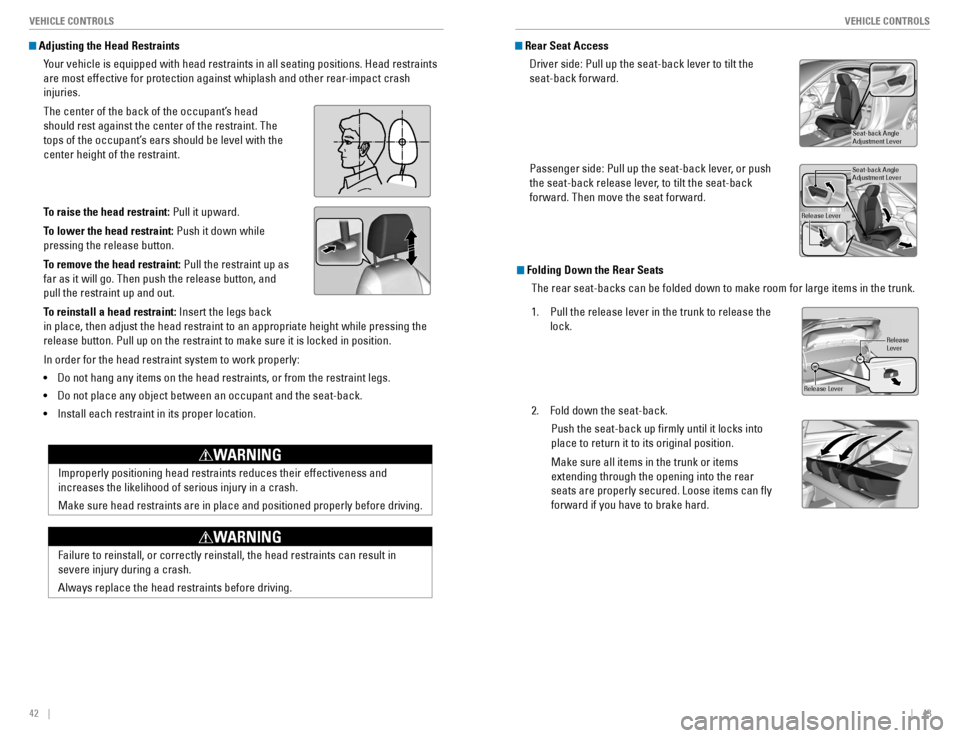

Adjusting the Head Restraints
Your vehicle is equipped with head restraints in all seating positions. Head restraints
are most effective for protection against whiplash and other rear-impact crash injuries.
The center of the back of the occupant’s head should rest against the center of the restraint. The
tops of the occupant’s ears should be level with the center height of the restraint.
To raise the head restraint: Pull it upward.
To lower the head restraint: Push it down while
pressing the release button.
To remove the head restraint: Pull the restraint up as
far as it will go. Then push the release button, and pull the restraint up and out.
To reinstall a head restraint: Insert the legs back
in place, then adjust the head restraint to an appropriate height while pressing the
release button. Pull up on the restraint to make sure it is locked in position. In order for the head restraint system to work properly: • Do not hang any items on the head restraints, or from the restraint legs.
• Do not place any object between an occupant and the seat-back.
• Install each restraint in its proper location.
Position head in the
Improperly positioning head restraints reduces their effectiveness and increases the likelihood of serious injury in a crash. Make sure head restraints are in place and positioned properly before driving.
WARNING
Failure to reinstall, or correctly reinstall, the head restraints can result in severe injury during a crash. Always replace the head restraints before driving.
WARNING
Folding Down the Rear Seats
The rear seat-backs can be folded down to make room for large items in the trunk.
1. Pull the release lever in the trunk to release the
lock.
2. Fold down the seat-back. Push the seat-back up rmly until it locks into place to return it to its original position. Make sure all items in the trunk or items extending through the opening into the rear seats are properly secured. Loose items can y forward if you have to brake hard.
LeverRelease
Release Lever
Rear Seat Access
Driver side: Pull up the seat-back lever to tilt the seat-back forward.
Passenger side: Pull up the seat-back lever, or push
the seat-back release lever, to tilt the seat-back forward. Then move the seat forward.
Seat-back Angle Adjustment Lever
Seat-back Angle Adjustment Leve r
Release Lever
Page 26 of 82
44 || 45
VEHICLE CONTROLS
VEHICLE CONTROLS
Adjusting the Mirrors
Adjust the angle of the mirrors for the best visibility when you are sitting in the correct driving position.
Rearview Mirror with Day/Night Positions*
Manually adjust the position to reduce headlight glare from vehicles behind you. Flip the tab to switch between day and night positions.
Automatic Dimming Rearview Mirror*
When driving after dark, the automatic dimming function reduces the glare from headlights behind
you based on the mirror sensor. The function cancels when the shift lever is in Reverse (R).
Power Door Mirrors
Adjust the power door mirrors when the vehicle is on. L/R selector switch: Select the left or right mirror.
After adjusting the mirror, return the switch to the center position. Mirror position adjustment switch: Press the switch
left, right, up, or down to move the mirror.
Tab
Daytime position
Night position
*if equipped
Selector
switchAdjustment
switch
Sensor
Adjusting the Steering Wheel
The steering wheel height and distance from your body can be adjusted so that you can comfortably grip the steering wheel in an appropriate driving posture.
• Pull up the steering wheel adjustment lever.
• Move the steering wheel up or down, and in or out.
• Push down the steering wheel adjustment lever to
lock the steering wheel in position.
Adjusting the steering wheel position while driving may cause you to lose control of the vehicle and be seriously injured in a crash. Adjust the steering wheel only when the vehicle is stopped.
WARNING
To adjust To lock Lever
Page 27 of 82
46 || 47
VEHICLE CONTROLS
VEHICLE CONTROLS

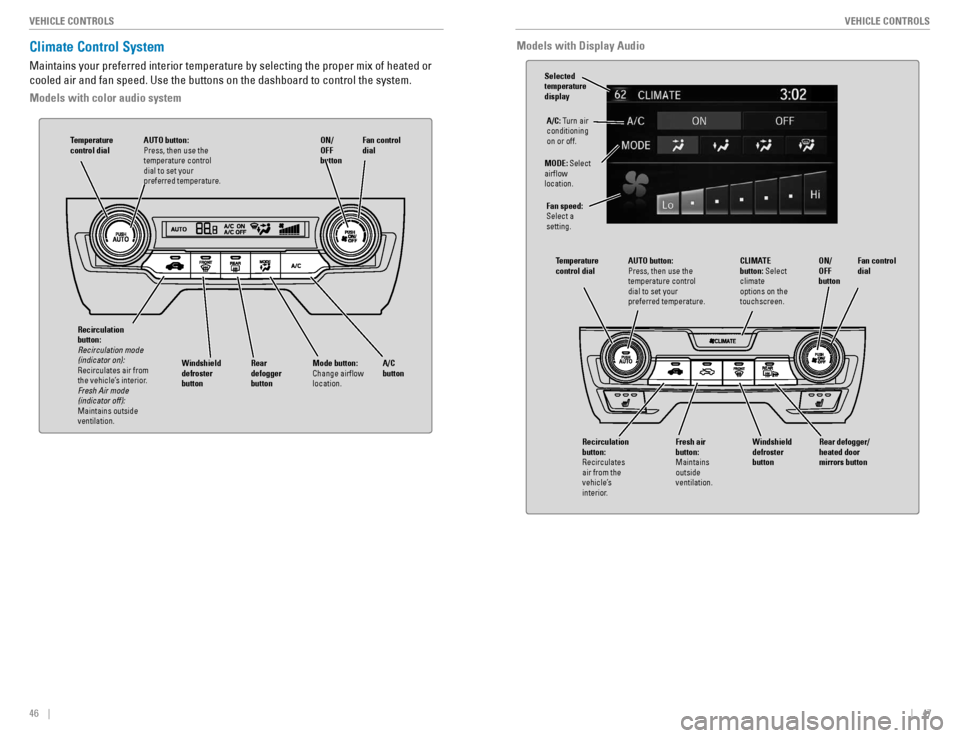

Climate Control System
Maintains your preferred interior temperature by selecting the proper mix of heated or cooled air and fan speed. Use the buttons on the dashboard to control the system.
Models with color audio system
AUTO button: Press, then use the temperature control dial to set your preferred temperature. Temperature control dial
A/C button
Fan control dial
Recirculation button:
Recirculation mode (indicator on):
Recirculates air from
the vehicle’s interior. Fresh Air mode (indicator off):
Maintains outside ventilation.
Rear defogger buttonWindshield defroster button
ON/ OFF button
Mode button:
Change air ow location.

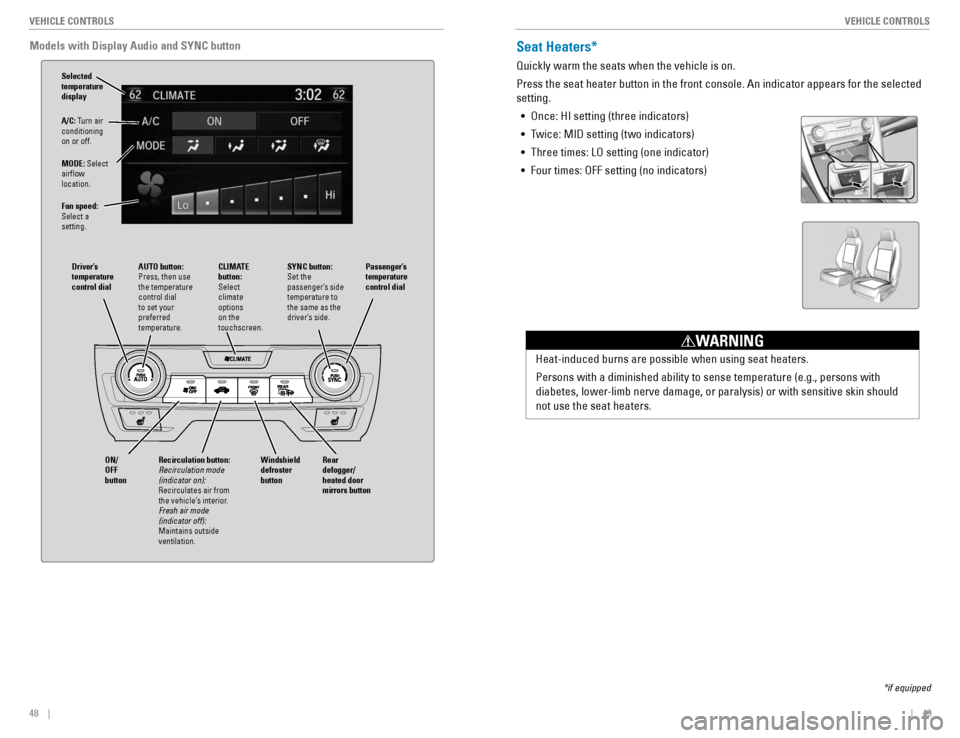

Models with Display Audio
A/C: Turn air
conditioning on or off.
MODE: Select
air ow location.
Fan speed: Select a setting.
AUTO button: Press, then use the temperature control dial to set your preferred temperature. Temperature control dialFan control dial
Rear defogger/ heated door mirrors buttonWindshield defroster button
ON/ OFF buttonCLIMATE button: Select
climate options on the touchscreen.
Fresh air button: Maintains outside ventilation. Recirculation button:
Recirculates air from the
vehicle’s
interior.
Selected temperature display
