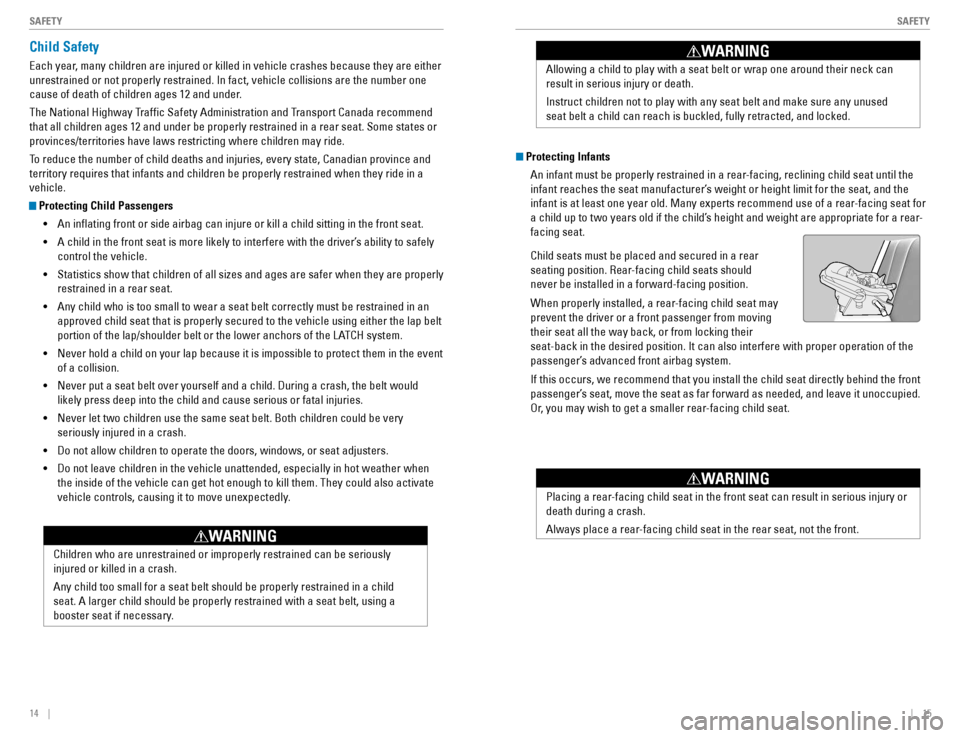

14 || 15
SAFETY
SAFETY
Child Safety
Each year, many children are injured or killed in vehicle crashes because they are either
unrestrained or not properly restrained. In fact, vehicle collisions are the number one
cause of death of children ages 12 and under.
The National Highway Traf c Safety Administration and Transport Canada recommend
that all children ages 12 and under be properly restrained in a rear seat. Some states or provinces/territories have laws restricting where children may ride.
To reduce the number of child deaths and injuries, every state, Canadian province and territory requires that infants and children be properly restrained when they ride in a vehicle.
Protecting Child Passengers
• An in ating front or side airbag can injure or kill a child sitting in the front seat.
• A child in the front seat is more likely to interfere with the driver’s ability to safely
control the vehicle.
• Statistics show that children of all sizes and ages are safer when they are properly
restrained in a rear seat.
• Any child who is too small to wear a seat belt correctly must be restrained in an
approved child seat that is properly secured to the vehicle using either the lap belt
portion of the lap/shoulder belt or the lower anchors of the LATCH system.
• Never hold a child on your lap because it is impossible to protect them in the event
of a collision.
• Never put a seat belt over yourself and a child. During a crash, the belt would
likely press deep into the child and cause serious or fatal injuries.
• Never let two children use the same seat belt. Both children could be very
seriously injured in a crash.
• Do not allow children to operate the doors, windows, or seat adjusters.
• Do not leave children in the vehicle unattended, especially in hot weather when
the inside of the vehicle can get hot enough to kill them. They could also activate vehicle controls, causing it to move unexpectedly.
Protecting Infants
An infant must be properly restrained in a rear-facing, reclining child seat until the
infant reaches the seat manufacturer’s weight or height limit for the seat, and the
infant is at least one year old. Many experts recommend use of a rear-facing seat for
a child up to two years old if the child’s height and weight are appropriate for a rear-facing seat. Child seats must be placed and secured in a rear
seating position. Rear-facing child seats should never be installed in a forward-facing position.
When properly installed, a rear-facing child seat may prevent the driver or a front passenger from moving their seat all the way back, or from locking their seat-back in the desired position. It can also interfere with proper operation of the
passenger’s advanced front airbag system.
If this occurs, we recommend that you install the child seat directly behind the front
passenger’s seat, move the seat as far forward as needed, and leave it unoccupied.
Or, you may wish to get a smaller rear-facing child seat. Allowing a child to play with a seat belt or wrap one around their neck can result in serious injury or death.
Instruct children not to play with any seat belt and make sure any unused seat belt a child can reach is buckled, fully retracted, and locked.
WARNING
Children who are unrestrained or improperly restrained can be seriously injured or killed in a crash. Any child too small for a seat belt should be properly restrained in a child
seat. A larger child should be properly restrained with a seat belt, using a
booster seat if necessary.
WARNING
Placing a rear-facing child seat in the front seat can result in serious injury or death during a crash.
Always place a rear-facing child seat in the rear seat, not the front.
WARNING
Page 12 of 82
16 || 17
SAFETY
SAFETY
Protecting Smaller Children
If a child is at least one year old and within the weight range indicated by the child
seat manufacturer, the child should be properly restrained in a rmly secured forward-facing child seat.
We strongly recommend placing a forward-facing child seat in a rear seating position. Placing a forward-facing child seat in the front seat can be hazardous, even with advanced front airbags
that automatically turn the passenger’s front airbag off. A rear seat is the safest place for a child.
Installing a LATCH-Compatible Child Seat
A LATCH-compatible child seat can be installed in either of the two outer rear seats.
A child seat is attached to the lower anchors with either the rigid or exible type of connectors.
1. Locate the lower anchors under the marks.
2. Place the child seat on the vehicle seat, then
attach the child seat to the lower anchors according to the instructions that came with the child seat. Make sure that the lower anchors are not obstructed by the seat belt or any other object.
3. Open the tether anchor cover behind the head restraint.
4. Route the tether strap over the top of the head restraint, and secure the tether strap hook onto
the anchor.
5. Tighten the tether strap as instructed by the child seat manufacturer.
6. Make sure the child seat is rmly secured by rocking it forward and back and side to side; little movement should be felt.
7. Make sure any unused seat belt that a child can reach is buckled, the lockable retractor is activated, and the belt is fully retracted and locked.
Placing a forward-facing child seat in the front seat can result in serious injury or death if the front airbag in ates.
If you must place a forward-facing child seat in front, move the vehicle seat as far back as possible, and properly restrain the child.
WARNING
Selecting a Child Seat
Most child seats are LATCH-compatible (Lower Anchors and Tethers for CHildren).
Some have a rigid-type connector, while others have a exible-type connector. Both
are equally easy to use. Some existing and previously owned child seats can only
be installed using the seat belt. Whichever type you choose, follow the child seat
manufacturer’s use and care instructions as well as the instructions in this manual.
Proper installation is key to maximizing your child’s safety.
In seating positions and vehicles not equipped with LATCH, a LATCH-compatible
child seat can be installed using the seat belt and a top tether for added security. This is because all child seats are required to be designed so that they can be
secured with a lap belt or the lap part of a lap/shoulder belt. In addition, the child seat
manufacturer may advise that a seat belt be used to attach a LATCH-compatible seat
once a child reaches a speci ed weight. Please read the child seat owner’s manual for proper installation instructions.
Important considerations when selecting a child seat
Make sure the child seat meets the following four requirements: • The child seat is the correct type and size for the child.
• The child seat is the correct type for the seating position.
• The child seat is compliant with Federal Motor Vehicle Safety Standard 213 or
Canadian Motor Vehicle Safety Standard 213.
• The child seat is not older than the expiration date printed on the seat.
Marks
Rigid type
Lower anchors
Flexible type
Tether Strap
Hook
Anchor
Straight Top Tether Type
Tether Strap Hook
Anchor
Other Top Tether Type
Page 13 of 82
18 || 19
SAFETY
SAFETY

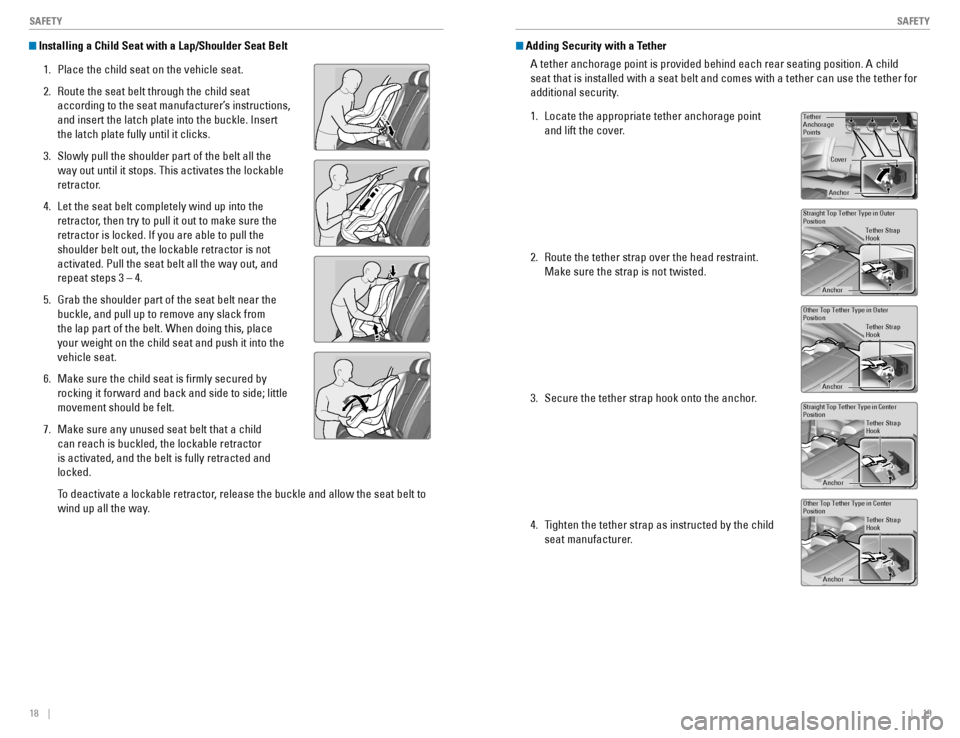

Installing a Child Seat with a Lap/Shoulder Seat Belt
1. Place the child seat on the vehicle seat.
2. Route the seat belt through the child seat
according to the seat manufacturer’s instructions, and insert the latch plate into the buckle. Insert the latch plate fully until it clicks.
3. Slowly pull the shoulder part of the belt all the way out until it stops. This activates the lockable
retractor.
4. Let the seat belt completely wind up into the retractor, then try to pull it out to make sure the retractor is locked. If you are able to pull the shoulder belt out, the lockable retractor is not activated. Pull the seat belt all the way out, and repeat steps 3 – 4.
5. Grab the shoulder part of the seat belt near the buckle, and pull up to remove any slack from the lap part of the belt. When doing this, place your weight on the child seat and push it into the vehicle seat.
6. Make sure the child seat is rmly secured by rocking it forward and back and side to side; little movement should be felt.
7. Make sure any unused seat belt that a child can reach is buckled, the lockable retractor is activated, and the belt is fully retracted and locked.
To deactivate a lockable retractor, release the buckle and allow the seat belt to wind up all the way.
Adding Security with a Tether
A tether anchorage point is provided behind each rear seating position. A child
seat that is installed with a seat belt and comes with a tether can use the tether for
additional security.
1. Locate the appropriate tether anchorage point and lift the cover.
2. Route the tether strap over the head restraint. Make sure the strap is not twisted.
3. Secure the tether strap hook onto the anchor.
4. Tighten the tether strap as instructed by the child seat manufacturer.
Tether
Points
Anchorage
Cove
r
Anchor
Tether Strap Hook
Anchor
Straight Top Tether Type in Outer
Position
Tether Strap Hook
Anchor
Other Top Tether Type in Outer
Position
Tether Strap Hook
Anchor
Straight Top Tether Type in Center
Position
Tether Strap Hook
Anchor
Other Top Tether Type in Center Position
Page 14 of 82
20 || 21
SAFETY
SAFETY

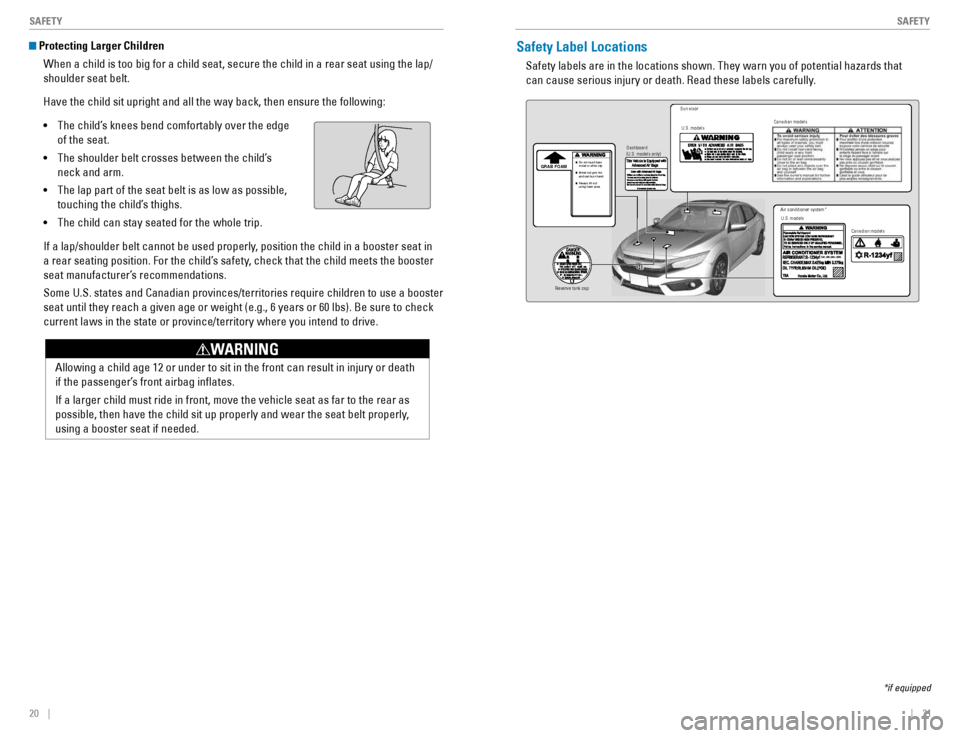

Protecting Larger Children
When a child is too big for a child seat, secure the child in a rear seat using the lap/
shoulder seat belt. Have the child sit upright and all the way back, then ensure the following:• The child’s knees bend comfortably over the edge
of the seat.
• The shoulder belt crosses between the child’s
neck and arm.
• The lap part of the seat belt is as low as possible,
touching the child’s thighs.
• The child can stay seated for the whole trip.
If a lap/shoulder belt cannot be used properly, position the child in a booster seat in
a rear seating position. For the child’s safety, check that the child meets the booster
seat manufacturer’s recommendations.
Some U.S. states and Canadian provinces/territories require children to use a booster
seat until they reach a given age or weight (e.g., 6 years or 60 lbs). Be sure to check current laws in the state or province/territory where you intend to drive.
Safety Label Locations
Safety labels are in the locations shown. They warn you of potential hazards that
can cause serious injury or death. Read these labels carefully.
(SAE J639 J2842 J2845)
Reserve tank cap U.S. models
(U.S. models only)
Dashboard
Canadian models
Air conditioner system
*
Sun visor
U.S. models Canadian models
Do not touch bare
metal or white clip.
Metal rod gets hot and can burn hand. Always lift rod using foam area.GRAB FOAM
Allowing a child age 12 or under to sit in the front can result in injury or death
if the passenger’s front airbag in ates.
If a larger child must ride in front, move the vehicle seat as far to the rear as
possible, then have the child sit up properly and wear the seat belt properly, using a booster seat if needed.
WARNING
*if equipped
Page 15 of 82
22 || 23
INSTRUMENT PANEL
SAFETY

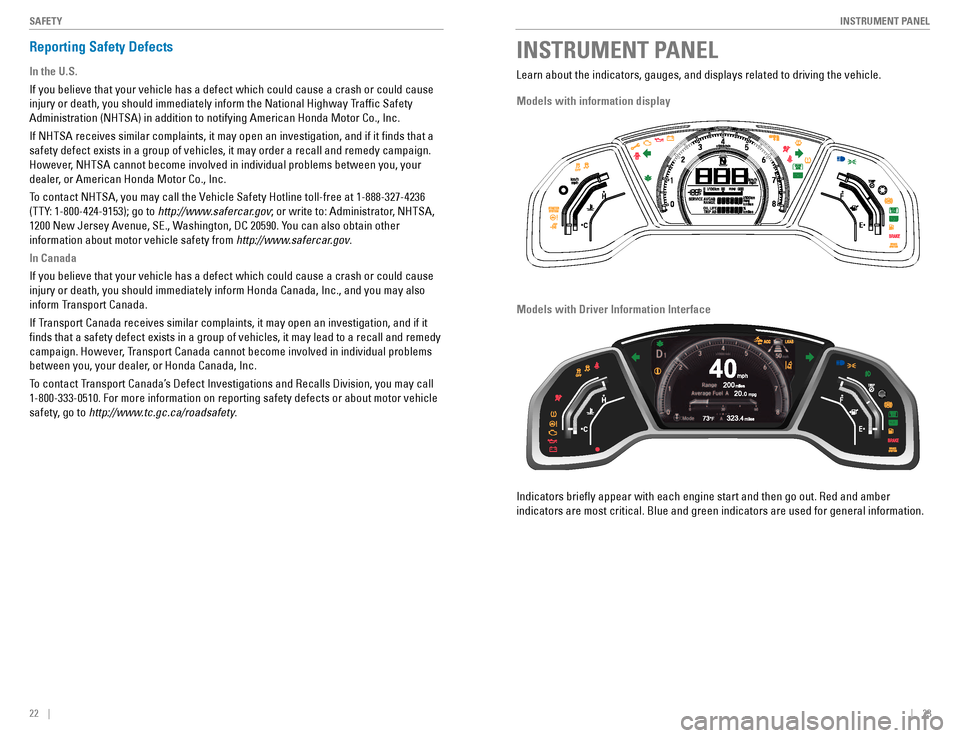

INSTRUMENT PANELReporting Safety Defects
In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause
injury or death, you should immediately inform the National Highway Traf c Safety Administration (NHTSA) in addition to notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an investigation, and if it nds that a
safety defect exists in a group of vehicles, it may order a recall and remedy campaign.
However, NHTSA cannot become involved in individual problems between you, your
dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236
(TTY: 1-800-424-9153); go to http://www.safercar.gov; or write to: Administrator, NHTSA,
1200 New Jersey Avenue, SE., Washington, DC 20590. You can also obtain other information about motor vehicle safety from http://www.safercar.gov.
In Canada
If you believe that your vehicle has a defect which could cause a crash or could cause
injury or death, you should immediately inform Honda Canada, Inc., and you may also
inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if it
nds that a safety defect exists in a group of vehicles, it may lead to a recall and remedy
campaign. However, Transport Canada cannot become involved in individual problems
between you, your dealer, or Honda Canada, Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call
1-800-333-0510. For more information on reporting safety defects or about motor vehicle
safety, go to http://www.tc.gc.ca/roadsafety . Learn about the indicators, gauges, and displays related to driving the vehicle.
Models with information display
Indicators brie y appear with each engine start and then go out. Red and amber indicators are most critical. Blue and green indicators are used for general information.
Models with Driver Information Interface
200
323.41234Menu40 80
Page 16 of 82
24 || 25
INSTRUMENT PANEL
INSTRUMENT PANEL
Electric Power Steering (EPS) There is a problem with the system. Have your vehicle checked by a dealer.
Malfunction indicator lamp (check engine light)
The emissions control system may have a problem. If the indicator blinks,
a mis re in the engine’s cylinders is detected. Stop in a safe place, and wait
for the engine to cool down. Have your vehicle checked by a dealer. Anti-lock Brake System (ABS)
There is a problem with the system. Your vehicle still has normal braking
ability, but no anti-lock function. Have your vehicle checked by a dealer.
Tire Pressure Monitoring System (TPMS) (U.S. models)
If the indicator blinks and remains on, there is a problem with the tire
pressure monitoring system, or the vehicle is tted with the compact spare tire. If the vehicle battery was disconnected, the system is temporarily deactivated. Drive a short distance at 12 mph (20 km/h) or more, and the indicator should go off. If the indicator remains on, have your vehicle
checked by a dealer.
Vehicle Stability Assist (VSA)
There is a problem with the VSA system or hill start assist system. If the
vehicle battery was disconnected, the system is temporarily deactivated. Drive a short distance at 12 mph (20 km/h) or more, and the indicator should
go off. If the indicator remains on, have your vehicle checked by a dealer.
Vehicle Stability Assist (VSA) OFF If the vehicle battery was disconnected, the system is temporarily deactivated. Drive a short distance at 12 mph (20 km/h) or more, and the indicator should go off. If the indicator remains on, have your vehicle
checked by a dealer. Collision Mitigation Braking System (CMBS)* There is a problem with the system, the temperature is too high, or the
camera is blocked. If the indicator remains on, have your vehicle checked
by a dealer. Brake system There is a problem with one of the braking systems, the electric parking brake system, or the automatic brake hold system. Have your vehicle
checked by a dealer.
SYSTEMU.S.
Canada
*if equipped

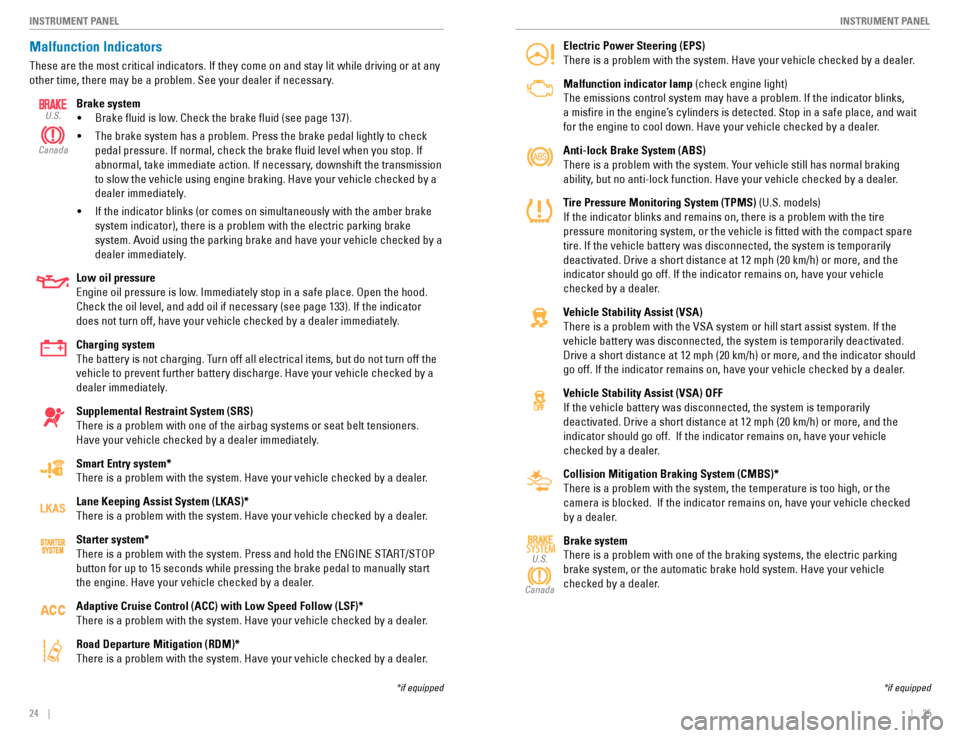

Malfunction Indicators
These are the most critical indicators. If they come on and stay lit while driving or at any
other time, there may be a problem. See your dealer if necessary. Brake system• Brake uid is low. Check the brake uid (see page 137).
• The brake system has a problem. Press the brake pedal lightly to check
pedal pressure. If normal, check the brake uid level when you stop. If
abnormal, take immediate action. If necessary, downshift the transmission
to slow the vehicle using engine braking. Have your vehicle checked by a
dealer immediately.
• If the indicator blinks (or comes on simultaneously with the amber brake
system indicator), there is a problem with the electric parking brake
system. Avoid using the parking brake and have your vehicle checked by a
dealer immediately.
Low oil pressure
Engine oil pressure is low. Immediately stop in a safe place. Open the hood.
Check the oil level, and add oil if necessary (see page 133). If the indicator
does not turn off, have your vehicle checked by a dealer immediately. Charging system
The battery is not charging. Turn off all electrical items, but do not turn off the vehicle to prevent further battery discharge. Have your vehicle checked by a
dealer immediately. Supplemental Restraint System (SRS)
There is a problem with one of the airbag systems or seat belt tensioners.
Have your vehicle checked by a dealer immediately. Smart Entry system*
There is a problem with the system. Have your vehicle checked by a dealer. Lane Keeping Assist System (LKAS)*
There is a problem with the system. Have your vehicle checked by a dealer. Starter system*
There is a problem with the system. Press and hold the ENGINE START/STOP
button for up to 15 seconds while pressing the brake pedal to manually start
the engine. Have your vehicle checked by a dealer. Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)*
There is a problem with the system. Have your vehicle checked by a dealer. Road Departure Mitigation (RDM)*
There is a problem with the system. Have your vehicle checked by a dealer.
U.S.
Canada
*if equipped
Page 17 of 82
26 || 27

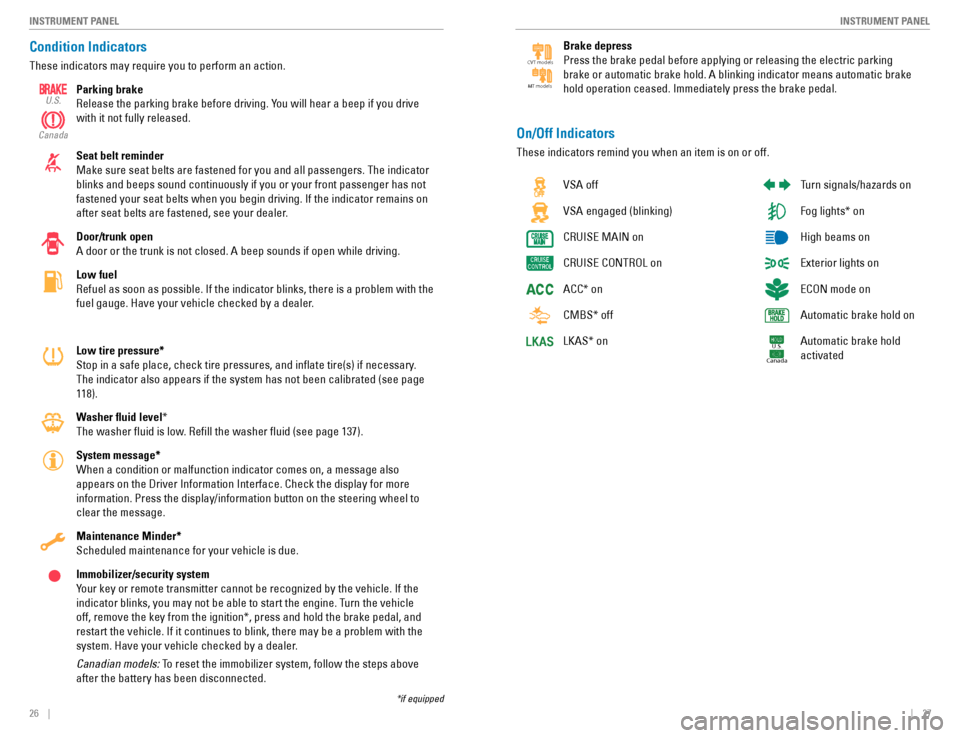

INSTRUMENT PANEL
INSTRUMENT PANEL
Condition Indicators
These indicators may require you to perform an action.
Parking brake
Release the parking brake before driving. You will hear a beep if you drive with it not fully released. Seat belt reminder Make sure seat belts are fastened for you and all passengers. The indicator
blinks and beeps sound continuously if you or your front passenger has not
fastened your seat belts when you begin driving. If the indicator remains on
after seat belts are fastened, see your dealer. Door/trunk open A door or the trunk is not closed. A beep sounds if open while driving. Low fuel
Refuel as soon as possible. If the indicator blinks, there is a problem with the
fuel gauge. Have your vehicle checked by a dealer. Low tire pressure*
Stop in a safe place, check tire pressures, and in ate tire(s) if necessary. The indicator also appears if the system has not been calibrated (see page 118).
Washer uid level *
The washer uid is low. Re ll the washer uid (see page 137).System message* When a condition or malfunction indicator comes on, a message also appears on the Driver Information Interface. Check the display for more information. Press the display/information button on the steering wheel to clear the message. Maintenance Minder* Scheduled maintenance for your vehicle is due. Immobilizer/security system
Your key or remote transmitter cannot be recognized by the vehicle. If the
indicator blinks, you may not be able to start the engine. Turn the vehicle off, remove the key from the ignition*, press and hold the brake pedal, and restart the vehicle. If it continues to blink, there may be a problem with the
system. Have your vehicle checked by a dealer. Canadian models: To reset the immobilizer system, follow the steps above
after the battery has been disconnected.
U.S.
Canada
*if equipped VSA off VSA engaged (blinking)CRUISE MAIN onCRUISE CONTROL onACC* onCMBS* offLKAS* on
Turn signals/hazards on Fog lights* onHigh beams onExterior lights onECON mode onAutomatic brake hold onAutomatic brake hold activated
U.S.
Canada
On/Off Indicators
These indicators remind you when an item is on or off.
Brake depress Press the brake pedal before applying or releasing the electric parking
brake or automatic brake hold. A blinking indicator means automatic brake hold operation ceased. Immediately press the brake pedal.
CV
T models
MT models
Page 18 of 82
28 || 29
INSTRUMENT PANEL
INSTRUMENT PANEL

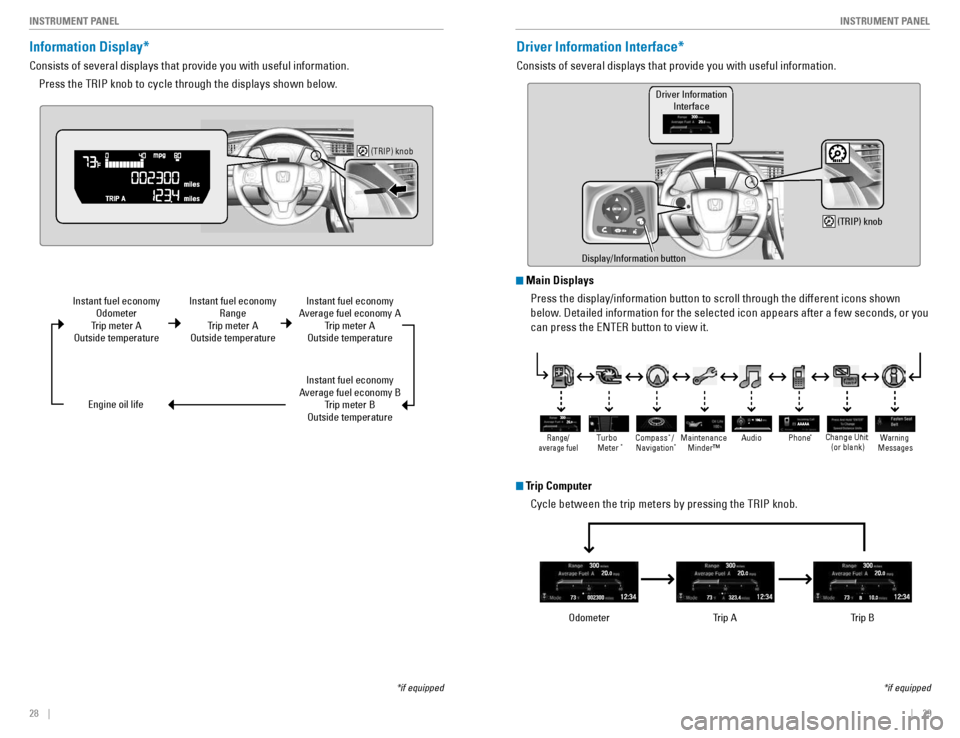

Information Display*
Consists of several displays that provide you with useful information.
Press the TRIP knob to cycle through the displays shown below.
(TRIP) knob
Instant fuel economy Odometer
Trip meter A
Outside temperature
Engine oil life
*if equipped
Instant fuel economy Range
Trip meter A
Outside temperature Instant fuel economy
Average fuel economy A Trip meter A
Outside temperature
Instant fuel economy
Average fuel economy B Trip meter B
Outside temperature
Driver Information Interface*
Consists of several displays that provide you with useful information.
*if equipped
Display/Information button
(TRIP) knob
Driver InformationInterface
Odometer Trip A Trip B
Main Displays
Press the display/information button to scroll through the different icons shown
below. Detailed information for the selected icon appears after a few seconds, or you can press the ENTER button to view it.
Trip Computer
Cycle between the trip meters by pressing the TRIP knob.
AAAAA
Warning
Message sChange Unit
(or blank)
Maintenance
Minder™ Phon
e *
Turbo
Meter * Audio
*
Compass / *
Navigation *Range/
average fuel
Page 19 of 82
30 || 31
VEHICLE CONTROLS
INSTRUMENT PANEL

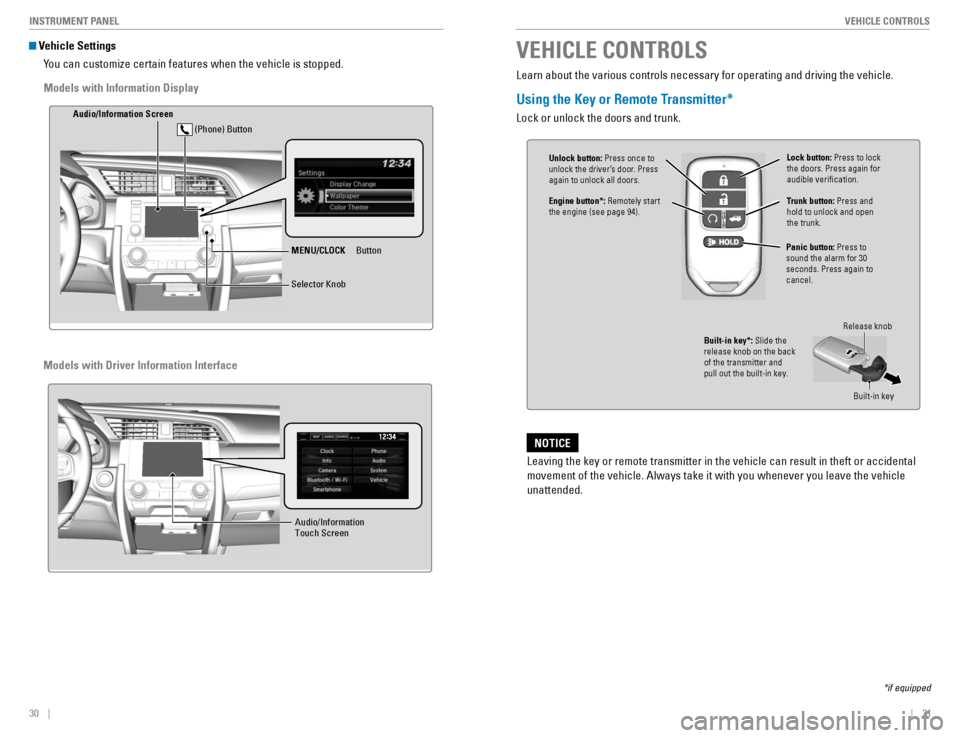

Vehicle Settings
You can customize certain features when the vehicle is stopped.
MENU/CLOCK Button
Audio/Info
rmation Screen
Selector Knob
(Phone) Button
Audio/Information Touch Screen
VEHICLE CONTROLS
*if equipped
Learn about the various controls necessary for operating and driving the vehicle.
Using the Key or Remote Transmitter*
Lock or unlock the doors and trunk.
Unlock button:
Press once to
unlock the driver’s door. Press again to unlock all doors.
Trunk button: Press and
hold to unlock and open the trunk.
Lock button: Press to lock
the doors. Press again for audible veri cation.
Panic button: Press to
sound the alarm for 30 seconds. Press again to cancel.
Built-in key*: Slide the
release knob on the back of the transmitter and
pull out the built-in key.
Release knob
Built-in key
Leaving the key or remote transmitter in the vehicle can result in theft or accidental
movement of the vehicle. Always take it with you whenever you leave the vehicle unattended.
NOTICE
Engine button*: Remotely start
the engine (see page 94).
Models with Information Display
Models with Driver Information Interface
Page 20 of 82
32 || 33
VEHICLE CONTROLS
VEHICLE CONTROLS

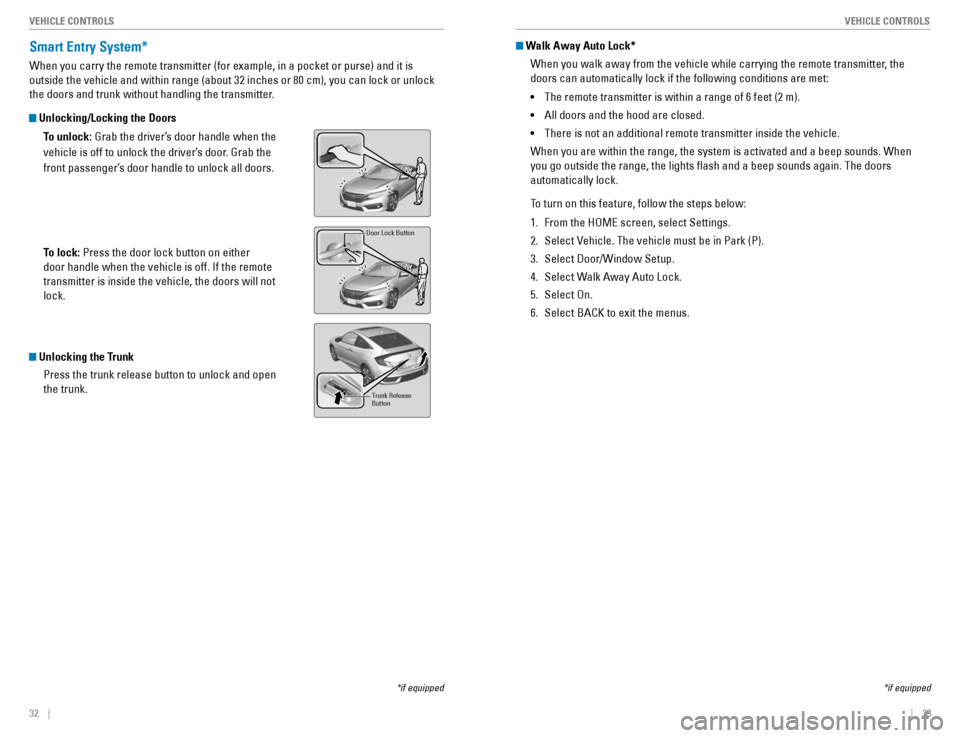

Smart Entry System*
When you carry the remote transmitter (for example, in a pocket or purse) and it is
outside the vehicle and within range (about 32 inches or 80 cm), you can lock or unlock
the doors and trunk without handling the transmitter.
Unlocking/Locking the Doors
To unlock: Grab the driver’s door handle when the
vehicle is off to unlock the driver’s door. Grab the
front passenger’s door handle to unlock all doors.
To lock: Press the door lock button on either
door handle when the vehicle is off. If the remote transmitter is inside the vehicle, the doors will not lock.
Unlocking the Trunk
Press the trunk release button to unlock and open the trunk.
*if equipped
Door Lock Button
ButtonTrunk Release
Walk Away Auto Lock*
When you walk away from the vehicle while carrying the remote transmitter, the doors can automatically lock if the following conditions are met: • The remote transmitter is within a range of 6 feet (2 m).
• All doors and the hood are closed.
• There is not an additional remote transmitter inside the vehicle.
When you are within the range, the system is activated and a beep sounds. When you go outside the range, the lights ash and a beep sounds again. The doors automatically lock.
To turn on this feature, follow the steps below:
1. From the HOME screen, select Settings.
2. Select Vehicle. The vehicle must be in Park (P).
3. Select Door/Window Setup.
4. Select Walk Away Auto Lock.
5. Select On.
6. Select BACK to exit the menus.
*if equipped
