HONDA CIVIC COUPE 2016 10.G Quick Guide

74 || 75

BLUETOOTH ®
HANDSFREELINK ®
BLUETOOTH ®
HANDSFREELINK ®
Models with color audio system

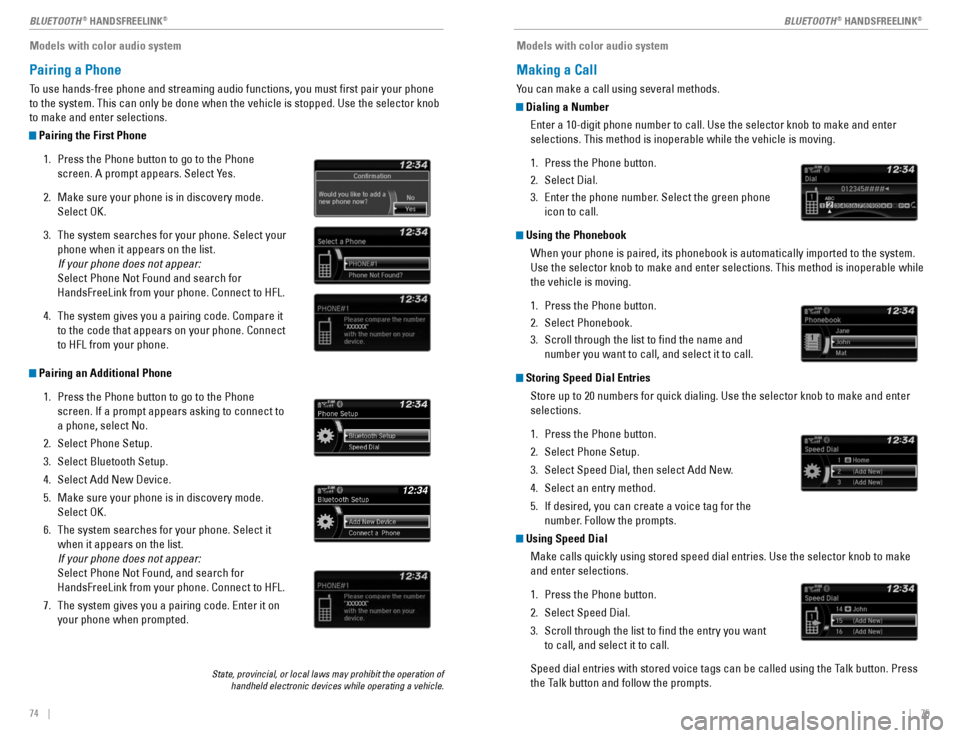

Pairing a Phone
To use hands-free phone and streaming audio functions, you must rst pair your phone
to the system. This can only be done when the vehicle is stopped. Use the selector knob to make and enter selections.
Pairing the First Phone
1. Press the Phone button to go to the Phone
screen. A prompt appears. Select Yes.
2. Make sure your phone is in discovery mode. Select OK.
3. The system searches for your phone. Select your phone when it appears on the list. If your phone does not appear:
Select Phone Not Found and search for HandsFreeLink from your phone. Connect to HFL.
4. The system gives you a pairing code. Compare it to the code that appears on your phone. Connect to HFL from your phone.
Pairing an Additional Phone
1. Press the Phone button to go to the Phone screen. If a prompt appears asking to connect to a phone, select No.
2. Select Phone Setup.
3. Select Bluetooth Setup.
4. Select Add New Device.
5. Make sure your phone is in discovery mode. Select OK.
6. The system searches for your phone. Select it when it appears on the list. If your phone does not appear: Select Phone Not Found, and search for HandsFreeLink from your phone. Connect to HFL.
7. The system gives you a pairing code. Enter it on your phone when prompted.
State, provincial, or local laws may prohibit the operation of handheld electronic devices while operating a vehicle.
12:34
Models with color audio system
Making a Call
You can make a call using several methods.
Dialing a Number
Enter a 10-digit phone number to call. Use the selector knob to make and enter selections. This method is inoperable while the vehicle is moving.
1. Press the Phone button.
2. Select Dial.
3. Enter the phone number. Select the green phone
icon to call.
Using the Phonebook
When your phone is paired, its phonebook is automatically imported to the system.
Use the selector knob to make and enter selections. This method is inoperable while the vehicle is moving.
1. Press the Phone button.
2. Select Phonebook.
3. Scroll through the list to nd the name and number you want to call, and select it to call.
Storing Speed Dial Entries
Store up to 20 numbers for quick dialing. Use the selector knob to make and enter selections.
1. Press the Phone button.
2. Select Phone Setup.
3. Select Speed Dial, then select Add New.
4. Select an entry method.
5. If desired, you can create a voice tag for the number. Follow the prompts.
Using Speed Dial
Make calls quickly using stored speed dial entries. Use the selector knob to make and enter selections.
1. Press the Phone button.
2. Select Speed Dial.
3. Scroll through the list to nd the entry you want to call, and select it to call.
Speed dial entries with stored voice tags can be called using the Talk button. Press
the Talk button and follow the prompts.

76 || 77

BLUETOOTH ®
HANDSFREELINK ®
BLUETOOTH ®
HANDSFREELINK ®
Models with Display Audio

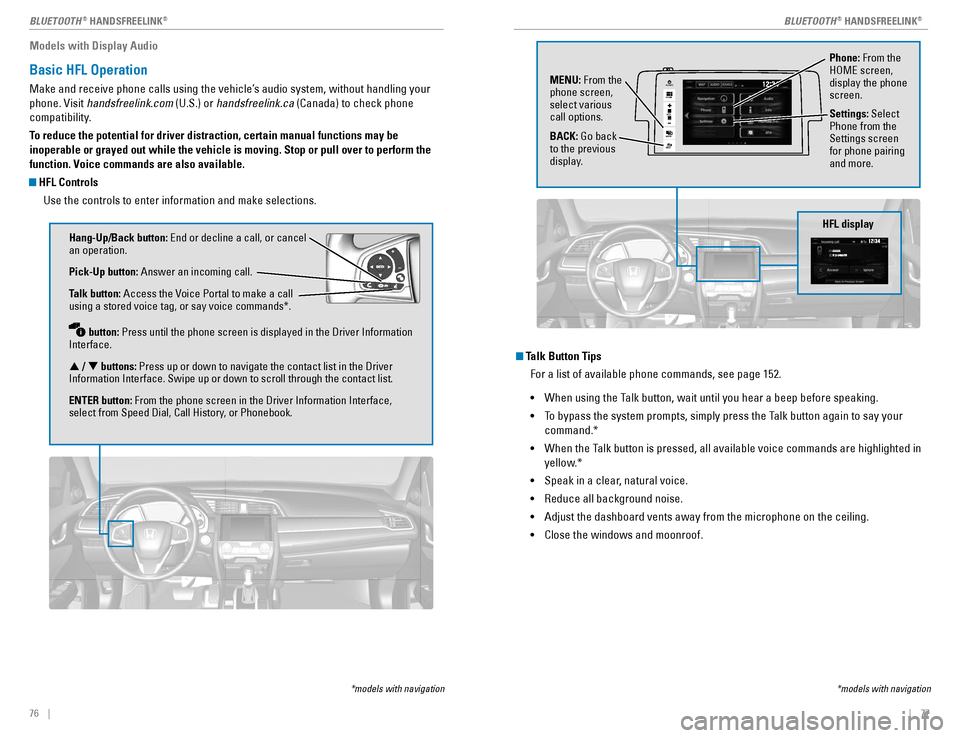

Basic HFL Operation
Make and receive phone calls using the vehicle’s audio system, without handling your phone. Visit
handsfreelink.com (U.S.) or handsfreelink.ca (Canada) to check phone
compatibility.
To reduce the potential for driver distraction, certain manual functions may be inoperable or grayed out while the vehicle is moving. Stop or pull over to perform the
function. Voice commands are also available.
HFL Controls
Use the controls to enter information and make selections.
Hang-Up/Back button: End or decline a call, or cancel
an operation. Pick-Up button: Answer an incoming call.
Talk button: Access the Voice Portal to make a call
using a stored voice tag, or say voice commands*. button: Press until the phone screen is displayed in the Driver Information
Interface. p / q buttons: Press up or down to navigate the contact list in the Driver
Information Interface. Swipe up or down to scroll through the contact list.ENTER button: From the phone screen in the Driver Information Interface,
select from Speed Dial, Call History, or Phonebook.
*models with navigation
Talk Button Tips
For a list of available phone commands, see page 152. •  When using the Talk button, wait until you hear a beep before speaking.
•  To bypass the system prompts, simply press the Talk button again to say your
command.*
•  When the Talk button is pressed, all available voice commands are highlighted in
yellow.*
•  Speak in a clear, natural voice.
•  Reduce all background noise.
•  Adjust the dashboard vents away from the microphone on the ceiling.
•  Close the windows and moonroof.
Phone: From the
HOME screen, display the phone screen.
MENU:
From the
phone screen, select various call options. BACK: Go back
to the previous
display. Settings:
Select
Phone from the Settings screen for phone pairing and more.
*models with navigation
HFL display
VO L
HOME
MENU
BA CK
AUDIO

78 || 79

BLUETOOTH ®
HANDSFREELINK ®
BLUETOOTH ®
HANDSFREELINK ®
Models with Display Audio

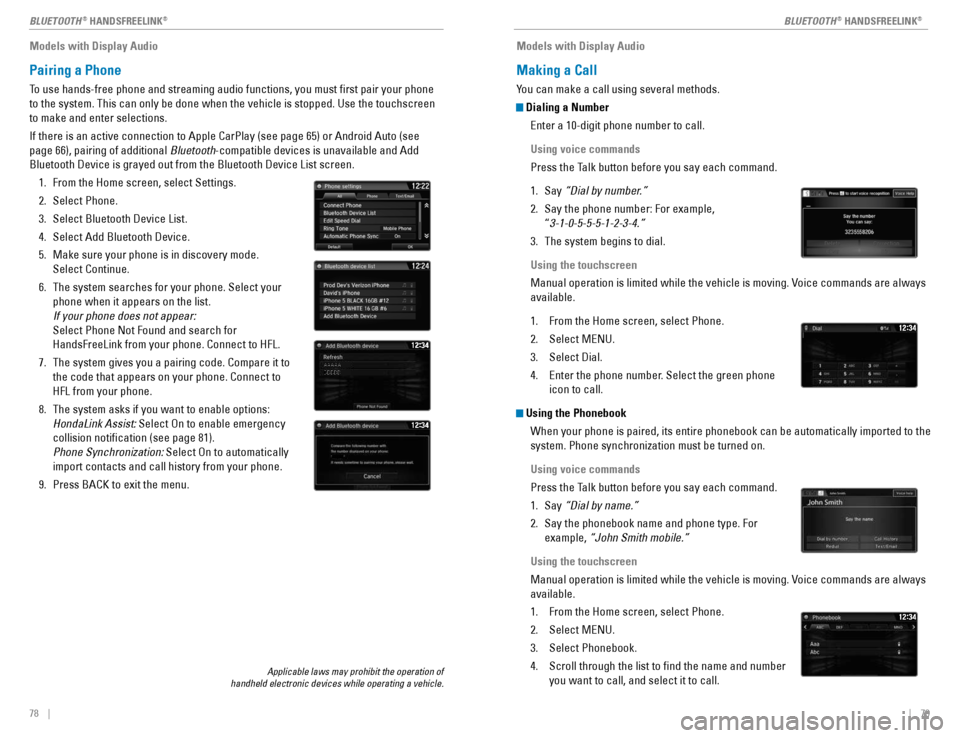

Pairing a Phone
To use hands-free phone and streaming audio functions, you must rst pair your phone
to the system. This can only be done when the vehicle is stopped. Use the touchscreen to make and enter selections.
If there is an active connection to Apple CarPlay (see page 65) or Android Auto (see page 66), pairing of additional
Bluetooth-compatible devices is unavailable and Add
Bluetooth Device is grayed out from the Bluetooth Device List screen.
1. From the Home screen, select Settings.
2. Select Phone.
3. Select Bluetooth Device List.
4. Select Add Bluetooth Device.
5. Make sure your phone is in discovery mode. Select Continue.
6. The system searches for your phone. Select your phone when it appears on the list. If your phone does not appear: Select Phone Not Found and search for HandsFreeLink from your phone. Connect to HFL.
7. The system gives you a pairing code. Compare it to the code that appears on your phone. Connect to HFL from your phone.
8. The system asks if you want to enable options: HondaLink Assist:  Select On to enable emergency
collision notication (see page 81). Phone Synchronization: Select On to automatically
import contacts and call history from your phone.
9. Press BACK to exit the menu.
Models with Display Audio
Making a Call
You can make a call using several methods.
Dialing a Number
Enter a 10-digit phone number to call.
Using voice commands
Press the Talk button before you say each command.
1. Say “Dial by number.”
2. Say the phone number: For example, “3-1-0-5-5-5-1-2-3-4.”
3. The system begins to dial.
Using the touchscreen
Manual operation is limited while the vehicle is moving. Voice commands are always available.
1. From the Home screen, select Phone.
2. Select MENU.
3. Select Dial.
4. Enter the phone number. Select the green phone icon to call.
Using the Phonebook
When your phone is paired, its entire phonebook can be automatically imported to the system. Phone synchronization must be turned on.
Using voice commands
Press the Talk button before you say each command.
1. Say “Dial by name.”
2. Say the phonebook name and phone type. For example, “John Smith mobile.”
Using the touchscreen
Manual operation is limited while the vehicle is moving. Voice commands are always available.
1. From the Home screen, select Phone.
2. Select MENU.
3. Select Phonebook.
4. Scroll through the list to nd the name and number
you want to call, and select it to call.
Applicable laws may prohibit the operation of 
handheld electronic devices while operating a vehicle.

80 || 81

BLUETOOTH ®
HANDSFREELINK ®
BLUETOOTH ®
HANDSFREELINK ®

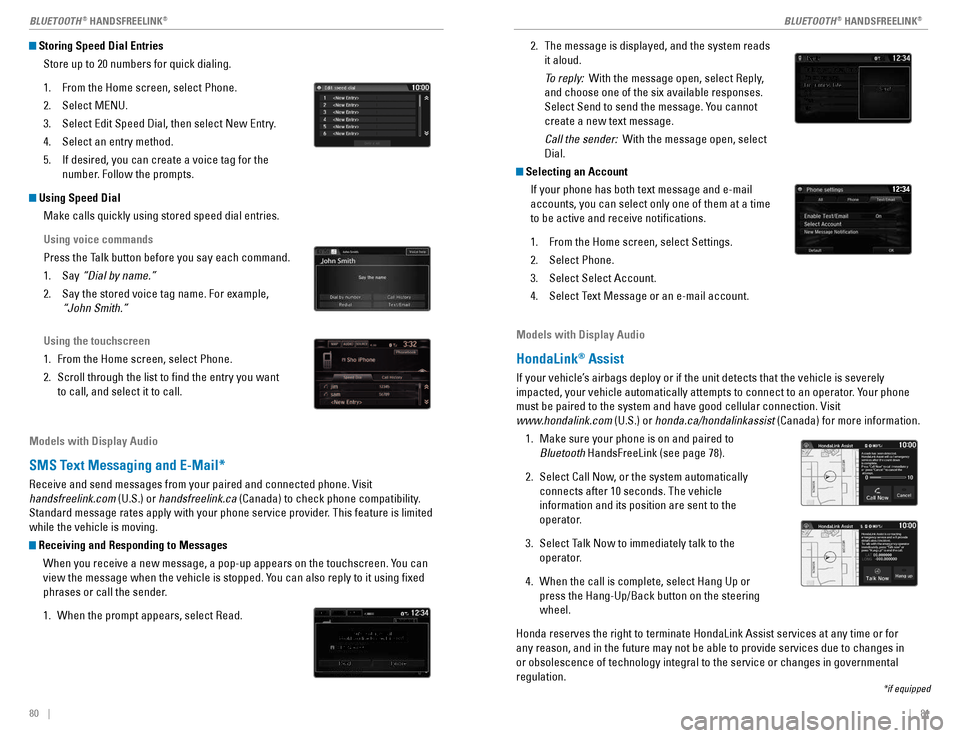

2. The message is displayed, and the system reads
it aloud.
To reply: With the message open, select Reply,
and choose one of the six available responses.
Select Send to send the message. You cannot create a new text message.
Call the sender: With the message open, select
Dial.
Selecting an Account
If your phone has both text message and e-mail accounts, you can select only one of them at a time to be active and receive notications.
1. From the Home screen, select Settings.
2. Select Phone.
3. Select Select Account.
4. Select Text Message or an e-mail account.
Storing Speed Dial Entries
Store up to 20 numbers for quick dialing.
1. From the Home screen, select Phone.
2. Select MENU.
3. Select Edit Speed Dial, then select New Entry.
4. Select an entry method.
5. If desired, you can create a voice tag for the number. Follow the prompts.
Using Speed Dial
Make calls quickly using stored speed dial entries.
Using voice commands
Press the Talk button before you say each command.
1. Say “Dial by name.”
2. Say the stored voice tag name. For example, “John Smith.”
Using the touchscreen
1. From the Home screen, select Phone.
2. Scroll through the list to nd the entry you want
to call, and select it to call.
Models with Display Audio
HondaLink ®
Assist
If your vehicle’s airbags deploy or if the unit detects that the vehicle is severely
impacted, your vehicle automatically attempts to connect to an operator. Your phone must be paired to the system and have good cellular connection. Visit
www.hondalink.com (U.S.) or honda.ca/hondalinkassist (Canada) for more information.
1. Make sure your phone is on and paired to Bluetooth HandsFreeLink (see page 78).
2. Select Call Now, or the system automatically connects after 10 seconds. The vehicle information and its position are sent to the
operator.
3. Select Talk Now to immediately talk to the operator.
4. When the call is complete, select Hang Up or press the Hang-Up/Back button on the steering wheel.
Honda reserves the right to terminate HondaLink Assist services at any time or for any reason, and in the future may not be able to provide services due to changes in or obsolescence of technology integral to the service or changes in governmental regulation.
Models with Display Audio
SMS Text Messaging and E-Mail*
Receive and send messages from your paired and connected phone. Visit handsfreelink.com (U.S.) or handsfreelink.ca (Canada) to check phone compatibility.
Standard message rates apply with your phone service provider. This feature is limited while the vehicle is moving.
Receiving and Responding to Messages
When you receive a new message, a pop-up appears on the touchscreen. You can
view the message when the vehicle is stopped. You can also reply to it using xed
phrases or call the sender.
1. When the prompt appears, select Read.
*if equipped

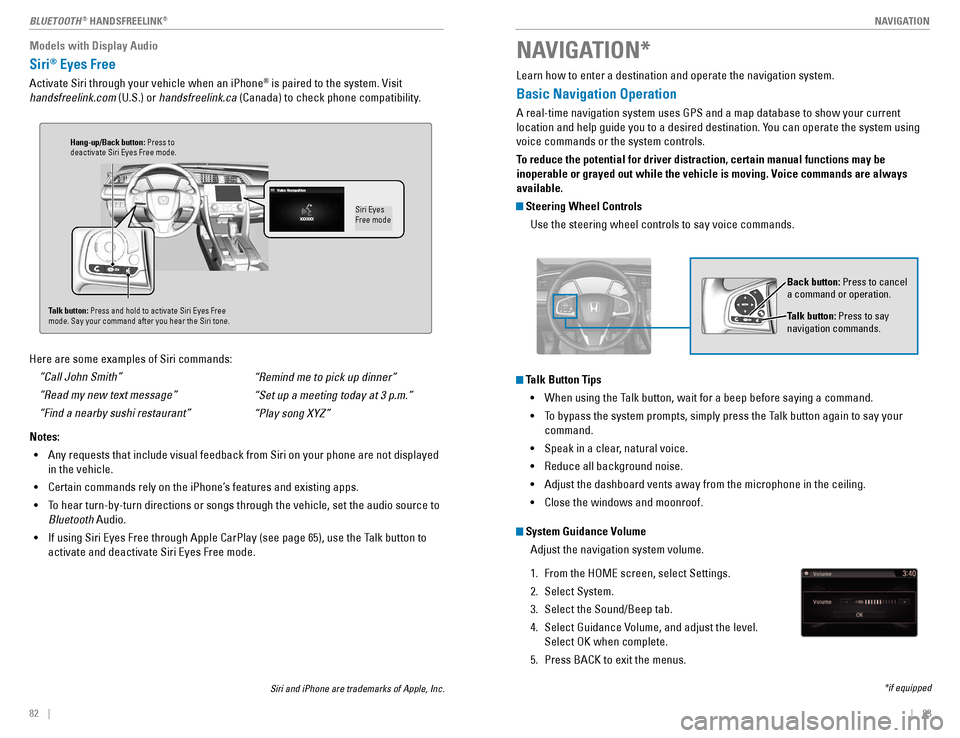

| 83
NAVIGATION82 |
BLUETOOTH
®
HANDSFREELINK ®
Models with Display Audio
Siri®
Eyes Free
Activate Siri through your vehicle when an iPhone ®
is paired to the system. Visit
handsfreelink.com (U.S.) or handsfreelink.ca (Canada) to check phone compatibility.
Here are some examples of Siri commands: “Call John Smith” “Read my new text message”“Find a nearby sushi restaurant”
Notes: •  Any requests that include visual feedback from Siri on your phone are not displayed
in the vehicle.
•  Certain commands rely on the iPhone’s features and existing apps.
•  To hear turn-by-turn directions or songs through the vehicle, set the audio source to
Bluetooth Audio.
•  If using Siri Eyes Free through Apple CarPlay (see page 65), use the Talk button to
activate and deactivate Siri Eyes Free mode. “Remind me to pick up dinner”“Set up a meeting today at 3 p.m.”“Play song XYZ”
Siri Eyes Free mode
Talk button:
Press and hold to activate Siri Eyes Free
mode. Say your command after you hear the Siri tone.
Siri and iPhone are trademarks of Apple, Inc.
Hang-up/Back button: Press to
deactivate Siri Eyes Free mode. Learn how to enter a destination and operate the navigation system.
Basic Navigation Operation
A real-time navigation system uses GPS and a map database to show your current
location and help guide you to a desired destination. You can operate the system using voice commands or the system controls.
To reduce the potential for driver distraction, certain manual functions may be
inoperable or grayed out while the vehicle is moving. Voice commands are always available.
Steering Wheel Controls
Use the steering wheel controls to say voice commands.
Talk Button Tips
• 
When using the Talk button, wait for a beep before saying a command.
•  To bypass the system prompts, simply press the Talk button again to say your
command.
•  Speak in a clear, natural voice.
•  Reduce all background noise.
•  Adjust the dashboard vents away from the microphone in the ceiling.
•  Close the windows and moonroof.
Back button: Press to cancel
a command or operation.
Talk button: Press to say
navigation commands.
NAVIGATION*
*if equipped
System Guidance Volume
Adjust the navigation system volume.
1. From the HOME screen, select Settings.
2. Select System.
3. Select the Sound/Beep tab.
4. Select Guidance Volume, and adjust the level.
Select OK when complete.
5. Press BACK to exit the menus.

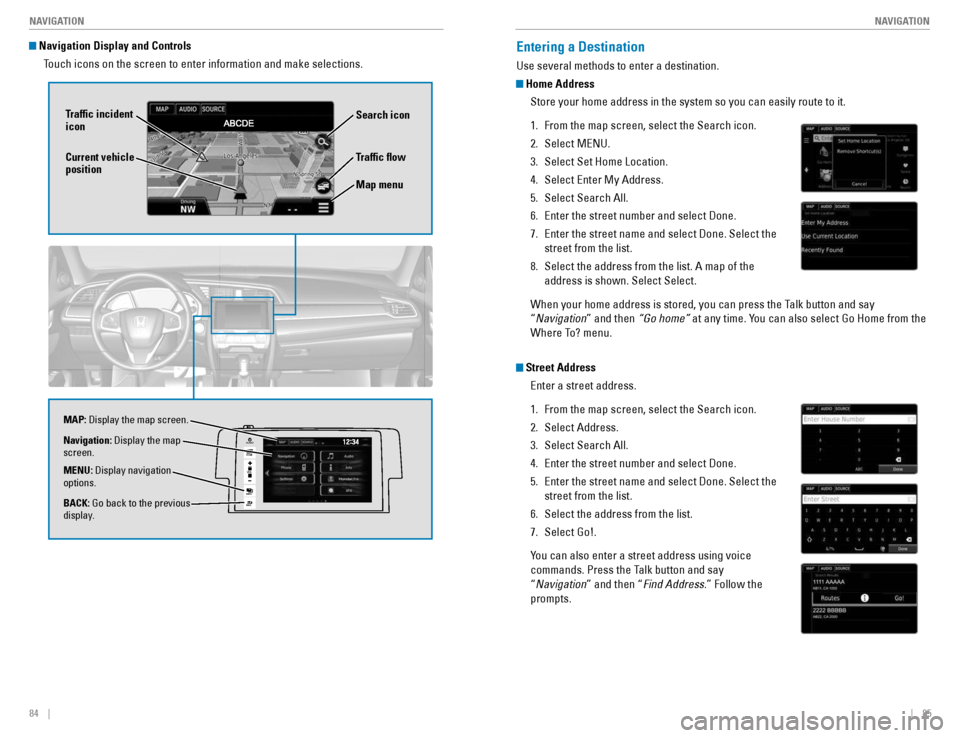

84 || 85
NAVIGATION
NAVIGATION
Navigation Display and Controls
Touch icons on the screen to enter information and make selections.
VO L
HOME
MENU
BA CK
AUDIO
Trafc ow
Current vehicle position
Trafc incident icon
Search icon Map menu
Navigation:
Display the map
screen. BACK: Go back to the previous
display.
MENU:
Display navigation
options.
MAP:
Display the map screen.
Entering a Destination
Use several methods to enter a destination.
Home Address
Store your home address in the system so you can easily route to it.
1. From the map screen, select the Search icon.
2. Select MENU.
3. Select Set Home Location.
4. Select Enter My Address.
5. Select Search All.
6. Enter the street number and select Done.
7. Enter the street name and select Done. Select the
street from the list.
8. Select the address from the list. A map of the address is shown. Select Select.
When your home address is stored, you can press the Talk button and say “ Navigation ” and then “Go home” at any time. You can also select Go Home from the
Where To? menu.
Street Address
Enter a street address.
1. From the map screen, select the Search icon.
2. Select Address.
3. Select Search All.
4. Enter the street number and select Done.
5. Enter the street name and select Done. Select the street from the list.
6. Select the address from the list.
7. Select Go!.
You can also enter a street address using voice
commands. Press the Talk button and say “ Navigation ” and then “ Find Address .” Follow the
prompts.

86 || 87
NAVIGATION
NAVIGATION

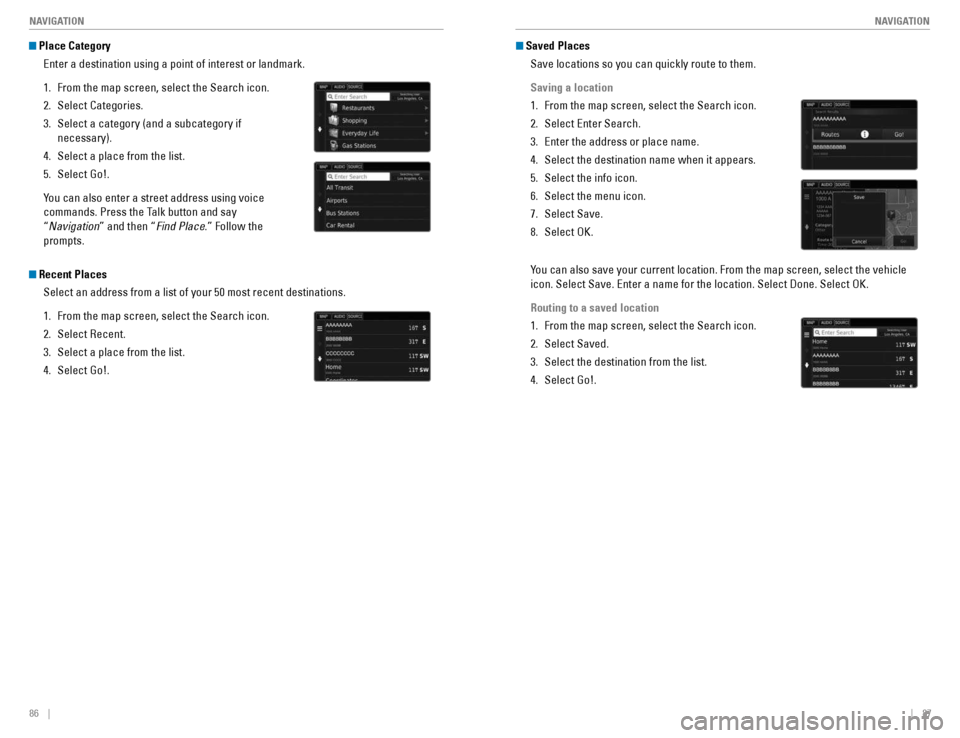

Place Category
Enter a destination using a point of interest or landmark.
1. From the map screen, select the Search icon.
2. Select Categories.
3. Select a category (and a subcategory if
necessary).
4. Select a place from the list.
5. Select Go!.
You can also enter a street address using voice
commands. Press the Talk button and say “ Navigation ” and then “ Find Place.” Follow the
prompts.
Recent Places
Select an address from a list of your 50 most recent destinations.
1. From the map screen, select the Search icon.
2. Select Recent.
3. Select a place from the list.
4. Select Go!.
Saved Places
Save locations so you can quickly route to them.
Saving a location
1. From the map screen, select the Search icon.
2. Select Enter Search.
3. Enter the address or place name.
4. Select the destination name when it appears.
5. Select the info icon.
6. Select the menu icon.
7. Select Save.
8. Select OK.
You can also save your current location. From the map screen, select the vehicle icon. Select Save. Enter a name for the location. Select Done. Select OK.
Routing to a saved location
1. From the map screen, select the Search icon.
2. Select Saved.
3. Select the destination from the list.
4. Select Go!.

88 || 89
NAVIGATION
NAVIGATION

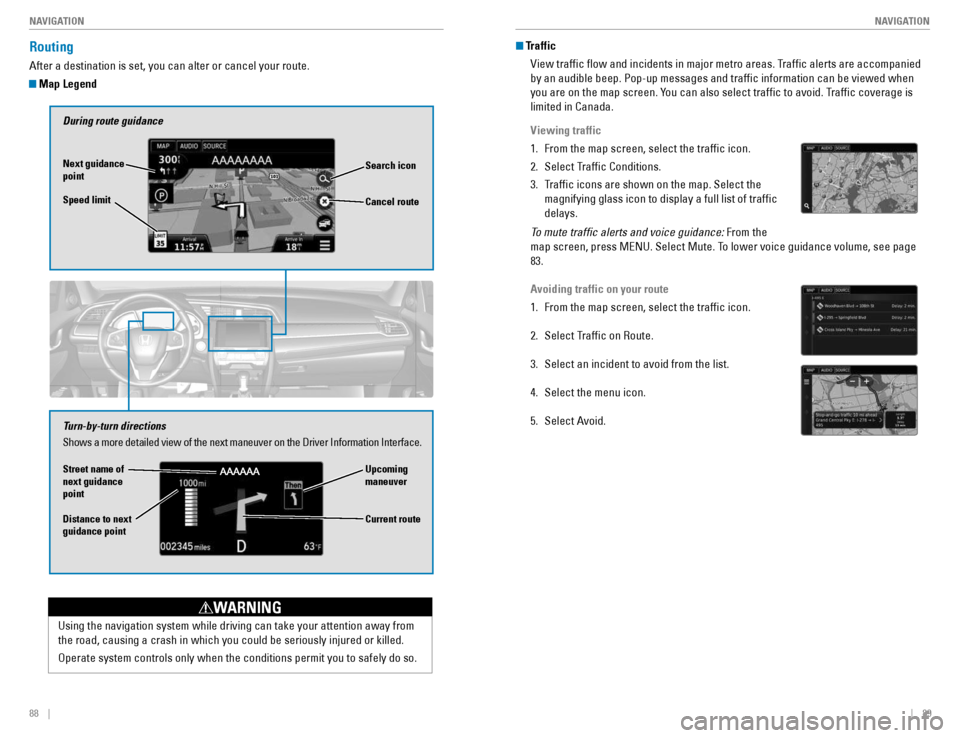

Routing
After a destination is set, you can alter or cancel your route.
Map Legend
During route guidance
Next guidance point Speed limit Search icon
Turn-by-turn directions Shows a more detailed view of the next maneuver on the Driver Information Interface.
Upcoming maneuver
Distance to next guidance point Current route
Cancel route
Using the navigation system while driving can take your attention away from
the road, causing a crash in which you could be seriously injured or killed.
Operate system controls only when the conditions permit you to safely do so.
WARNING
Street name of next guidance point
Traffic
View trafc ow and incidents in major metro areas. Trafc alerts are accompanied by an audible beep. Pop-up messages and trafc information can be viewed when
you are on the map screen. You can also select trafc to avoid. Trafc coverage is limited in Canada.
Viewing traffic
1. From the map screen, select the trafc icon.
2. Select Trafc Conditions.
3. Trafc icons are shown on the map. Select the magnifying glass icon to display a full list of trafc delays.
To mute trafic alerts and voice guidance: From the
map screen, press MENU. Select Mute. To lower voice guidance volume, see page 83.
Avoiding traffic on your route
1. From the map screen, select the trafc icon.
2. Select Trafc on Route.
3. Select an incident to avoid from the list.
4. Select the menu icon.
5. Select Avoid.

90 || 91
DRIVING
DRIVING

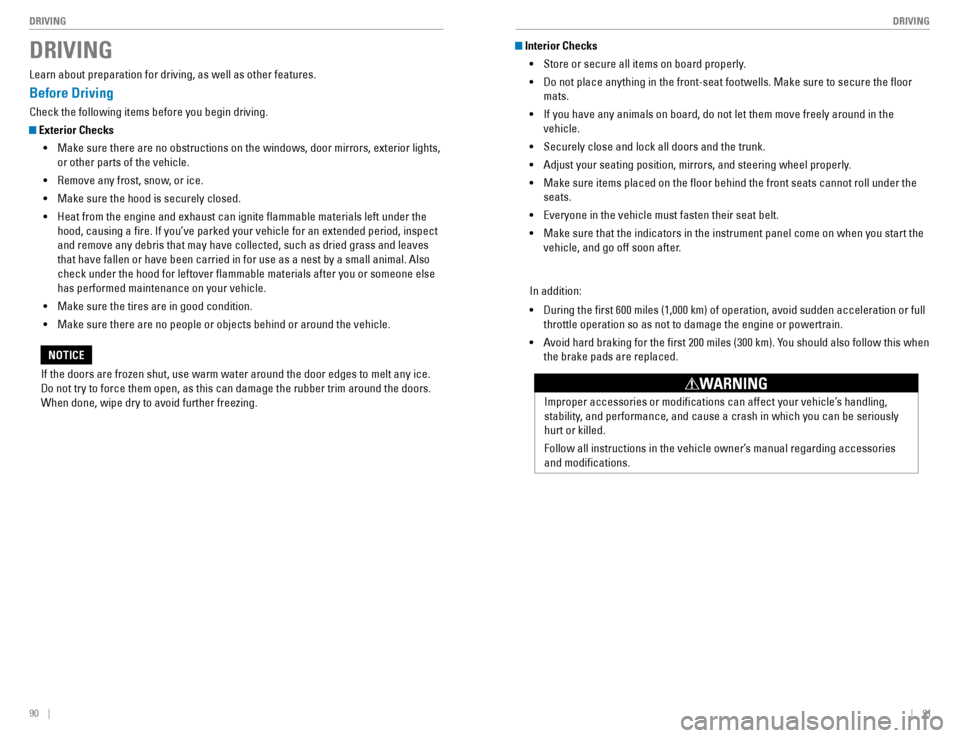

DRIVING
Learn about preparation for driving, as well as other features.
Before Driving
Check the following items before you begin driving.
Exterior Checks
•  Make sure there are no obstructions on the windows, door mirrors, exterior lights,
or other parts of the vehicle.
•  Remove any frost, snow, or ice.
•  Make sure the hood is securely closed.
•  Heat from the engine and exhaust can ignite ammable materials left under the
hood, causing a re. If you’ve parked your vehicle for an extended period, inspect and remove any debris that may have collected, such as dried grass and leaves
that have fallen or have been carried in for use as a nest by a small animal. Also
check under the hood for leftover ammable materials after you or someone else has performed maintenance on your vehicle.
•  Make sure the tires are in good condition.
•  Make sure there are no people or objects behind or around the vehicle.
If the doors are frozen shut, use warm water around the door edges to melt any ice. Do not try to force them open, as this can damage the rubber trim around the doors. When done, wipe dry to avoid further freezing.
NOTICE
In addition: •  During the rst 600 miles (1,000 km) of operation, avoid sudden acceleration or full
throttle operation so as not to damage the engine or powertrain.
•  Avoid hard braking for the rst 200 miles (300 km). You should also follow this when
the brake pads are replaced.
Improper accessories or modications can affect your vehicle’s handling,
stability, and performance, and cause a crash in which you can be seriously hurt or killed.
Follow all instructions in the vehicle owner’s manual regarding accessories and modications.
WARNING
Interior Checks
•  Store or secure all items on board properly.
•  Do not place anything in the front-seat footwells. Make sure to secure the oor
mats.
•  If you have any animals on board, do not let them move freely around in the
vehicle.
•  Securely close and lock all doors and the trunk.
•  Adjust your seating position, mirrors, and steering wheel properly.
•  Make sure items placed on the oor behind the front seats cannot roll under the
seats.
•  Everyone in the vehicle must fasten their seat belt.
•  Make sure that the indicators in the instrument panel come on when you start the
vehicle, and go off soon after.

92 || 93
DRIVING
DRIVING

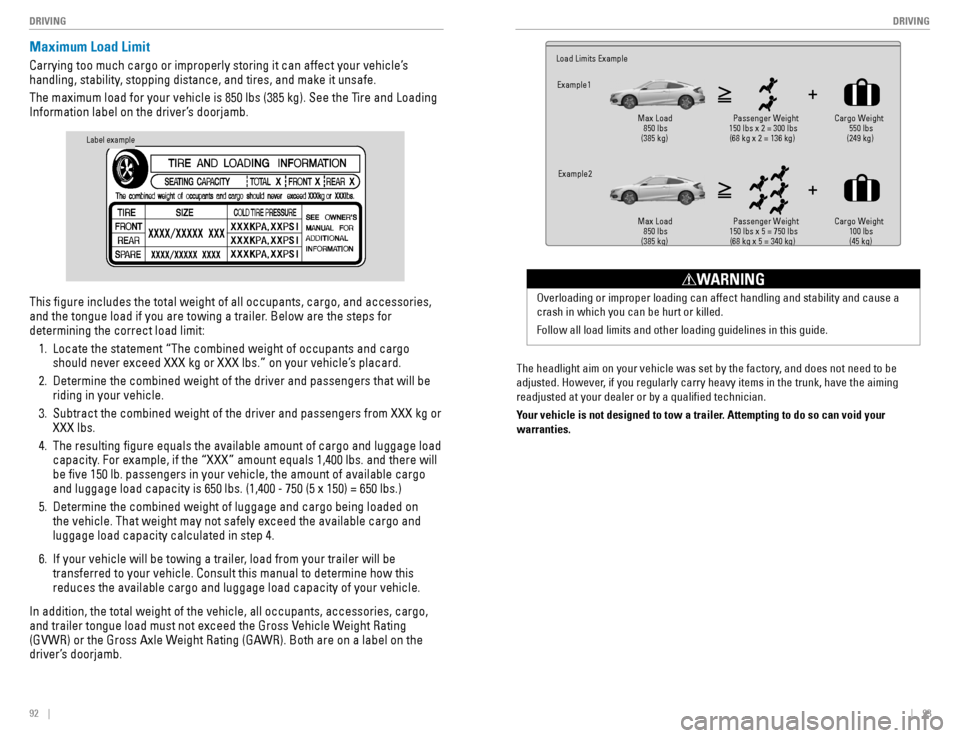

Maximum Load Limit
Carrying too much cargo or improperly storing it can affect your vehicle’s
handling, stability, stopping distance, and tires, and make it unsafe.
The maximum load for your vehicle is 850 lbs (385 kg). See the Tire and Loading
Information label on the driver’s doorjamb. This gure includes the total weight of all occupants, cargo, and accessories,
and the tongue load if you are towing a trailer. Below are the steps for determining the correct load limit:
1. Locate the statement “The combined weight of occupants and cargo should never exceed XXX kg or XXX lbs.” on your vehicle’s placard.
2. Determine the combined weight of the driver and passengers that will be riding in your vehicle.
3. Subtract the combined weight of the driver and passengers from XXX kg or XXX lbs.
4. The resulting gure equals the available amount of cargo and luggage load capacity. For example, if the “XXX” amount equals 1,400 lbs. and there will be ve 150 lb. passengers in your vehicle, the amount of available cargo and luggage load capacity is 650 lbs. (1,400 - 750 (5 x 150) = 650 lbs.)
5. Determine the combined weight of luggage and cargo being loaded on the vehicle. That weight may not safely exceed the available cargo and luggage load capacity calculated in step 4.
6. If your vehicle will be towing a trailer, load from your trailer will be transferred to your vehicle. Consult this manual to determine how this reduces the available cargo and luggage load capacity of your vehicle.
In addition, the total weight of the vehicle, all occupants, accessories, cargo,
and trailer tongue load must not exceed the Gross Vehicle Weight Rating
(GVWR) or the Gross Axle Weight Rating (GAWR). Both are on a label on the
driver’s doorjamb.
Label example
The headlight aim on your vehicle was set by the factory, and does not need to be
adjusted. However, if you regularly carry heavy items in the trunk, have the aiming readjusted at your dealer or by a qualied technician.
Your vehicle is not designed to tow a trailer. Attempting to do so can void your warranties.
Load Limits ExampleExample1
Max Load
850 lbs
(385 kg) 550 lbs
(249 kg)
Passenger Weight
150 lbs x 2 = 300 lbs (68 kg x 2 = 136 kg) Cargo Weight

Example2 Max Load
850 lbs
(385 kg) 100 lbs
Passenger Weight
150 lbs x 5 = 750 lbs (68 kg x 5 = 340 kg) (45 kg) Cargo Weight

Overloading or improper loading can affect handling and stability and cause a crash in which you can be hurt or killed. Follow all load limits and other loading guidelines in this guide.
WARNING
