HONDA CIVIC COUPE 2016 10.G Quick Guide

94 || 95
DRIVING
DRIVING

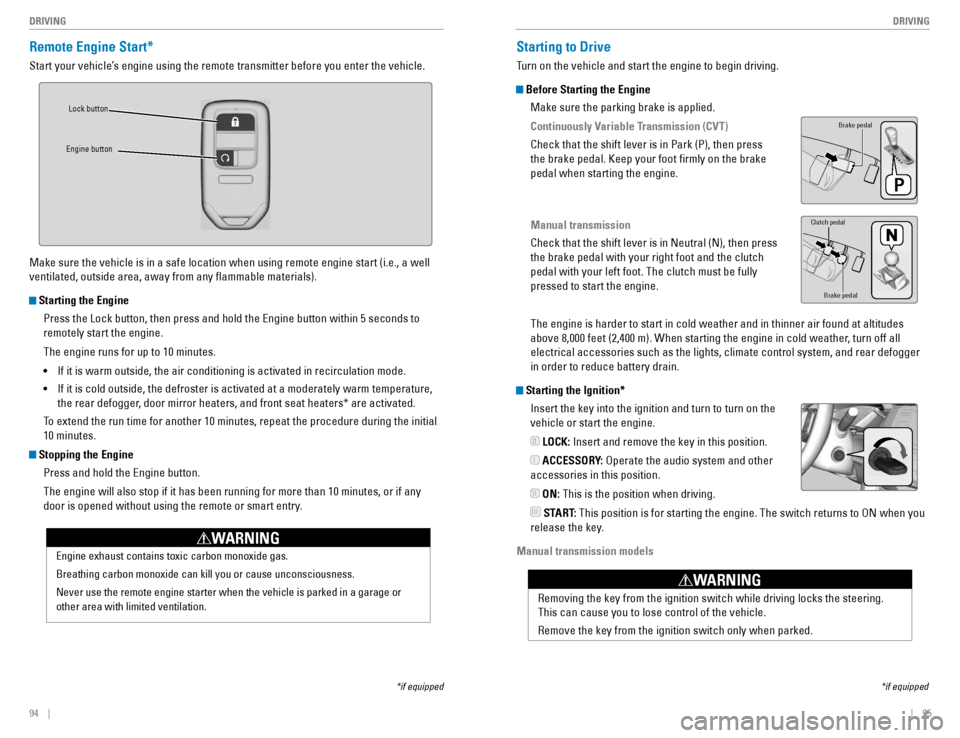

Remote Engine Start*
Start your vehicle’s engine using the remote transmitter before you enter the vehicle.
Make sure the vehicle is in a safe location when using remote engine start (i.e., a well ventilated, outside area, away from any ammable materials).
Starting the Engine
Press the Lock button, then press and hold the Engine button within 5 seconds to remotely start the engine. The engine runs for up to 10 minutes.•  If it is warm outside, the air conditioning is activated in recirculation mode.
•  If it is cold outside, the defroster is activated at a moderately warm temperature,
the rear defogger, door mirror heaters, and front seat heaters* are activated.
To extend the run time for another 10 minutes, repeat the procedure during the initial 10 minutes.
Stopping the Engine
Press and hold the Engine button.
The engine will also stop if it has been running for more than 10 minutes, or if any
door is opened without using the remote or smart entry.
Engine exhaust contains toxic carbon monoxide gas. Breathing carbon monoxide can kill you or cause unconsciousness.Never use the remote engine starter when the vehicle is parked in a garage or other area with limited ventilation.
WARNING
Lock button
Engine button
Starting to Drive
Turn on the vehicle and start the engine to begin driving.
Before Starting the Engine
Make sure the parking brake is applied.
Continuously Variable Transmission (CVT)
Check that the shift lever is in Park (P), then press the brake pedal. Keep your foot rmly on the brake pedal when starting the engine.
Manual transmission
Check that the shift lever is in Neutral (N), then press the brake pedal with your right foot and the clutch pedal with your left foot. The clutch must be fully pressed to start the engine. The engine is harder to start in cold weather and in thinner air found at altitudes
above 8,000 feet (2,400 m). When starting the engine in cold weather, turn off all
electrical accessories such as the lights, climate control system, and rear defogger in order to reduce battery drain.
Starting the Ignition*
Insert the key into the ignition and turn to turn on the vehicle or start the engine.
LOCK: Insert and remove the key in this position.
ACCESSORY: Operate the audio system and other
accessories in this position.
ON: This is the position when driving.
START: This position is for starting the engine. The switch returns to ON when you
release the key.
Manual transmission models
*if equipped
Brake pedal
Brake pedal
Clutch pedal
Removing the key from the ignition switch while driving locks the steering. This can cause you to lose control of the vehicle. Remove the key from the ignition switch only when parked.
WARNING
*if equipped 0 I II III

96 || 97
DRIVING
DRIVING

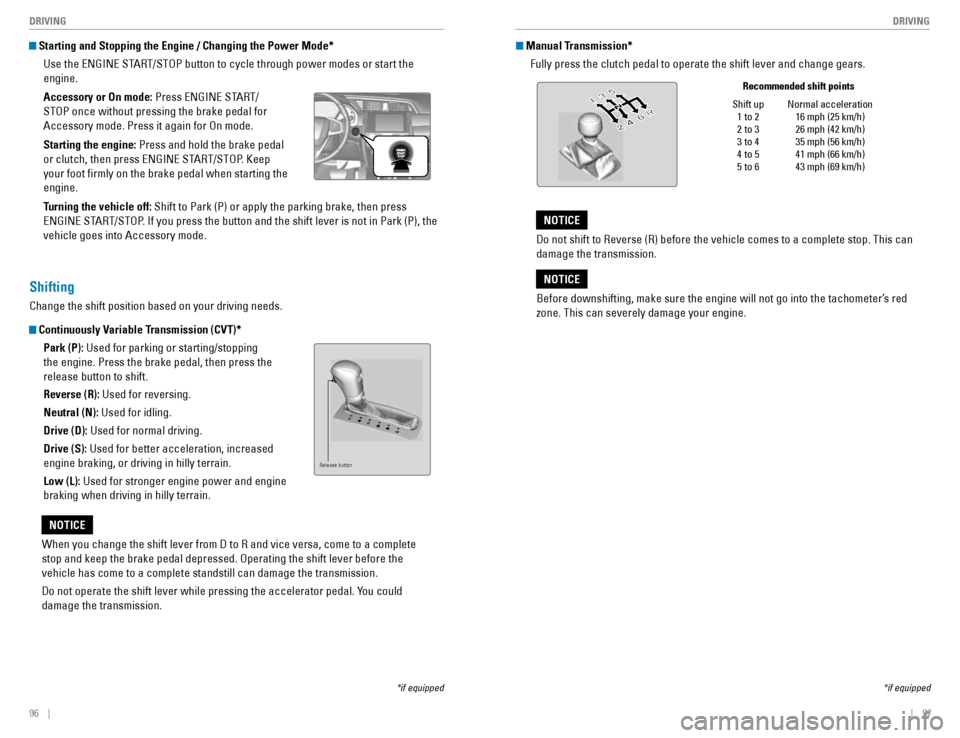

Starting and Stopping the Engine / Changing the Power Mode*
Use the ENGINE START/STOP button to cycle through power modes or start the engine. Accessory or On mode: Press ENGINE START/
STOP once without pressing the brake pedal for Accessory mode. Press it again for On mode. Starting the engine: Press and hold the brake pedal
or clutch, then press ENGINE START/STOP. Keep your foot rmly on the brake pedal when starting the engine.
Turning the vehicle off: Shift to Park (P) or apply the parking brake, then press
ENGINE START/STOP. If you press the button and the shift lever is not in Park (P), the vehicle goes into Accessory mode.
*if equipped
When you change the shift lever from D to R and vice versa, come to a complete stop and keep the brake pedal depressed. Operating the shift lever before the vehicle has come to a complete standstill can damage the transmission.
Do not operate the shift lever while pressing the accelerator pedal. You could damage the transmission.
NOTICE
Shifting
Change the shift position based on your driving needs.
Continuously Variable Transmission (CVT)*
Park (P): Used for parking or starting/stopping
the engine. Press the brake pedal, then press the release button to shift. Reverse (R): Used for reversing.
Neutral (N): Used for idling.
Drive (D): Used for normal driving.
Drive (S): Used for better acceleration, increased
engine braking, or driving in hilly terrain.Low (L): Used for stronger engine power and engine
braking when driving in hilly terrain.
Release button
Manual Transmission*
Fully press the clutch pedal to operate the shift lever and change gears.
*if equipped
Shift up1 to 2 2 to 33 to 44 to 55 to 6 Normal acceleration
16 mph (25 km/h)26 mph (42 km/h)35 mph (56 km/h)41 mph (66 km/h)43 mph (69 km/h)
Recommended shift points
Before downshifting, make sure the engine will not go into the tachometer’s red zone. This can severely damage your engine.
NOTICE
Do not shift to Reverse (R) before the vehicle comes to a complete stop. This can damage the transmission.
NOTICE

98 || 99
DRIVING
DRIVING

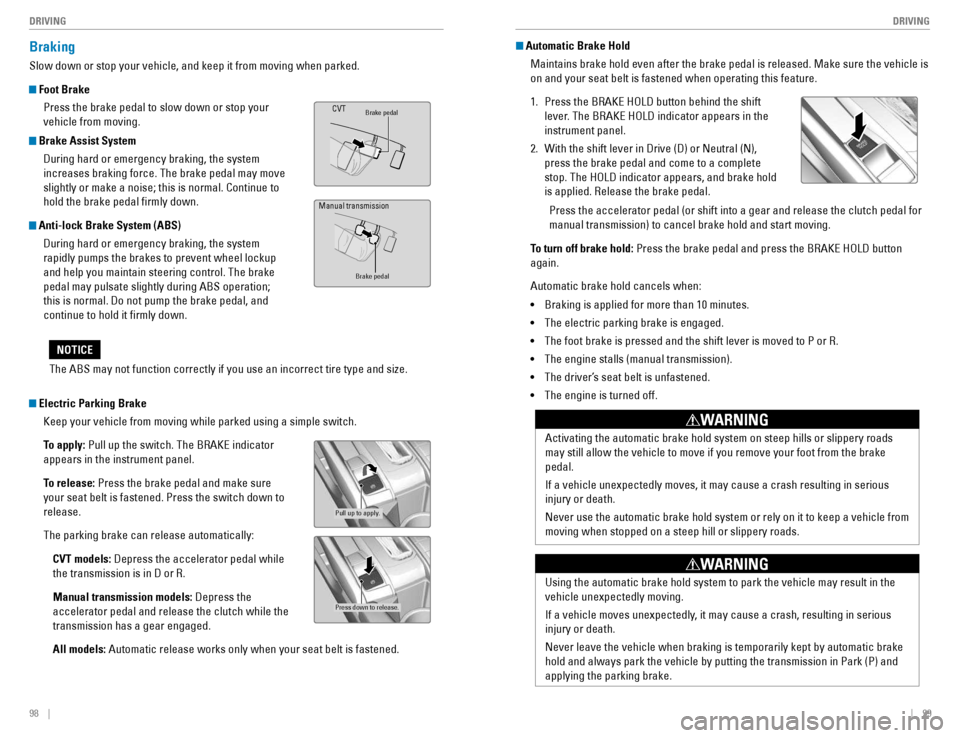

Braking
Slow down or stop your vehicle, and keep it from moving when parked.
Foot Brake
Press the brake pedal to slow down or stop your vehicle from moving.
Brake Assist System
During hard or emergency braking, the system increases braking force. The brake pedal may move slightly or make a noise; this is normal. Continue to hold the brake pedal rmly down.
Anti-lock Brake System (ABS)
During hard or emergency braking, the system rapidly pumps the brakes to prevent wheel lockup and help you maintain steering control. The brake pedal may pulsate slightly during ABS operation; this is normal. Do not pump the brake pedal, and continue to hold it rmly down.
Brake pedalCVT
Brake pedal
The ABS may not function correctly if you use an incorrect tire type and size.
NOTICE
Electric Parking Brake
Keep your vehicle from moving while parked using a simple switch.
To apply: Pull up the switch. The BRAKE indicator
appears in the instrument panel.
To release: Press the brake pedal and make sure
your seat belt is fastened. Press the switch down to release. The parking brake can release automatically:
CVT models: Depress the accelerator pedal while
the transmission is in D or R.Manual transmission models: Depress the
accelerator pedal and release the clutch while the transmission has a gear engaged. All models: Automatic release works only when your seat belt is fastened.
Pull up to apply.
Press down to release.
Manual transmission
Automatic Brake Hold
Maintains brake hold even after the brake pedal is released. Make sure the vehicle is on and your seat belt is fastened when operating this feature.
1. Press the BRAKE HOLD button behind the shift
lever. The BRAKE HOLD indicator appears in the instrument panel.
2. With the shift lever in Drive (D) or Neutral (N), press the brake pedal and come to a complete stop. The HOLD indicator appears, and brake hold is applied. Release the brake pedal.
Press the accelerator pedal (or shift into a gear and release the clutch pedal for manual transmission) to cancel brake hold and start moving.
To turn off brake hold: Press the brake pedal and press the BRAKE HOLD button
again.
Automatic brake hold cancels when: •  Braking is applied for more than 10 minutes.
•  The electric parking brake is engaged.
•  The foot brake is pressed and the shift lever is moved to P or R.
•  The engine stalls (manual transmission).
•  The driver’s seat belt is unfastened.
•  The engine is turned off.
Activating the automatic brake hold system on steep hills or slippery roads may still allow the vehicle to move if you remove your foot from the brake pedal.
If a vehicle unexpectedly moves, it may cause a crash resulting in serious injury or death.
Never use the automatic brake hold system or rely on it to keep a vehicle from moving when stopped on a steep hill or slippery roads.
WARNING
Using the automatic brake hold system to park the vehicle may result in the vehicle unexpectedly moving.
If a vehicle moves unexpectedly, it may cause a crash, resulting in serious injury or death.
Never leave the vehicle when braking is temporarily kept by automatic brake
hold and always park the vehicle by putting the transmission in Park (P) and applying the parking brake.
WARNING

100 || 101
DRIVING
DRIVING

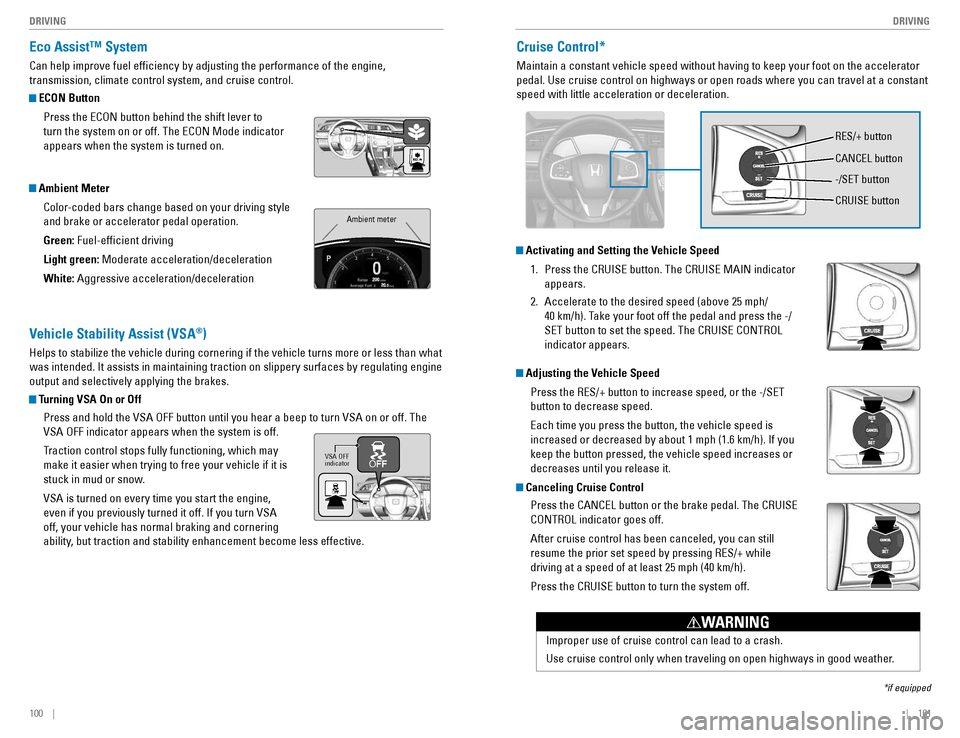

Eco Assist™ System
Can help improve fuel efciency by adjusting the performance of the engine, transmission, climate control system, and cruise control.
ECON Button
Press the ECON button behind the shift lever to turn the system on or off. The ECON Mode indicator appears when the system is turned on.
Ambient Meter
Color-coded bars change based on your driving style and brake or accelerator pedal operation. Green: Fuel-efcient driving
Light green: Moderate acceleration/deceleration
White: Aggressive acceleration/decelerationAmbient meter
Vehicle Stability Assist (VSA ®
)
Helps to stabilize the vehicle during cornering if the vehicle turns more or less than what
was intended. It assists in maintaining traction on slippery surfaces by regulating engine output and selectively applying the brakes.
Turning VSA On or Off
Press and hold the VSA OFF button until you hear a beep to turn VSA on or off. The VSA OFF indicator appears when the system is off.
Traction control stops fully functioning, which may make it easier when trying to free your vehicle if it is
stuck in mud or snow. VSA is turned on every time you start the engine, even if you previously turned it off. If you turn VSA off, your vehicle has normal braking and cornering
ability, but traction and stability enhancement become less effective.
VSA OFF
indicator
Cruise Control*
Maintain a constant vehicle speed without having to keep your foot on the accelerator
pedal. Use cruise control on highways or open roads where you can travel at a constant speed with little acceleration or deceleration.
*if equipped
RES/+ button CANCEL button CRUISE button
-/SET button
Improper use of cruise control can lead to a crash.
Use cruise control only when traveling on open highways in good weather.
WARNING
Activating and Setting the Vehicle Speed
1. Press the CRUISE button. The CRUISE MAIN indicator appears.
2. Accelerate to the desired speed (above 25 mph/ 40 km/h). Take your foot off the pedal and press the -/ SET button to set the speed. The CRUISE CONTROL indicator appears.
Adjusting the Vehicle Speed
Press the RES/+ button to increase speed, or the -/SET button to decrease speed. Each time you press the button, the vehicle speed is increased or decreased by about 1 mph (1.6 km/h). If you keep the button pressed, the vehicle speed increases or decreases until you release it.
Canceling Cruise Control
Press the CANCEL button or the brake pedal. The CRUISE CONTROL indicator goes off. After cruise control has been canceled, you can still resume the prior set speed by pressing RES/+ while driving at a speed of at least 25 mph (40 km/h). Press the CRUISE button to turn the system off.

102 || 103
DRIVING
DRIVING

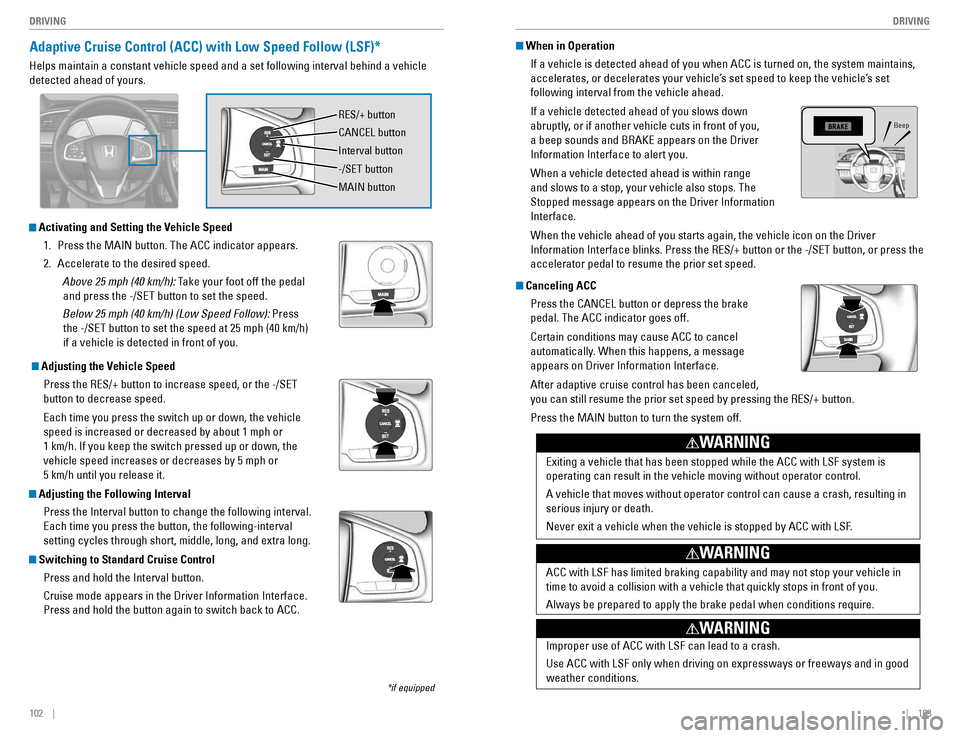

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)*
Helps maintain a constant vehicle speed and a set following interval behind a vehicle detected ahead of yours.
RES/+ button CANCEL button Interval button-/SET buttonMAIN button
Activating and Setting the Vehicle Speed
1. Press the MAIN button. The ACC indicator appears.
2. Accelerate to the desired speed.
  Above 25 mph (40 km/h):  Take your foot off the pedal
and press the -/SET button to set the speed.
Below 25 mph (40 km/h) (Low Speed Follow): Press
the -/SET button to set the speed at 25 mph (40 km/h)
if a vehicle is detected in front of you.
Adjusting the Vehicle Speed
Press the RES/+ button to increase speed, or the -/SET button to decrease speed. Each time you press the switch up or down, the vehicle speed is increased or decreased by about 1 mph or 1 km/h. If you keep the switch pressed up or down, the vehicle speed increases or decreases by 5 mph or 5 km/h until you release it.
Adjusting the Following Interval
Press the Interval button to change the following interval. Each time you press the button, the following-interval setting cycles through short, middle, long, and extra long.
Switching to Standard Cruise Control
Press and hold the Interval button. Cruise mode appears in the Driver Information Interface. Press and hold the button again to switch back to ACC.
*if equipped
When in Operation
If a vehicle is detected ahead of you when ACC is turned on, the system maintains,
accelerates, or decelerates your vehicle’s set speed to keep the vehicle’s set following interval from the vehicle ahead. If a vehicle detected ahead of you slows down
abruptly, or if another vehicle cuts in front of you, a beep sounds and BRAKE appears on the Driver Information Interface to alert you. When a vehicle detected ahead is within range and slows to a stop, your vehicle also stops. The Stopped message appears on the Driver Information Interface.
When the vehicle ahead of you starts again, the vehicle icon on the Driver Information Interface blinks. Press the RES/+ button or the -/SET button, or press the accelerator pedal to resume the prior set speed.
Canceling ACC
Press the CANCEL button or depress the brake pedal. The ACC indicator goes off. Certain conditions may cause ACC to cancel
automatically. When this happens, a message appears on Driver Information Interface. After adaptive cruise control has been canceled, you can still resume the prior set speed by pressing the RES/+ button. Press the MAIN button to turn the system off.
Exiting a vehicle that has been stopped while the ACC with LSF system is operating can result in the vehicle moving without operator control. A vehicle that moves without operator control can cause a crash, resulting in serious injury or death.
Never exit a vehicle when the vehicle is stopped by ACC with LSF.
WARNING
ACC with LSF has limited braking capability and may not stop your vehicle in time to avoid a collision with a vehicle that quickly stops in front of you. Always be prepared to apply the brake pedal when conditions require.
WARNING
Beep
Improper use of ACC with LSF can lead to a crash. Use ACC with LSF only when driving on expressways or freeways and in good weather conditions.
WARNING

104 || 105
DRIVING
DRIVING

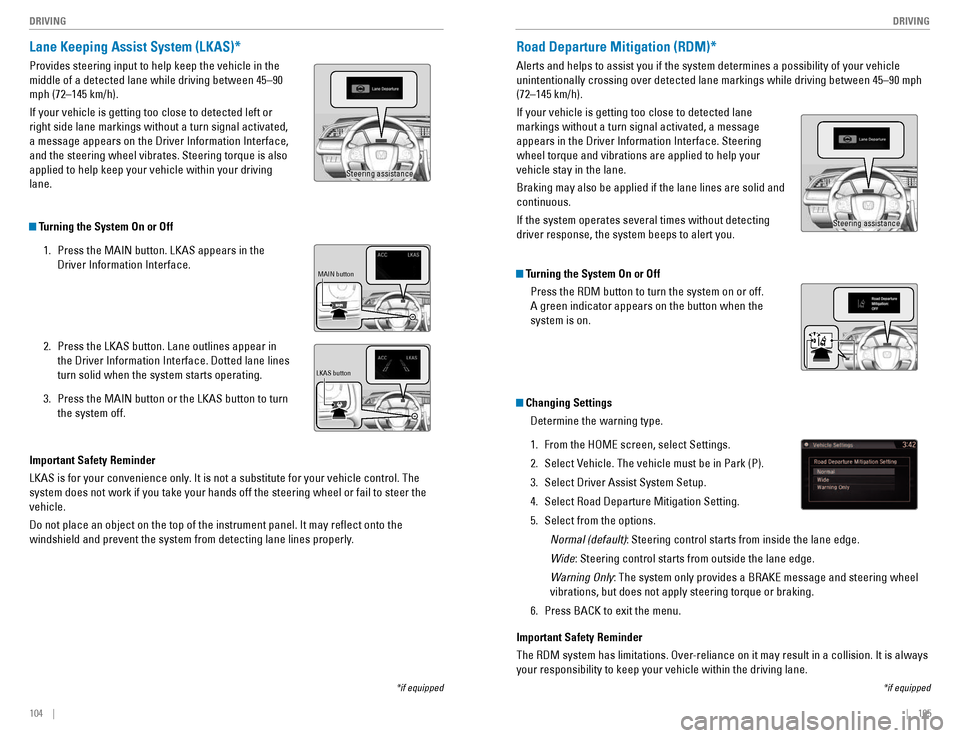

Lane Keeping Assist System (LKAS)*
Provides steering input to help keep the vehicle in the middle of a detected lane while driving between 45–90 mph (72–145 km/h). If your vehicle is getting too close to detected left or right side lane markings without a turn signal activated, a message appears on the Driver Information Interface, and the steering wheel vibrates. Steering torque is also applied to help keep your vehicle within your driving lane.
Turning the System On or Off
1. Press the MAIN button. LKAS appears in the
Driver Information Interface.
2. Press the LKAS button. Lane outlines appear in the Driver Information Interface. Dotted lane lines turn solid when the system starts operating.
3. Press the MAIN button or the LKAS button to turn the system off.
Important Safety Reminder
LKAS is for your convenience only. It is not a substitute for your vehicle control. The
system does not work if you take your hands off the steering wheel or fail to steer the vehicle. Do not place an object on the top of the instrument panel. It may reect onto the
windshield and prevent the system from detecting lane lines properly.
MAIN button
*if equipped
Steering assistance
LKAS button
Road Departure Mitigation (RDM)*
Alerts and helps to assist you if the system determines a possibility of your vehicle
unintentionally crossing over detected lane markings while driving between 45–90 mph (72–145 km/h). If your vehicle is getting too close to detected lane markings without a turn signal activated, a message appears in the Driver Information Interface. Steering wheel torque and vibrations are applied to help your vehicle stay in the lane. Braking may also be applied if the lane lines are solid and continuous. If the system operates several times without detecting driver response, the system beeps to alert you.
Changing Settings
Determine the warning type.
1. From the HOME screen, select Settings.
2. Select Vehicle. The vehicle must be in Park (P).
3. Select Driver Assist System Setup.
4. Select Road Departure Mitigation Setting.
5. Select from the options. Normal (default) : Steering control starts from inside the lane edge.
Wide : Steering control starts from outside the lane edge.
Warning Only : The system only provides a BRAKE message and steering wheel
vibrations, but does not apply steering torque or braking.
6. Press BACK to exit the menu.
Important Safety Reminder
The RDM system has limitations. Over-reliance on it may result in a collision. It is always your responsibility to keep your vehicle within the driving lane.
*if equipped
Turning the System On or Off
Press the RDM button to turn the system on or off. A green indicator appears on the button when the system is on.
RDM Button
Indicator
Steering assistance

106 || 107
DRIVING
DRIVING

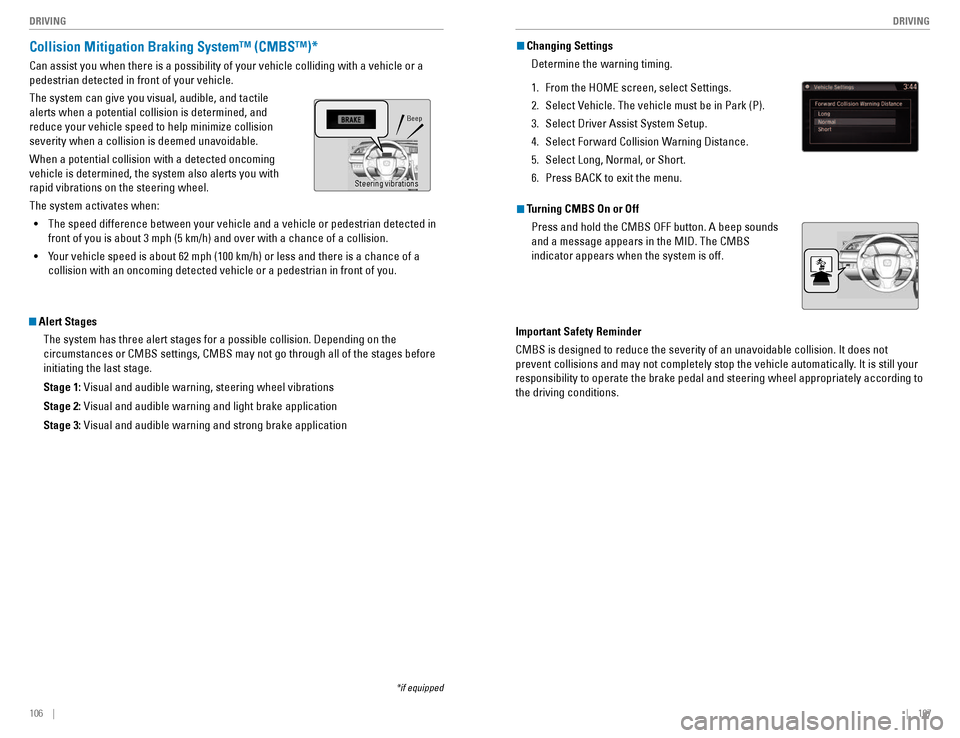

Collision Mitigation Braking System™ (CMBS™)*
Can assist you when there is a possibility of your vehicle colliding with a vehicle or a pedestrian detected in front of your vehicle. The system can give you visual, audible, and tactile alerts when a potential collision is determined, and reduce your vehicle speed to help minimize collision severity when a collision is deemed unavoidable. When a potential collision with a detected oncoming vehicle is determined, the system also alerts you with rapid vibrations on the steering wheel. The system activates when:
•  The speed difference between your vehicle and a vehicle or pedestrian detected in
front of you is about 3 mph (5 km/h) and over with a chance of a collision.
•  Your vehicle speed is about 62 mph (100 km/h) or less and there is a chance of a
collision with an oncoming detected vehicle or a pedestrian in front of you.
Changing Settings
Determine the warning timing.
1. From the HOME screen, select Settings.
2. Select Vehicle. The vehicle must be in Park (P).
3. Select Driver Assist System Setup.
4. Select Forward Collision Warning Distance.
5. Select Long, Normal, or Short.
6. Press BACK to exit the menu.
*if equipped
Alert Stages
The system has three alert stages for a possible collision. Depending on the circumstances or CMBS settings, CMBS may not go through all of the stages before initiating the last stage. Stage 1: Visual and audible warning, steering wheel vibrations
Stage 2: Visual and audible warning and light brake application
Stage 3: Visual and audible warning and strong brake application
Beep
Steering vibrations
Important Safety Reminder
CMBS is designed to reduce the severity of an unavoidable collision. It does not
prevent collisions and may not completely stop the vehicle automatically. It is still your responsibility to operate the brake pedal and steering wheel appropriately according to the driving conditions.
Turning CMBS On or Off
Press and hold the CMBS OFF button. A beep sounds and a message appears in the MID. The CMBS indicator appears when the system is off.

108 || 109
DRIVING
DRIVING

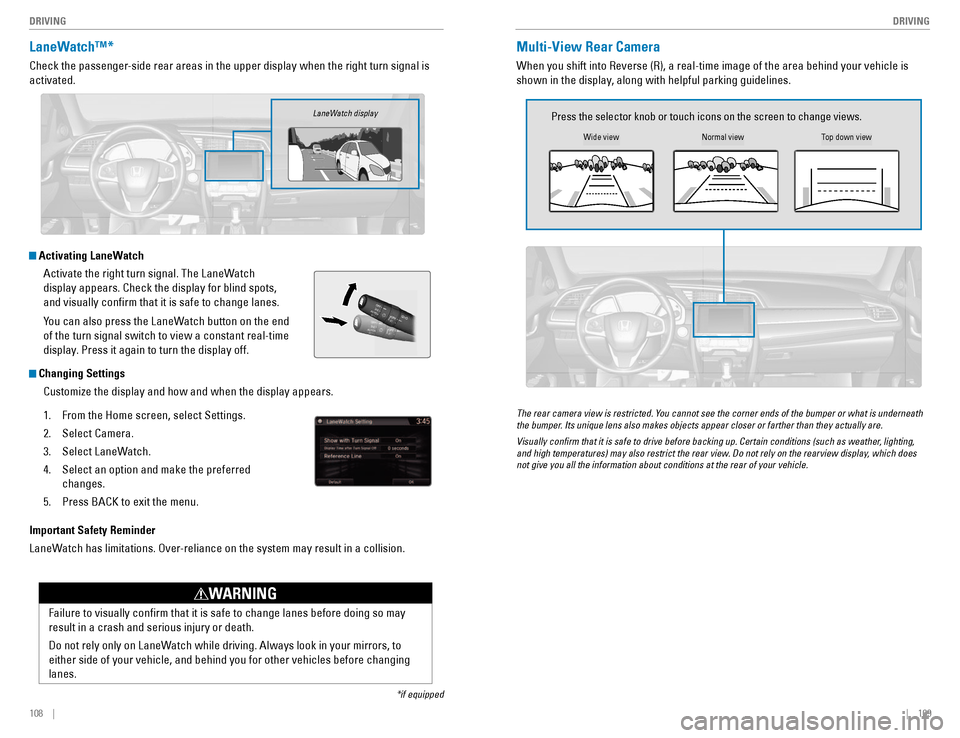

LaneWatch™*
Check the passenger-side rear areas in the upper display when the right turn signal is activated.
Activating LaneWatch
Activate the right turn signal. The LaneWatch display appears. Check the display for blind spots, and visually conrm that it is safe to change lanes.
You can also press the LaneWatch button on the end of the turn signal switch to view a constant real-time
display. Press it again to turn the display off.
Changing Settings
Customize the display and how and when the display appears.
1. From the Home screen, select Settings.
2. Select Camera.
3. Select LaneWatch.
4. Select an option and make the preferred
changes.
5. Press BACK to exit the menu.
Important Safety Reminder
LaneWatch has limitations. Over-reliance on the system may result in a collision.
*if equipped
Failure to visually conrm that it is safe to change lanes before doing so may result in a crash and serious injury or death.
Do not rely only on LaneWatch while driving. Always look in your mirrors, to either side of your vehicle, and behind you for other vehicles before changing lanes.
WARNING
LaneWatch display
Multi-View Rear Camera
When you shift into Reverse (R), a real-time image of the area behind your vehicle is
shown in the display, along with helpful parking guidelines.
Wide view
Press the selector knob or touch icons on the screen to change views.
Normal viewTop down view
The rear camera view is restricted. You cannot see the corner ends of the bumper or what is underneath 
the bumper. Its unique lens also makes objects appear closer or farther than they actually are.
Visually conirm that it is safe to drive before backing up. Certain conditions (such as weather, lighting, 
and high temperatures) may also restrict the rear view. Do not rely on the rearview display, which does not give you all the information about conditions at the rear of your vehicle.

110 || 111
DRIVING
DRIVING
Models with Display Audio
1. From the Home screen, select Settings.
2. Select Camera.
3. Select Rear Camera.
4. Select an option:
Fixed Guideline: Guidelines appear when you shift into Reverse.
Dynamic Guideline: Guidelines move as you turn the steering wheel.
5. Select On or Off.
6. Press BACK to exit the menu.

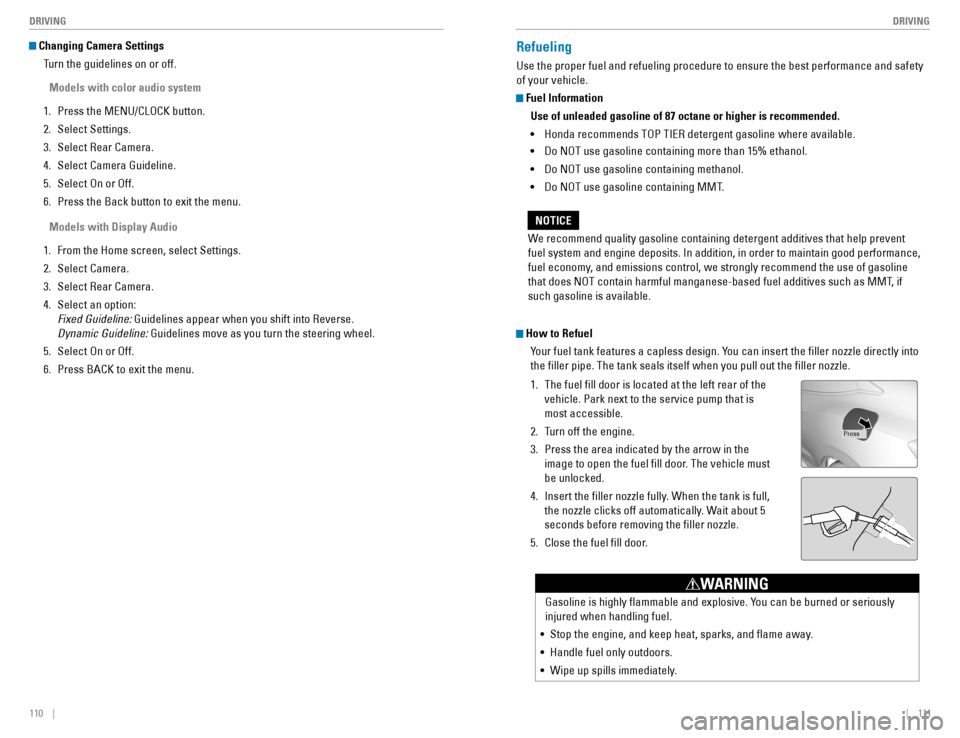

Changing Camera Settings
Turn the guidelines on or off.
Models with color audio system
1. Press the MENU/CLOCK button.
2. Select Settings.
3. Select Rear Camera.
4. Select Camera Guideline.
5. Select On or Off.
6. Press the Back button to exit the menu.
Refueling
Use the proper fuel and refueling procedure to ensure the best performance and safety of your vehicle.
Fuel Information
Use of unleaded gasoline of 87 octane or higher is recommended. •  Honda recommends TOP TIER detergent gasoline where available.
•  Do NOT use gasoline containing more than 15% ethanol.
•  Do NOT use gasoline containing methanol.
•  Do NOT use gasoline containing MMT.
We recommend quality gasoline containing detergent additives that help prevent
fuel system and engine deposits. In addition, in order to maintain good performance,
fuel economy, and emissions control, we strongly recommend the use of gasoline
that does NOT contain harmful manganese-based fuel additives such as MMT, if such gasoline is available.
NOTICE
Gasoline is highly ammable and explosive. You can be burned or seriously injured when handling fuel.
•  Stop the engine, and keep heat, sparks, and ame away.
•  Handle fuel only outdoors.
•  Wipe up spills immediately.
WARNING
How to Refuel
Your fuel tank features a capless design. You can insert the ller nozzle directly into the ller pipe. The tank seals itself when you pull out the ller nozzle.
1. The fuel ll door is located at the left rear of the
vehicle. Park next to the service pump that is most accessible.
2. Turn off the engine.
3. Press the area indicated by the arrow in the image to open the fuel ll door. The vehicle must be unlocked.
4. Insert the ller nozzle fully. When the tank is full, the nozzle clicks off automatically. Wait about 5 seconds before removing the ller nozzle.
5. Close the fuel ll door.
Press

112 || 113
HANDLING THE UNEXPECTED
DRIVING

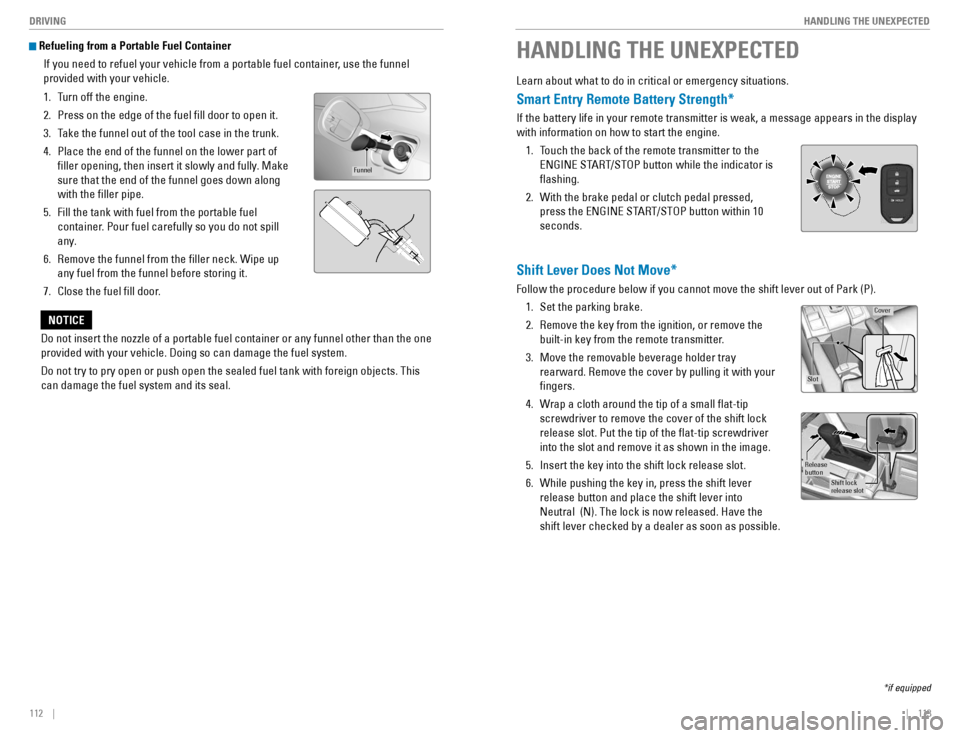

Refueling from a Portable Fuel Container
If you need to refuel your vehicle from a portable fuel container, use the funnel provided with your vehicle.
1. Turn off the engine.
2. Press on the edge of the fuel ll door to open it.
3. Take the funnel out of the tool case in the trunk.
4. Place the end of the funnel on the lower part of
ller opening, then insert it slowly and fully. Make sure that the end of the funnel goes down along with the ller pipe.
5. Fill the tank with fuel from the portable fuel container. Pour fuel carefully so you do not spill
any.
6. Remove the funnel from the ller neck. Wipe up any fuel from the funnel before storing it.
7. Close the fuel ll door.
Funnel
Do not insert the nozzle of a portable fuel container or any funnel other than the one provided with your vehicle. Doing so can damage the fuel system. Do not try to pry open or push open the sealed fuel tank with foreign objects. This can damage the fuel system and its seal.
NOTICE
HANDLING THE UNEXPECTED
Learn about what to do in critical or emergency situations.
Smart Entry Remote Battery Strength*
If the battery life in your remote transmitter is weak, a message appears in the display with information on how to start the engine. 1. Touch the back of the remote transmitter to the ENGINE START/STOP button while the indicator is ashing.
2. With the brake pedal or clutch pedal pressed, press the ENGINE START/STOP button within 10 seconds.
Shift Lever Does Not Move*
Follow the procedure below if you cannot move the shift lever out of Park (P).
1. Set the parking brake.
2. Remove the key from the ignition, or remove the built-in key from the remote transmitter.
3. Move the removable beverage holder tray rearward. Remove the cover by pulling it with your ngers.
4. Wrap a cloth around the tip of a small at-tip screwdriver to remove the cover of the shift lock release slot. Put the tip of the at-tip screwdriver into the slot and remove it as shown in the image.
5. Insert the key into the shift lock release slot.
6. While pushing the key in, press the shift lever release button and place the shift lever into Neutral (N). The lock is now released. Have the shift lever checked by a dealer as soon as possible.
*if equipped
Slot
Cove r
Release butto n
Shift lock release slot
