HONDA CIVIC HATCHBACK 2021 Owner's Manual (in English)

99
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage
Adaptive Cruise
Control (ACC)
with Low Speed
Follow
* Indicator
(Amber)
●Comes on for a few seconds when
you turn the igniti on switch to ON
(w*1, then goes off.●Comes on if there is a problem
with ACC with Low Speed
Follow
*.
●Comes on while driving - Have your
vehicle checked by a dealer.
●Comes on if the ACC with Low
Speed Follow* is deactivated
temporarily after the battery has
been disconnected, then re-
connected.
●Drive a short distance at more than 12
mph (20 km/h). The indicator should go
off. If it does not, have your vehicle
checked by a dealer.
●Indicator may come on
temporarily when the Maximum
Load Limit is exceeded.
●ACC with Low Speed Follow* has
been automatically canceled.
●Make sure the total load is within the
Maximum Load Limit.
2 Maximum Load Limit P. 447●Stays on constantly - Have your vehicle
checked by a dealer.—
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 99 ページ ２０２０年８月２８日　金曜日　午後１時４ ８分

100
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage
Adaptive Cruise
Control (ACC)
with Low Speed
Follow
* Indicator
(Green)
●Comes on when you press the
MAIN button.
2Adaptive Cruise Control (ACC) with
Low Speed Follow* P. 501
2 Adaptive Cruise Control (ACC)* P. 518—
Lane Keeping
Assist System
(LKAS ) Indicator
(Amber)●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.●Comes on if there is a problem
with the LKAS.
●Stays on constantly - Have your vehicle
checked by a dealer.
Lane Keeping
Assist System
( LKAS ) Indicator
(Green)●Comes on when you press the
MAIN button.
2Lane Keeping Assist System (LKAS)
P. 533—
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 100 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

101
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage
Collision
Mitigation
Braking
System
TM
(CMBSTM)
Indicator
●Comes on for a few seconds when
you turn the igniti on switch to ON
(w*1, then goes off.●Comes on when you deactivate
the CMBSTM. A driver information
interface message appears for five
seconds.
●Comes on if there is a problem
with the CMBSTM.
●Stays on constantly without the
CMBSTM off - Have your vehicle checked
by a dealer.
2 Collision Mitigation Braking
SystemTM (CMBSTM) P. 491
●Comes on if the CMBSTM is
deactivated temporarily after the
battery has been disconnected,
then re-connected.●Drive a short distance at more than 12
mph (20 km/h). The in dicator should go
off. If it does not, have your vehicle
checked by a dealer.
21 CIVIC 5D HUM-31TGG6400_01.book 101 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

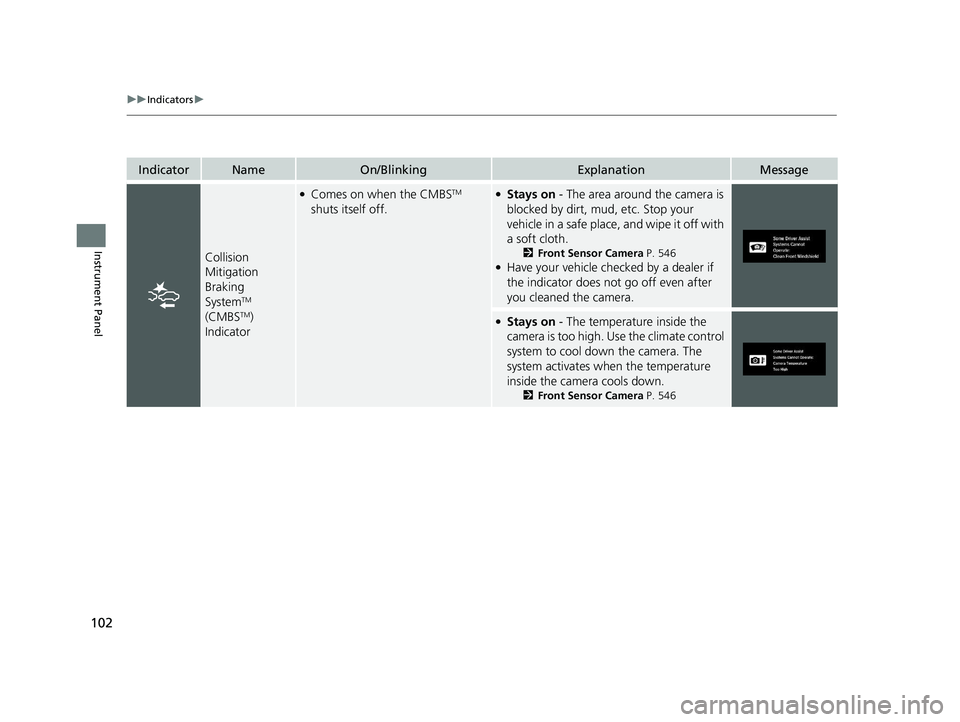

102
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Collision
Mitigation
Braking
System
TM
(CMBSTM)
Indicator
●Comes on when the CMBSTM
shuts itself off.●Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your
vehicle in a safe place, and wipe it off with
a soft cloth.
2 Front Sensor Camera P. 546●Have your vehicle checked by a dealer if
the indicator does not go off even after
you cleaned the camera.
●Stays on - The temperature inside the
camera is too high. Use the climate control
system to cool down the camera. The
system activates when the temperature
inside the camera cools down.
2 Front Sensor Camera P. 546
21 CIVIC 5D HUM-31TGG6400_01.book 102 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

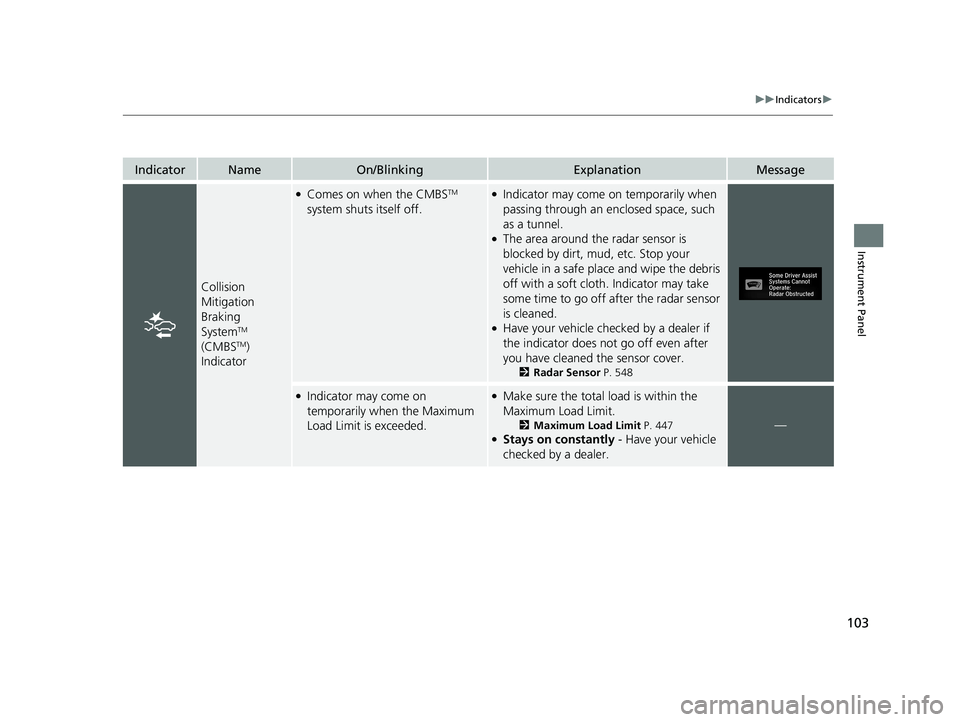

103
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Collision
Mitigation
Braking
System
TM
(CMBSTM)
Indicator
●Comes on when the CMBSTM
system shuts itself off.●Indicator may come on temporarily when
passing through an en closed space, such
as a tunnel.
●The area around the radar sensor is
blocked by dirt, mud, etc. Stop your
vehicle in a safe place and wipe the debris
off with a soft cloth. Indicator may take
some time to go off after the radar sensor
is cleaned.
●Have your vehicle checked by a dealer if
the indicator does no t go off even after
you have cleaned the sensor cover.
2 Radar Sensor P. 548
●Indicator may come on
temporarily when the Maximum
Load Limit is exceeded.●Make sure the total lo ad is within the
Maximum Load Limit.
2 Maximum Load Limit P. 447●Stays on constantly - Have your vehicle
checked by a dealer.
—
21 CIVIC 5D HUM-31TGG6400_01.book 103 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

104
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
Driver Information Interface Warning and Information Messages
The following messages appear only on the driver information interface. Press the (display/information) button to see the mess age
again with the system message indicator on.
MessageConditionExplanation
●Appears if any door or the hatch is not completely
closed.
●Appears if any door or the hatch is opened while
driving. The beeper sounds.
●Disappears when all doors and the hatch are closed.
●Appears when the washer fluid is low.●Refill the washer fluid.
2Refilling Window Washer Fluid P. 593
●Appears when the scheduled maintenance is due
soon.
●Consequently, Maintenance Due Now and
Maintenance Past Due follow.
2Maintenance Minder Messages on the Driver
Information Interface P. 575
●Appears when there is a pr oblem with the sensor on
the battery.●Have your vehicle ch ecked by a dealer.
2Checking the Battery P. 620
Canadian models
21 CIVIC 5D HUM-31TGG6400_01.book 104 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

105
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the engine coolant temperature gets
abnormally high.2Overheating P. 666
●Appears while you are customizing the settings and
the shift lever is moved out of
(P.
●Appears while you are customizing the settings and
the parking brake is released.2Customized Features P. 134
●Appears if the automatic br ake hold is automatically
canceled while it is in operation.●Immediately depress the brake pedal.
Continuously
variable
transmission models
Manual transmission
models
Continuously variable transmission models
Manual transmission models
Continuously
variable
transmission models
Manual transmission
models
21 CIVIC 5D HUM-31TGG6400_01.book 105 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

106
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the automatic brake hold system is
turned off.2 Automatic Brake Hold P. 553
●Appears when the automa tic brake hold button is
pressed without wearing the driver’s seat belt.●Fasten the driver’s seat belt.
2 Automatic Brake Hold P. 553
●Appears when the automa tic brake hold button is
pressed without depressing the brake pedal while
the automatic brake hold is in operation.●Press the automatic brake ho ld button with the brake
pedal depressed.
2 Automatic Brake Hold P. 553
●Appears when the parking brake is applied
automatically while it is in operation.2Automatic Brake Hold P. 553
2 Parking Brake P. 549
Continuously
variable
transmission models
Manual transmission
models
21 CIVIC 5D HUM-31TGG6400_01.book 106 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

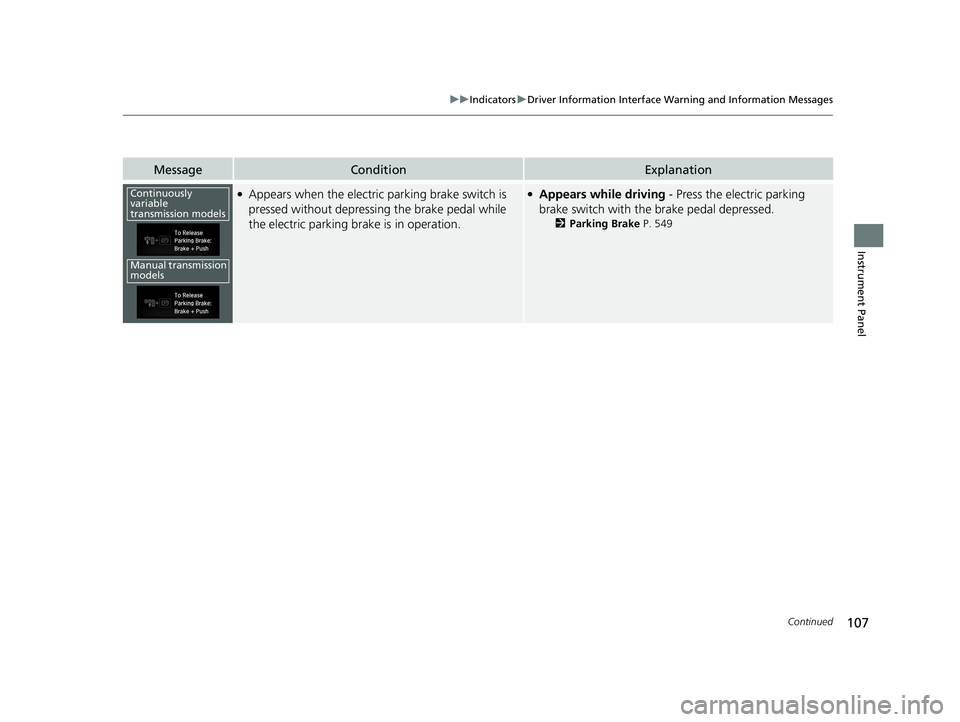

107
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the electric parking brake switch is
pressed without depressing the brake pedal while
the electric parking brake is in operation.●Appears while driving - Press the electric parking
brake switch with the brake pedal depressed.
2 Parking Brake P. 549
Continuously
variable
transmission models
Manual transmission
models
21 CIVIC 5D HUM-31TGG6400_01.book 107 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

108
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears if there is a problem with the auto high-
beam.●Manually operate the headlight switch.●If you are driving with the high-beam headlights when
this happens, the headlight s are changed to low beams.
●Appears if the temperature inside the front sensor
camera is too high and some driver assist systems
cannot be activated.●Use the climate control system to cool down the camera.●Disappears - The camera has been cooled down and
the systems are activated normally.
2Front Sensor Camera P. 546
●Appears if the area around the front sensor camera
is blocked by dirt, mud, etc and be prevented from
detecting a vehicle in front.
●May appear when driving in bad weather (rain,
snow, fog, etc.)
●When the front window gets dirty, stop your vehicle in a
safe place, and wipe it off with a soft cloth.
●Have your vehicle checked by a dealer if the message
does not disappear even after you cleaned the area
around the camera.
2 Front Sensor Camera P. 546
●Appears if anything covers the radar sensor cover
and prevents the sensor from detecting a vehicle in
front.
●May appear when driving in bad weather (rain,
snow, fog, etc.)
●When the radar sensor gets di rty, stop your vehicle in a
safe place, and wipe off dirt using a soft cloth. The
message may take some time to go off.
●Have your vehicle checked by a dealer if the message
does not disappear even after you clean the sensor cover.
2 Radar Sensor P. 548
