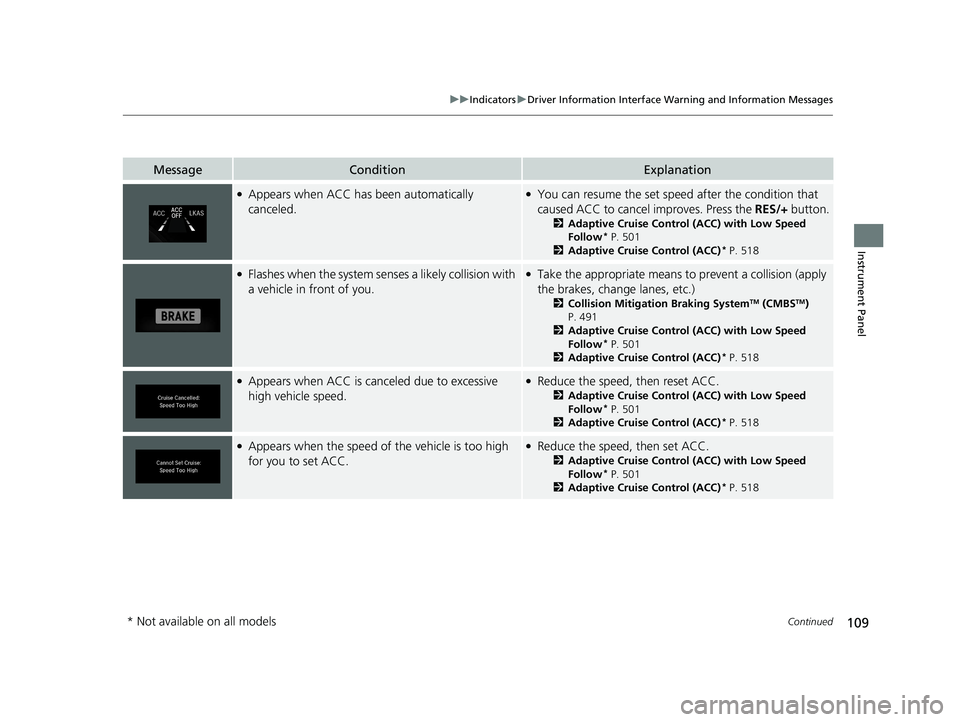

Page 111 of 711

109
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when ACC has been automatically
canceled.●You can resume the set speed after the condition that
caused ACC to cancel improves. Press the RES/+ button.
2Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 501
2 Adaptive Cruise Control (ACC)* P. 518
●Flashes when the system senses a likely collision with
a vehicle in front of you.●Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.)
2Collision Mitigation Braking SystemTM (CMBSTM)
P. 491
2 Adaptive Cruise Control (ACC) with Low Speed
Follow
* P. 501
2 Adaptive Cruise Control (ACC)* P. 518
●Appears when ACC is canceled due to excessive
high vehicle speed.●Reduce the speed, then reset ACC.
2Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 501
2 Adaptive Cruise Control (ACC)* P. 518
●Appears when the speed of the vehicle is too high
for you to set ACC.●Reduce the speed, then set ACC.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 501
2 Adaptive Cruise Control (ACC)* P. 518
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 109 ページ 2020年8月28日 金曜日 午後1時 48分

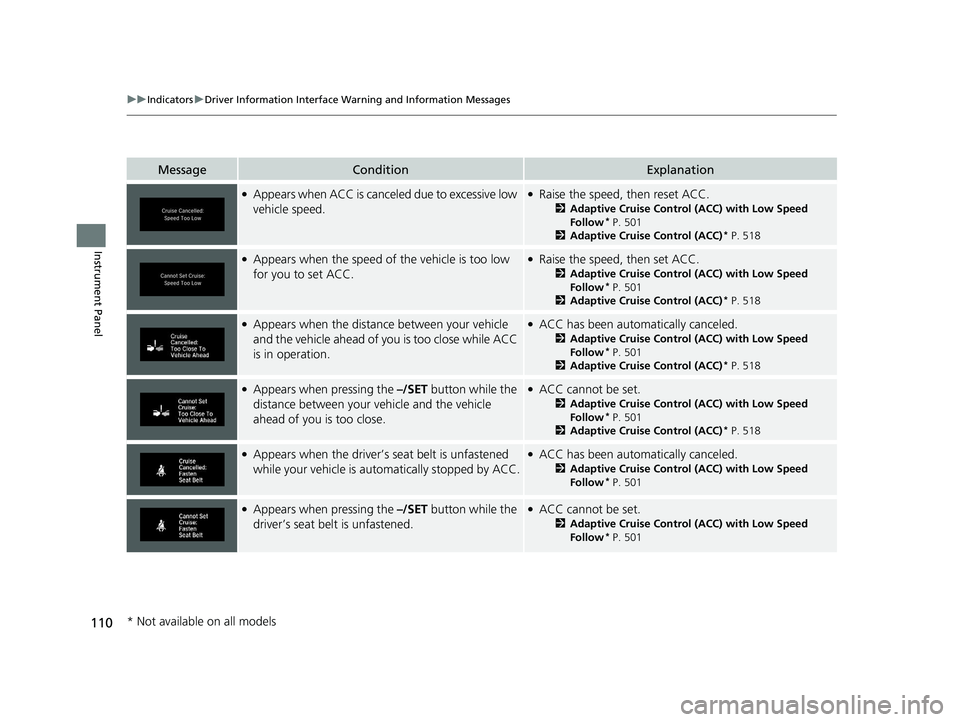

Page 112 of 711

110
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when ACC is canceled due to excessive low
vehicle speed.●Raise the speed, then reset ACC.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 501
2 Adaptive Cruise Control (ACC)* P. 518
●Appears when the speed of the vehicle is too low
for you to set ACC.●Raise the speed, then set ACC.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 501
2 Adaptive Cruise Control (ACC)* P. 518
●Appears when the distance between your vehicle
and the vehicle ahead of you is too close while ACC
is in operation.●ACC has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 501
2 Adaptive Cruise Control (ACC)* P. 518
●Appears when pressing the –/SET button while the
distance between your vehicle and the vehicle
ahead of you is too close.●ACC cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 501
2 Adaptive Cruise Control (ACC)* P. 518
●Appears when the driver’s seat belt is unfastened
while your vehicle is au tomatically stopped by ACC.●ACC has been automatically canceled.
2Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 501
●Appears when pressing the –/SET button while the
driver’s seat belt is unfastened.●ACC cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 501
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 110 ページ 2020年8月28日 金曜日 午後1時 48分

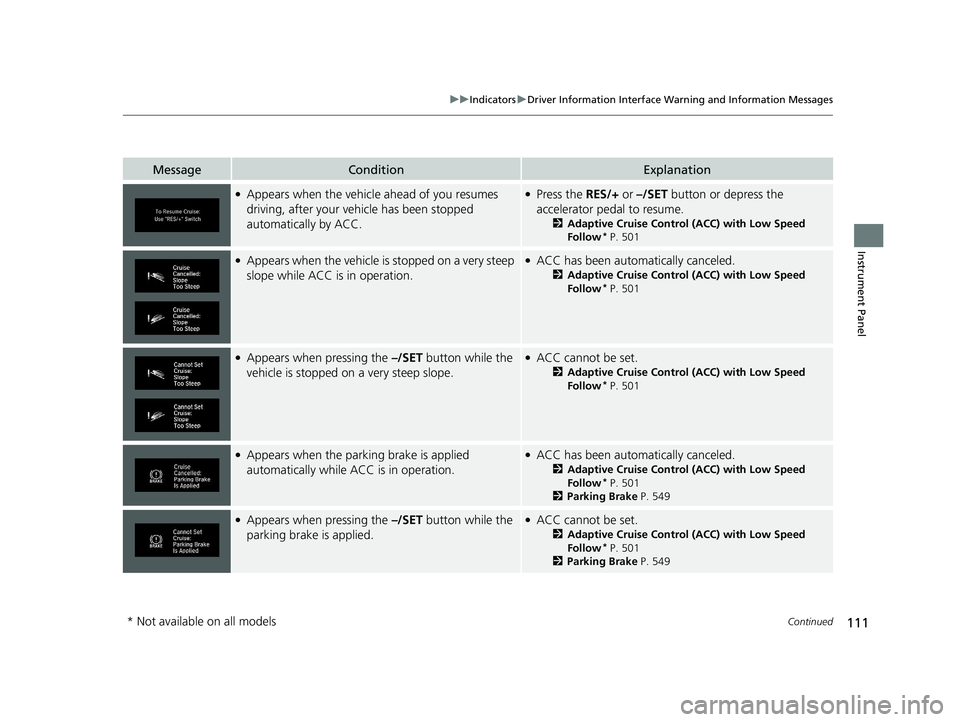

Page 113 of 711

111
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the vehicle ahead of you resumes
driving, after your vehicle has been stopped
automatically by ACC.●Press the RES/+ or –/SET button or depress the
accelerator pedal to resume.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 501
●Appears when the vehicle is stopped on a very steep
slope while ACC is in operation.●ACC has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 501
●Appears when pressing the –/SET button while the
vehicle is stopped on a very steep slope.●ACC cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 501
●Appears when the parking brake is applied
automatically while ACC is in operation.●ACC has been automatically canceled.
2Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 501
2 Parking Brake P. 549
●Appears when pressing the –/SET button while the
parking brake is applied.●ACC cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 501
2 Parking Brake P. 549
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 111 ページ 2020年8月28日 金曜日 午後1時 48分

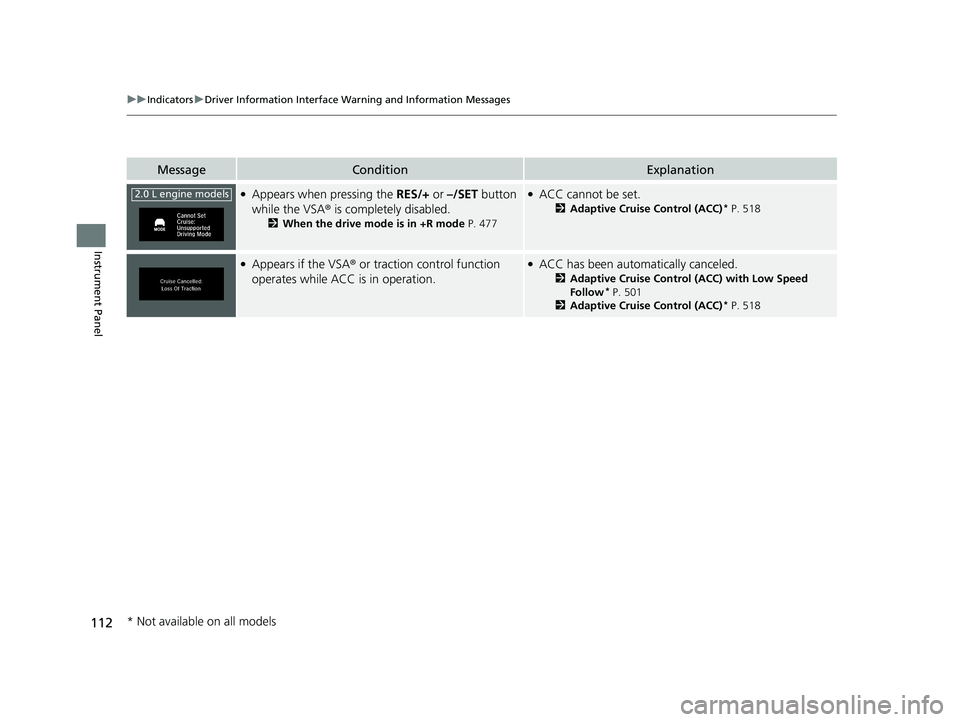

Page 114 of 711

112
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when pressing the RES/+ or –/SET button
while the VSA ® is completely disabled.
2When the drive mode is in +R mode P. 477
●ACC cannot be set.
2Adaptive Cruise Control (ACC)* P. 518
●Appears if the VSA ® or traction control function
operates while ACC is in operation.●ACC has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 501
2 Adaptive Cruise Control (ACC)* P. 518
2.0 L engine models
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 112 ページ 2020年8月28日 金曜日 午後1時 48分
Page 115 of 711

113
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the shift lever is moved into any
position other than
( D or (S while ACC is in
operation.
●ACC has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 501
●Appears when pressing the –/SET button while the
shift lever is in any position other than
( D or (S.
●ACC cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 501
●Appears when pressing the –/SET button while the
vehicle is moving and the brake pedal is depressed.●ACC cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 501
2 Adaptive Cruise Control (ACC)* P. 518
Continuously
variable
transmission models
Continuously
variable
transmission models
Continuously
variable
transmission models
Manual transmission
models
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 113 ページ 2020年8月28日 金曜日 午後1時 48分
Page 116 of 711

114
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears if ACC is canceled while your vehicle is
automatically stopped by ACC.●Immediately depress the brake pedal.
●Appears when pressing the RES/+ or –/SET button
while the vehicle is moving and the clutch pedal is
depressed.●ACC cannot be set.
2 Adaptive Cruise Control (ACC)* P. 518
●Appears when the clutch pedal is depressed while
ACC is in operation.●ACC has been automatically canceled.
2 Adaptive Cruise Control (ACC)* P. 518
Continuously
variable
transmission models
Manual transmission
models
Manual transmission
models
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 114 ページ 2020年8月28日 金曜日 午後1時 48分

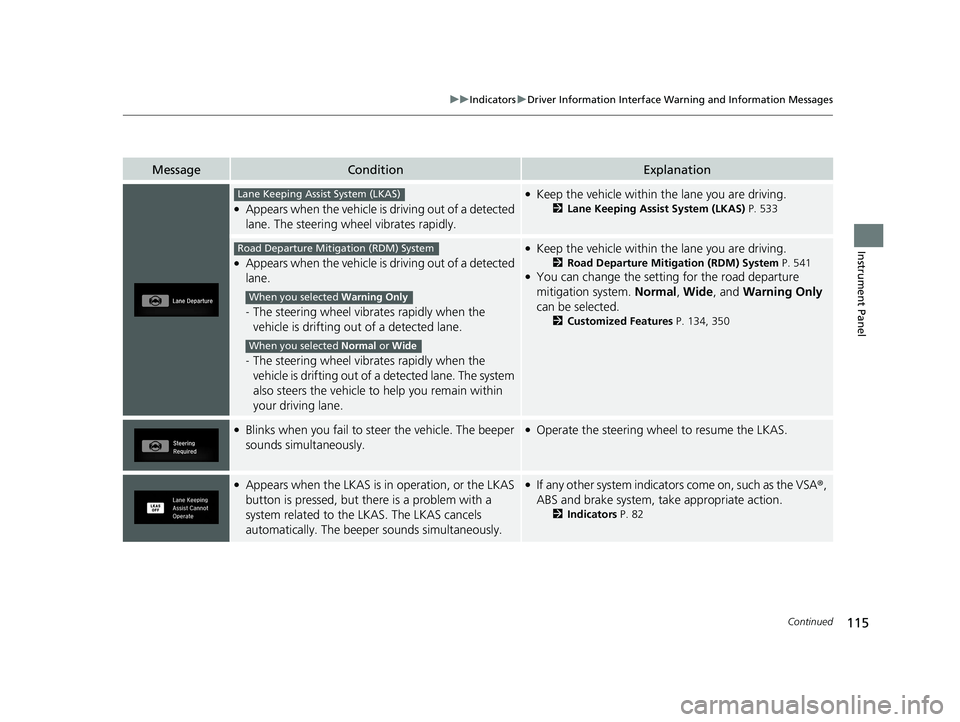

Page 117 of 711

115
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the vehicle is driving out of a detected
lane. The steering wheel vibrates rapidly.
●Keep the vehicle within the lane you are driving.
2Lane Keeping Assist System (LKAS) P. 533
●Appears when the vehicle is driving out of a detected
lane.
-The steering wheel vibrates rapidly when the
vehicle is drifting out of a detected lane.
- The steering wheel vibrates rapidly when the
vehicle is drifting out of a detected lane. The system
also steers the vehicle to help you remain within
your driving lane.
●Keep the vehicle within the lane you are driving.
2 Road Departure Mitigation (RDM) System P. 541●You can change the setting for the road departure
mitigation system. Normal, Wide , and Warning Only
can be selected.
2 Customized Features P. 134, 350
●Blinks when you fail to steer the vehicle. The beeper
sounds simultaneously.●Operate the steering wheel to resume the LKAS.
●Appears when the LKAS is in operation, or the LKAS
button is pressed, but there is a problem with a
system related to the LKAS. The LKAS cancels
automatically. The beeper sounds simultaneously.●If any other system indicators come on, such as the VSA®,
ABS and brake system, take appropriate action.
2 Indicators P. 82
Lane Keeping Assist System (LKAS)
Road Departure Mitigation (RDM) System
When you selected Warning Only
When you selected Normal or Wide
21 CIVIC 5D HUM-31TGG6400_01.book 115 ページ 2020年8月28日 金曜日 午後1時 48分
Page 118 of 711

116
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when you open the driver’s door while the
ignition key is in ACCESSORY
(q.
●Turn the ignition switch to LOCK (0, then remove the
key.
●Appears when you open the driver’s door while the
ignition key is in LOCK
(0.
●Remove the key from the ignition switch.
●Appears when the igniti on key is turned to
ACCESSORY
(q from ON (w. (The driver’s door is
closed.)—
Models without smart entry system
21 CIVIC 5D HUM-31TGG6400_01.book 116 ページ 2020年8月28日 金曜日 午後1時 48分
Page 119 of 711

117
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears after you set the power mode to
ACCESSORY or ON.
●Appears after you unlock and open the driver’s
door.2 Starting the Engine P. 454
●Appears when the steering wheel is locked.●Move the steering wheel left and right while pressing the
ENGINE START/STOP button.
Models with smart entry system
Continuously
variable
transmission models
Manual transmission
models
Canadian models
Canadian models
21 CIVIC 5D HUM-31TGG6400_01.book 117 ページ 2020年8月28日 金曜日 午後1時 48分
Page 120 of 711

118
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears if you push the ENGINE START/STOP
button to turn the engine off without the shift lever
in
(P.
●Move the shift lever to (P. The power mode changes to
VEHICLE OFF.
●Move the shift lever to (P, then press the ENGINE
START/STOP button twice.
●Appears when the power mode is in ACCESSORY.
—
●Appears after the driver’s door is opened when the
power mode is in ACCESSORY.●Change the power mode to VEHICLE OFF.
2 ENGINE START/STOP Button* P. 172
●Appears when you close the door with the power
mode in ON without the smart entry remote inside
the vehicle.●Disappears when you bring the smart entry remote back
inside the vehicle and close the door.
2Smart Entry Remote Reminder P. 174
●Appears when the smart entry remote battery
becomes weak.
2Replacing the Button Battery P. 622
Continuously
variable
transmission modelsU.S. models
Canadian models
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 118 ページ 2020年8月28日 金曜日 午後1時 48分
